Description

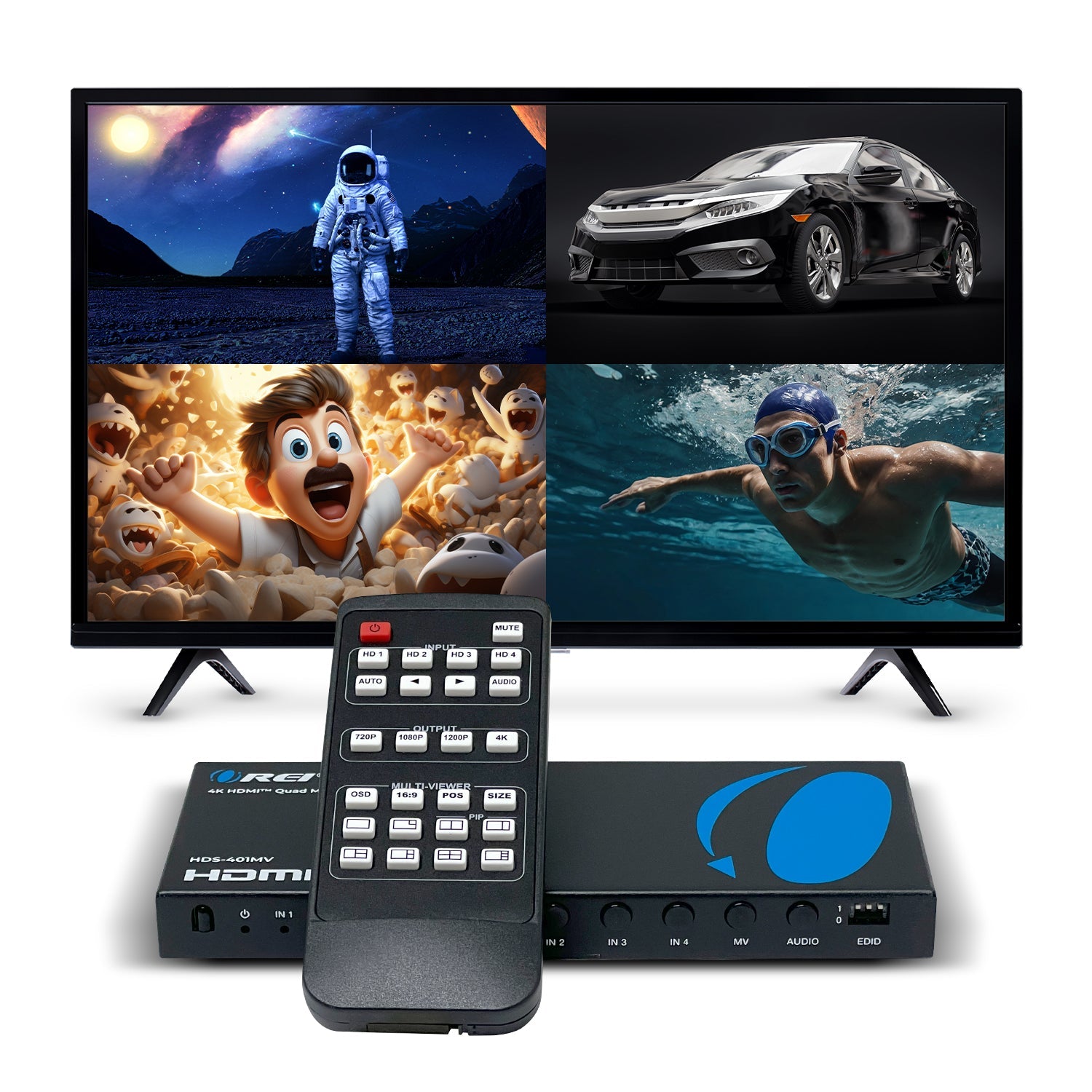

OREI HDS-401MV: 4K HDMI Quad Multi-viewer Switch 4x1 with VGA
Key Features:
- HDCP 1.4 Compliant – Ensures compatibility with protected HDMI content.
- Supports Video Resolutions up to 4K@30Hz – Delivers clear, detailed video across all input sources.
- 10.2Gbps Video Bandwidth – Maintains signal quality for high-resolution HDMI input and output.

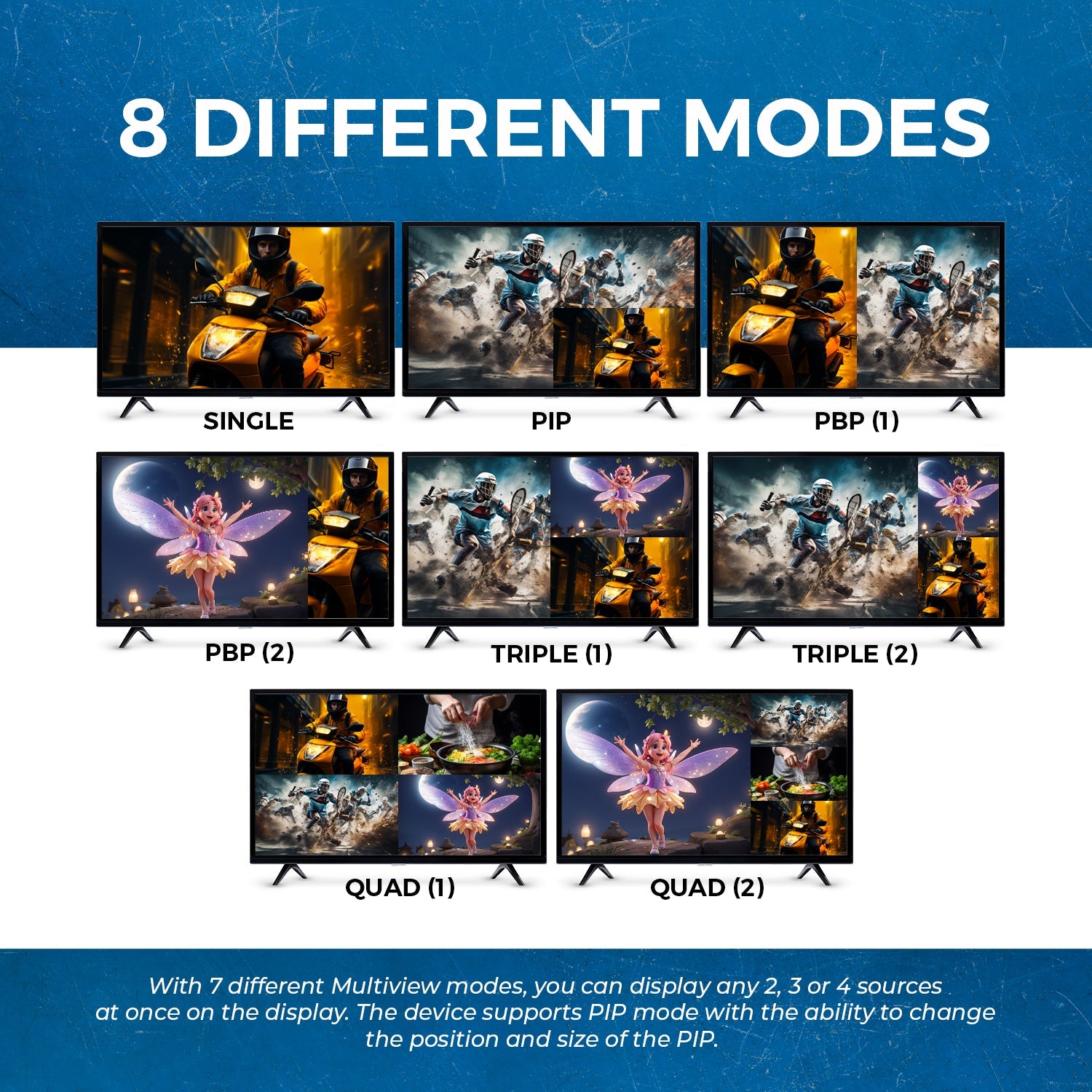

- 7 Multiview Display Modes – Offers flexible on-screen arrangements including full-screen, dual, quad, and PiP layouts.
- Seamless Switching in Single-View Mode – Allows for instant transitions between inputs.
- Analog Audio Output – Provides 3.5mm audio extraction for external speaker or amplifier integration.
- Remote-Controlled Audio Selection – Choose the active audio source in Multiview mode using the included remote.
- Automatic Input Switching – Detects and switches to active sources automatically.
- RS-232 Control Support – Enables integration with third-party control systems for advanced management.
- Compact Form Factor – Easy to install and ideal for both space-constrained and professional AV environments.

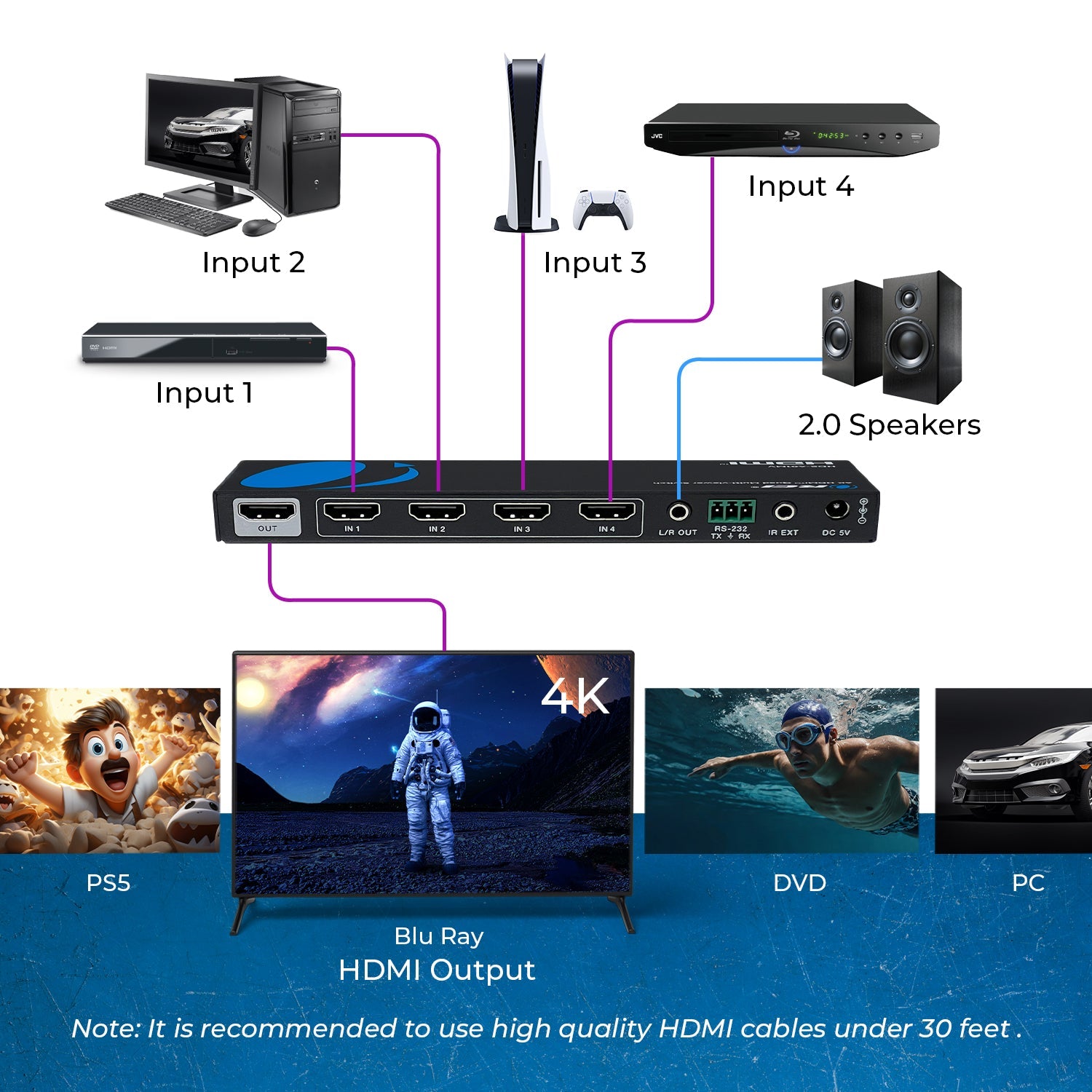

The HDS-401MV is a compact 4x1 Quad Multiviewer HDMI switch designed to display four input sources on a single screen or switch between them seamlessly. Supporting resolutions up to 4K@30Hz with 10.2Gbps video bandwidth, this unit delivers sharp, high-quality visuals for both home entertainment and commercial AV installations.
Compliant with HDMI 1.4 and HDCP 1.4 standards, the HDS-401MV offers seven Multiview display modes, allowing flexible viewing arrangements including full-screen, dual-view, quad-view, and picture-in-picture layouts.
It features seamless switching in single-view mode, automatic input detection, and a 3.5mm analog audio output for audio extraction. Audio source selection is also supported via remote in Multiview mode.
With support for RS-232 control, a user-friendly interface, and a compact design, the HDS-401MV provides a versatile and reliable solution for dynamic video monitoring, control rooms, classrooms, and multimedia setups.
[shortdes]
- 4 In 1 Out Quad Multiviewer
- 4 different Multiview modes
- Analog output for audio extraction
[/shortdes]
[tab]

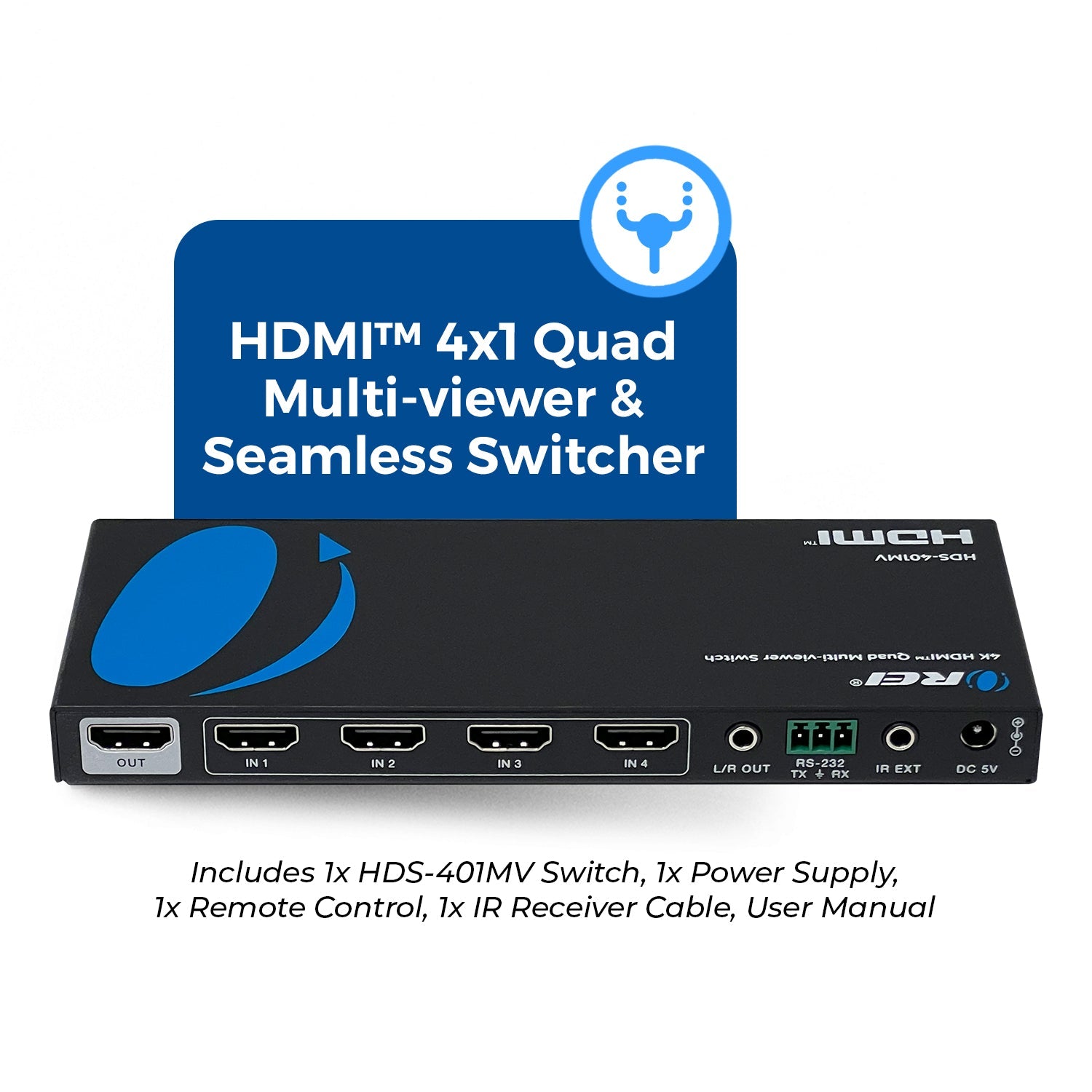

CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: |
1 × HDMI [Type A, 19-pin female] |
|
| 1 × L/R [3.5mm Stereo Jack] | ||
| 1 × VGA [VGA-D] | ||
| CONTROL: | 1 × Micro USB [Update port] |
PACKAGE CONTENTS
| 1x HDS-401MV |

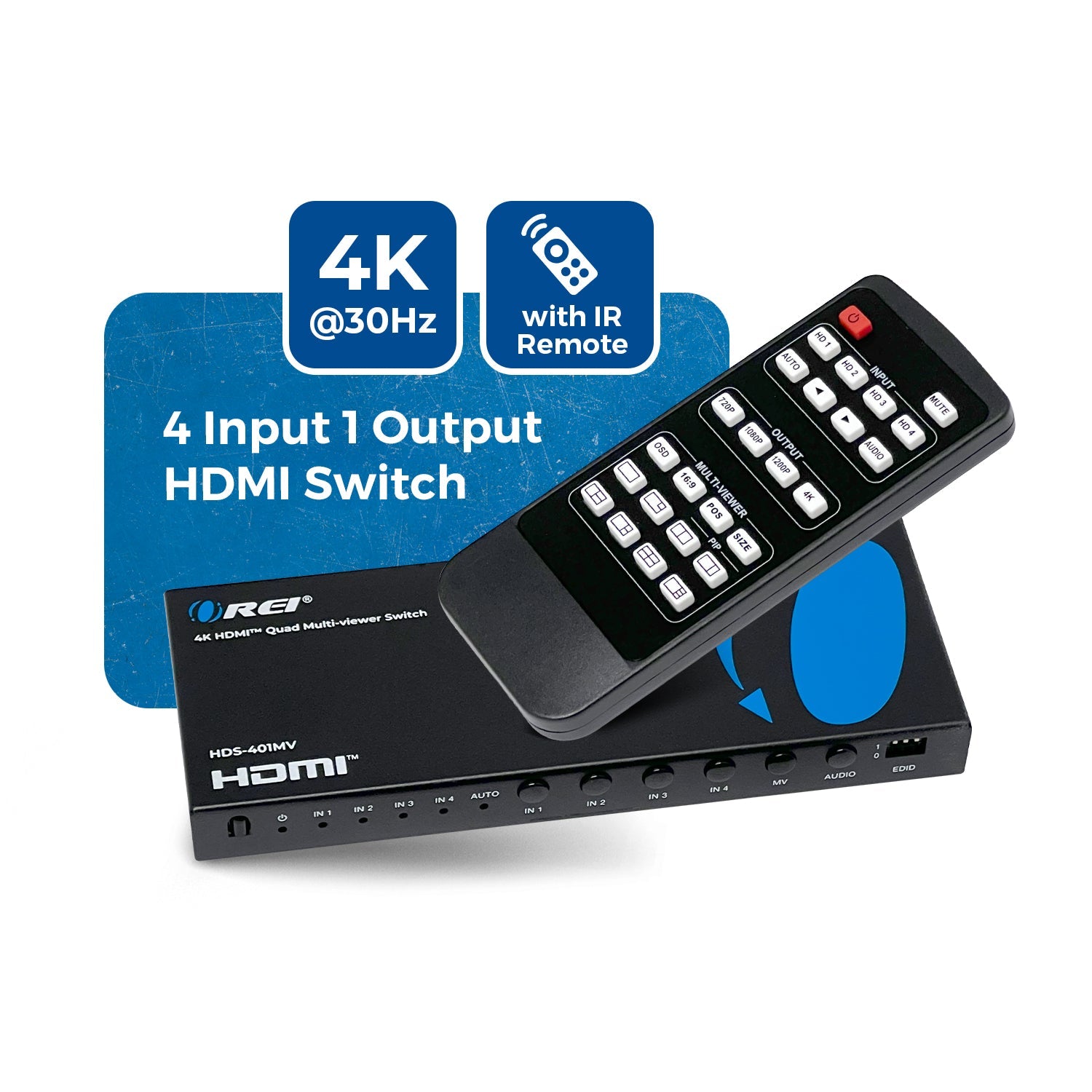

| 1x Remote Control |
| 2x Mounting brackets |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2 Gbps |
| Video Resolutions: | Up to 4K@30Hz |
ADDITIONAL FEATURES
| Downscale: | No |
| RS-232: | Yes |
| IR Remote Control: | Yes |
| Fast Seamless Switching: | Yes |
| Multiview / PIP Support: | Yes |
| EDID Management: | Yes |
| Audio Extraction: | 3.5mm / Analog |
| HDMI Support: | 1.4b |
| HDCP Support: | 1.4 |
| OSD Menu Navigation: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2
|
| Analog Audio Formats: |
LPCM 2
|
COMPLIANCES
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 7.68W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
DIMENSIONS & WEIGHT
| Length: | 185mm / 7.28in | |
| Width: | 128mm / 5.04in | |
| Height: | 20mm / 0.79in | |
| Weight: | 595g / 1.31lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 32 - 104°F / 0 - 40°C |
| Storage Temperature: | -4 - 140°F / -20 - 60°C |
| Operating Humidity: | 20%~80% relative humidity, non-condensing |
| Storage Humidity: | 10%~90% relative humidity, non-condensing |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
