Description
UHD14-EX115-K: 4K 1x4 HDMI Extender Splitter over CAT 6 up to 115 feet with one-way IR control
- HDMI 2.0b, HDCP 2.2 & 1.x Compliant – Ensures compatibility with modern and legacy content protection standards.
- 18Gbps Video Bandwidth – Supports high-resolution video without compression or degradation.
- Supports 4K2K@60Hz 4:4:4 – Delivers crystal-clear ultra-high-definition video output.
- HDR, HDR10+, HLG & Dolby Vision Support – Compatible with the latest high dynamic range formats for vibrant visuals.
- 7.1CH HD Audio Pass-through – Ensures immersive audio performance with full surround sound support.
- Audio De-embedding – Offers both digital and analog audio outputs for external speaker or amplifier integration.
- Long-Distance Signal Transmission – Extends HDMI signals up to 35m (4K@60Hz), 50m (4K@30Hz), or 60m (1080p@60Hz) over Cat6/6a/7 cable.

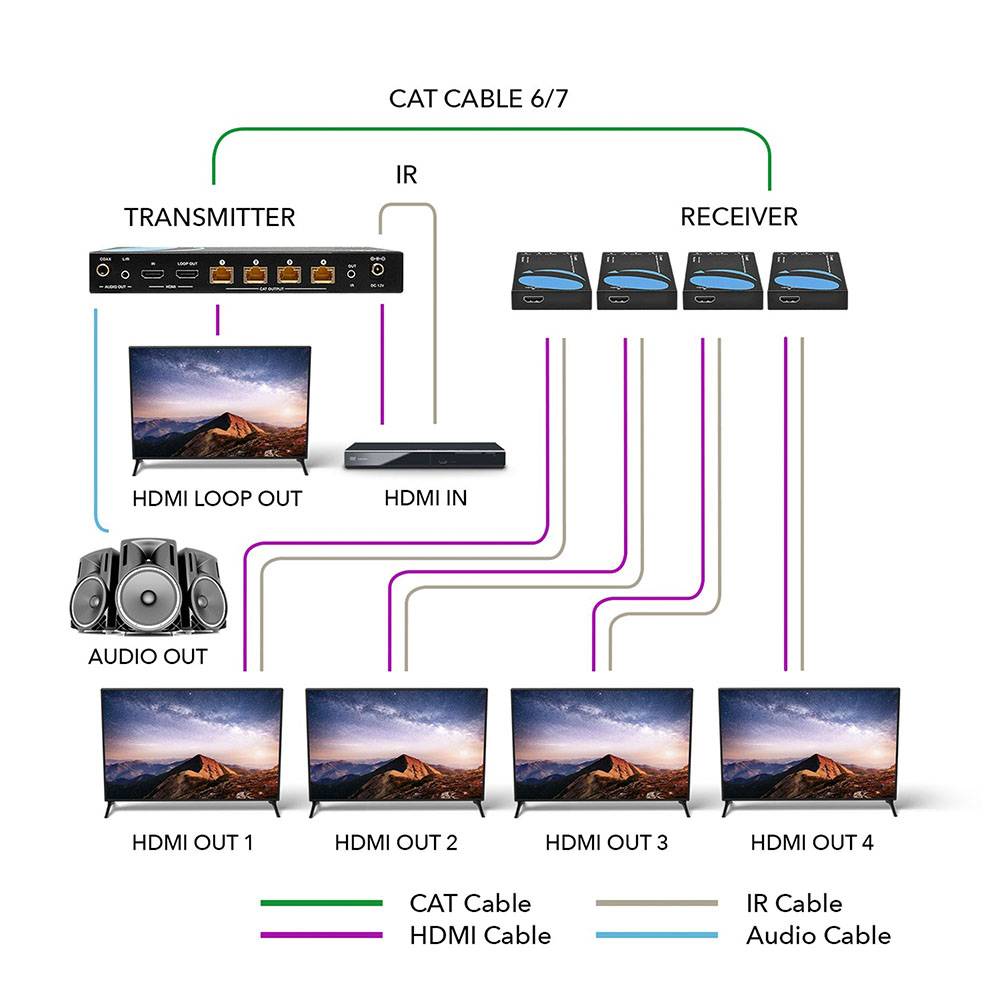

- 1 HDMI Input + 1 Loop Output + 4 CAT Outputs – Delivers flexible display configurations for various AV applications.

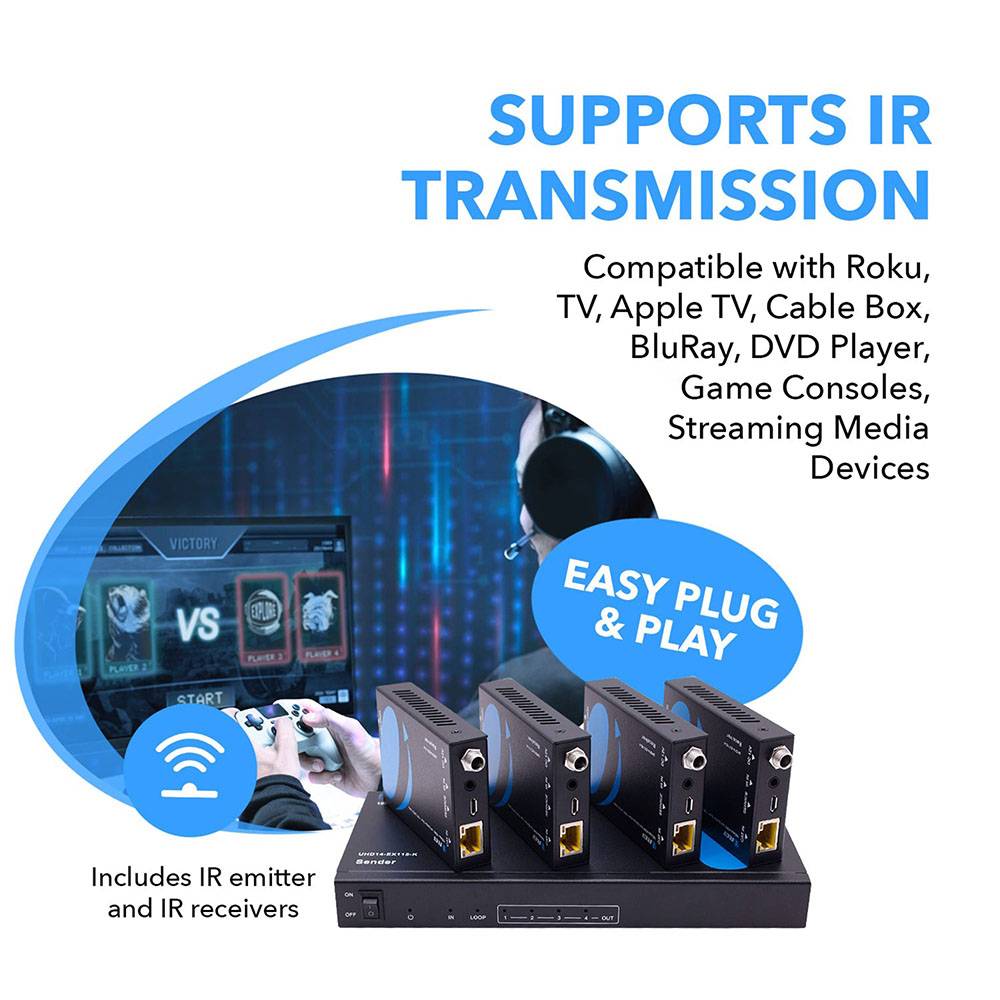

- One-Way IR Pass-through – Allows for remote control of the source device from the display location.
- Advanced EDID Management – Optimizes display compatibility and signal negotiation.

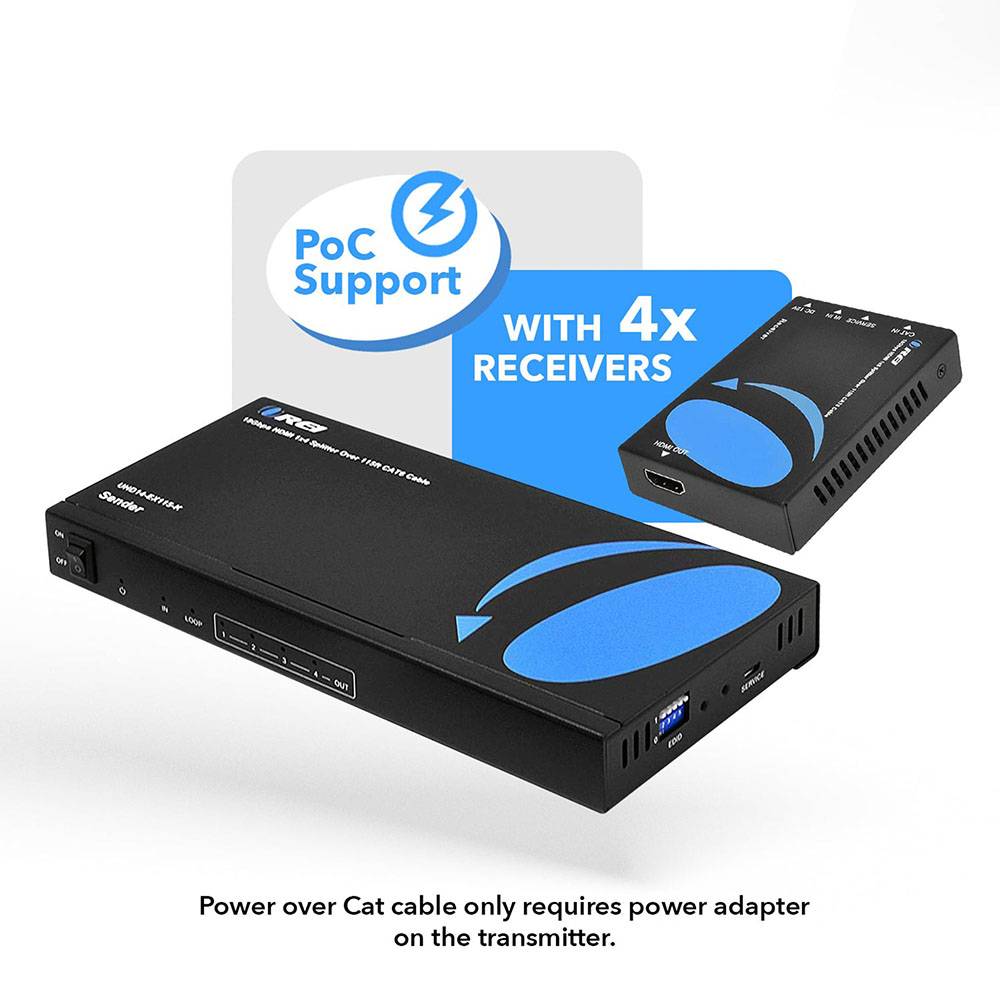

- Power over Cable (PoC) – Provides one-way PoC from transmitter to receiver, simplifying power requirements.
-
Compact Design – Ideal for discreet mounting and space-saving installations.

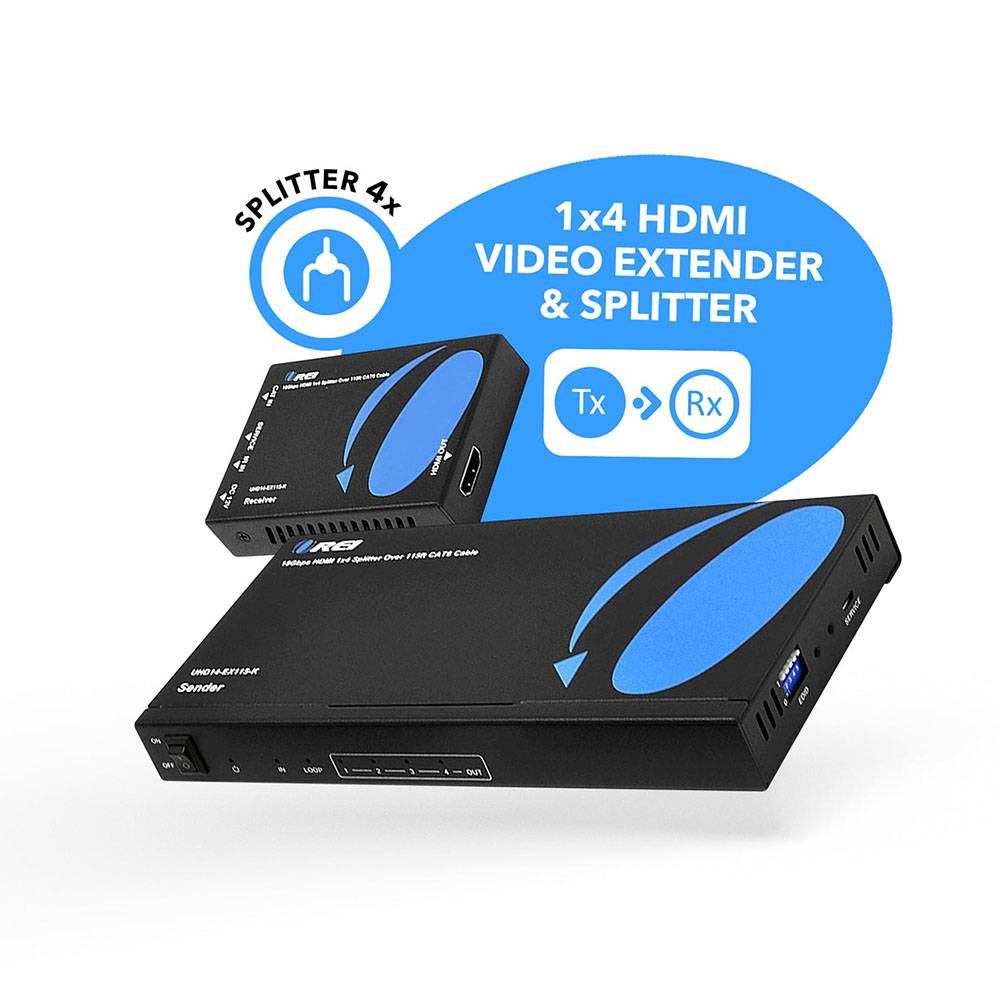

The 18Gbps HDMI 1x4 Splitter is a high-performance signal distribution solution designed to transmit one HDMI source to up to four remote displays with uncompromised quality.

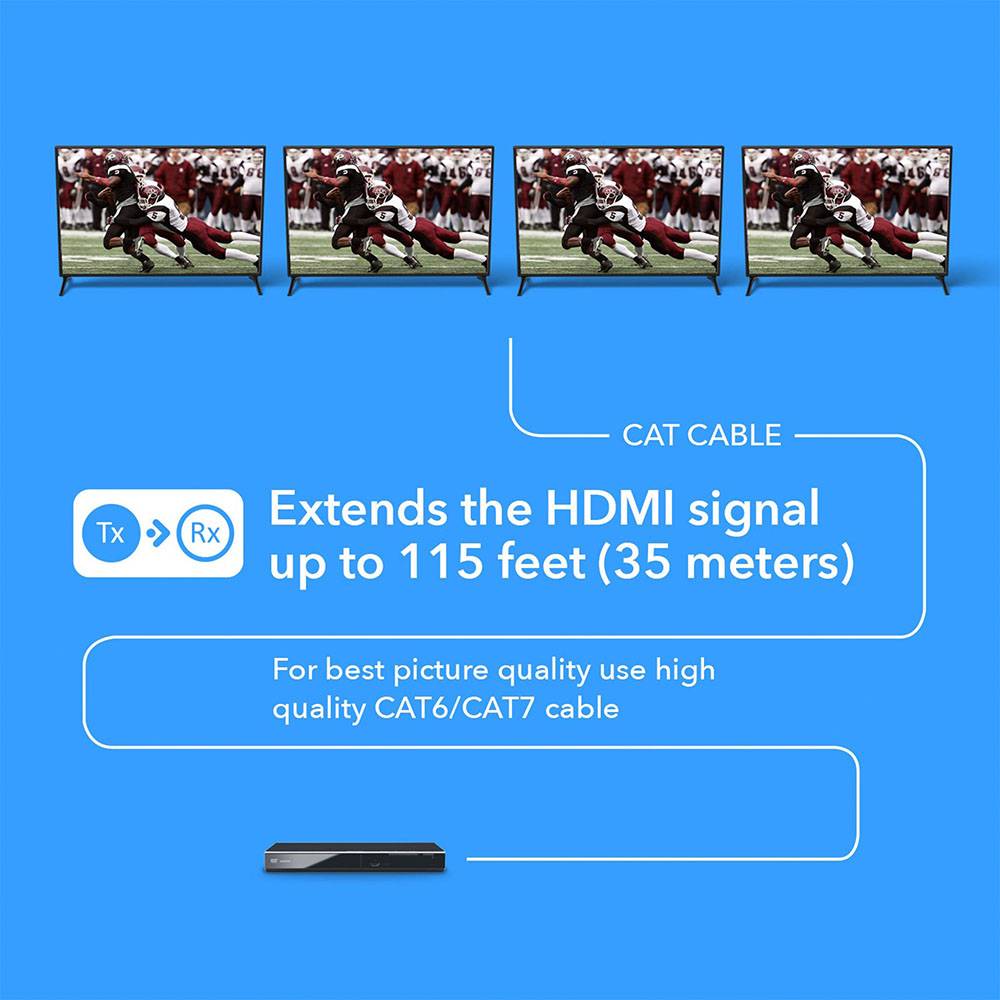

Utilizing a single Cat6/6a/7 cable per output, it extends 4K2K@60Hz signals up to 35 meters, 4K2K@30Hz up to 50 meters, and 1080p@60Hz up to 60 meters—delivering exceptional flexibility in AV system deployment.
Fully compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x standards, this splitter supports 18Gbps video bandwidth and advanced video formats including HDR, HDR10+, HLG, and Dolby Vision. It also features 7.1-channel HD audio pass-through and offers both digital and analog audio extraction.
Additional highlights include advanced EDID management, one-way IR pass-through for remote control functionality, and PoC (Power over Cable) support from transmitter to receiver. With its compact form factor and robust performance, the 18Gbps HDMI 1x4 Splitter is ideal for both residential and commercial AV installations requiring reliable multi-display output.
[shortdes]
- Power over Cable technology
- Video resolutions up to 4K@60Hz and 2k@60Hz
- One-way IR control
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 4 × CAT [RJ45, 8-pin female] | ||
| 1 × Coaxial [RCA] | ||
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × SERVICE [Micro USB, Update port] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS
| 1x Transmitter |
| 4x Receiver |
| 1x IR Blaster cable |
| 4x IR Receiver cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30HZ: | 115 Feet |
| 1080P@60Hz: | 196 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2k@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: | ❌ |
| CEC : | ❌ |
| Transmission Technology : | Ethernet |
| IR Control: | Yes, Uni-directional |
| PoC (Power over Cable): | ✅ |
| RS-232: | ❌ |
| USB Standard: | ❌ |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | No / ✅ / ✅ |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/5.7/7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Coaxial Audio Formats: | PCM2.0, Dolby Digital/Plus, DTS 2.0/5.1 |
| L/R Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 14W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/2.5A |

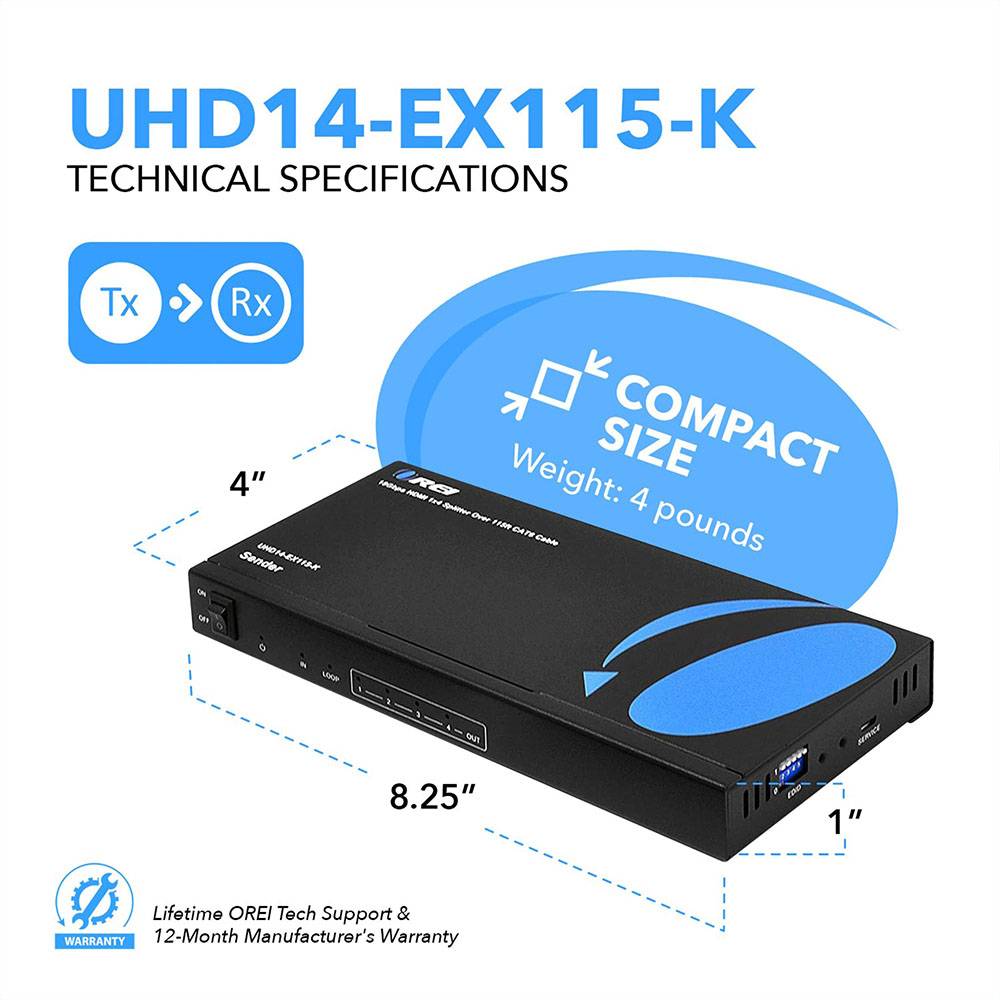

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 210mm / 8.27in |
| Width: | 100mm / 3.94in | |
| Height: | 25mm / 0.98in | |
| Weight: | 617g / 1.36lbs | |
| Receiver: | Length: | 88mm / 3.47in |
| Width: | 61mm / 2.4in | |
| Height: | 18mm / 0.71in | |
| Weight: | 155g / 5.47oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
