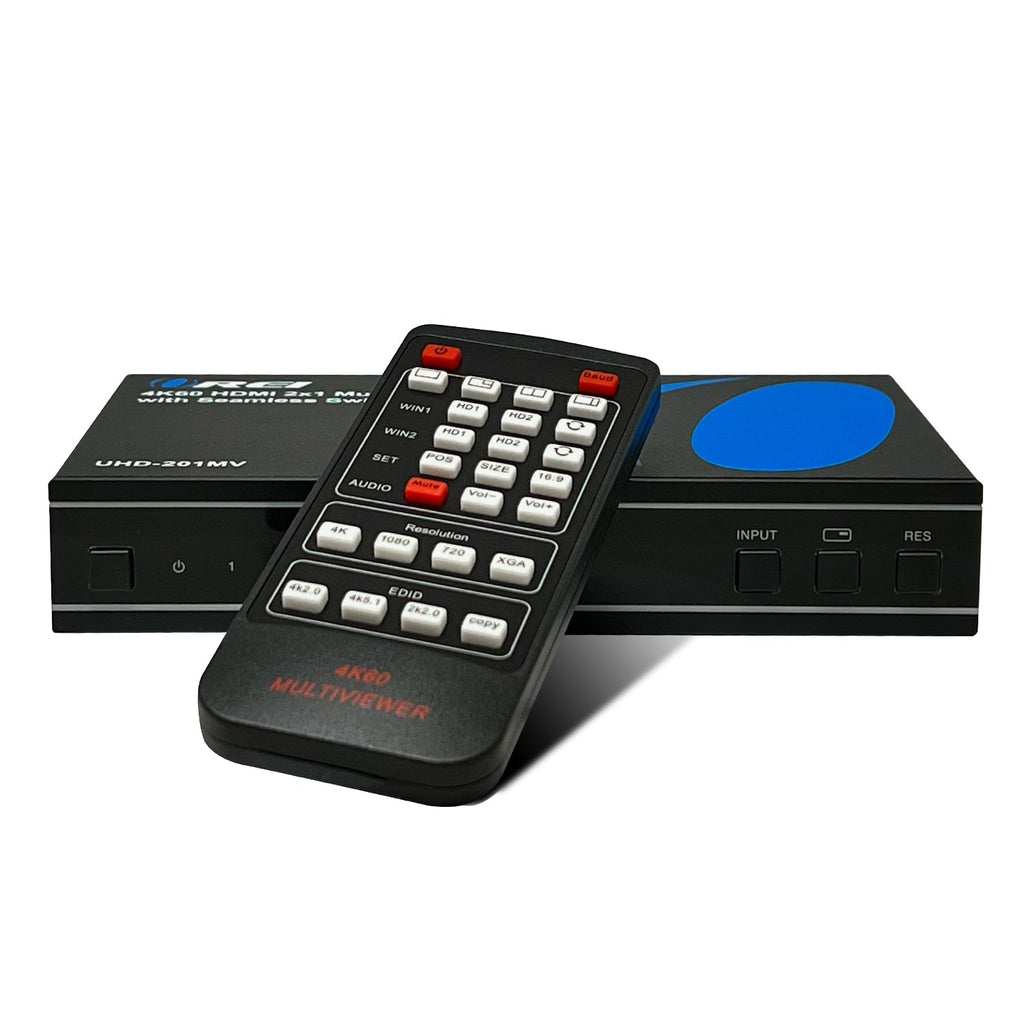

OREI UHD-201MV: ULTRA HD 4K@60Hz 2X1 HDMI SWITCH
-
HDMI 2.0b, HDCP 2.2 & HDCP 1.x Compliant – Supports a wide range of devices with up to 4K@60Hz 4:4:4 resolution.
-
18Gbps Video Bandwidth – Delivers seamless, high-performance signal transmission.
-
Flexible Multiview Display Modes – Offers SINGLE, PIP, and two PBP modes for dynamic source layout.
-
Seamless Input Switching – Instantly switch between sources without screen blackouts or lag.
-
Audio De-Embedding – Extract audio via optical and analog outputs for external audio systems.
-
7.1-Channel Audio Support – Compatible with LPCM, AC3, Dolby Digital Plus, DTS, DTS-HD, and more.
-
Independent Audio Selection & Volume Control – Customize audio routing separate from video source.
-
Advanced EDID Management – Ensures optimal handshake between connected devices.
-

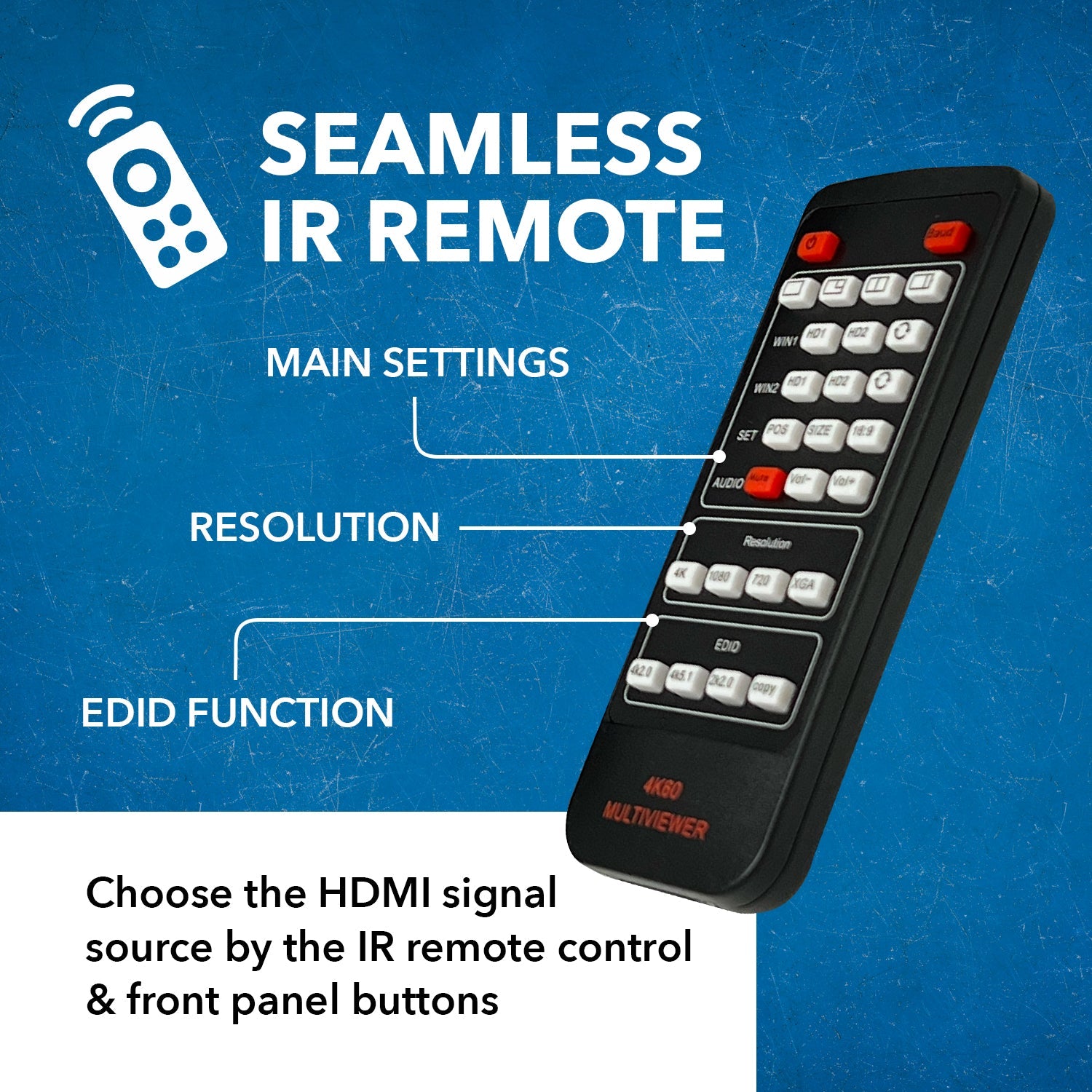

Multiple Control Options – Manage settings via front panel buttons, IR remote, or RS-232.
-
Compact & Versatile Design – Ideal for conference rooms, control centers, and multimedia installations.

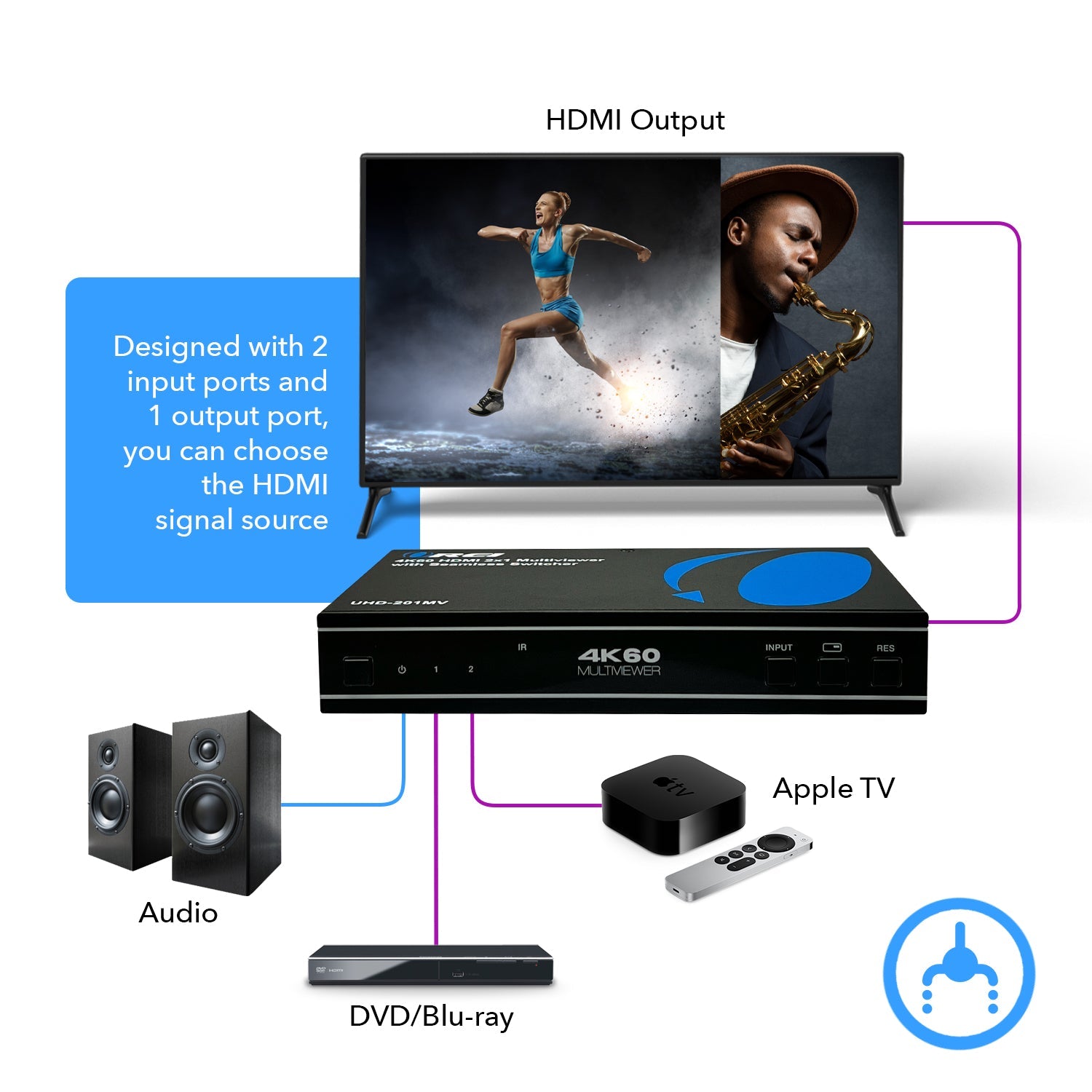

The 4K60 2x1 Multiviewer Seamless UHD Video Switcher is a high-performance tool designed to display and manage two HDMI video sources simultaneously on a single screen. Supporting resolutions up to 4K@60Hz 4:4:4, it delivers crisp and fluid visuals for even the most demanding applications.

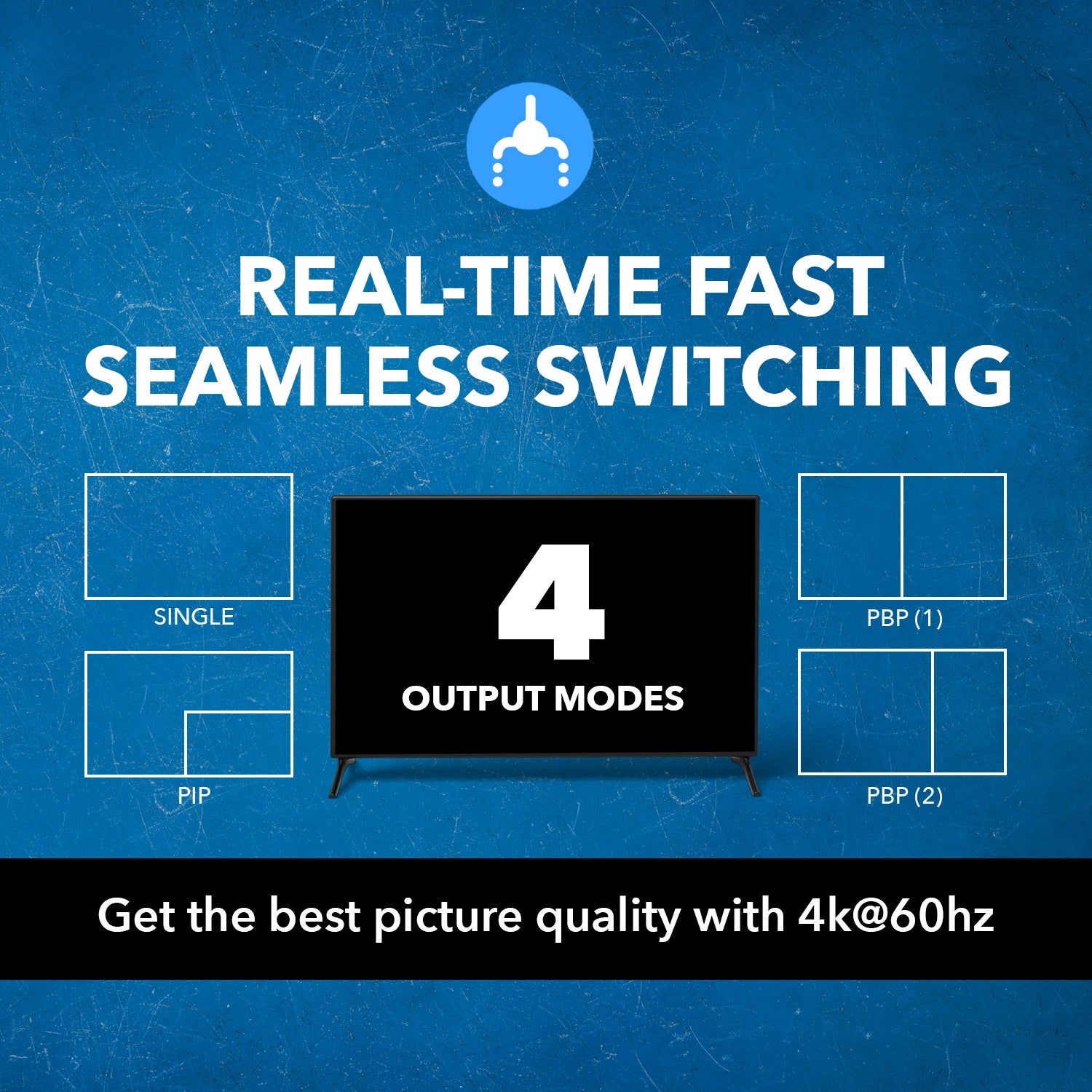

Users can choose from four display modes—SINGLE, Picture-in-Picture (PIP), or two Picture-by-Picture (PBP) layouts—making it ideal for comparison views, live monitoring, and interactive presentations. With seamless switching, transitions between sources are instant and uninterrupted.

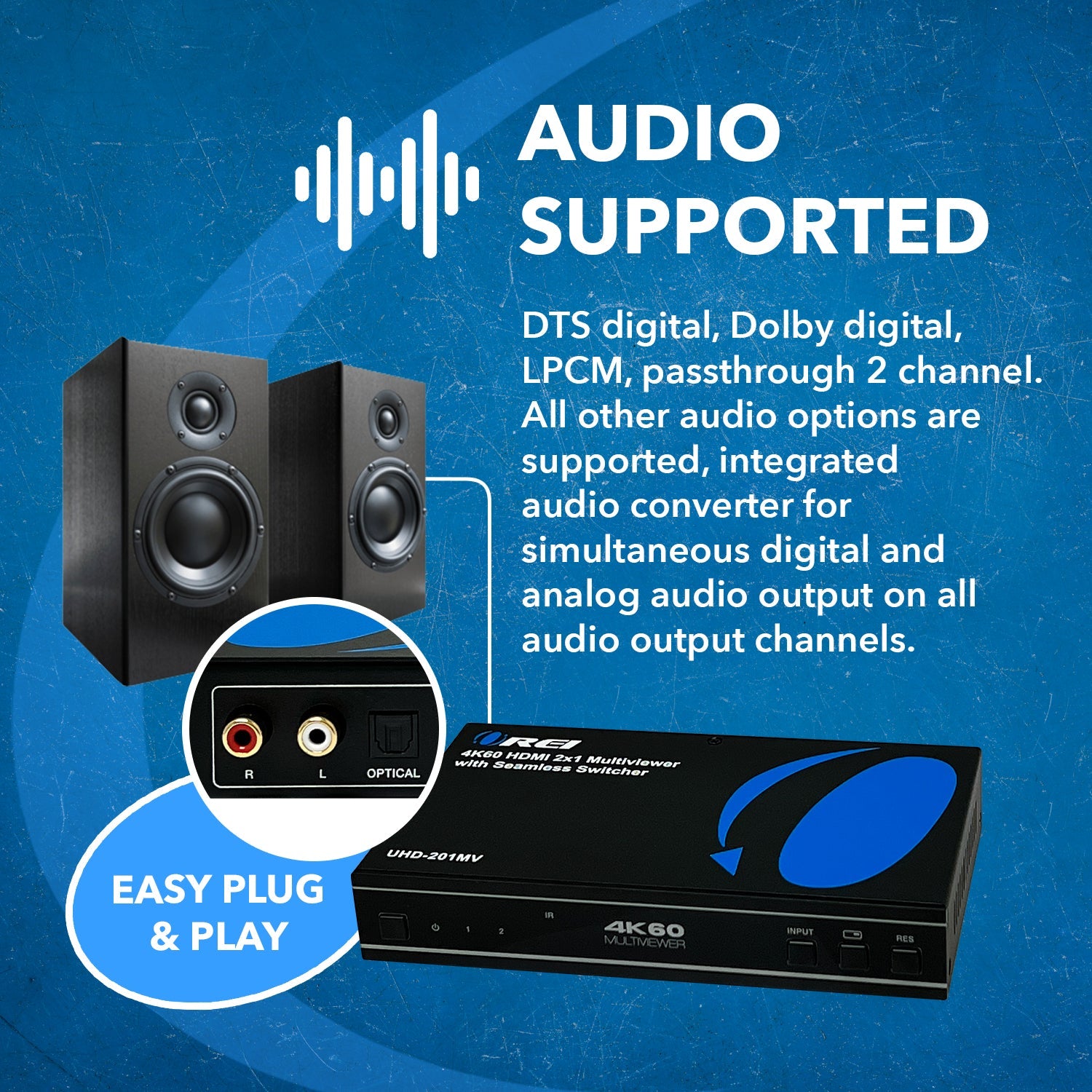

The device also features audio de-embedding, allowing you to extract and route audio separately via analog or optical outputs. It supports popular surround sound formats up to 7.1 channels, with independent audio source selection and volume control for added flexibility.
Manageable via front panel buttons, IR remote, or RS-232 commands, and housed in a compact chassis, this multiviewer switcher is perfect for professional AV environments, command centers, or high-end home entertainment setups.
[shortdes]
- 2 Inputs - 1 output HDMI Multiviewer switch
- Supports video resolution up to 4K@60Hz and 2K@60Hz
- Supports up to 4 display mode
- Supports EDID management
[/shortdes]
[tab]

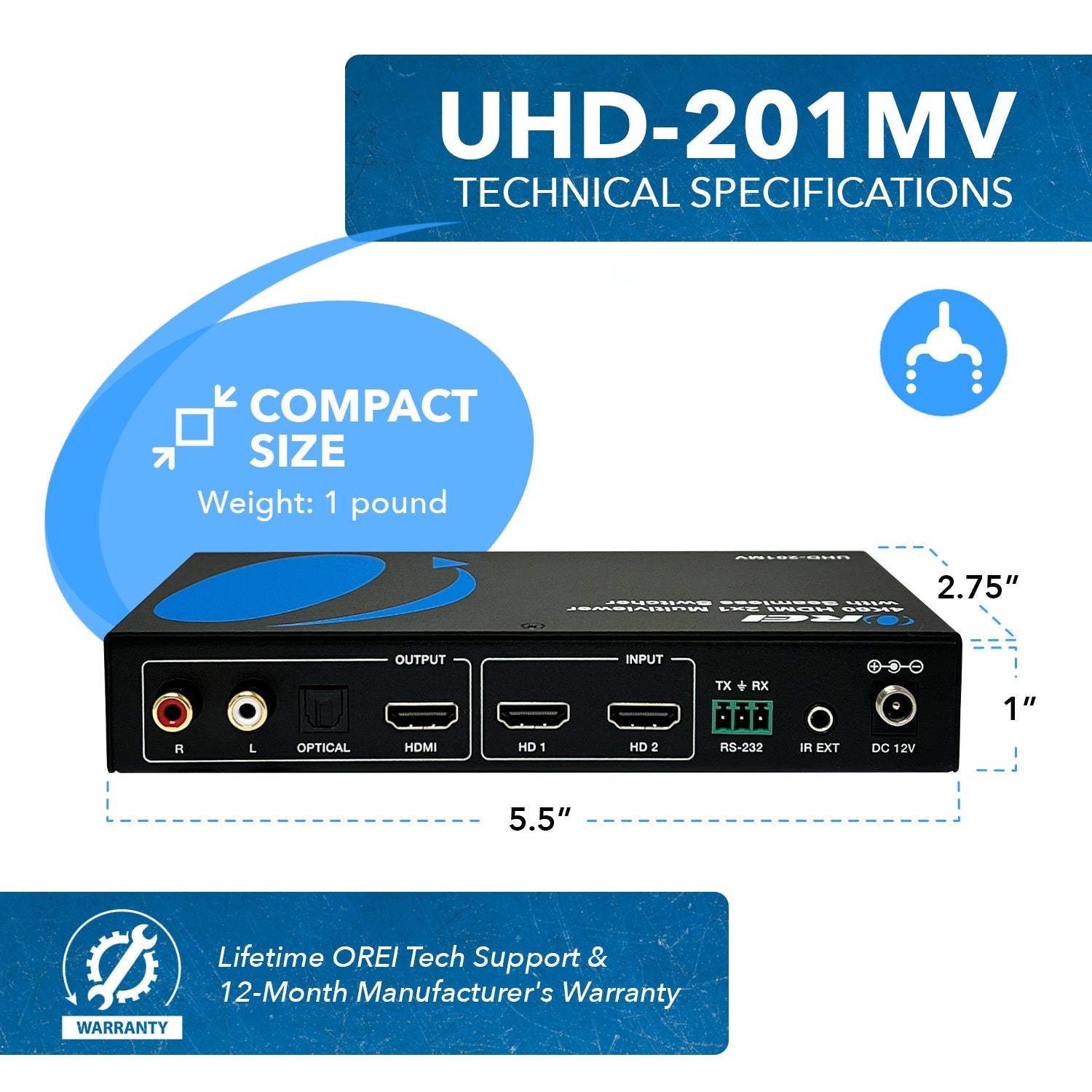

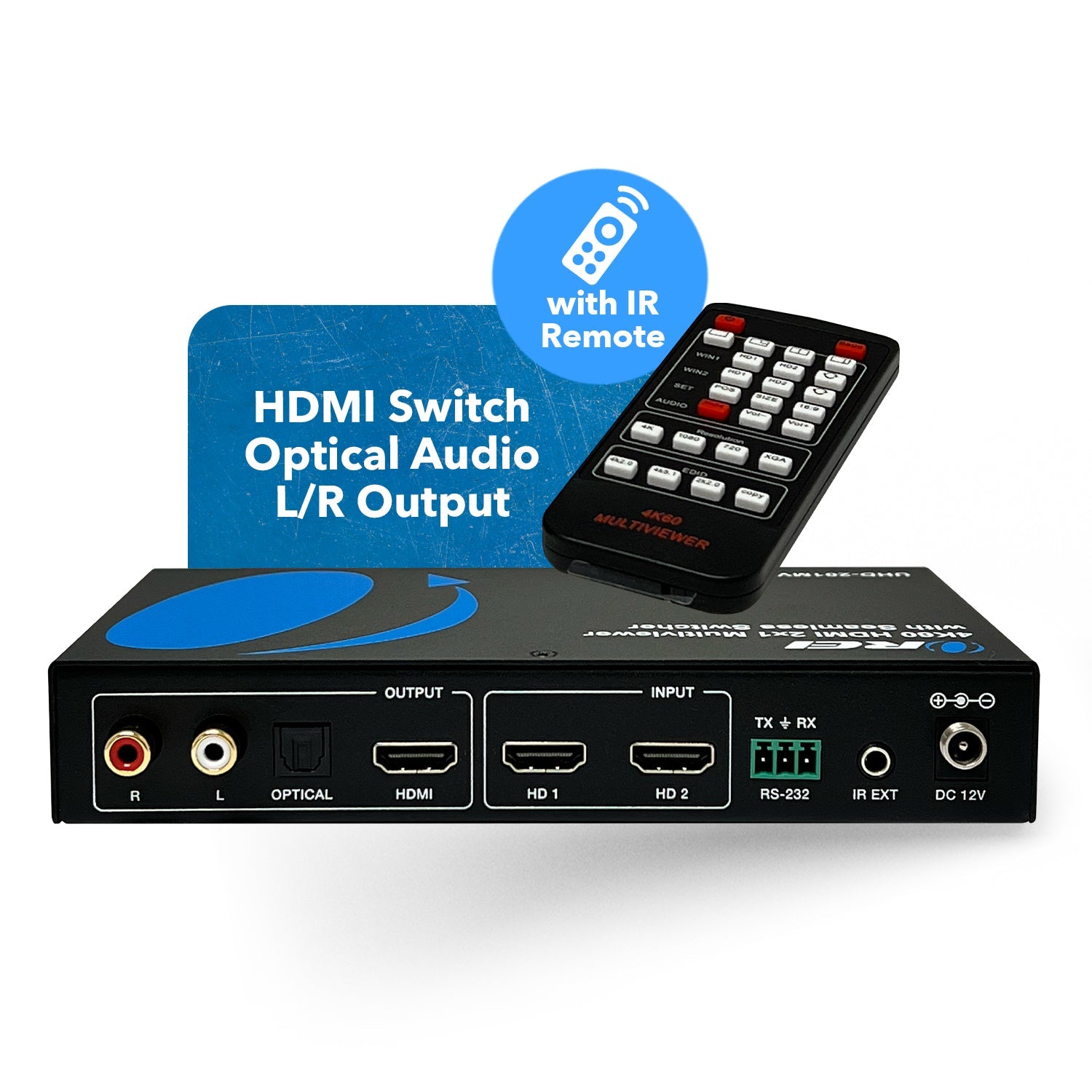

CONNECTIVITY
| Input: | 2×HDMI IN Type A [19-pin female] |
| Output: | 1×HDMI OUT Type A [19-pin female] |
| 1 x OPTICAL AUDIO OUT [S/PDIF] | |
| 1 x L/R AUDIO OUT RCA [Red & White] | |
| Control Ports: | 1x RS-232 [3pin-3.81mm phoenix connector] |
| 1x IR Ext [3.5mm Stereo Mini-jack] |
AUDIO AND VIDEO
| Video Bandwidth: | 18Gbps |
| Video Resolution: | Up to 4K2K@60 |
| Audio Formats: |
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; OPTICAL (SPDIF): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio. |
| Color Depth: | 8 bit |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
COMPLIANCE
| HDMI Compliance: | HDMI 2.0b |
| HDCP Compliance: | HDCP 1.x, 2.2 |
POWER
| Power Supply: |
Input: AC 100 - 240V 50/60Hz |
| Output: DC 12V/1A | |
| Power Consumption (Max): | 4.56W |
ADDITIONAL FEATURES
| Auto Switching: | ❌ |
| CEC: | ❌ |
| Audio Extraction: | Optical and RCA L/R |
| EDID Management: | ✅ |
| 8K@60Hz: | ❌ |
| HDR: | ❌ |
| IR Control: | ✅ |
| Plug & Play: | ❌ |
PROTECTION
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (Non-condensing) |
| ESD Protection: | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
DIMENSIONS & WEIGHT
| Height: | 30mm |
| Width: | 175mm |
| Depth: | 100mm |
| Weight: | 497g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |

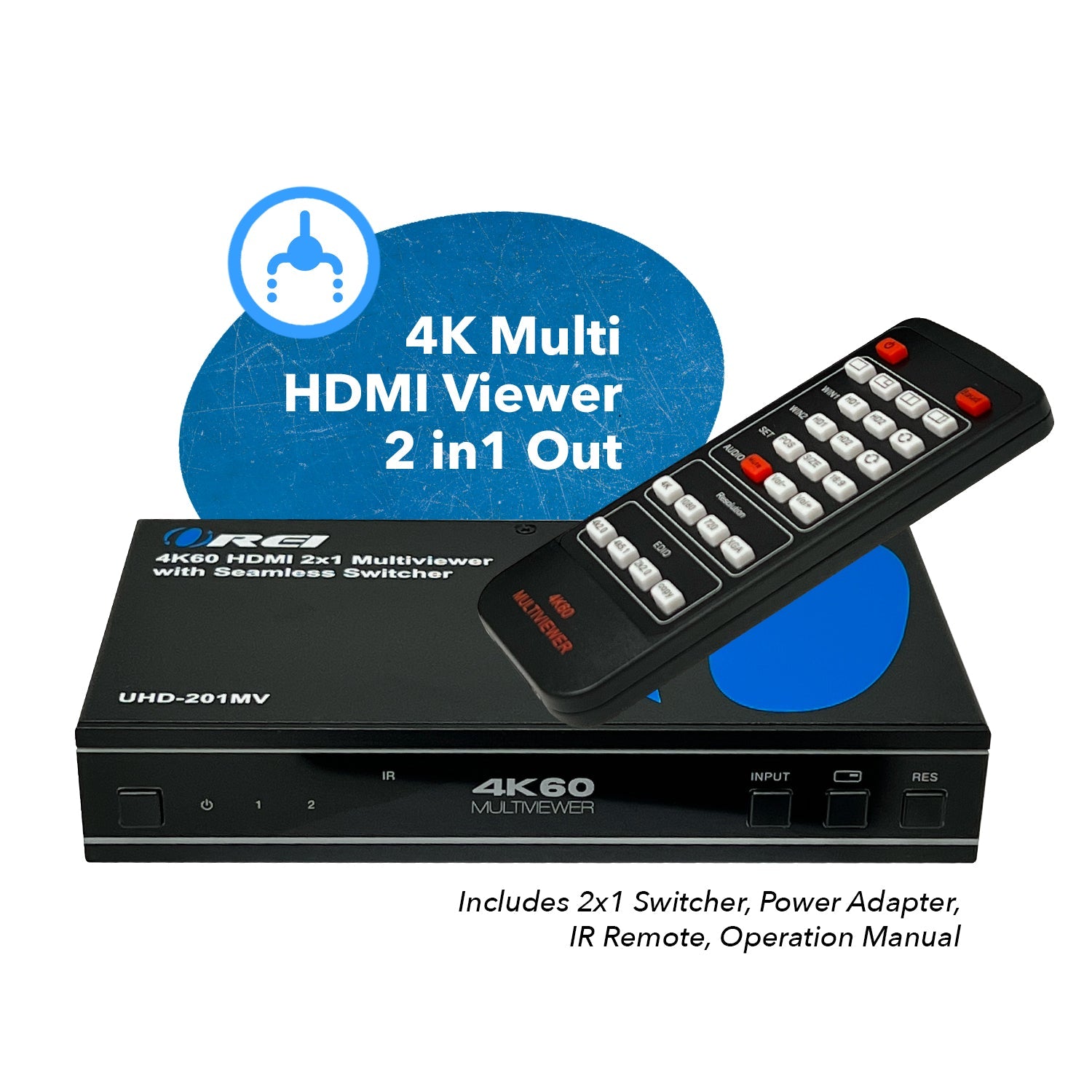

PACKAGE CONTENTS
| 1 × UHD-201MV 2x1 Multiviewer Switch |
| 1 × IR Remote |
| 1x 3pin-3.81mm Phoenix Connector (male) |
| 1x 38KHz IR Wideband Receiver Cable (1.5 meters) |
| 2x Mounting Ear |
| 4x Machine Screw (KM3*4) |
| 1x 12V/1A Locking Power Adapter |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-201MV
[/tab1]
