Description

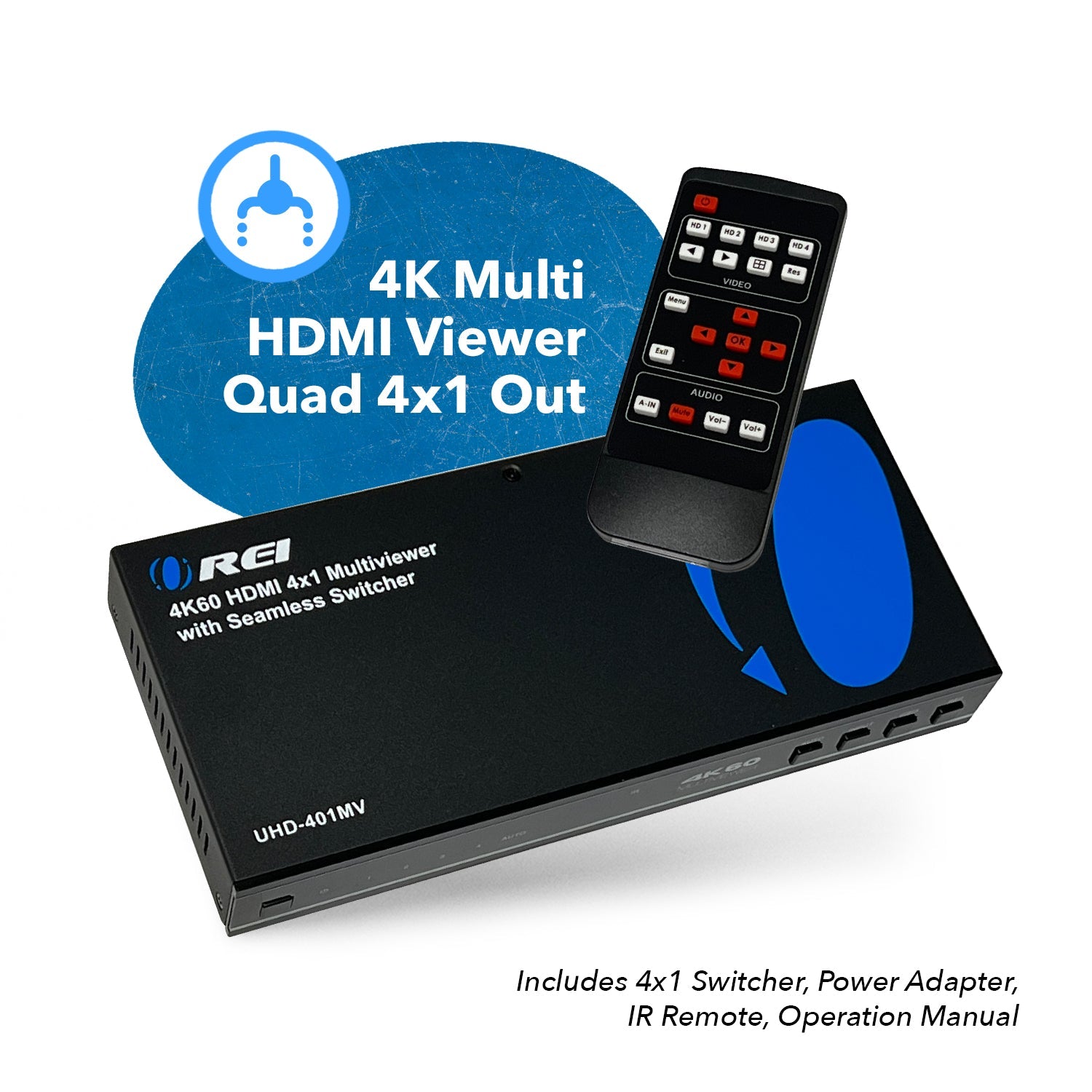

OREI UHD-401MV: ULTRA HD 4K@60Hz 4X1 HDMI SWITCH
-
HDCP 2.2 Compliant – Supports the latest digital content protection standards for secure signal transmission.
-
Supports Video Resolutions up to 4K@60Hz – Delivers ultra-clear visuals with high frame rates.
-
18Gbps Video Bandwidth – Ensures lossless, high-speed audio and video delivery.
-
Multi-format Audio Support – Compatible with LPCM, AC3, Dolby Digital Plus, DTS, and DTS-HD audio up to 7.1 channels.
-
Seamless Switching – Provides smooth transitions between sources with no signal drop or delay.
-

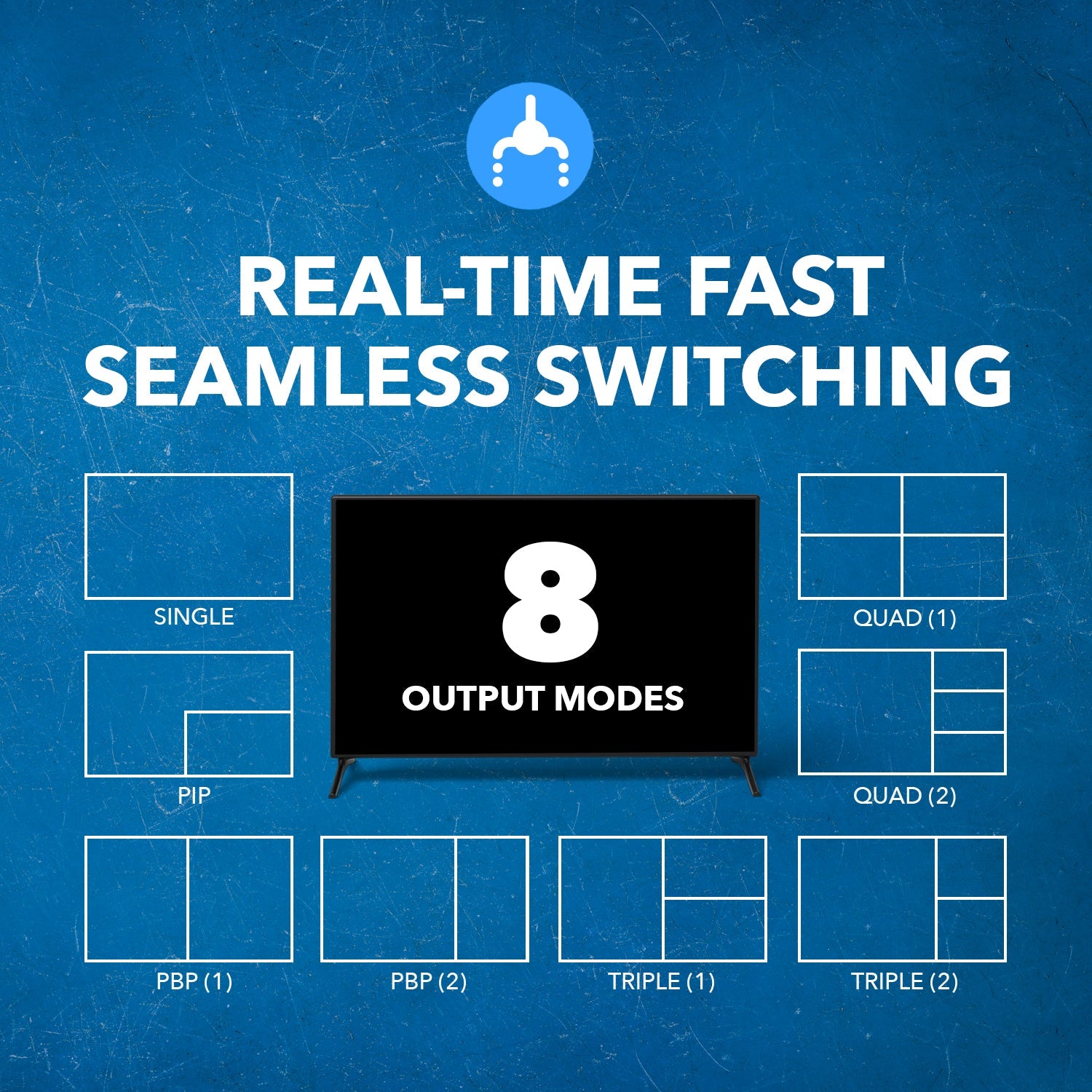

8 Display Modes – Offers flexible viewing layouts tailored to your content and setup.
-
Audio Extraction – Outputs audio through both analog and optical ports for external sound system integration.
-
Advanced EDID Management – Maximizes compatibility with connected displays and sources.
-

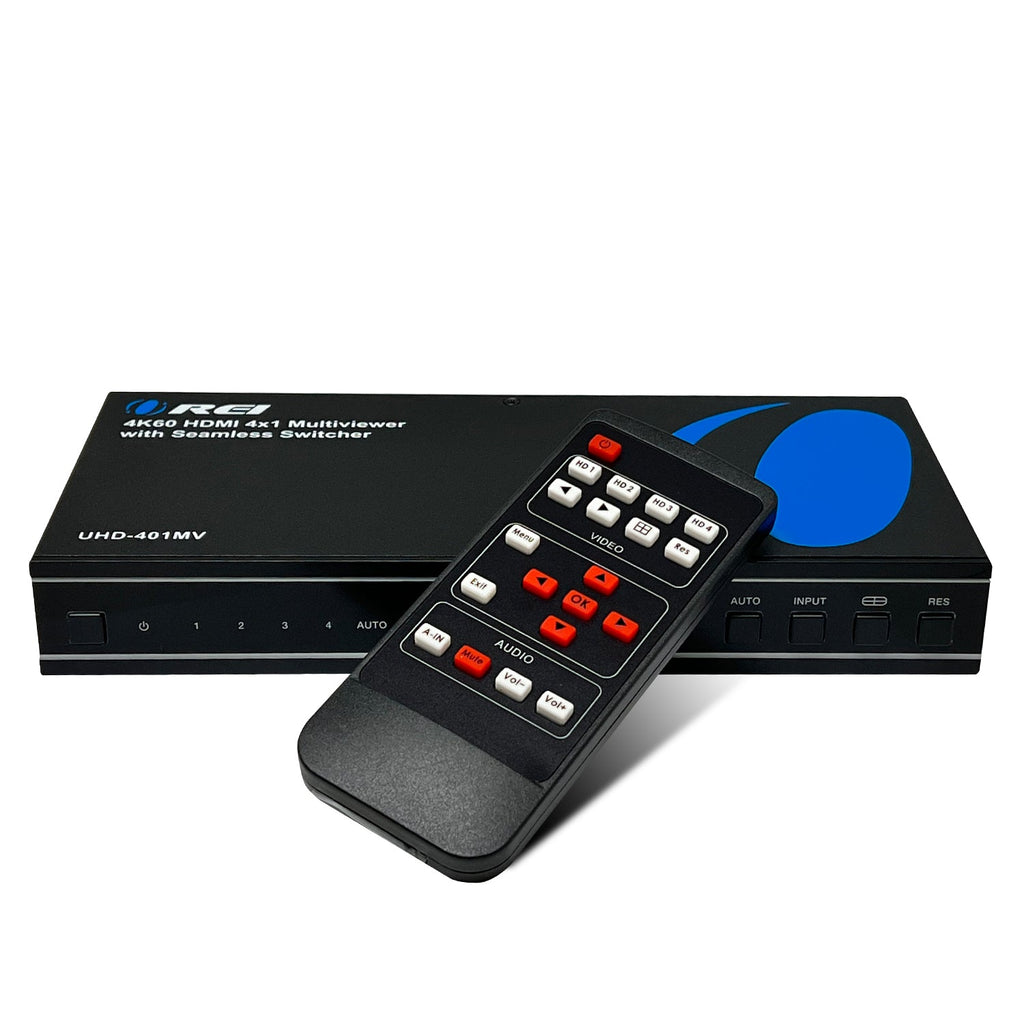

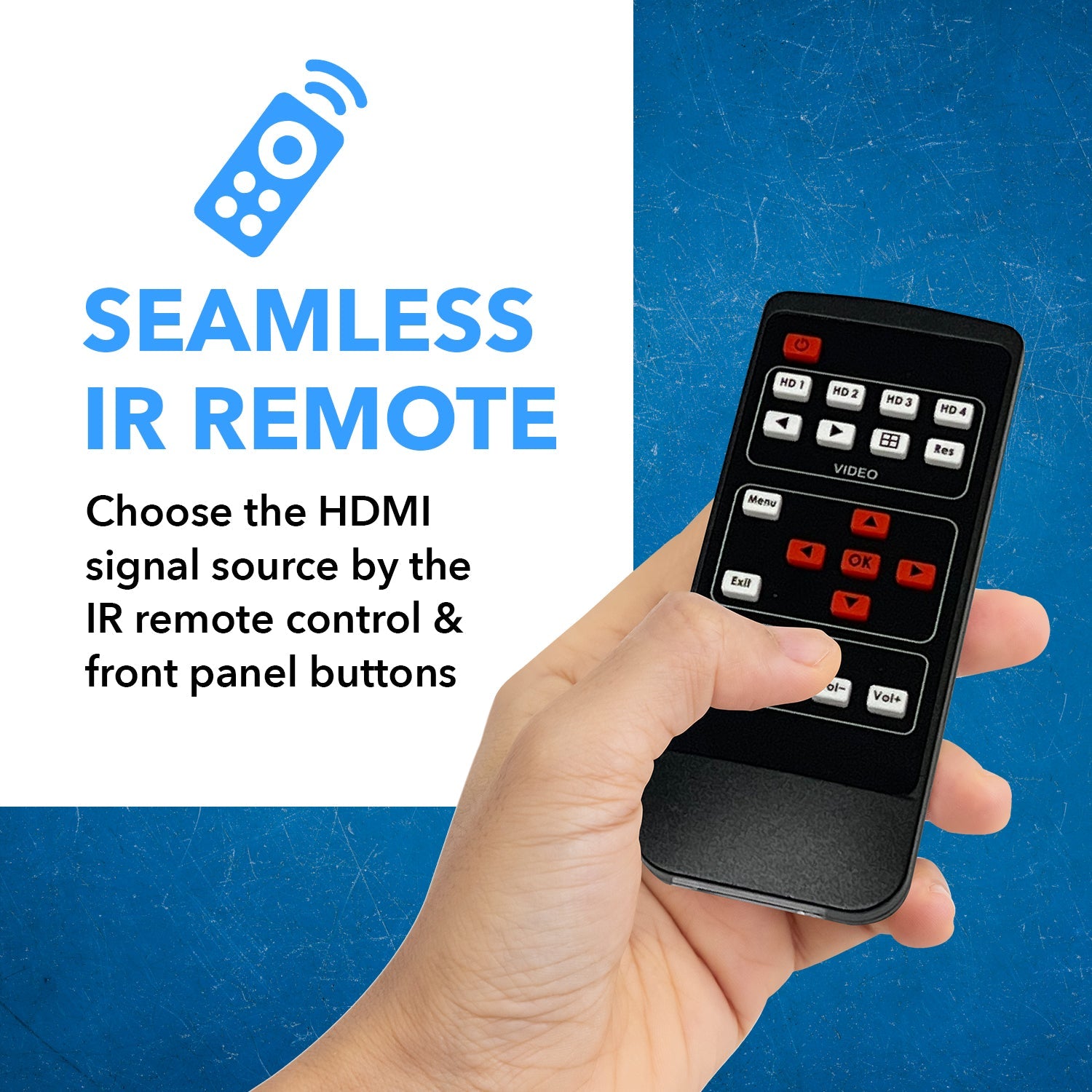

Flexible Control Options – Operate via front panel buttons, IR remote control, or RS-232 interface.
-
Compact Design – Ideal for tight spaces and discreet installations in both residential and commercial AV systems.

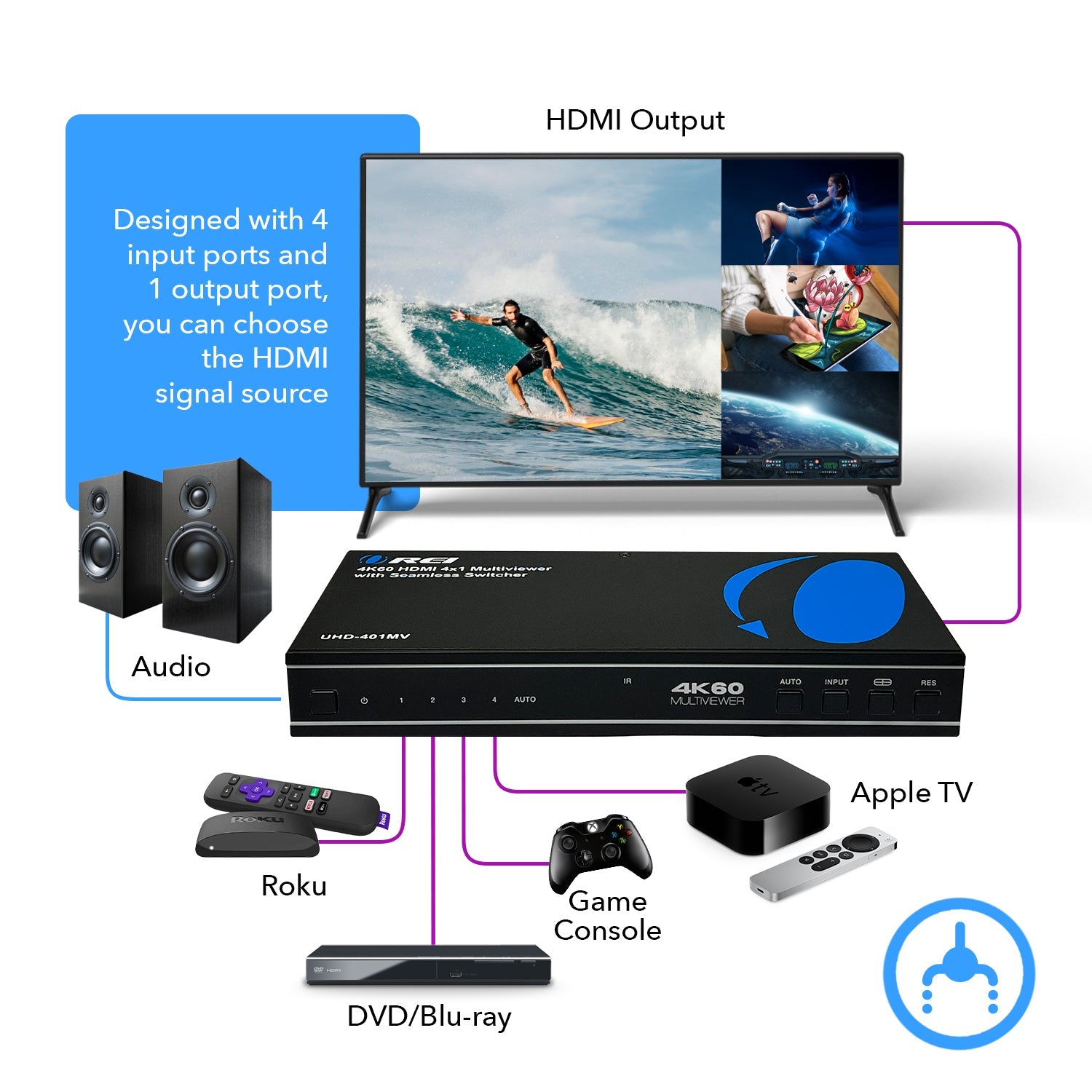

This versatile 4K HDMI switcher delivers seamless signal switching and audio extraction in a compact, high-performance design. Supporting video resolutions up to 4K@60Hz and a full 18Gbps bandwidth, it ensures crisp, uncompressed transmission for a wide range of AV applications.
The unit is fully compliant with HDCP 2.2 standards and supports a wide array of audio formats—including LPCM, AC3, Dolby Digital Plus, DTS, and DTS-HD—up to 7.1 channels. With eight display modes and seamless switching capabilities, users can experience uninterrupted transitions between inputs.
Audio can be extracted via both analog and optical outputs, offering flexible integration with various speaker systems. Advanced EDID management ensures optimal compatibility across connected devices. The switcher is easily controlled via front panel buttons, included IR remote, or RS-232 commands, making it suitable for both commercial and home installations.
Its compact design allows for discreet, space-efficient installation in any AV environment.
[shortdes]
- 4 Inputs - 1 output HDMI Multiviewer switch
- Supports video resolution up to 4K@60Hz and 2K@60Hz
- Supports up to 8 display mode
- Supports EDID management
[/shortdes]
[tab]

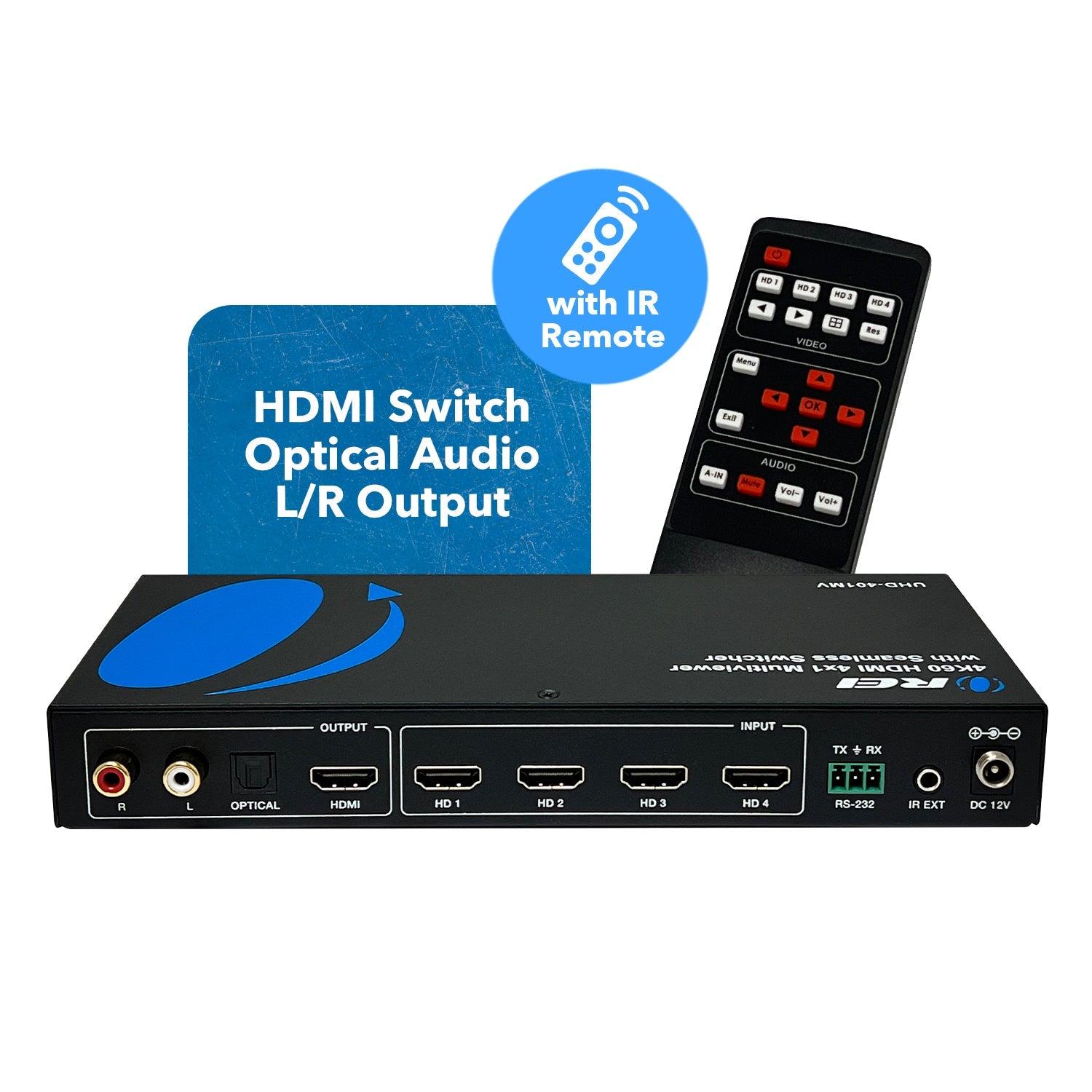

CONNECTIVITY
| Input: | 4 x HDMI IN [Type A, 19-pin female] |
| Output: | 1 × HDMI OUT [Type A, 19-pin female] |
| 1 x L/R OUTPUT [RCA] | |
| 1 x OPTICAL OUTPUT [S/PDIF] | |
| Control: | 1 x RS-232 [3pin-3.81mm phoenix connector] |
| 1 x IR EXT [3.5mm Stereo Mini-jack] |
AUDIO AND VIDEO
| Video Bandwidth: | 18Gbps |
| Video Resolution: | Up to 4K@60Hz |
| Audio Formats: |
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; OPTICAL (SPDIF): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio. |
| Color Depth: | 8 bit |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
COMPLIANCE
| HDMI Compliance: | HDMI 2.0b |
| HDCP Compliance: | HDCP 2.2 / 1.x |
POWER
| Power Supply: |
Input: AC 100 - 240V 50/60Hz Output: DC 12V/2.5A |
| Power Consumption (Max): | 10W (Max) |
ADDITIONAL FEATURES
| Downscale: | No |
| RS-232: | Yes |
| IR Remote Control: | Yes |
| Fast Seamless Switching: | Yes |
| Multiview / PIP Support: | Yes |
| EDID Management: | Yes |
| Audio Extraction: | 3.5mm / Analog / Line / Optical |
| HDMI Support: | 2.0b |
| HDCP Support: | 2.2 |
| OSD Menu Navigation: | Yes |
PROPERTIES
| Operation Temperature: | 32 - 104°F / 0 - 40°C |
| Storage Temperature: | -4 - 140°F / -20 - 60°C |
| Operating Humidity | 20~90% RH (Non-condensing) |
| ESD Protection: | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |

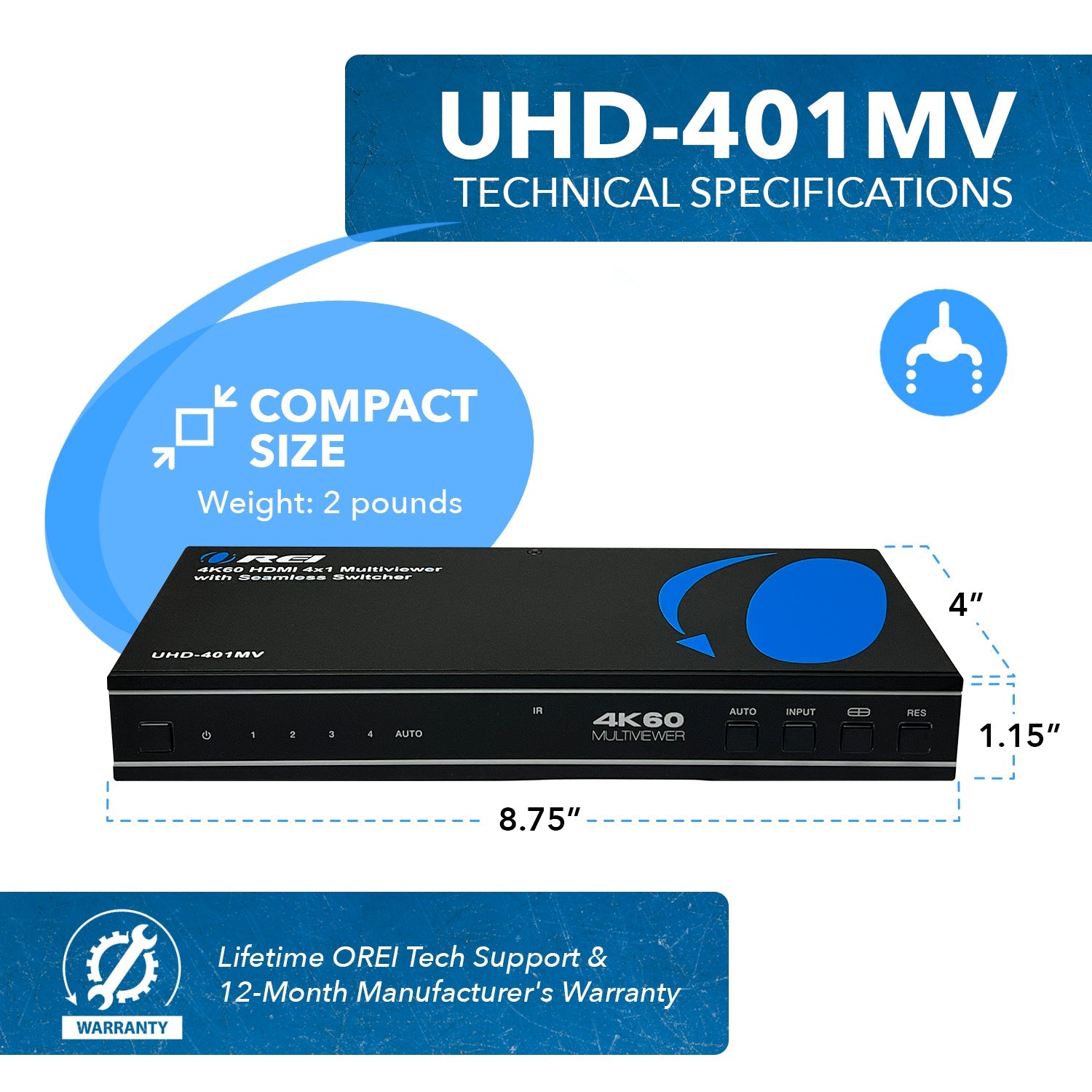

DIMENSIONS & WEIGHT
| Length: | 220mm/8.66in |
| Width: | 100mm/3.94in |
| Height: | 30mm/1.18in |
| Weight: | 620g/1.37lb |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × 4K60 4x1 Multiviewer Seamless UHD Video Switcher |
| 1 × IR Remote |
| 1x 3pin-3.81mm Phoenix Connector (male) |
| 1x 38KHz IR Wideband Receiver Cable (1.5 meters) |
| 2x Mounting Ears |
| 4x Machine Screws (KM3*4) |
| 4x Rubber Feet |
| 1x 12V/2.5A Locking Power Adapter |
| User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
