Description
OREI UHD41-EX230-KVM HDMI EXTENDER SWITCH WITH KVM UPTO 230 FT
-

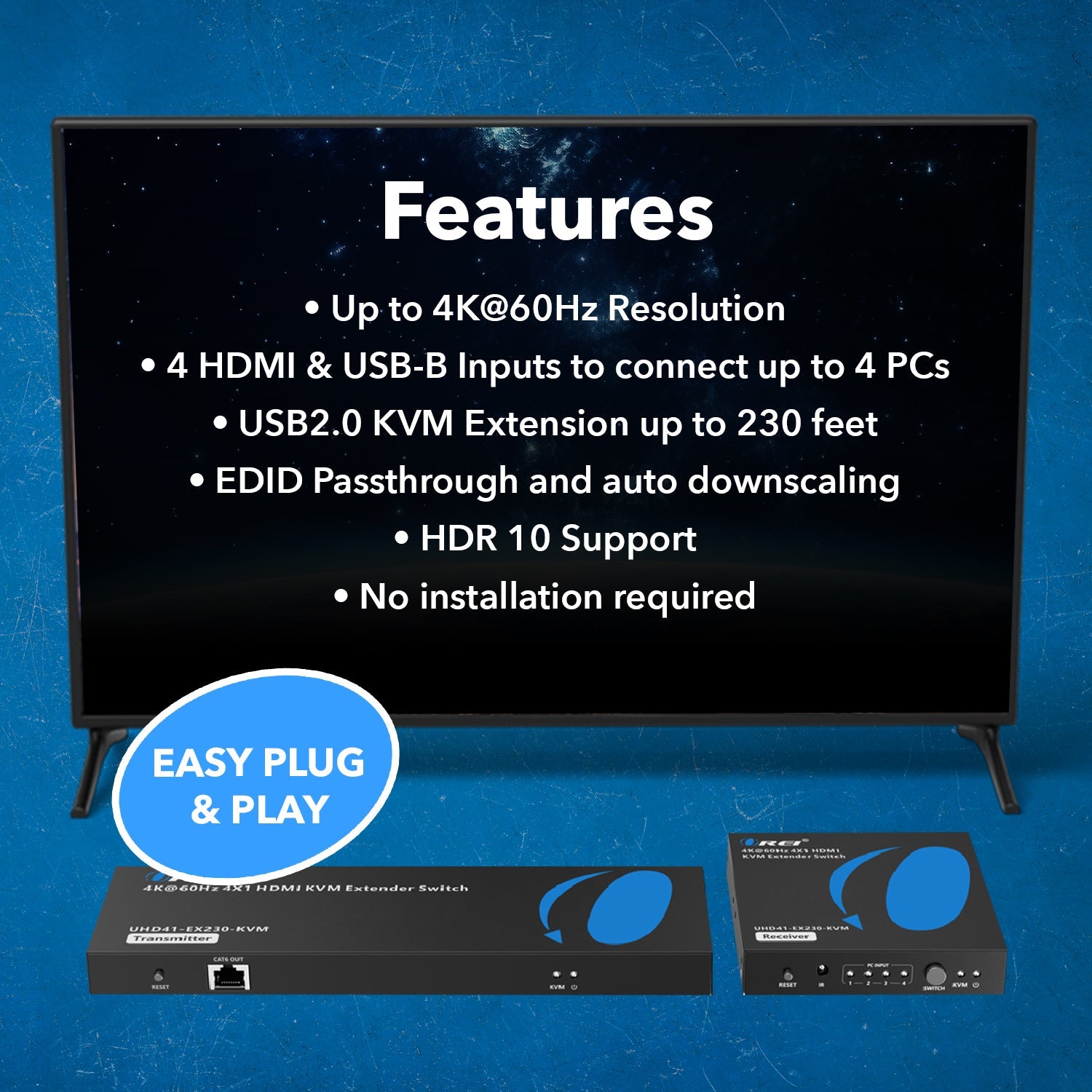

HDMI 2.0 & HDCP 2.2 Compliant – Ensures seamless compatibility with modern video sources and protected content.
-
18Gbps Transmission Rate (600MHz Bandwidth) – Supports full 4K Ultra HD video without compression or signal loss.
-
Supports 4K@60Hz 4:4:4 Resolution – Delivers crystal-clear video with high color fidelity; backward compatible with lower resolutions.
-
4 HDMI Inputs with 70m (230ft) Signal Extension – Transmits 4K HDMI signals over CAT6 or higher network cables to a remote receiver.
-
RJ45 Output for Long-Distance HDMI Transmission – Provides reliable signal delivery over standard Ethernet cabling.
-
Multiple Switching Modes – Switch sources via front panel, IR remote, or RS-232 serial control.
-
Integrated USB 2.0 KVM Functionality – Control up to 4 computers using a single keyboard and mouse.
-
EDID Passthrough & Auto Downscaling – Optimizes compatibility and adjusts resolution based on the connected display.
-
HDR10 Support – Enhances video output with better contrast, brightness, and a wider color spectrum.
-
Built-in Lightning, Surge & ESD Protection – Ensures stable performance and safeguards connected devices.

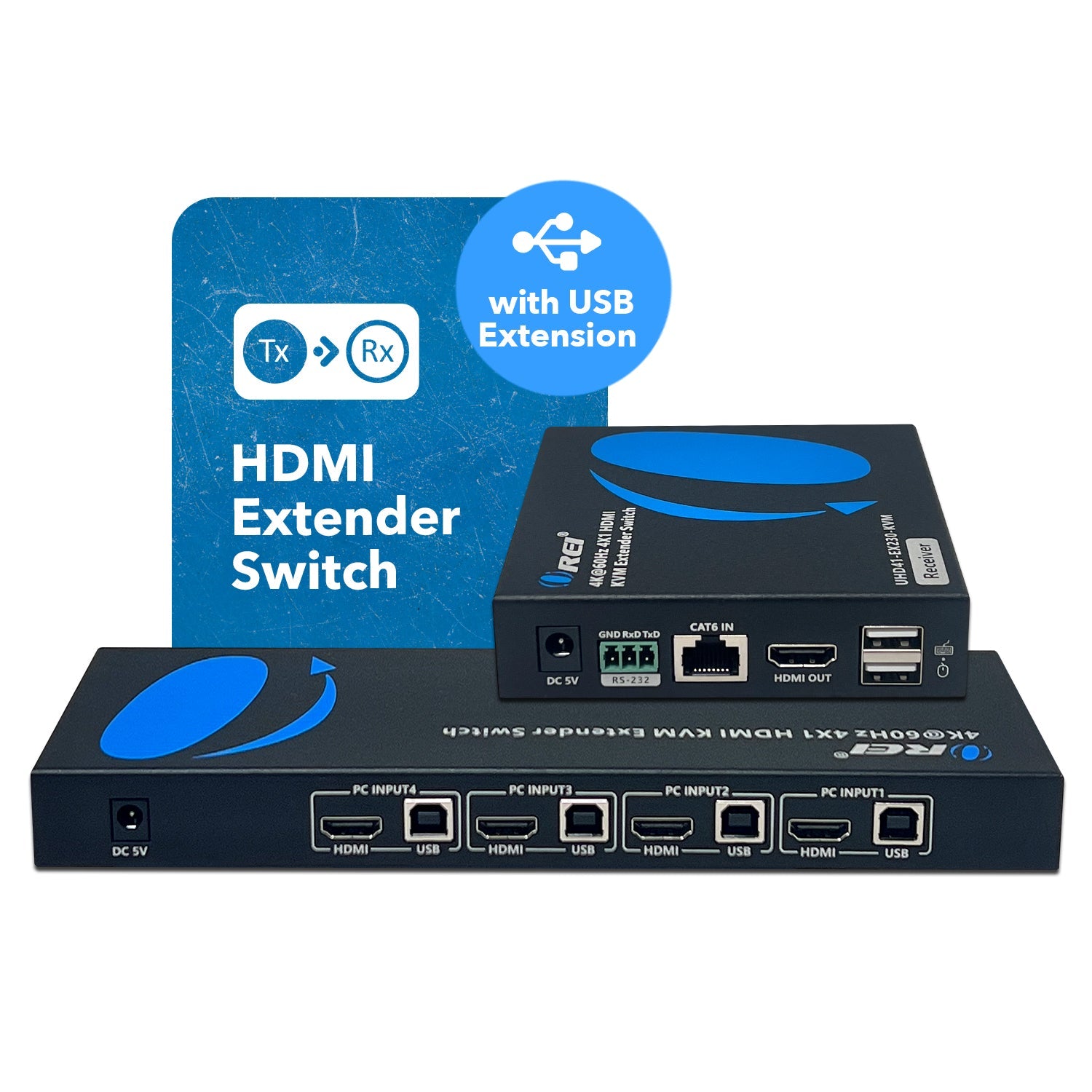

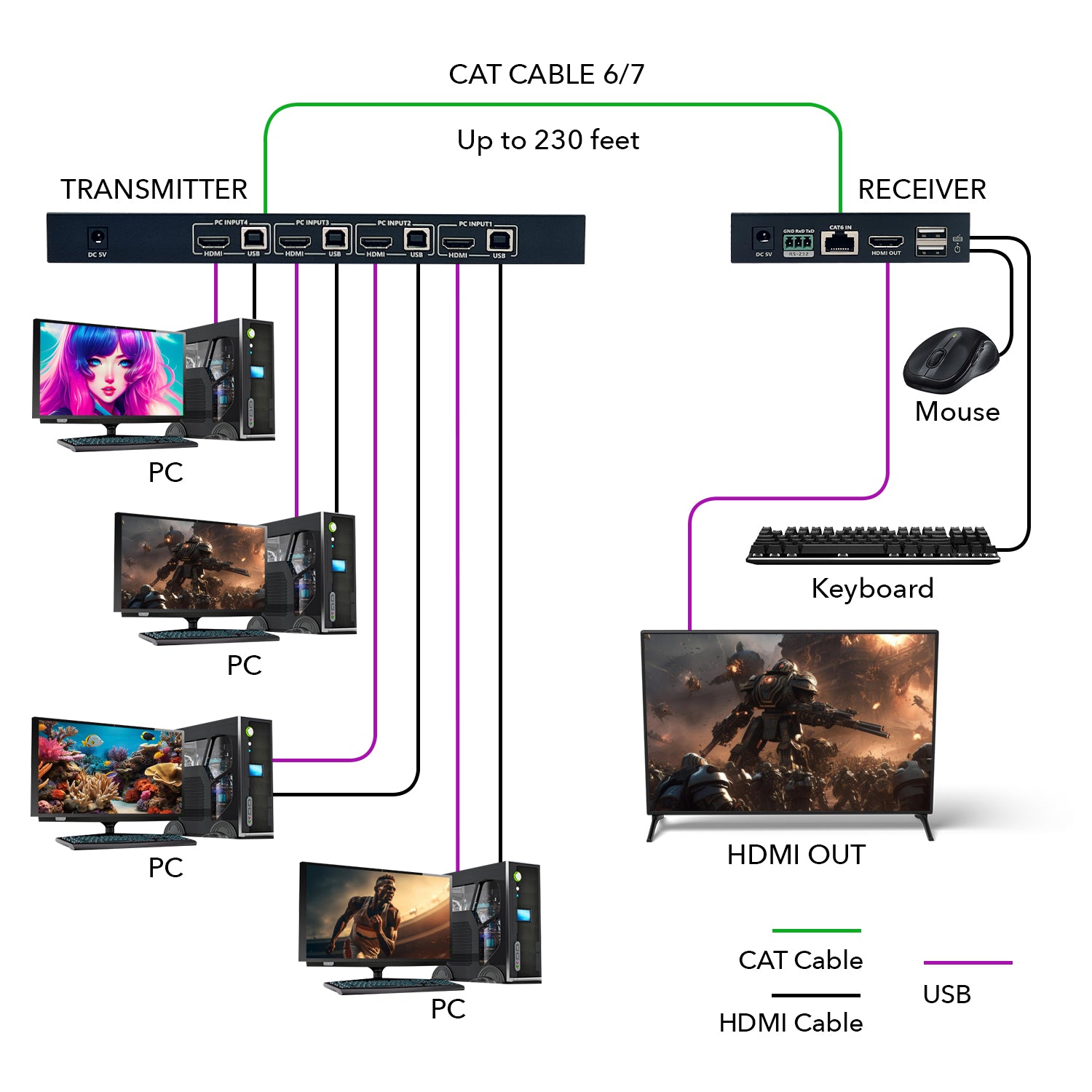

The UHD41-EX230-KVM is a professional 4K@60Hz 4x1 HDMI KVM Switch Extender that combines HDMI switching, long-distance signal transmission, and KVM control into a single compact unit. Supporting 4 HDMI inputs and 1 HDMI output, this device allows users to extend high-resolution video up to 70 meters (230 feet) via CAT6/6A/7 cables, thanks to its RJ45 HDMI output interface.
Ideal for monitoring stations, control centers, broadcasting setups, and professional AV systems, it supports HDR10, auto downscaling, and EDID passthrough, ensuring smooth integration with various display types. The built-in USB 2.0 hub allows for easy KVM functionality, enabling users to control multiple computers from a single keyboard and mouse setup.
Users can switch between input sources via IR remote, RS-232 commands, or front panel controls, offering flexible and convenient operation. With 18Gbps transmission speed, full HDMI 2.0 compliance, and robust protection against lightning, surges, and ESD, the UHD41-EX230-KVM delivers professional-grade performance with ease of use and installation.
[shortdes]
- 4K@60Hz Up to 230 Feet
- Surge Protection
- EDID Passthrough
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 4 x HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 x CAT [RJ45, 8-pin female] | |
| CONTROL: | 4 x USB - B port [Host device] | |
| Receiver: | INPUT: | 1 x CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 x HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 x RS-232 [3-Pin Phoenix Connector] | |
| 2 × USB [USB Type A] |

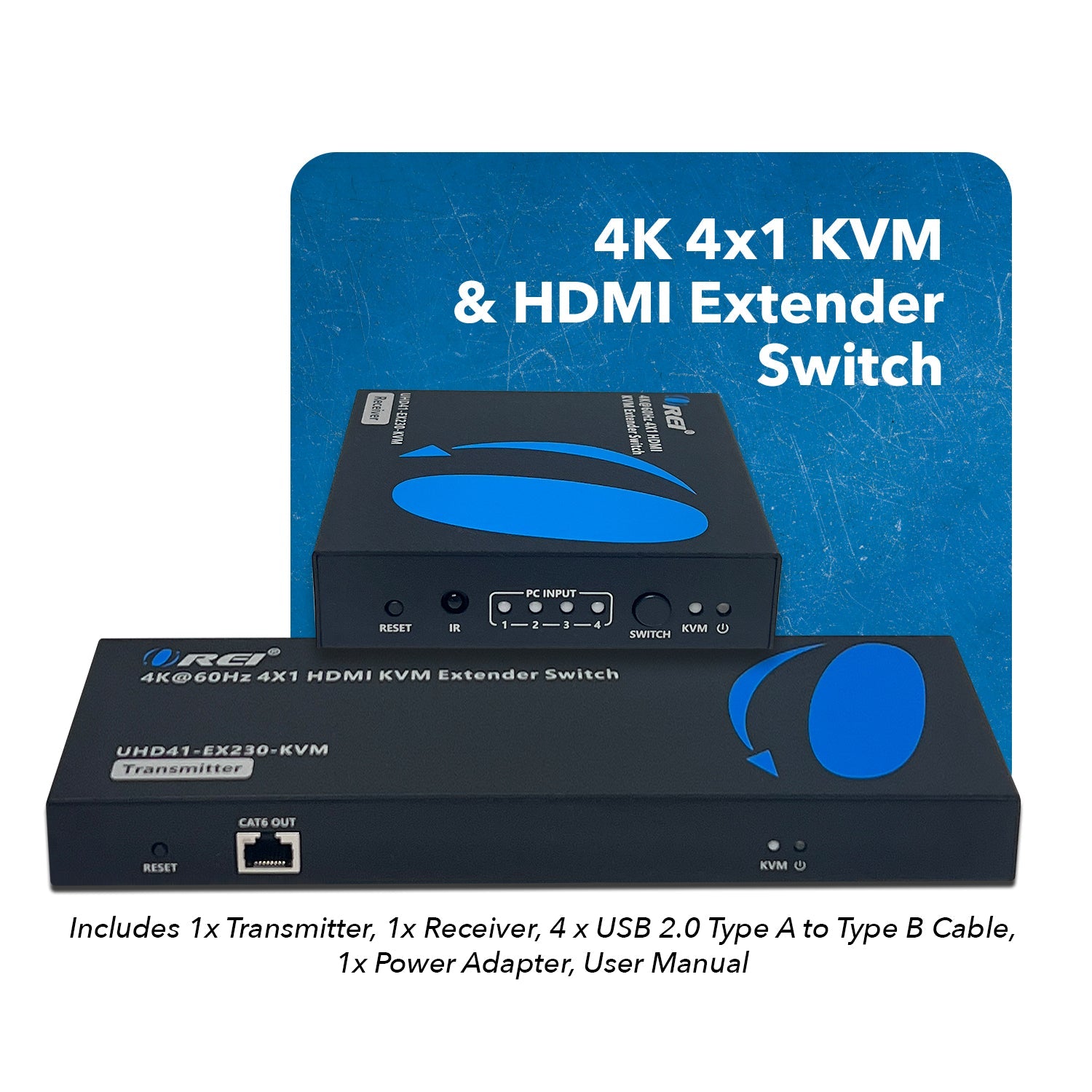

PACKAGE CONTENTS
| 1 x UHD41-EX230-KVM TX Switch |
| 1 x UHD41-EX230-KVM RX Switch |
| 2 x Power 5V1A |
| 1 x User Manual |
| 1 x Remote Control |
| 4 x Mounting Ear |
| 10 x Screw |
| 4 x Grounding Screw |
| 1 x Terminal block |
| 4 x USB 2.0 Type A to Type B Cable |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
ADDITIONAL FEATURES
| ARC/eARC : | No / No |
| CEC : | No |
| Transmission Technology : | Ethernet |
| IR Control : | Yes, Uni-directional |
| PoC (Power over Cable) : | No |
| RS-232 : | No |
| USB Standard : | USB 2.0 (KVM) |
| USB-C DP Alt Mode : | No |
| HDR10 / HDR10+ / Dolby Vision | Yes / No / No |
EXTENDING DISTANCE
| 4K@60Hz : | 230 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD 5.1/Dolby Digital/Dolby Atmos |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | TX: 4W(Max), RX: 4W(Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz, Output: DC 5V/1A |

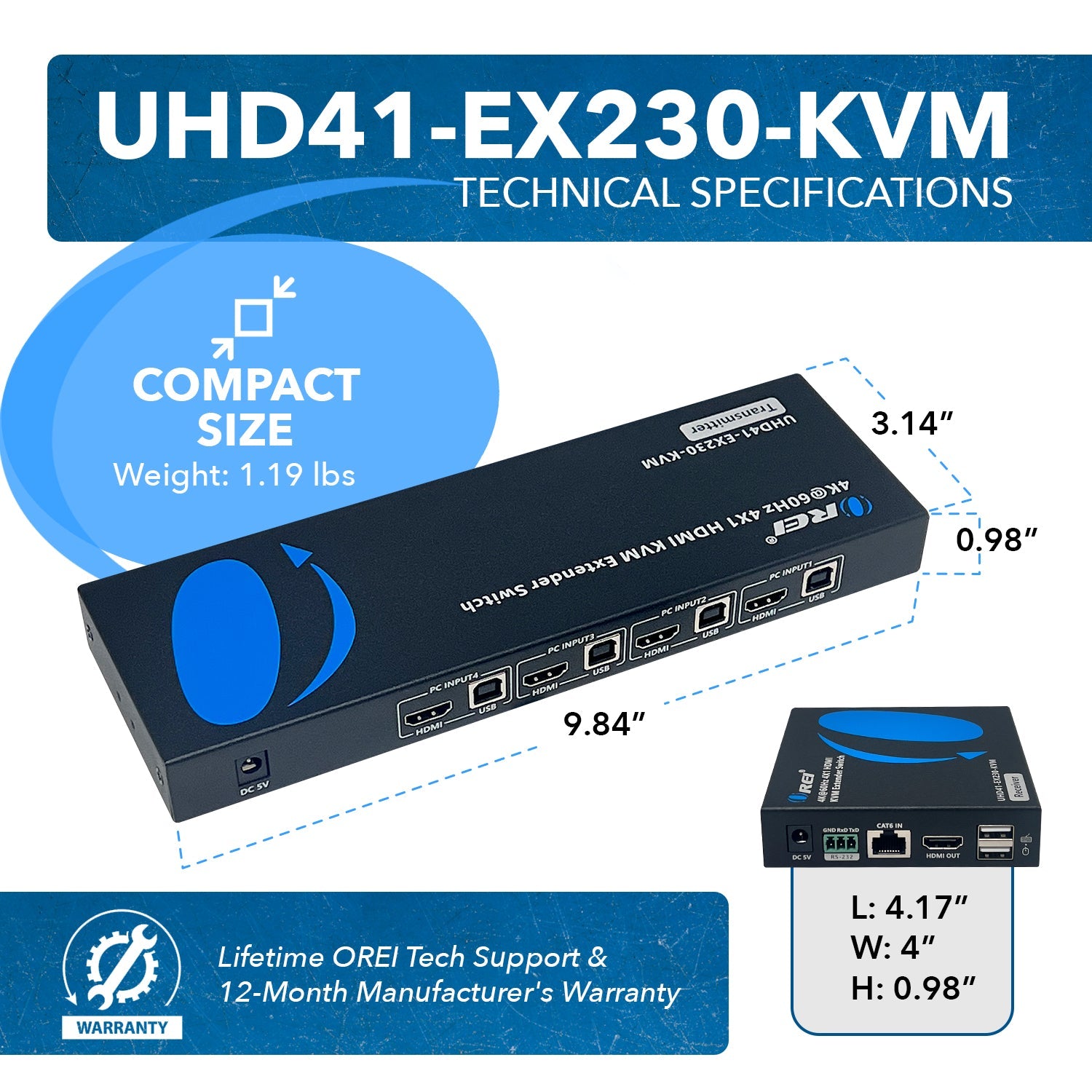

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 250mm / 9.84in |
| Width: | 80mm / 3.15in | |
| Height: | 25mm / 0.98in | |
| Weight: | 542g / 19.12oz | |
| Receiver: | Length: | 106mm / 4.17in |
| Width: | 103mm / 4.06in | |
| Height: | 25mm / 0.98in | |
| Weight: | 298g / 10.51oz |
PROPERTIES
| Color: | Black |
| Housing: | Iron |
| Operating Temperature: | -20 ~ 60℃ |
| Storage Temperature: | -30 ~ 70℃ |
| Relative Humidity: | 0 ～ 90%RH |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
