Description

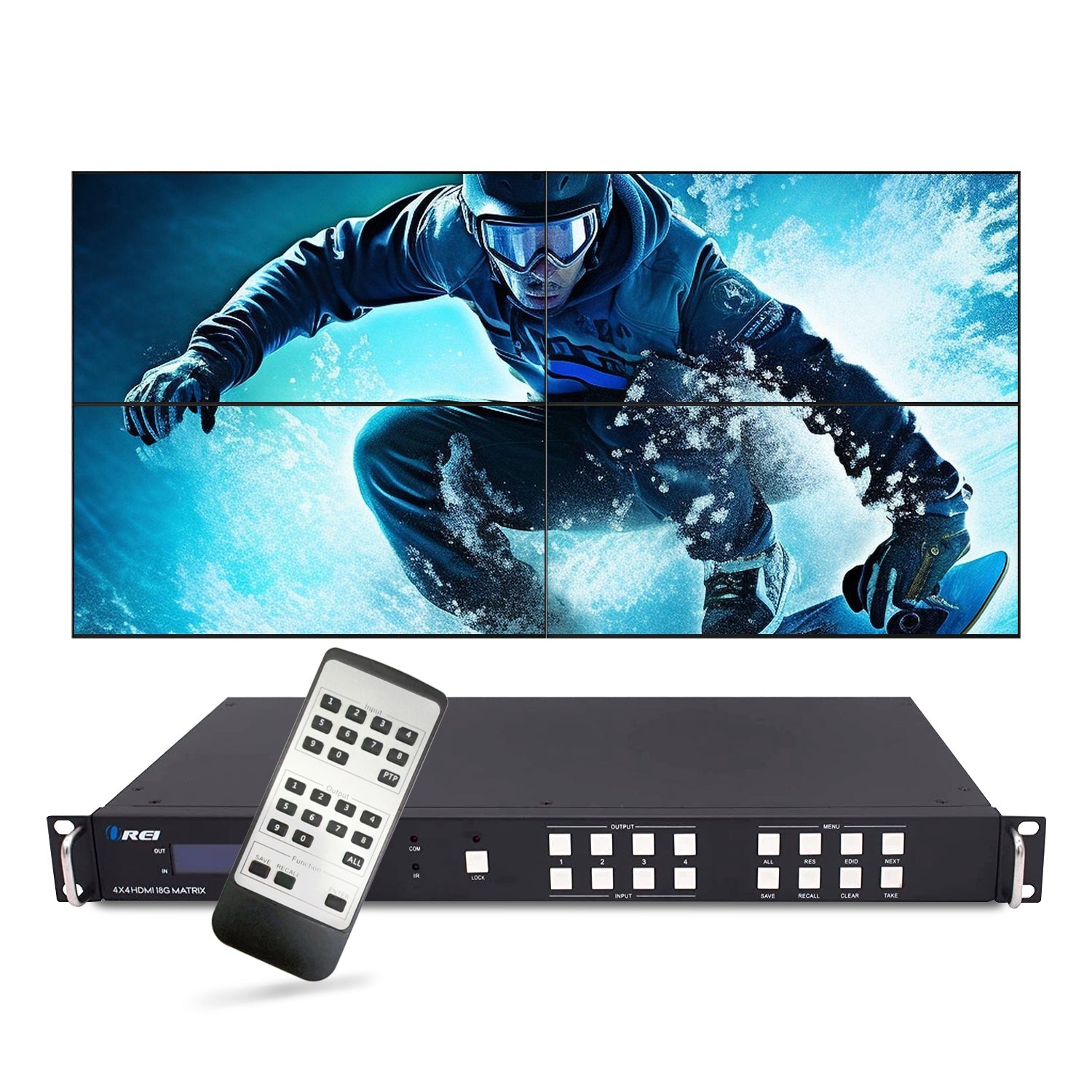

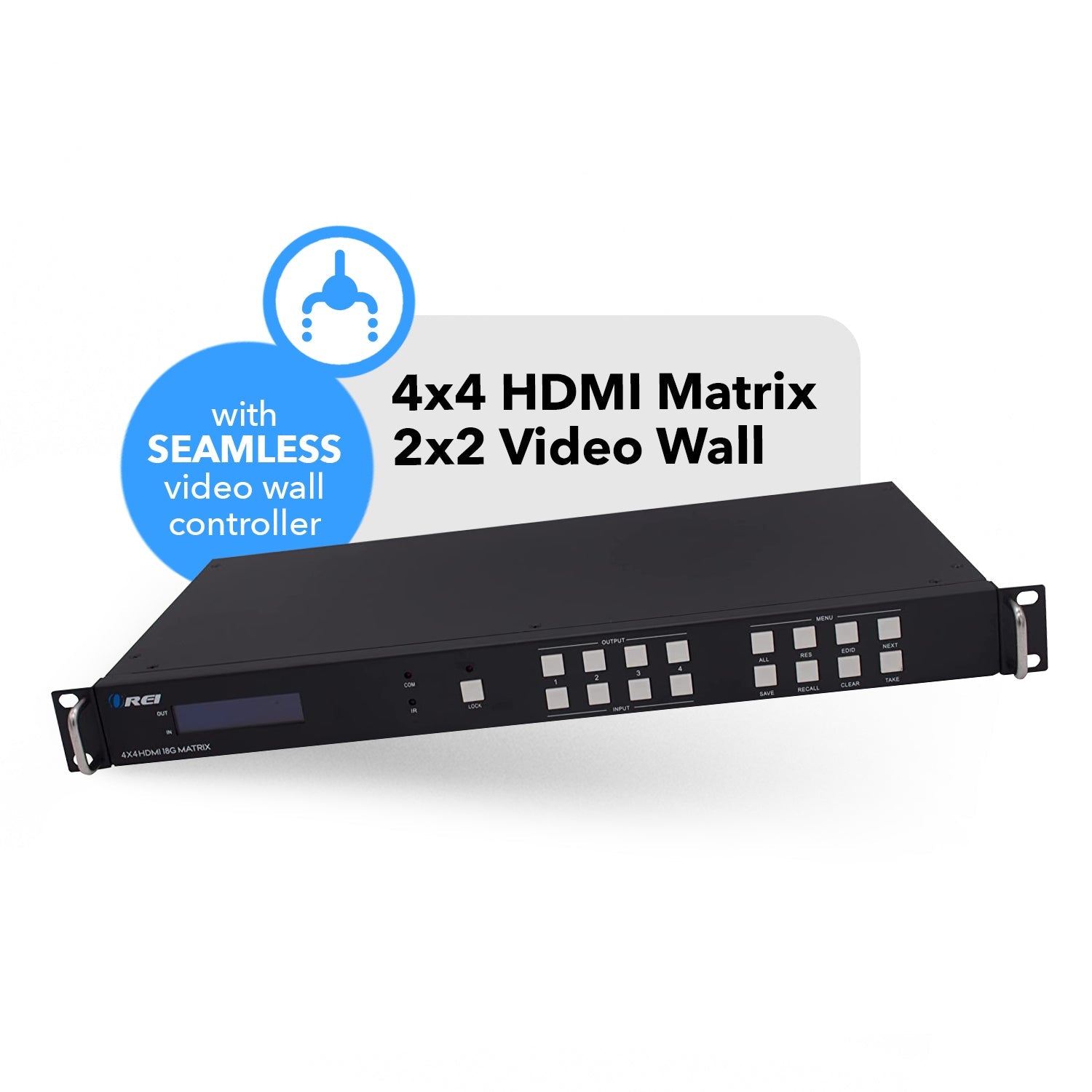

UHD-404VW: 4x4 Matrix with Video Wall controller
Key Features:
HDMI 2.0 and HDCP 2.2 compliant
Video resolutions up to 4K@60Hz and 2k@60Hz
18Gbps video bandwidth

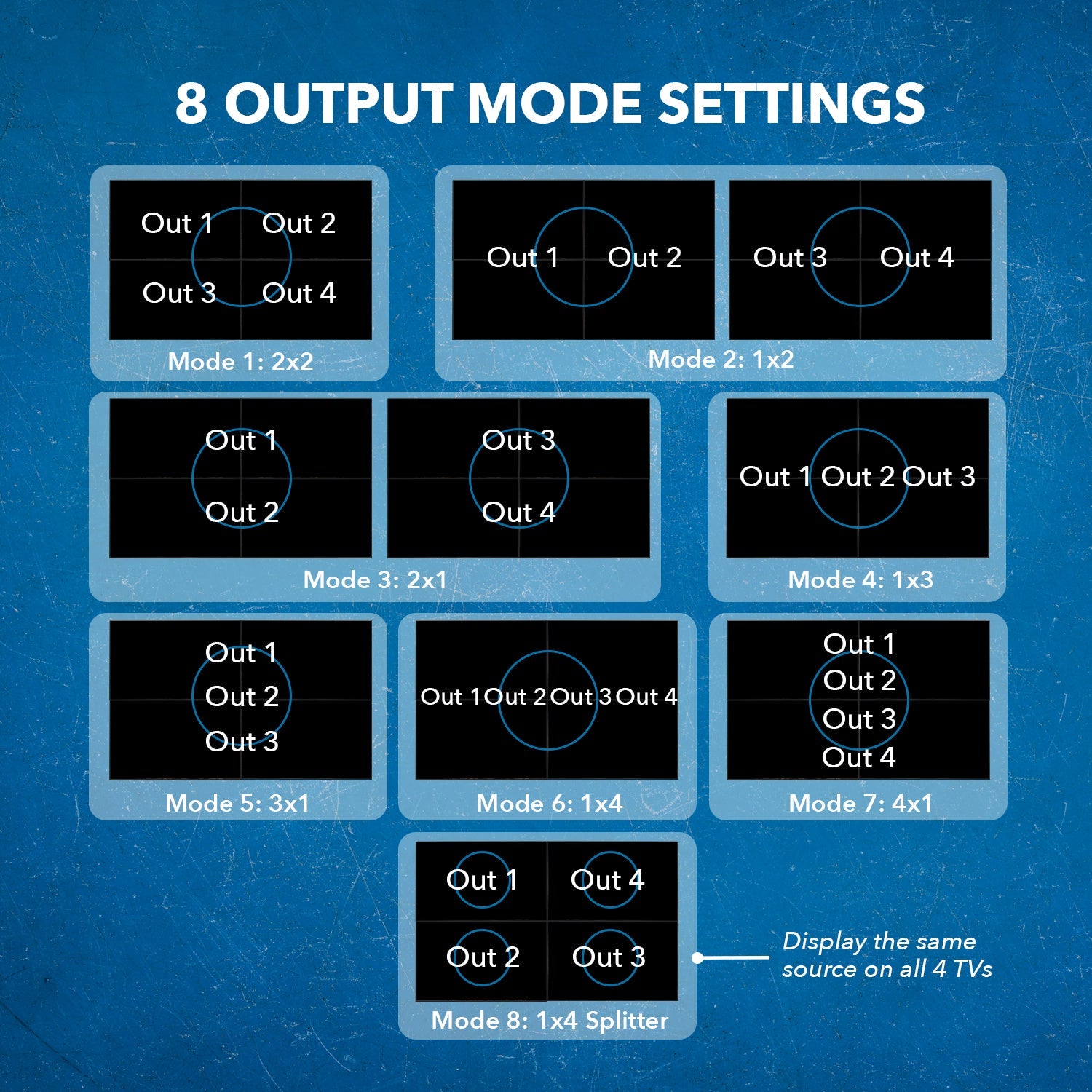

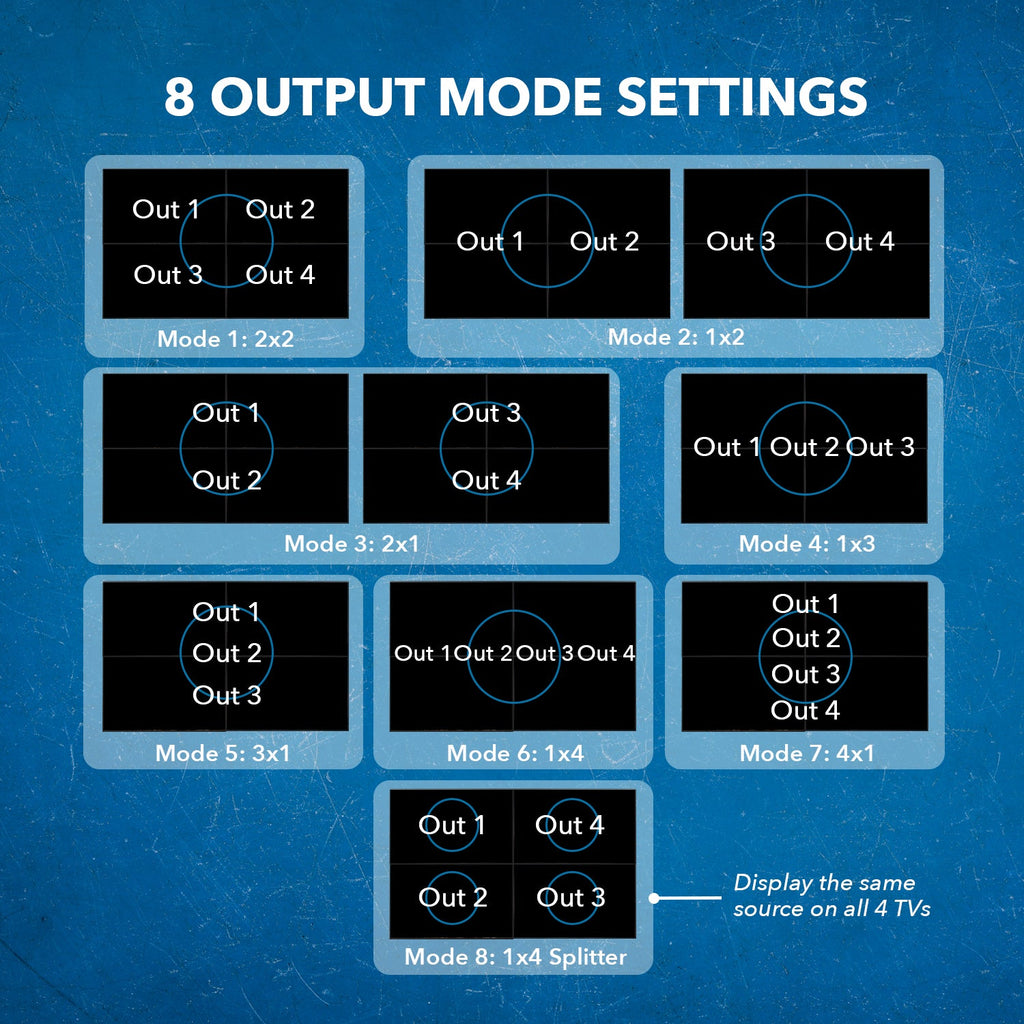

Various display modes: 2x2, 1x2, 1x3, or 1x4
Bezel adjustment and 180-degree rotation
IR and Audio matrixing
RS-232 & TCP/IP control
Scene saving and recalling up to 8 scenes

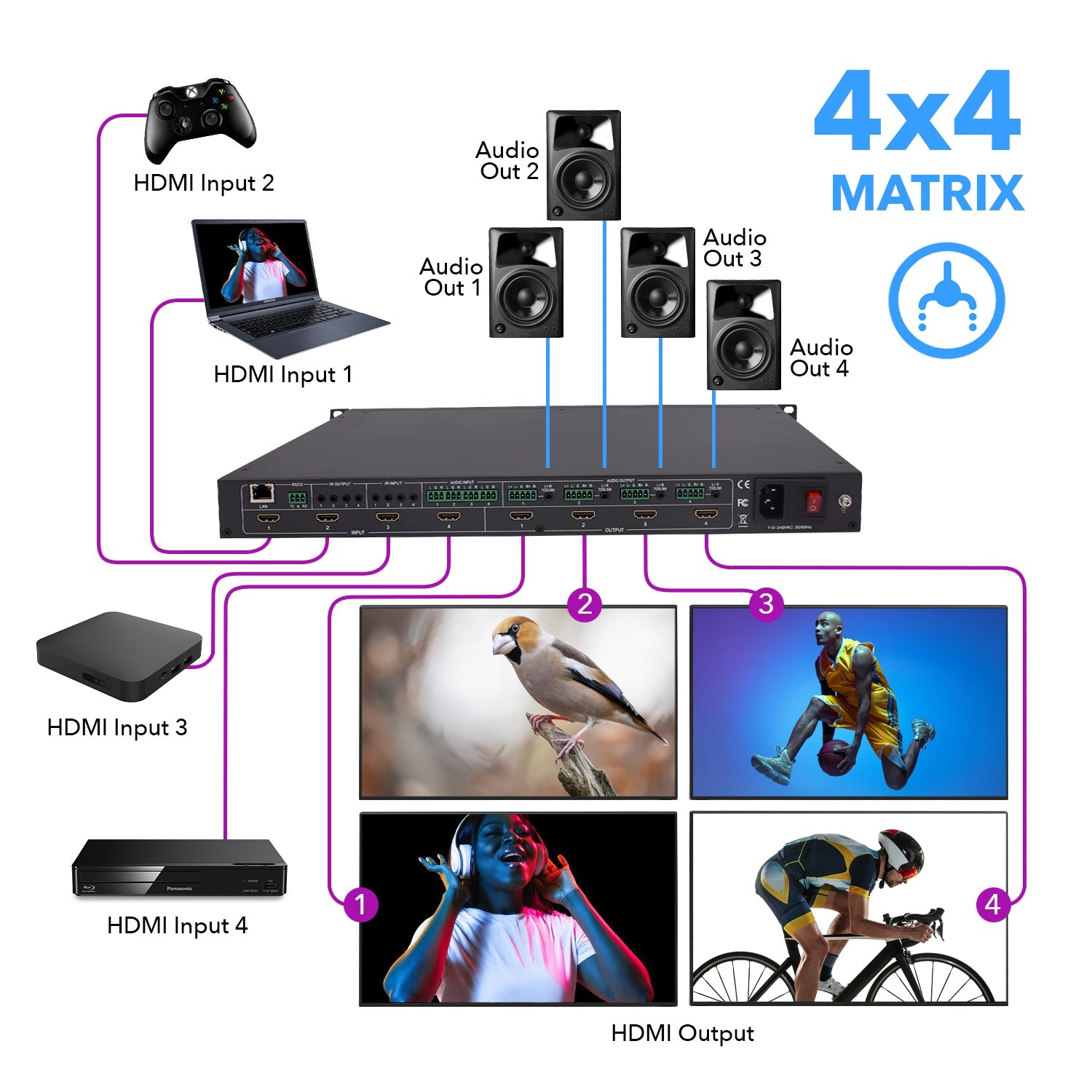

The UHD-404VW stands as a 4x4 Matrix with an embedded video wall feature. It supports video resolutions up to 4K@60hz and 2k@60Hz complies with HDMI 2.0 & HDCP 2.2 standards, boasting an 18Gbps video bandwidth. Doubling as both a conventional 4x4 matrix and a video wall controller, it incorporates IR and audio matrixing. Efficient control is ensured through RS-232 or TCP/IP connections using the provided software or WebGUI. Enjoy additional perks like 180-degree rotation for the top two displays in 2x2 mode and bezel adjustment. Perfectly suited for concerts, events, and a variety of commercial or home setups.
[shortdes]

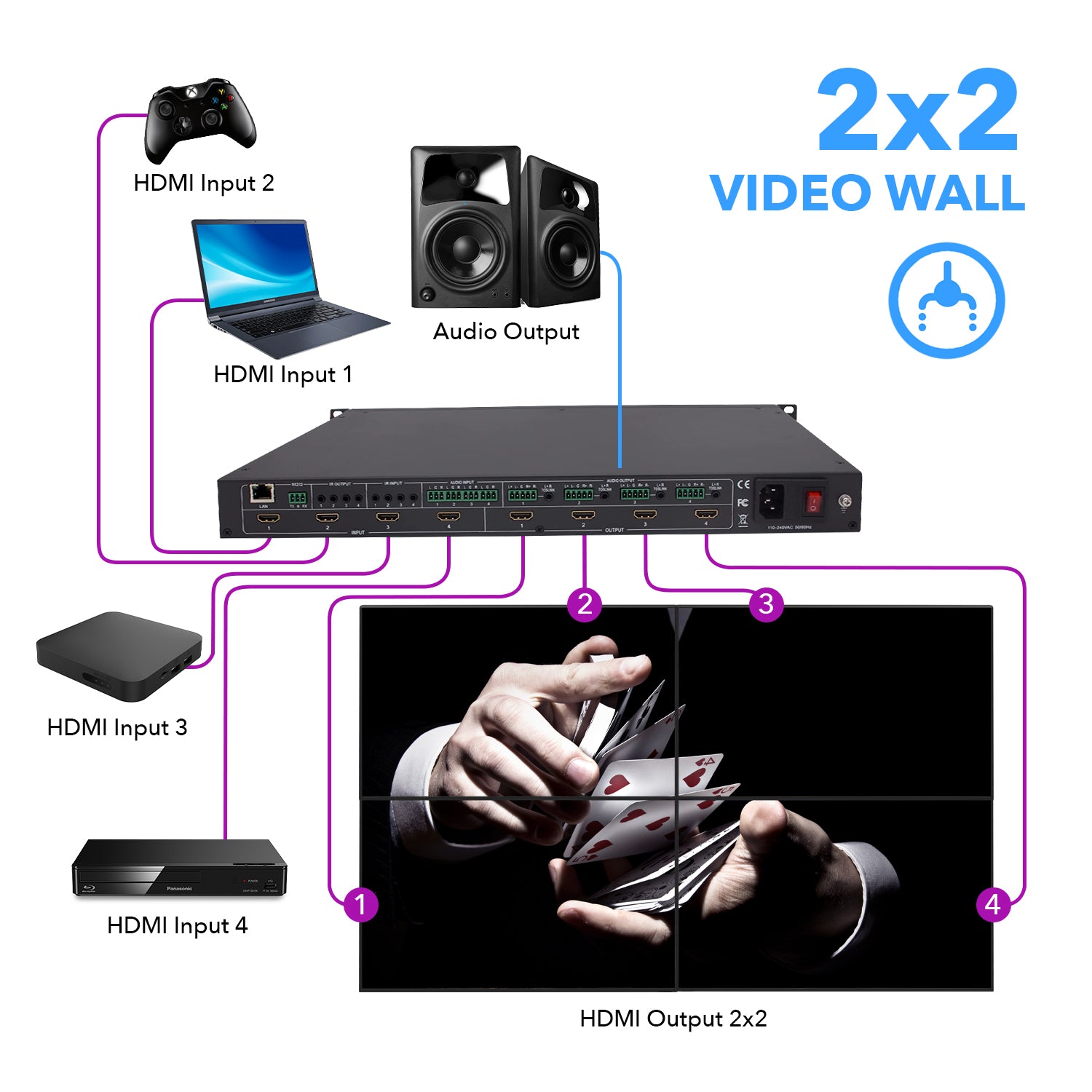

2x2 Video wall controller
Video resolutions up to 4K@60Hz and 2k@60Hz
IR matrixing and audio matrixing
[/shortdes]
[tab]

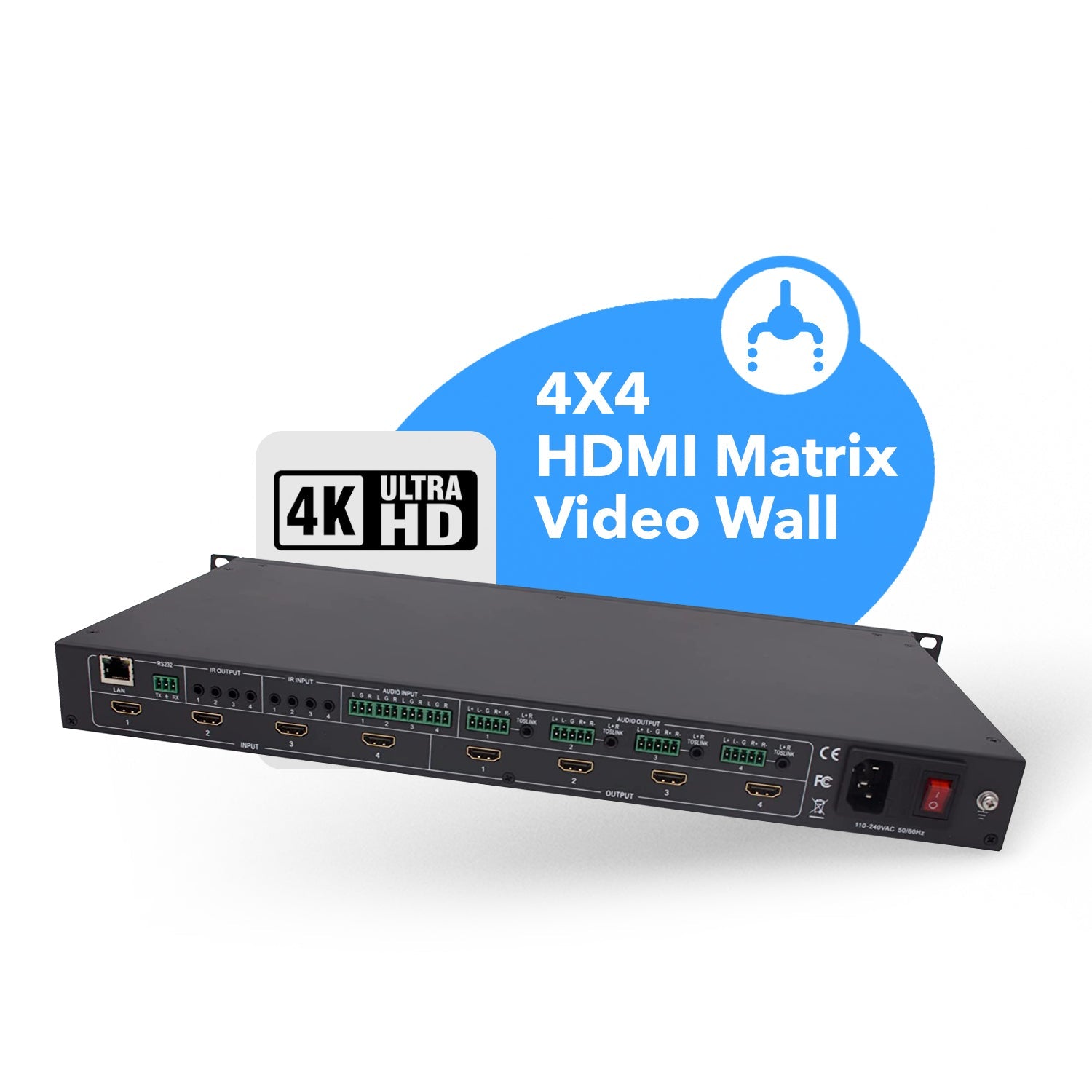

CONNECTIVITY
INPUT:
4 × HDMI [Type A, 19-pin female]
4 × L/R [3-pin phoenix]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
4 × L/R [5-pin phoenix]
4 × L/R+Toslink [mini Toslink]
CONTROL:
1 x LAN [RJ45, 8-pin, female]
4 × IR IN [3.5mm Stereo Mini-jack]
4 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-pin Phoenix connector]
PACKAGE CONTENTS
1x UHD-404VW
4x IR Receiver Cable
4x IR Blaster Cable
1x Remote
1x 3-Pin Phoenix connector
1x AC Power cord
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/ 2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
