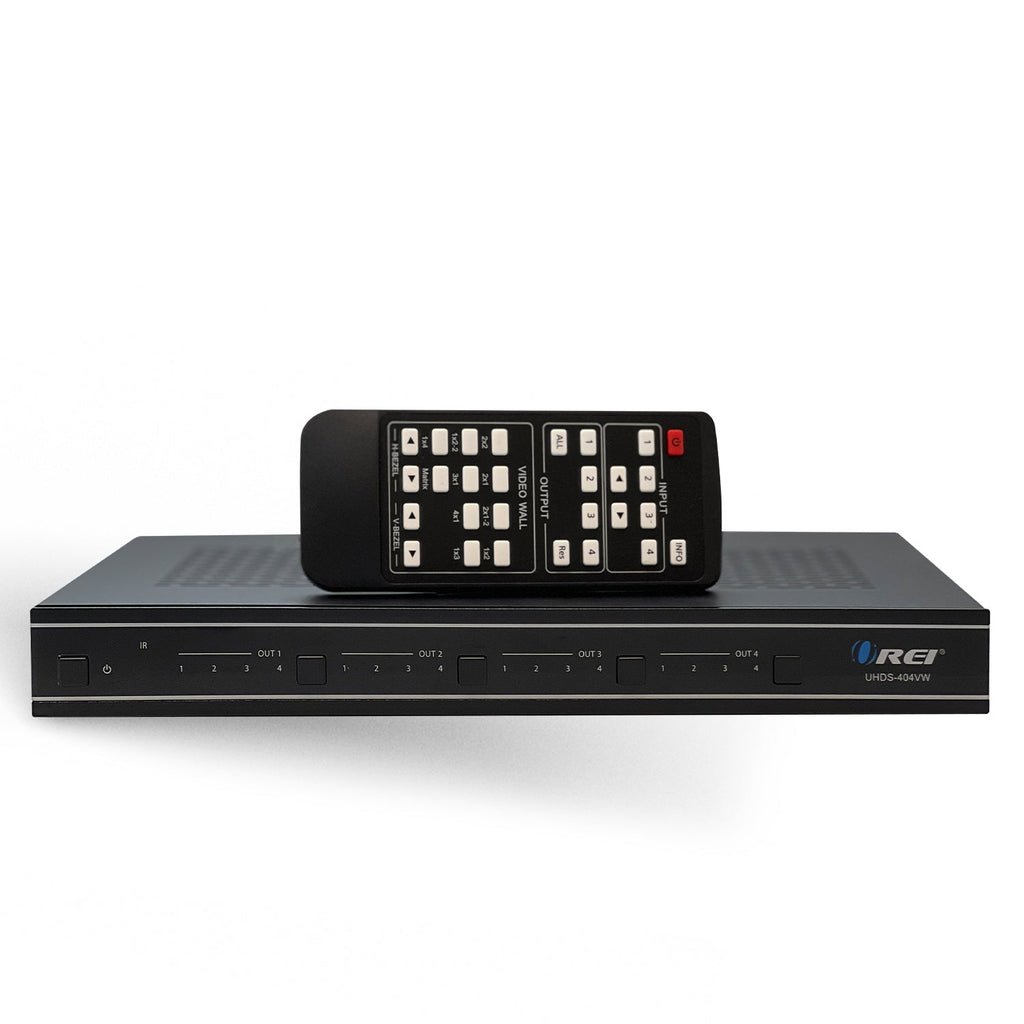

OREI UHDS-404VW: 4K@60HZ 4X4 HDMI™ MATRIX W/ VIDEO WALL (SEAMLESS)
Key Features:
-
HDMI 2.0b and HDCP 2.2 Compliant – Compatible with the latest video and content protection standards.
-

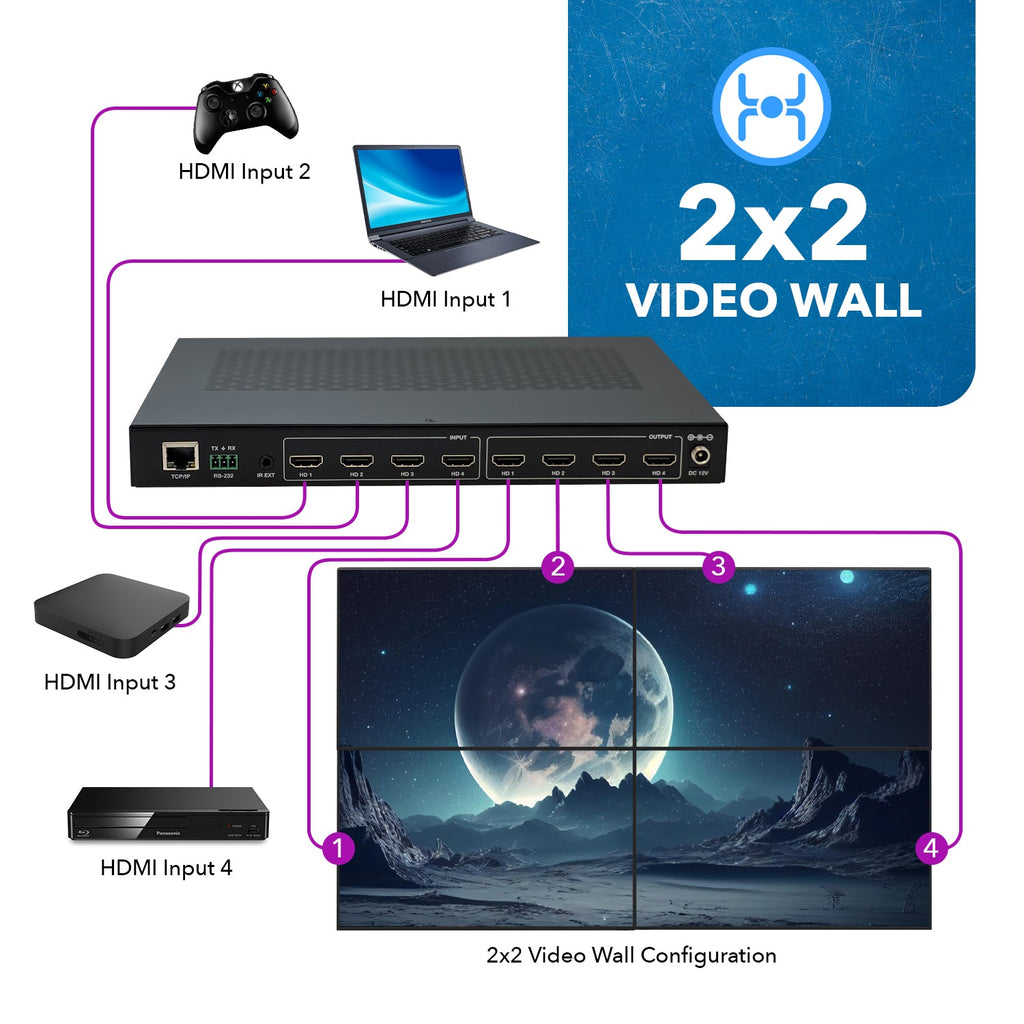

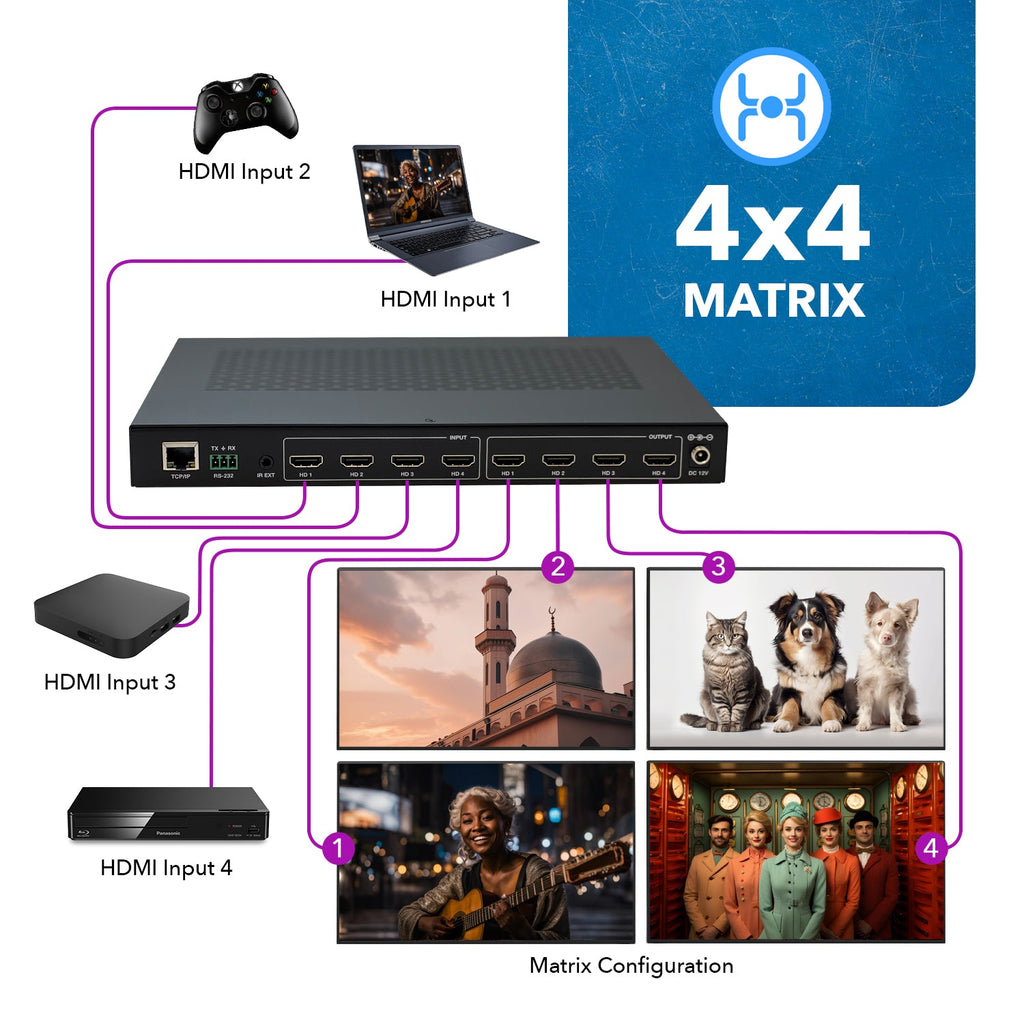

Dual Operation Modes – Functions as a 4×4 seamless matrix switcher or a video wall controller (2×2, 4×1, 1×4 configurations).
-
Seamless Switching – Enables smooth transitions between inputs with near zero latency.
-
Wide Format Support – Accepts resolutions from VGA to 4096×2160@60Hz (4:4:4), including 1920×1200@60Hz and 480i content.
-
Advanced Scaling – HDMI outputs can independently upscale or downscale to match any display resolution up to 4K@60Hz.
-
Audio Format Pass-through – Supports LPCM, Dolby Digital (DD), Dolby Digital Plus (DD+), DTS, Dolby TrueHD, and DTS-HD Master Audio.
-
EDID Management – Fine-tune display communication to ensure optimal performance with connected devices.
-
Web Interface Control – Configure and manage the matrix via an intuitive browser-based interface.
-
Multiple Control Options – Operate using front panel buttons, IR remote, RS-232 commands, or TCP/IP network control.
-
Third-Party Integration – Includes drivers for major control systems to streamline integration with home and commercial automation platforms.
The UHDS-404VW is a high-performance HDMI video processor that functions as both a 4×4 seamless matrix switcher and a versatile video wall controller. Designed for flexibility and speed, it supports 4K@60Hz video with full compliance to HDMI 2.0b and HDCP 2.2 standards, making it ideal for dynamic AV environments that demand reliable switching and professional-grade visuals.

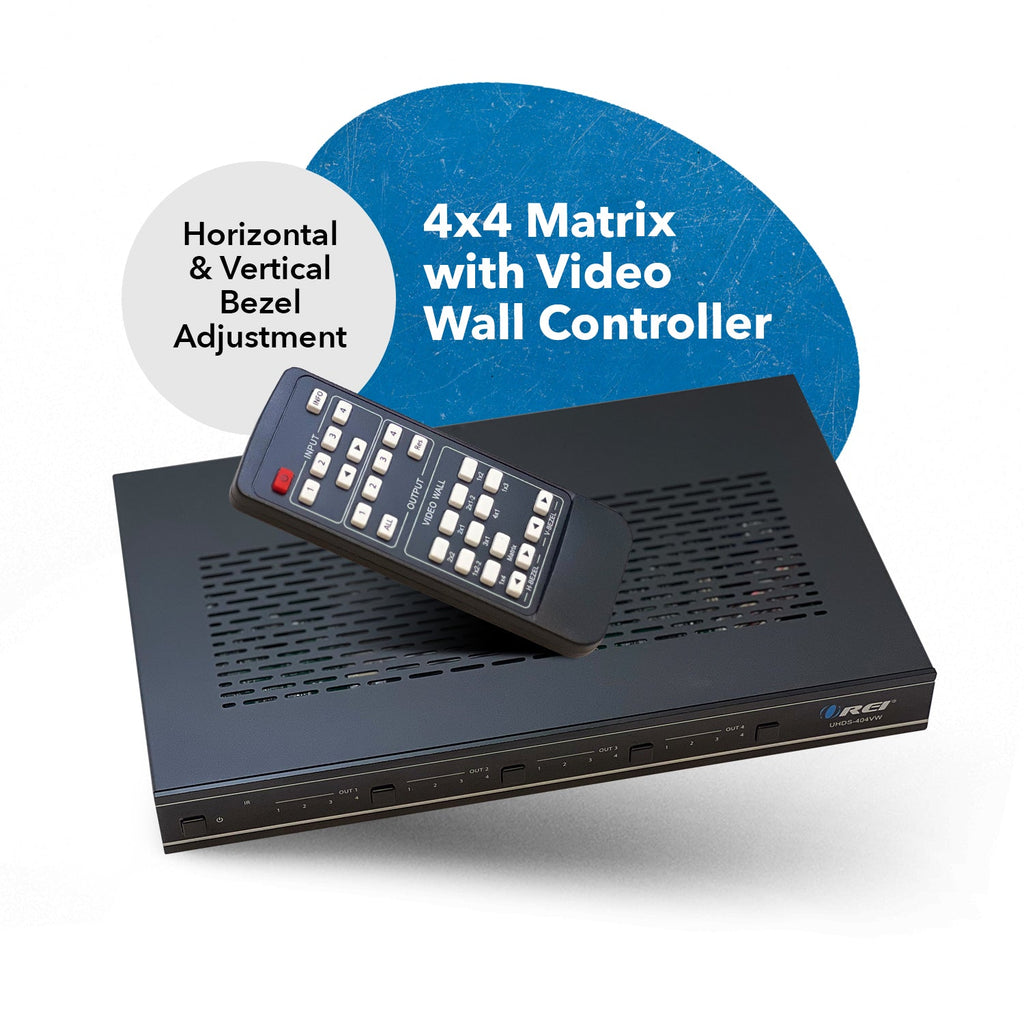

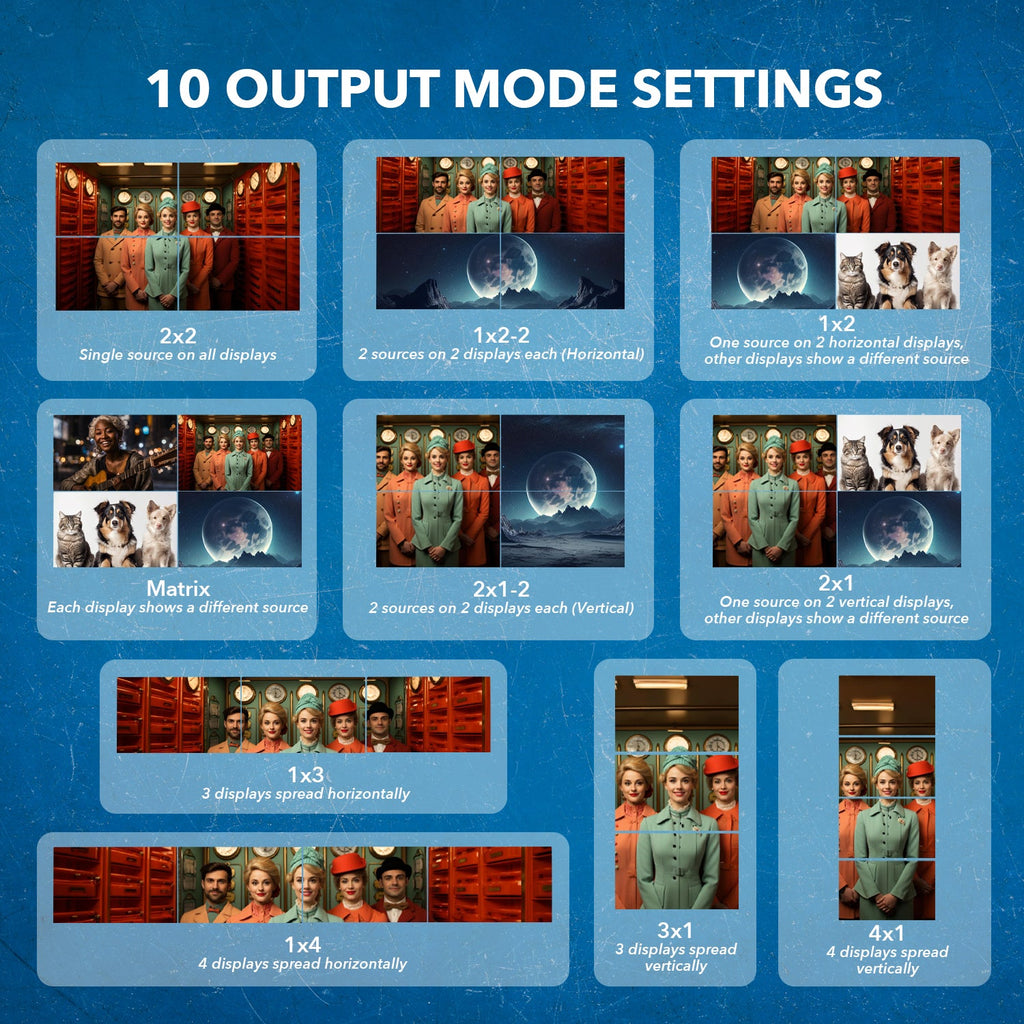

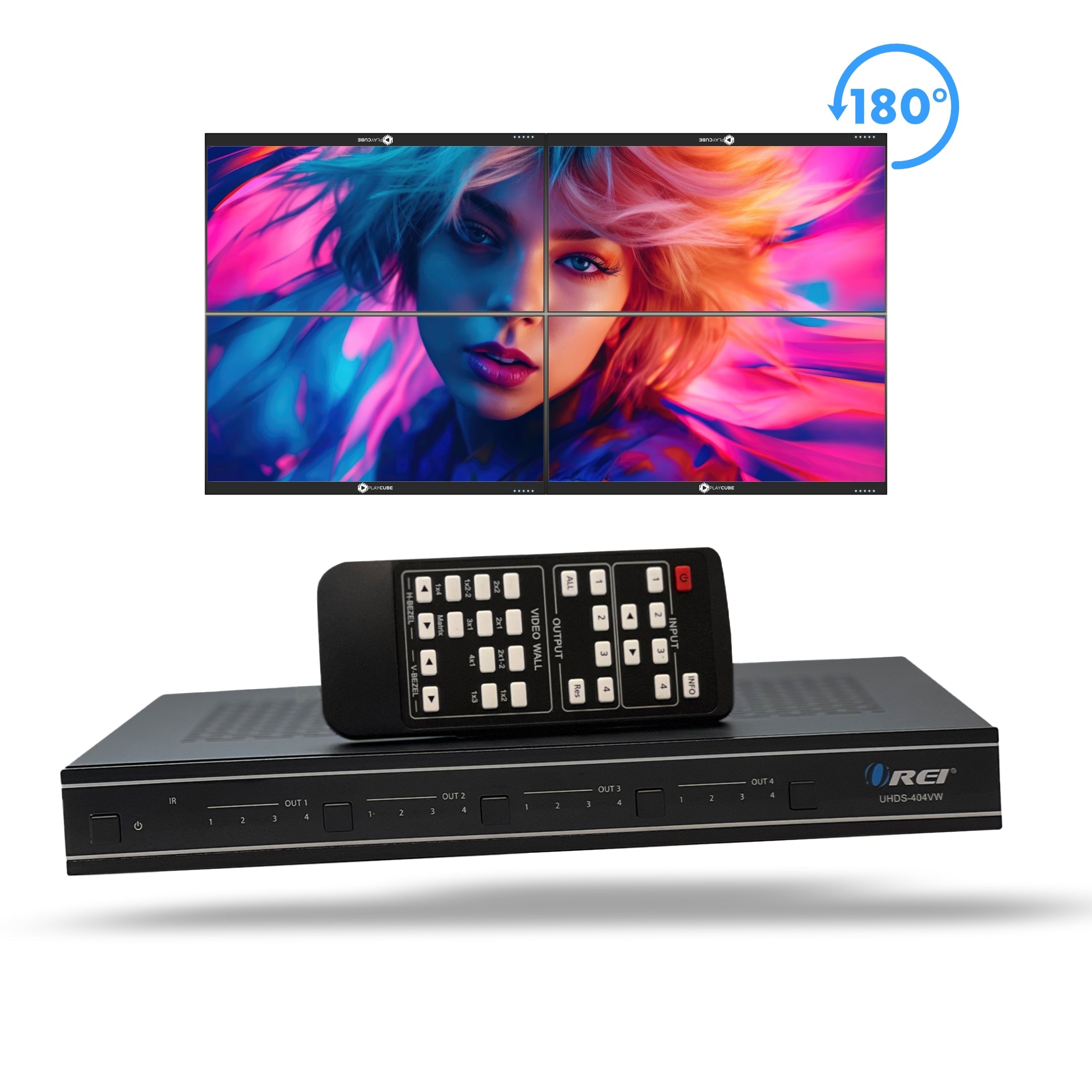

This unit offers advanced video processing capabilities, including seamless switching, resolution scaling, and configurable output modes such as 2×2, 4×1, and 1×4 video wall layouts. It supports resolutions from legacy VGA up to 4K@60Hz 4:4:4 and includes 180-degree image rotation and bezel adjustment for perfectly aligned, seamless video wall displays.
Additional features include built-in EDID management, a web-based interface for intuitive system configuration, and multi-protocol control via front panel, IR remote, RS-232, and TCP/IP. Third-party control drivers are available for seamless integration with leading home automation platforms making it ideal for a variety of AV installations.
[shortdes]
-
HDMI 2.0b and HDCP 2.2
-
Seamless Switching
-
EDID Management
[/shortdes]
[tab]

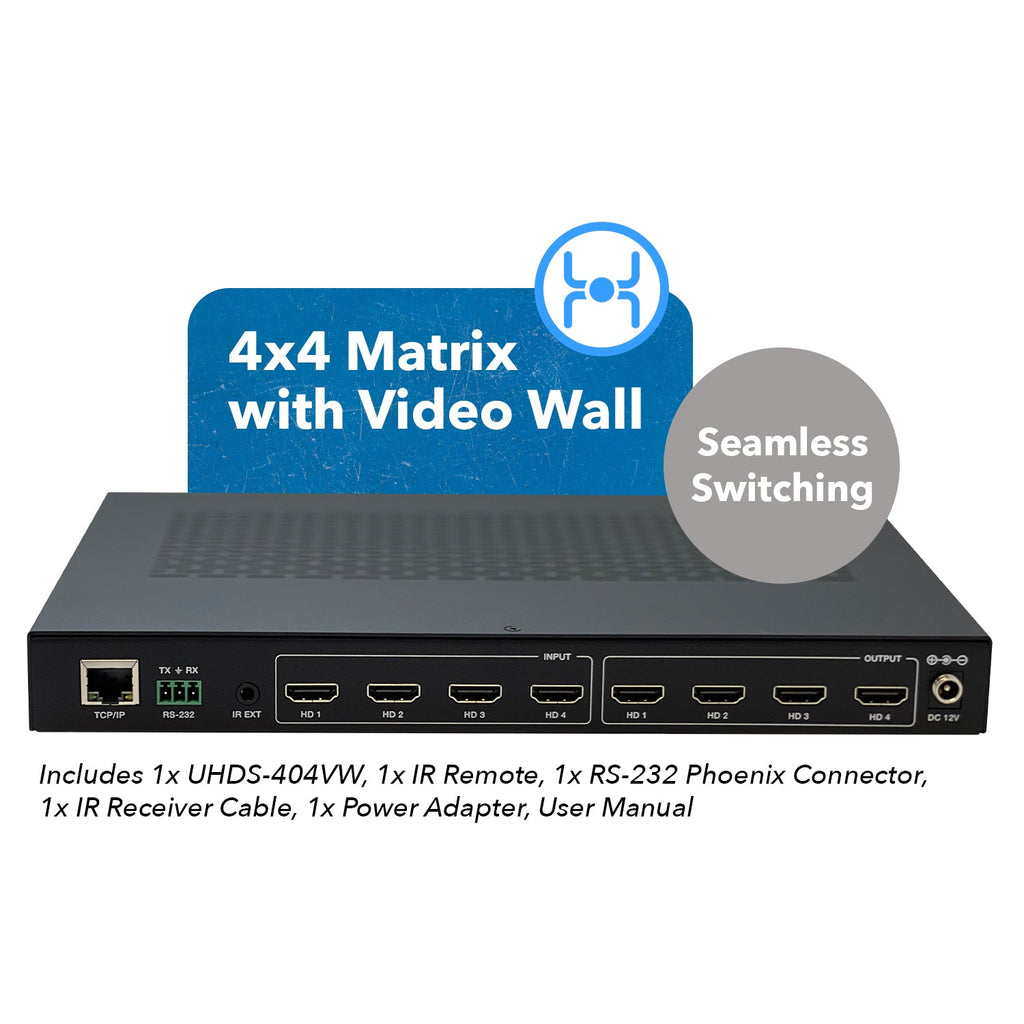

CONNECTIVITY
| INPUT: |
4 × HDMI Type A [19-pin female] |
|
OUTPUT:
|
4 × HDMI Type A [19-pin female] |
|
| CONTROL: |
1 × RS-232 [3pin-3.81mm phoenix connector] |
|
|
1 × TCP/IP [RJ45] |
|
|
1 × IR EXT [3.5mm Stereo Mini-jack] |
|
PACKAGE CONTENTS
| 1x UHDS-404VW |
| 1x Matrix IR Remote |
| 1x 3pin-3.81mm Phoenix Connector (male) |
| 1x 20-60KHz IR Wideband Receiver Cable (1.5m) |
| 2x Mounting Ears |
| 4x Machine Screws (KM3×4) |
| 1x 12V/2.5A Locking Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
594MHz/18Gbps |
| Video Resolutions: |
Input: VGA-WUXGA (up to 1920×1200@60Hz), 480i-4K (3840×2160@60Hz 4:4:4, 4096×2160@60Hz 4:4:4) Output: 4096×2160p60, 4096×2160p50, 3840×2160p60, 3840×2160p50, 3840×2160p30, 1920×1080p60, 1920×1080p50, 1920×1080i60, 1920×1080i50, 1920×1200p60rb, 1360×768p60, 1280×800p60, 1280×720p60, 1280×720p50, 1024×768p60 |
ADDITIONAL FEATURES
|
CEC:
|
❌ |
|
IR Control:
|
✅ |
|
RS-232:
|
✅ |
|
Fast Seamless Switching:
|
✅ |
|
Video Wall Scene Save/Recall:
|
❌ |
|
PIP with Video Wall:
|
❌ |
|
Audio Extraction:
|
❌ |
|
USB-C Input:
|
❌ |
|
EDID Management:
|
✅ |
|
Web GUI Interface:
|
✅ |
|
TCP/IP Control:
|
✅ |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2/1.4 |
POWER
| Power Consumption: |
19.56W (Max) |
| Power Supply: |
Input: AC 100 - 240V 50/60Hz |
|
|
Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
|

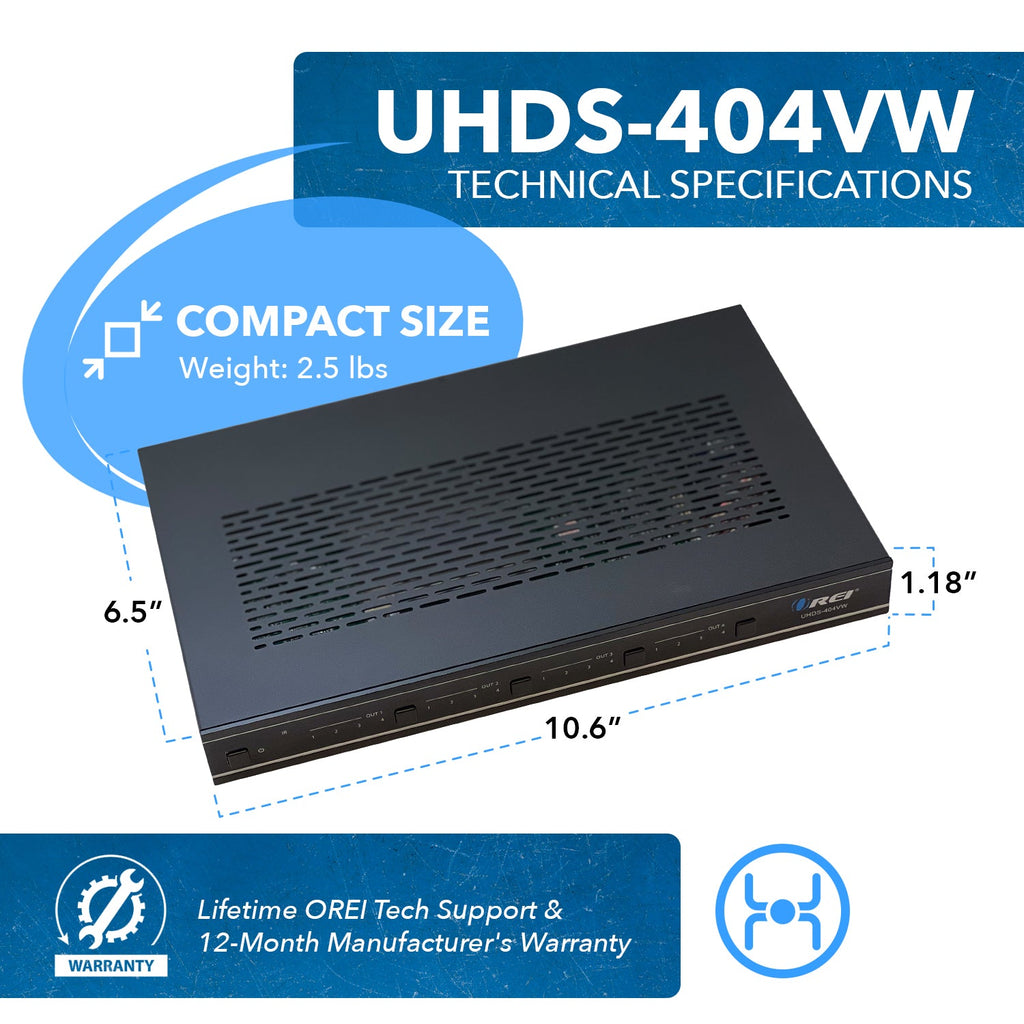

DIMENSIONS & WEIGHT
| Length:
|
270mm / 10.63in |
|
| Width: |
166mm / 6.54in |
|
| Height:
|
30mm / 1.18in |
|
| Weight:
|
1165g / 2.57lbs |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operating Temperature: |
32 ~ 104°F / 0 ~ 40°C |
| Storage Temperature: |
-4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity: |
20 ~ 90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
