Description

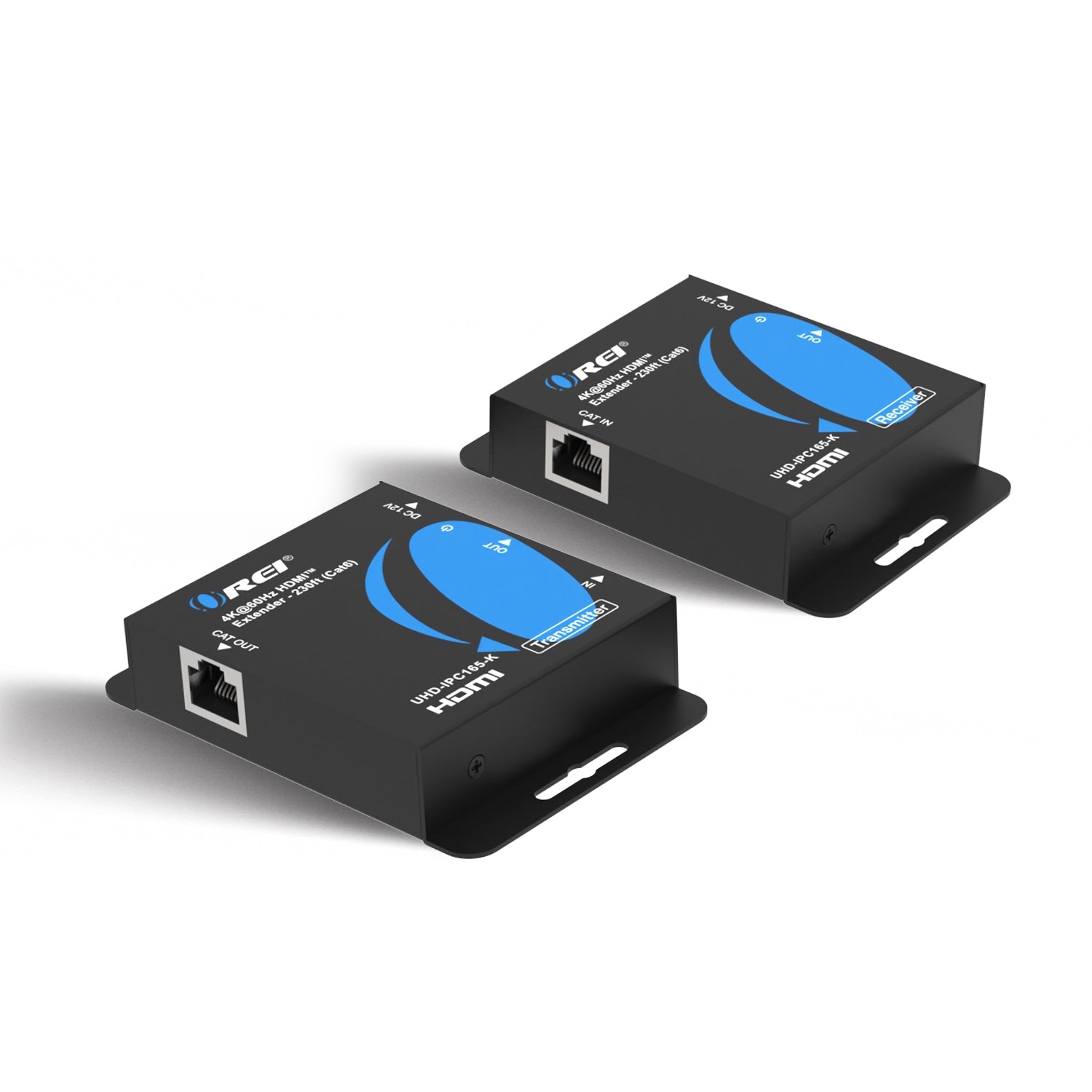

4K Extender over Ethernet up to 165 feet - With Audio Extraction (UHD-IPC165-K)
-
HDMI 2.0 & HDCP 2.2 Compliant – Ensures compatibility with the latest video and content protection standards.
-
Supports Video Resolutions up to 4K@60Hz – Delivers ultra-high-definition video over long distances.
-
18Gbps Video Bandwidth – Supports uncompressed transmission of high-quality audio and video.
-
Transmission up to 230 ft (70 m) – Extends HDMI up to 165 ft (50 m) at 4K@60Hz and up to 230 ft with shielded CAT6/6a/7 cables.
-
HDMI Loop Output – Allows a local monitor connection at the source end.
-
HDR10 Passthrough – Preserves enhanced dynamic range and color depth.
- Audio Extraction – Enables analog audio output via the L/R port on the receiver.
-
Advanced EDID Management – Supports EDID copy and auto downscaling for better compatibility.
-
Compact Design – Easy to install with minimal space requirements and simple plug-and-play operation.
The UHD-IPC165-K is a high-performance HDMI extender designed to deliver 4K@60Hz signal transmission over long distances using a single CAT6/6a/7 cable. With support for HDMI 2.0 and HDCP 2.2 standards, it maintains full compatibility with modern video and content protection formats.

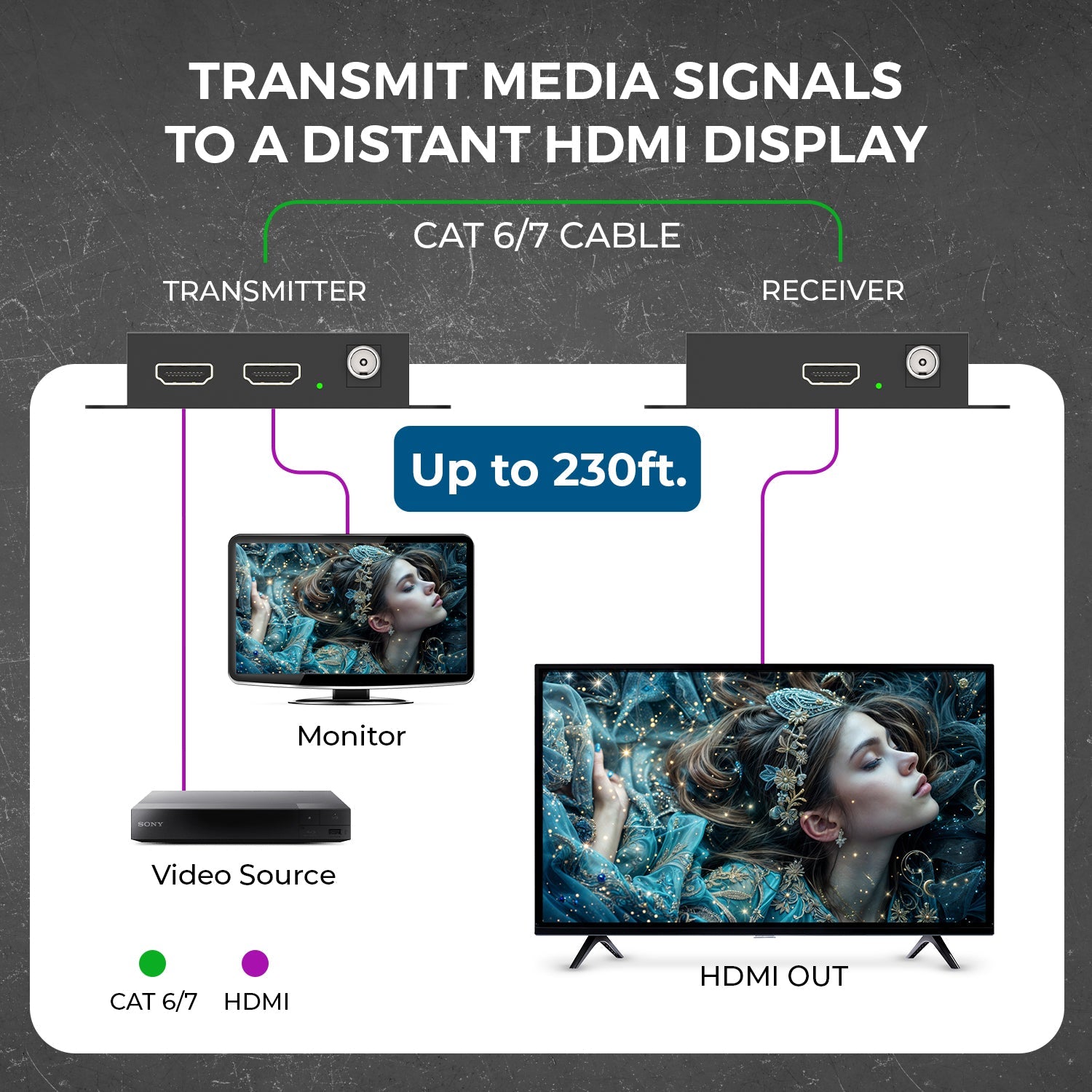

It supports distances up to 165 feet (50 meters) for 4K signals, and up to 230 feet (70 meters) with shielded cables at lower resolutions. This extender features an HDMI loop output on the transmitter for a local display, and L/R audio extraction from the receiver.
The system also includes EDID management with support for downscaling, ensuring optimal display compatibility. With plug-and-play functionality and a compact design, the UHD-IPC165-K is ideal for both residential and commercial AV installations.
[shortdes]
-
HDMI Matrix extender over ethernet up to 230 feet
-
Video resolutions up to 4K@30Hz 4:4:4
-
With Audio extraction and Uni-directional Power over cable
[/shortdes]
[tab]

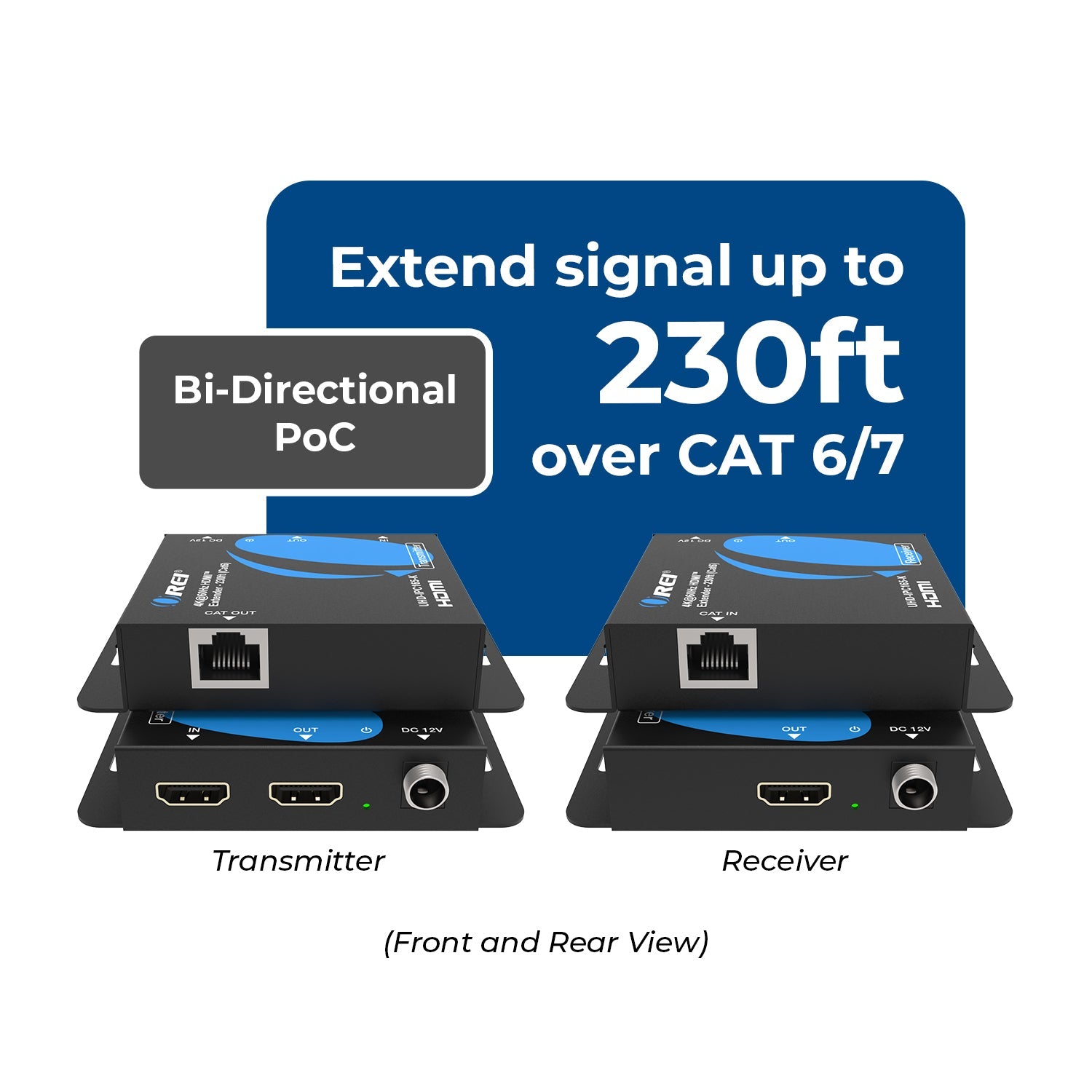

CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × I/R OUT [3.5mm Stereo Mini-jack] | |
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × I/R IN [3.5mm Stereo Mini-jack] |

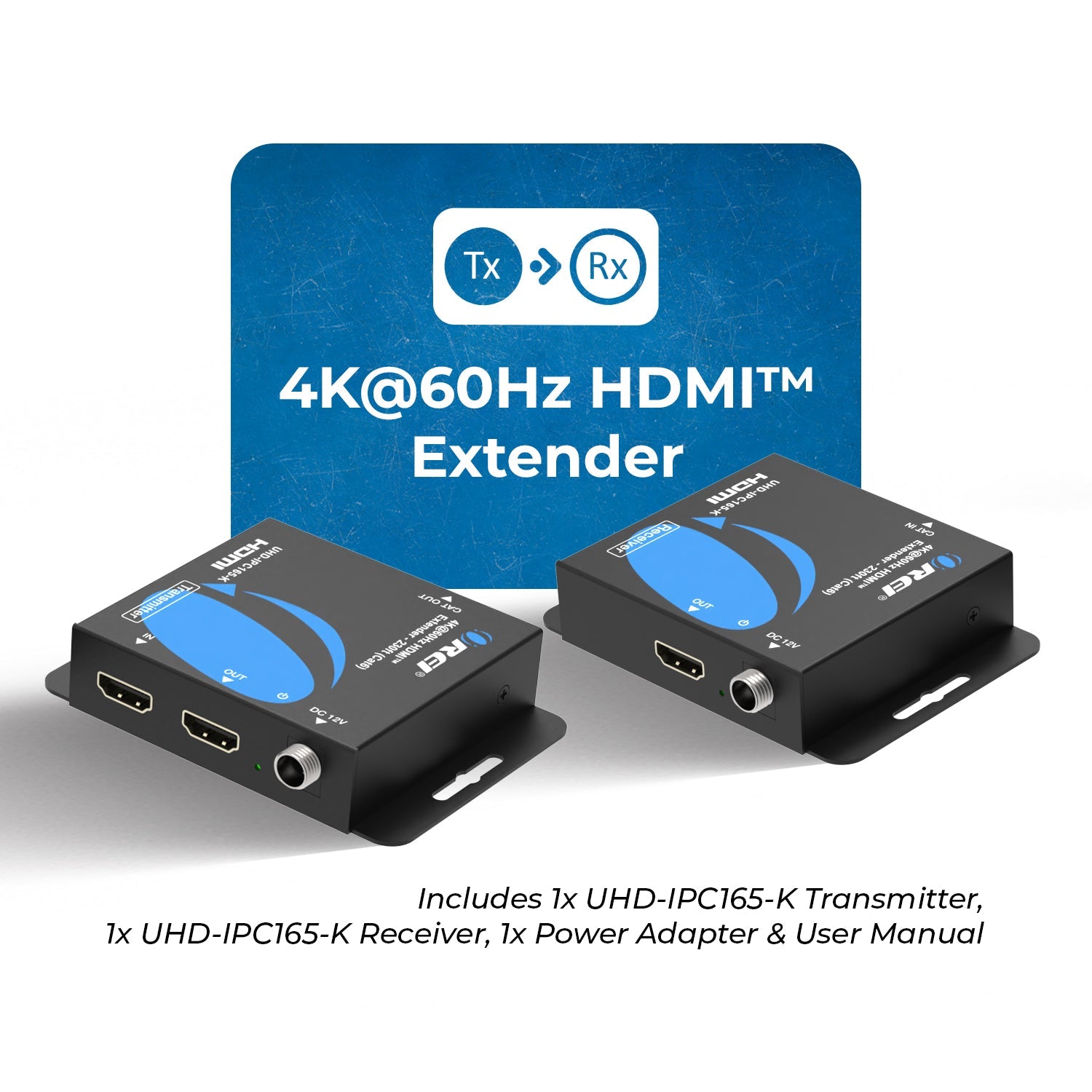

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 4x Mounting ears |
| 10x Screws |
| 2x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 165 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| ARC/eARC: | No |
| CEC : | No |
| Transmission Technology : | Ethernet |
| IR Control: | No |

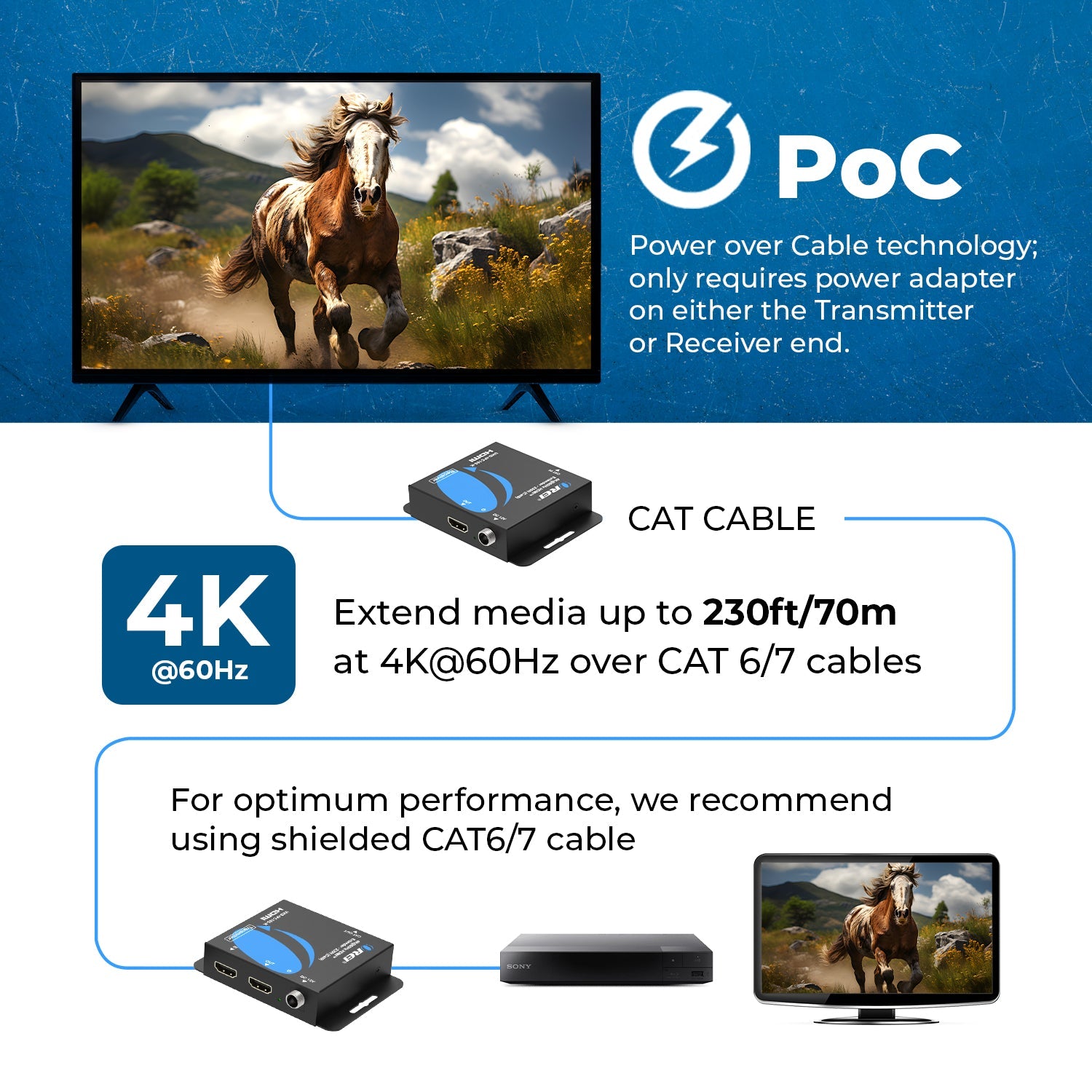

| PoC (Power over Cable): | Yes |
| RS-232: | No |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes/No/No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | TX: 3W (Max) & RX: 3W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 85mm / 3.35in |
| Width: | 75.5mm / 2.97in | |
| Height: | 16.5mm / 0.65in | |
| Weight: | 140g / 4.94oz | |
| Receiver: | Length: | 85mm / 3.35in |
| Width: | 75.5mm / 2.97in | |
| Height: | 16.5mm / 0.65in | |
| Weight: | 140g / 4.94oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20%~80% relative humidity, non-condensing |
| Storage Humidity: | 10%~90% relative humidity, non-condensing |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
