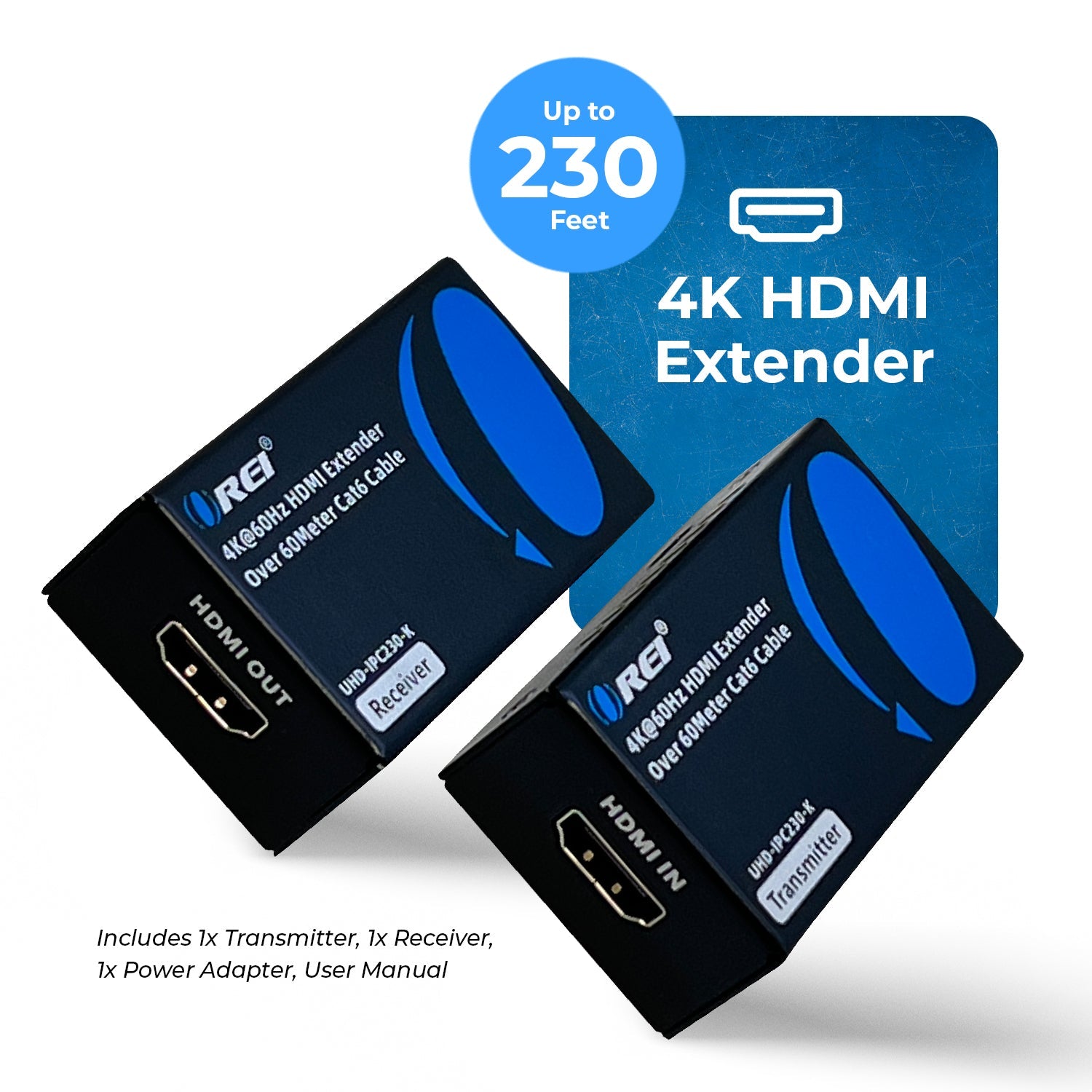

OREI UHD-IPC230-K: 4K HDMI EXTENDER UPTO 230FT
- HDMI 2.0 & HDCP 2.2/2.3 Compliant – Ensures compatibility with current HDMI devices and protected content.

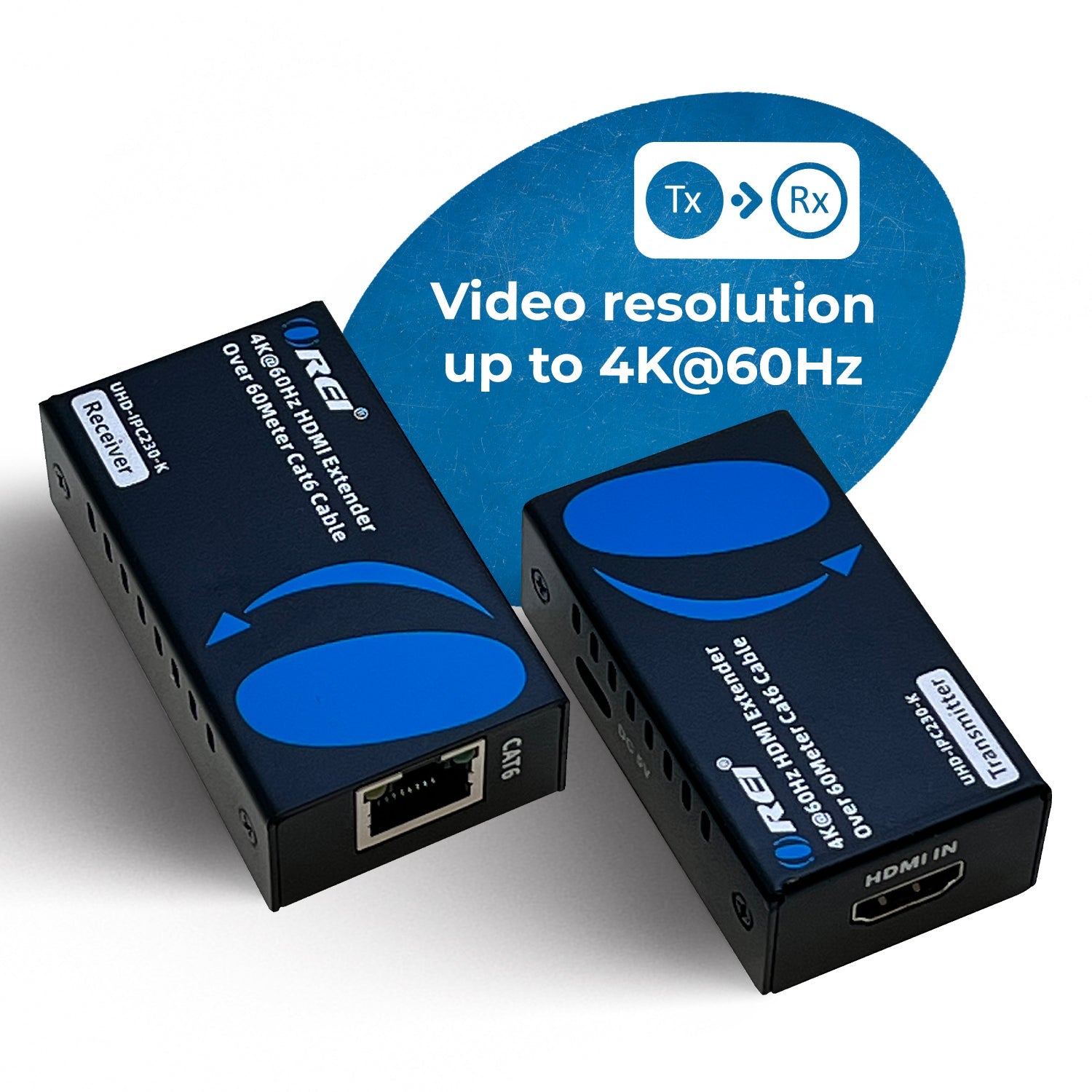

- Supports Resolutions up to 4K@60Hz – Extends 4K video up to 230 ft (70 m) over a single Cat6/7 cable.
- 18Gbps Video Bandwidth – Delivers high-quality, uncompressed video and audio signals.
- HDR & HLG Support – Fully compatible with modern high dynamic range formats.
- One-way IR Control – Allows remote control of the source device from the receiver end.

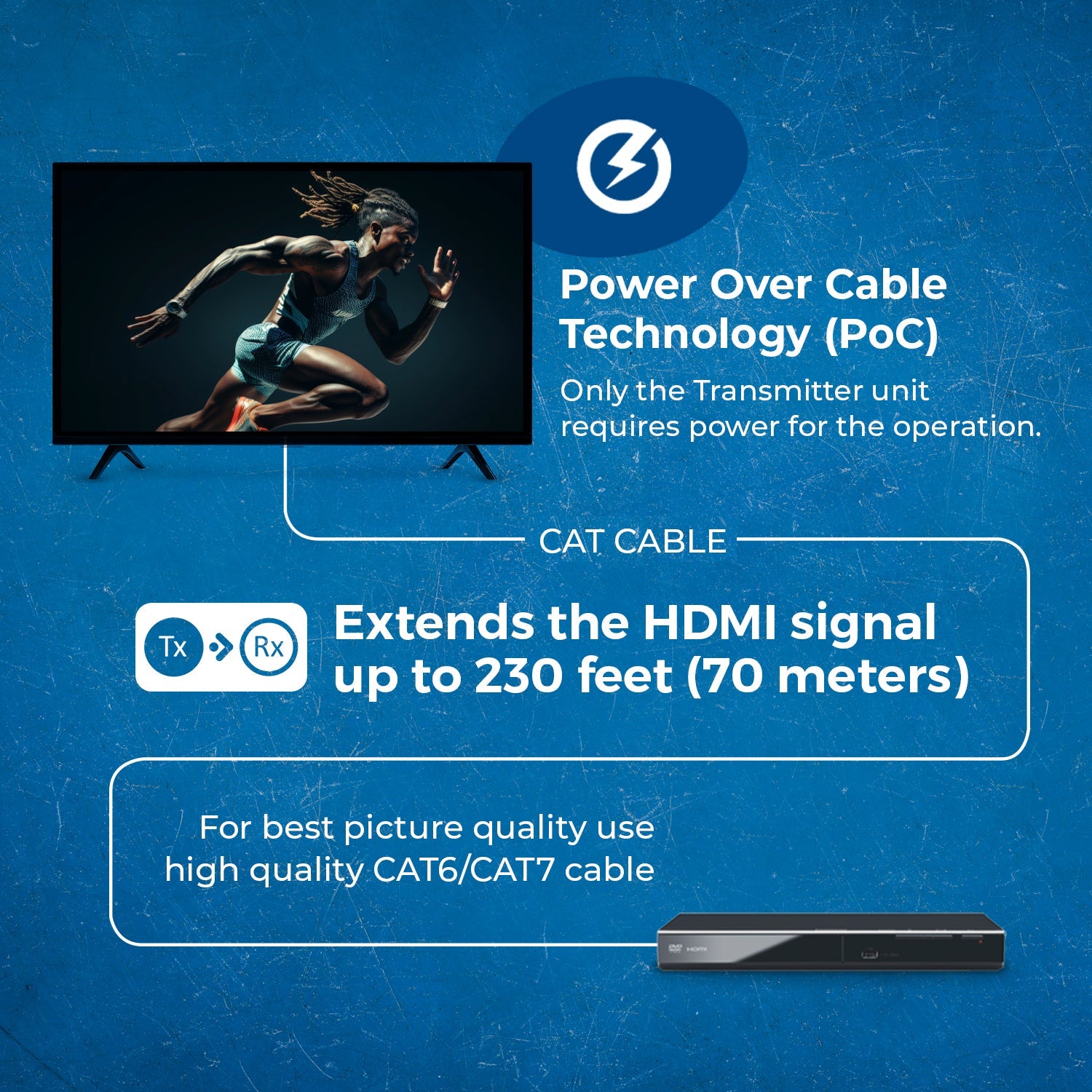

- Power over Cable (PoC) – Requires only a single power adapter at the transmitter, reducing cable clutter.
-
Compact Design & Plug-and-Play Setup – Simplifies installation in a variety of environments.

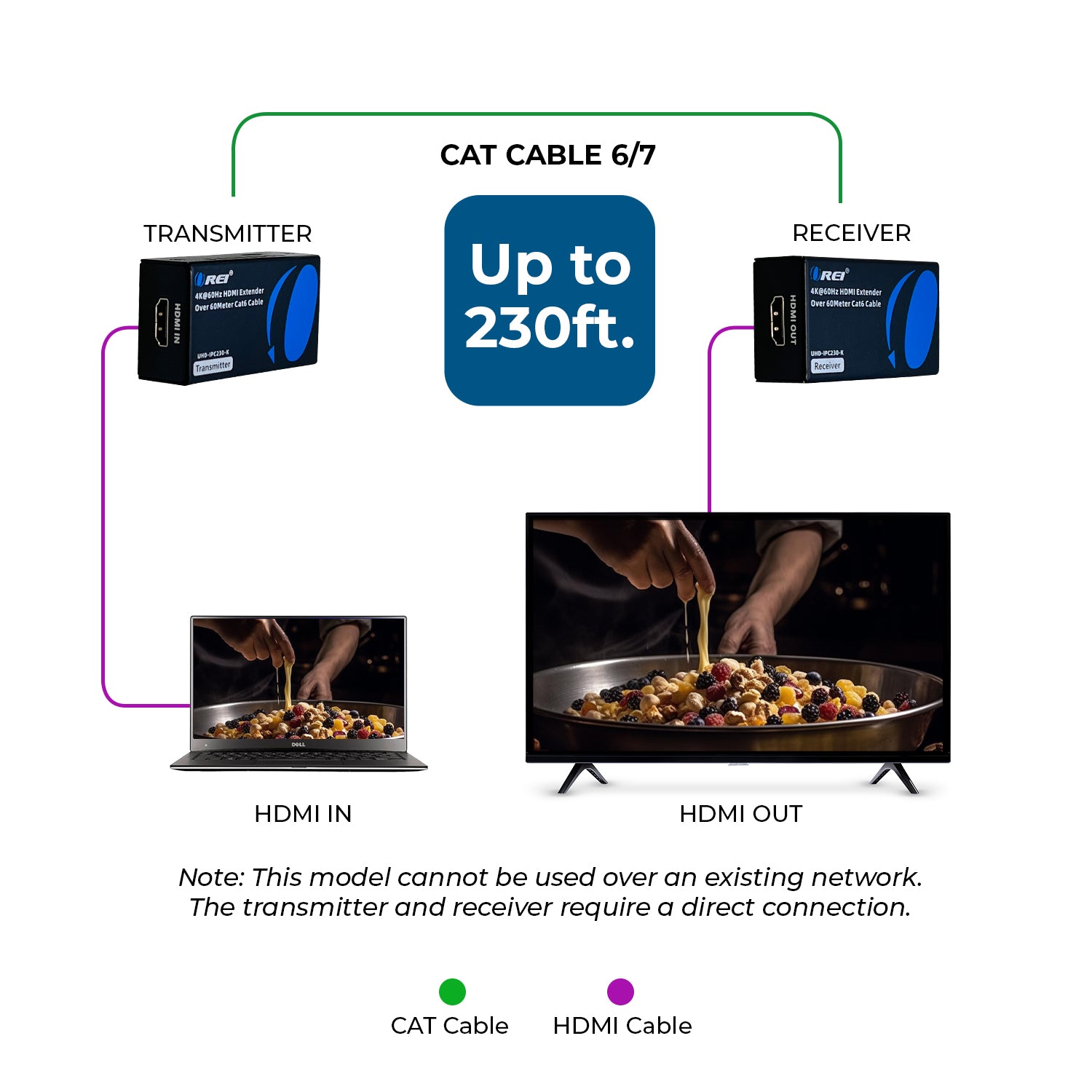

The UHD-IPC230-K is a high-performance HDMI extender designed to deliver seamless media transmission over long distances via Cat6/7 cable.
Supporting video resolutions up to 4K@60Hz and fully compliant with HDMI 2.0 and HDCP 2.2/2.3 standards, it delivers sharp, uncompressed video with an 18Gbps bandwidth. HDR and HLG (Hybrid Log Gamma) support ensures compatibility with modern high dynamic range content for enhanced visual fidelity.
With one-way IR functionality, users can control the HDMI source from the receiver's location, offering added flexibility for remote operation. Power over Cable (PoC) functionality further simplifies installation by requiring power only at the transmitter unit.
Compact and plug-and-play by design, the UHD-IPC230-K is an ideal solution for both commercial AV environments and home entertainment systems.
[shortdes]
- Resolutions up to 4K@60Hz
- HDMI 2.0 & HDCP 2.2
- EDID passthrough & Auto downscaling
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1x HDMI |
| OUTPUT: | 1x RJ45 | |
| Receiver: | INPUT: | 1x RJ45 |
| OUTPUT: | 1x HDMI |
PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 1x DC5V/2A Power Adapter |
| User Manual |
ADDITIONAL FEATURES
| ARC/eARC: | No |
| CEC : | No |
| Transmission Technology : | Ethernet |
| IR Control: | No |
| PoC (Power over Cable): | Yes |
| RS-232: | No |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes/No/No |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM/DTS 5.1/Dolby Digital 5.1CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | TX+RX＜5W | |
| Power Supply: | DC5V/2A |

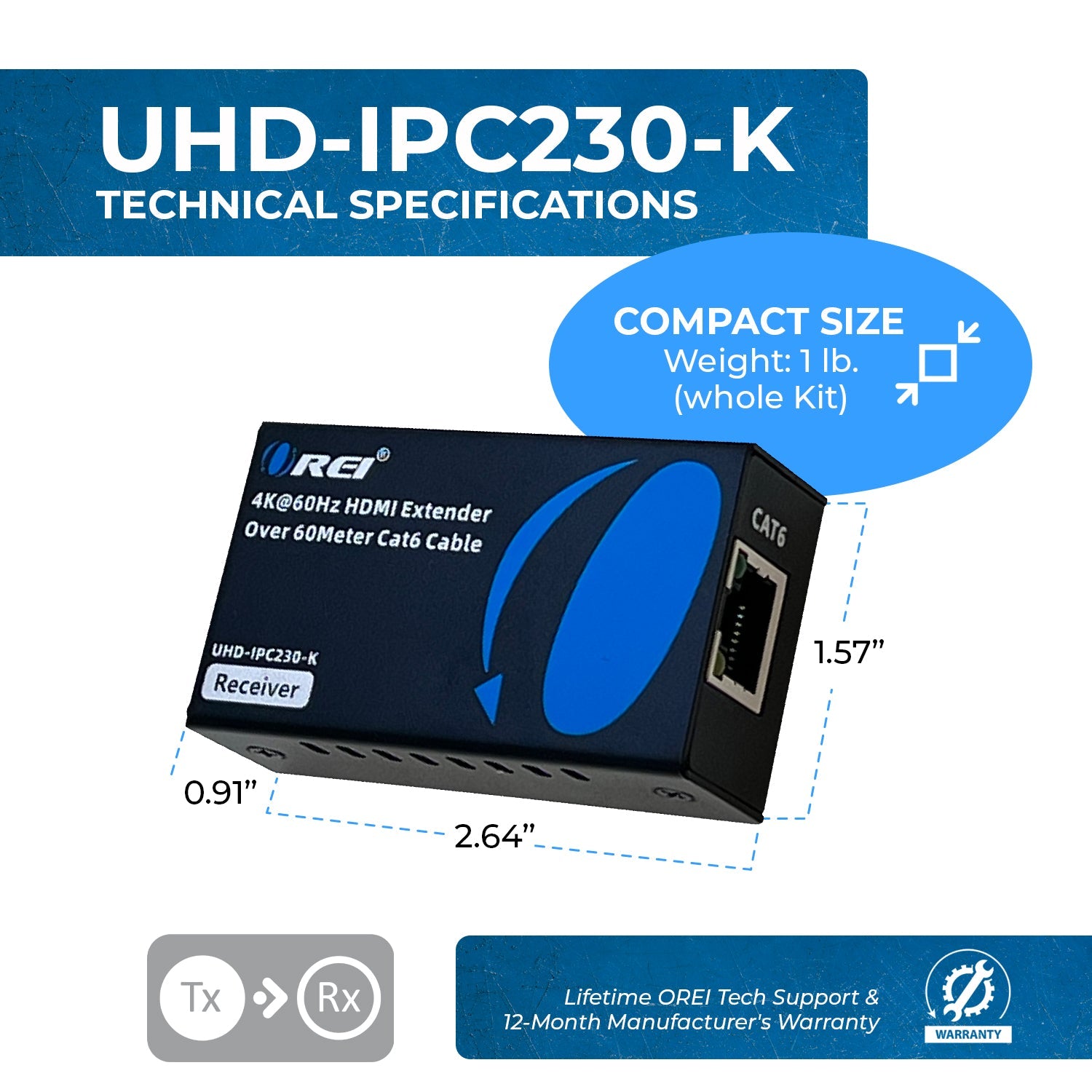

DIMENSIONS & WEIGHT
| Length: | 67mm |
| Width: | 40mm |
| Height: | 23mm |
| Weight: | 183g |
PROPERTIES
| Color: | Black |
| Housing: | Metal |
| Certifications: | FCC/CE/RoHS2.0 |
| Operation Temperature: | -20℃~60℃ |
| Storage temperature: | -30℃~70℃ |
| Operating Humidity: | 0~90%RH（No condensation） |
WARRANTY
| 1-Year Manufacturer's Warranty |
