Description

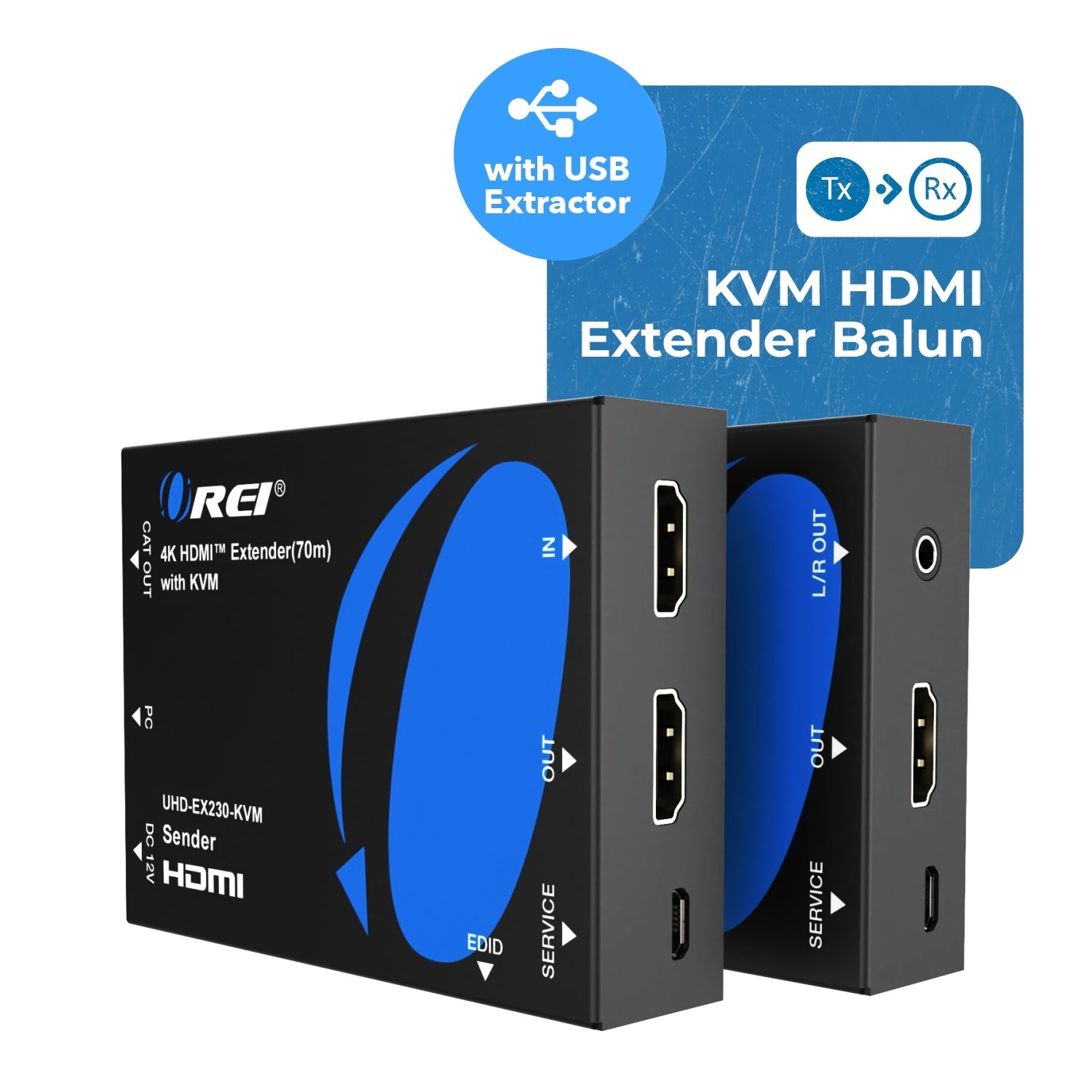

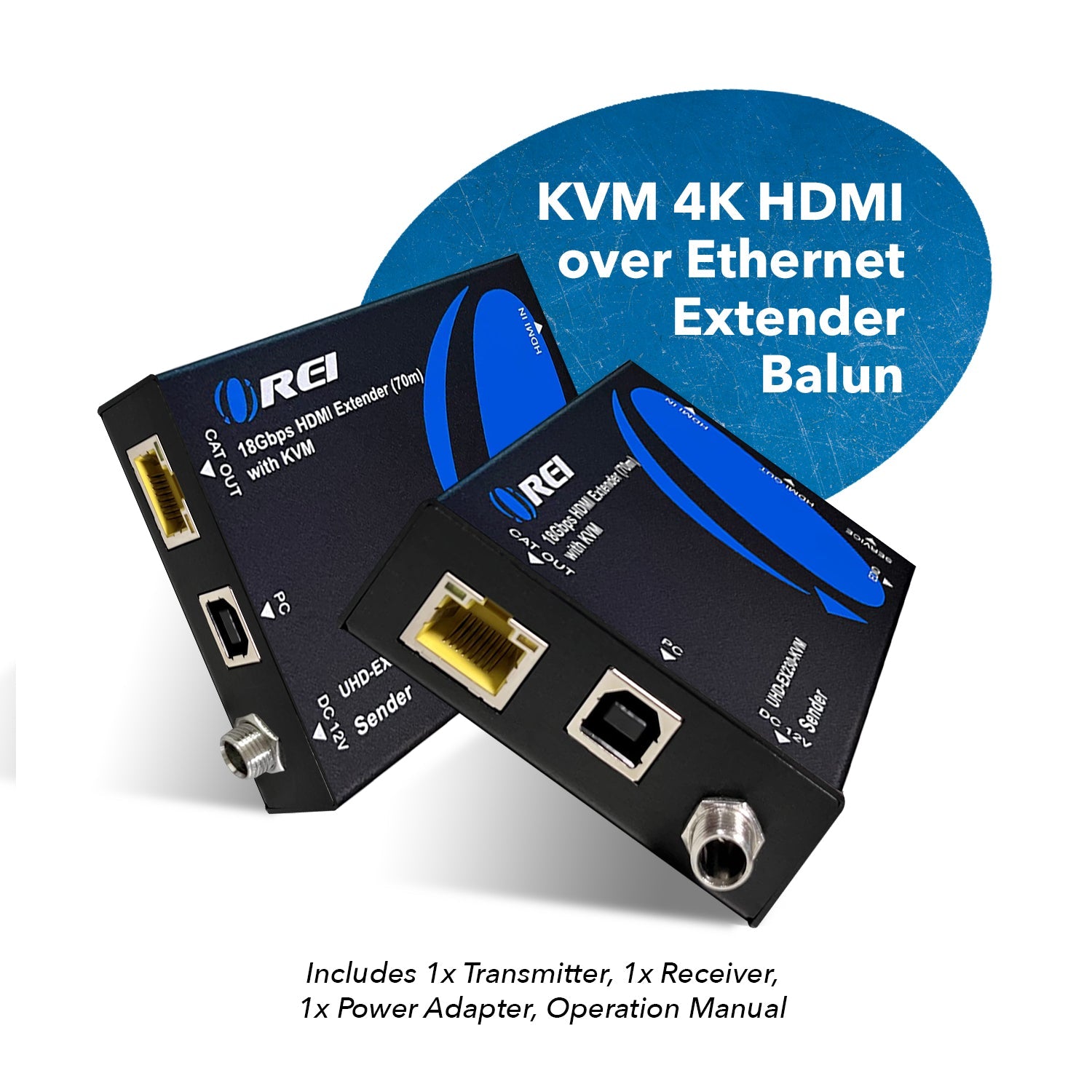

OREI 4K KVM Extender over Ethernet up to 230 feet - With Audio extraction & Bi-directional Power over Cable
-
HDMI 2.0b and HDCP 2.2 Compliant – Ensures compatibility with modern high-definition devices and protected content.
-
18Gbps Video Bandwidth – Supports uncompressed, high-quality video transmission.
-
4K@60Hz RGB/YCBCR 4:4:4 Support – Delivers ultra-clear resolution and color accuracy for premium video experiences.
-
Long-Distance Transmission – Extends HDMI signals up to 230ft (70m) over a single CAT6/6a cable without delay.
-
HDR, HDR10/10+, Dolby Vision, and HLG Support – Preserves dynamic range and color depth for immersive visuals.
-
Multi-Channel Audio Format Support – Compatible with LPCM 2.0–7.1, Dolby Digital, Dolby TrueHD, and Dolby Digital Plus (DD+).
-
Analog Audio De-Embedding – Extracts audio via 3.5mm L/R OUT port on the receiver for flexible connectivity.
-
EDID Copy and Pass-Through – Allows seamless communication between source and display devices for optimal compatibility.
-
Bi-Directional PoC (Power Over Cable) – Powers the system from either end, simplifying setup and reducing cabling.
-

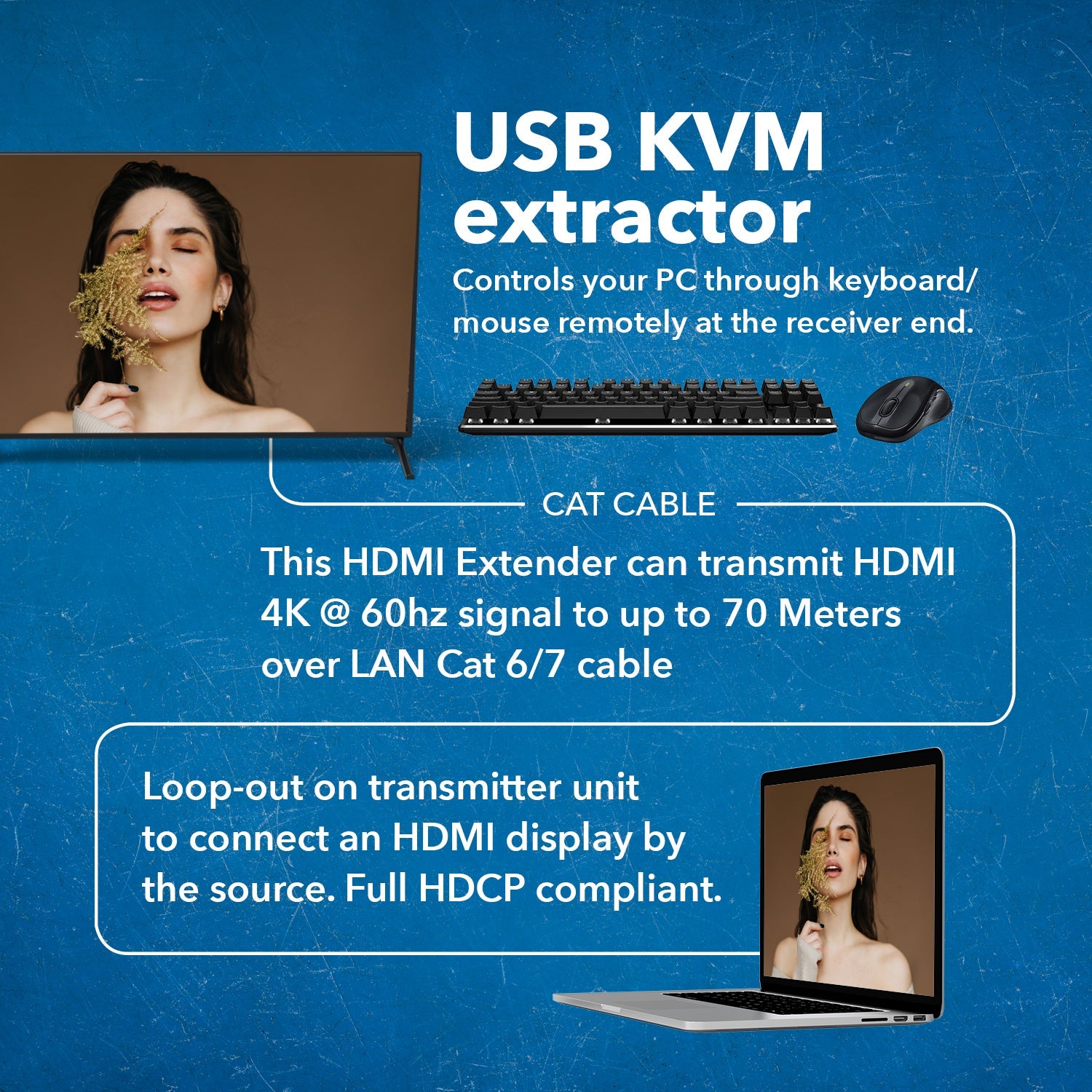

USB KVM Pass-Through (USB 1.1 Compliant) – Enables remote keyboard and mouse control of the source device from the receiver.
-
Compact and Flexible Design – Ideal for professional installations with limited space.

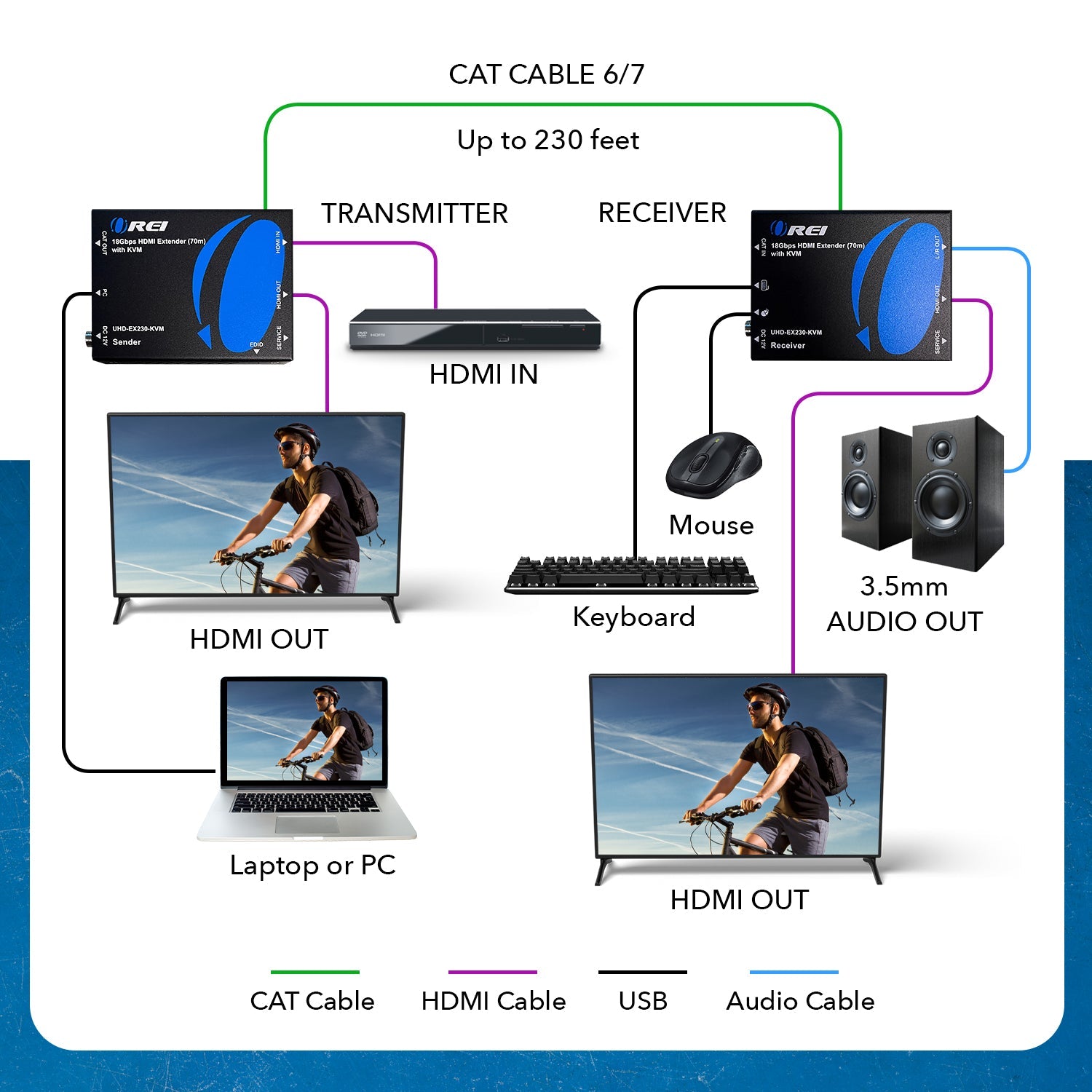

The 18Gbps HDMI Extender offers zero-delay, long-range transmission of high-definition video and audio signals over a single CAT6/6a cable. Supporting resolutions up to 4K@60Hz with RGB and 4:4:4 chroma subsampling, this extender ensures pristine image clarity across distances up to 230ft (70m). It also supports advanced video formats including HDR10, HDR10+, Dolby Vision, and HLG, alongside multi-channel audio formats like Dolby Digital, Dolby TrueHD, and LPCM up to 7.1 channels.
With analog audio de-embedding via a 3.5mm output, the device offers flexible audio options. The built-in EDID pass-through ensures optimal communication between source and display devices, while bi-directional PoC allows power to be delivered from either the transmitter or receiver side. Additionally, the USB KVM function enables remote control of the source device via keyboard and mouse at the display location.
Designed with a compact form factor, this extender is ideal for multimedia conference rooms, educational setups, home theaters, and professional AV installations.
[shortdes]
-
KVM and HDMI extender over ethernet up to 230 feet
-
Video resolutions up to 4K@60Hz 4:4:4
-
Audio extraction & Bi-directional Power over cable
[/shortdes]
[tab]

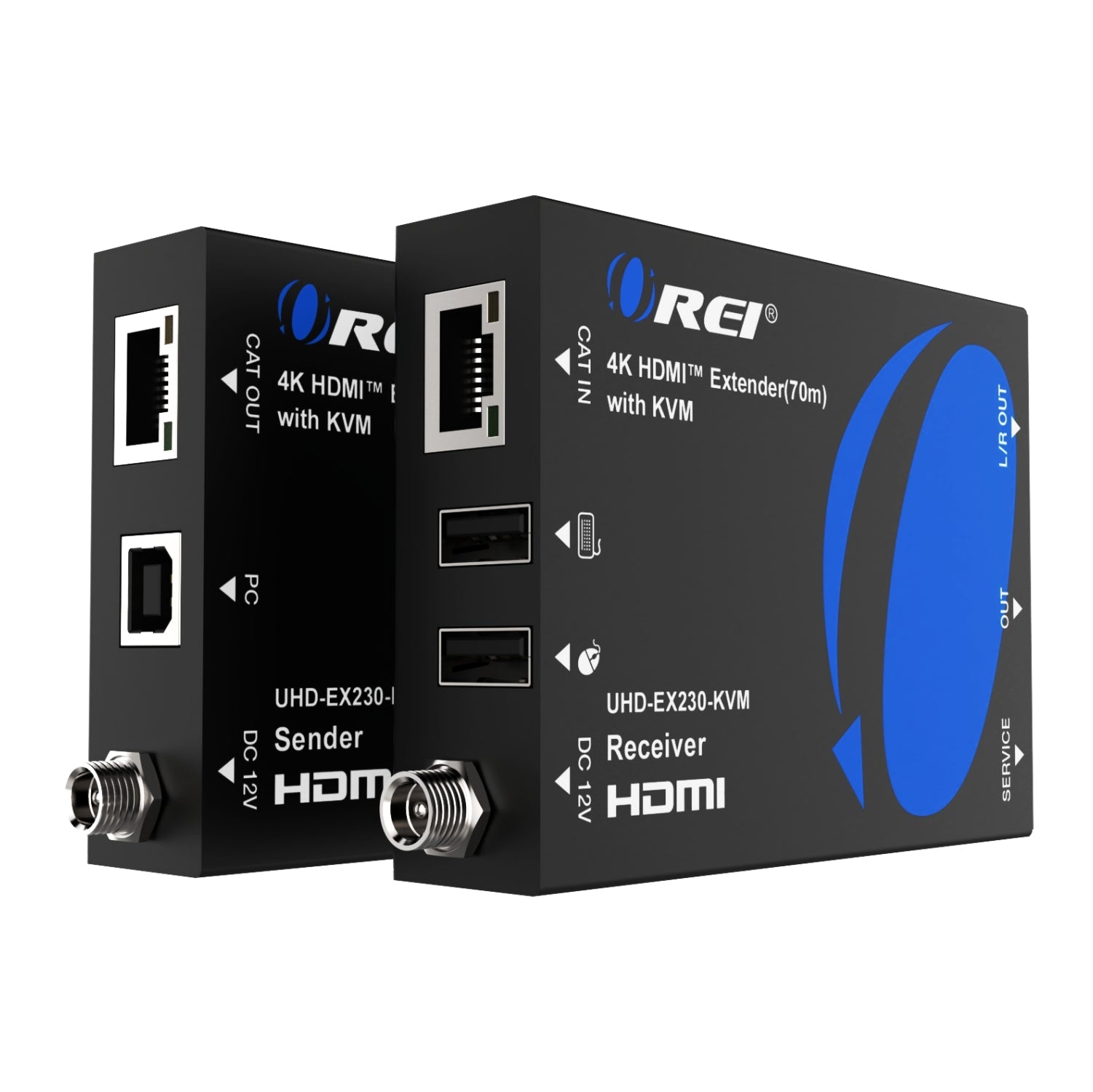

CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × SERVICE [Micro USB, Update port] | |
| 1 x USB - B port [Host device] | ||
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R OUT [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 2×USB [USB Type A] | |
| 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS
| 1x 18Gbps HDMI Extender (Transmitter) |
| 1x 18Gbps HDBaseT Extender (Receiver) |
| 1x USB-A to USB-B Cable (1.5 meters) |
| 4x Mounting Ears |
| 8x Machine Screws (KM3*4) |
| 1x 12V/1A Locking Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 230 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| ARC/eARC: | ❌/❌ |
| CEC : | ❌ |
| Transmission Technology : | Ethernet |
| IR Control: | ❌ |
| PoC (Power over Cable): |
✅ |
| RS-232: | ❌ |
| USB Standard: | USB 1.1(KVM) |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: |
✅/❌/❌ |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+) |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 4.2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |

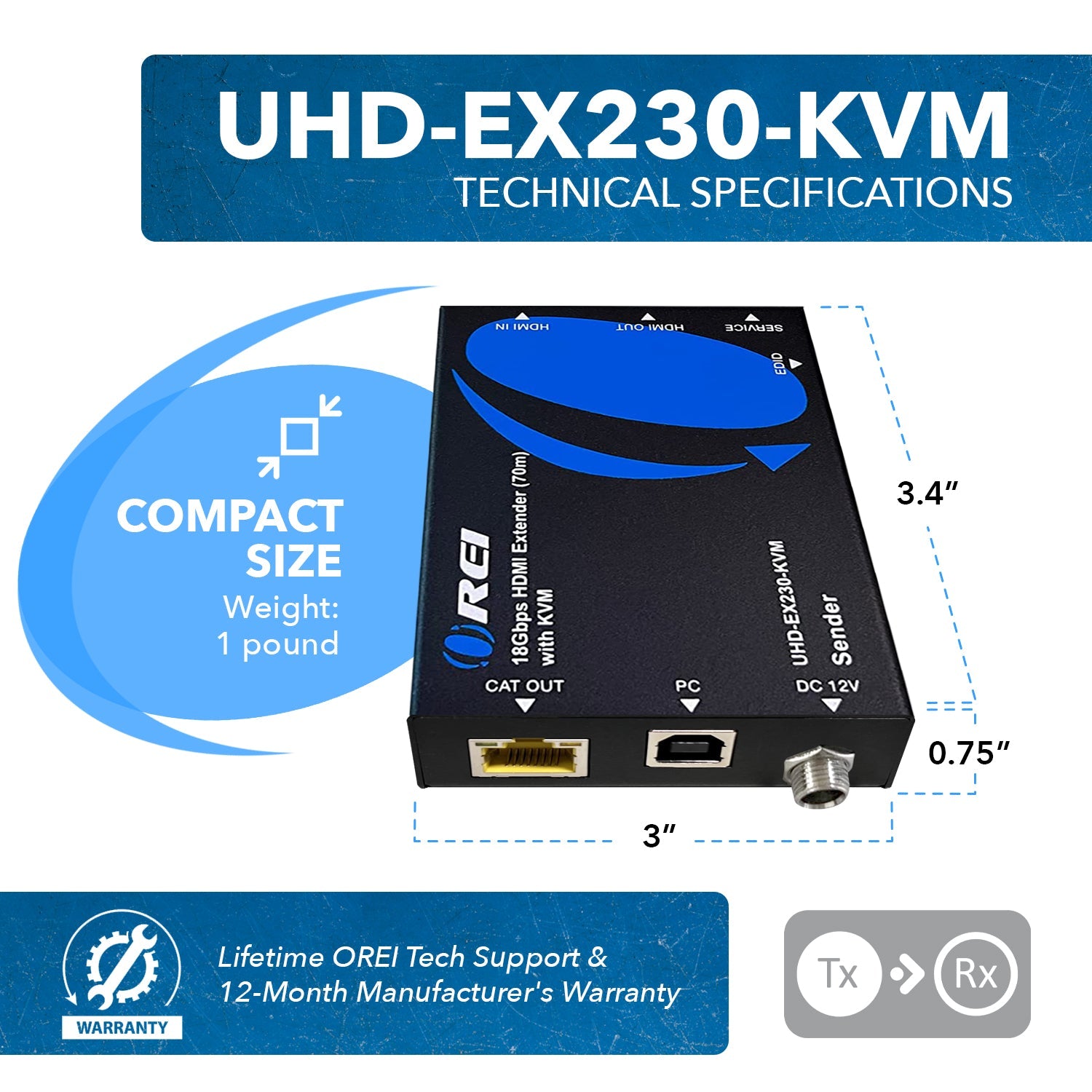

DIMENSIONS & WEIGHT
| Length: | 90mm / 3.54in | |
| Width: | 68mm / 2.68in | |
| Height: | 22mm / 0.87in | |
| Weight: | 170g / 6oz | |
| Length: | 90mm / 3.54in | |
| Width: | 68mm / 2.68in | |
| Height: | 22mm / 0.87in | |
| Weight: | 169g / 5.96oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 32 - 104°F / 0 - 40°C |
| Storage Temperature: | -4 - 140°F / -20 - 60°C |
| Operating Humidity: | 20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-EX230-KVM
[/tab1]
