Description

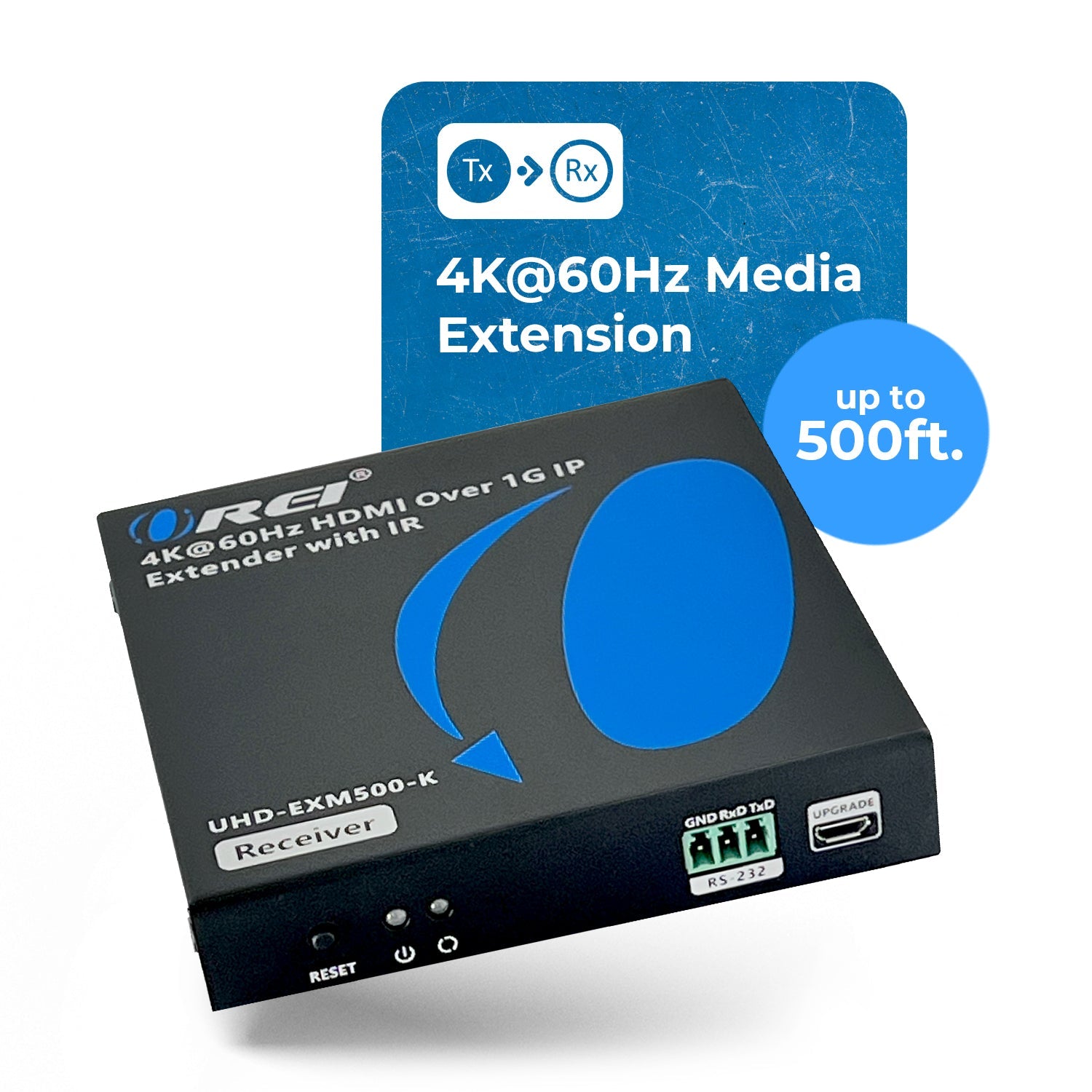

OREI UHD-EXM500-K: 4K HDMI Extender UPTO 500 FT
-
ipcolor STREAM Technology – Enables high-definition audio/video transmission with ultra-low latency.
-
Supports Resolutions up to 4K@60Hz – Delivers crystal-clear video performance.
-
Long-Distance Transmission – Extends HDMI signals up to 500 ft (120 m) over Cat6/6a/7 cable.
-
Flexible Connectivity – Supports one-to-one, one-to-many, and network switch cascade configurations.
-
HDMI Loop-Out on Transmitter – Allows local display connection at the source.
-
One-Way IR Control – Enables source device control from the receiver end (20~60kHz).
-
RS-232 Control Support – Integrates seamlessly with third-party control systems.
-
Micro-USB Firmware Upgrades – Ensures long-term compatibility and feature updates.
-
Robust Protection – Built-in lightning, surge, and ESD protection for reliable operation.
-
Compact Design – Easy to install, ideal for both commercial and residential applications.
UHD-EXM500-K is a high-performance HDMI extender system utilizing ipcolor STREAM technology for ultra-clear, low-latency audio/video transmission.

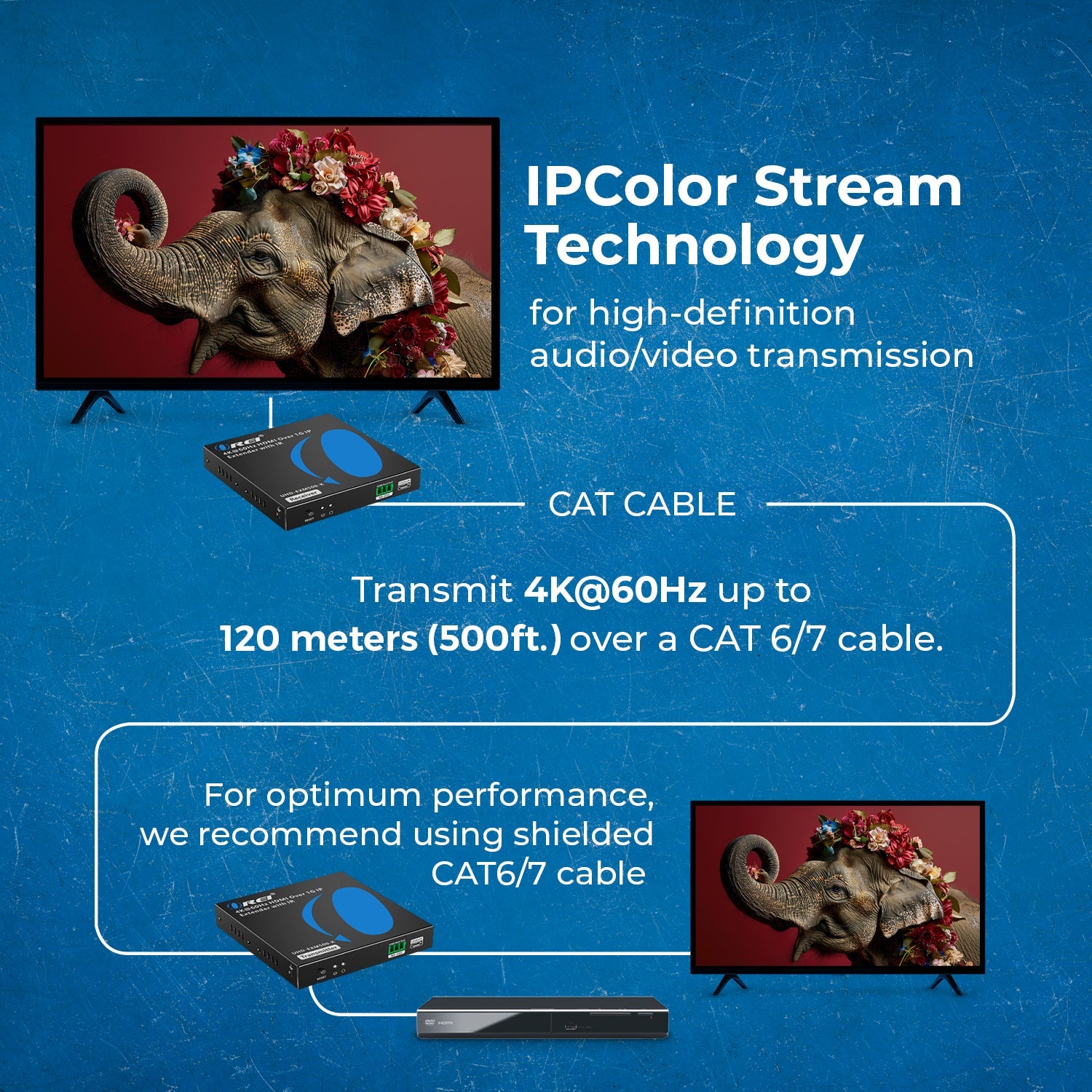

Designed to transmit signals up to 500 feet (120 meters) over a single Cat6/6a/7 cable, this extender supports stunning video resolutions up to 4K@60Hz, delivering reliable, high-definition performance across long distances.

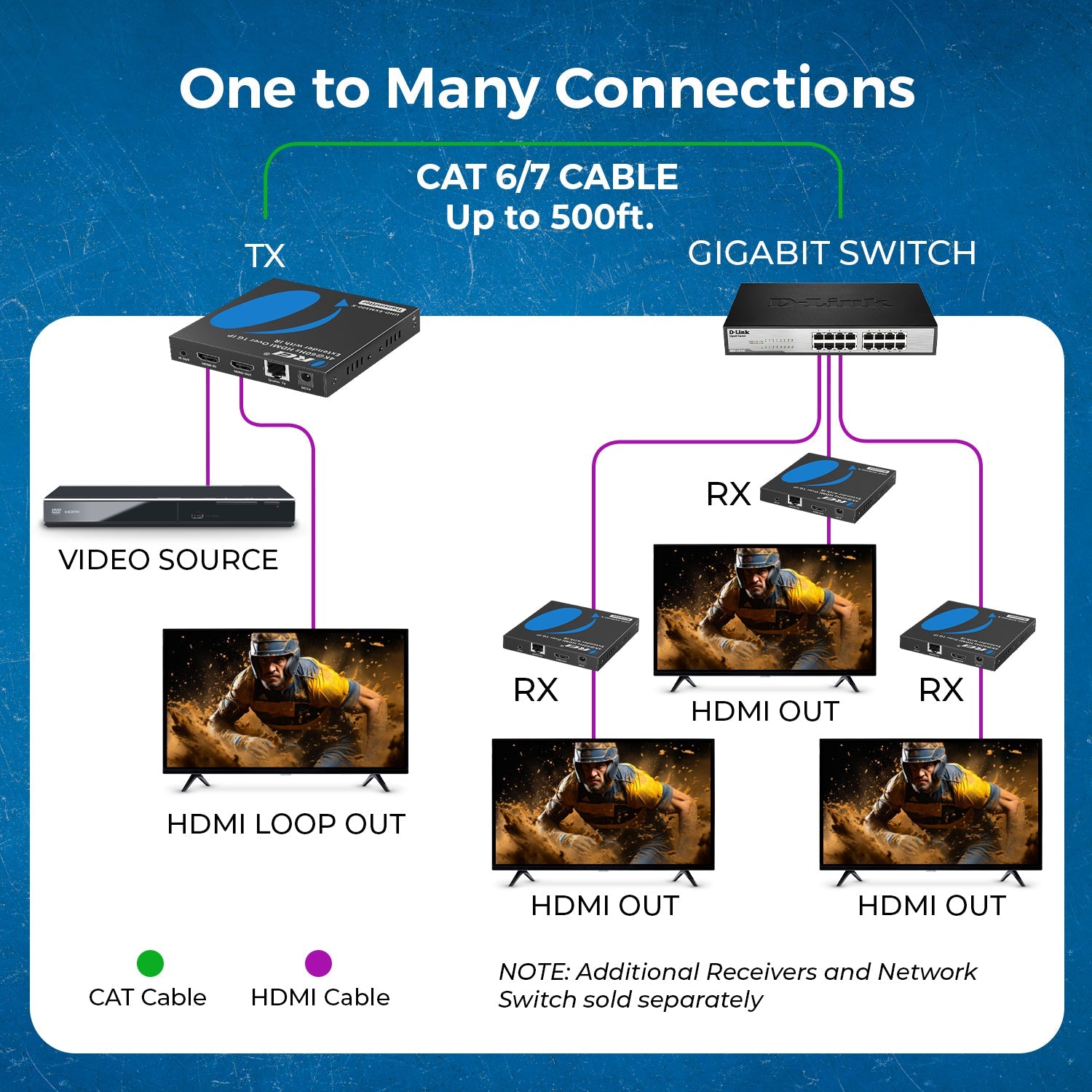

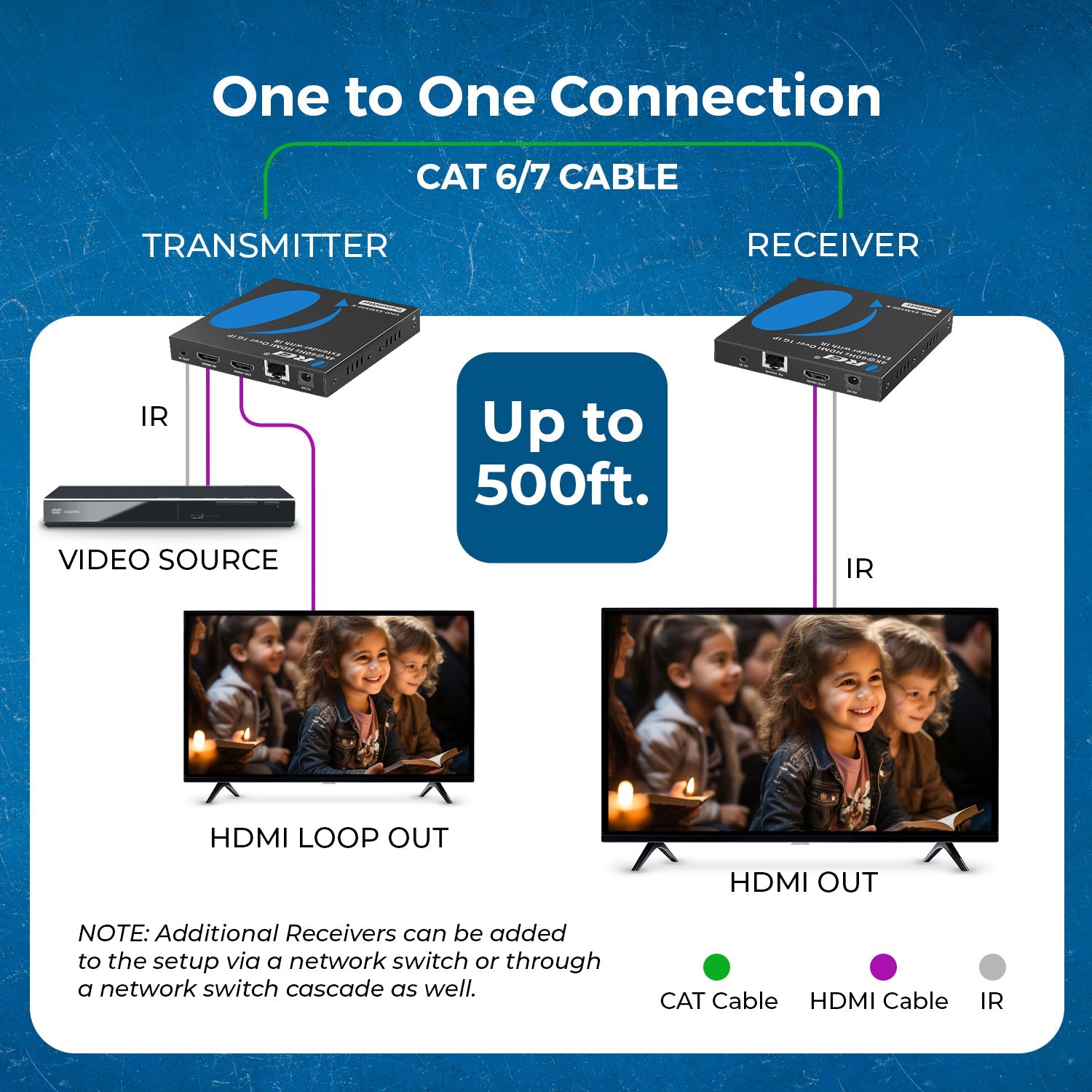

The system includes a transmitter and receiver and offers flexible connection configurations—supporting both one-to-one and one-to-many setups via standard network switches. The transmitter features an HDMI loop-out for a local display at the source end, while one-way IR pass-through enables source device control from the receiver location.
RS-232 control is also supported for added integration flexibility. With micro-USB ports for firmware upgrades and built-in protections against lightning, surges, and ESD, the UHD-EXM500-K is a robust, scalable solution ideal for commercial AV systems and high-resolution installations. Note: HDR is not supported on this model.
[shortdes]
- Video resolutions up to 4K@60Hz
- Compliance: HDMI 2.0 - HDCP 1.4/2.2
- One-way IR control
[/shortdes]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-EXM500-K
[/tab1]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [19-pin female] |
| OUTPUT: | 1 × HDMI [19-pin female] | |
| 1 × CAT port [RJ45] | ||
| 1 × IR OUT [3.5mm Stereo Minijack] | ||
| CONTROL: | 1 × RS-232 [3-pin phoenix connector] | |
| 1 × SERVICE [Micro USB, Upgrade port] | ||

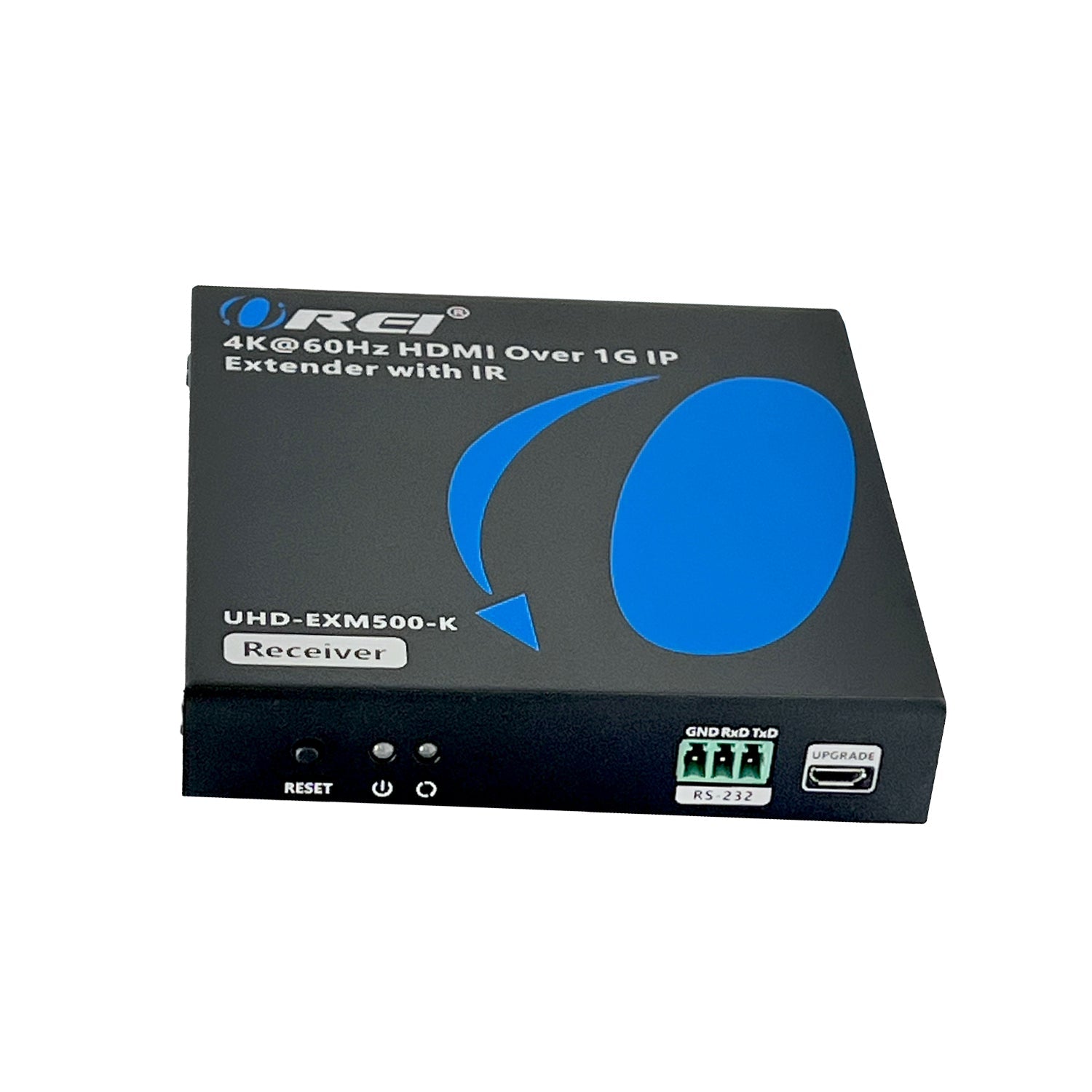

| Receiver: | INPUT: | 1 × IR IN [3.5mm Stereo Minijack] |
| 1 × CAT port [RJ45] | ||
| OUTPUT: | 1 × HDMI [19-pin female] | |
| CONTROL: | 1 × SERVICE [Micro USB, Update port] |

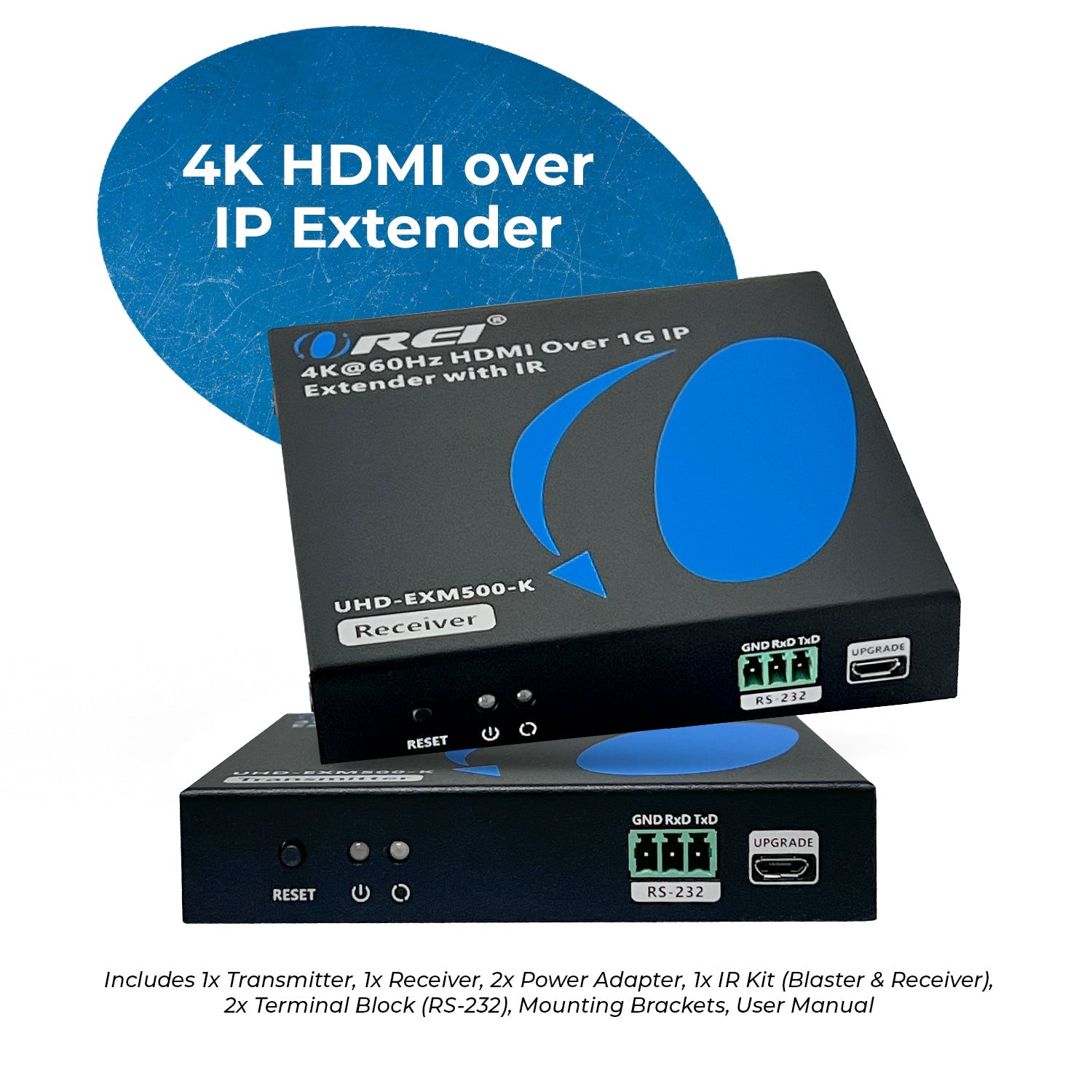

PACKAGE CONTENTS
| 1x UHD-EXM500-K Transmitter |
| 1x UHD-EXM500-K Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver Cable |
| 4x Mounting Ear |
| 10x Screws |
| 1x Grounding Screw |
| 2x RS-232 Terminal Block |
| 1x DC5V/1A Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 500ft |
ADDITIONAL FEATURES
| ARC/eARC: | No |
| CEC : | No |
| Transmission Technology : | Ethernet, OverIP |
| IR Control: | Yes, Uni-directional |
| PoC (Power over Cable): | Yes |
| RS-232: | Yes |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X |
POWER
| Power Consumption: | Transmitter: ≤ 4.5W, Receiver: ≤ 2.5W | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) | ||
|
|

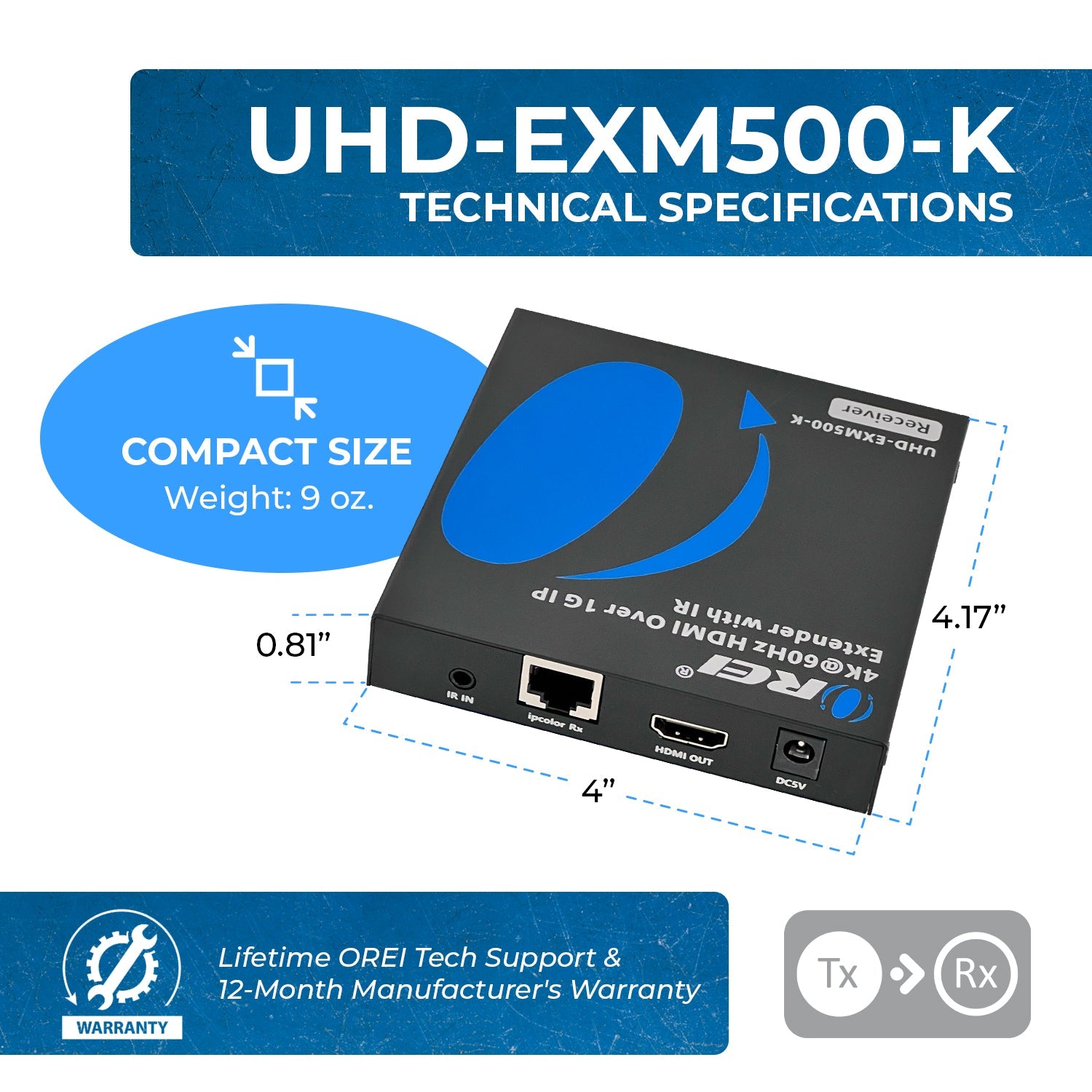

DIMENSIONS & WEIGHT
| Length: | 106mm / 4.17in | |
| Width: | 103mm / 4.05in | |
| Height: | 20.6mm / 0.81in | |
| Weight: | Transmitter: 254g / 8.95oz | |
| Receiver: 242g / 8.53oz |
PROPERTIES
| Color: | Black |
| Housing: | Iron |
| Operating Temperature: | -4~140°F / -20~60°C |
| Storage Temperature: | -22~160°F / -30~70°C |
| Relative Humidity: | 0~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
