OREI BK-102A: 8K 1x2 HDMI Splitter With Audio Extraction, Downscaler & EDID management
Key Features:
-
HDMI 2.1 and HDCP 2.3 Compliant – Supports the latest video and content protection standards.
-
8K@60Hz and 4K@120Hz Video – Delivers ultra-high-definition resolutions with vibrant color depth.
-
48Gbps FRL & 18Gbps TMDS Bandwidth – Ensures smooth, high-quality video and audio performance.
-
Supports VRR, ALLM, QMS, QFT, SBTM – Optimizes visual experience and reduces latency while gaming.
-
HDR10+, Dolby Vision, and HLG Pass-through – Enhances video with stunning contrast and color.
-
Audio Extraction via Optical and Analog Outputs – Offers flexible audio connectivity options.
-
Auto Downscaling – Converts 8K to 4K or 1080p, and 4K to 1080p on all outputs.
-
HDR to SDR Conversion – Automatically adjusts dynamic range for SDR displays.
-
Advanced EDID Management – Allows quick selection of EDID presets for optimal device compatibility.
-
Compact, Plug-and-Play Design – Simple installation and space-saving form factor.

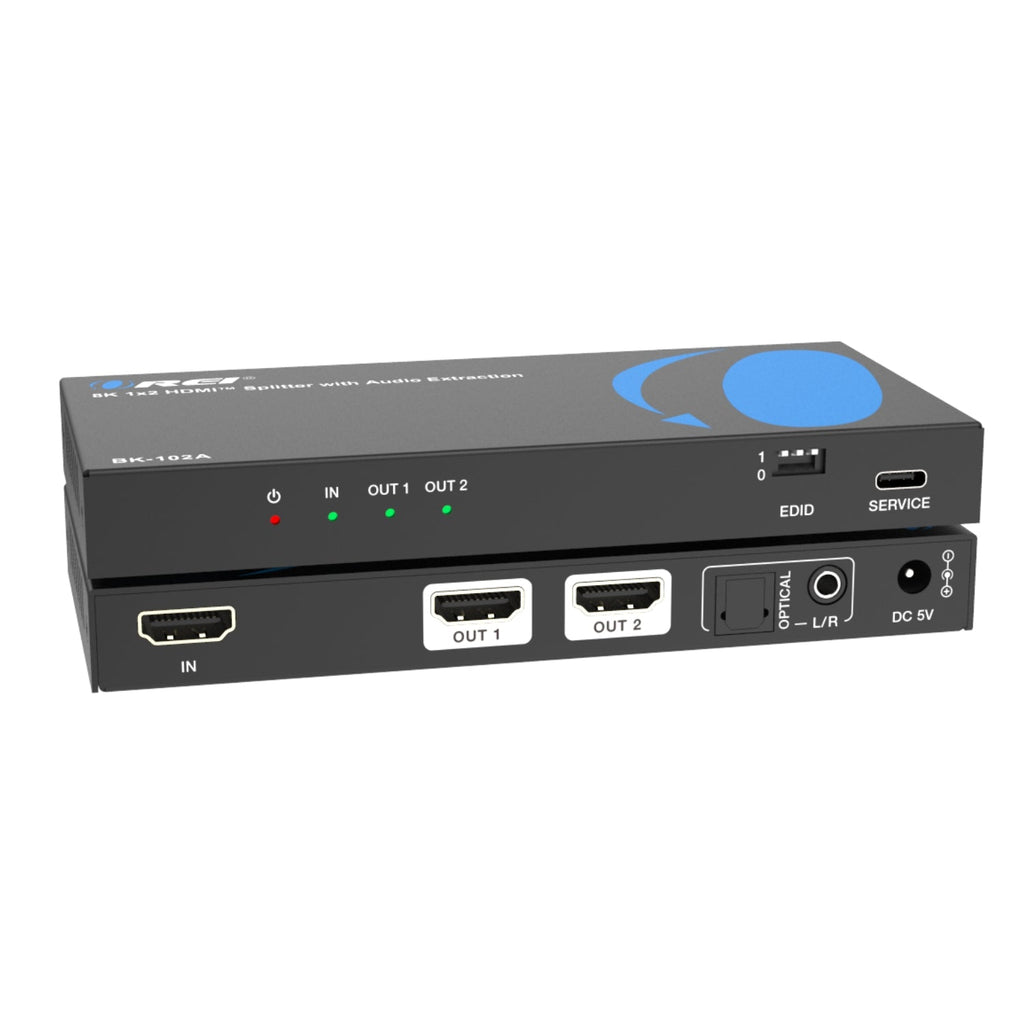

The BK-102A is a compact 1x2 HDMI splitter that distributes a single HDMI source to two displays, supporting resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz. Compliant with HDMI 2.1 and HDCP 2.3, it delivers flawless signal transmission with 48Gbps bandwidth. It supports advanced video formats including HDR10+, Dolby Vision, and HLG, and offers audio extraction via optical and analog outputs.
The device features auto downscaling from 8K to 4K or 1080p, along with automatic HDR to SDR conversion for flexible display options. EDID management is easily handled through DIP switch controls, and its compact plug-and-play design ensures a smooth setup for both home and professional AV installations.
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × Optical [S/PDIF] | ||
| CONTROL: | 1× SERVICE [USB-C, Update port] |
PACKAGE CONTENTS
| 1x BK-102A HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 10 Feet | |
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL & 18 Gbps TMDS |
| Maximum Resolution: | 8K@60Hz |
| Input Resolution: |
7680x4320p60Hz YUV420 8/10/12bit, 7680x4320p50Hz YUV420 8/10/12bit 7680x4320p30/29.97/25/24/23.98Hz, 5120x2160p60/50Hz 4096x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
| Output Resolution: |
7680x4320p60Hz YUV420 8/10/12bit, 7680x4320p50Hz YUV420 8/10/12bit 7680x4320p30/29.97/25/24/23.98Hz, 5120x2160p60/50Hz 4096x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | Yes |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| Optical Audio Formats: |
LPCM/Dolby/DTS 5.1CH
|
| L/R Audio Formats: |
LPCM 2.0
|
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 4.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |
DIMENSIONS & WEIGHT
| Length: | 145mm / 5.71in | |
| Width: | 68mm / 2.68in | |
| Height: | 17mm / 0.67in | |
| Weight: | 260g / 9.17oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (Non-Condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- 1 in 2 out 8K HDMI splitter With Audio Extraction
- Resolutions up to 8K@60Hz 4:2:0
- 8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
