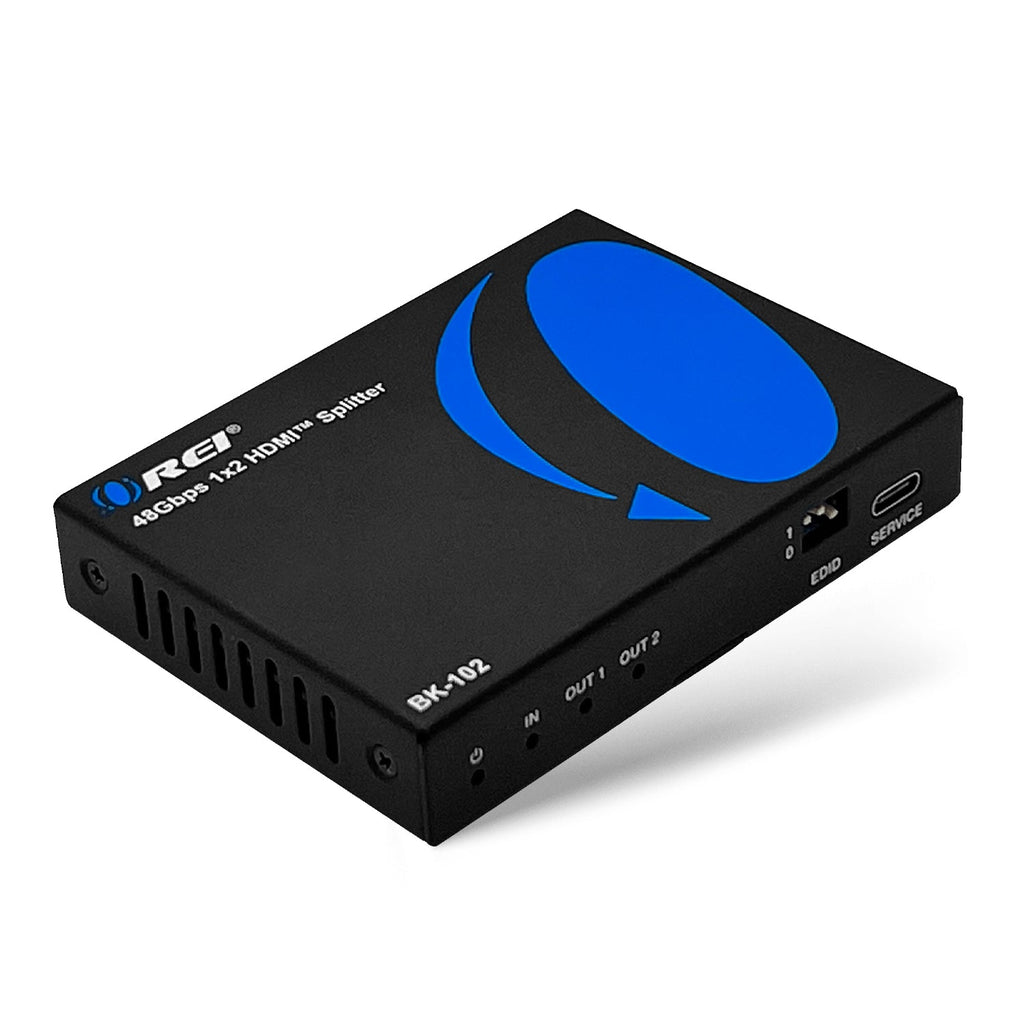

OREI BK-102: 1X2 8K HDMI SPLITTER WITH AUDIO OUT
Key Features:
-
HDMI 2.1 and HDCP 2.3 Compliant – Fully compatible with the latest high-resolution video and protected content standards.
-
Resolutions up to 8K@60Hz and 4K@120Hz – Enables ultra-HD video output for modern displays.
-
48Gbps Video Bandwidth – Ensures high-speed signal transmission for both video and audio.
-
HDR10+, Dolby Vision, and HLG Support – Delivers enhanced contrast and color depth for vivid image quality.
-
Supports VRR, ALLM, QMS, QFT, and SBTM – Ideal for gaming with smoother motion, reduced latency, and dynamic refresh rate support.
-
8K to 4K and 8K/4K to 1080p Downscaling – Adapts output resolution to match connected displays for optimal performance.
-
Automatic HDR to SDR Conversion – Ensures compatibility with non-HDR displays on both outputs.
-
Advanced Audio Format Support – Passes LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master, and DTS:X via HDMI.
-

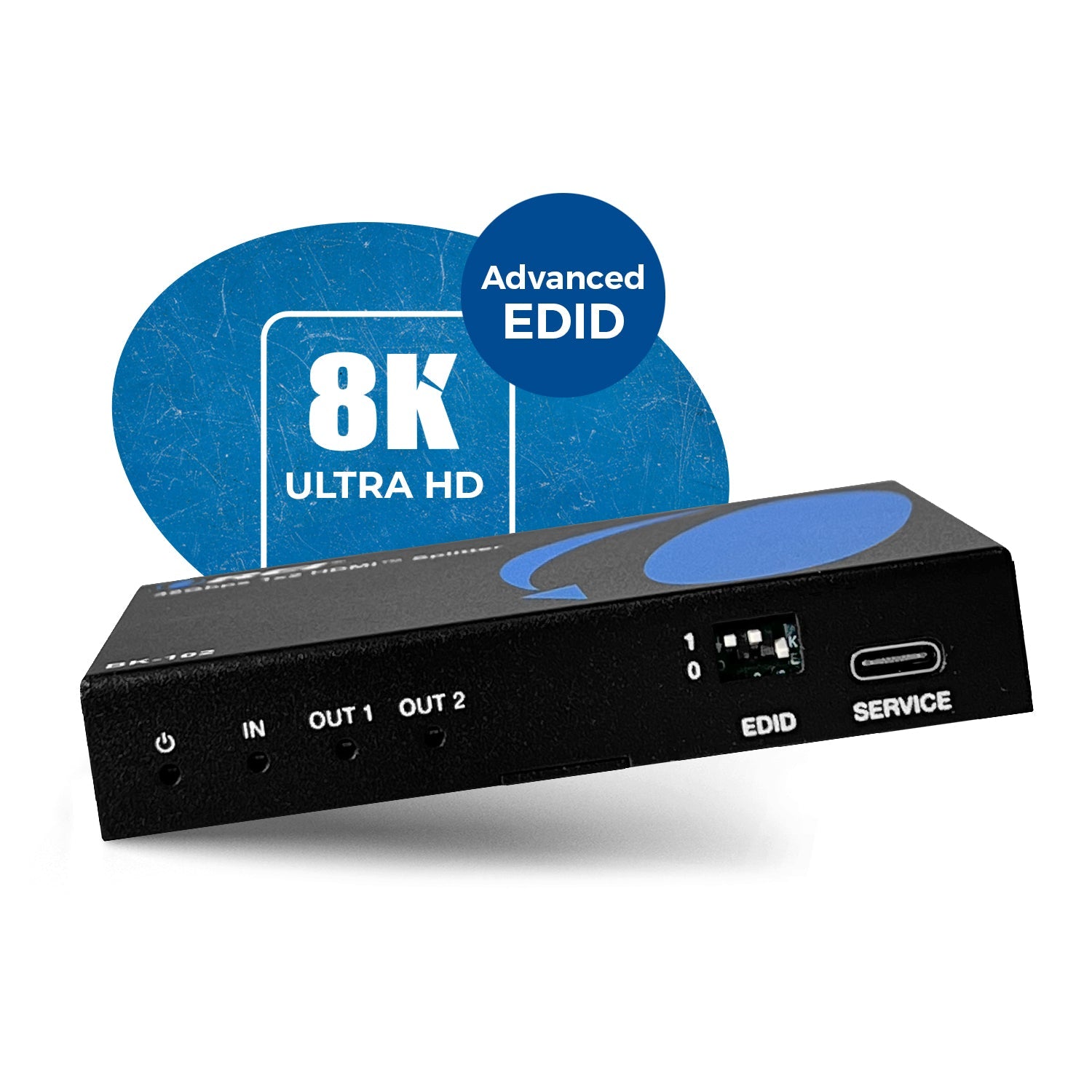

Advanced EDID Management – Allows customized configuration to match source and display requirements.
-
Compact, Plug-and-Play Design – Simple setup with no software required, ideal for home or commercial use.

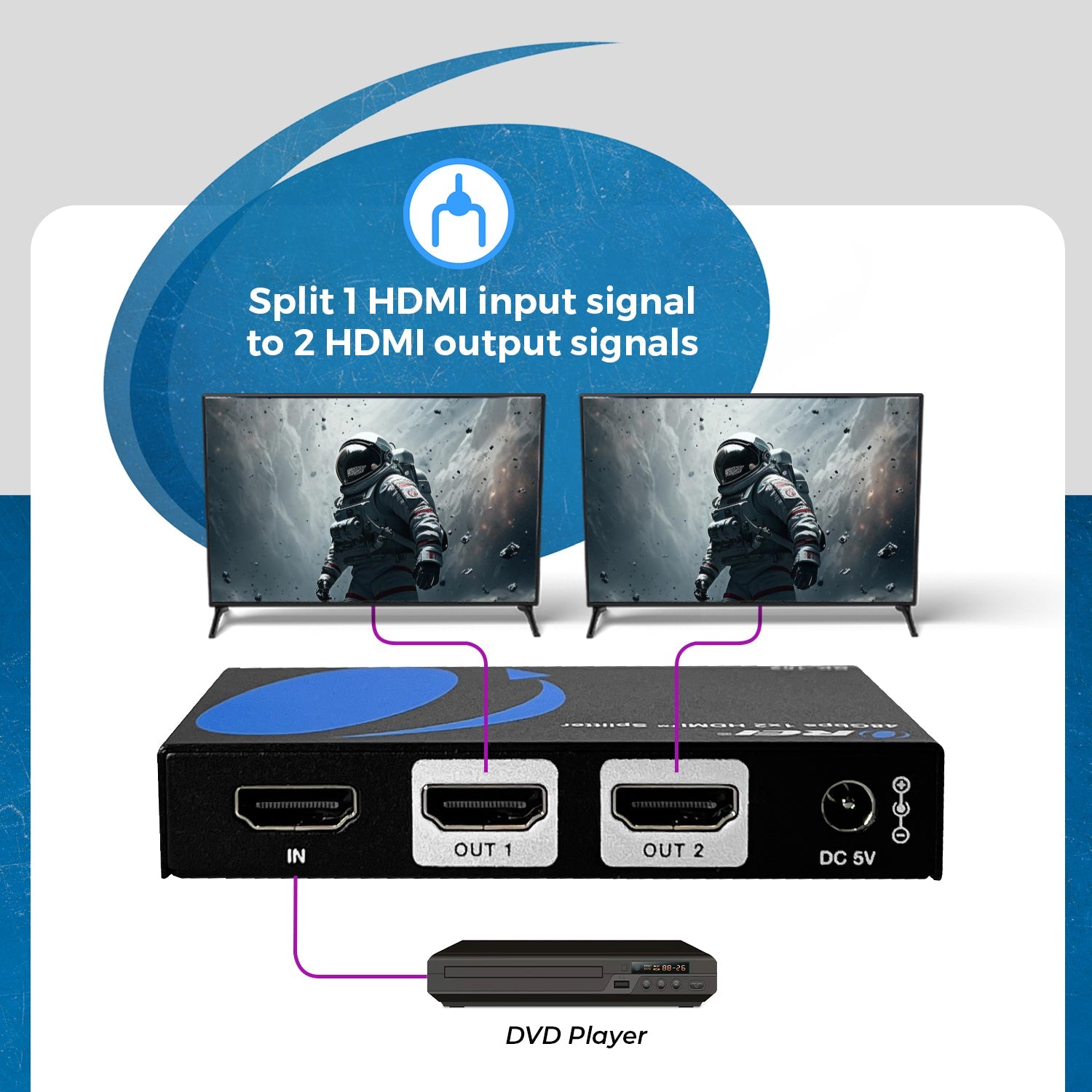

The BK-102 is an advanced 1x2 HDMI splitter designed to duplicate a single HDMI input across two displays simultaneously. Compliant with HDMI 2.1 and HDCP 2.3 standards, it supports resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz with a maximum video bandwidth of 48Gbps for ultra-high-definition playback.
The BK-102 offers full support for modern video technologies, including HDR, HDR10+, Dolby Vision, and HLG, as well as next-generation gaming features like VRR, ALLM, QMS, QFT, and SBTM. It features intelligent downscaling from 8K to 4K and 8K/4K to 1080p and automatic HDR to SDR conversion on both outputs, ensuring optimal compatibility with a variety of displays.
With support for LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master, and DTS:X audio formats, along with advanced EDID management, the BK-102 delivers a complete and flexible AV distribution solution. Its compact, plug-and-play design makes it ideal for both home entertainment and commercial applications.
[shortdes]
-
1 in 2 out 8K HDMI splitter With Downscaling & EDID Management
-
Resolutions up to 8K@60Hz 4:2:0
-
8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× SERVICE [USB-C, Update port] |

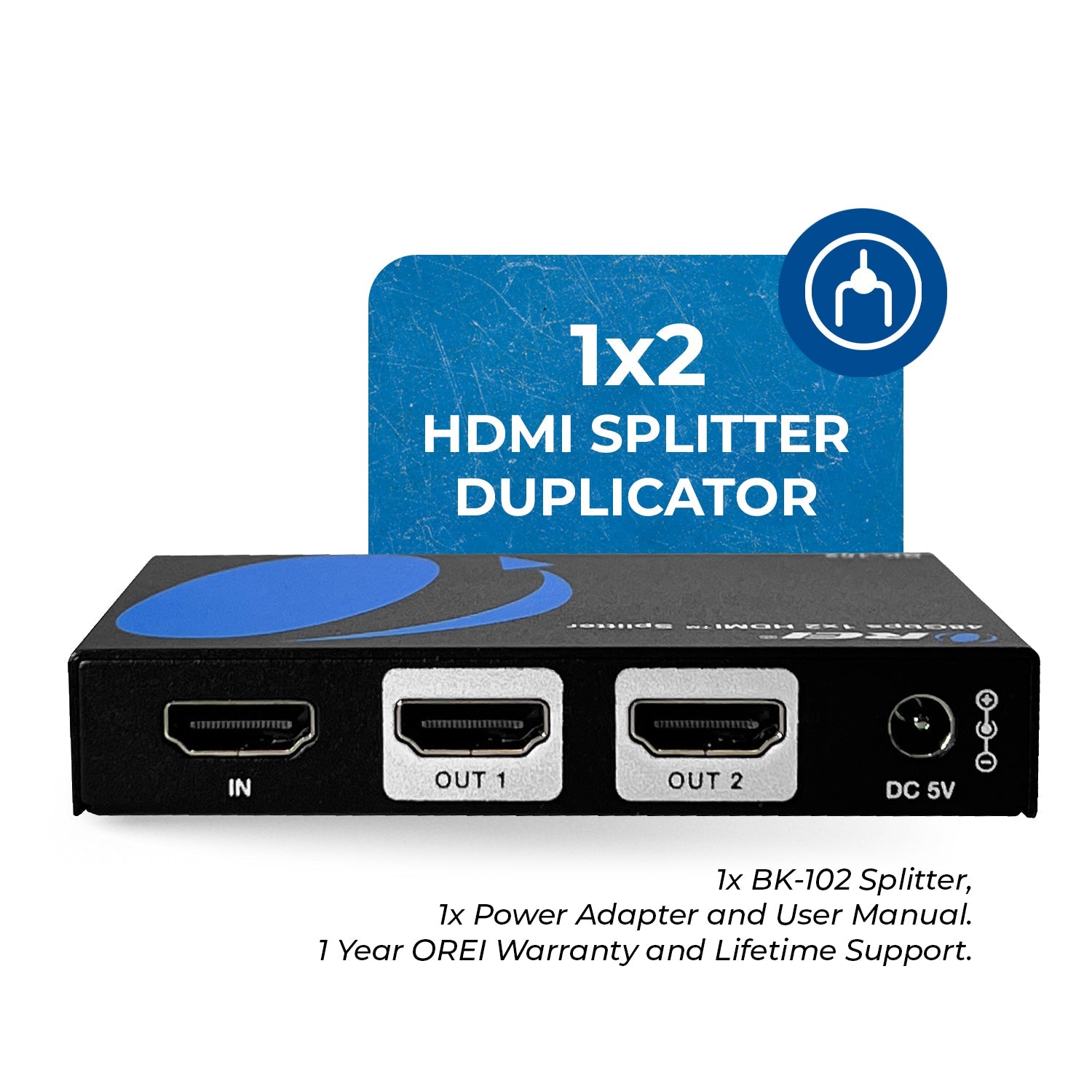

PACKAGE CONTENTS
| 1x BK-102 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1: | We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 6.6 Feet |
| 4K@60Hz: | 26 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL & 18 Gbps TMDS |
| Maximum Resolution: | 8K@60Hz |
| Input Resolution: |
7680x4320p60Hz YUV420 8/10/12bit, 7680x4320p50Hz YUV420 8/10/12bit 7680x4320p30/29.97/25/24/23.98Hz, 5120x2160p60/50Hz 4096x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
| Output Resolution: |
7680x4320p60Hz YUV420 8/10/12bit, 7680x4320p50Hz YUV420 8/10/12bit 7680x4320p30/29.97/25/24/23.98Hz, 5120x2160p60/50Hz 4096x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p120/100/60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | Yes |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 4.3W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

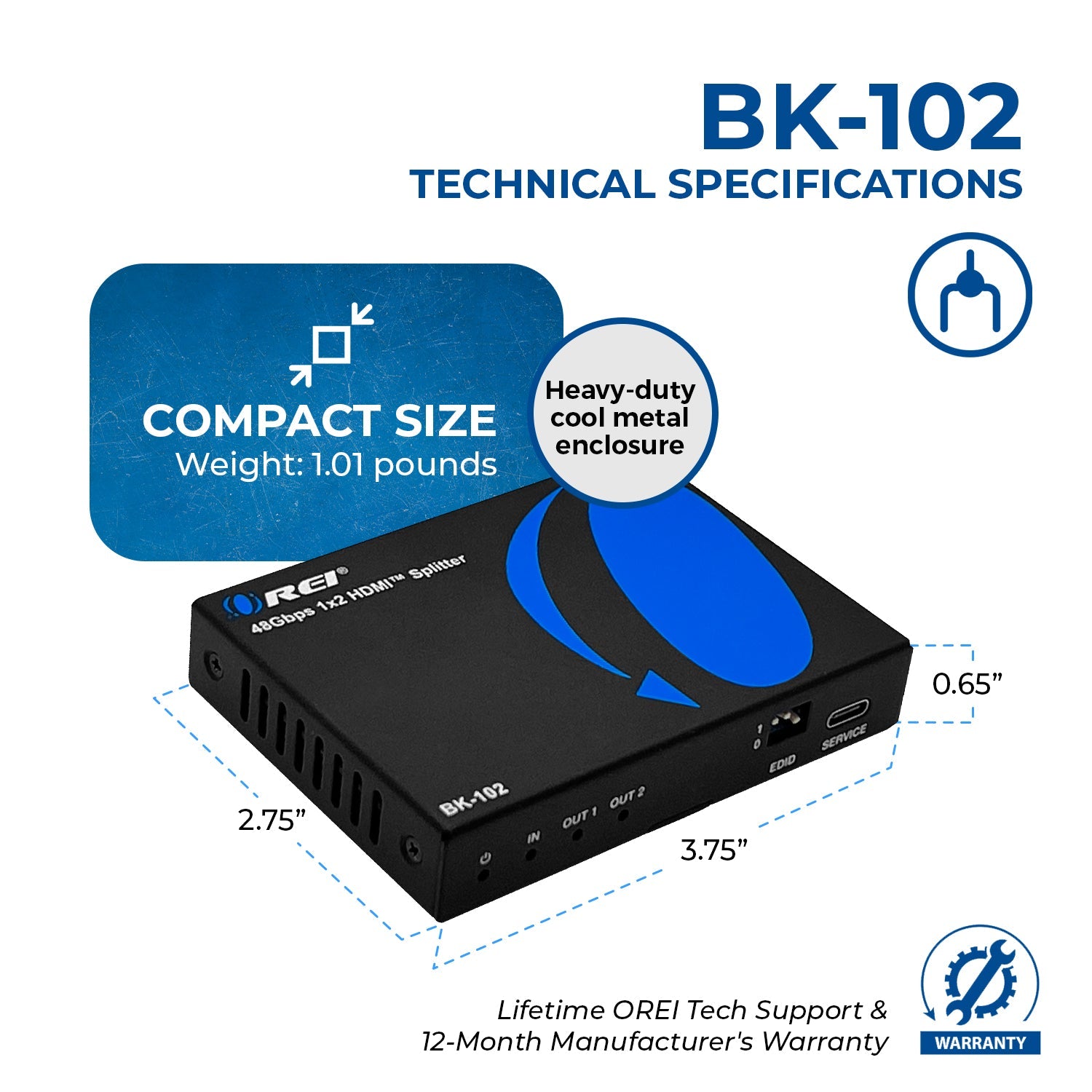

DIMENSIONS & WEIGHT
| Length: | 95mm / 3.74in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 177g / 6.24oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | -10°C ~ 50°C / 14°F ~ 122°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
