Description
180-Day Warranty!

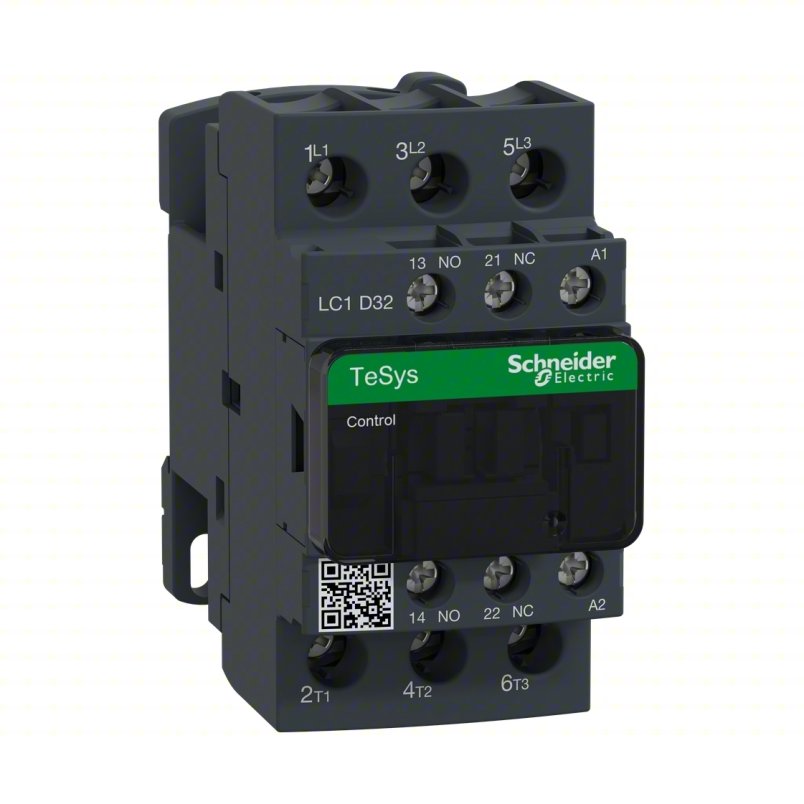

Part Type: 3 Pole Contactor
Part Number: LC1D32
Location: 02A2
Notice: Part was pulled from a working unit in good condition.
Brand SCHNEIDER
Manufacturer Part NumberLC1D32M7
SeriesTeSys Deca
Contactor StyleIEC
Reversing CapabilityNon-Reversing
Number of Poles3
Main Power Pole Contact Form3NO
Includes Auxiliary ContactsYes
Auxiliary Contacts Included1NO/1NC
PhaseThree
Full Load Current - Inductive32 A
Full Load Current - Resistive50 A
Coil Voltage220V AC
Frequency50/60 Hz
Nominal Coil Voltage @ 60Hz220V AC
Maximum Voltage Rating690V AC
Horsepower @ Single Phase - 120V AC2 hp
Horsepower @ Single Phase - 240V AC5 hp
Horsepower @ Three Phase - 208V AC7-1/2 hp
Horsepower @ Three Phase - 240V AC10 hp
Horsepower @ Three Phase - 480V AC20 hp
Horsepower @ Three Phase - 600V AC30 hp
Wire Termination TypeScrew Clamp
Integrated Surge SuppressionNo
IP RatingIP20
NEMA Enclosure RatingNo Enclosure
Overall Height3.35 in
Overall Width1.77 in
Overall Depth3.62 in
Mechanical Operating Durability15,000,000
Electrical Operating Durability1,400,000; 1,650,000
Minimum Operating Temperature-40 °F
Maximum Operating Temperature140 °F
StandardsBV; CCC; CSA; CSA C22.2 No 14; DNV; EN 60947-4-1; EN 60947-5-1; GL; GOST; IEC 60335-1; IEC 60947-4-1; IEC 60947-5-1; LROS; RINA; UKCA; UL 508; UL Listed
UNSPSC39121529
