What TV Backlights Do
Most LCD televisions use LED backlight strips behind the LCD panel to illuminate the picture. The LCD can still be producing an image even when the backlights are not lighting, which is why a failed backlight system can create a black screen while audio continues normally.

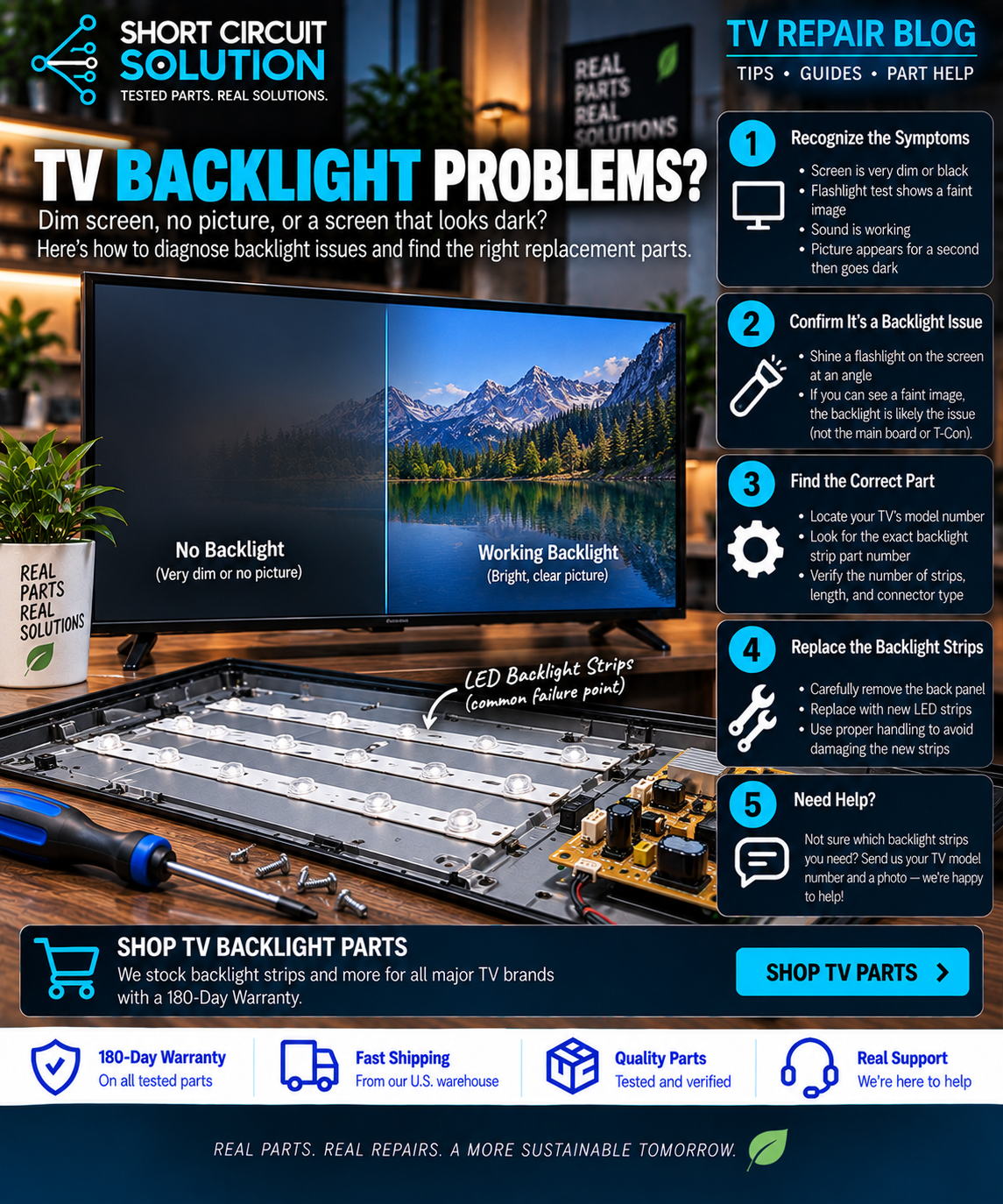

Try the Flashlight Test
Turn the TV on in a dark room and shine a bright flashlight at the screen from an angle. Look closely for a very faint moving image, menu, or picture. If you can see an image only with the flashlight, the LCD is producing video but the screen illumination is missing. That strongly points toward the backlight system or the circuitry that powers it.
Common Backlight Failure Symptoms
- Sound is present but the screen appears black.
- The picture flashes for a second at startup and then goes dark.
- One area of the screen is noticeably darker than the rest.
- Blue or purple patches appear from aging LED lenses or strips.
- The TV repeatedly attempts to start and shuts down on models that monitor LED faults.
LED Strips vs. Power Supply or LED Driver
A failed LED strip is common, but the LEDs are not the only possibility. Depending on the television, the LED driver may be built into the power-supply board or may be a separate board. A driver fault, connector problem, or power-supply issue can prevent otherwise-good LED strips from lighting.
Why Replacing One Failed LED Can Be Temporary
Backlight strips age together. If one LED has failed after years of use, the remaining LEDs may be similarly worn. When practical, replacing a matched set of strips is often more reliable than replacing a single failed LED or strip.
Be Careful With the LCD Panel
Backlight replacement usually requires removing the LCD panel and diffuser layers. Large LCD panels are thin, fragile, and easy to crack or flex. Keep diffuser sheets clean and in their original order. If you are not comfortable handling the panel, professional service may be safer.
Sound But No Picture Can Have Other Causes
A failed T-Con, main board, panel, or signal path can also create a dark or blank screen. Use the flashlight test and other symptoms to narrow the problem rather than automatically ordering backlights.
Need Replacement TV Parts?
Short Circuit Solution stocks tested replacement TV boards and other repair parts. Verify the exact part number and model compatibility before ordering. Our used tested parts are backed by our 180-Day Warranty.
Televisions can contain hazardous voltage. Disconnect power before service and use appropriate electrical safety procedures.
