What Is the TV Main Board?
The main board is the television's central signal-processing and control assembly. HDMI inputs, tuner functions, audio/video processing, network features, user commands, and communication with other internal boards commonly pass through it.

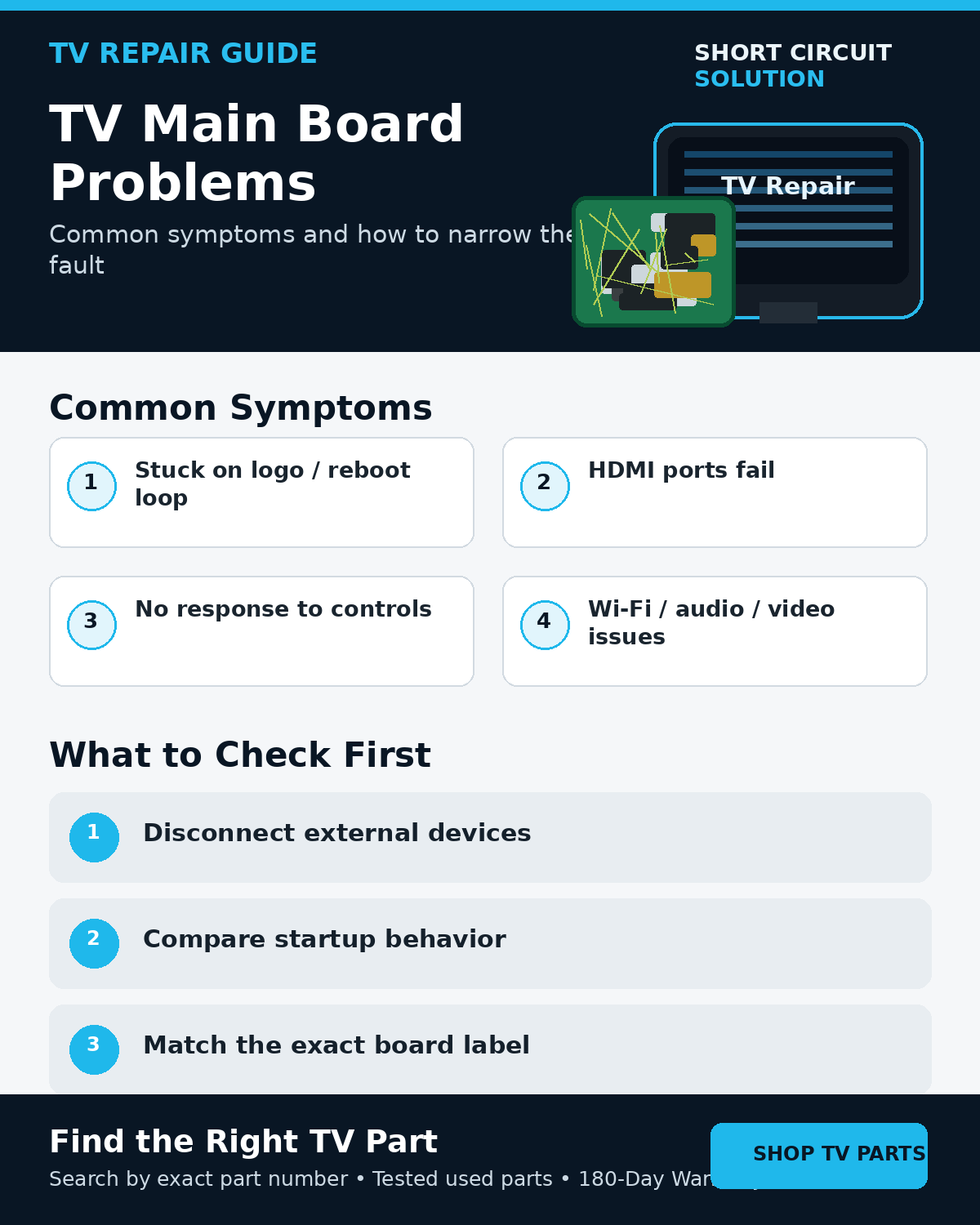

Symptoms That Can Point Toward the Main Board
- TV freezes on the brand logo or never completes startup.
- Repeated rebooting or random software-like crashes.
- One or more HDMI inputs stop working.
- Wi-Fi, Bluetooth, tuner, or smart-TV functions fail.
- The set has standby power but will not respond normally to controls.
- Audio or video functions disappear while the TV still powers on.
No single symptom proves the main board is defective. A weak power rail can cause reboots, while T-Con or panel faults can cause display problems that seem like signal-processing failures.
Rule Out External Devices First
Disconnect every HDMI and USB accessory, remove network cables, and test the television by itself. Try a known-good source and cable on multiple inputs.
Main Board vs. Power Supply
A TV can appear to have a bad main board when the power supply cannot maintain stable voltage during startup. If the set repeatedly starts and shuts down, observe whether the backlights flash and whether the same failure occurs at the same point every time.
Main Board vs. T-Con or Panel
If the TV's on-screen menu is distorted, lines or half-screen symptoms may involve the T-Con, panel ribbons, or panel itself. If the menu is normal but one external source looks wrong, stay focused on the source and input path first.
Screen Lines Troubleshooting Guide
Software-Like Symptoms Do Not Always Mean a Software Fix
Frozen logos and reboot loops can be caused by failing storage or other main-board hardware, but settings or firmware problems can create similar behavior. Follow model-specific reset or update procedures only when appropriate.
Match the Exact Main-Board Number
Main boards are especially sensitive to part-number matching because firmware, tuner configuration, panel support, and regional features can differ. Compare the complete assembly or service number from the original board.
Part Number Identification Guide
Tested Replacement TV Parts
Short Circuit Solution stocks tested used TV boards and components backed by our 180-Day Warranty.
Need Help With Your Repair?
Send us the full model number and clear photos of the original board labels if you need help matching the correct replacement.
- 📞 Call us: 901-244-7219
- 📧 Email us: assistance@shortcircuitsolution.com
- 💬 Chat with us: Visit our Contact Page
Safety note: Disconnect the television from power before accessing internal components.
