Description

UHD-14VW: HDMI 2x2 Video Wall Controller with UBS-C input

Key Features:

    • HDMI 2.0, HDCP 2.2 & DP 1.2a compliant
    • USB-C Input for wider compatibility
    • Video resolutions up to 4K@60Hz
    • Audio extraction through Optical and L/R outputs
    • 8 different Video wall modes
    • Features 180-degree image rotation
    • Bezel adjustment and EDID management

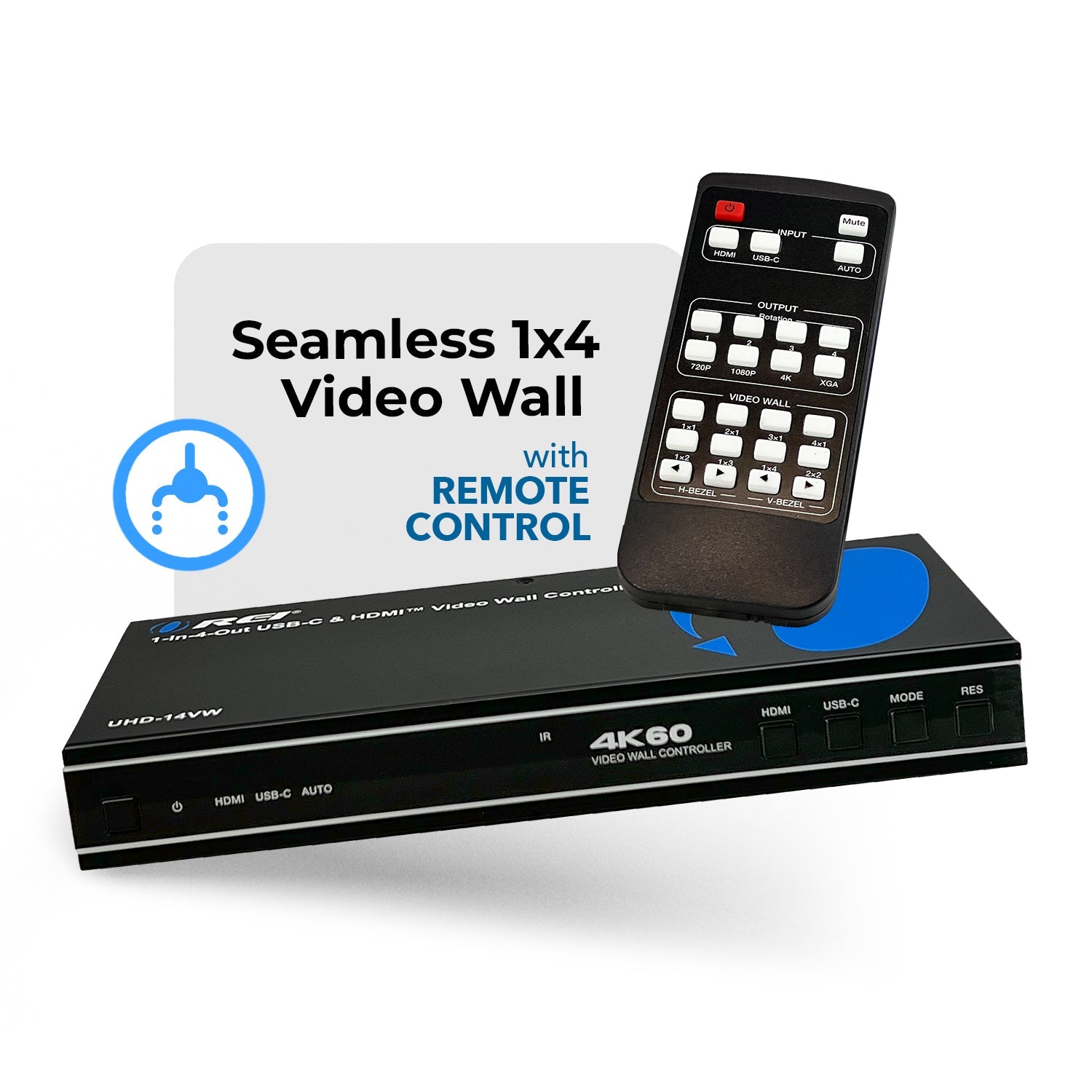

    • Control via included remote, RS-232, or front panel
    • Plug & Play setup

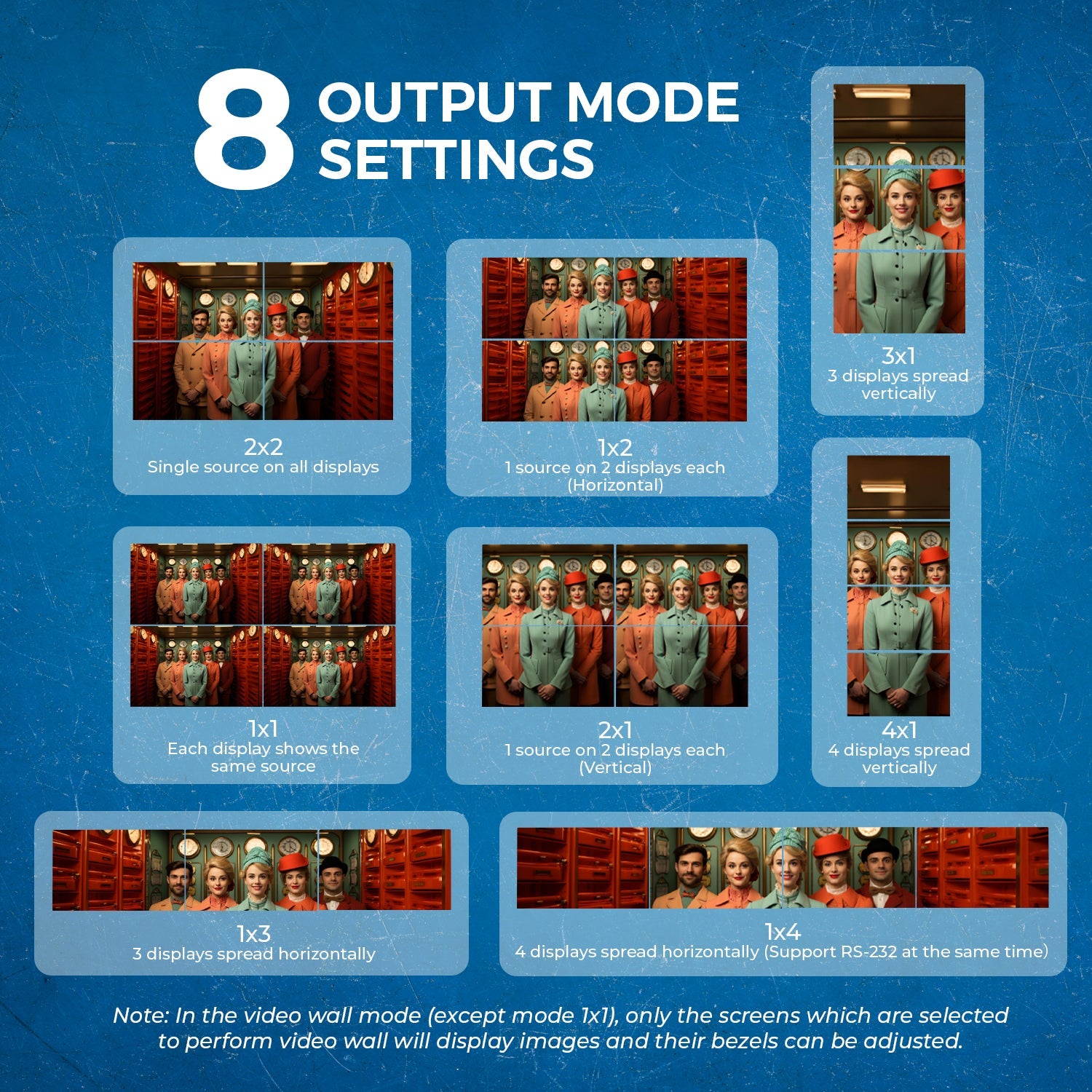

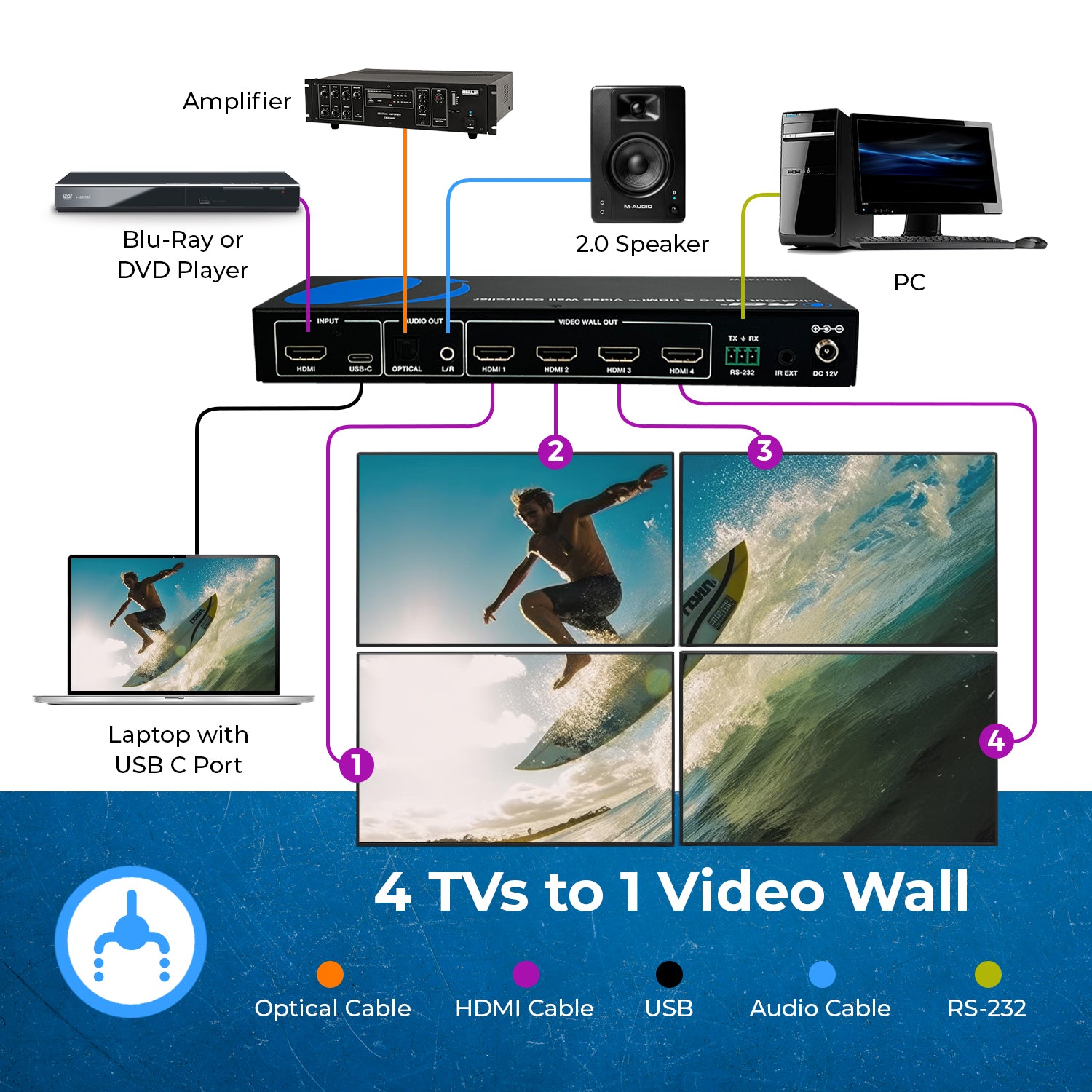

    The UHD-14VW 1-In-4-Out Video Wall Controller is designed to take a single input and distribute it across 4 displays. The device features an HDMI and a USB-C input to connect to your media source. It supports resolutions up to 4K@60Hz 4:4:4. The device can take a media source and spread it across 4 displays creating a 2x2 Video wall. The device also features various other video wall modes such as 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, and 1x4. It also includes an Optical and a 3.5MM output for audio extraction. It can be controlled easily via the buttons on the front, the included remote or RS-232 commands.

    [shortdes]

    • 1x4 Video wall controller
    • Resolutions up to 4K@60Hz
    • Features 180-degree rotation, bezel management

    [/shortdes]

    [tab]

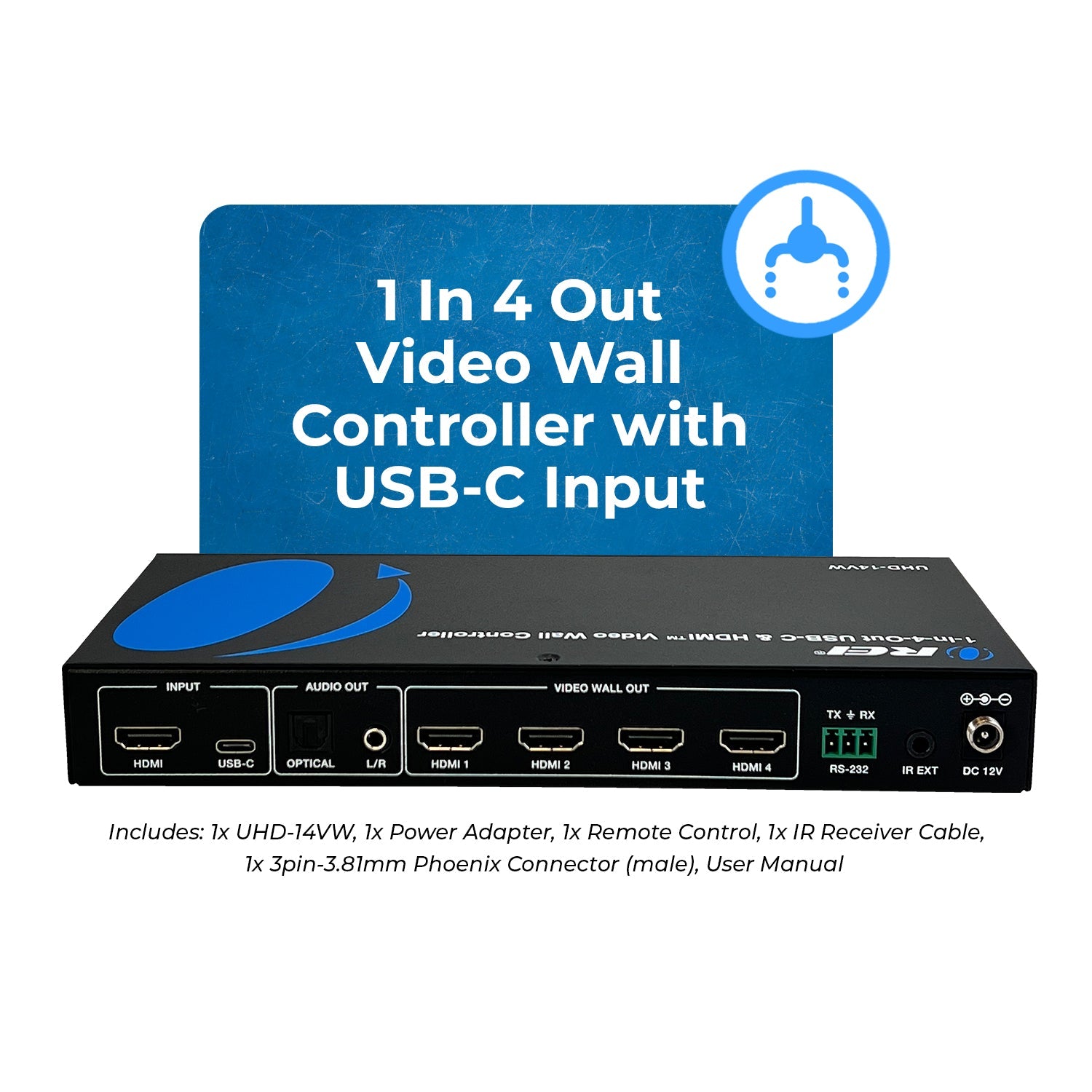

    CONNECTIVITY

    INPUT: 1 × HDMI [Type A, 19-pin female]

    1 × USB [Type C, 24-pin female]
    OUTPUT:
    4 × HDMI [Type A, 19-pin female]

    1 × S/PDIF [Optical Audio Jack]

    1 × L/R OUT [3.5mm, Stereo Mini-jack]
    CONTROL: 1 × RS-232 [3pin phoenix connector]

    1 × IR EXT [3.5mm, Stereo Mini-jack]

    PACKAGE CONTENTS

    1x UHD-14VW
    1x IR Remote
    1x IR Receiver Cable
    1x RS-232 3-pin Phoenix connector
    4x Screw (KM3*4)
    2x Mounting Brackets
    1x Power Adapter
    User Manual

    SUPPORTED HDMI CABLES

    HDMI 2.0/2.1 We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance

    EXTENDING DISTANCE

    4K@60Hz: 30 Feet

    VIDEO OUTPUT

    Video Bandwidth: 18 Gbps
    Video Resolutions: Up to 4K@60Hz 4:4:4

    ADDITIONAL FEATURES

    CEC: No
    ARC: No
    USB KVM: No
    PoC/PoE: No
    IR Control: Yes
    Downmix: No
    Downscale: No
    Over IP: No
    HDBaseT: No
    RS-232: Yes

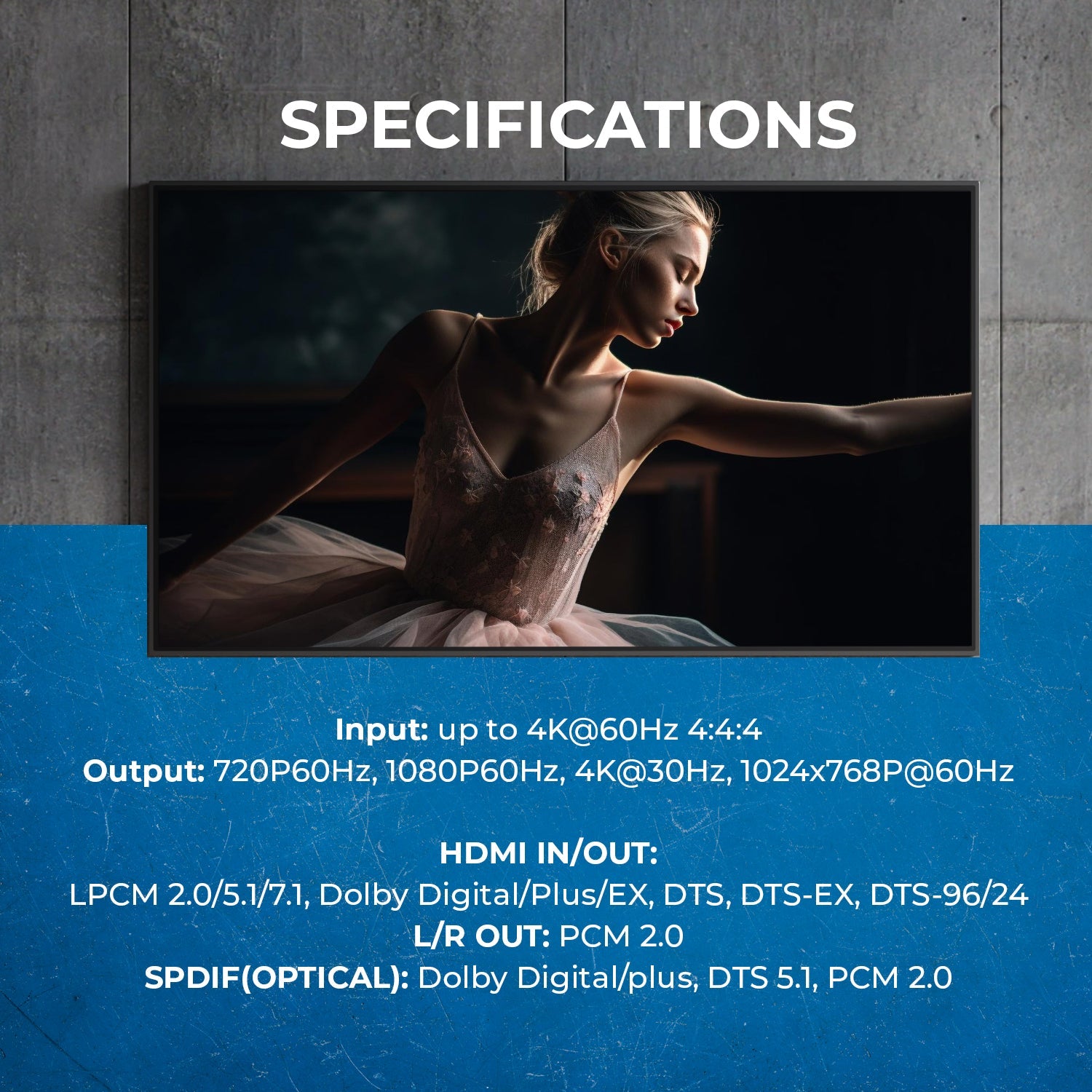

    AUDIO SUPPORT

    HDMI Audio Formats:
    LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24
    Optical Audio Formats:
    Dolby Digital/plus, DTS 5.1, PCM 2.0
    Analog Audio Formats:
    PCM 2.0

    COMPLIANCES

    HDMI Compliance HDMI 2.0
    HDCP Compliance HDCP 2.2

    POWER

    Power Consumption: 5.5W (Max)
    Power Supply: Input: AC 100-240V 50/60Hz
    Output: DC 12V/1A

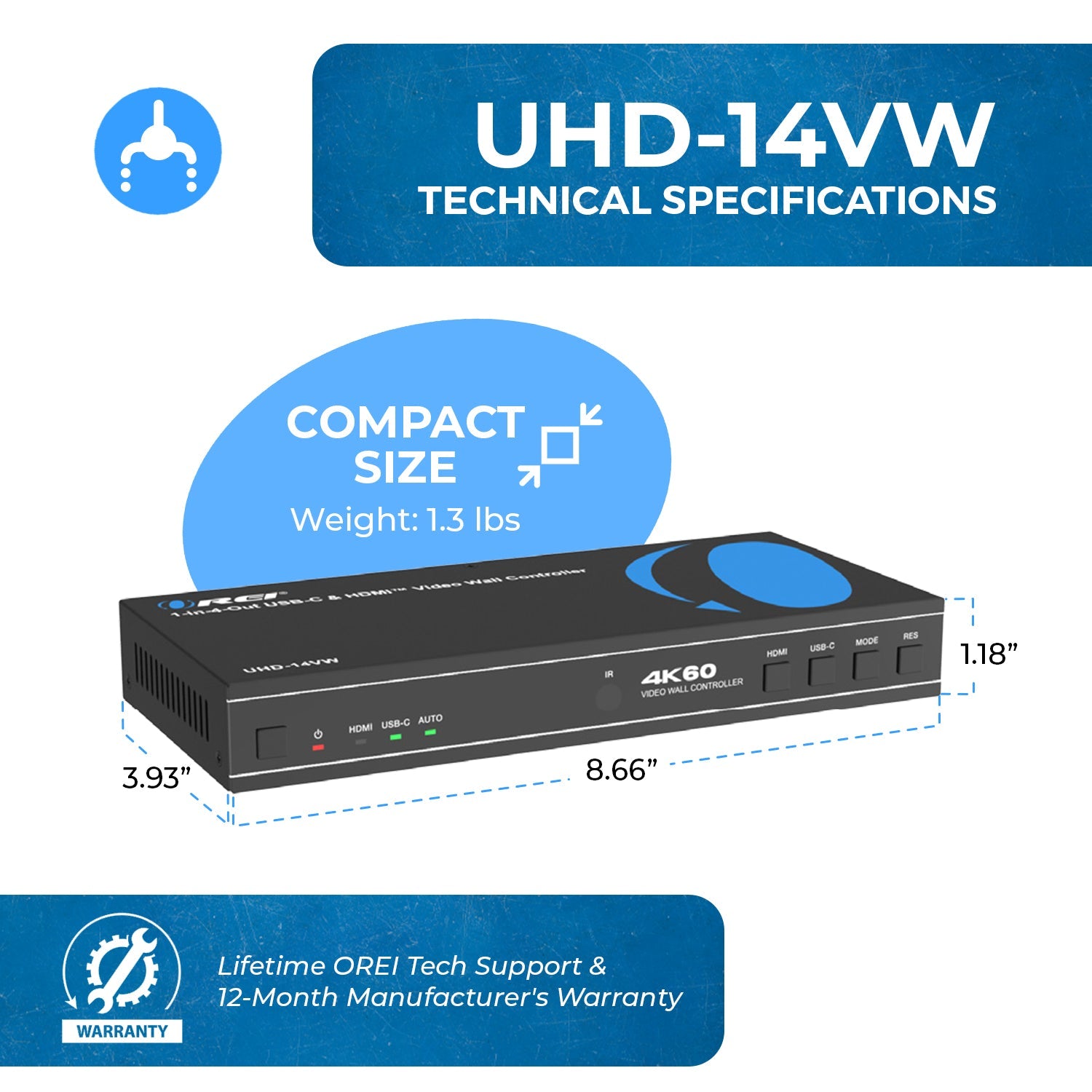

    DIMENSIONS & WEIGHT

    Length: 220mm / 8.66in
    Width: 100mm / 3.94in
    Height: 30mm / 1.18in
    Weight: 590g / 1.3lbs

    PROPERTIES

    Color: Black
    Housing: Metal Enclosure

    WARRANTY

    1-Year Manufacturer's Warranty

    [/tab]
