Description
UHD14-EXB400-K: 18Gbps HDMI 1×4 HDBaseT Splitter
- HDMI 2.0b & HDCP 2.2 Compliant – Ensures compatibility with the latest HDMI sources and displays.
- Supports Video Resolutions up to 4K@60Hz – Delivers ultra-high-definition video quality.
- 18Gbps Video Bandwidth – Supports high data throughput for uncompressed video and audio.
- Long-Distance Transmission – Up to 394 ft (120 m) at 4K@60Hz and 492 ft (150 m) at 1080p@60Hz over CAT6/6a/7 cables.
- HDR10+ & Dolby Vision Support – Compatible with leading HDR formats for superior picture quality.
- Audio Extraction – Provides coaxial and balanced analog audio outputs for flexible audio integration.
- HDBaseT Technology – Enables stable, long-distance AV signal extension over a single network cable.
- Bi-directional IR Control – Allows remote control of source and display devices from either end.
- Power over Cable (PoC) – Simplifies installation by powering Receivers through the Transmitter’s power adapter.
- RS-232 Control – Supports professional AV control system integration.

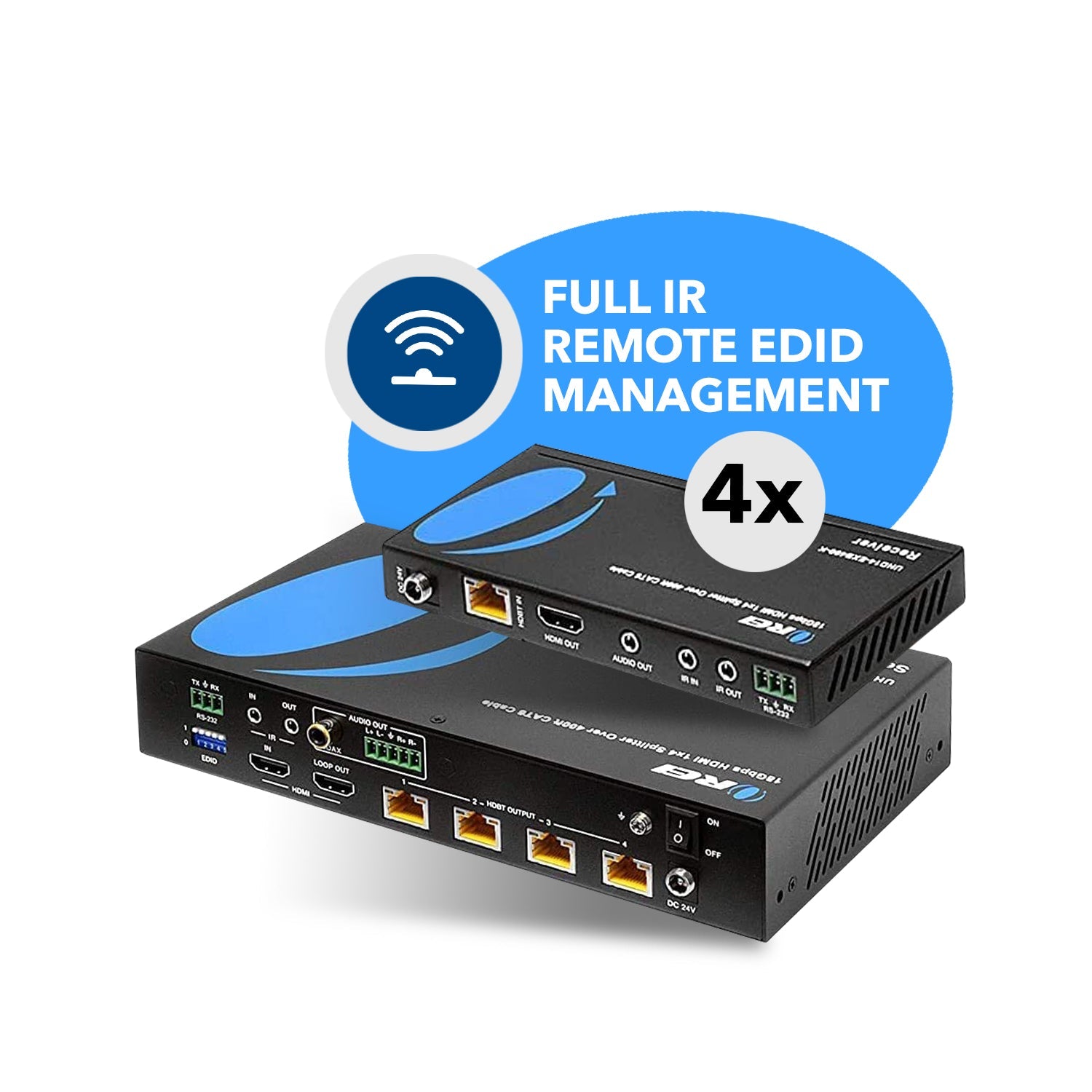

- Advanced EDID Management – Ensures optimal compatibility with connected displays.
-
Compact and Durable Design – Facilitates easy installation and reliable operation in various environments.

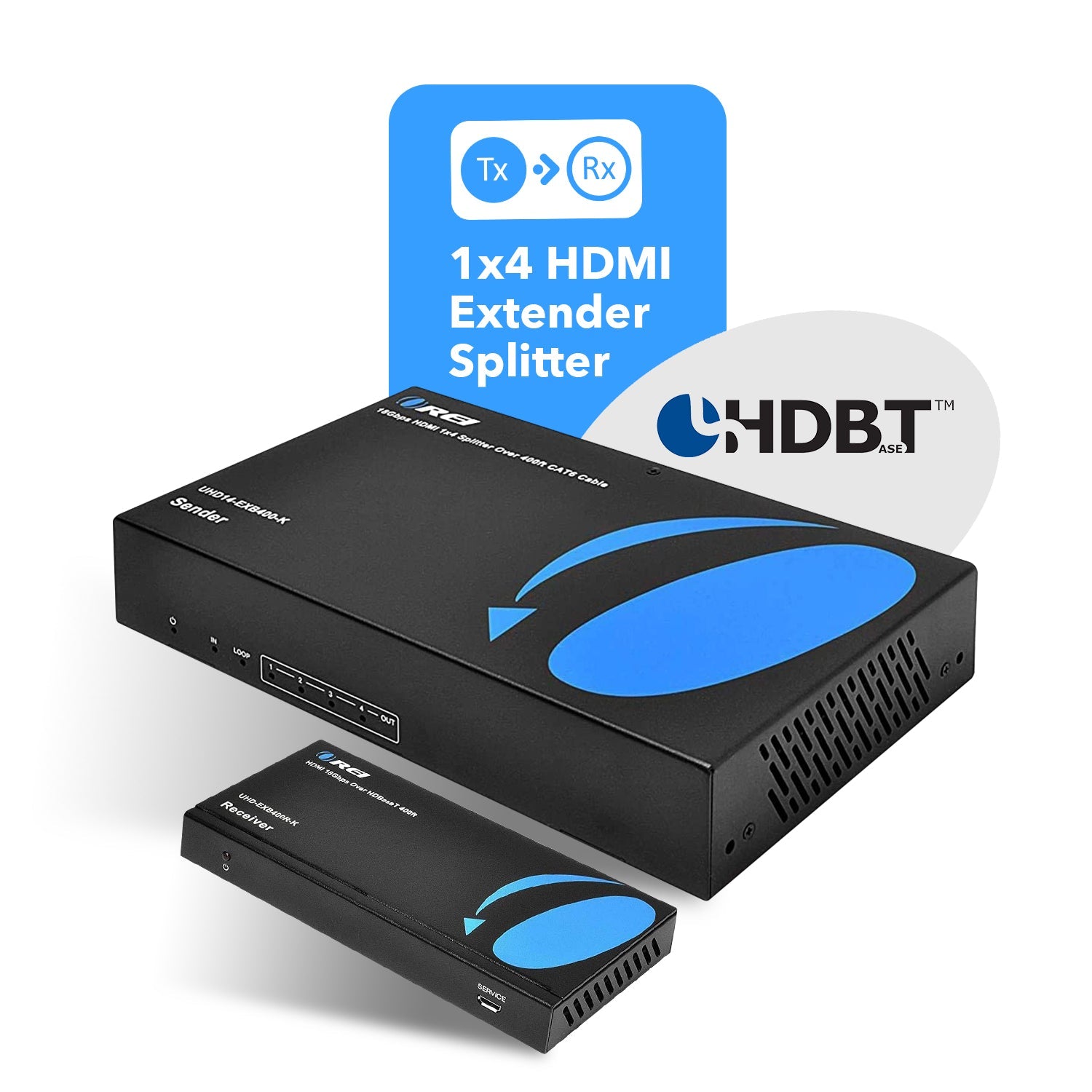

UHD14-EXB400-K is a high-performance HDMI extender splitter designed to distribute a single media signal to up to four remote displays over long distances. Supporting video resolutions up to 4K@60Hz with full compliance to HDMI 2.0b and HDCP 2.2 standards, this device delivers uncompromised high-quality video with 18Gbps bandwidth.
It also supports advanced video formats including HDR10+ and Dolby Vision for enhanced dynamic range and color accuracy.

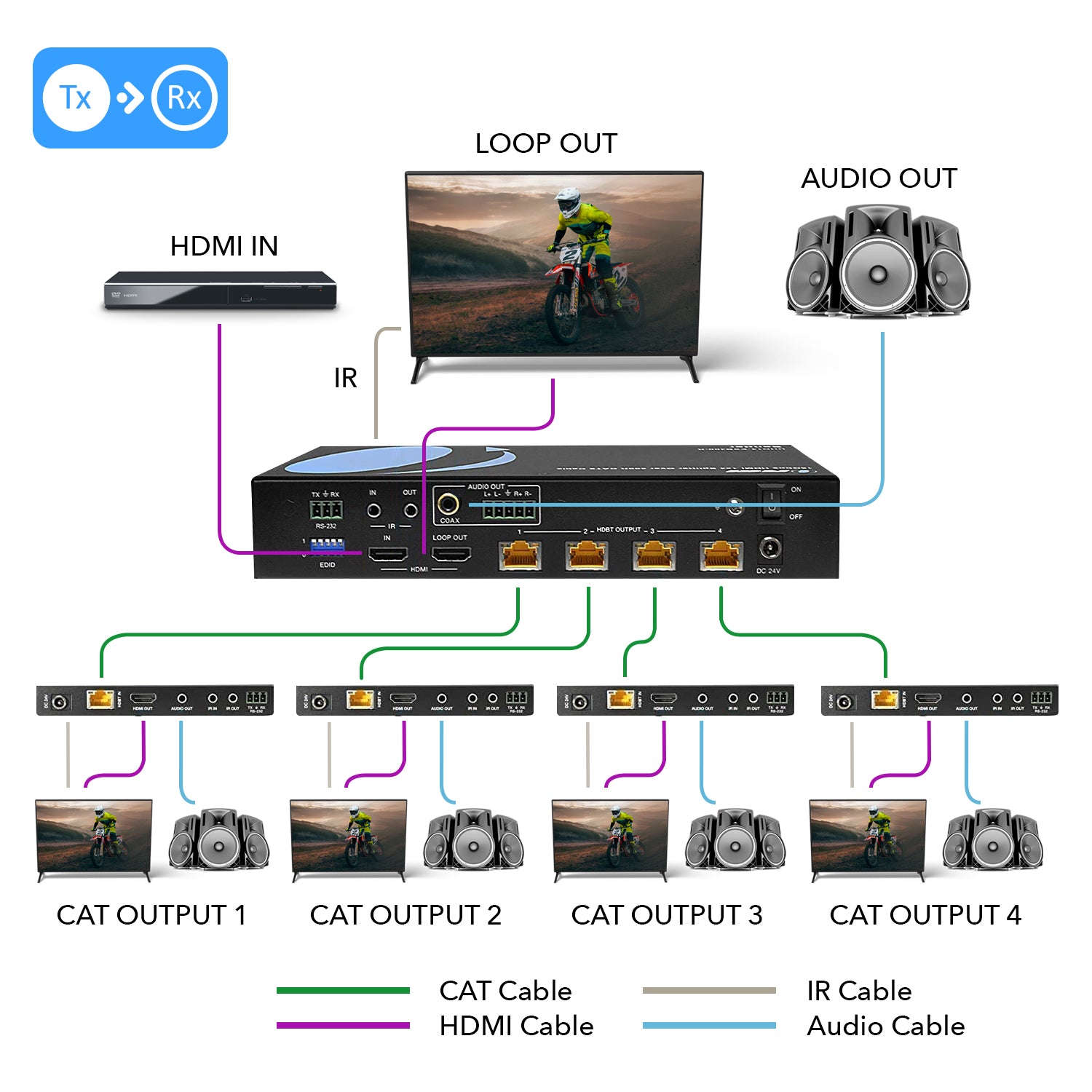

This extender splitter transmits signals up to 394 feet (120 meters) at 4K@60Hz and up to 492 feet (150 meters) at 1080p@60Hz via CAT6/6a/7 cables. The Transmitter unit features an HDMI loop output to connect a local display near the source, while advanced EDID management optimizes compatibility across various display devices.
Additional functionalities include bi-directional IR control for remote source and display operation, RS-232 control for integration into professional AV setups, and Power over Cable (PoC) technology, which requires only a single power adapter at the Transmitter end to power all connected Receivers.
Its robust design and straightforward installation process make it an excellent choice for both residential and commercial AV applications.
Note: OREI HDBaseT models are designed to work only with their own matching transmitter and receiver. They are not interchangeable with other OREI HDBaseT models, nor compatible with HDBaseT devices from other brands, due to chipset differences.
For best results, always use the included or recommended pair from the same model.
[shortdes]
- HDR10+ and Dolby Vision support
- Audio extraction through Coax and balanced Analog
- Bi-directional IR control
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 4 × HDBaseT [RJ45, 8-pin female] | ||
| 1 × Coaxial [RCA] | ||
| 1 × L/R [5-pin, phoenix] | ||
| CONTROL: | 1×RS-232 [3-pin Phoenix connector] | |
| 1 × EDID [DIP SWITCH, 5-pin] | ||
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| Receiver: | INPUT: | 1 × HDBaseT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × RS-232 [3-pin phoenix connector] | |
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS

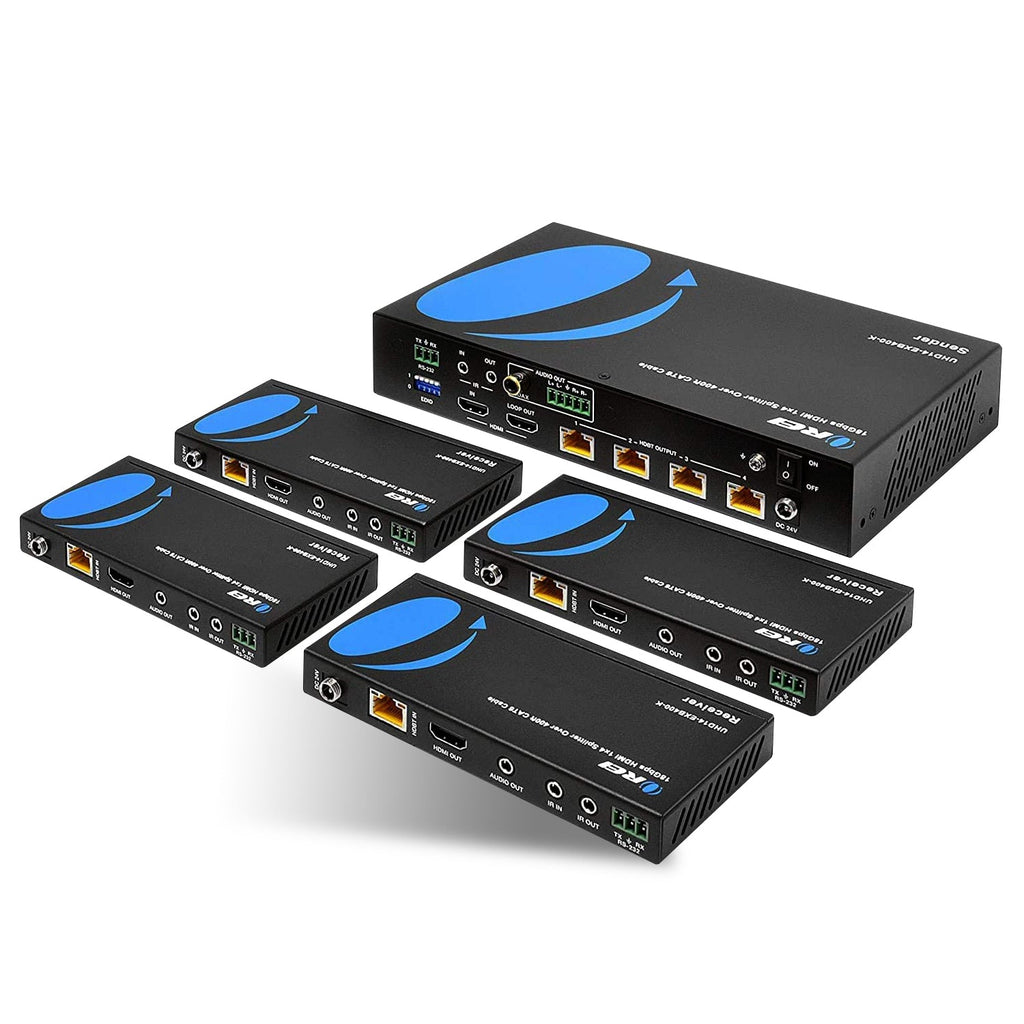

| 1x Transmitter |
| 4x Receiver |
| 5x IR Blaster cable |
| 5x IR Receiver cable |
| 5x 3-Pin Phoenix Connector |
| 1x 5-Pin Phoenix Connector |
| 10x Mounting ear |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30HZ: | 393 Feet |
| 1080P@60Hz: | 492 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | Yes |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | Yes |
| RS-232: | Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats: | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| L/R Audio Formats: | PCM 2.0CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 35W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/2.7A |

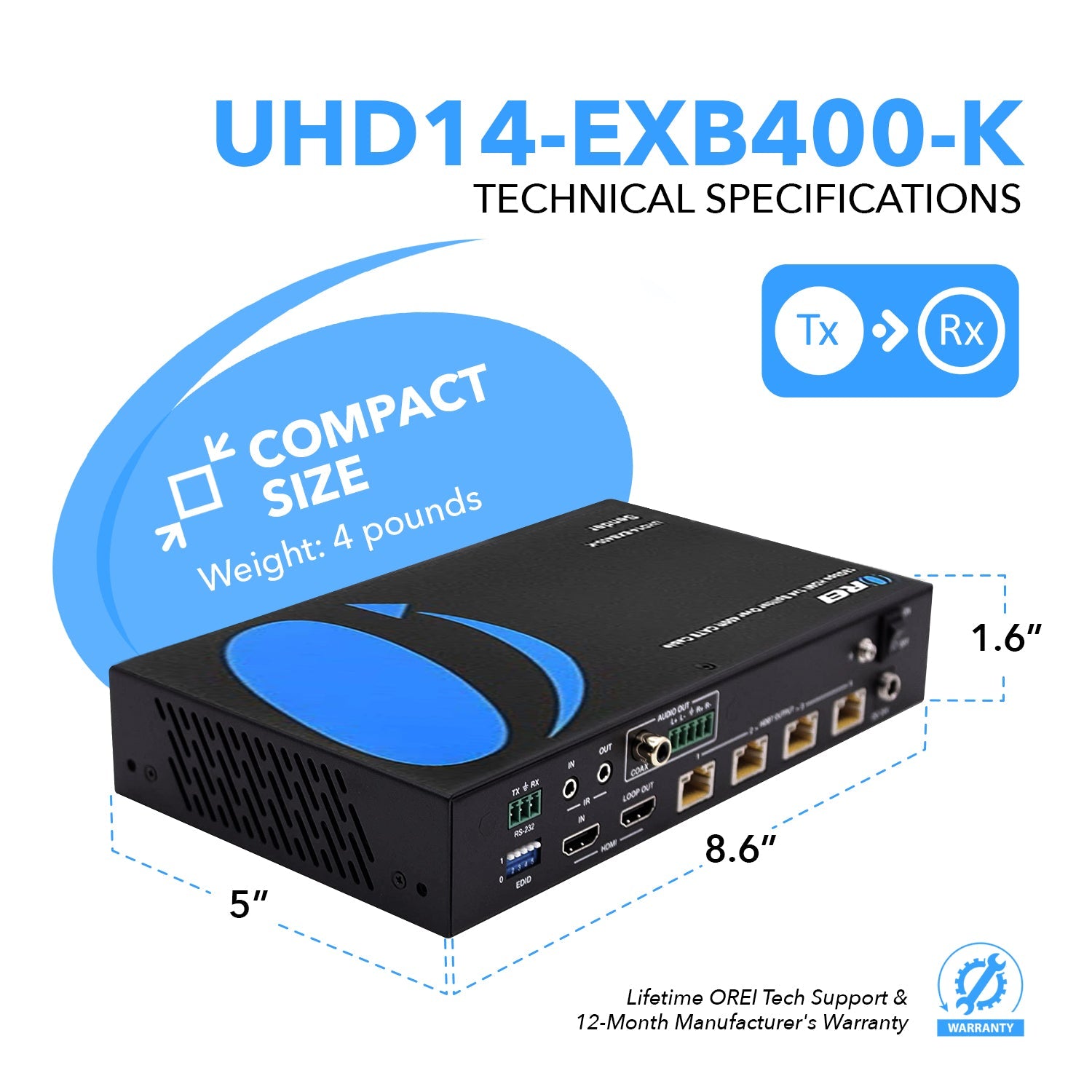

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 220mm / 8.66in |
| Width: | 130mm / 5.12in | |
| Height: | 40mm / 1.58in | |
| Weight: | 853g / 1.88lbs | |
| Receiver: | Length: | 140mm / 5.51in |
| Width: | 65mm / 2.56in | |
| Height: | 18mm / 0.71in | |
| Weight: | 246g / 8.68oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
