Description

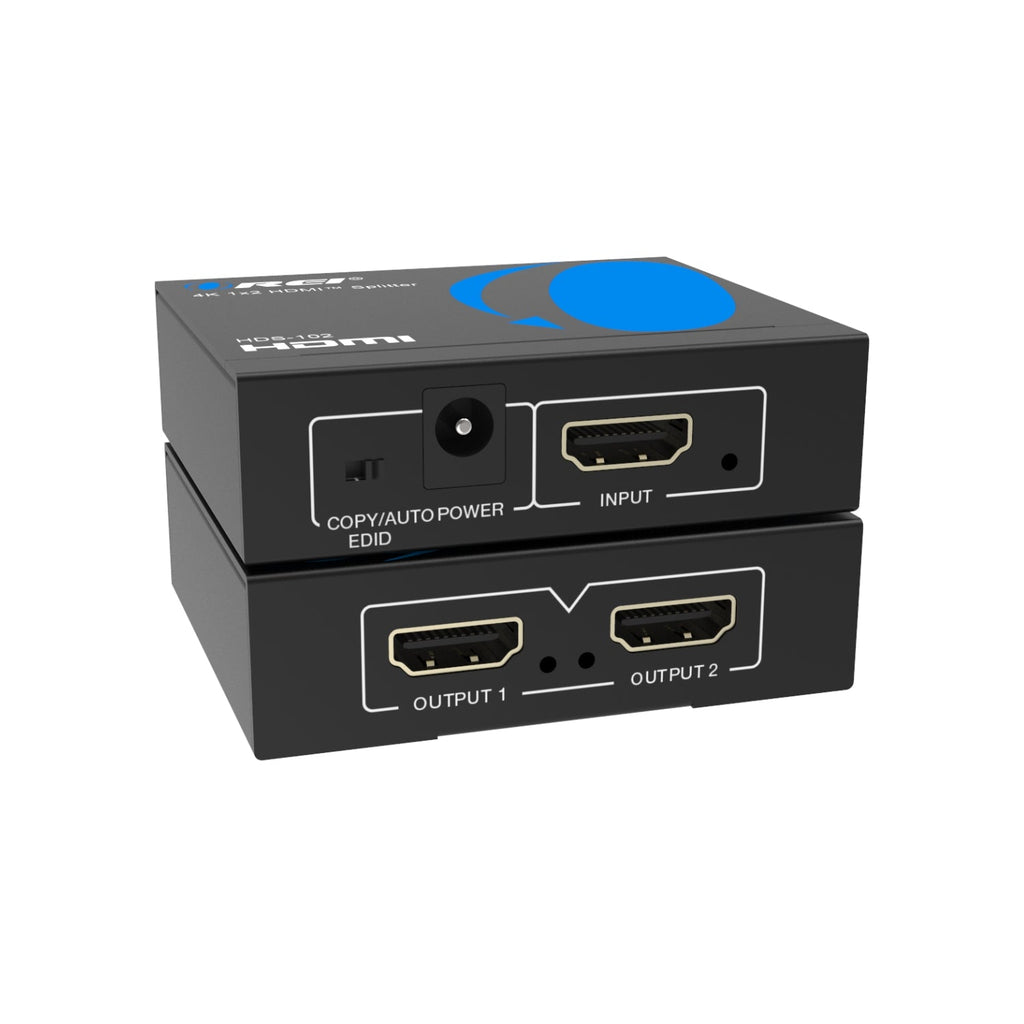

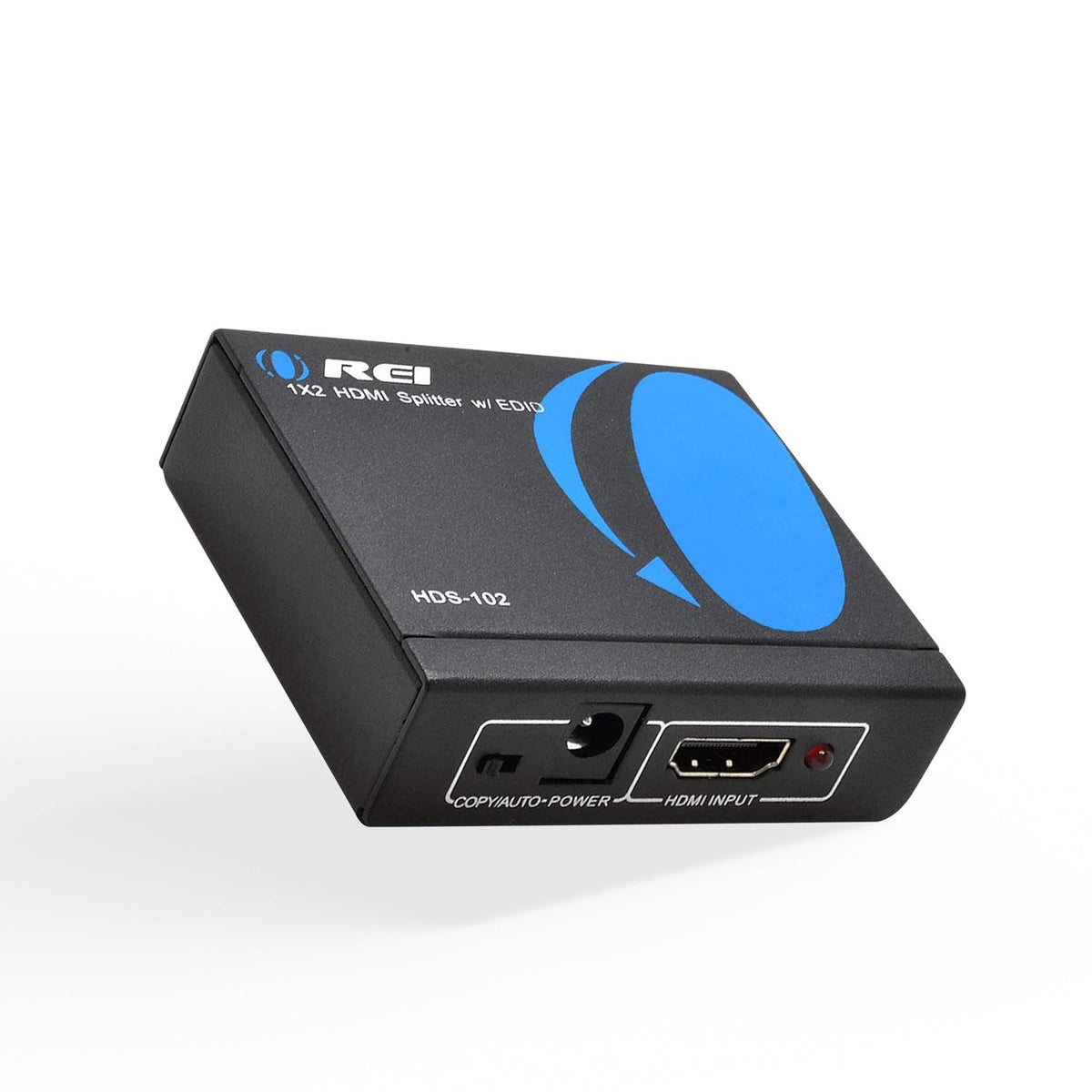

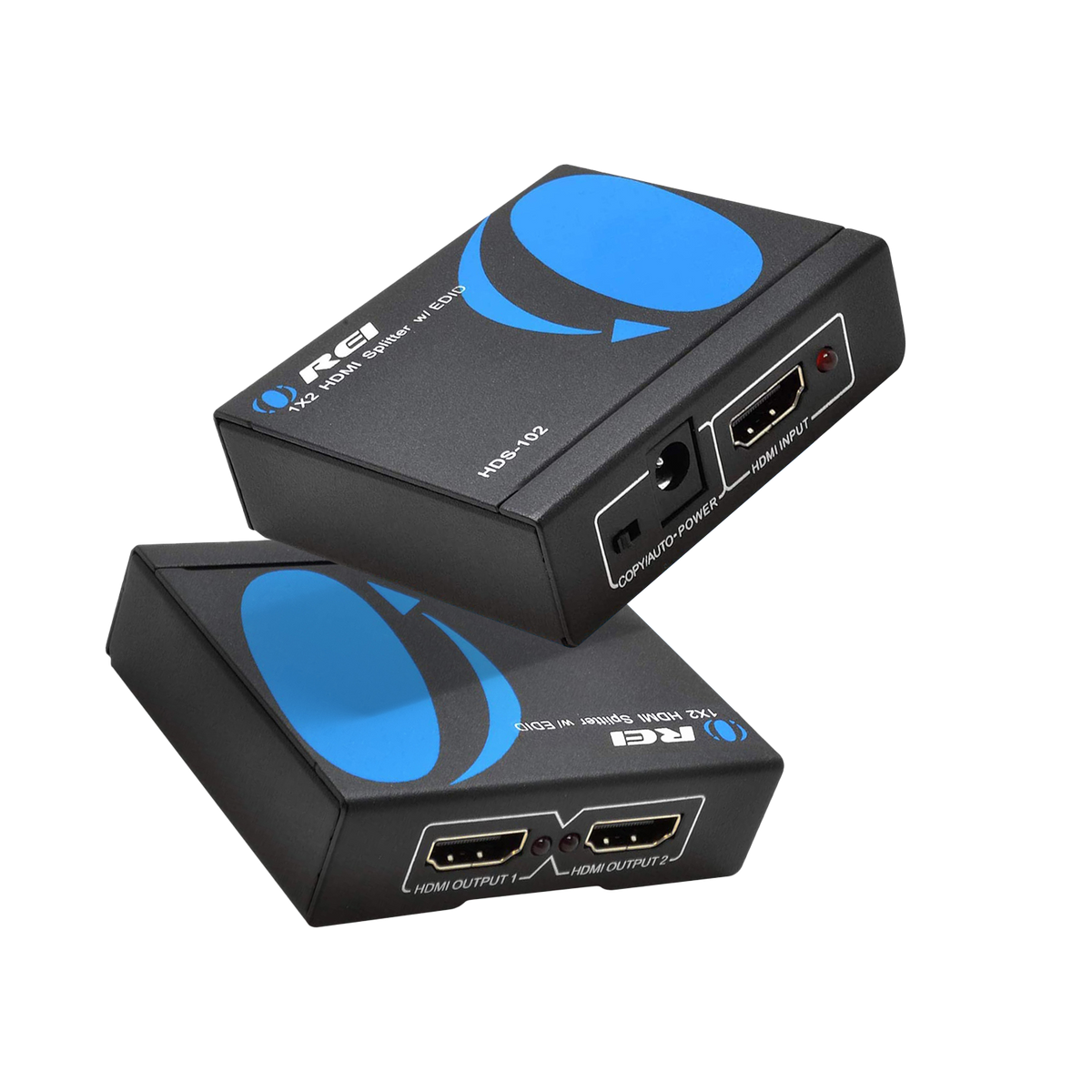

OREI HDS-102: 4K 1x2 HDMI Splitter with EDID
Key Features:
- HDMI 1.4 and HDCP 1.4 Compliant – Ensures compatibility with most modern HDMI sources and displays.
- Resolutions up to 4K@30Hz and 1080p@60Hz – Delivers high-definition video for crystal-clear image quality.
- 2.97Gbps Video Bandwidth – Provides stable, high-quality signal transmission for video and audio.
- Advanced Audio Format Support – Compatible with DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, and DSD formats.
- EDID Management – Features two different EDID modes to adjust the resolution and audio according to the connected displays.
- 3D Support – 3D video output at 1080p@60Hz.

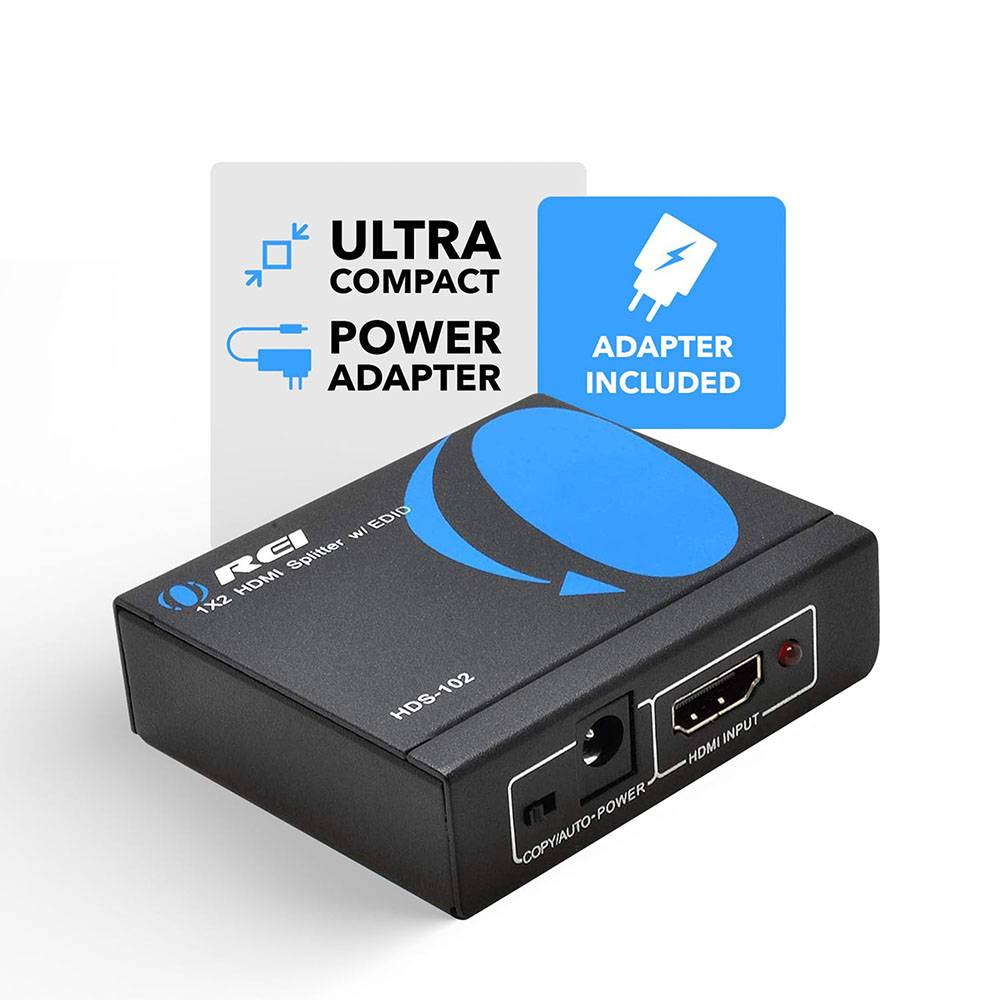

- Compact, Plug-and-Play Design – No software or drivers required, easy setup for home and commercial use.

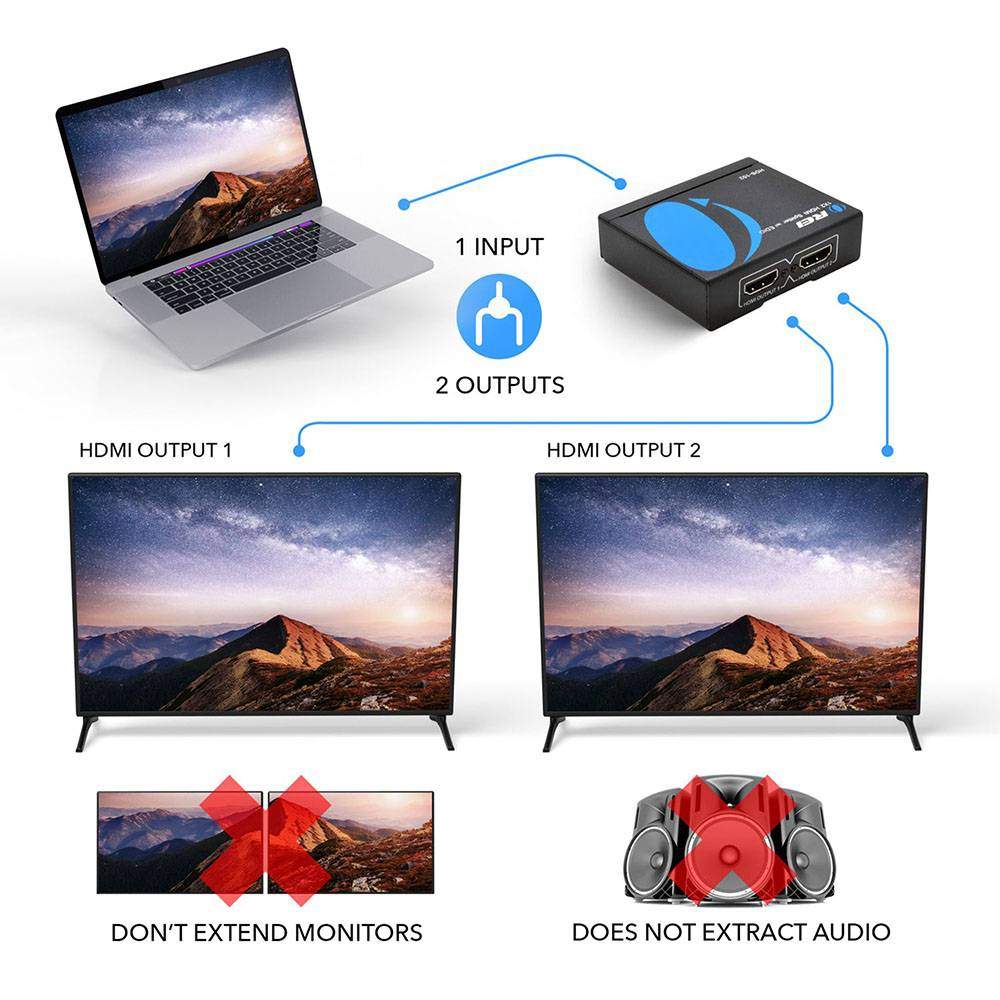

The HDS-102 is a compact 1x2 HDMI splitter designed to distribute a single HDMI source to two displays simultaneously. Fully compliant with HDMI 1.4 and HDCP 1.4 standards, it ensures seamless compatibility with a wide range of AV devices.
Supporting resolutions up to 4K@30Hz and 1080p@60Hz, the HDS-102 delivers reliable video performance with a maximum bandwidth of 2.97Gbps. It accommodates advanced audio formats including DTS-HD, Dolby TrueHD, and LPCM 7.1, ensuring full audio fidelity across connected devices.
With integrated EDID management and support for 3D video, this splitter is an excellent choice for both home theater setups and commercial AV installations requiring simultaneous dual-display output.

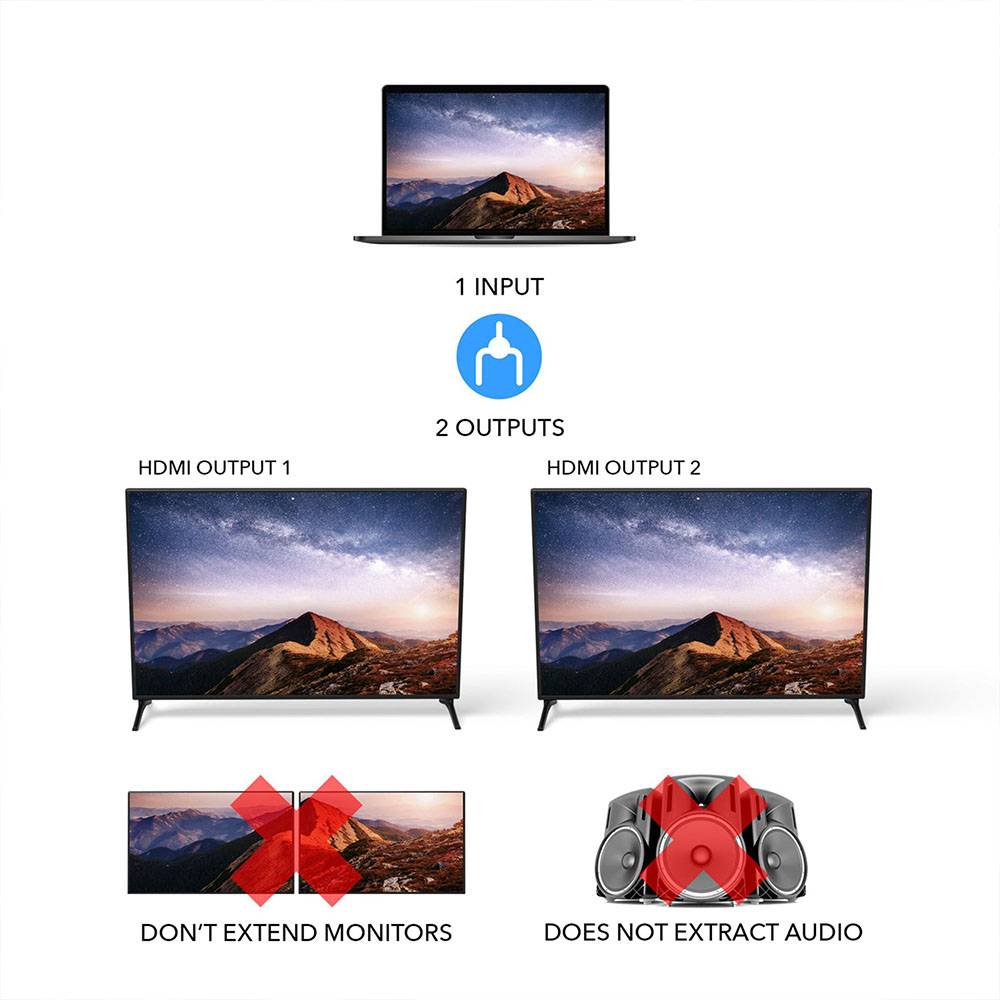

Does NOT EXTEND Laptop or PC display to have different program on both screens. Use the OREI SplitXtend dual display adapter for extended displays.
[shortdes]
- Split audio/video signals to 2 displays
- HDMI 1.4a & HDCP 1.4 compliant
- EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] |

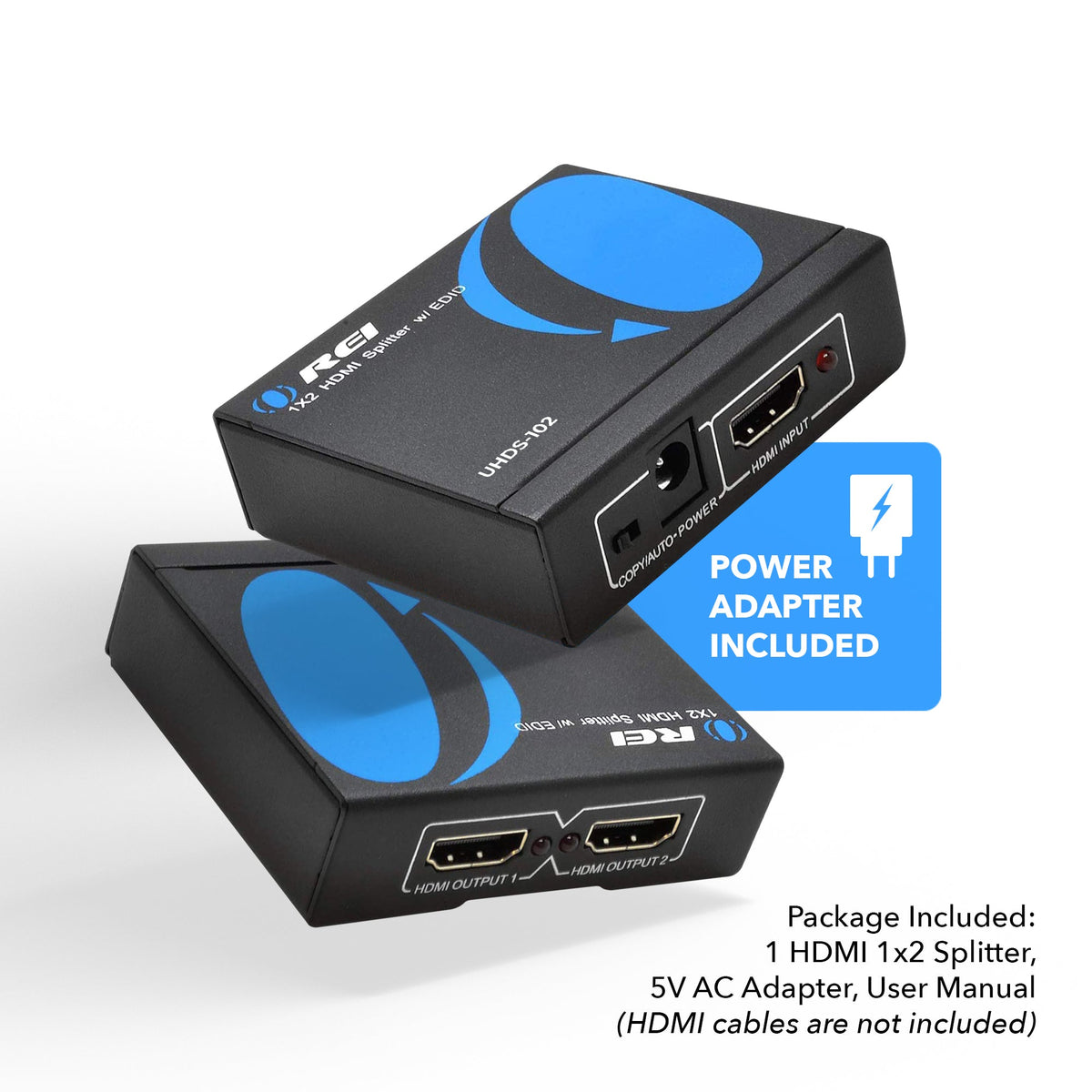

PACKAGE CONTENTS
| 1x HDS-102 |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 2.97Gbps |
| Maximum Resolution: | 4K@30Hz |
| Input Resolution: |
4096x2160p60/50Hz YUV420, 4096x2160p30/25/24Hz 3840x2160p60/50Hz YUV420, 3840x2160p30/25/24Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/50/30/25/24Hz, 1920x1080i120/100/60/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x960p72Hz 1440x900p85/75/60/50Hz, 1440x576i50/25Hz 1440x480i60/30Hz, 1400x1050p75/60Hz 1400x788p60Hz, 1366x768p60/50/30/25/24Hz 1360x768p60Hz, 1280x1024p96/85/75/60Hz 1280x960p85/75/60Hz, 1280x800p120/85/75Hz 1280x768p120/85/75/60Hz, 1280x720p120/100/60/50/30/25/24Hz 1280x720p100/60/50/30/25/24Hz, 1176x664p60/50Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p85/70Hz 720x576p100/50Hz, 720x480p120/60Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
| Output Resolution: |
1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/50/30/25/24Hz, 1920x1080i120/100/60/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x960p72Hz 1440x900p85/75/60/50Hz, 1440x576i50/25Hz 1440x480i60/30Hz, 1400x1050p75/60Hz 1400x788p60Hz, 1366x768p60/50/30/25/24Hz 1360x768p60Hz, 1280x1024p96/85/75/60Hz 1280x960p85/75/60Hz, 1280x800p120/85/75Hz 1280x768p120/85/75/60Hz, 1280x720p120/100/60/50/30/25/24Hz 1280x720p100/60/50/30/25/24Hz, 1176x664p60/50Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p85/70Hz 720x576p100/50Hz, 720x480p120/60Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | No / No / No |
| MST Support (Extended Display): | No |
AUDIO SUPPORT
| HDMI Audio Formats: |
DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD
|
COMPLIANCES
| HDMI Compliance | HDMI 1.4a |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 70mm / 2.76in | |
| Width: | 60mm / 2.36in | |
| Height: | 20mm / 0.79in | |
| Weight: | 125g / 4.4oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
