OREI HDS-402MV: 4K@30Hz HDMI Matrix Multiviewer Switch w/ RS-232 Control
Key Features:
- HDMI 1.4 & HDCP 1.4 Compliant
- 4 In 2 Out Matrix w/ Multiviewer functionality
- Video resolutions up to 4K@30Hz

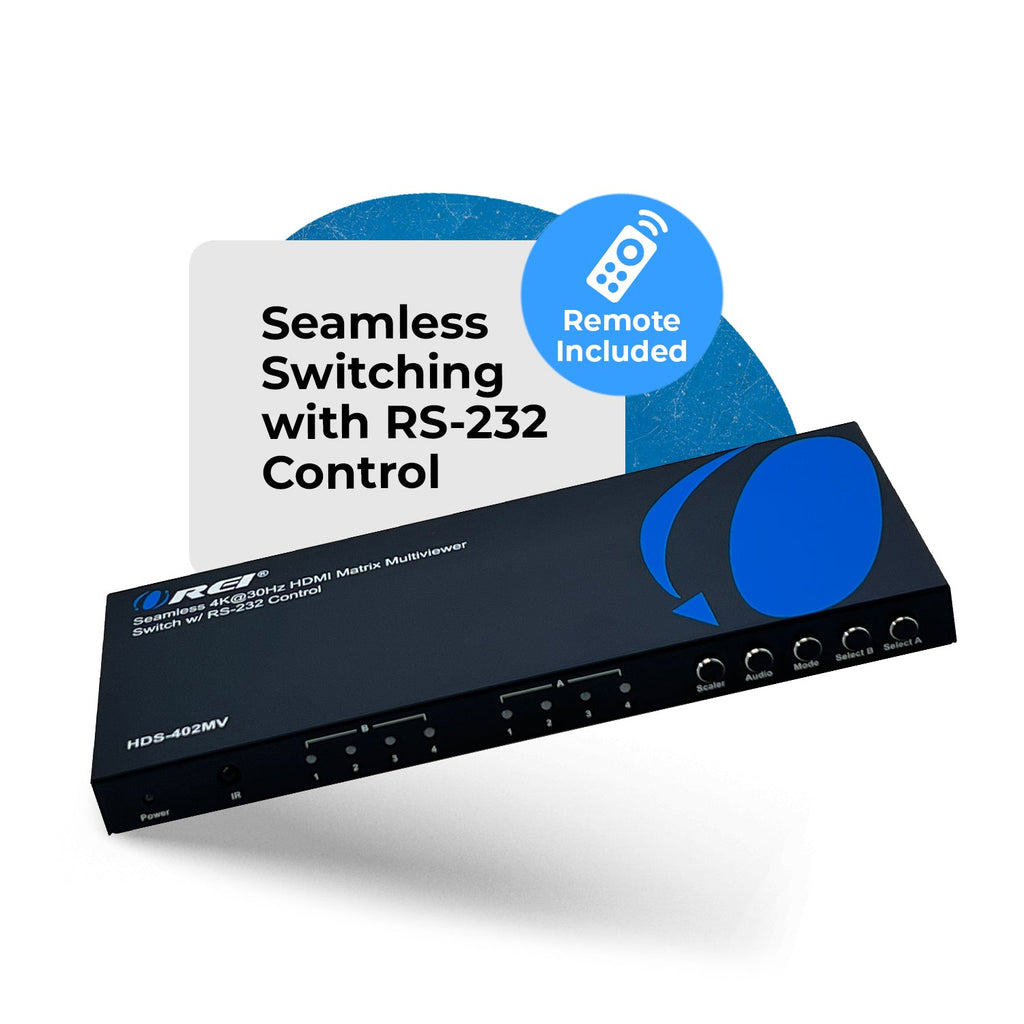

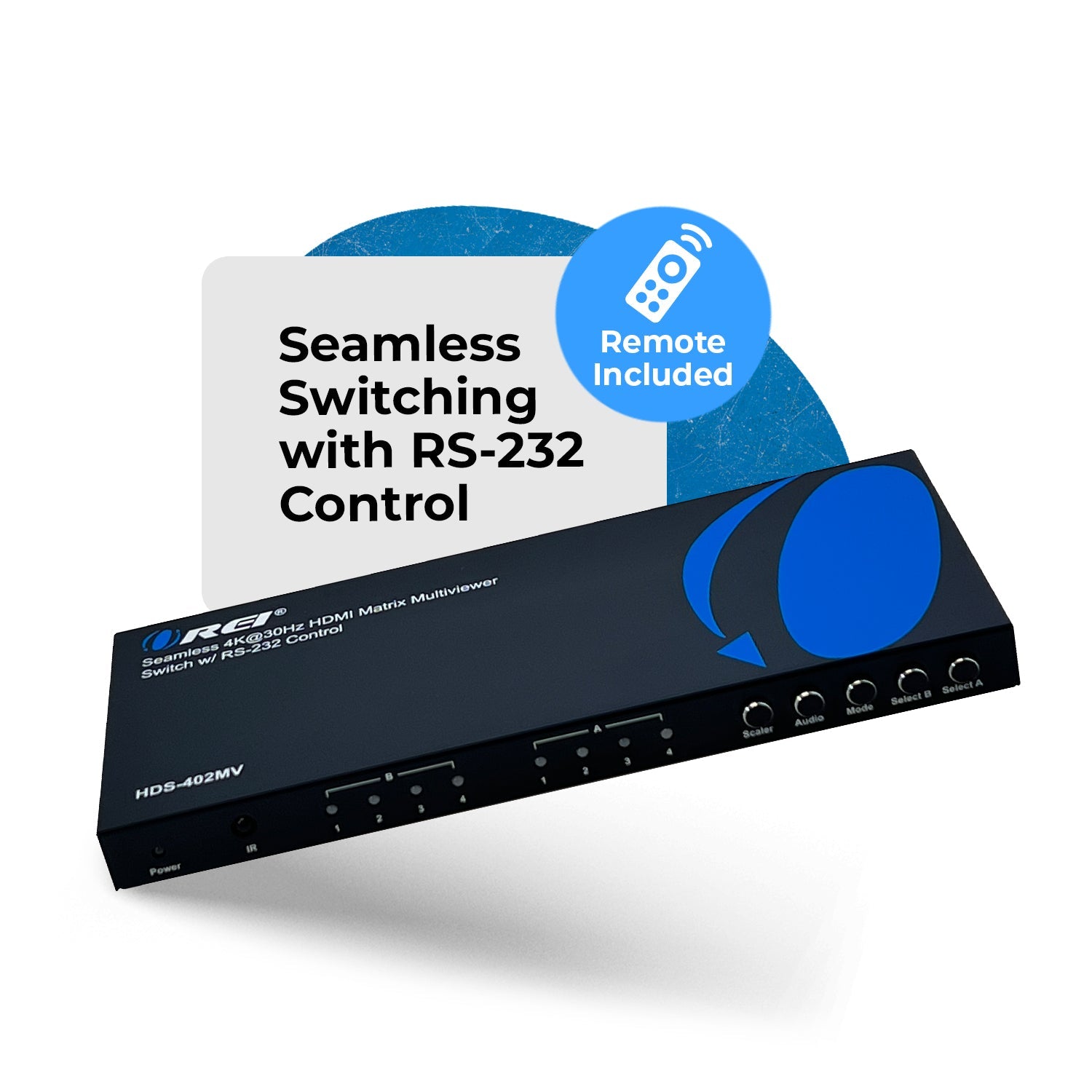

- Features seamless switching
- Multi-resolution output
- Built-in Scaler to upscale and downscale resolution
- Features Aspect ratio change and PIP functions
- Control via front panel, IR Remote and RS-232

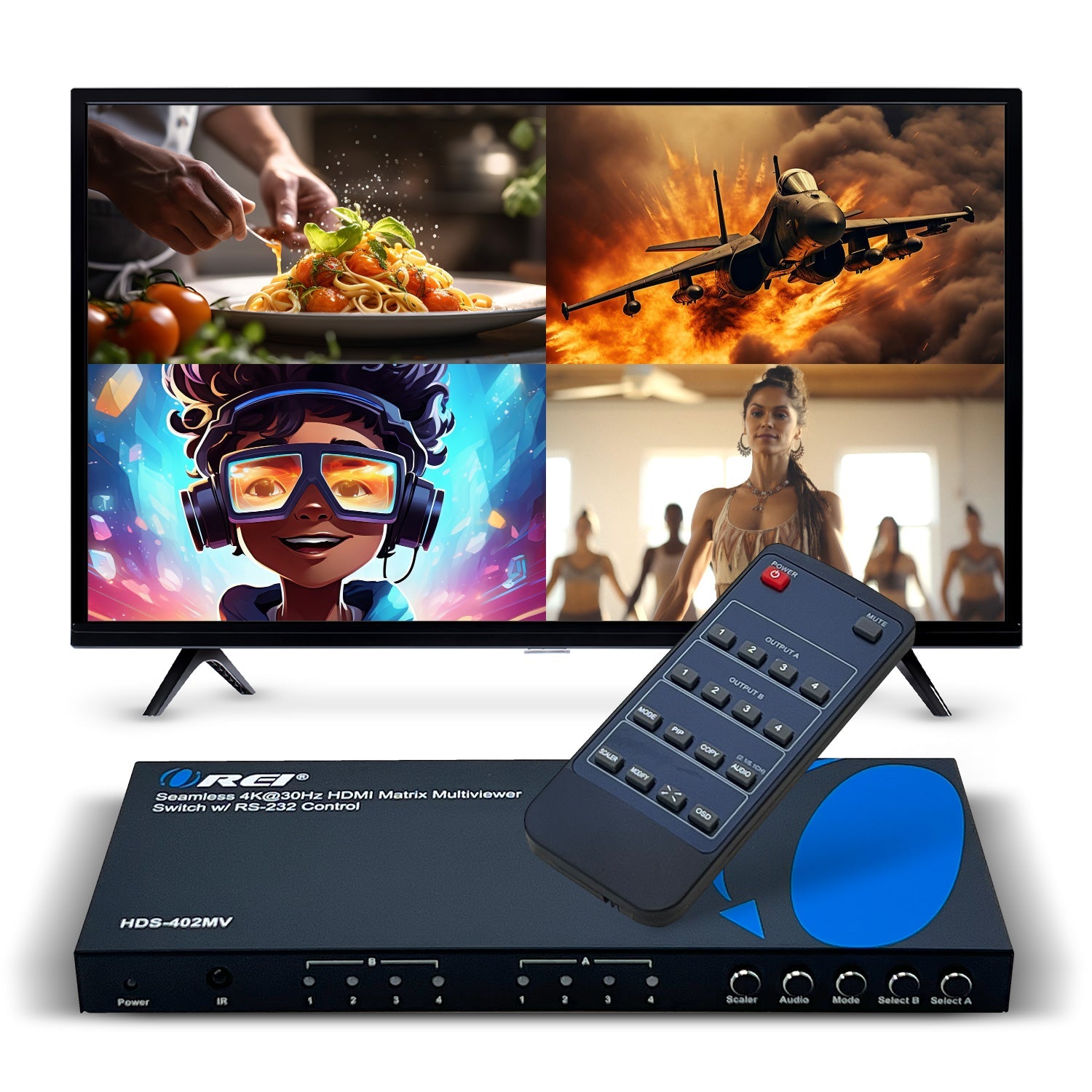

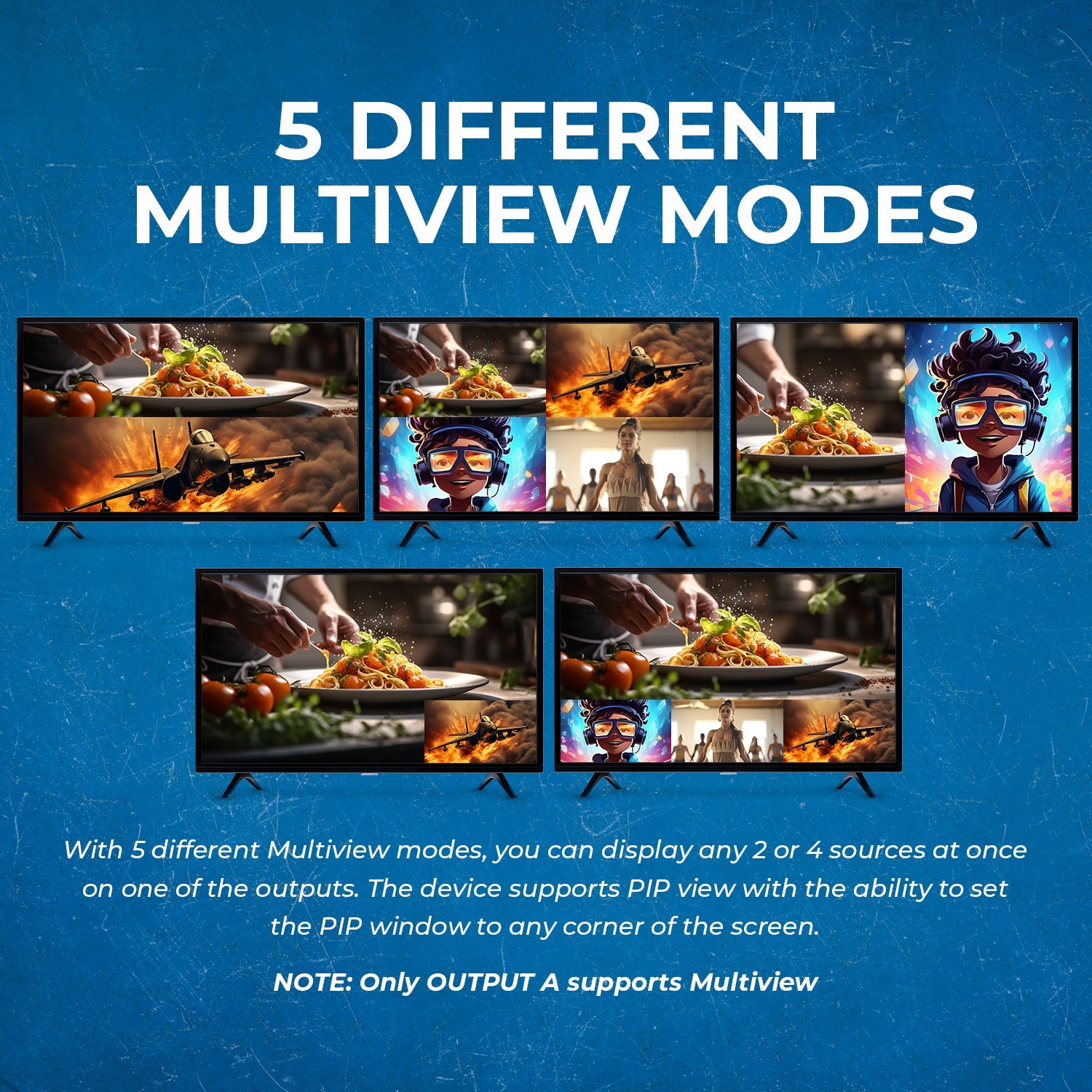

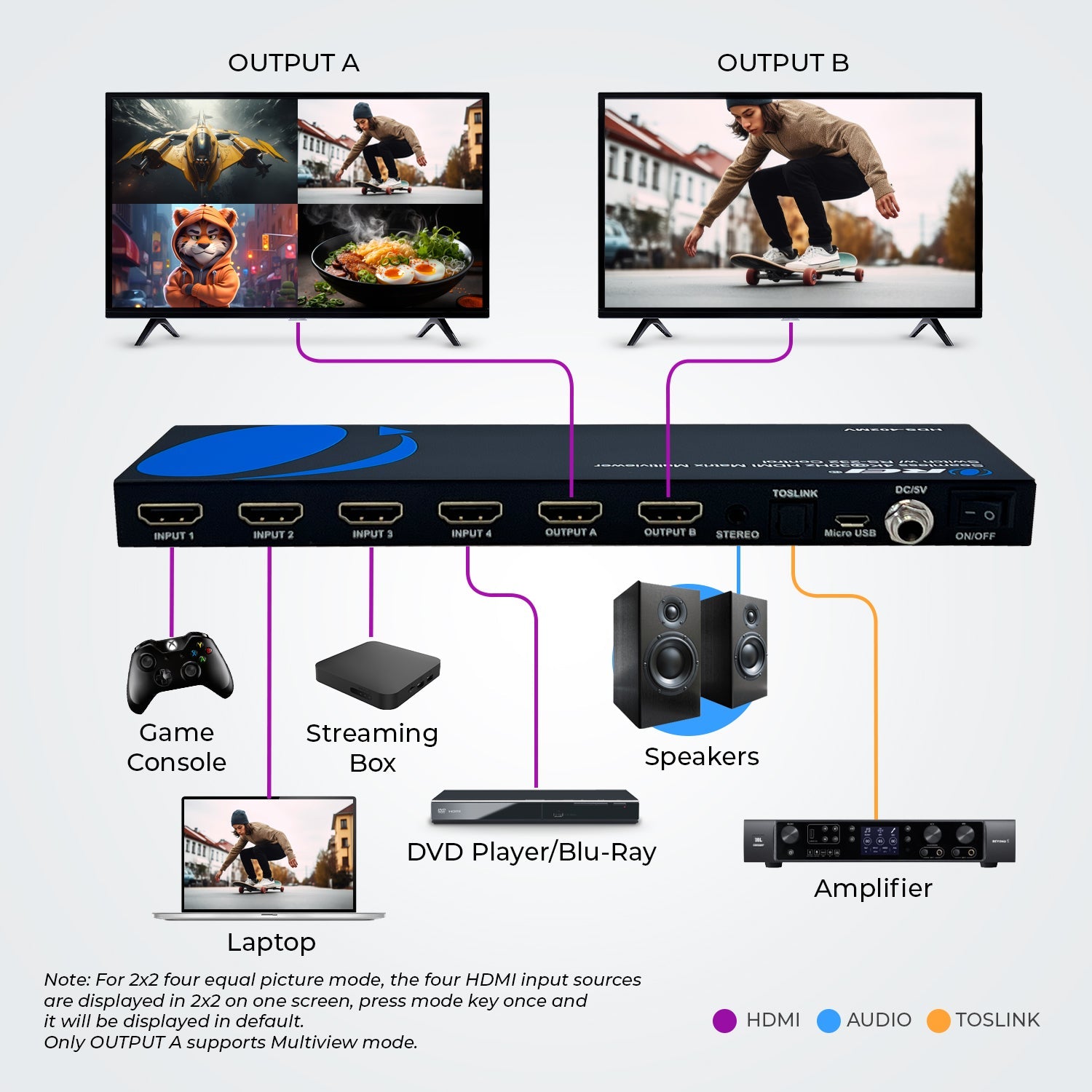

The HDS-402MV HDMI Matrix features seamless switching between 4 Input sources and 2 output devices. Along with seamless switching, the device also features Multiview functionality. It is HDMI 1.4 & HDCP 1.4 compliant and supports resolutions up to 4K@30Hz. With 5 different Multiview modes, you can display any 2 or 4 sources at once on one of the outputs. The device supports PIP view with the ability to set the PIP window to any corner of the screen. The power-off memory function retains the last setup when the device is restarted. Features versatile control through the front panel, the included remote, or RS-232. The HDS-402MV is the perfect device for various security and multimedia applications.
[shortdes]
- 4 In 2 Out Matrix w/ Multiviewer functionality
- Resolutions up to 4K@30Hz
- Features Aspect ratio change and PIP functions
[/shortdes]
[tab]

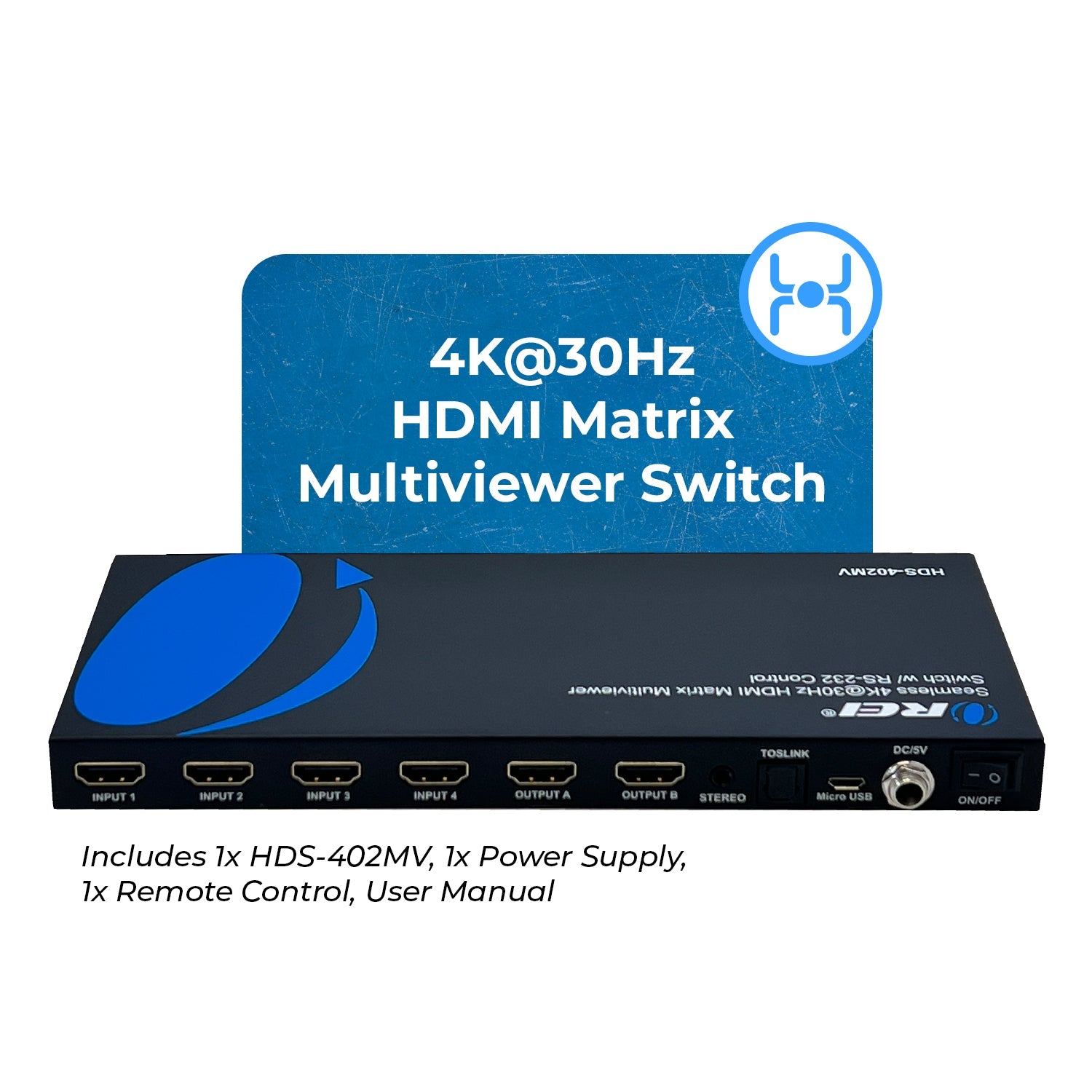

CONNECTIVITY
| INPUT: |
4 × HDMI [Type A, 19-pin female] |
|
| OUTPUT:
|
2 × HDMI [Type A, 19-pin female] |
|
|
1 × Stereo L/R [3.5mm Jack] |
|
|
1 × TOSLINK [S/PDIF] |
|
| CONTROL: |
1 × Upgrade [Micro-USB] |
|
PACKAGE CONTENTS
| 1x HDS-402MV |
| 1x Remote Control |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
10.2 Gbps |
| Video Resolutions: |
Up to 4K@30Hz |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
Yes |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
Yes |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
Yes |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM/AC3/DTS
|
| Optical Audio Formats: |
PCM 5.1CH
|
| Analog Audio Formats: |
PCM 2.0
|
COMPLIANCES
| HDMI Compliance |
HDMI 1.4 |
| HDCP Compliance |
HDCP 1.4 |
POWER
| Power Consumption: |
2W (Max) |
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/2A |
|

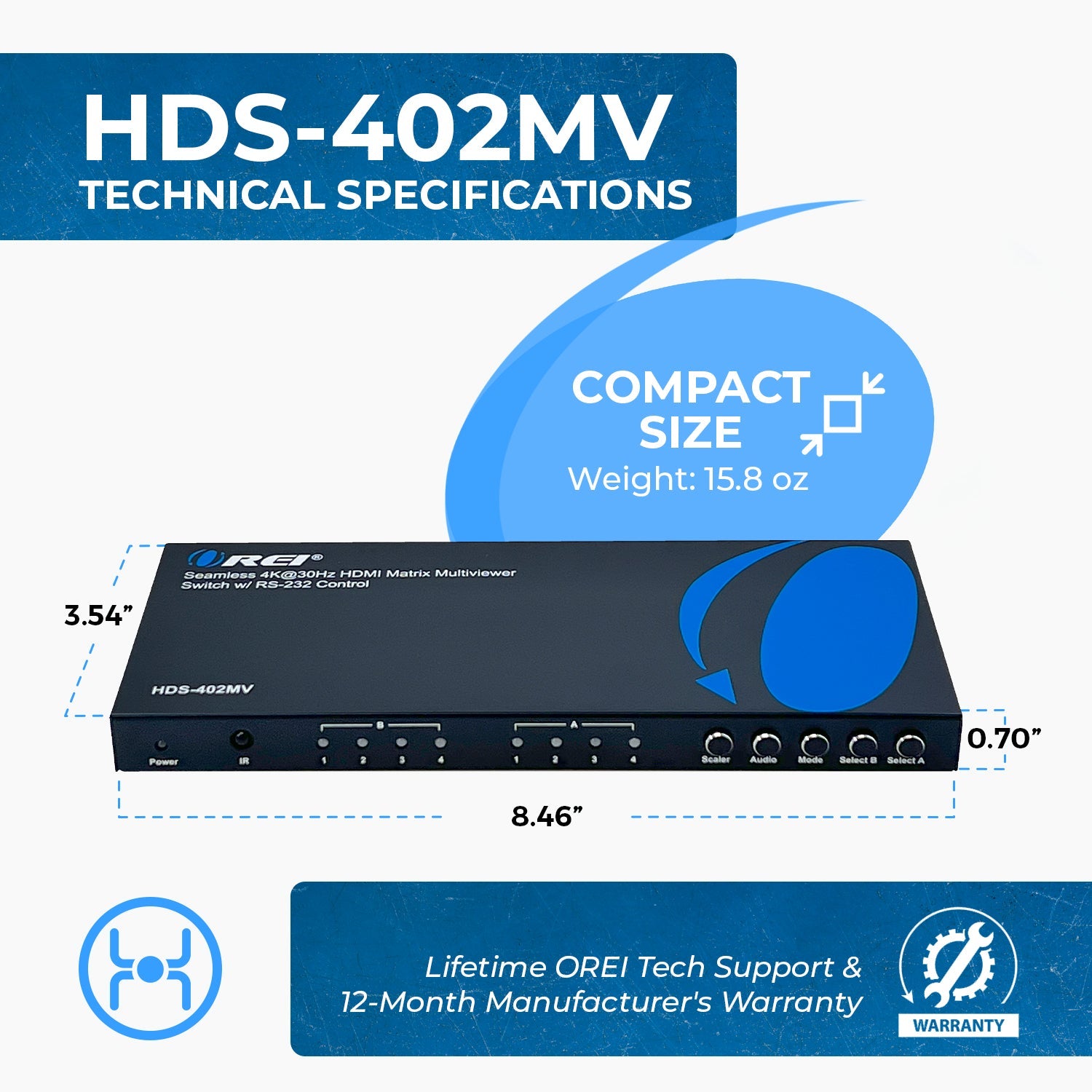

DIMENSIONS & WEIGHT
| Length:
|
215mm / 8.47in |
|
| Width: |
90mm / 3.54in |
|
| Height:
|
18mm / 0.71in |
|
| Weight:
|
450g / 15.87oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
