Description
OREI 1080p KVM Extender over Ethernet up to 230 feet - With Power over Cable
-
HDMI 1.4 & HDCP 1.4 Compliant – Ensures compatibility with standard HD content protection protocols.
-
Supports Resolutions up to 4K@30Hz – Transmits 4K video up to 130 ft (40 m) and 1080p up to 230 ft (70 m).
-
Zero Latency Transmission – Maintains real-time video and control over CAT6/6A/7 cable.
-
USB 2.0 KVM Functionality – Enables keyboard and mouse control at the receiver for remote PC access.
-
HDR10 Support – Enhances image depth and contrast for lifelike video quality.
-

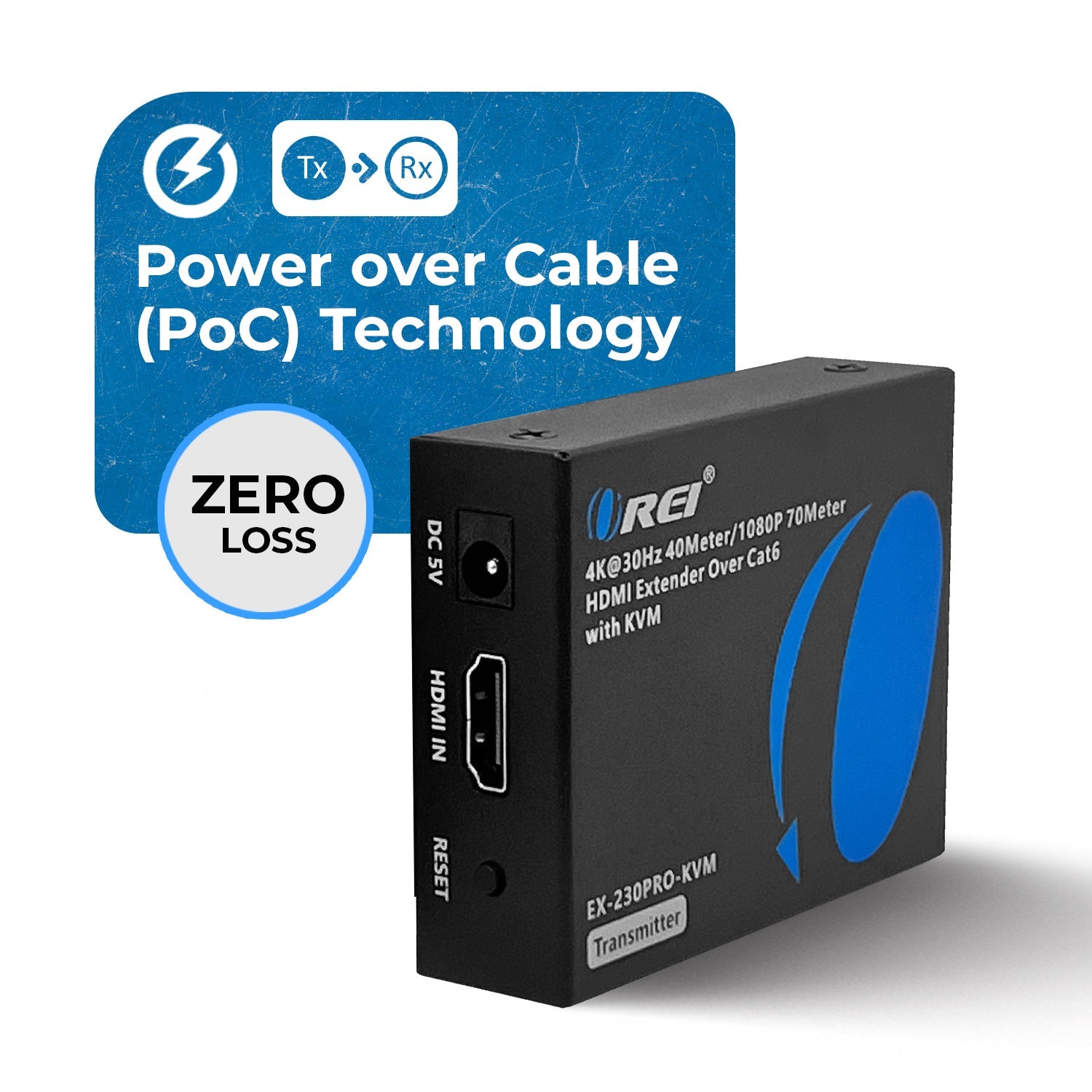

Power over Cable (PoC) – Requires power connection only at the transmitter end, simplifying setup.
-
Plug-and-Play Operation – No driver installation or configuration required.
-
Compact and Durable Design – Metal housing ensures reliability in various environments.

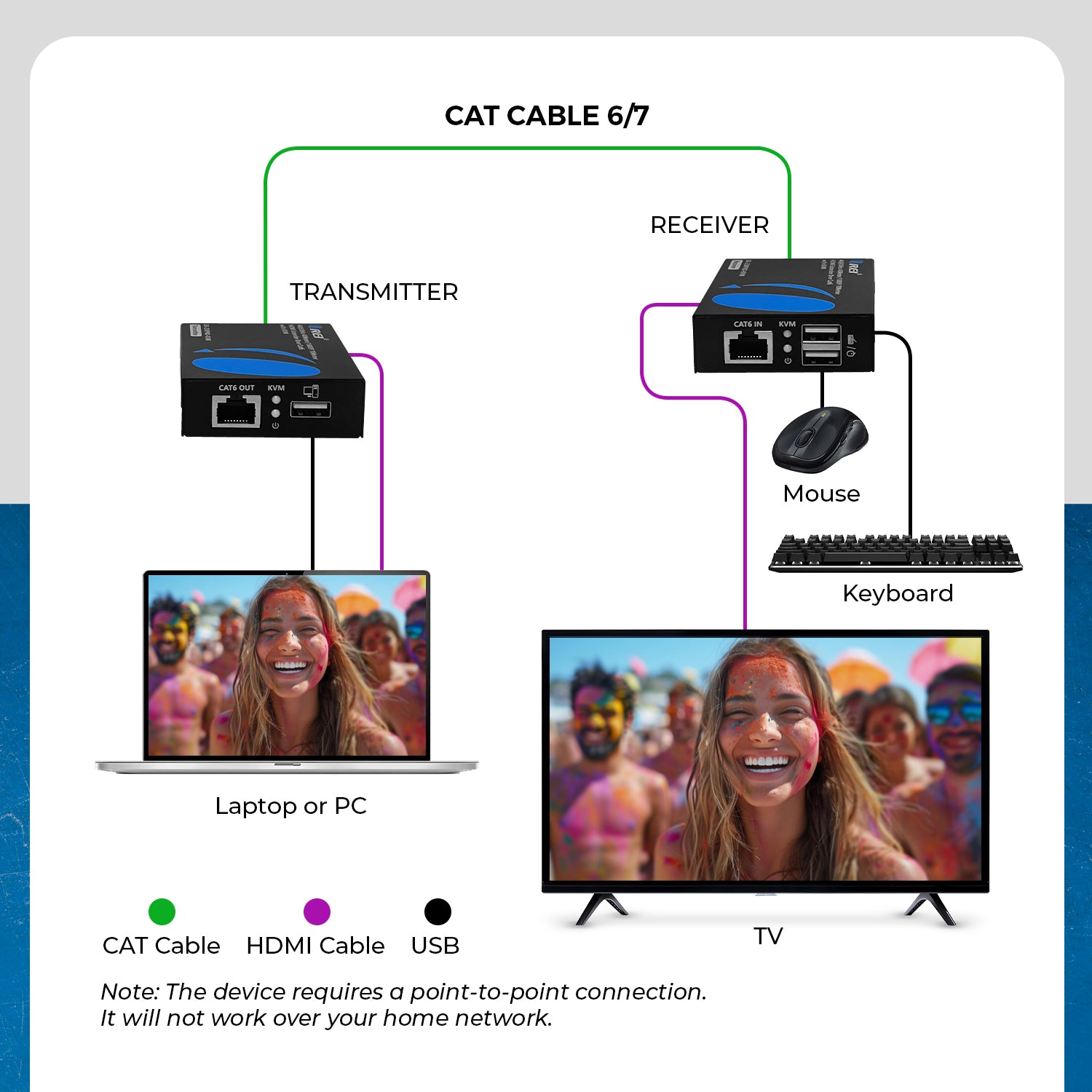

The EX-230PRO-KVM is a high-performance HDMI extender with integrated KVM functionality, designed to deliver smooth, zero-latency AV and USB signal transmission over long distances.
Supporting resolutions up to 4K@30Hz and 1080p@60Hz, it transmits HDMI signals up to 130 feet (40 meters) at 4K and up to 230 feet (70 meters) at Full HD over a single Cat6/6A/7 cable.

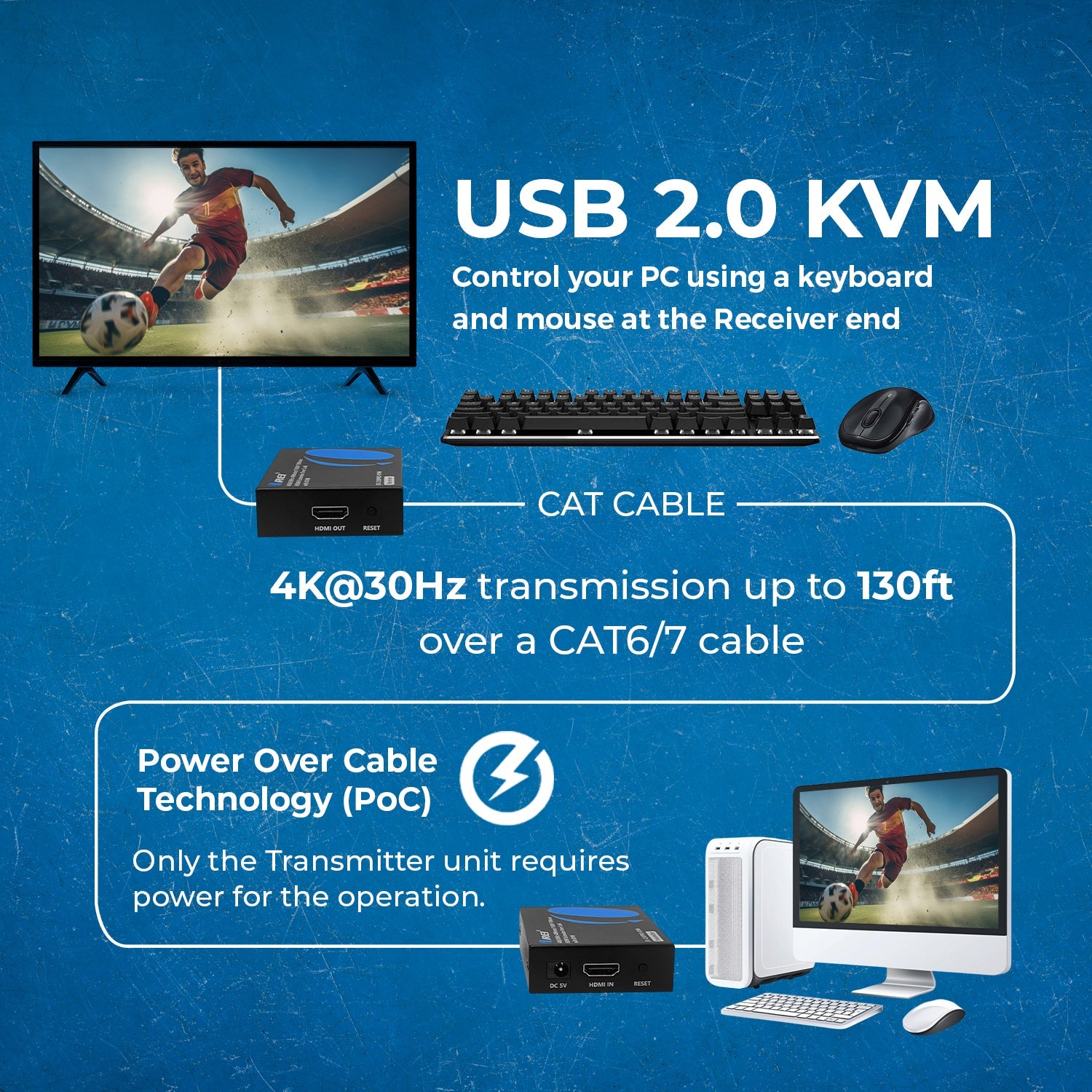

This device features USB 2.0 pass-through, enabling full keyboard and mouse (KVM) control from the receiver location—ideal for remote PC operation in workstations or control environments. With HDR10 support and Power over Cable (PoC) functionality, the EX-230PRO-KVM simplifies installation by requiring power only at the transmitter.
Housed in a durable metal casing with a compact footprint, it is ideal for digital signage, security monitoring, home office, and conference room applications.
[shortdes]
-
KVM and HDMI extender
-
Video resolutions up to 4K@30Hz 4:4:4
-
Uni-directional Power over cable
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × CAT [RJ45, 8-pin female] | |
| CONTROL: | 1×USB [USB Type A] | |

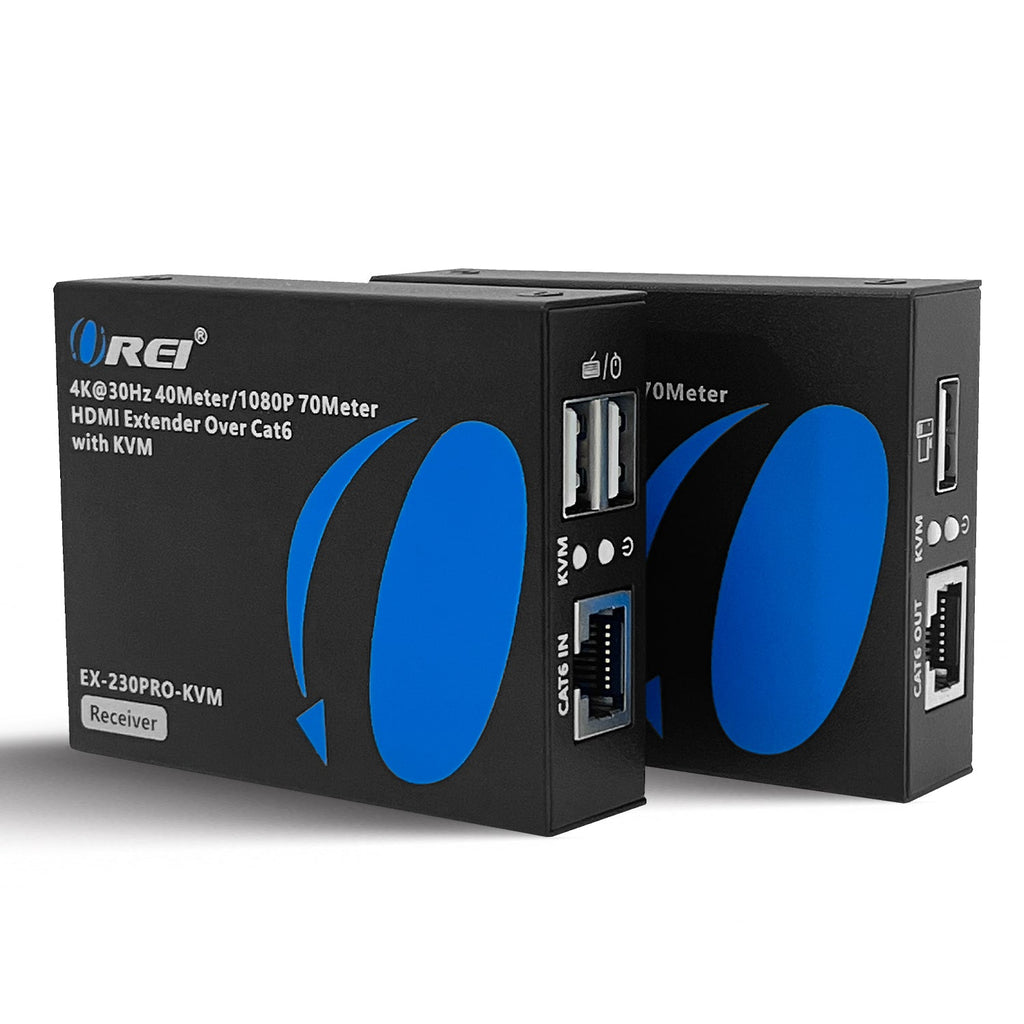

| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 2×USB [USB Type A] |

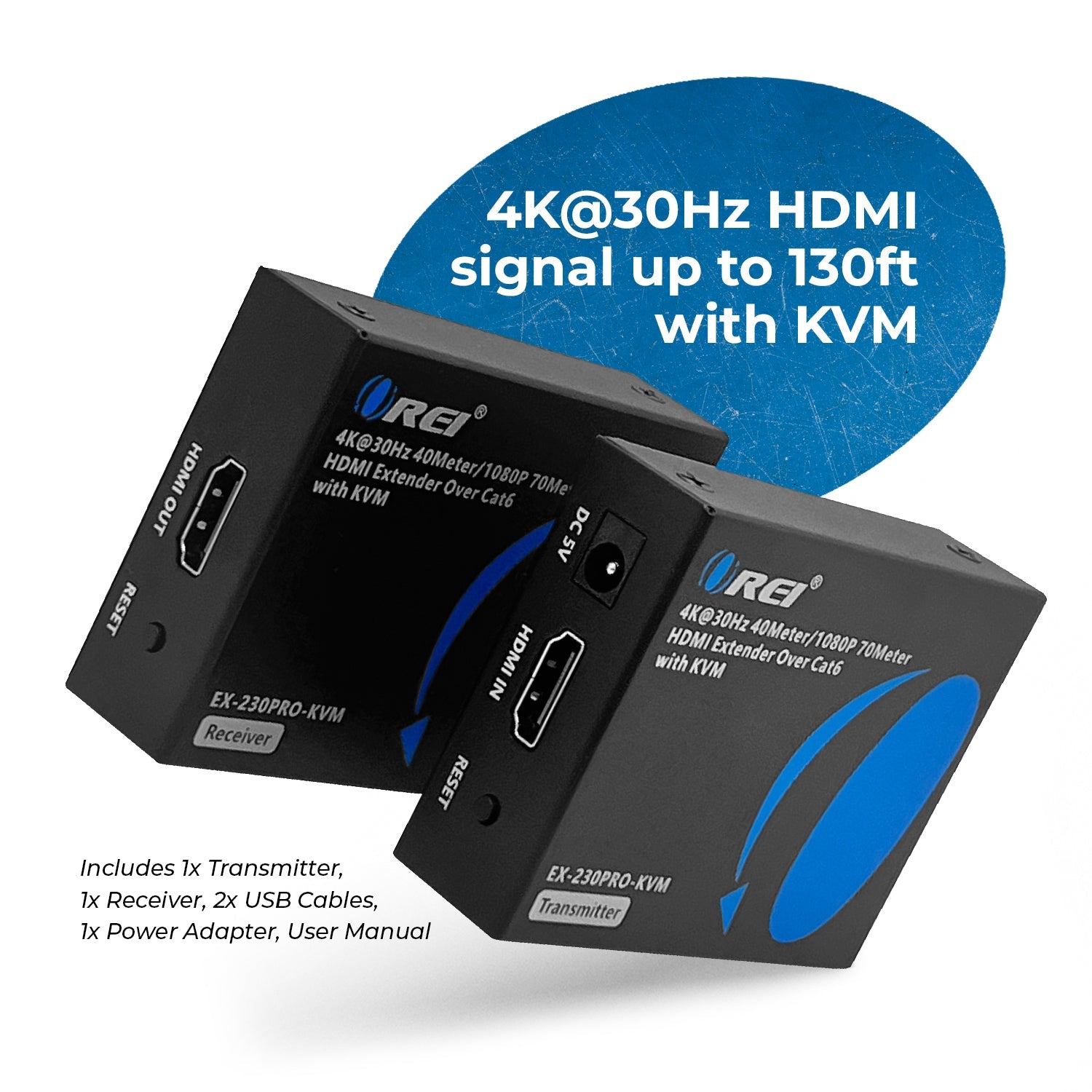

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 2x USB Cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 131 Feet |
| 1080p@60Hz: | 230 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2Gbps |
| Video Resolutions: | Up to 4K@30Hz 4:4:4 |
ADDITIONAL FEATURES
| ARC/eARC: | ❌/❌ |
| CEC : | ❌ |
| Transmission Technology : | Ethernet |
| IR Control: | ❌ |
| PoC (Power over Cable): | ✅ |
| RS-232: | ❌ |
| USB Standard: |
USB 2.0 (KVM) |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ✅/❌/❌ |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | DTS, DTS-HD, PCM, LPCM |
COMPLIANCES
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Consumption: | 10W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

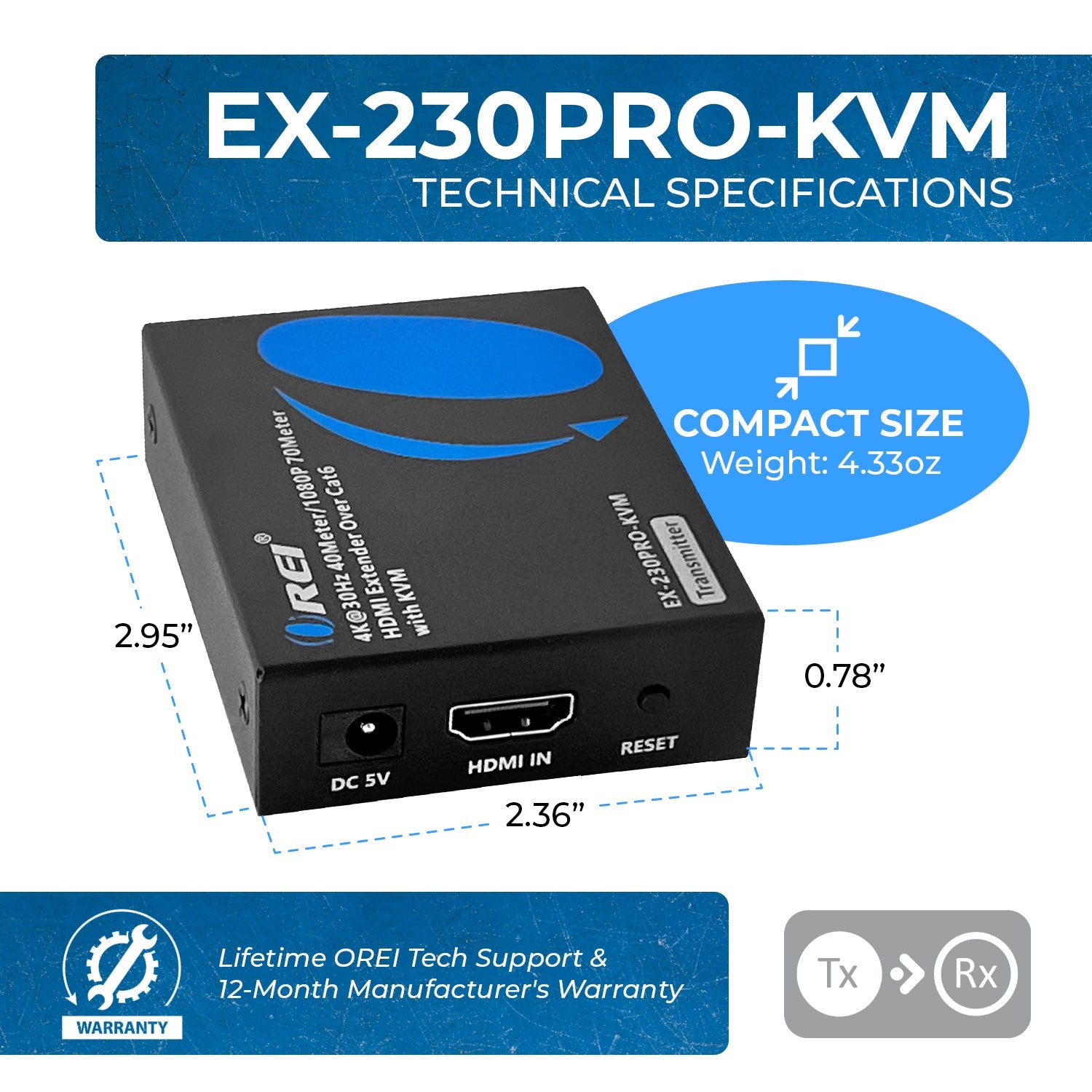

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 75mm / 2.95in |
| Width: | 60mm / 2.36in | |
| Height: | 20mm / 0.79in | |
| Weight: | 123g / 4.34oz | |
| Receiver: | Length: | 75mm / 2.95in |
| Width: | 60mm / 2.36in | |
| Height: | 20mm / 0.79in | |
| Weight: | 123g / 4.34oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Working temperature: | -20~60℃ |
| Storage temperature: | -30~70℃ |
| Humidity (no condensation): | 0～90%RH |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: EX-230PRO-KVM
[/tab1]
