Description

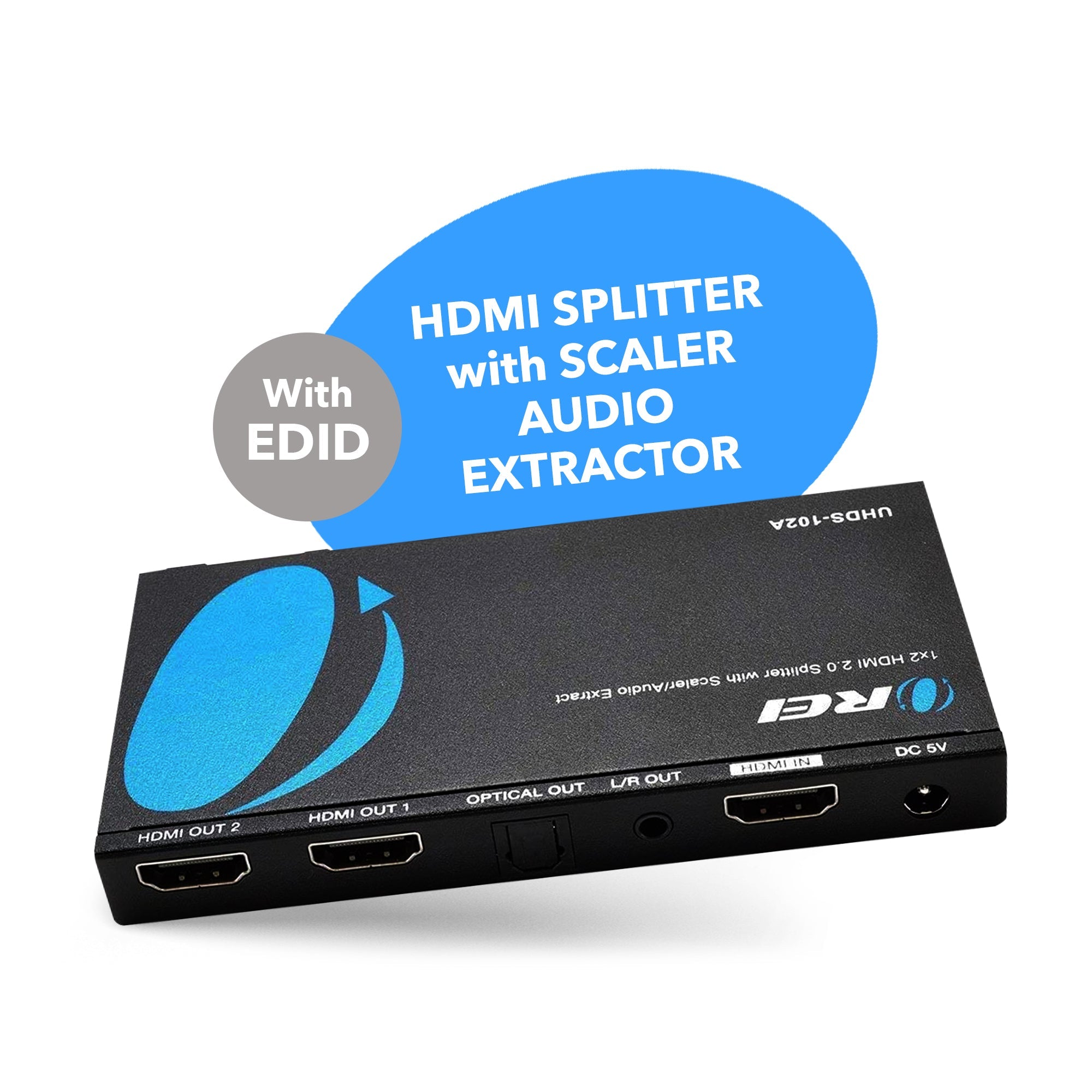

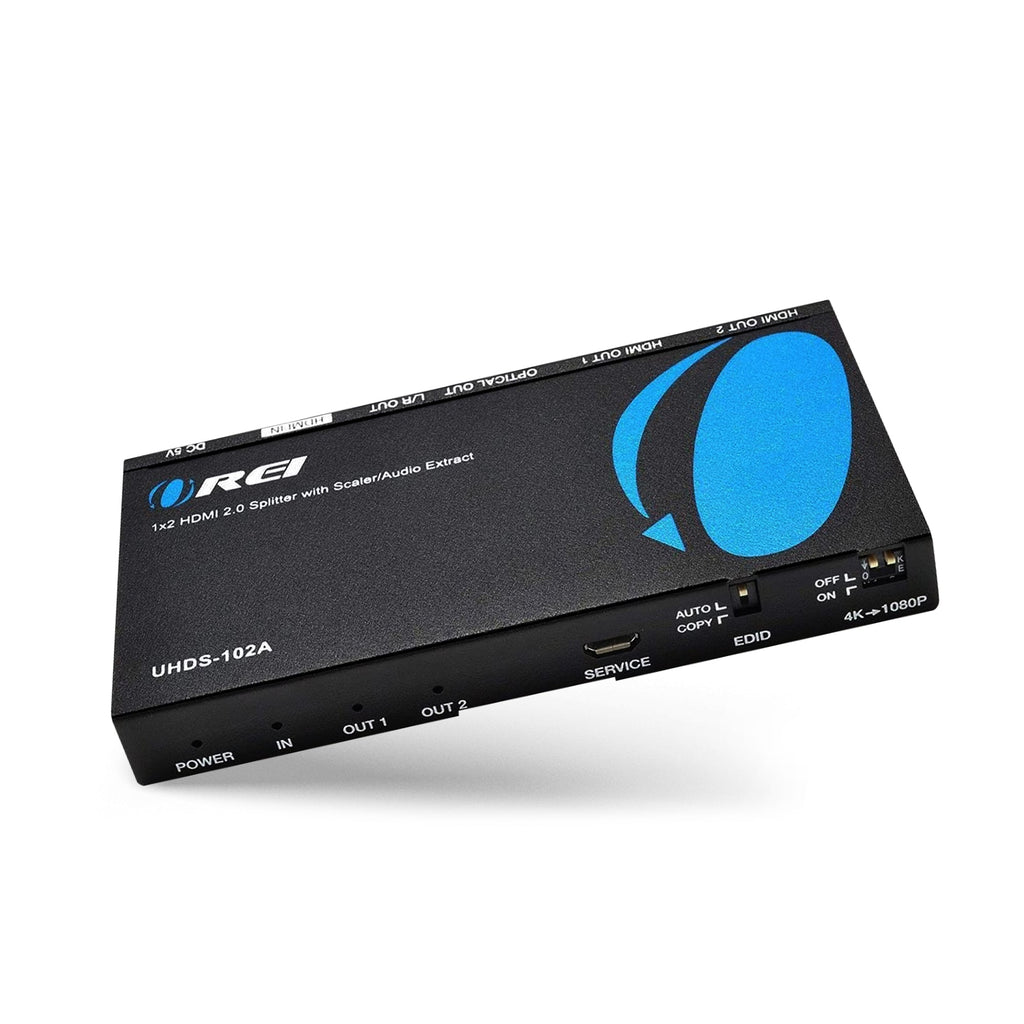

OREI 4K 1x2 HDMI Splitter With Audio Extraction, Downscaler & EDID management (UHDS-102A)
Key Features:
- HDMI 2.0 & HDCP 2.2 Compliant – Compatible with modern video and content protection standards.
- Video Resolutions up to 4K@60Hz – Ensures high-quality video output for UHD displays.
- 18Gbps Video Bandwidth – Delivers stable, uncompressed HDMI signal transmission.
- Dual HDMI Output – Splits a single HDMI source to two displays simultaneously.
- 4K to 1080p Downscale Function – Switchable feature ensures compatibility with legacy 1080p screens.
- Audio Extraction – Outputs audio through Optical and 3.5mm stereo ports for flexible connectivity.
- Advanced Audio Format Support – Supports LPCM, Dolby Digital, Dolby TrueHD, DTS-96/24, and DTS-HD Master through HDMI.
- EDID Management – Offers COPY and AUTO modes for optimal device communication.
- Compact & Plug-and-Play Design – Easy installation ideal for commercial and personal use.

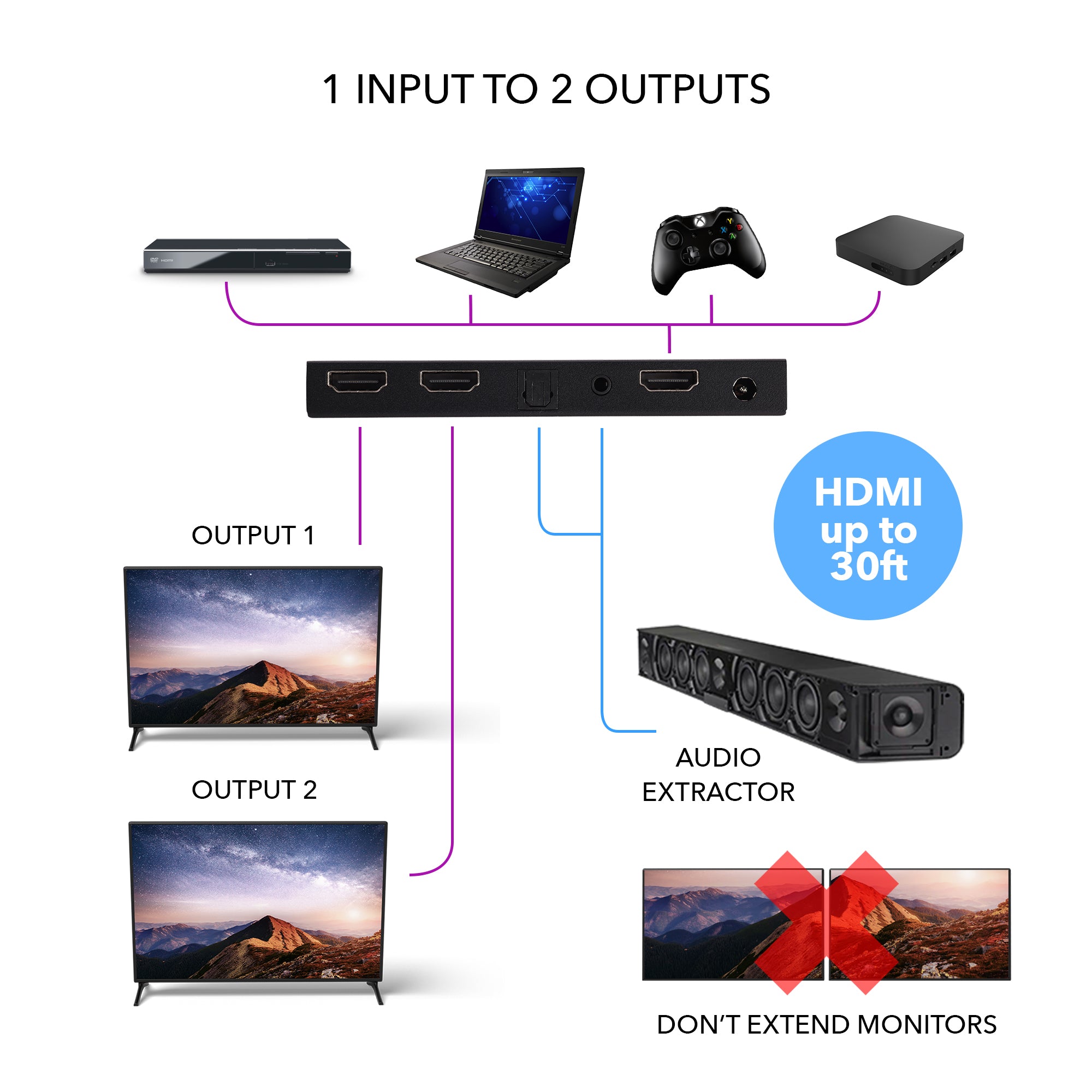

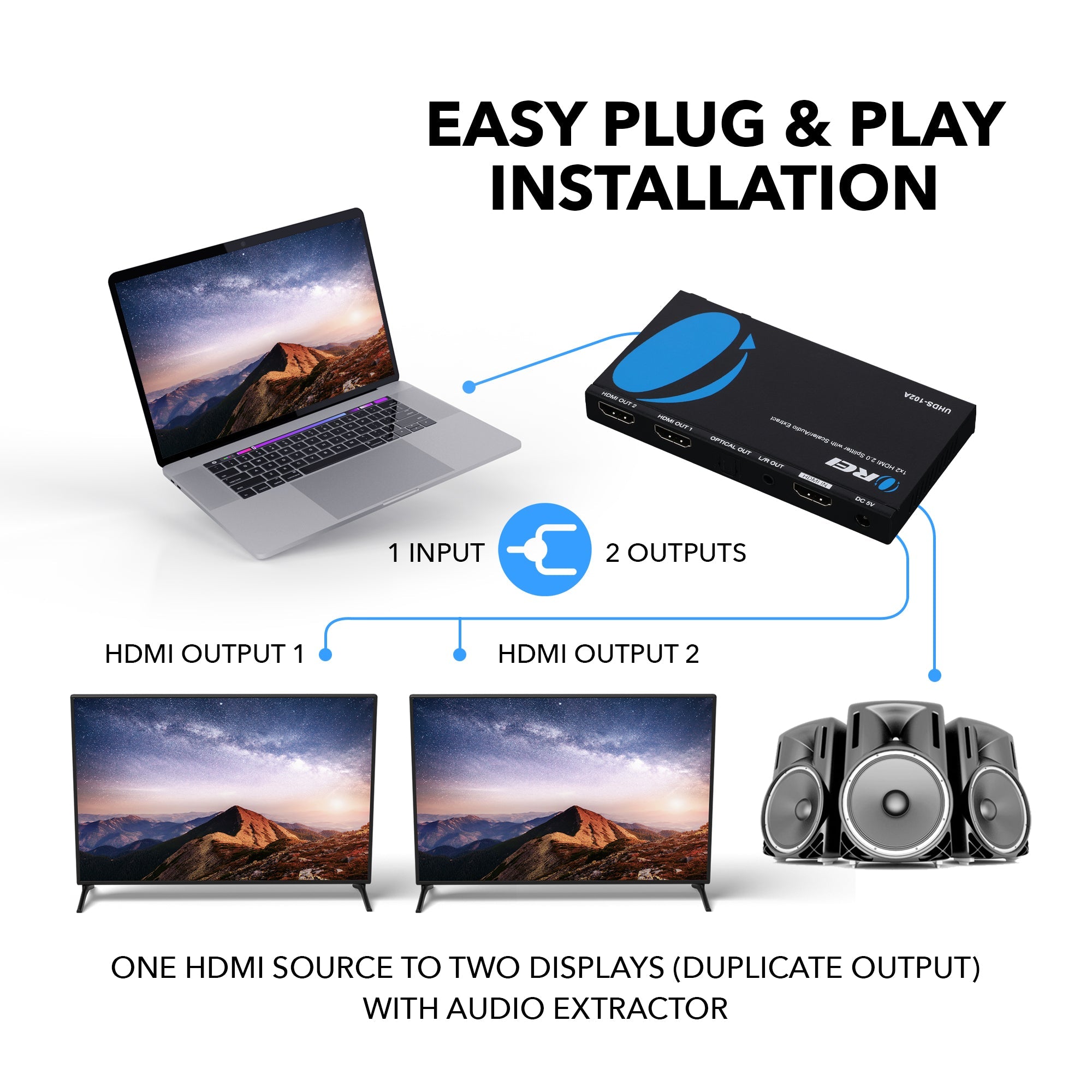

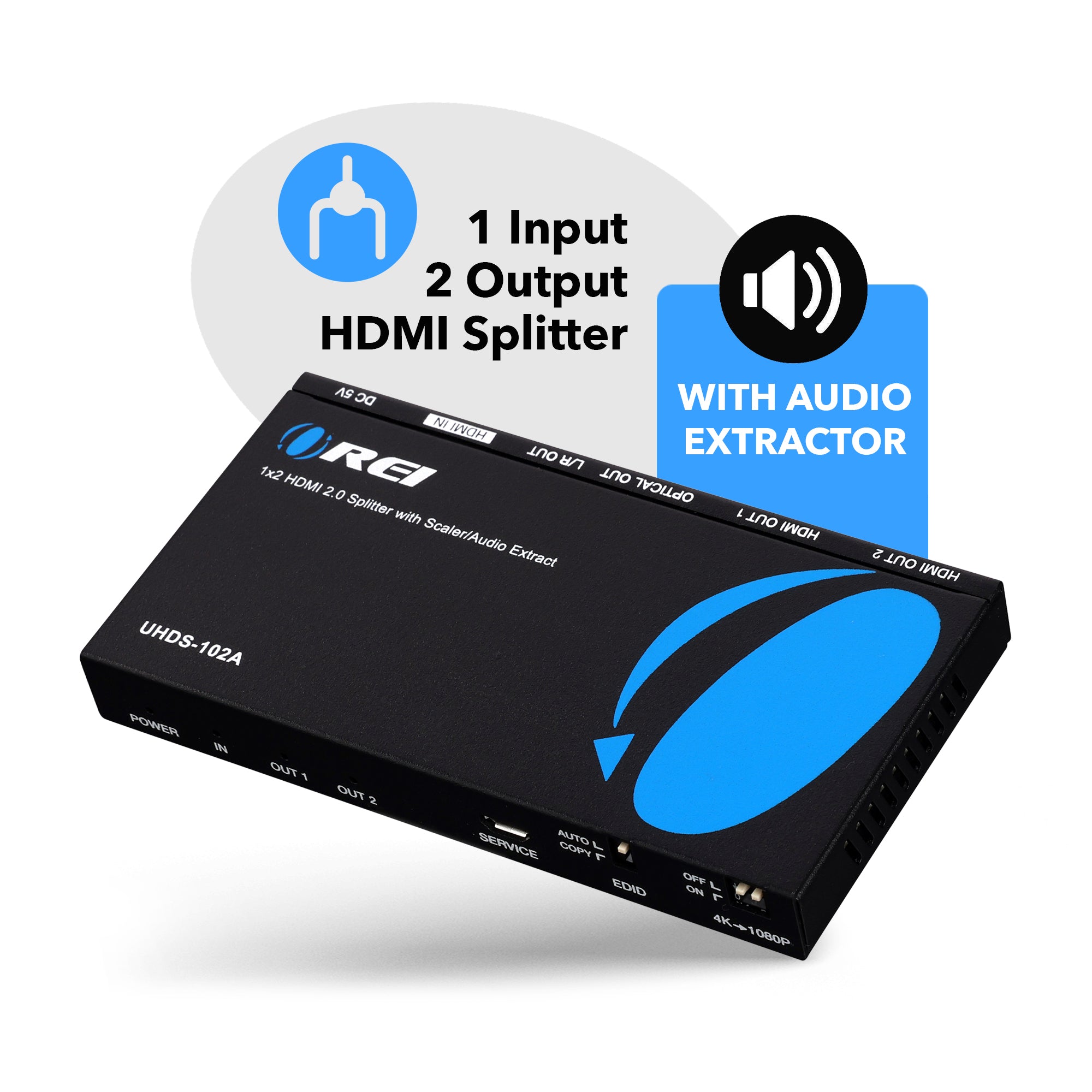

The UHDS-102A is a high-performance HDMI splitter that distributes one HDMI source to two displays simultaneously, with full compliance to HDMI 2.0 and HDCP 2.2 standards.
It supports video resolutions up to 4K@60Hz with 18Gbps bandwidth and includes a built-in downscale switch for seamless compatibility with 1080p displays.
Audio can be extracted via Optical or 3.5mm stereo outputs. It supports advanced audio formats through HDMI such as LPCM, Dolby TrueHD, and DTS-HD Master.
Equipped with EDID management and a plug-and-play design, the UHDS-102A is ideal for both commercial AV systems and personal home setups.
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × Optical [S/PDIF] | ||
| CONTROL: | 1× SERVICE [Micro USB, Update port] |

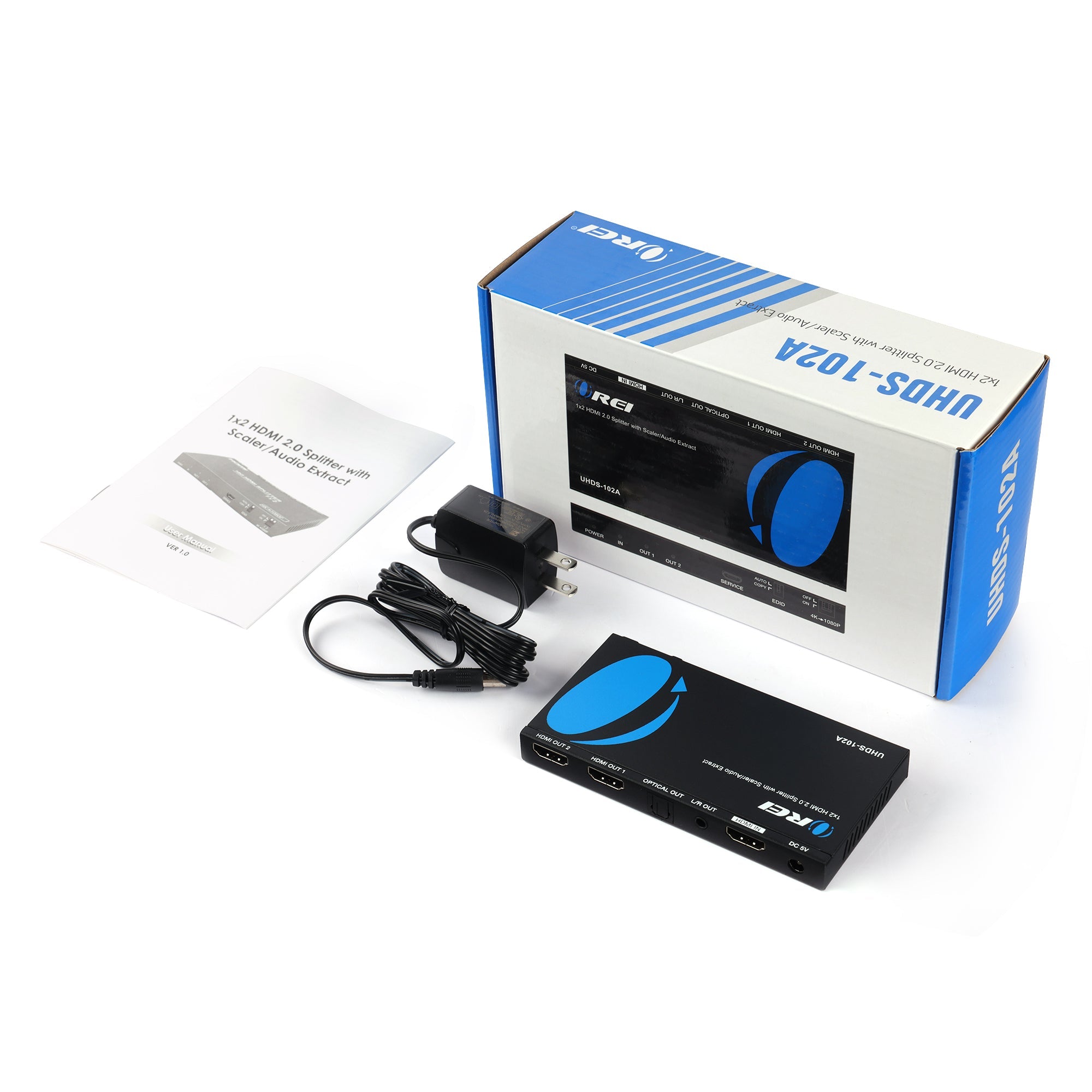

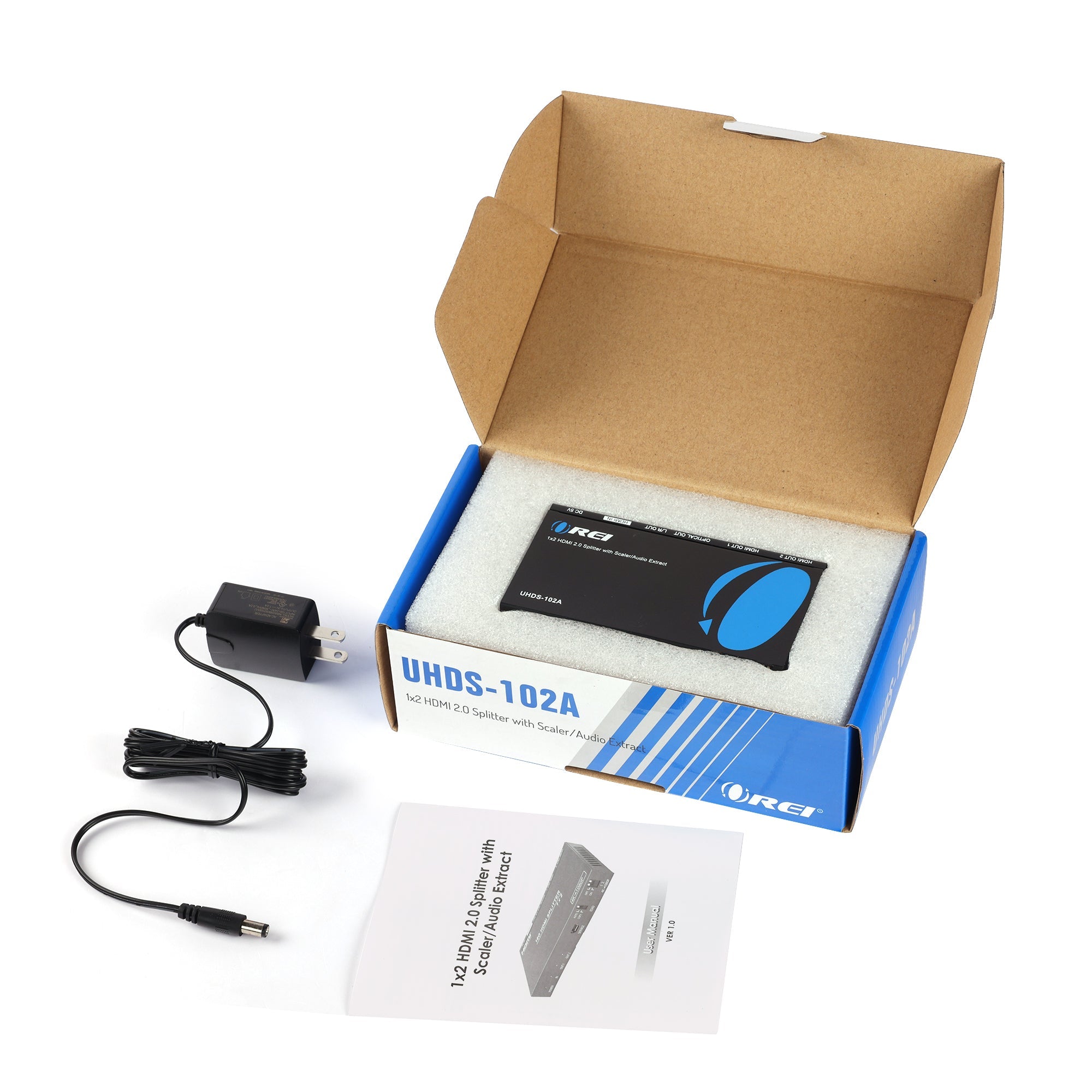

PACKAGE CONTENTS
| 1x UHDS-102A HDMI Splitter with Audio out |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Maximum Resolution: | 4K@60Hz |
| Input Resolution: |
4096x2160p60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
| Output Resolution: |
4096x2160p60/59.94/50/30/29.97/25/24/23.98Hz, 3840x2160p60/59.94/50/30/29.97/25/24/23.98Hz 2560x2048p60Hz CVT-R, 2560x1600p24/25/30Hz 2560x1440p24/25/30Hz, 2560x1080p60/50/30/25/24Hz 2048x1280p60Hz, 2048x1152p60Hz 1920x1440p75/60/30/25/24Hz, 1920x1200p60/50/30/25/24Hz 1920x1080p120/100/60/59.94/50/30/29.97/25/24/23.98Hz, 1920x1080i120/100/60/59.94/50/30Hz 1856x1392p75/60Hz, 1792x1344p75/60Hz 1680x1050p60/50/30/25/24Hz, 1680x720p120/100/60/50/30/25/24Hz 1600x1200p85/75/70/60/50/30/25/24Hz, 1600x1024p60/50/30/25/24Hz 1600x900p60/50/30/25/24Hz, 1440x1050p60Hz 1440x960p72/60/50Hz, 1440x900p85/75Hz 1440x576i50/25Hz, 1440x480i60/30Hz 1400x1050p75/60Hz, 1400x788p60Hz 1366x768p60/50/30/25/24Hz, 1360x768p60Hz 1280x1024p96/85/75/60Hz, 1280x960p85/75/60Hz 1280x800p120/85/75Hz, 1280x768p120/85/75/60Hz 1280x720p120/100/60/59.94/50/30/25/24Hz, 1176x664p50/60Hz 1152x870p75Hz, 1152x864p75Hz 1024x768p85/75/60/Hz, 1024x768i43Hz 1024x576p60Hz, 852x480p60Hz 848x480p60Hz, 832x624p75Hz 800x600p120/85/75/60Hz, 720x400p70/85Hz 720x576p100/50Hz, 720x576i50Hz 720x480p120/60/59.94Hz, 720x480i59.94Hz 640x480p85/75/60Hz, 640x400p85Hz 640x350p85Hz |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | Yes |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | No / No / No |
| MST Support (Extended Display): | No |
AUDIO SUPPORT

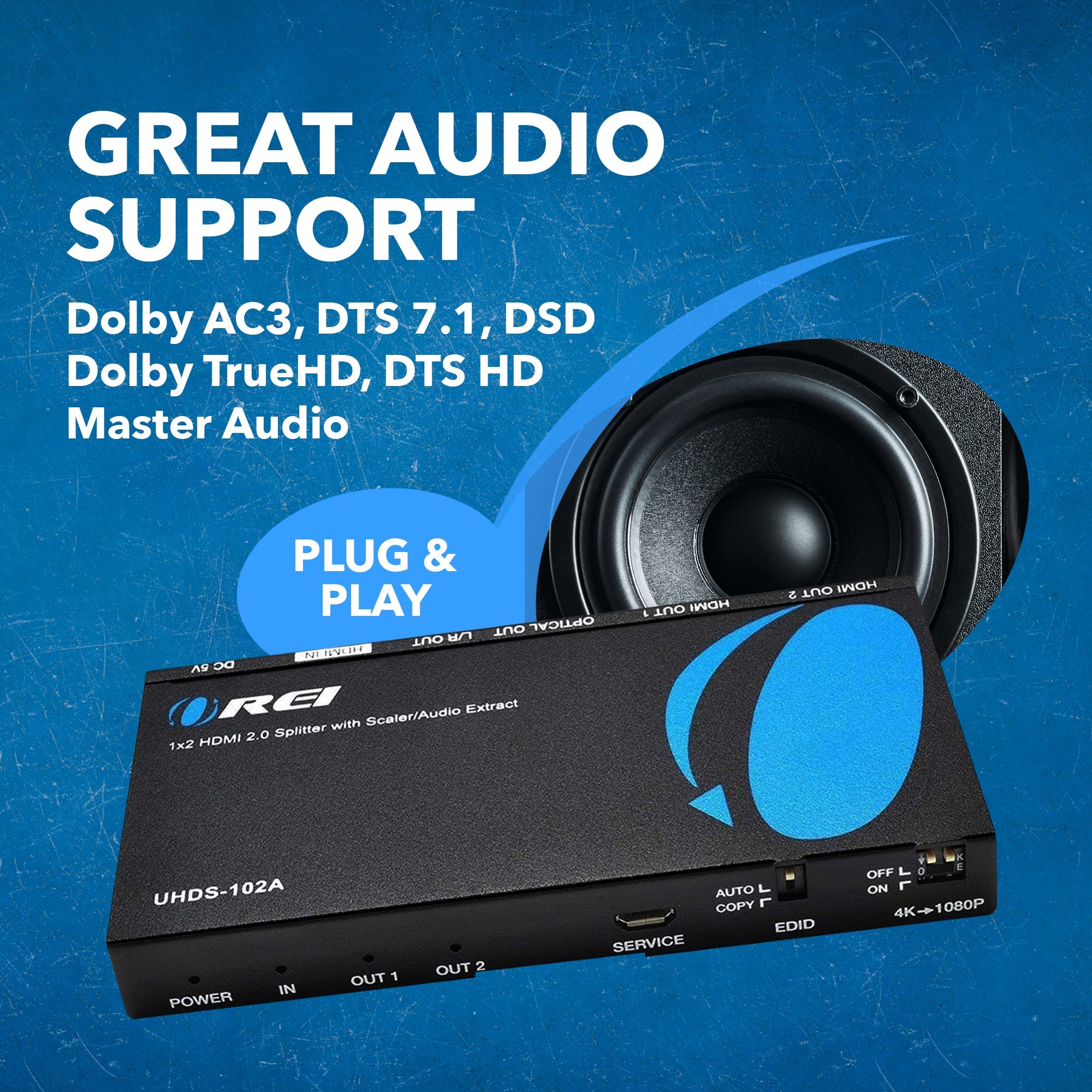

| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats: | LPCM 2.0/2.1, Dolby True HD, Dolby Digital Digital+, DTS-HDMA, DTS HD-HRA |
| L/R Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 2.8W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 120mm / 4.72in | |
| Width: | 62.5mm / 2.46in | |
| Height: | 14mm / 0.55in | |
| Weight: | 166g / 5.86oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHDS-102A
[/tab1]
[shortdes]
- 1 in 2 out HDMI splitter With Audio Extraction
- Resolutions up to 4K@60Hz
- EDID management & Downscaling functions
