Description
OREI 4K HDMI KVM Switch - EDID Passthrough
- HDMI 2.0 & HDCP 2.2 Compliant – Ensures full compatibility with the latest HDMI standards and protected content sources.
- 18Gbps Bandwidth – Delivers ultra-high-speed performance for seamless video and audio switching.
- Supports Resolutions up to 4K@60Hz – Delivers sharp 4K Ultra HD visuals for professional and entertainment applications.

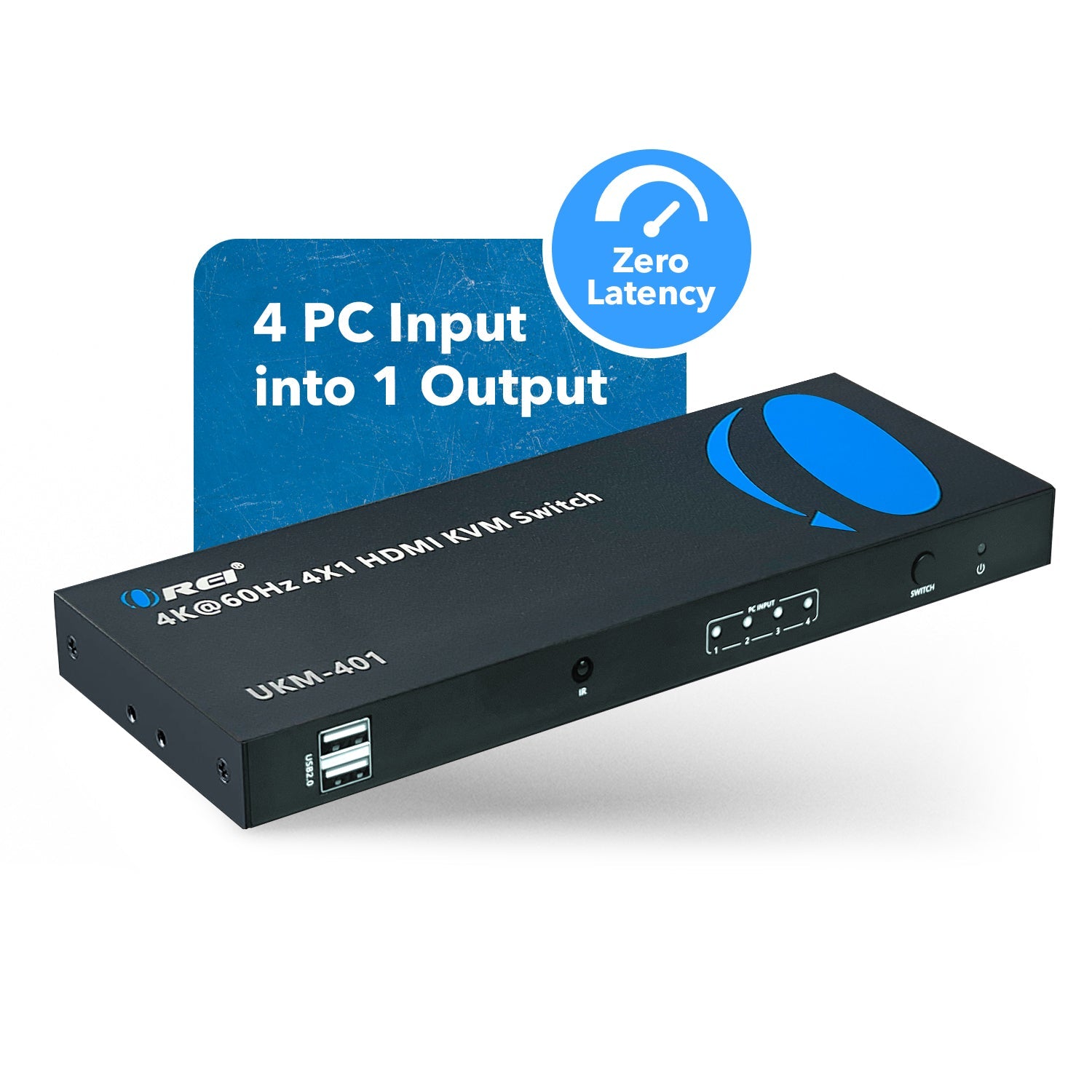

- 4x1 HDMI KVM Functionality – Control up to 4 computers using a single set of keyboard, mouse, and display for streamlined workflows.
- Multiple Switching Methods – Easily switch inputs via front panel buttons, IR remote control, or RS-232 for flexible control options.
- USB 2.0 Peripheral Support – Enables connectivity with USB accessories such as printers, storage devices, or HID peripherals.
- EDID Passthrough & Auto Downscaling – Ensures optimal compatibility with varying display capabilities and legacy systems.
- HDR10 Pass-through – Supports enhanced contrast and color depth for vivid high-dynamic-range video output.
- Advanced Audio Format Support – Compatible with LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD, and DTS Audio.
- Plug-and-Play Design – No driver installation required; ready for instant deployment in professional or home AV setups.
Description:

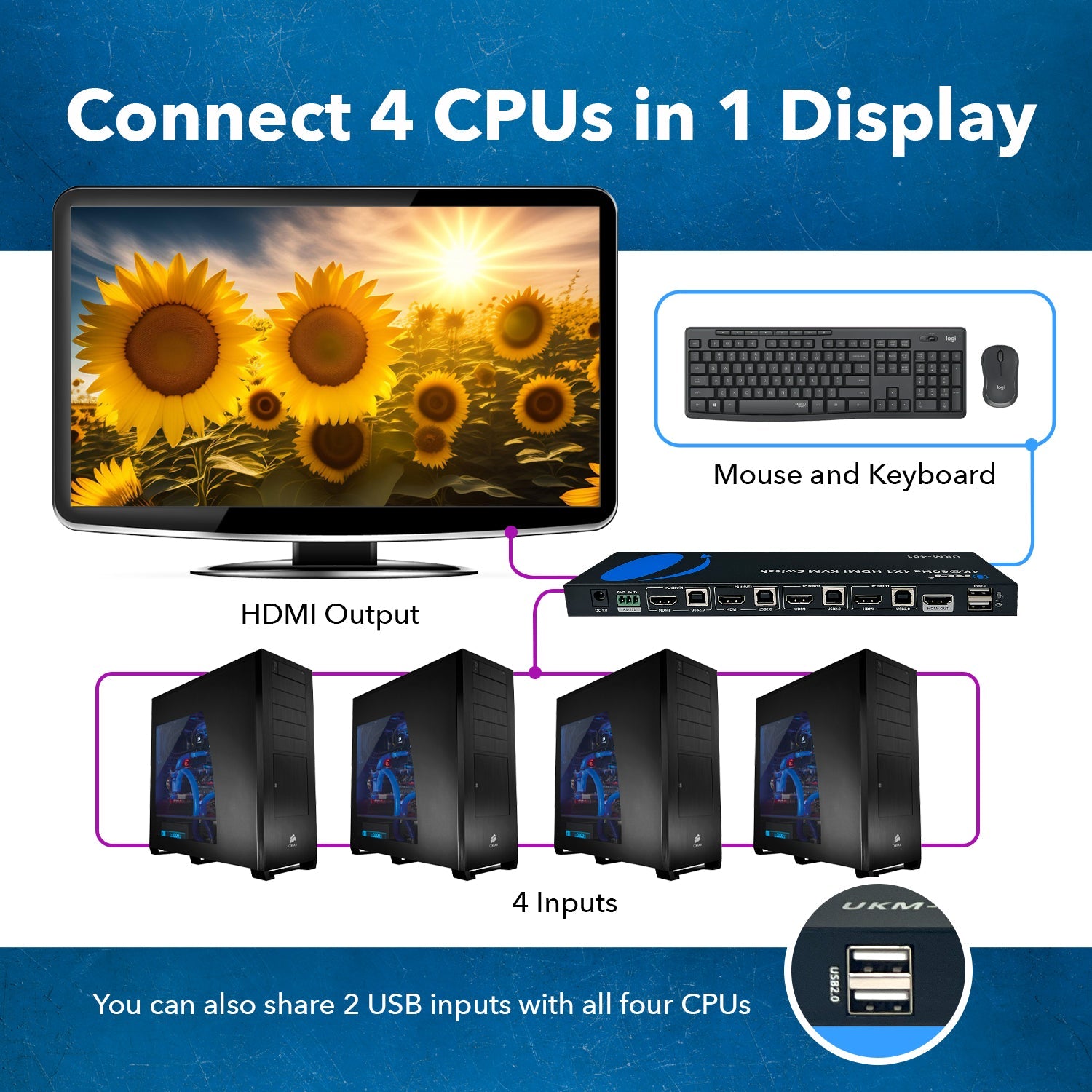

The OREI 4x1 HDMI KVM Switch is a high-performance video and control solution designed to connect four PCs/Laptops to a single display while sharing one set of keyboard and mouse. Supporting 4K@60Hz 4:4:4 resolution and HDCP 2.2, it ensures premium video output with HDR10 and full-spectrum audio format compatibility.
Ideal for environments such as security monitoring stations, command centers, education labs, digital signage, and broadcast setups, the switch offers flexible input selection via RS-232, IR remote, and panel control. Integrated EDID passthrough and auto downscaling guarantee smooth operation across mixed-resolution displays, while USB 2.0 passthrough supports essential peripherals.
Compact, plug-and-play, and built for reliability, this KVM switch is a complete multi-system integration tool for both professional and personal AV environments.
[shortdes]
- Video Resolution up to 4096×2160@60Hz
- HDMI 2.0 and HDCP 2.2/HDCP 1.4 compliant
- Features RS-232 Pass through
[/shortdes]
[tab]

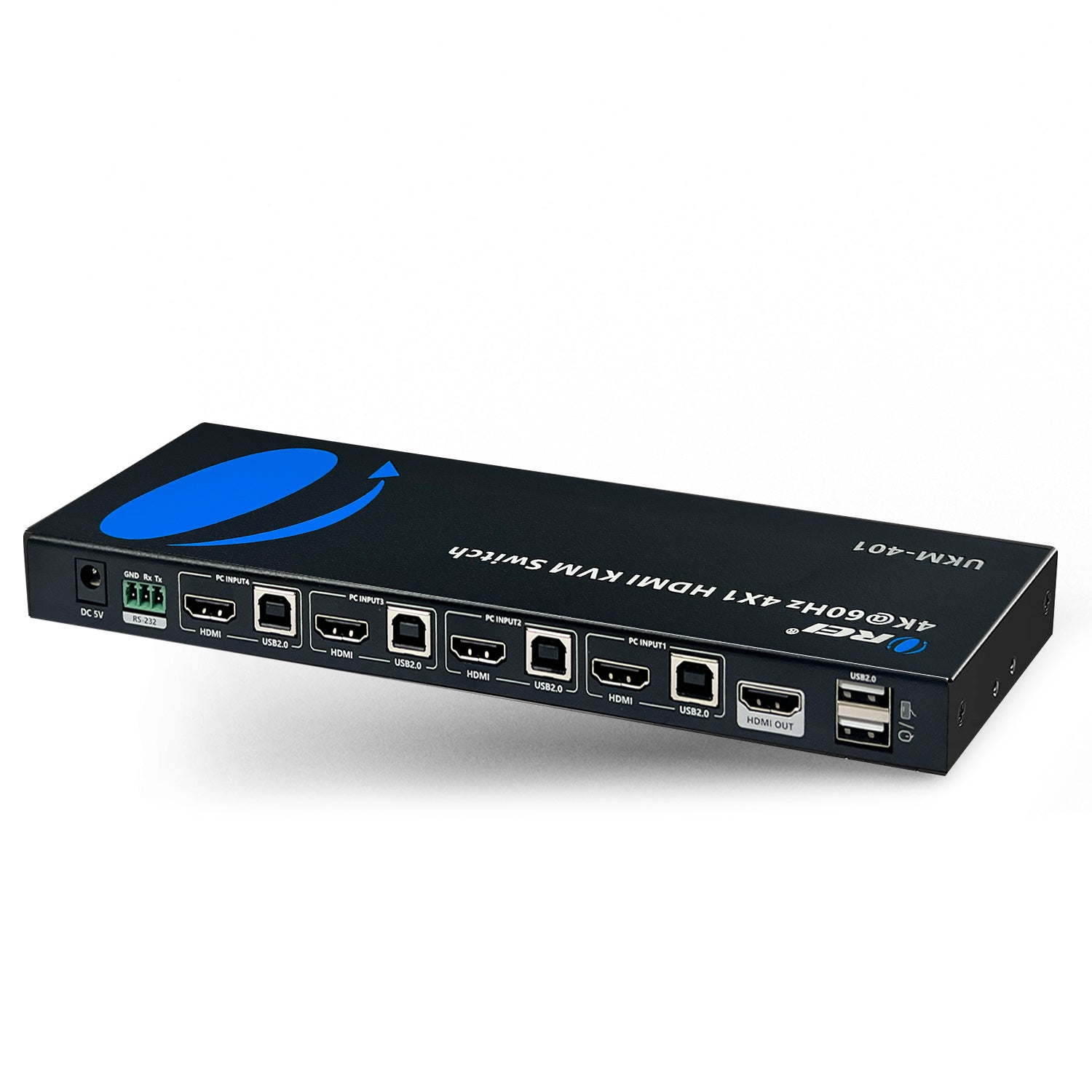

CONNECTIVITY
| INPUT PORTS: | 4×HDMI Type A [19-pin female] |
| OUTPUT PORTS: | 1×HDMI Type A [19-pin female] |
| USB PORTS: | 4×USB Type A [USB 2.0] |
| 4×USB Type B [USB 2.0] |
ADDITIONAL FEATURES
| Auto Switching: | ❌ |
| CEC: | ❌ |
| Audio Extraction: | ✅ |
| EDID Management: | ✅ |
| 8K@60Hz: | ❌ |
| USB KVM: | ✅ |
| HDR: | Yes, HDR10 |
| IR Control: | ✅ |
| Plug & Play: | ✅ |
| RS-232: | ✅ |
AUDIO AND VIDEO
| Video Bandwidth: | 600 MHz |
| Video Resolution: | 4096x2160@24/25/30/50/60Hz |
| HDMI Audio Formats: | LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital Plus/Dolby TrueHD 7.1/Dolby Digital/Dolby Atmos |
POWER
| Power Consumption: | <3W |
PROPERTIES
| Operation Temperature: | -20°C `60°C |
| Storage temperature: | -30°C `70°C |
| Relative Humidity: | 0 `90%RH |
DIMENSIONS & WEIGHT
| Height: | 21mm |
| Width: | 80mm |
| Depth: | 250mm |
| Weight: | 510g |
PACKAGE CONTENTS
| 1x UKM-401 KVM Switch |
| 1x Power Adapter 5V/1A |
| 1x Remote Control |
| 1x Mounting Ear |
| 6x Screw |
| 2x Grounding Screw |
| 1x Terminal Block |
| 6x USB 2.0 Type A to Type B Cable |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
