Description
UHD-401ARC HDMI Combo Switch - 4 Inputs 1 Output
Key Features:
- HDMI 2.0 & HDCP 2.2 Compliant – Ensures compatibility with modern 4K media sources and protected content.
- Video Resolutions up to 4K@60Hz – Enables ultra-high-definition viewing on a single display.
- 18Gbps Bandwidth – Maintains smooth and detailed video transmission.
- Lossless Audio Format Support – Compatible with DTS-HD and Dolby TrueHD for high-fidelity sound.

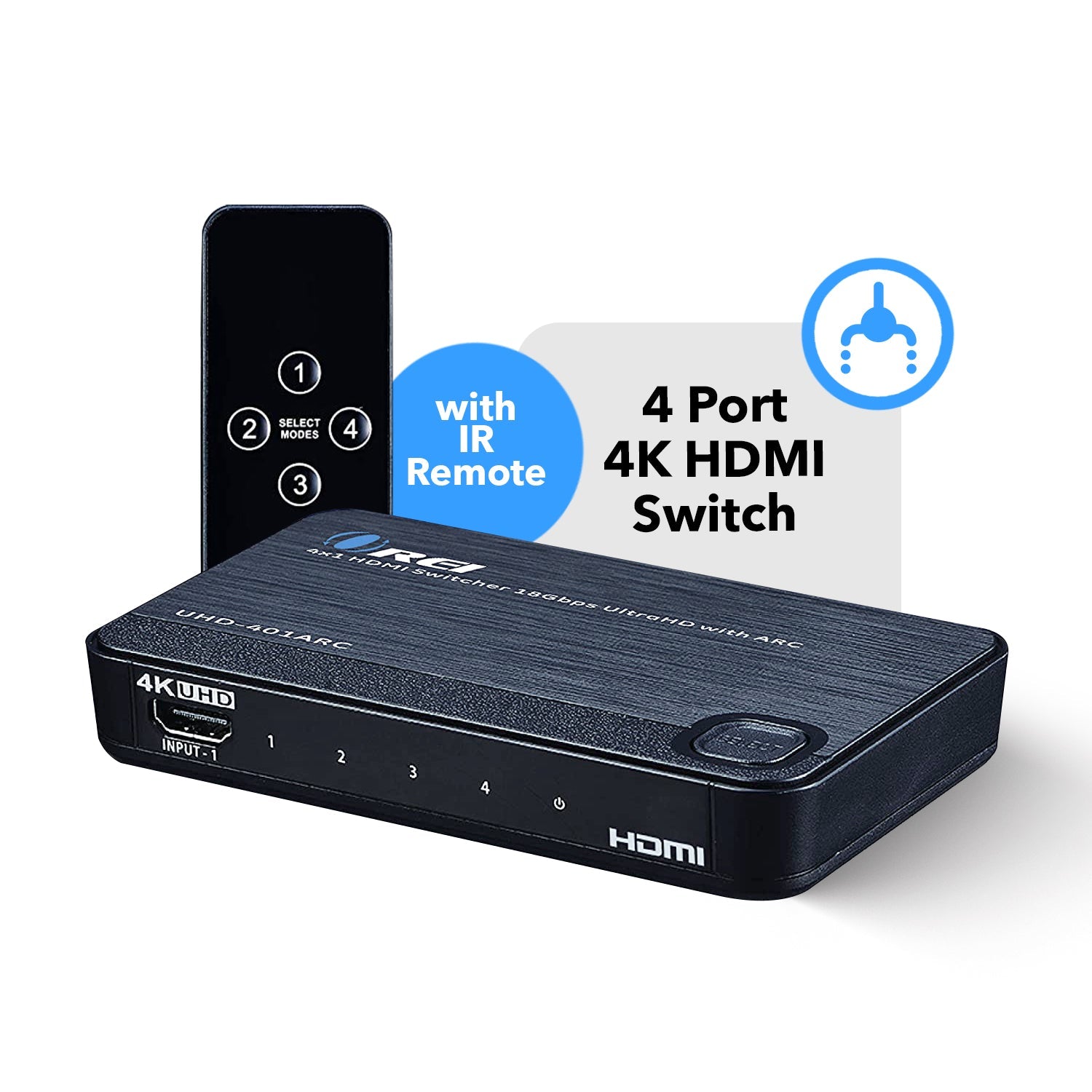

- Simple Switching Options – Switch inputs easily using the device button or included remote control.

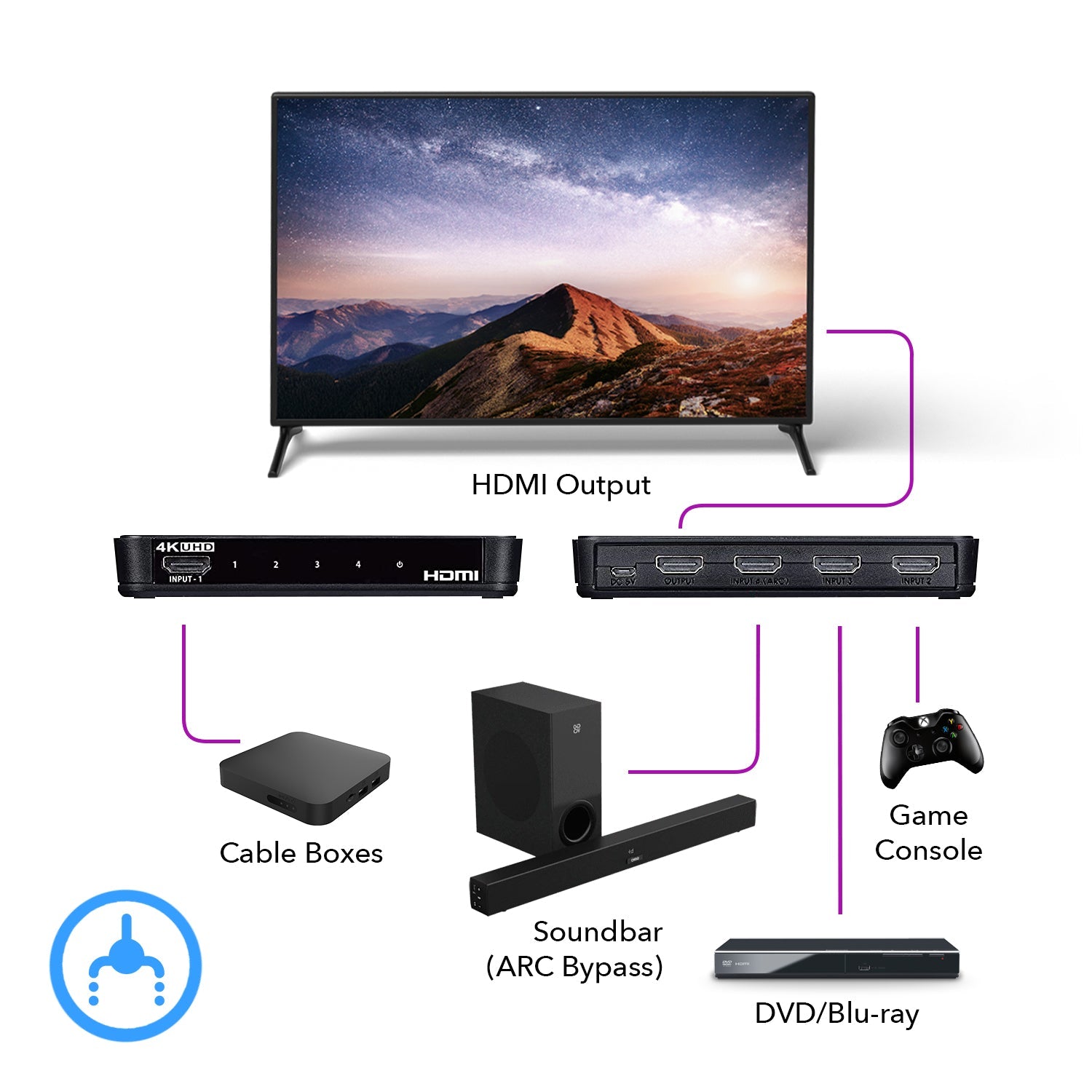

- ARC (Audio Return Channel) Support – Allows audio return from an ARC-enabled TV to a connected ARC soundbar via Input 4.
-

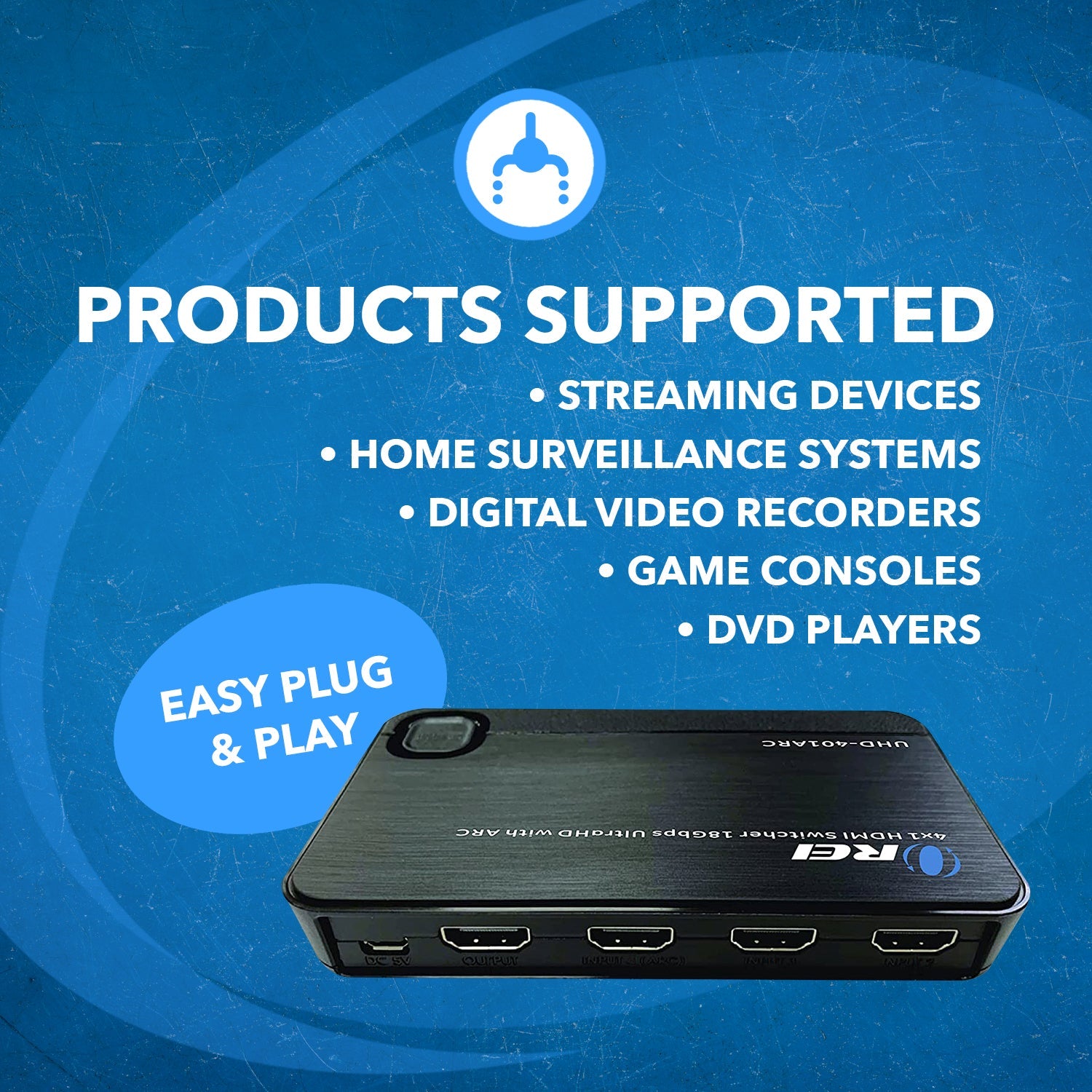

Compact, Plug-and-Play Design – Streamlined installation with no configuration required; ideal for home theatres and entertainment centers.

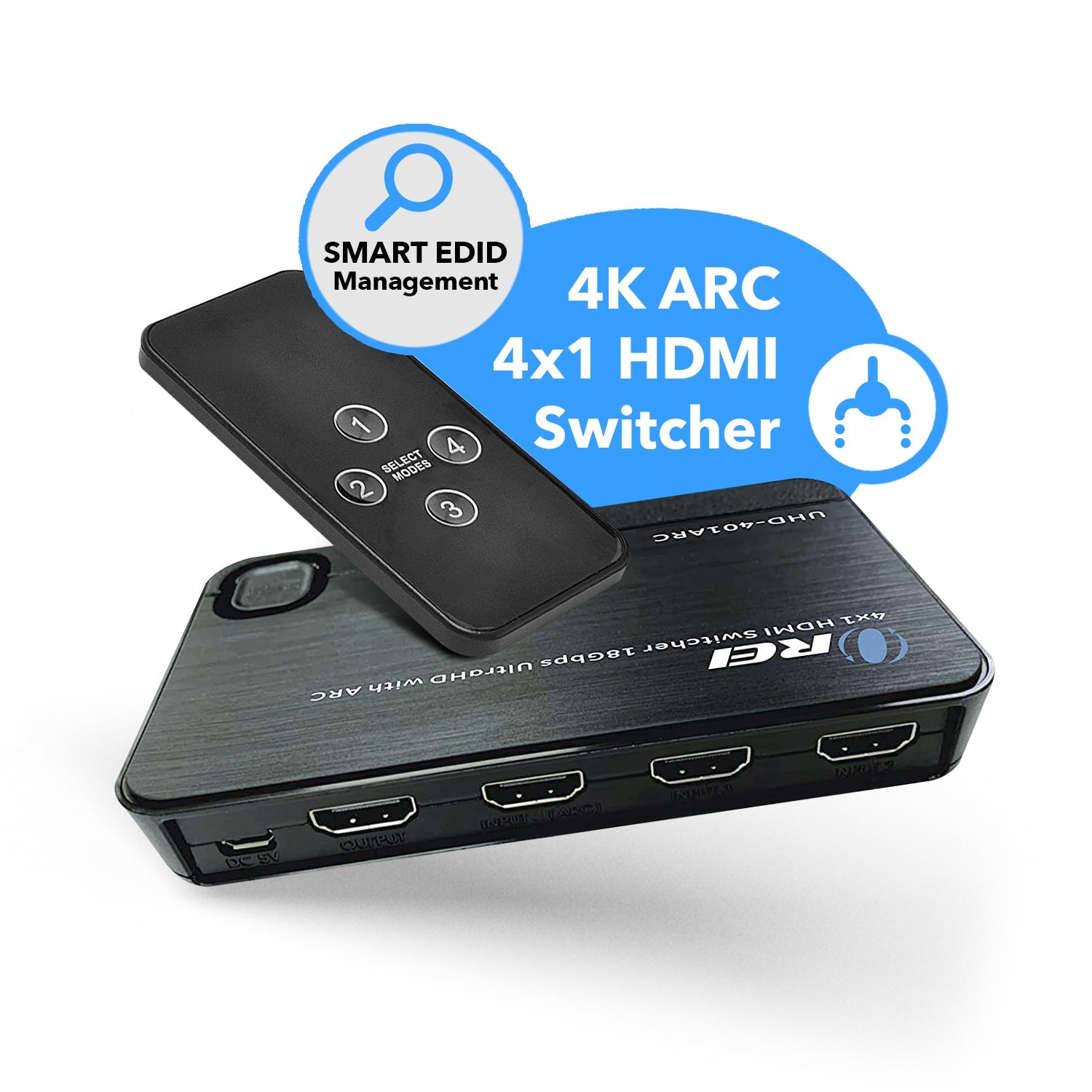

The UHD-401ARC is a 4x1 HDMI switch designed to connect up to four HDMI sources to a single display, with easy switching via front-panel button or the included remote control.
It supports video resolutions up to 4K@60Hz and offers full compliance with HDMI 2.0 and HDCP 2.2 standards. With a video bandwidth of 18Gbps, the UHD-401ARC ensures smooth and high-quality video transmission without latency or degradation.

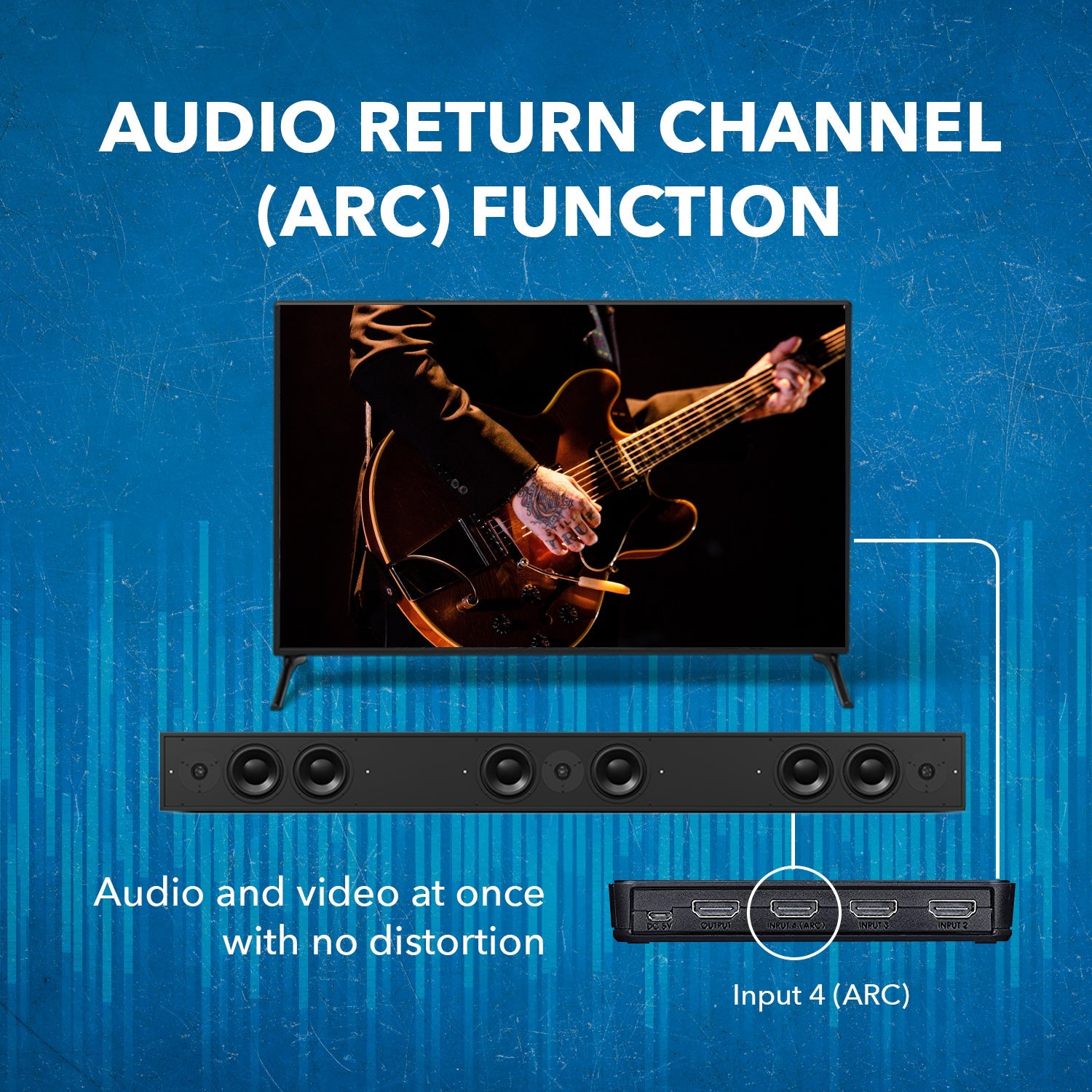

The switch is compatible with premium audio formats including DTS-HD and Dolby TrueHD, supporting lossless compressed digital audio for a rich viewing experience. A standout feature is its ARC (Audio Return Channel) functionality between Input 4 and the Output, enabling audio extraction from ARC-enabled TVs to ARC-compatible sound systems.
Perfect for home theaters and entertainment centers, the UHD-401ARC delivers versatile HDMI switching in a simple, plug-and-play design.
[summary]
- 4K 2.0a (18Gbps) HDMI 4 Input into 1 output Switcher
- highest video resolution up to 4K x 2K at 60Hz
- ARC bypass function
[/summary]
[tab]
AUDIO AND VIDEO
| Inputs Ports | 4 HDMI input (Type A 19-pin female) |
| Output Ports | 1 HDMI output (Type A 19-pin female) |
| Video Bandwidth | 18Gbps |
| Video Resolution: | 4K@60Hz(4096x2160), 1080P@60Hz (1920x1080) |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDMI Audio Formats: | PCM 2ch / PCM5.1 /PCM7.1, DTS /DTS-HD, Dolby 5.1 /Dolby 7.1/ Dolby TrueHD |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP2.2 |
ADDITIONAL FEATURES
| ARC: | Yes |
| CEC: | Yes |
| IR Control: | Yes |
| PoC: | No |
| USB KVM: | No |
| 4K@60Hz: | Yes |
| Plug & Play: | Yes |
| Over IP: | No |
| Dolby TrueHD: | Yes |
| RS-232: | No |
| ARC Bypass: | Yes |
POWER
| Power Supply: | DC 5V / 0.6A |
| Power Consumption | 356mA |
CONTROL
| CEC | Pass through |
PROPERTIES
| Operating Temperature: | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 10~90 % RH |

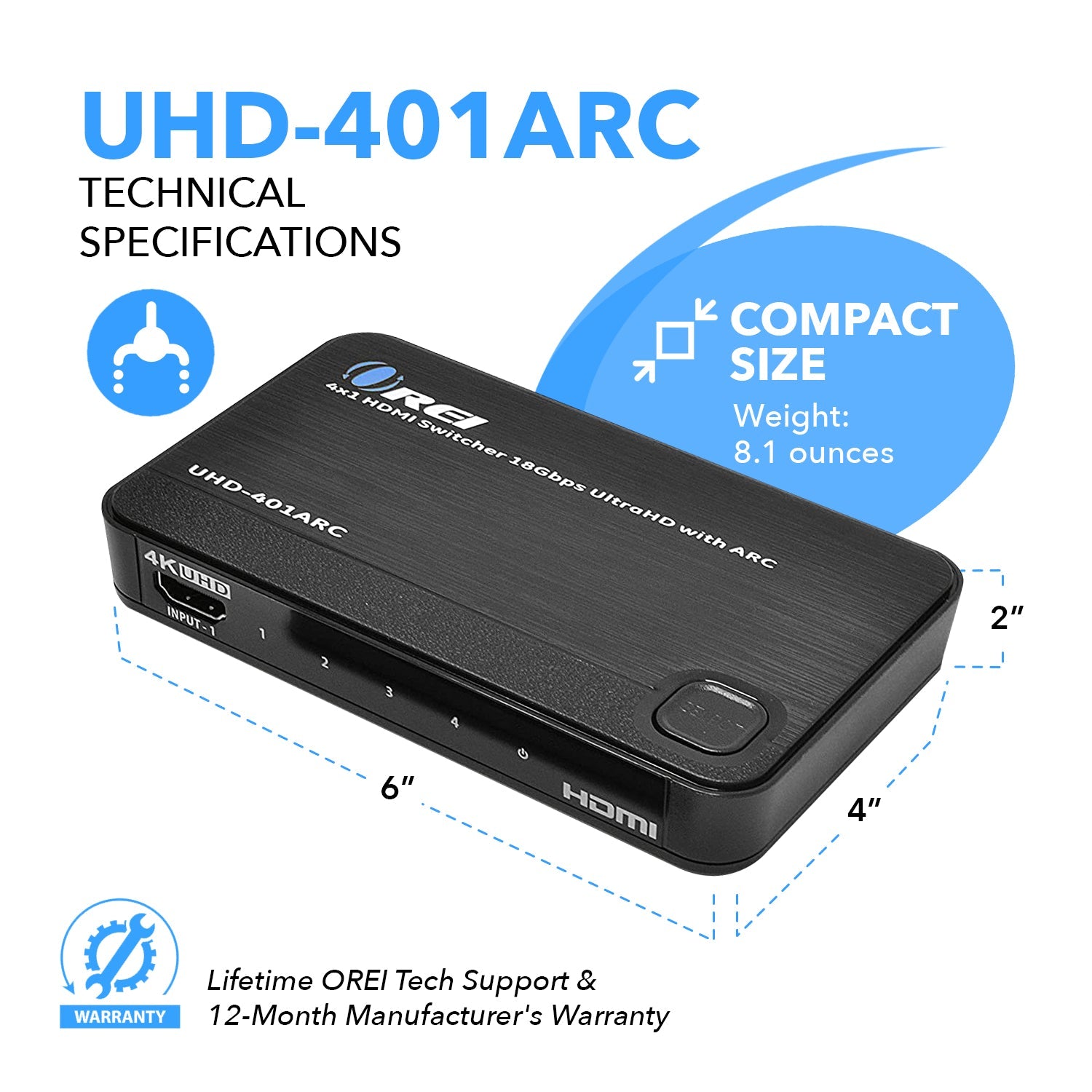

DIMENSIONS & WEIGHT
| Height | 20.5mm |
| Width | 131mm |
| Depth | 78.5mm |
| Weight | 109g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × UHD-401ARC 4x1 HDMI Switch |
| 1 × Power Adapter |
| 1 × Remote Control |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-401ARC
[/tab1]
[shortdes]
- 4 Inputs - 1 outputs ARC HDMI switch
- Video resolution up to 4K@60Hz - HDR
- Supports ARC function
- Compliance: HDMI 2.0 - HDCP 2.2
[/shortdes]
