Description
OREI UHD-404: Ultra HD 4x4 HDMI Matrix Switch
- HDMI 2.0 & HDCP 2.2 Compliant – Ensures compatibility with 4K sources and protected content.
- Supports Video Resolutions up to 4K@60Hz (4:4:4) – Delivers crystal-clear UHD video across all outputs.
- 18Gbps Video Bandwidth – Maintains high-performance signal transmission with zero lag.
- HDR & Dolby Vision Passthrough – Supports dynamic range enhancements for stunning picture quality.
- Downscale Functionality – Converts 4K signals to 1080p on select outputs as needed.
- Multichannel Audio Support – Compatible with LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.
- Advanced EDID Management – Optimizes video and audio settings for each connected device.
- Dual Operating Modes – Offers distribution and switching flexibility for all outputs.
- Flexible Control Options – Easily manage settings via panel buttons or IR remote.

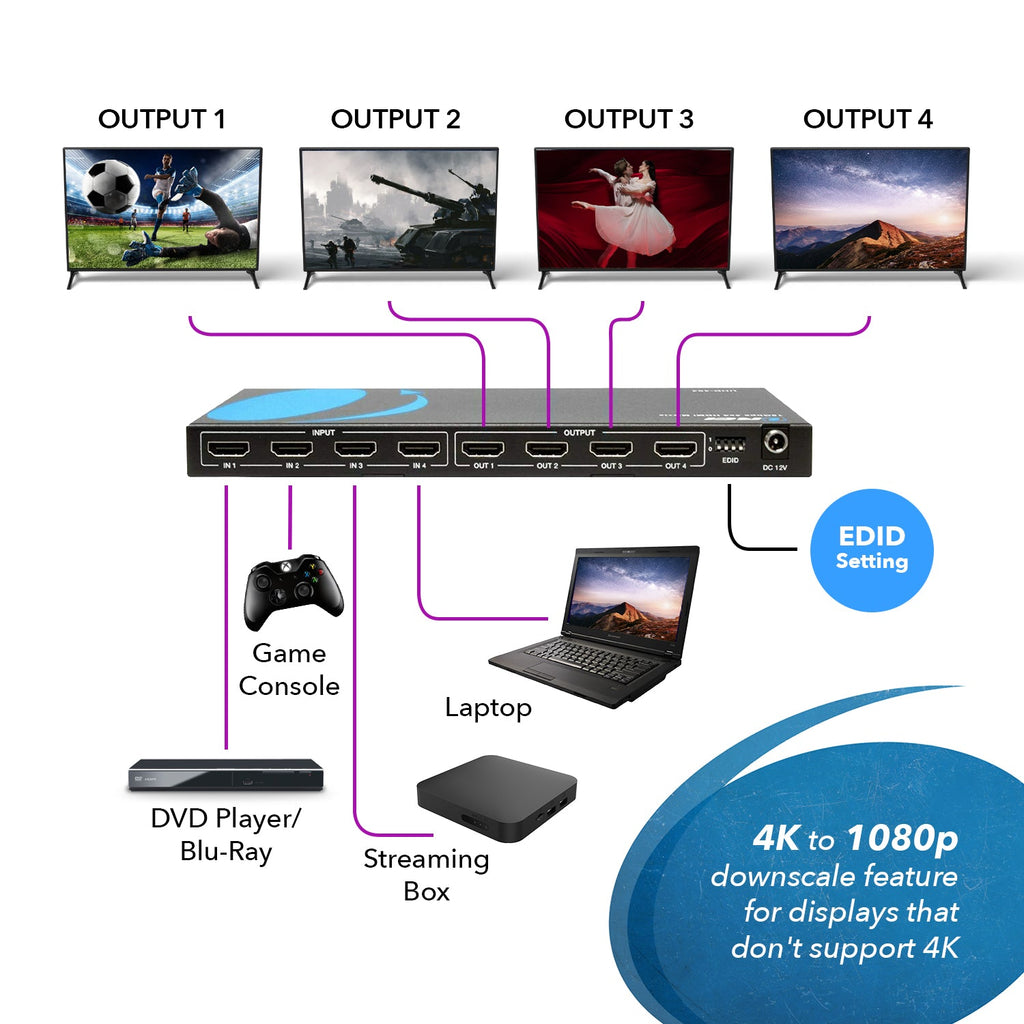

The OREI UHD-404 HDMI Matrix is a versatile 4x4 switch and splitter that routes video and audio signals from up to four HDMI sources to any combination of four HDMI displays. It is perfect for commercial setups, control rooms, or advanced home AV installations requiring flexible signal distribution.
It supports video resolutions up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4 and is compliant with HDMI 2.0 and HDCP 2.2 standards. With up to 18Gbps bandwidth, the matrix ensures smooth transmission of ultra-high-definition content. HDR formats including HDR, HDR10, HDR10+, and Dolby Vision are fully supported for vivid and enhanced picture quality.
The UHD-404 supports multichannel digital audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio. Each output includes a built-in downscaler, allowing simultaneous use of 4K and 1080p displays. The matrix also features advanced EDID management to maintain compatibility across all connected devices.
Users can easily switch between inputs and outputs in distribution or switching modes using the front panel or the included IR remote, offering full control and convenience.
[tab]
AUDIO AND VIDEO
| Inputs: | 4 × HDMI Type A (19-pin female) |
| 1×IR Receiver Window | |
| 1×Micro USB | |
| Output Ports: | 4 × HDMI Type A (19-pin female) |
| Video Bandwidth: | 594 MHz / 18 Gbps |
| Video Resolution: | 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space: | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDMI Audio Formats: | LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.x |
POWER
| Power Supply: | Input: AC100~240V 50/60Hz, Output: DC 12V/2.5A(US/EU standard, CE/FCC/UL certified) |
| Power Consumption: | 11.04W |
ADDITIONAL FEATURES
| Audio Extraction: | ❌ |
| ARC / eARC Passthrough: | ❌ |
| EDID Management: | ✅ |
| VRR / ALLM / FVA: | ❌ |
| Dolby Atmos / DTS X Passthrough: | ❌ |
| 4K to 1080p Downscale: | ✅ |
| USB KVM: | ❌ |
PROPERTIES
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (non-condensing) |
DIMENSIONS & WEIGHT
| Height: | 19 mm |
| Width: | 220 mm |
| Depth: | 205 mm |
| Weight: | 535 g |
REGULATORY
| REGULATORY: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × UHD-404 4×4 HDMI matrix switch |
| 1 × Power Adapter |
| 1 × Matrix IR Remote Control |
| 2 × Mounting Ears |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-404
[/tab1]
[shortdes]
- 4 Inputs - 4 output HDMI Matrix switch
- Video resolution up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4 - EDID Control
- Supports HDR, HDR10, HDR10+, Dolby Vision
- Compliance: HDMI 2.0b, HDCP 1.x, 2.2
[/shortdes]
