Description

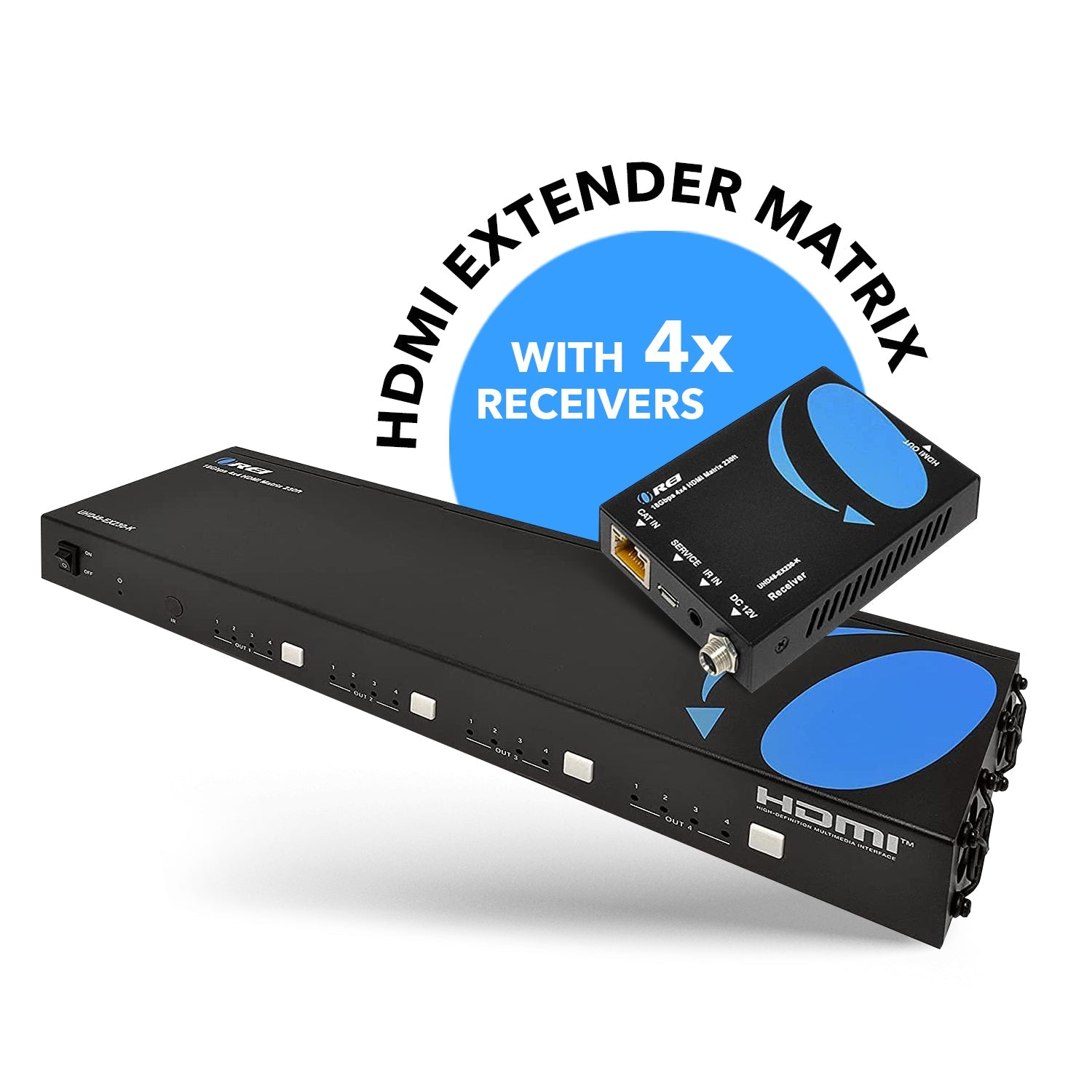

REI 4x4 4k HDMI Matrix Extender - With IR, Power Over Cable & Downscaling
- HDMI 2.0b and HDCP 2.2/1.x Compliant – Ensures compatibility with both modern and legacy HDMI and content protection standards.
- 4 HDMI Inputs with 4 HDMI & CAT6 Mirrored Outputs – Distribute up to four sources to eight displays simultaneously for enhanced system flexibility.
- 4K2K@60Hz (4:4:4) Video on HDMI Outputs – Delivers ultra-high-definition video with accurate color and detail on all HDMI ports.
- 18Gbps Bandwidth Support – Handles high-speed signal transmission with full bandwidth for premium video and audio quality.

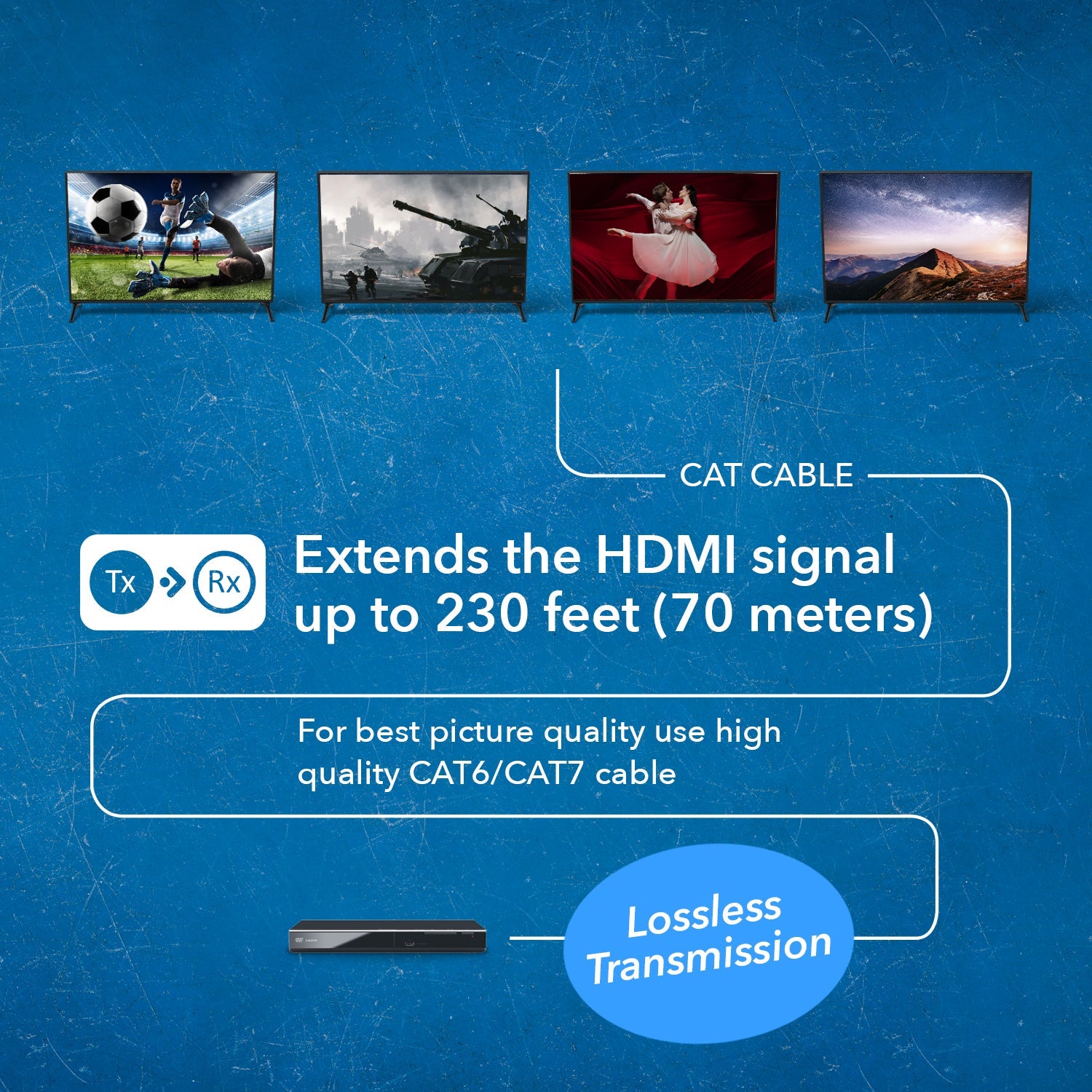

- CAT6 Signal Extension up to 230ft (70m) – Extend HDMI signals over a single CAT6 cable for reliable long-distance transmission in residential or commercial installations.
- Independent 4K to 1080p Downscaling per Output – Automatically adapts 4K sources for Full HD displays without requiring reconfiguration.
- Supports HDR10, HDR10+, Dolby Vision & HLG – Maintains dynamic contrast and lifelike color across all compatible displays.
- HD Audio Pass-Through – Supports high-definition audio formats including LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.
- Advanced EDID & CEC Control – Ensures proper device communication, handshake stability, and streamlined one-touch control.
- 12V PoC (Power Over Cable) on CAT Outputs – Supplies power to compatible receivers via the CAT cable, reducing the need for additional power adapters.
- Multiple Control Options – Configure and operate via front panel buttons, IR remote, RS-232, LAN, or intuitive Web GUI interface.
-
Note IR OUT ports follow the HDMI Input, not the HDMI Output.

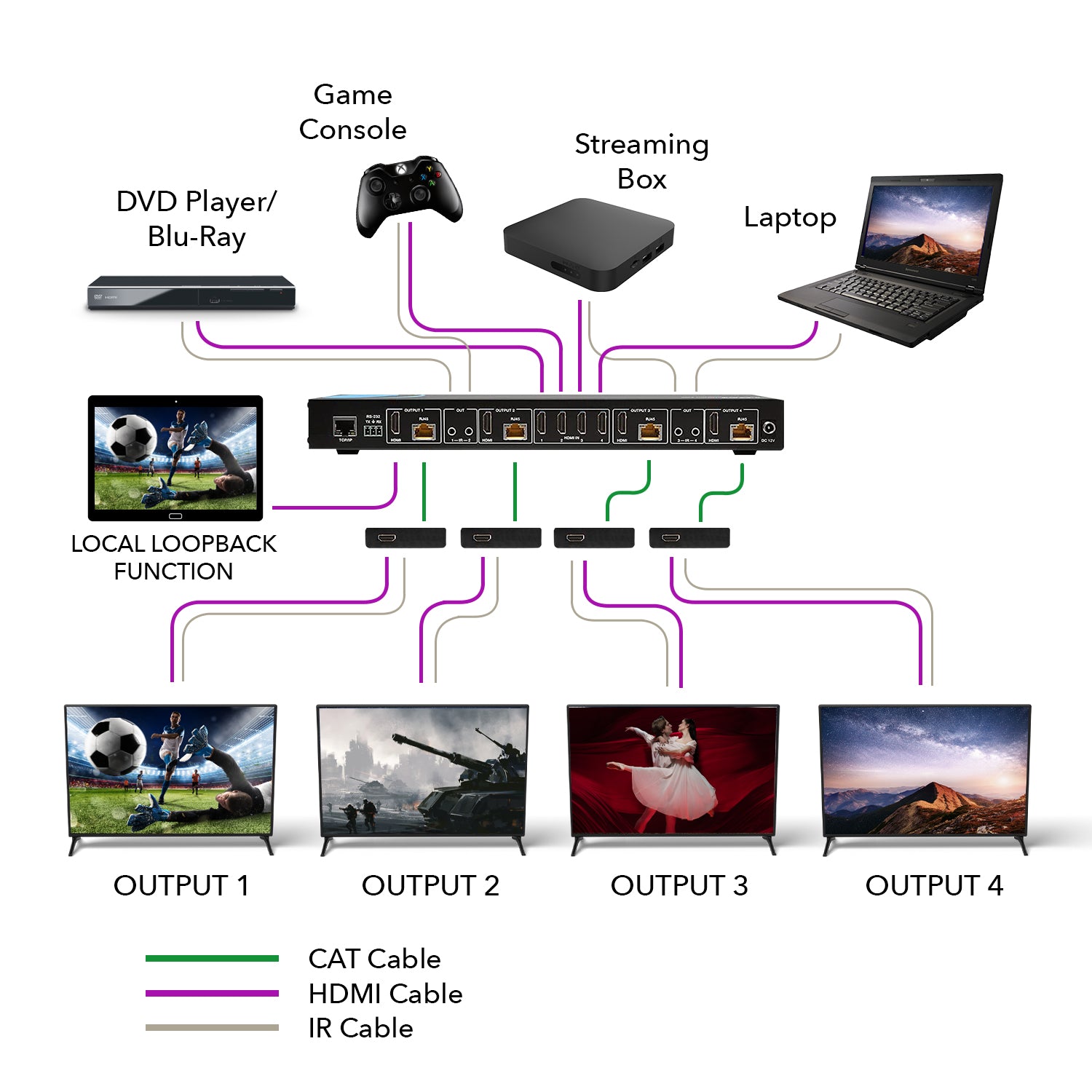

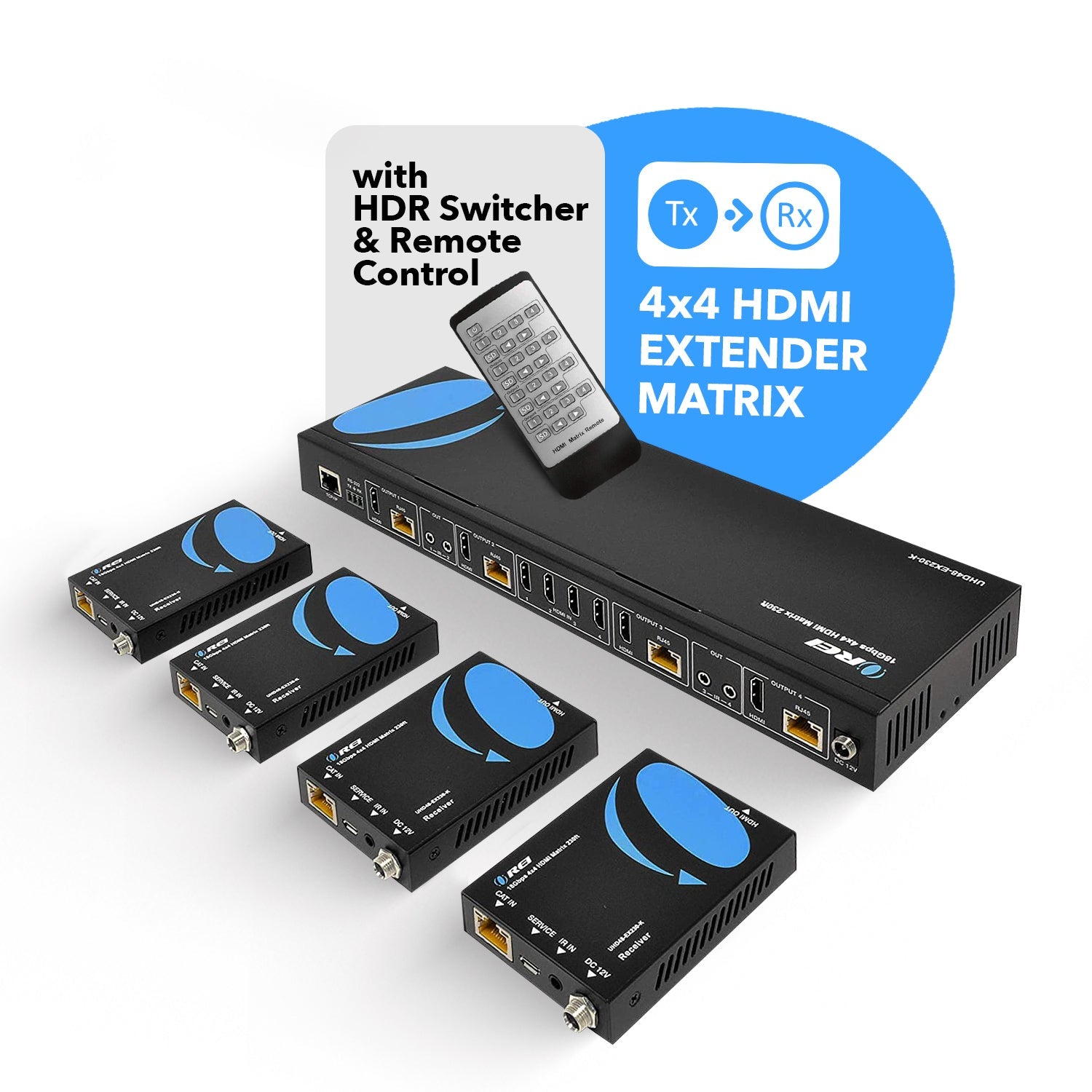

The OREI 4x4 HDMI Matrix with CAT6 extension provides powerful and flexible signal routing for professional AV installations. It allows up to four HDMI sources to be independently routed to eight outputs, including four local HDMI outputs and four CAT extender outputs, making it ideal for multi-room distribution setups.
Each HDMI output includes independent 4K to 1080p downscaling, allowing seamless integration of mixed-resolution displays. With full HDR format support including Dolby Vision, HDR10+, and HLG, this matrix ensures dynamic contrast and vibrant visuals.
Ideal for professional AV installations, the CAT outputs extend signals up to 230ft (70m), making it perfect for large spaces or multi-room systems. Audio de-embedding, advanced EDID/CEC management, and support for HD audio pass-through make this matrix highly adaptable to any setup.
With 12V PoC on all CAT ports, flexible control options, and a compact rack-mountable form factor, this device delivers the perfect combination of performance, flexibility, and reliability for residential and commercial AV applications.
[summary]
- 4K 4x4 HDMI Matrix Extender.
- Extends media up to 230 feet with resolutions up to 4K@60Hz and 2K@60Hz
- Uni-directional IR, Power over cable & Downscaling features
[/summary]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 4 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| 4 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 4 × IR OUT [3.5mm Stereo Mini-jack] | |
| 1 × TCP/IP [RJ45] | ||
| 1 × RS-232 [3-Pin Phoenix Connector] | ||
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1× SERVICE [Micro-USB, Update port] |

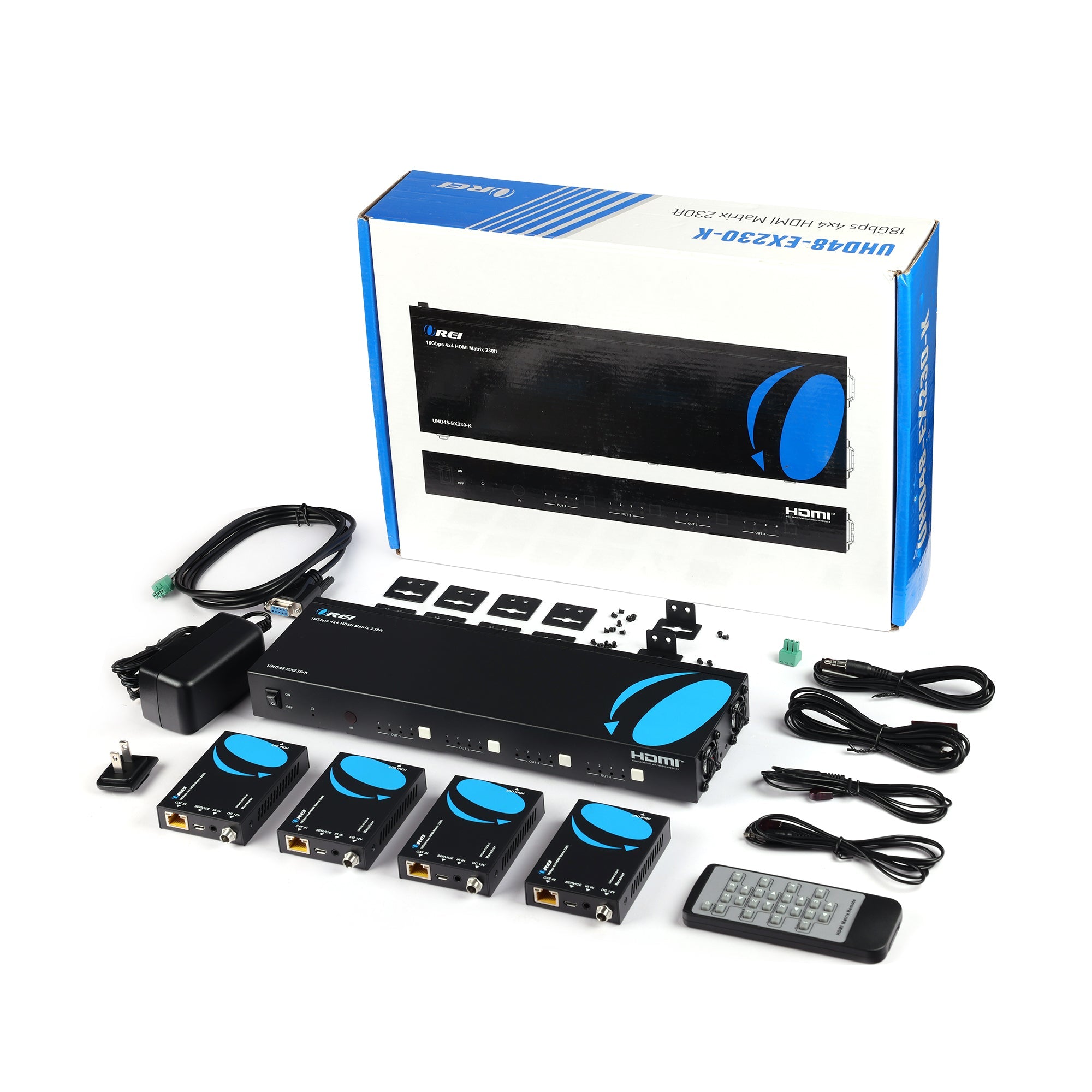

PACKAGE CONTENTS
| 1x Transmitter |
| 4x Receiver |
| 1x IR Remote Control |
| 1x RS-232 Serial Cable |
| 1x 3-pin Phoenix Connectors |
| 4x IR Blaster cable |
| 4x IR Receiver cable |
| 10 x Mounting Ear |
| 1x Power Cable |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 230 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2K@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: | ❌ |
| CEC : | ✅ |
| Transmission Technology : | Ethernet |
| IR Control: | Yes, Uni-directional |
| PoC (Power over Cable): | ✅ |
| RS-232: | ✅ |
| USB Standard: | ❌ |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ✅ |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 4 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 19.68W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/2.5A |

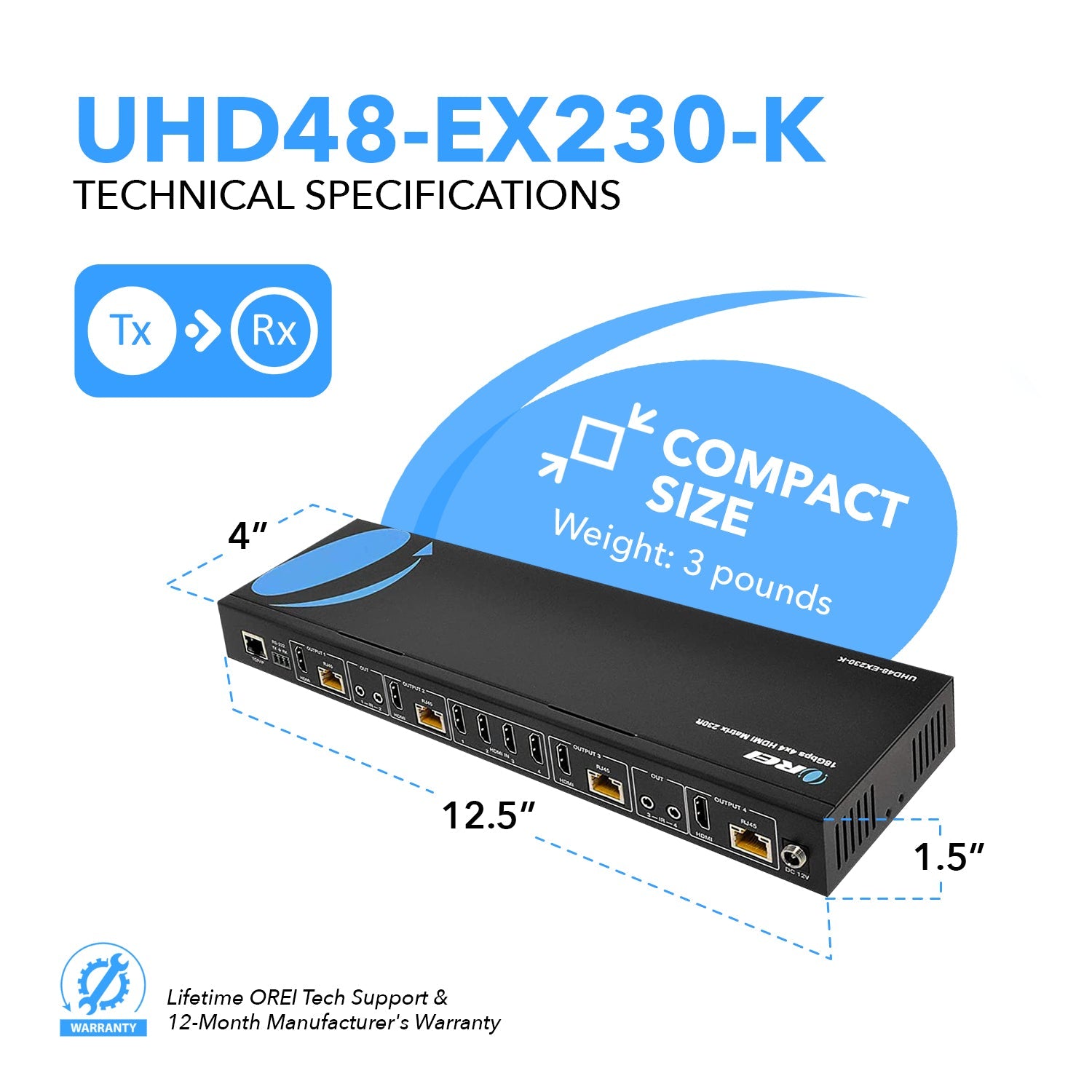

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 320mm / 12.6in |
| Width: | 100mm / 3.94in | |
| Height: | 36mm / 1.42in | |
| Weight: | 915g / 2.01lb | |
| Receiver: | Length: | 88mm / 3.47in |
| Width: | 61mm / 2.4in | |
| Height: | 18mm / 0.71in | |
| Weight: | 155g / 5.47oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD48-EX230-K
[/tab1]
[shortdes]
- HDMI 2.0b & HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz
- Lossless video bandwidth of up to 18Gbps
[/shortdes]
