Description
OREI UHD-808: ULTRA HD 8x8 HDMI MATRIX SWITCH

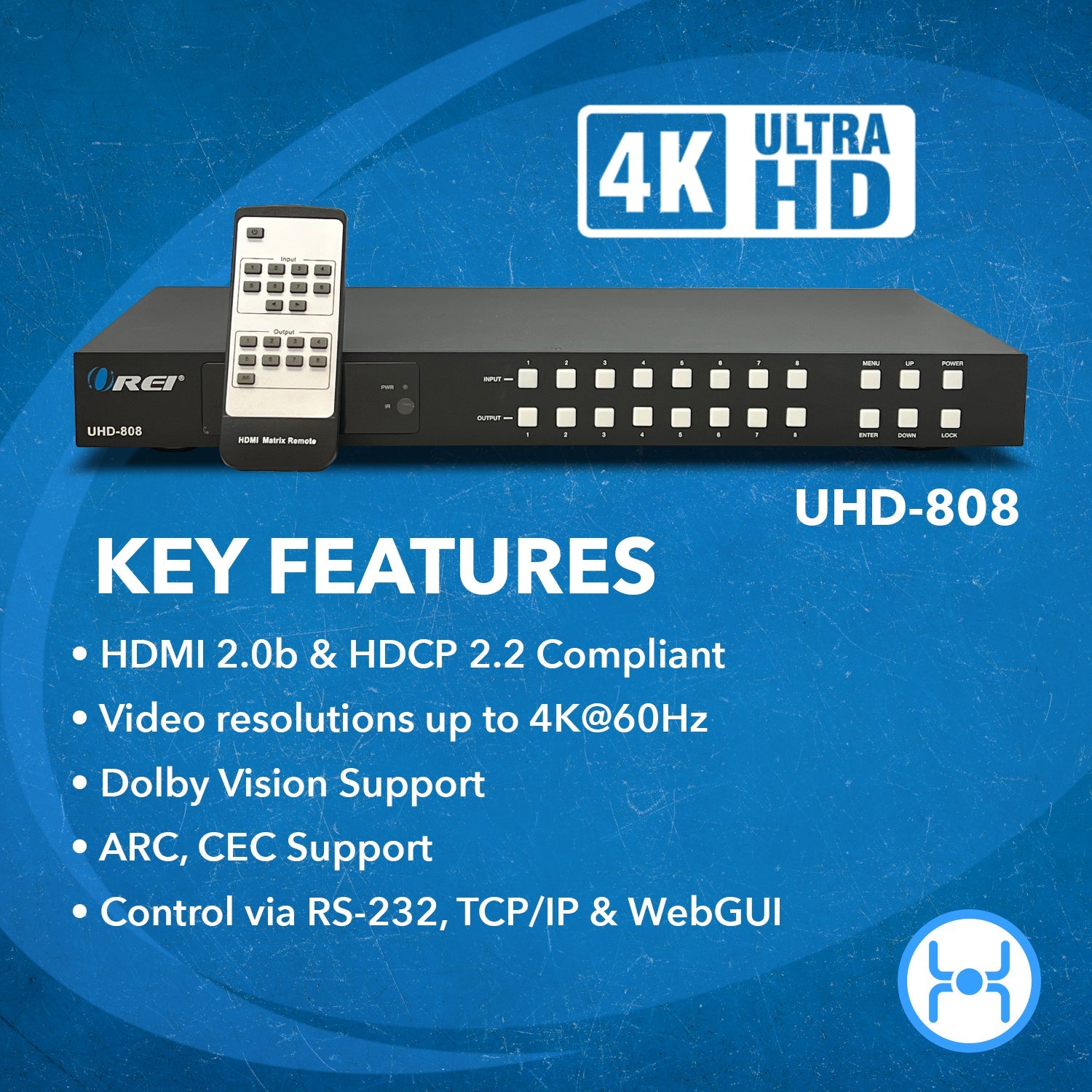

Key Features:
-
HDMI 2.0b, HDCP 2.2 & 1.4 Compliant – Fully compatible with the latest protected 4K content as well as legacy HD devices.
-
Supports Resolutions up to 4K@60Hz (YUV 4:4:4) – Ensures crystal-clear video quality across all inputs and outputs.
-
18Gbps Video Bandwidth – Preserves uncompressed signals for superior video clarity and reliability.
-
HDR Format Support – Passes Dolby Vision, HDR10+, and HLG for enhanced brightness, contrast, and color depth.
-
Independent 4K → 1080p Downscaling – Each output can downscale 4K content to Full HD for compatibility with older displays.
-
HD Audio Pass-through – Supports LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio for immersive sound.
-
Audio De-embedding – Extracts audio from each HDMI output to both analog and coaxial outputs.
-
ARC Audio Support – Captures return audio from ARC-enabled HDMI displays via coaxial output.
-
CEC & Advanced EDID Management – Provides seamless device control and optimized signal communication.
-
1U Rack-Mountable with OLED Display – Professional-grade design with clear system status indicators.
-

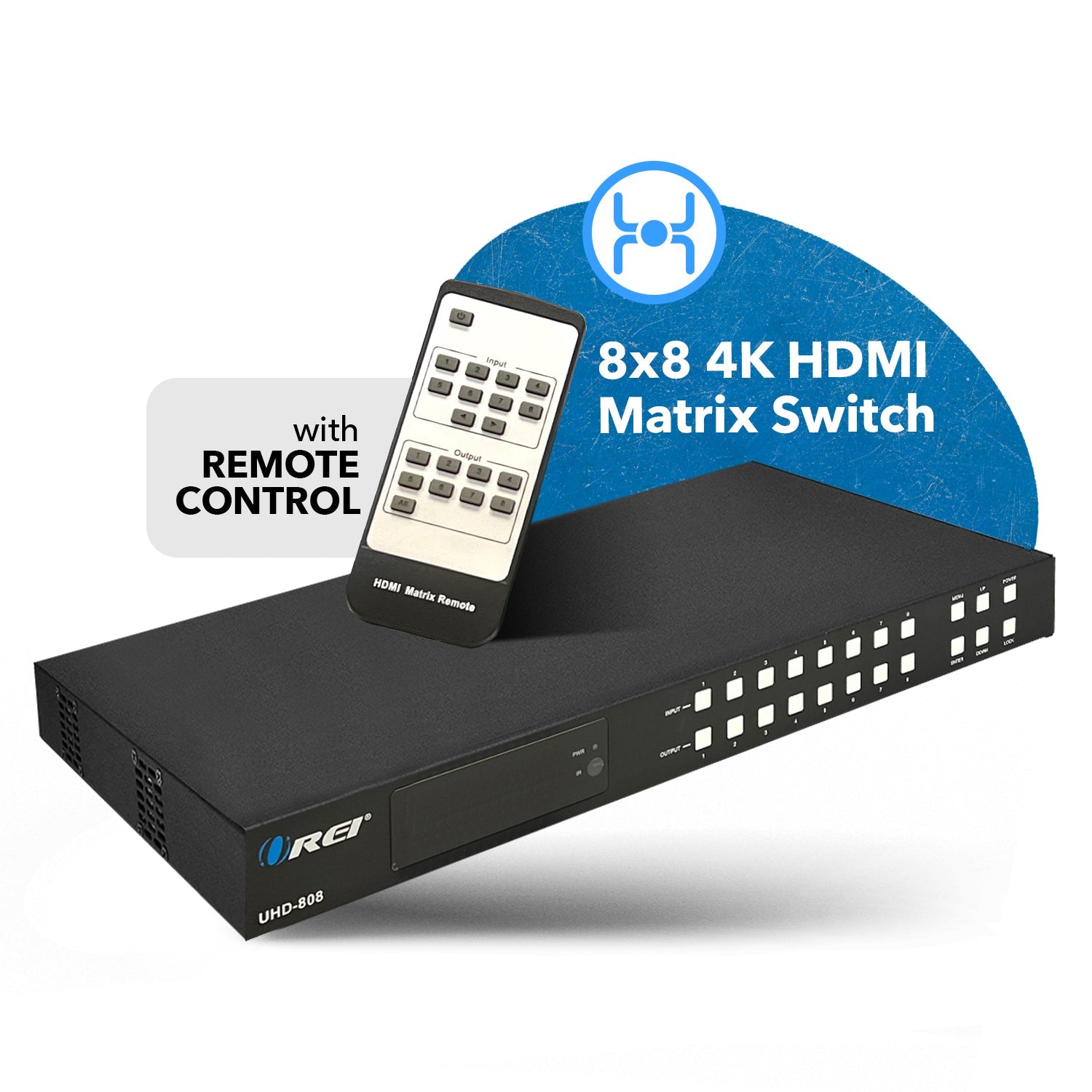

Flexible Control Options – Operate via front panel, IR remote, RS-232, LAN, or Web GUI for easy integration.

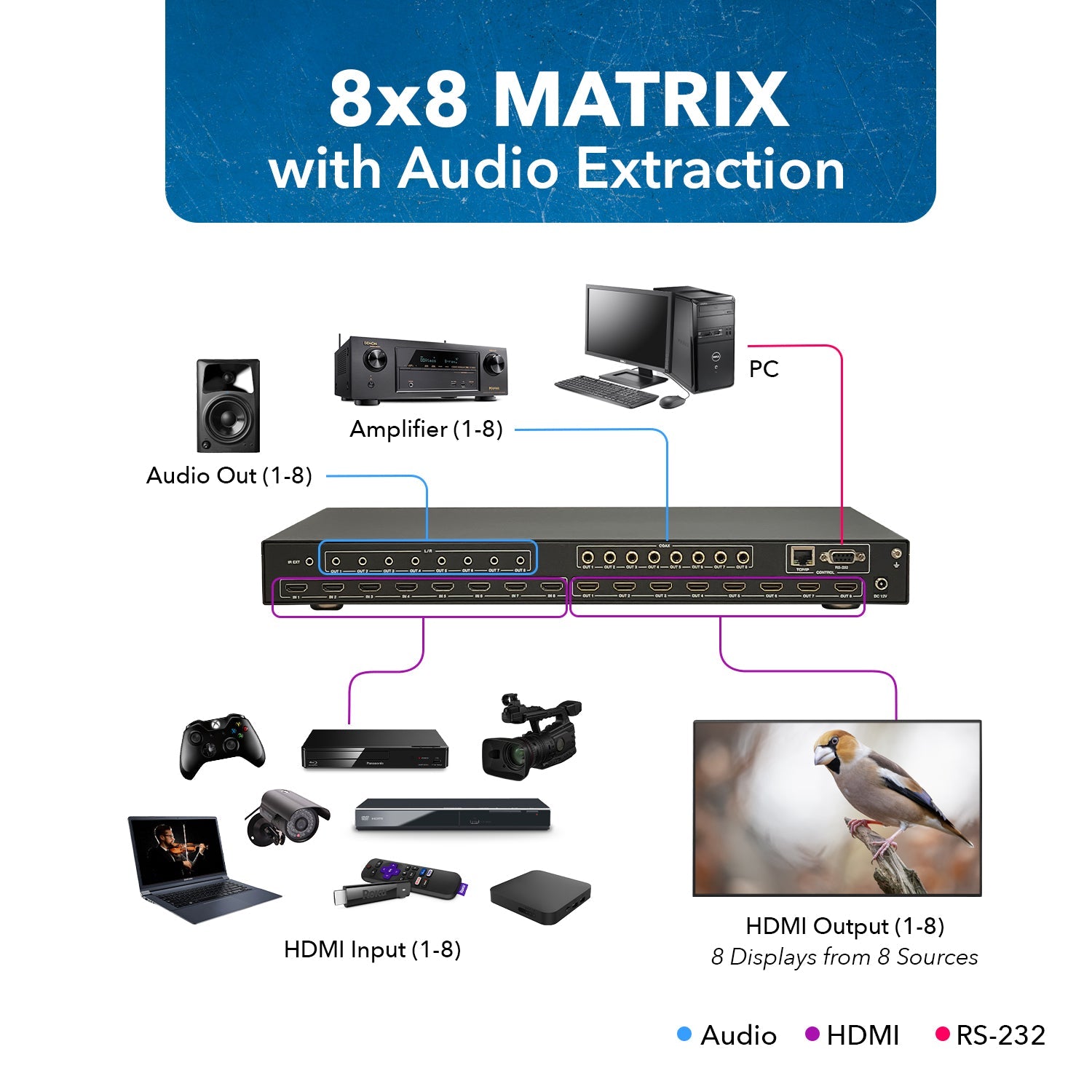

The UHD-808 is a professional-grade 8x8 HDMI matrix switch designed to route ultra-high-definition video and high-resolution audio from up to eight HDMI sources to eight HDMI displays. Fully compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.4 standards, it supports video resolutions up to 4K@60Hz (YUV 4:4:4) with a full 18Gbps bandwidth, ensuring superior image fidelity across all outputs.
This matrix offers advanced audio capabilities, including audio de-embedding to both analog and coaxial outputs from each HDMI output port. ARC (Audio Return Channel) is also supported on HDMI outputs, enabling ARC audio extraction directly to the coaxial output when connected to compatible displays. Additionally, each HDMI output features an independent 4K to 1080p downscaler, allowing seamless integration with legacy displays without compromising the source resolution.
With support for Dolby Vision, HDR10+, and HLG, the UHD-808 ensures vibrant color and dynamic contrast. Control options include front panel buttons, IR remote, RS-232, LAN, and Web GUI, making it ideal for advanced AV installations in commercial environments and professional control rooms.
[shortdes]
- 8 Inputs - 8 output HDMI Matrix switch
- Video resolution up to 4K@60Hz and 2K@60Hz
- Compliance: HDMI 2.0b, HDCP 2.2 and HDCP 1.4
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 8 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 8× HDMI [Type A, 19-pin female] | |
| 8 × Coax Audio (RCA) | ||
| 8 × L/R Audio [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × TCP/IP [RJ45] | |
| 1 × RS-232 [D-Sub 9] |

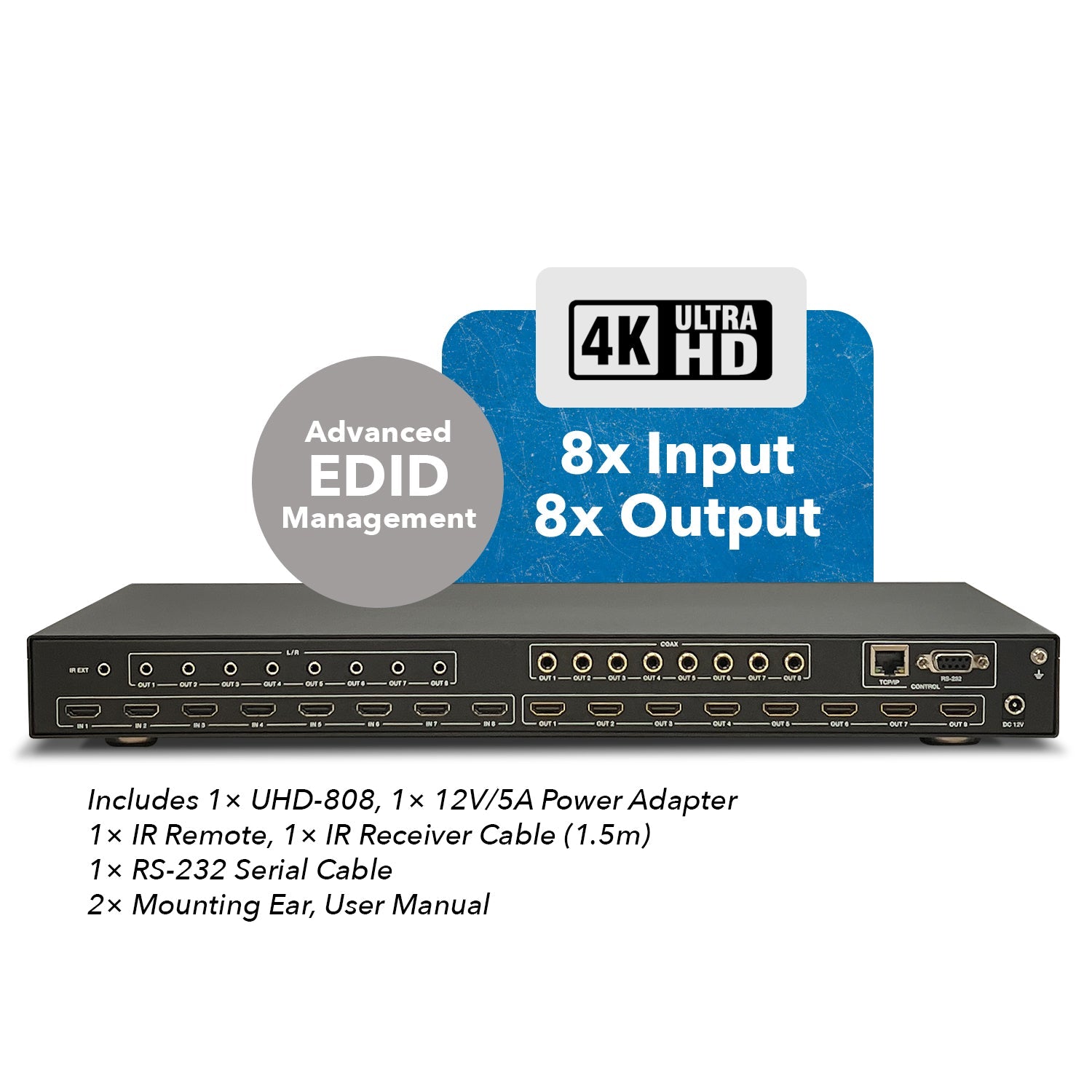

PACKAGE CONTENTS
| 1x UHD-808 |
| 1x Remote |
| 1x IR Receiver Cable (1.5m) |
| 1x RS-232 Serial Cable (1.5m) |
| 2x Mounting Ears |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 | We recommend using high quality HDMI 2.0 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz : | 25 Feet |
| 1080p@60Hz : | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | 4K@60Hz, 1080p@60Hz |
ADDITIONAL FEATURES
| Audio Extraction: | 3.5mm |
| ARC / eARC Passthrough: | ✅ |
| EDID Management: | ✅ |
| VRR / ALLM / FVA: | ❌ |
| Dolby Atmos / DTS X Passthrough: | ✅ |
| 4K to 1080p Downscale: | ✅ |
| USB KVM: | ❌ |
AUDIO SUPPORT
| HDMI Audio Formats : |
LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
|
| Coaxial Audio Formats : |
PCM 2.0, Dolby, DTS 5.1
|
| L/R Audio Formats : |
PCM 2.0
|
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 43W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/5A |

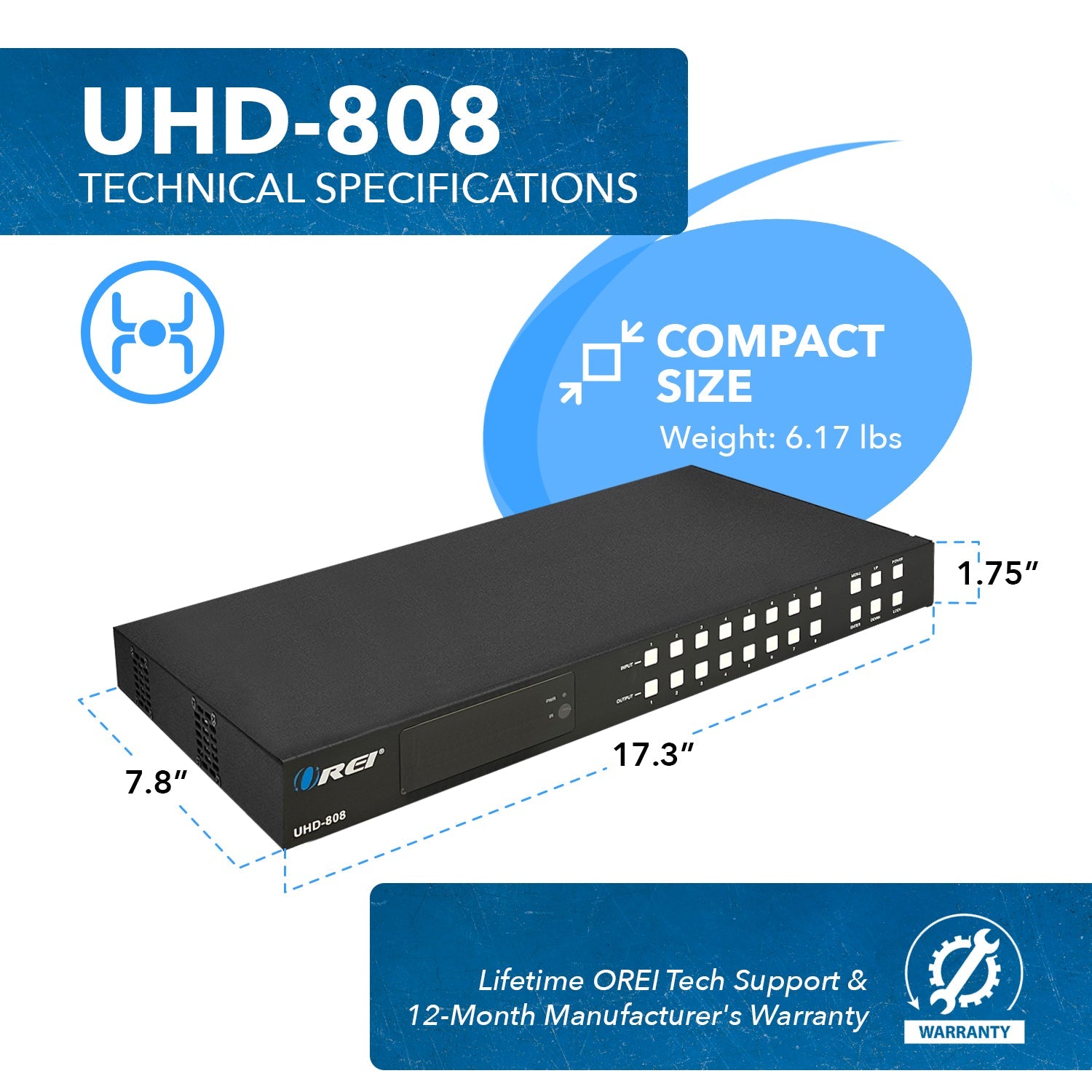

DIMENSIONS & WEIGHT
| Length: | 440mm / 17.32in | |
| Width: | 200mm / 7.87in | |
| Height: | 44.5mm / 1.75in | |
| Weight: | 2.8g / 6.17lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature : | 32 - 104°F / 0 - 40°C |
| Storage Temperature : | -4 - 140°F / -20 - 60°C |
| Operating Humidity: | 20 ~ 90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-808
[/tab1]
