Description

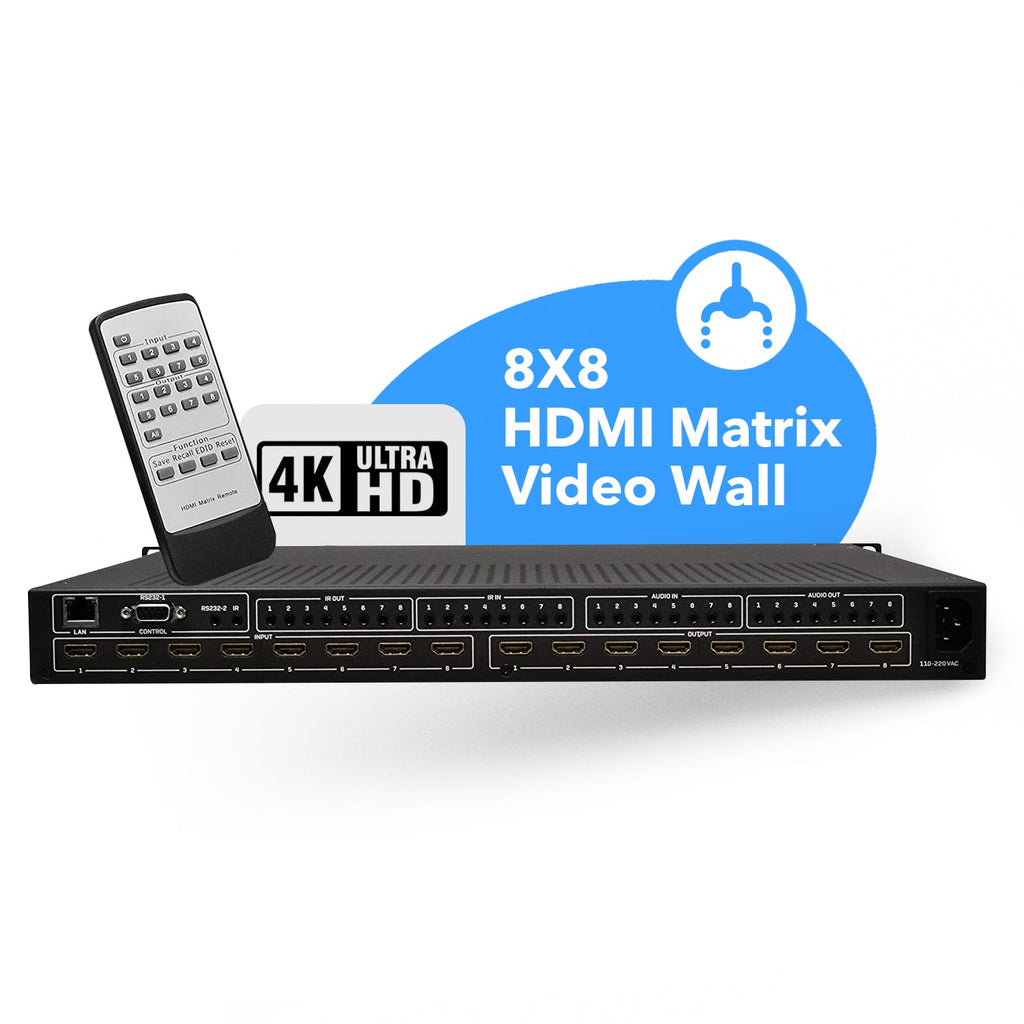

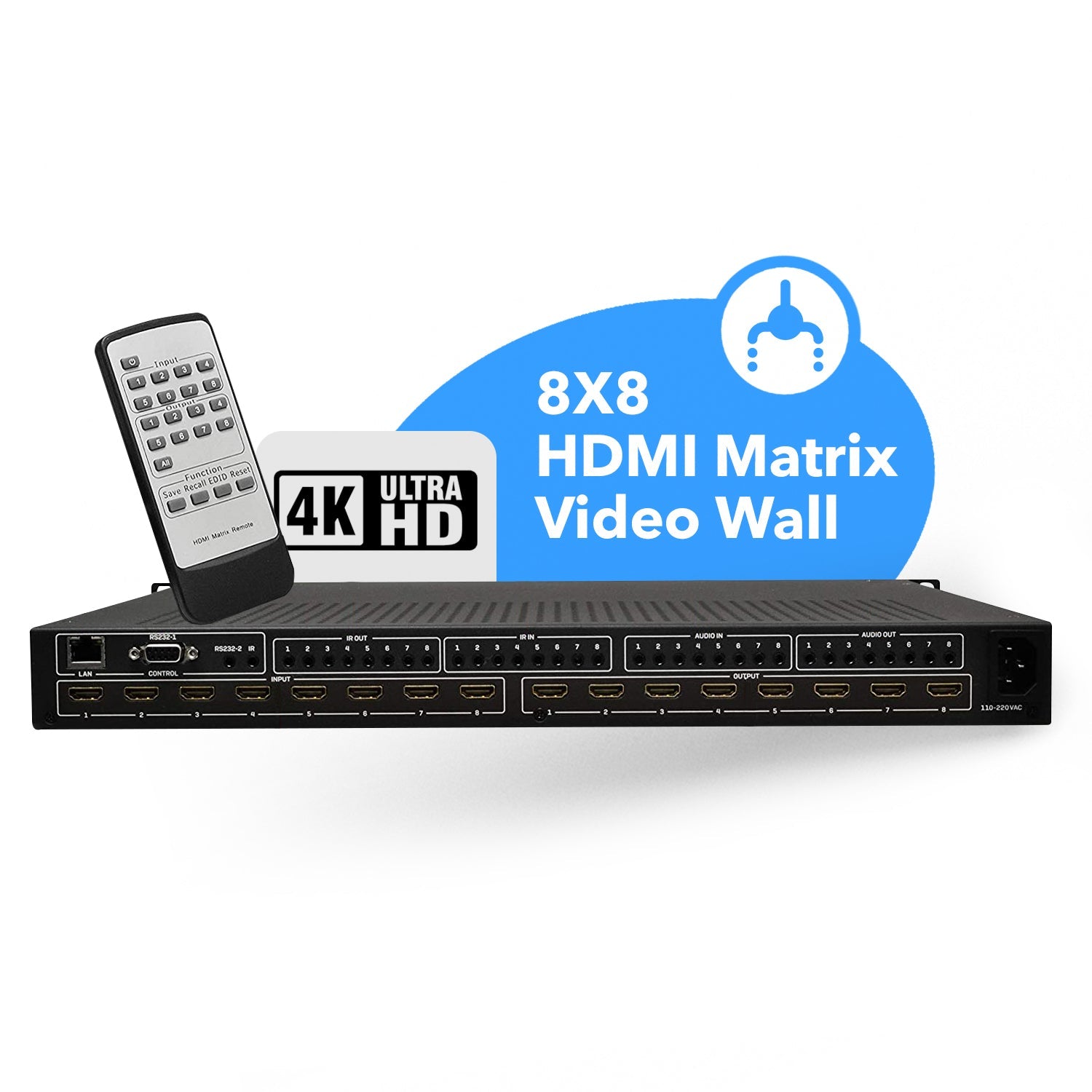

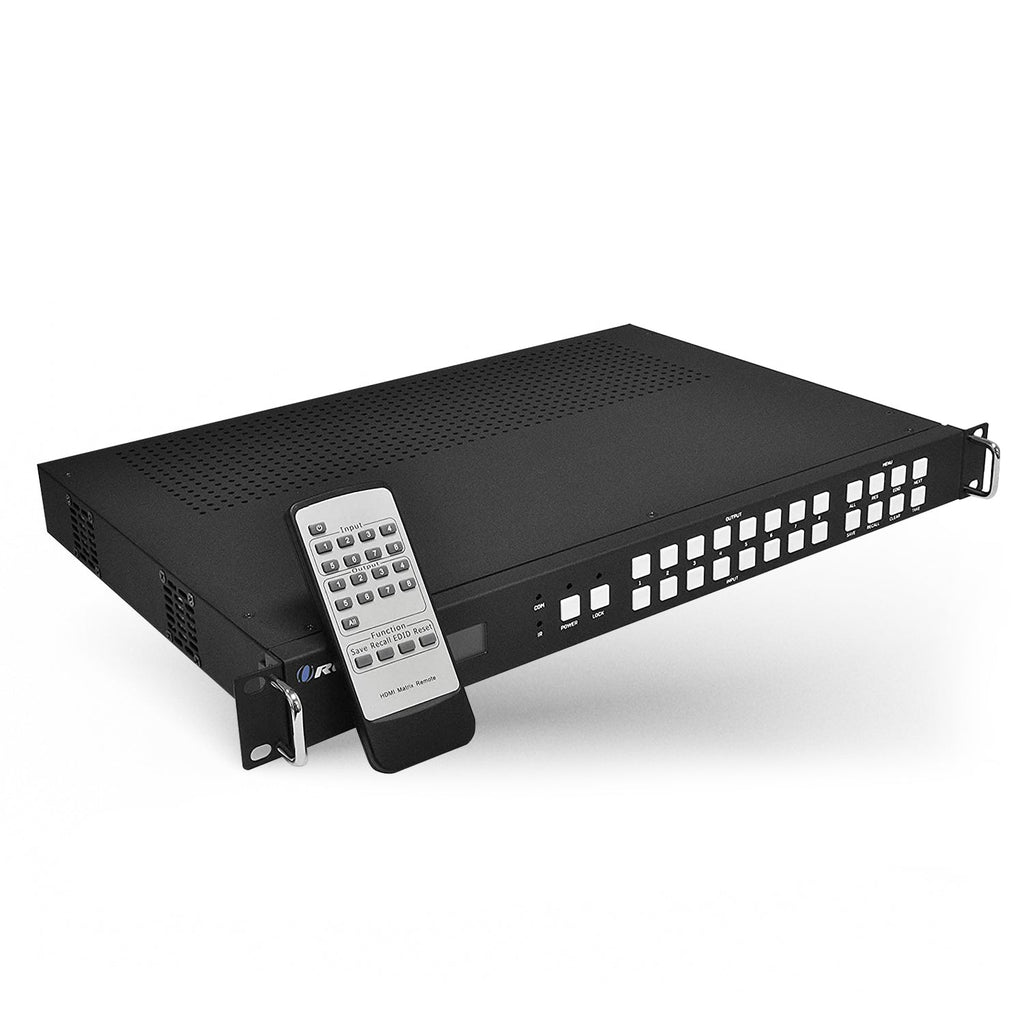

OREI UHD-808VW: 8x8 4K Matrix with Video Wall controller
- HDMI 2.0 & HDCP 2.2 Compliant – Ensures full compatibility with the latest AV standards.

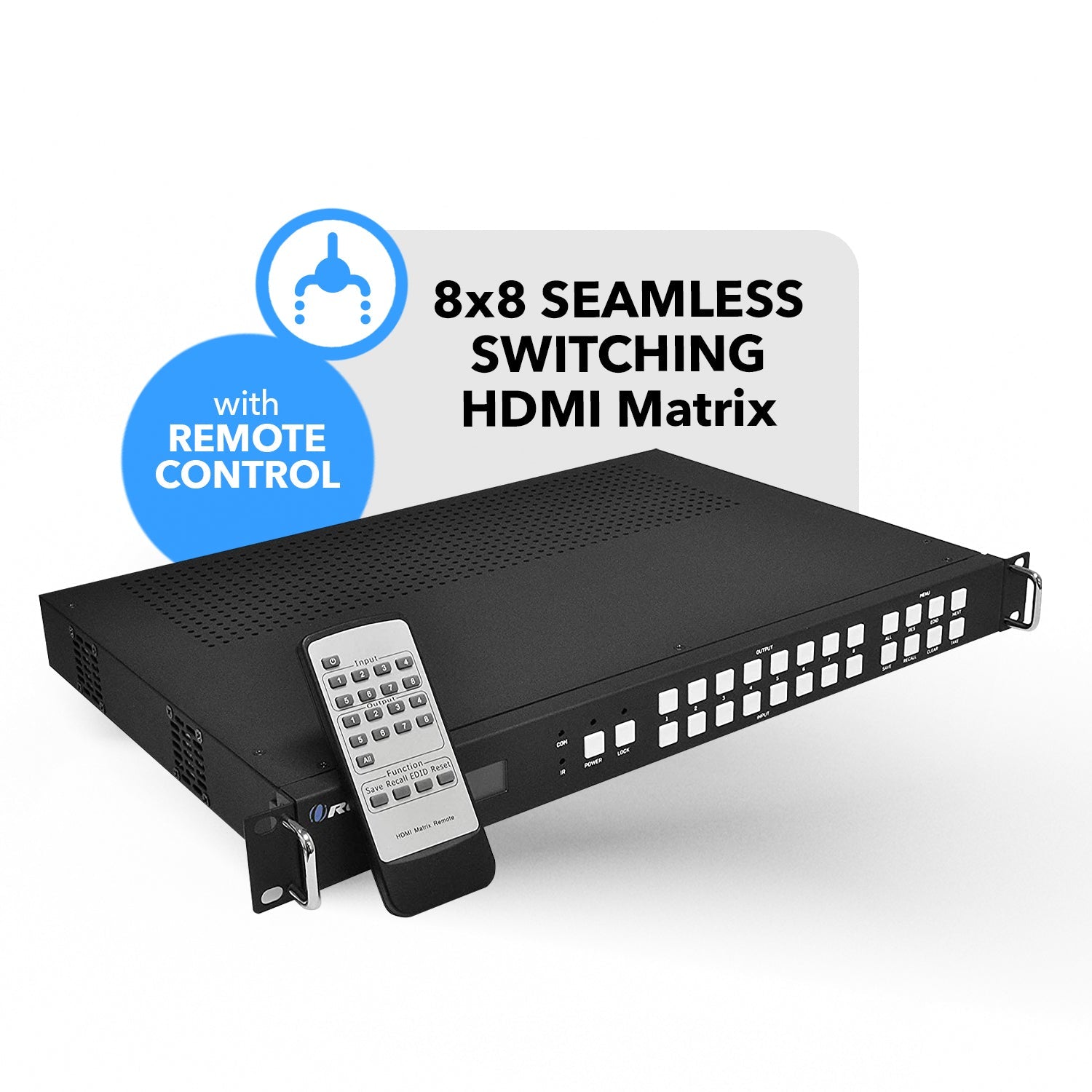

- 8×8 Seamless Matrix Switching – Instantly switch between eight HDMI sources and eight HDMI displays with zero blackout or lag.
- 18Gbps Video Bandwidth – Maintains full-quality, uncompressed 4K@60Hz 4:4:4 video across all outputs.
- Video Wall Support – Enables the creation of multi-screen video wall configurations via RS-232 control.
- IR Matrix Routing – IR control signals follow HDMI switching for synchronized source control.
- Audio Extraction & Insertion – Extract HDMI audio or insert external left/right stereo audio directly into the HDMI stream.
- EDID Management – Ensures optimal handshake between sources and displays for reliable signal negotiation.
- High-Resolution Output – Supports HDMI output resolutions up to 3840×2160@60Hz.
- Multiple Control Options – Operate via front panel, RS-232, or TCP/IP (LAN 10M/100M) for flexible integration.
- Professional Build – Engineered for commercial-grade reliability and 24/7 operational demands.
The UHD-808VW is a professional-grade 8×8 seamless HDMI matrix switcher designed to route high-bandwidth video and audio signals with precision and flexibility.

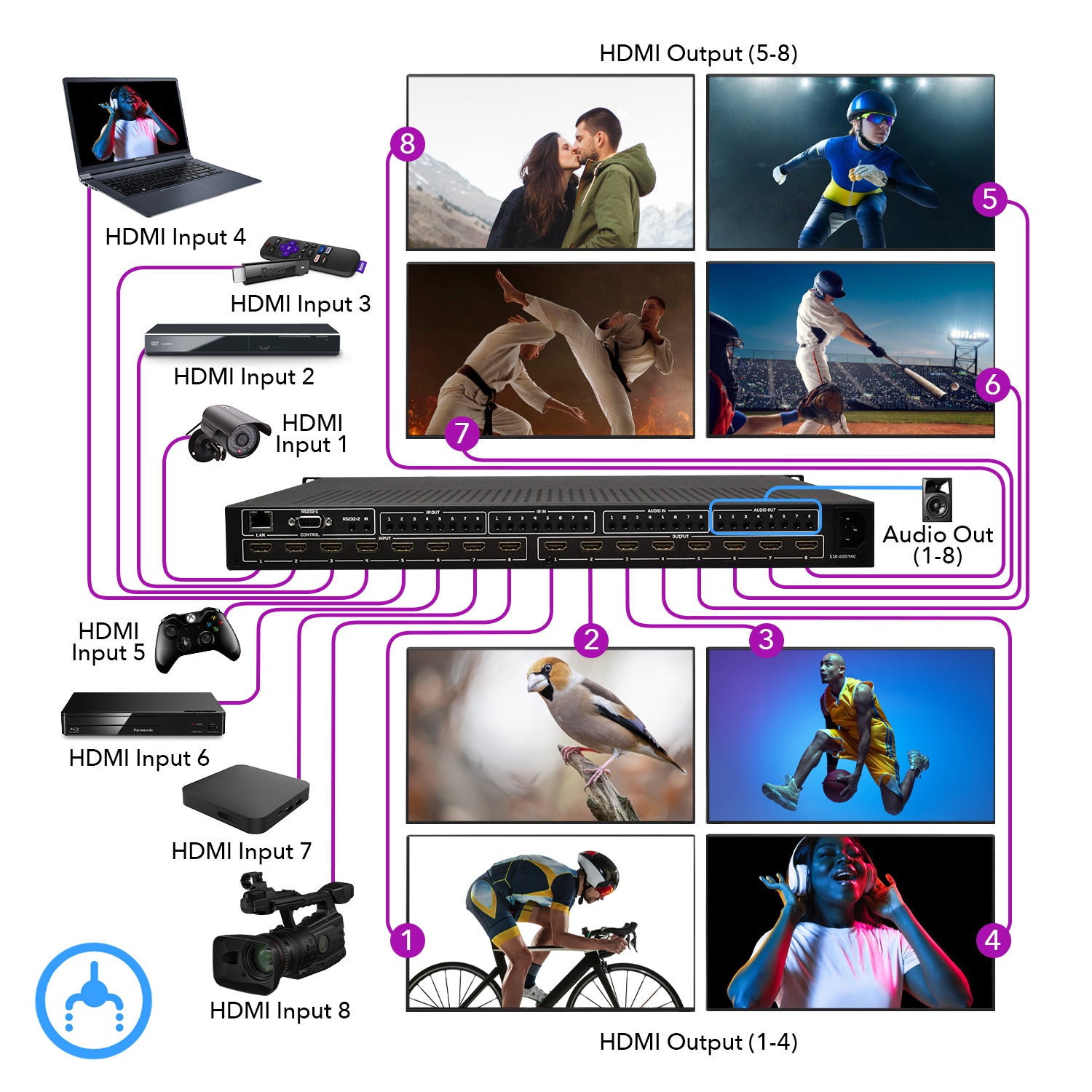

Supporting HDMI 2.0 and HDCP 2.2 compliance, it allows eight HDMI sources to be independently switched to eight HDMI displays, with full support for 4K@60Hz 4:4:4 video resolutions and up to 18Gbps bandwidth for uncompressed signal integrity.
This matrix offers seamless switching between sources with zero latency or black screen interruptions, and includes built-in video wall capabilities and IR matrix routing that mirrors video paths.It also supports HDMI audio extraction and external analog stereo audio insertion, offering robust options for audio management within complex AV environments.
EDID management ensures compatibility with a wide range of displays, while intuitive control options—including front panel buttons, RS-232, and TCP/IP—make integration with third-party control systems seamless.
Ideal for conference rooms, control centers, digital signage, and AV installations requiring multi-display coordination, the UHD-808VW delivers reliable switching performance in a streamlined chassis.
[shortdes]
-
8x8 Matrix switch with video wall functionality
-
18 Gbps video bandwidth with video resolutions up to 4K@60Hz and 2k@60Hz
-

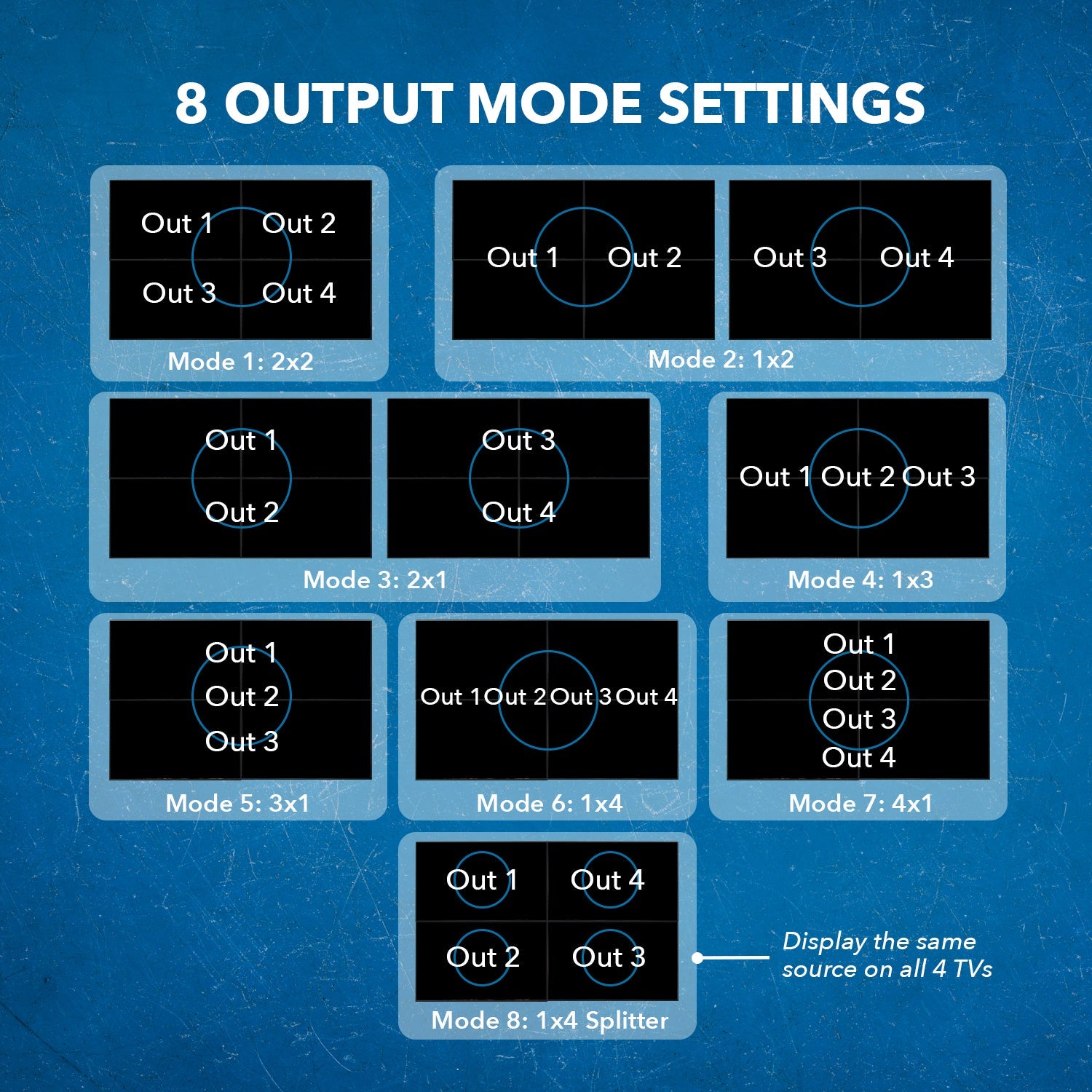

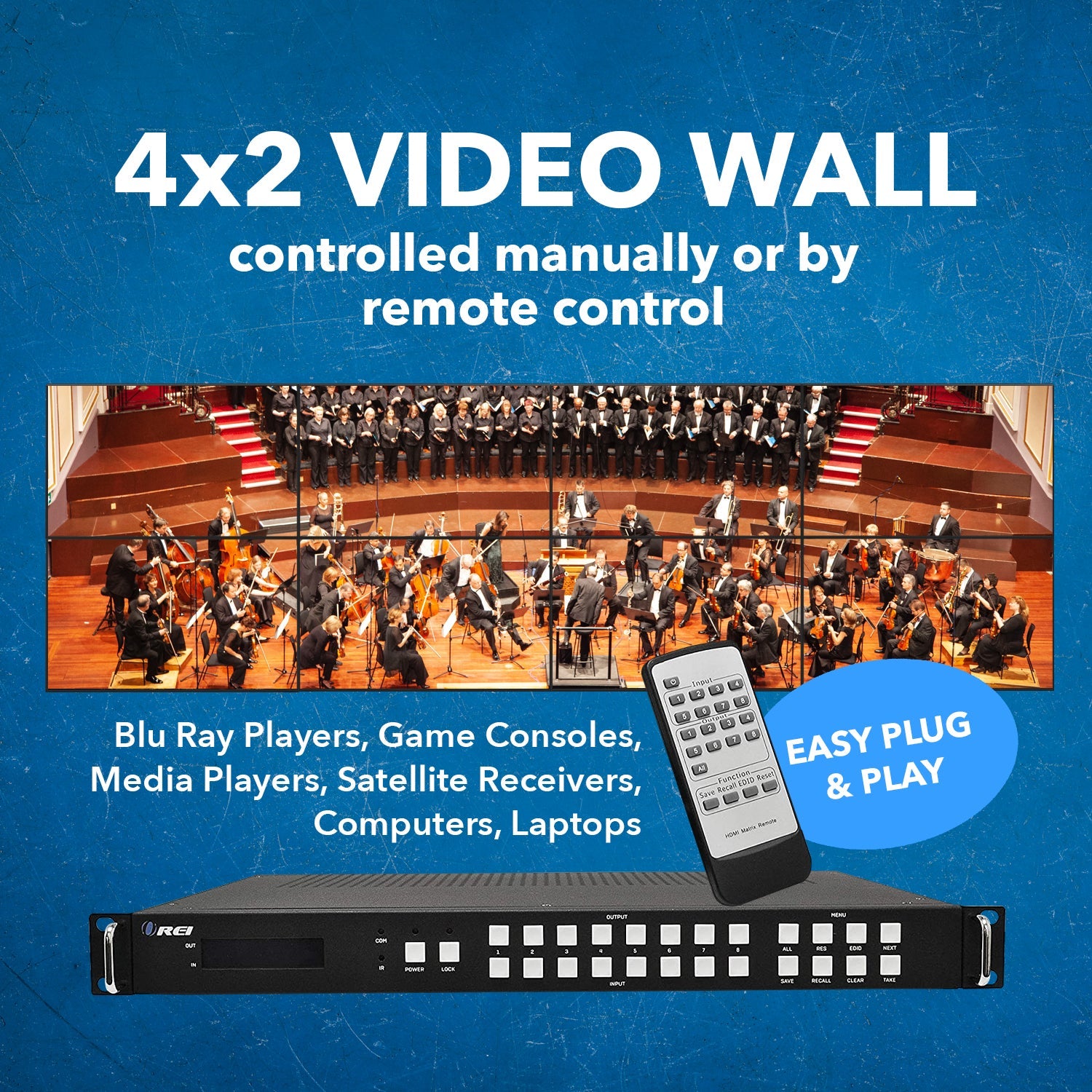

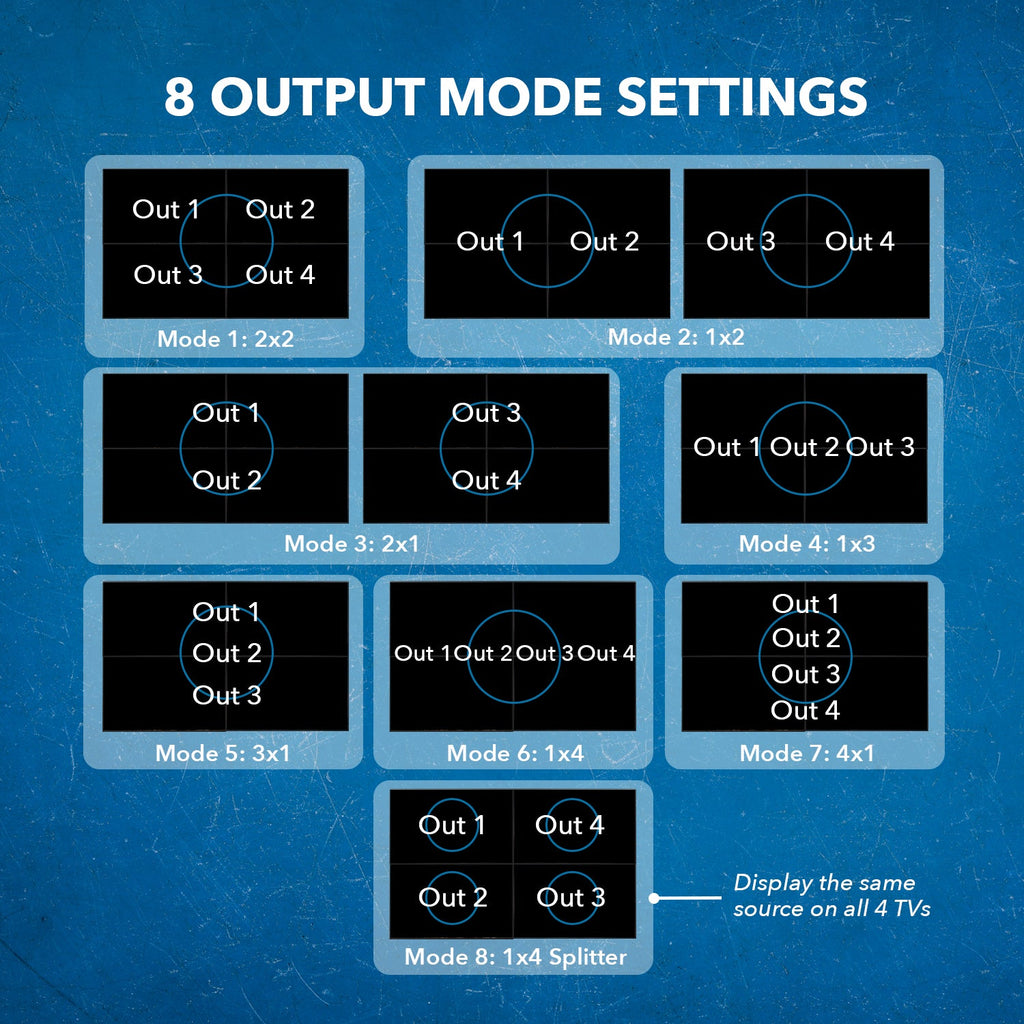

Multiple video wall modes including 4x2 and 2x2
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 8 × HDMI [Type A, 19-pin female] | |
| 8 × L/R [3.5mm Stereo Mini-jack] | ||
| OUTPUT: | 8 × HDMI [Type A, 19-pin female] | |
| 4 × L/R OUT [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 x LAN [RJ45, 8-pin, female] | |
| 1 × RS-232 [DB-9 connector] | ||
| 1 × RS-232 [3.5mm Stereo jack] | ||
| 1 × IR EXT [3.5mm Stereo jack] | ||
| 8 × IR IN [3.5mm Stereo Mini-jack] | ||
| 8 × IR OUT [3.5mm Stereo Mini-jack] |
PACKAGE CONTENTS
| 1x UHD-808VW |
| 1x Remote |
| 4x IR Blaster Cable |
| 4x IR Receiver Cable |
| 1x CAT6 cable |
| 1x USB to RS-232 cable |
| 1x AC Power cord |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 / 2.1: | We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2k@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2.0 |
| 3.5mm Analog Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 100W (Max) | |
| Power Supply: | Input: AC 110-240V 50/60Hz |

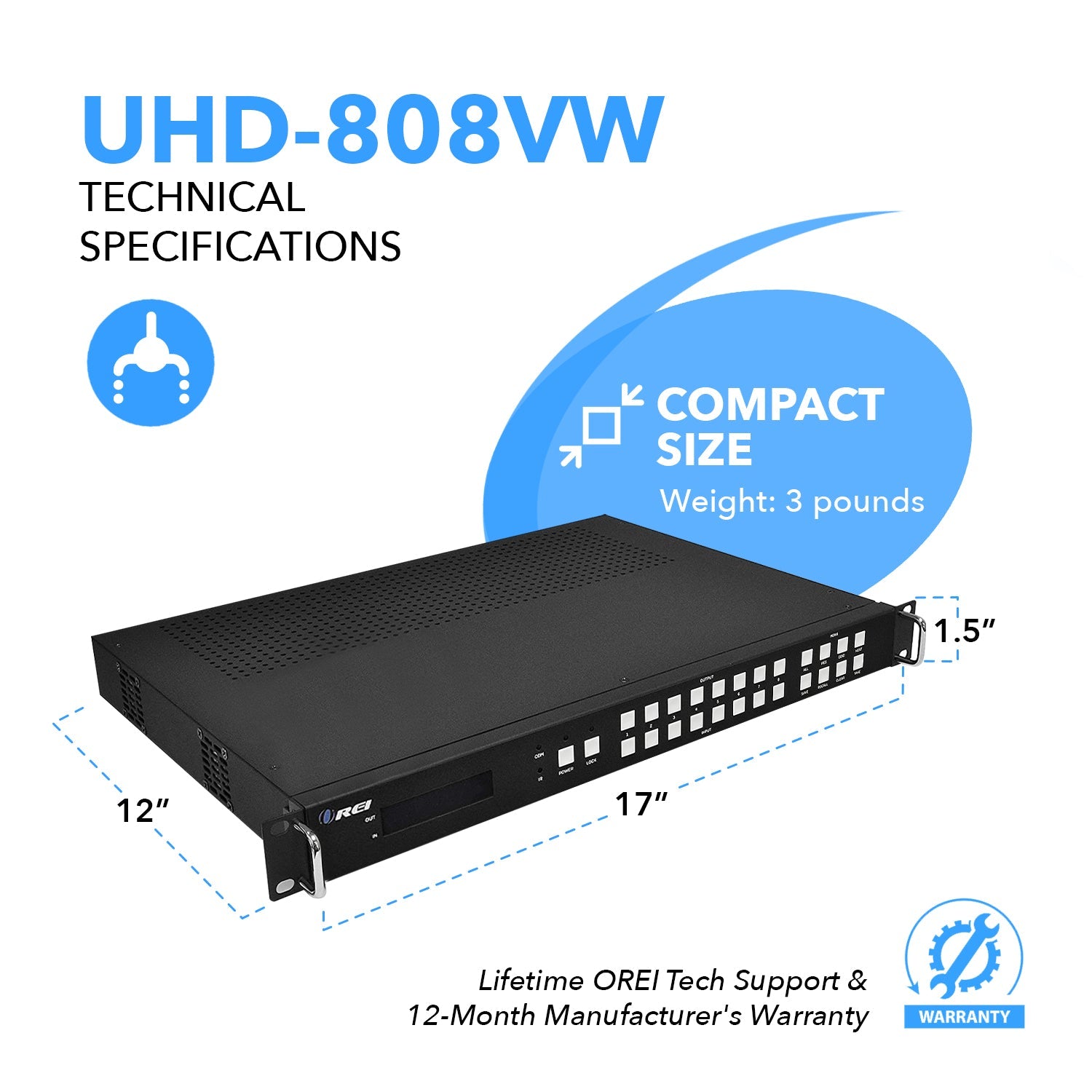

DIMENSIONS & WEIGHT
| Length: | 430mm / 16.93in | |
| Width: | 300mm / 11.81in | |
| Height: | 44mm / 1.73in | |
| Weight: | 5kg / 11.02lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity: | 10%~50% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-808VW
[/tab1]
