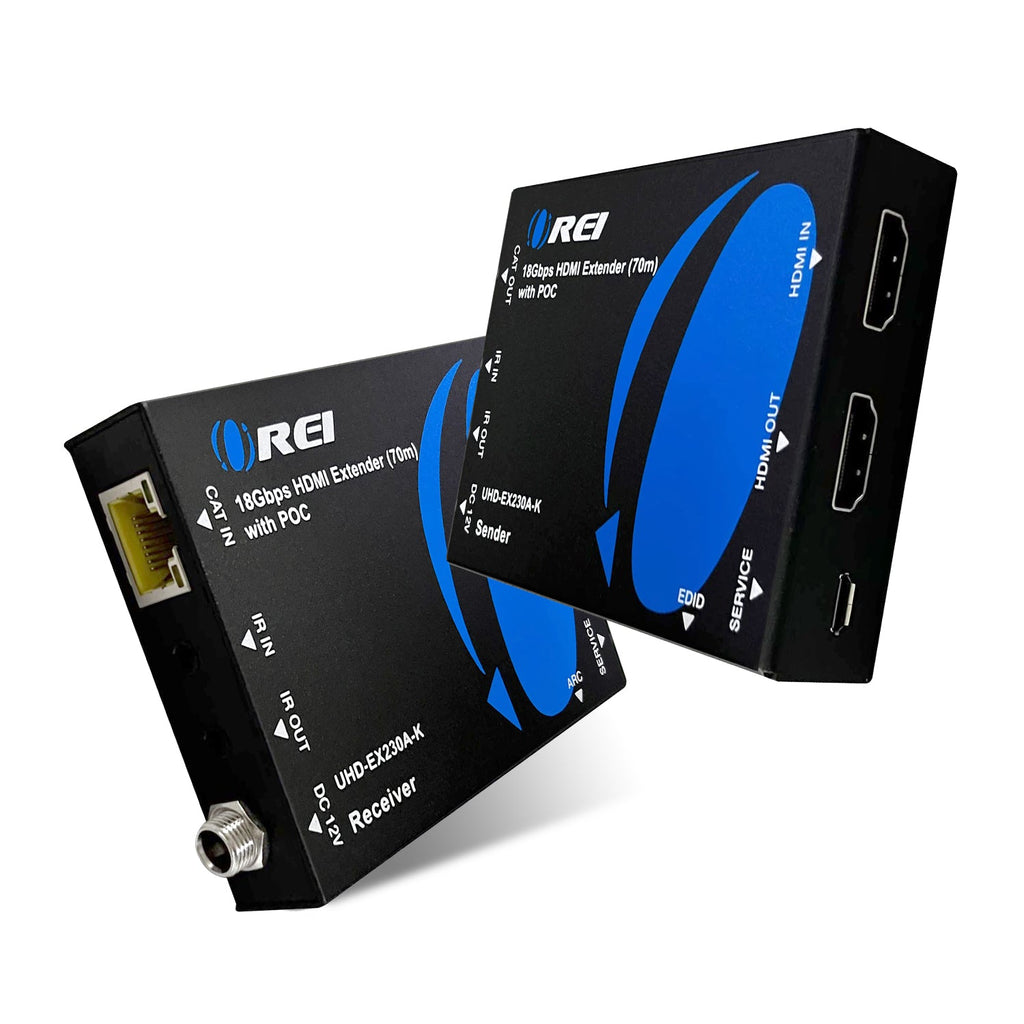

OREI UHD-EX230A-K: 4K@60Hz HDMI Extender over Cat6/7 with Loop-Out & Optical Audio
Key Features:

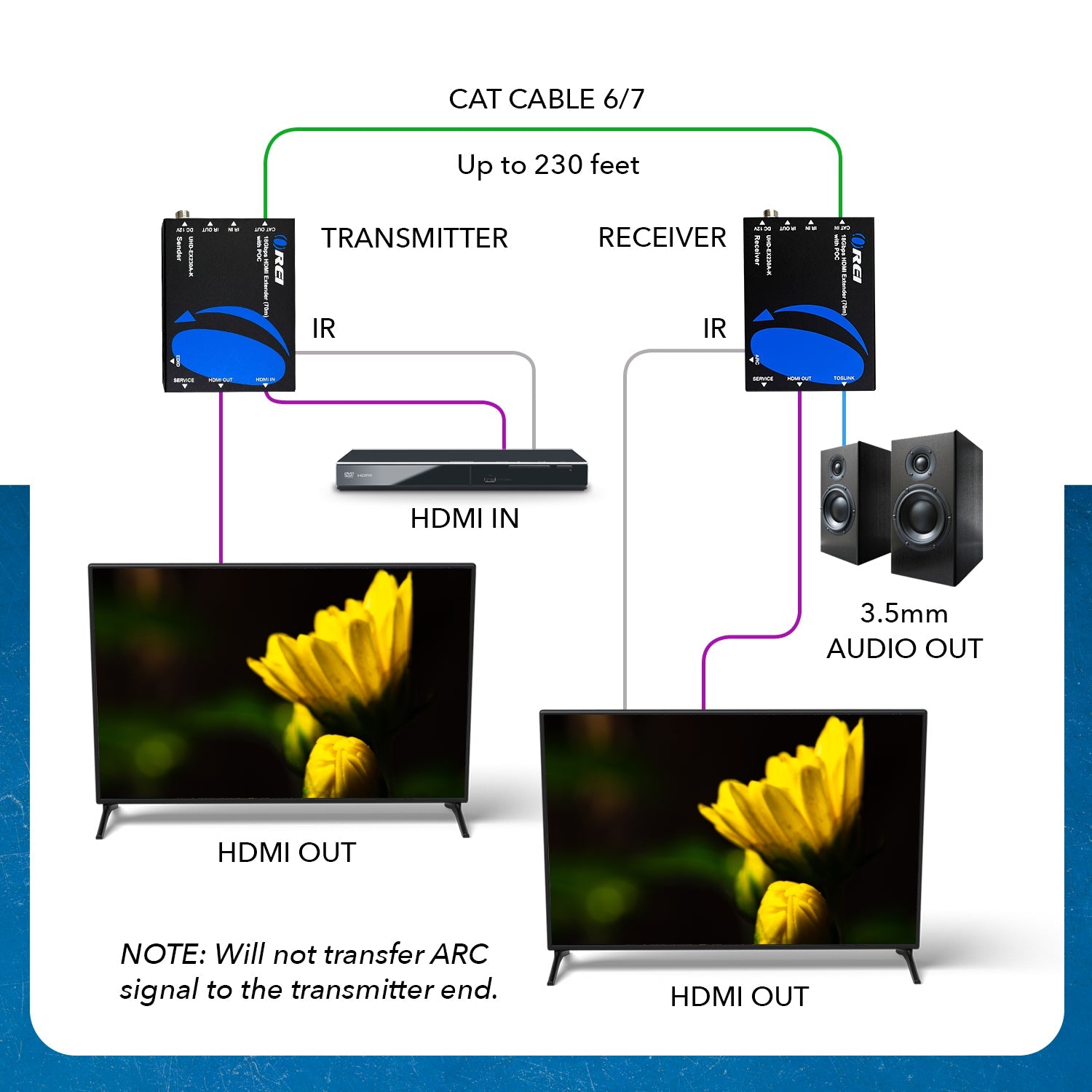

- Extends HDMI up to 230 ft (70 m) over a single Cat6/7 cable
- Supports 4K@60Hz, HDR10+, Dolby Vision
- 18Gbps bandwidth ensures uncompressed video quality
- Optical audio extraction for external sound systems
- HDMI loop-out for local display monitoring
- Bi-directional IR for remote source/display control
- Power over Cable (PoC) for simplified setup
- HDMI 2.0b & HDCP 2.2 compliant for broad device compatibility
- Compact, durable metal housing for reliable, professional installation
- Ideal for home theaters, conference rooms, or digital signage systems

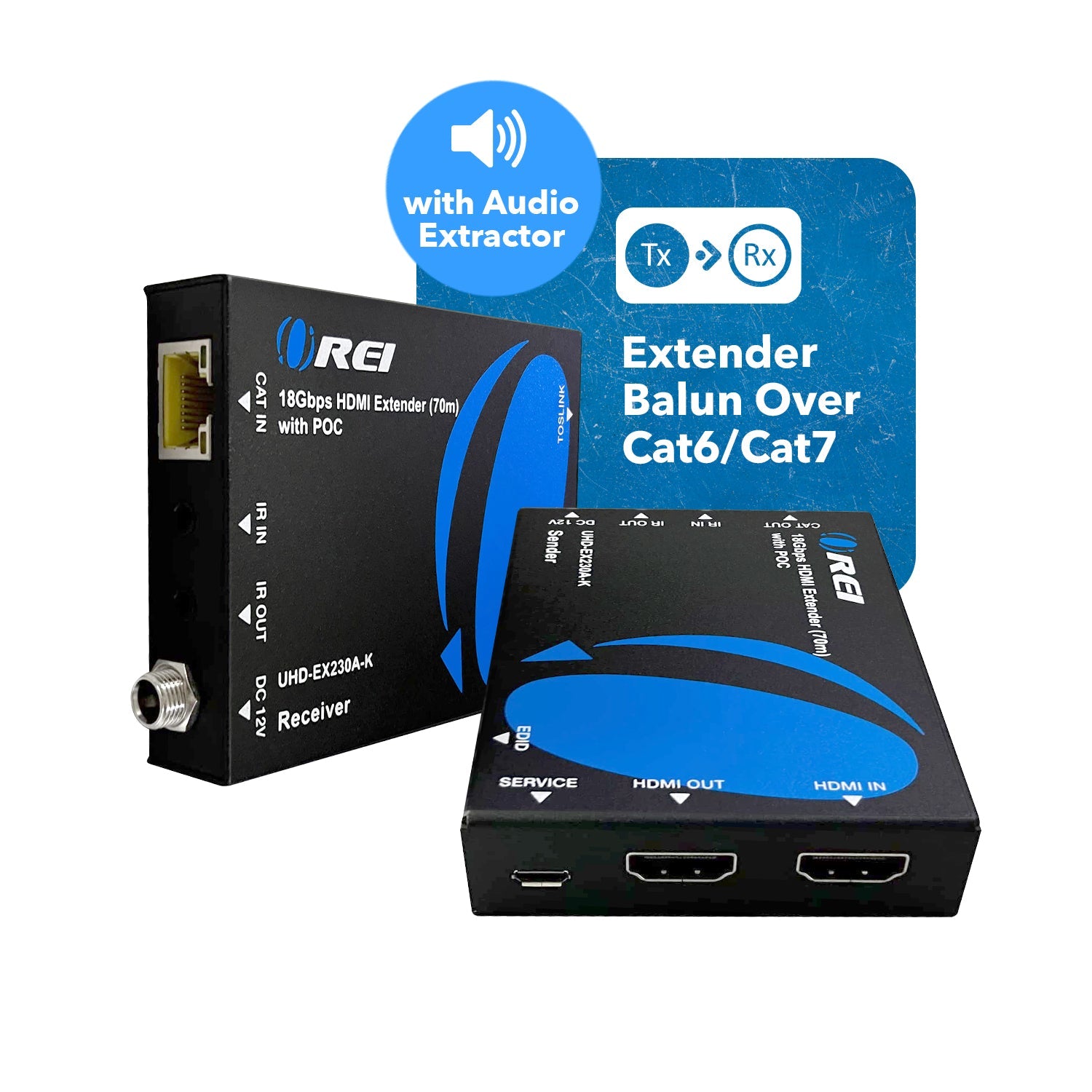

The UHD-EX230A-K is a high-performance HDMI extender with integrated audio extraction, delivering uncompressed AV signals over long distances. It supports 4K@60Hz and 2K@60Hz video up to 230 feet (70 meters) via a single Cat6/7 cable and is fully compliant with HDMI 2.0b and HDCP 2.2 standards. With 18Gbps bandwidth, it ensures flawless video quality and supports HDR10+ and Dolby Vision for premium visuals.
The extender features optical audio extraction, supporting LPCM 8.1CH, Dolby TrueHD, and DTS-HD Master Audio. It also offers HDMI loop-out for local display, bi-directional IR for remote control, and Power over Cable (PoC), requiring only a single power adapter. Its compact, durable design makes it ideal for both commercial AV setups and high-end home installations.
[shortdes]
- Loop-Out for Local Display
- Video resolutions up to 4K@60Hz and 2K@60Hz
- Bi-Directional IR Control
-
Optical Audio Extraction
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: |
INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
OUTPUT: |
1 × HDMI [Type A, 19-pin female] |
|
|
1 × CAT [RJ45, 8-pin female] |
|
|
1 × IR IN [3.5mm Stereo Mini-jack] |
|
|
1 × IR OUT [3.5mm Stereo Mini-jack] |
|
CONTROL: |
1 × SERVICE [Micro USB, Update port] |
|
|
1 x OPTICAL [S/PDIF, female] |
|
CONTROL: |
1 × IR IN [3.5mm Stereo Mini-jack] |
|
|
1 × IR OUT [3.5mm Stereo Mini-jack] |
|
|
1 × SERVICE [Micro USB, Update port] |

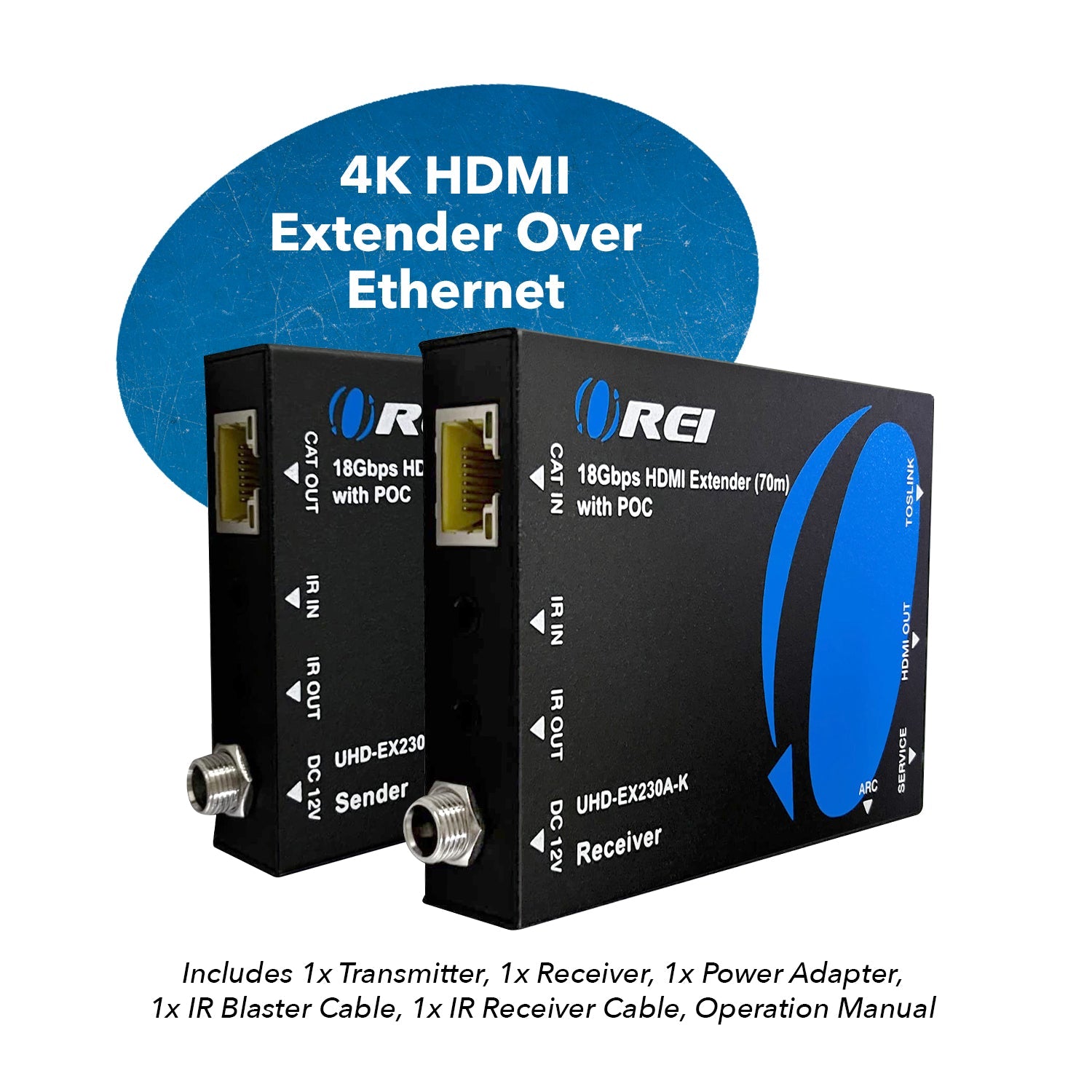

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster Cable |
| 1x IR Receiver Cable |
| 4x Mounting ears |
| 8x Screws (KM3*4) |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K@60Hz, 2K@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: |
Yes / No |
| CEC: |
No |
| Transmission Technology: |
Ethernet |
| IR Control: |
Bi-directional |
| PoC (Power over Cable): |
Yes |
| RS-232: |
No |
| USB Standard: |
No |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
Yes / Yes / Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
Yes |
| Number of Loop out ports: |
1 |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 7.1CH, Dolby True HD, and DTS-HD Master |
| Coaxial Audio Formats: |
Dolby 5.1, DTS 5.1, PCM 2.0 |
|
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
3.36W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/1A |
|

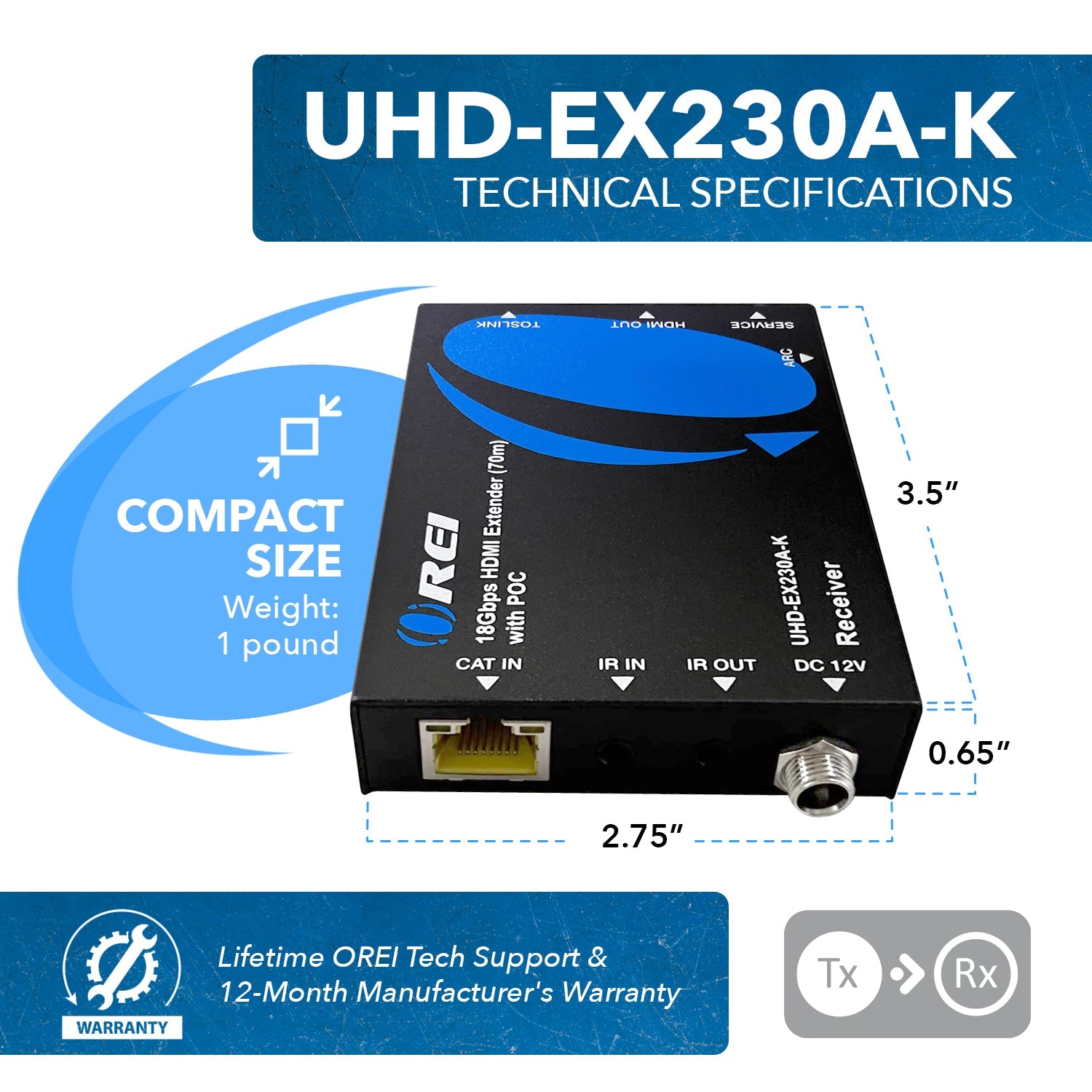

DIMENSIONS & WEIGHT
| Transmitter: |
Length: |
90mm / 3.54in |
|
Width: |
68mm / 2.68in |
|
Height: |
18mm / 0.71in |
|
Weight: |
160g / 5.64oz |
| Receiver: |
Length: |
90mm / 3.54in |
|
Width: |
68mm / 2.68in |
|
Height: |
18mm / 0.71in |
|
Weight: |
155g / 5.47oz |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operating Temperature: |
32 - 104°F / 0 - 40°C |
| Storage Temperature: |
-4 - 140°F / -20 - 60°C |
| Relative Humidity: |
20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
