Description
OREI UHD12-EXB400-K: 4K 1x2 HDMI Extender Splitter over CAT 6 up to 400 feet with PoC, one-way IR control, EDID management
Key Features:
-
HDMI 2.0b, HDCP 2.2 & HDCP 1.x Compliant – Fully compatible with modern and legacy HDMI devices, including protected content playback.
-
18Gbps Video Bandwidth – Ensures high-performance signal delivery for ultra-HD video and rich audio formats.
-
Supports Resolutions up to 4K@60Hz (4:4:4) – Ideal for the most demanding visual applications, with support for full chroma subsampling.
-
HDR Support – Compatible with HDR, HDR10+, HLG, and Dolby Vision for vivid color, deeper contrast, and enhanced dynamic range.
-
Advanced Audio Support – HDMI ports support up to 7.1-channel HD audio pass-through, including Dolby and DTS formats.
-
Digital & Analog Audio Output on Transmitter – Enables external speaker or amplifier connectivity via SPDIF (Coaxial) and 3.5mm analog stereo out.
-
Long-Distance Signal Extension – Extend HDMI signal up to 394ft (120m) at 4K@60Hz and 492ft (150m) at 1080p@60Hz via a single CAT6/6A/7 cable.
-
HDMI Loop-Out on Transmitter – Connect a local display near the source for confidence monitoring or preview.
-
Bi-Directional IR & RS-232 Control – Enables source and display control from either end of the transmission setup.
-
Advanced EDID Management – Flexible EDID settings ensure optimal handshake between devices for reliable AV performance.
-
One-Way PoE Functionality – Receiver is powered directly via the HDBaseT connection from the Transmitter, requiring power at only one end.
-
HDBaseT Technology – Industry-leading transmission technology for zero-latency, high-quality AV and control signal delivery.

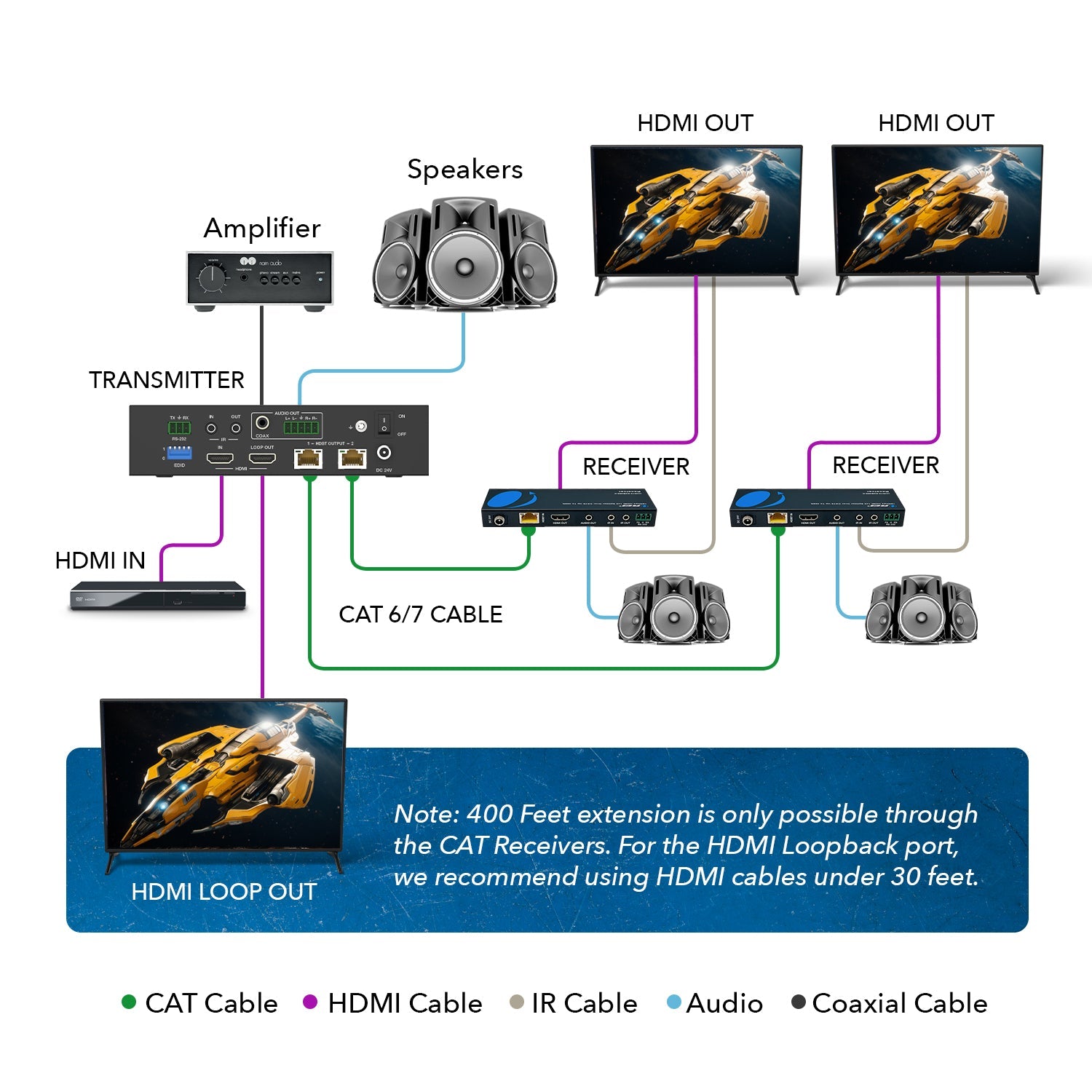

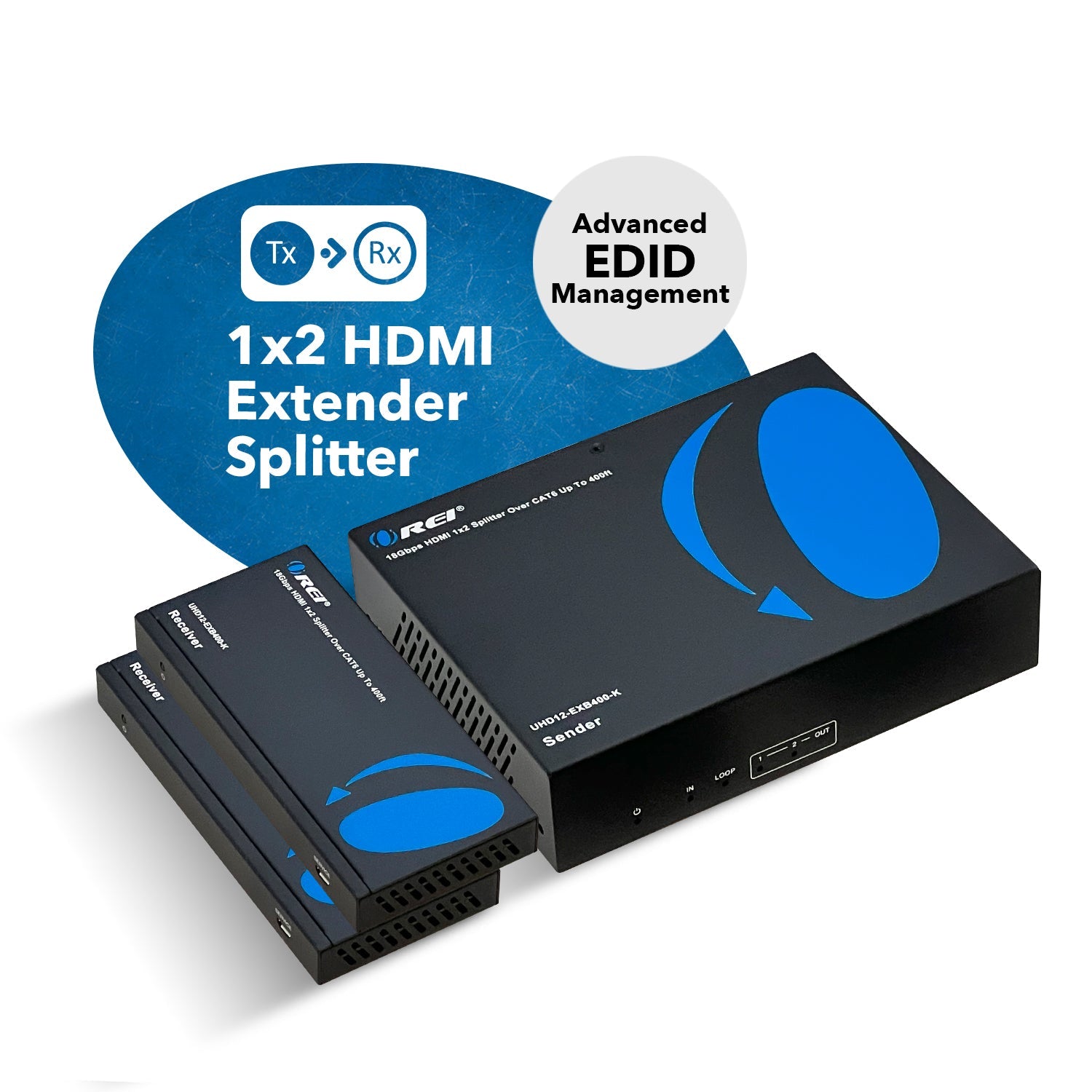

The UHD12-EXB400-K is a high-performance HDMI Extender Splitter Kit that supports ultra-high-definition video, advanced audio, and long-distance signal extension over a single CAT6/6A/7 cable. It distributes one HDMI source to two displays, with one connected via HDMI loop-out and the other up to 394ft (120m) at 4K@60Hz, or 492ft (150m) at 1080p.
Built on HDBaseT technology, it ensures zero-latency transmission while supporting rich AV formats such as HDR10+, Dolby Vision, and 7.1-channel audio. The Transmitter includes digital coaxial and analog stereo audio outputs, allowing flexible integration with AV receivers and speaker systems.
Control is seamless via bi-directional IR and RS-232, while advanced EDID management guarantees compatibility across displays. The PoE-enabled design powers the entire setup from the Transmitter, simplifying installation and minimizing cabling.
Ideal for residential AV, digital signage, conference rooms, and broadcast environments, the UHD12-EXB400-K delivers robust performance, crystal-clear video, and professional-grade reliability
Note: OREI HDBaseT models are designed to work only with their own matching transmitter and receiver. They are not interchangeable with other OREI HDBaseT models, nor compatible with HDBaseT devices from other brands, due to chipset differences.
For best results, always use the included or recommended pair from the same model.
[shortdes]
- HDR10+ and Dolby Vision support
- Audio extraction through Coax and balanced Analog
- Bi-directional IR control
[/shortdes]
[tab]

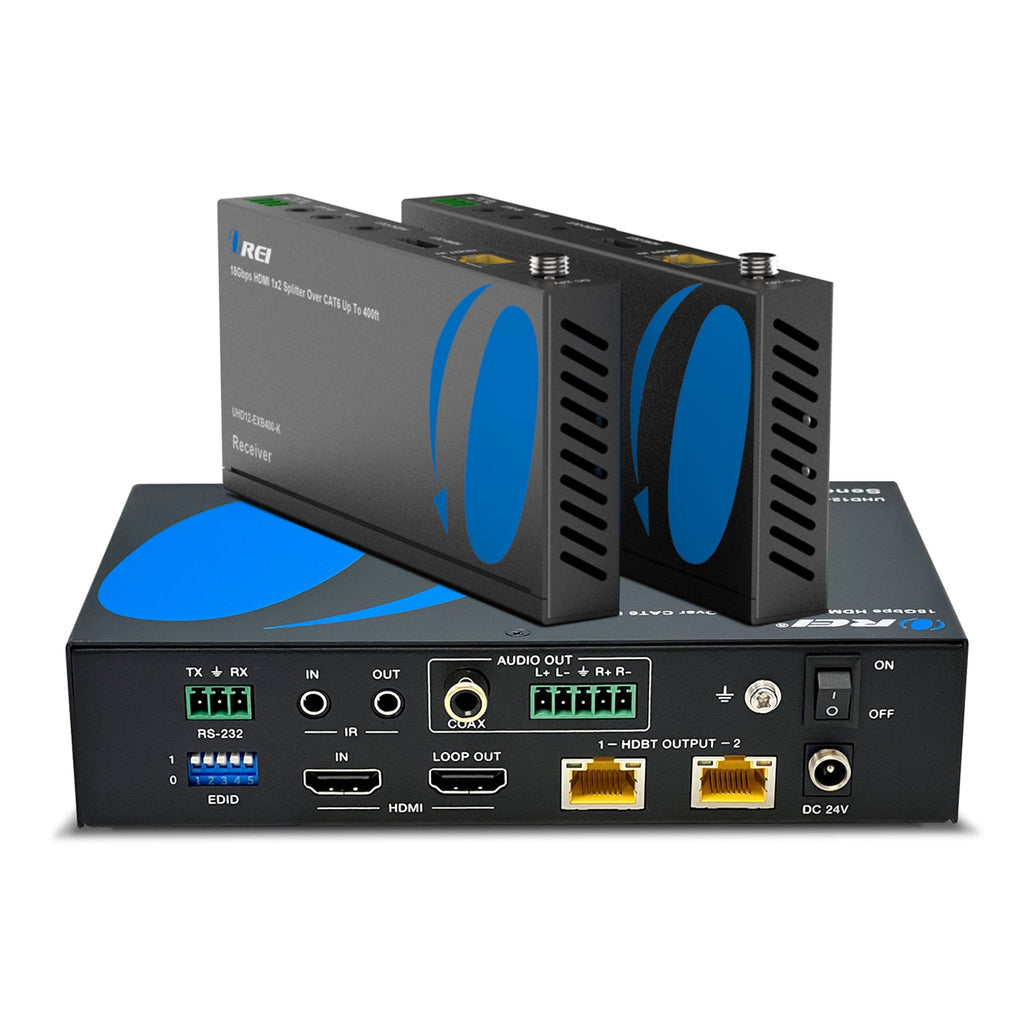

CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 2 × HDBaseT [RJ45, 8-pin female] | ||
| 1 × Coaxial [RCA] | ||
| 1 × L/R [5-pin, phoenix] | ||
| CONTROL: | 1 × RS-232 [3-pin phoenix connector] | |
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| Receiver: | INPUT: | 1 × HDBaseT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × L/R [3.5mm Stereo Mini-jack] | |
| 1 × RS-232 [3-pin Phoenix connector] | ||
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × SERVICE [Micro USB, Update port] |

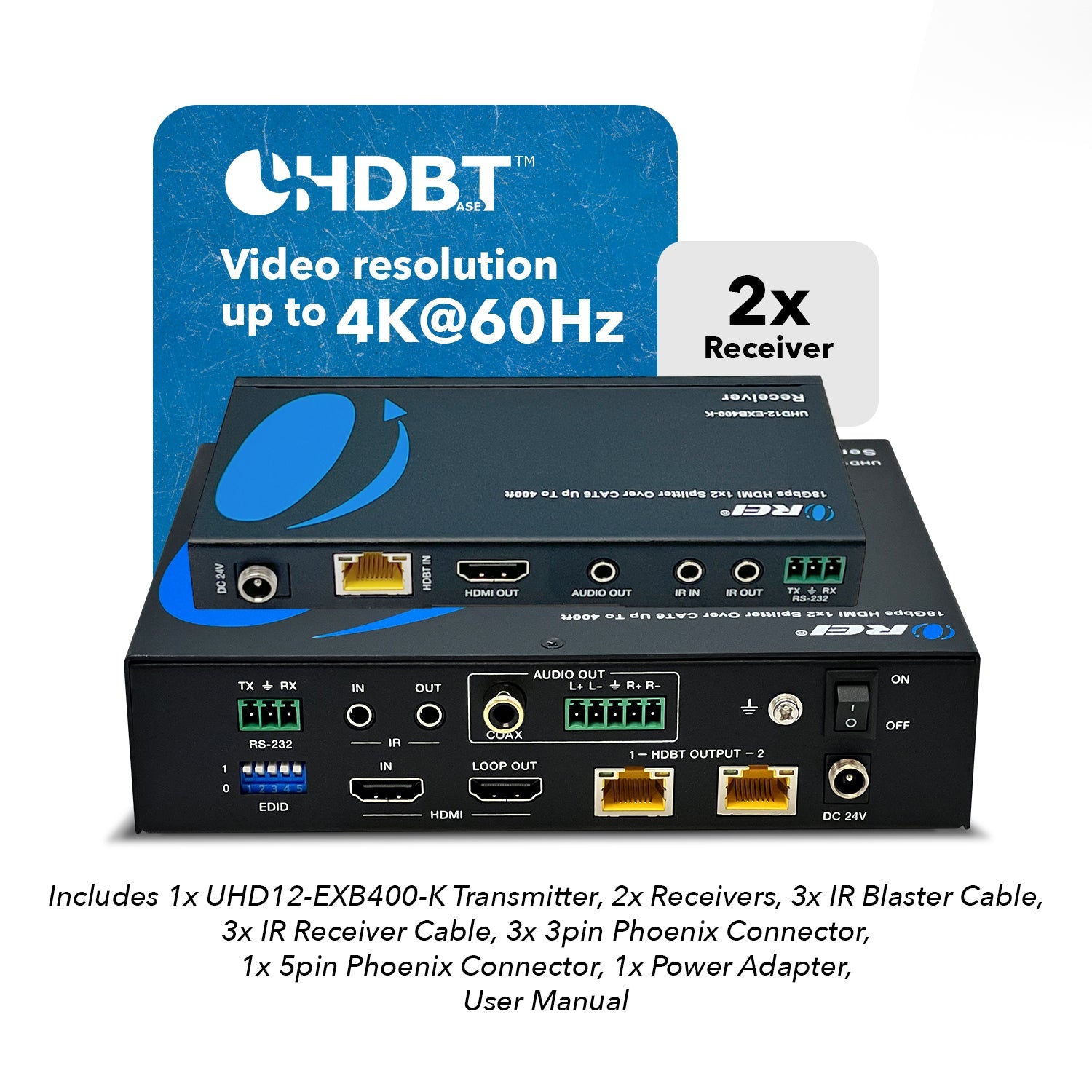

PACKAGE CONTENTS
| 1x Transmitter |
| 2x Receiver |
| 3x IR Blaster cable |
| 3x IR Receiver cable |
| 3x 3-Pin Phoenix Connector |
| 1x 5-Pin Phoenix Connector |
| 6x Mounting ear |
| 6x Screws (KM3*4) |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30HZ: | 394 Feet |
| 1080P@60Hz: | 492 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: | No |
| CEC : | No |
| Transmission Technology : | HDBaseT |
| IR Control: | Yes, Bi-directional |
| PoC (Power over Cable): | No |
| RS-232: | Yes |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats: | PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| L/R Audio Formats: | PCM 2.0CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 18W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/1A |

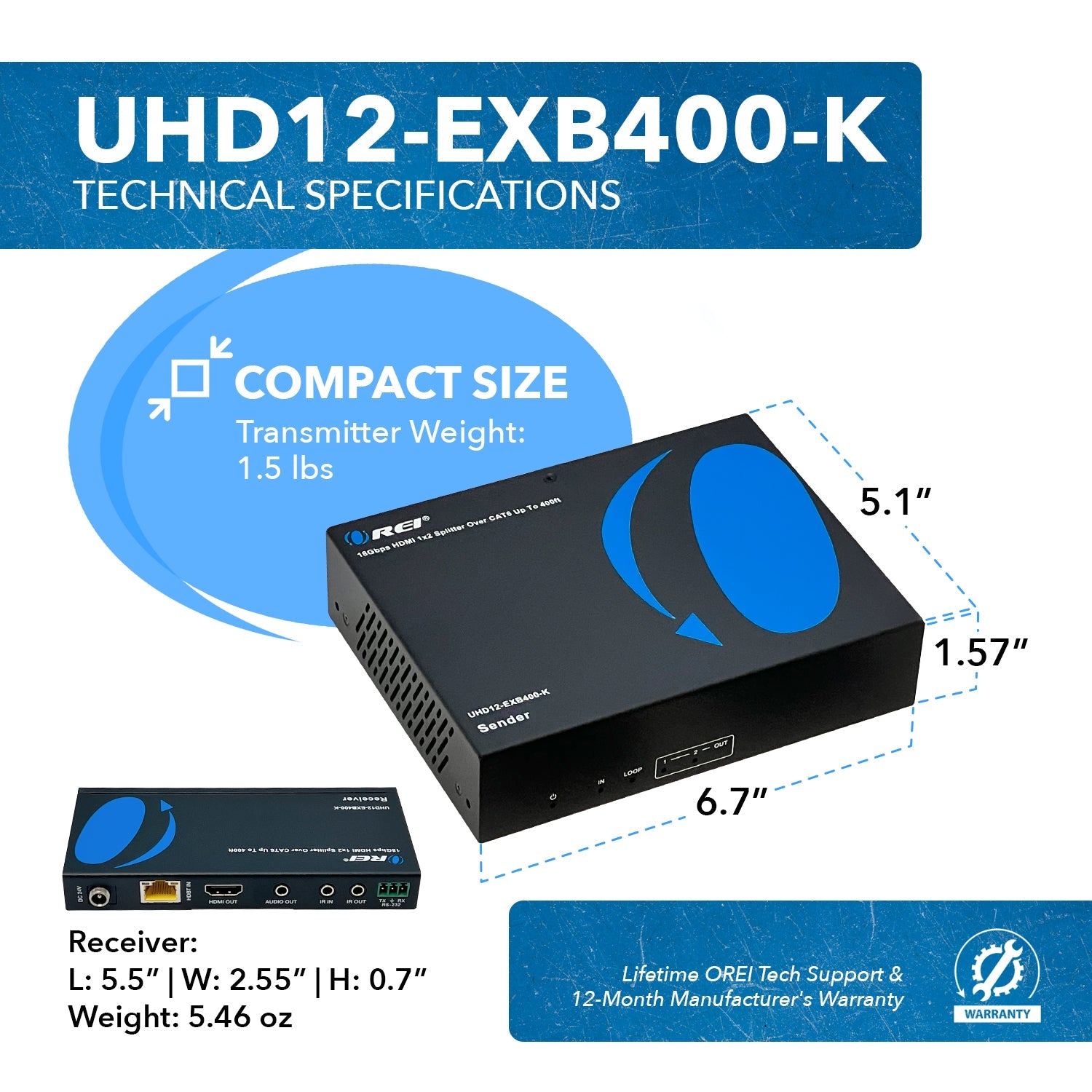

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 170mm / 6.69in |
| Width: | 130mm / 5.12in | |
| Height: | 40mm / 1.58in | |
| Weight: | 689g / 1.51lbs | |
| Receiver: | Length: | 140mm / 5.51in |
| Width: | 65mm / 2.56in | |
| Height: | 18mm / 0.71in | |
| Weight: | 155g / 8.68oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 32~104°F / 0~40°C |
| Storage Temperature: | -4~140°F / -20~60°C |
| Operating Humidity: | 20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
