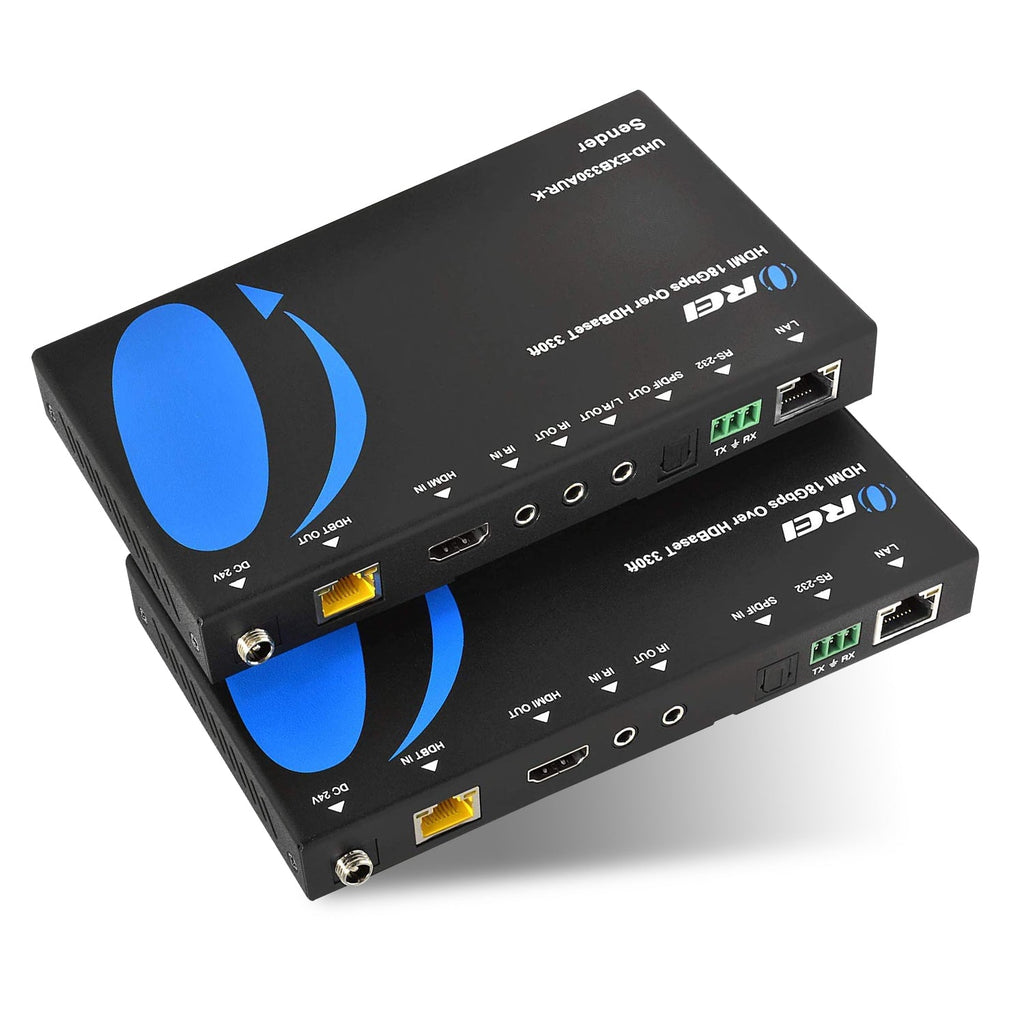

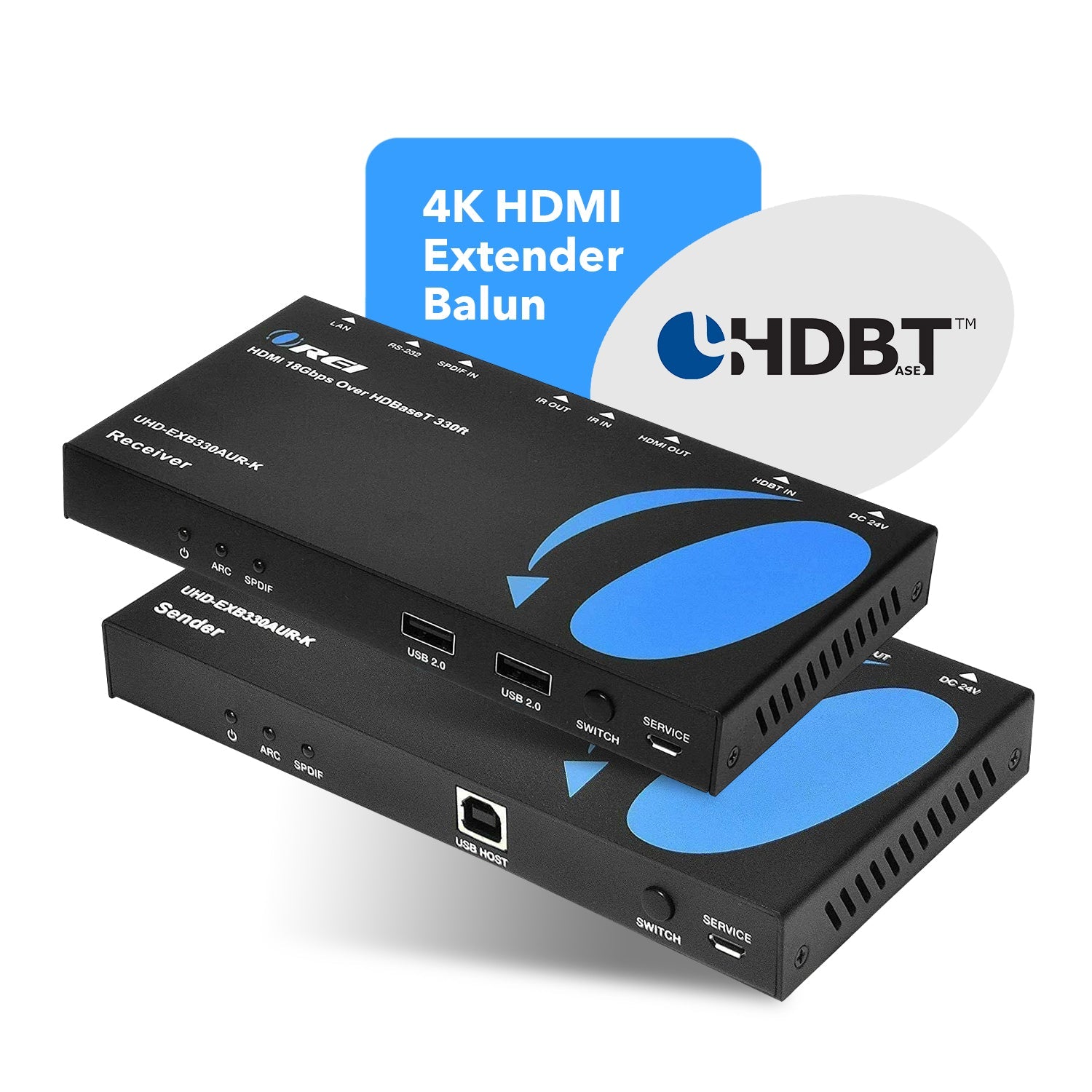

4K HDBaseT HDMI™ EXTENDER (ARC, LAN & KVM) - 330FT (CAT6)
Key Features:

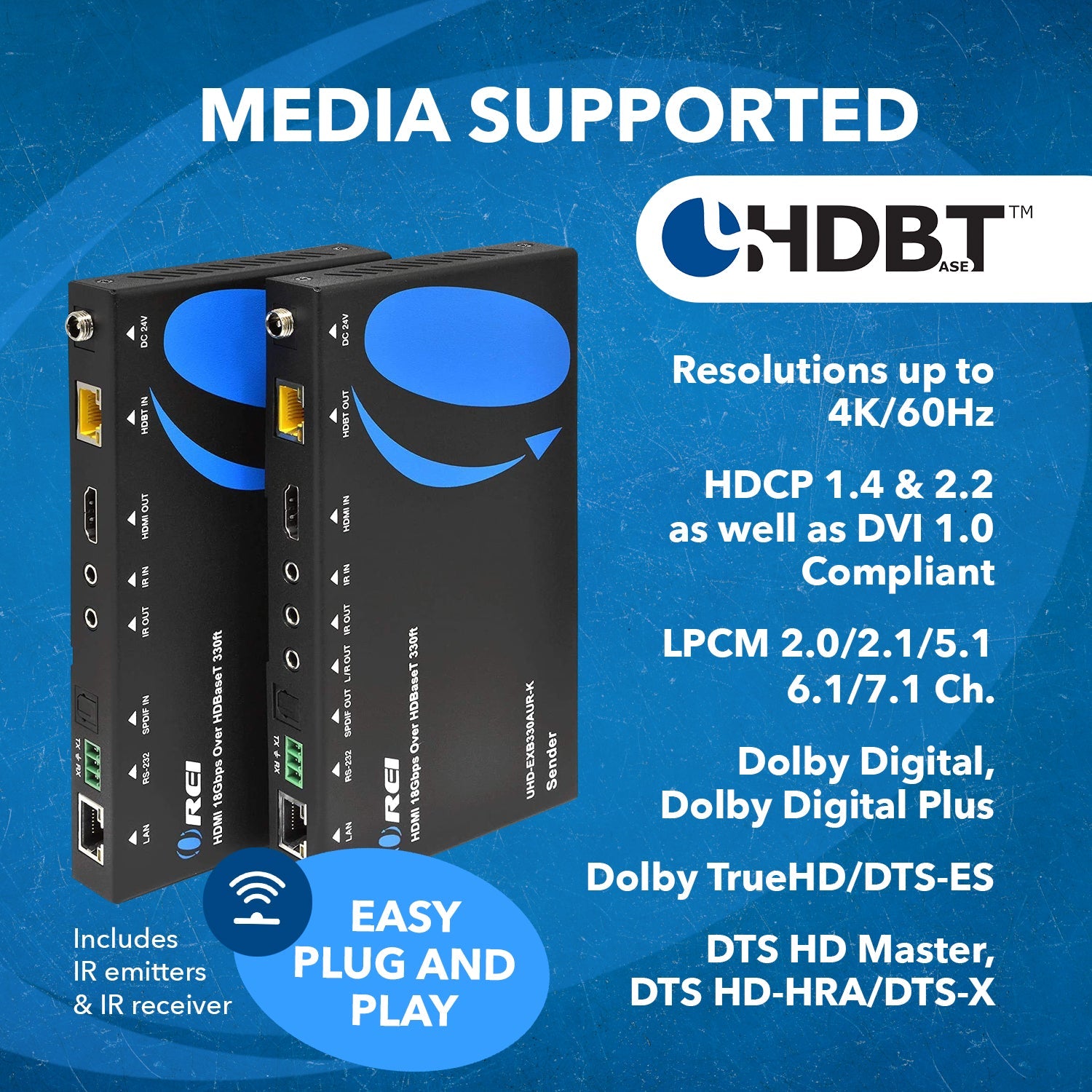

- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Video resolution is up to 4k2k@60Hz YUV 4:4:4
- The maximum transmission distance is 328ft / 100 meters via a single CAT6a/7 cable
- Support ARC (Audio Return Channel) function
- With bi-directional IR, RS-232 and CEC pass-through
- Support USB KVM function
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support POC (Power over Cable) function
- Compact design for easy and flexible installation

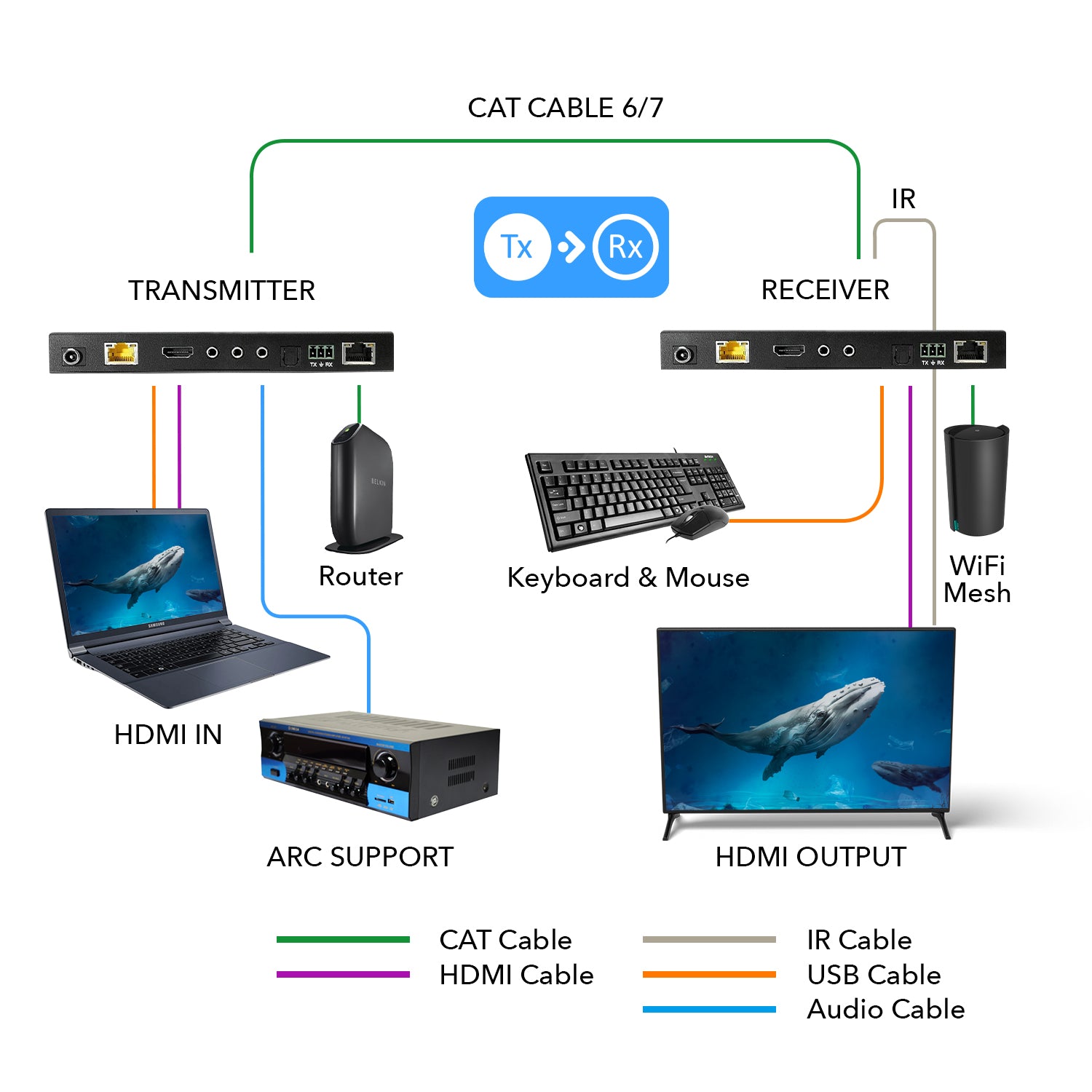

This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft / 100 meters between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. The transmitter supports ARC function and local audio extract. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control. It also supports USB KVM and POC function.
The extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for any application.
[tab]
CONNECTIVITY
| Transmitter: | Input: | 1x HDMI Type A [19-pin female] |
| Output: | 1x HDBT OUT [RJ45, 8-pin female] | |
| 1x SPDIF OUT [S/PDIF] | ||
| 1×L/R OUT [3.5mm Stereo Mini-jack] | ||
| 1×LAN [RG45] | ||
| Control: | 1x IR IN [3.5mm Stereo Mini-jack] | |
| 1x IR OUT [3.5mm Stereo Minijack] | ||
| 1x RS-232 [Phoenix jack] | ||
| 1x SERVICE [Mini-USB, Update port] | ||
| 1×USB HOST [USB Type B] | ||
| Receiver: | Input: | 1x HDBT IN [RJ45, 8-pin female] |
| 1x SPDIF IN [S/PDIF] | ||
| Output: | 1x HDMI Type A [19-pin female] | |
| 1x LAN [RG45] | ||
| Control: | 1x IR IN [3.5mm Stereo Mini-jack] | |
| x IR OUT [3.5mm Stereo Mini-jack] | ||
| 1x RS-232 [Phoenix jack] | ||
| 1x SERVICE [Mini-USB, Update port] | ||
| 2×USB 2.0 [USB Type A] |
PACKAGE CONTENTS
| 1x 18Gbps HDMI over HDBaseT Extender (Transmitter) |
| 1x 18Gbps HDMI over HDBaseT Extender (Receiver) |
| 1x IR Blaster cable (1.5 meters) |
| 1x 20~60KHz IR Receiver cable (1.5 meters) |
| 4x Mounting Ear |
| 2x 3-pin Phoenix connector |
| 1x 24V/1A Locking Power adapter |
| User Manual |
ADDITIONAL FEATURES
| ARC/eARC: | ✅ |
| CEC : | ✅ |
| Transmission Technology : | HDBaseT |
| IR Control: | Yes, Bi-directional |
| PoC (Power over Cable): | ✅ |
| RS-232: | ✅ |
| USB Standard: | ❌ |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ✅ |
COMPLIANCES
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
POWER
| Power Consumption: | 13W |
| Power Supply: | Input: AC 100 - 240V 50/60Hz |
| Output: DC 24V/1A (Locking connector) |

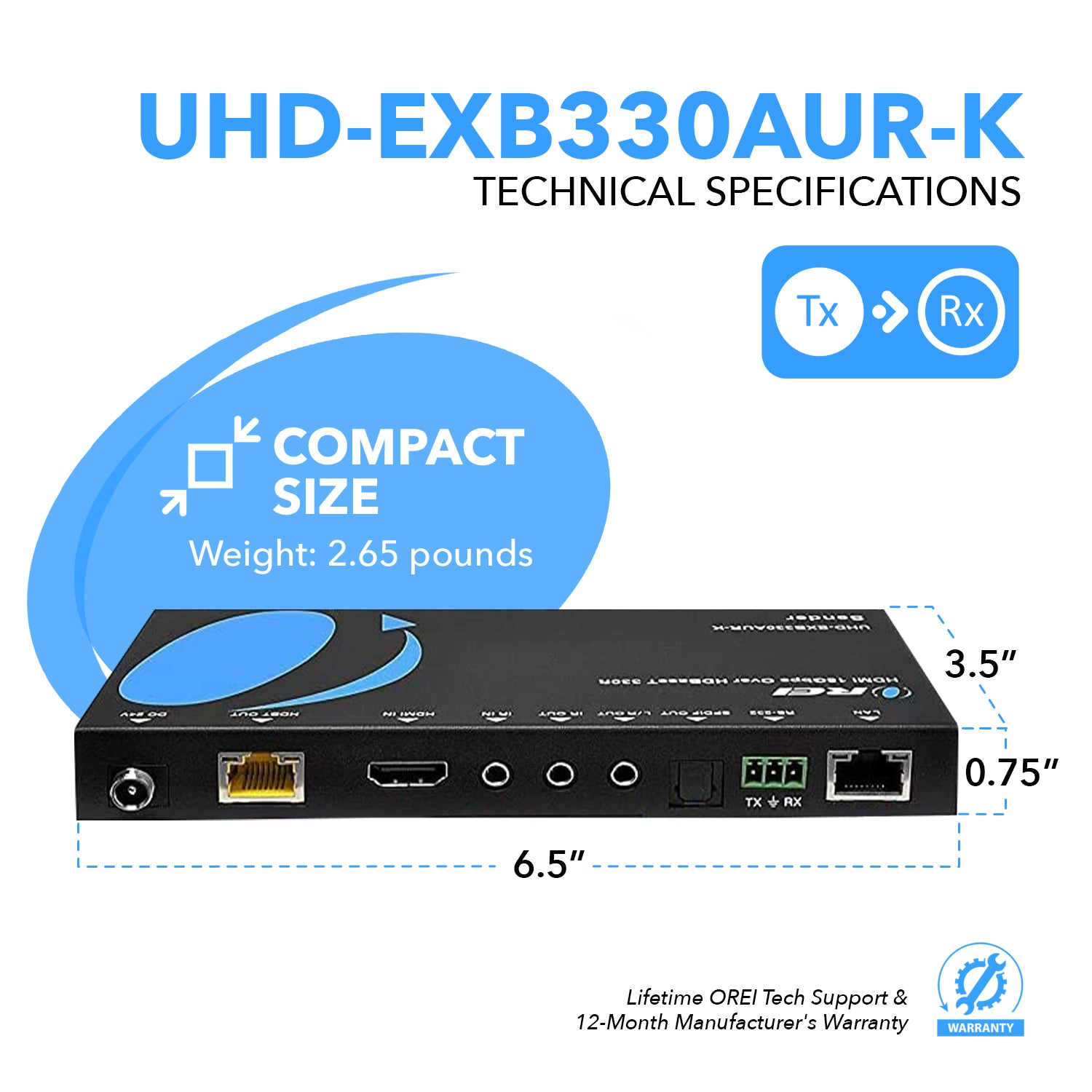

DIMENSIONS & WEIGHT
| Sender / Receiver: | Length: | 165mm / 6.50in |
| Width: | 88mm / 3.46in | |
| Height: | 18mm / 0.70in | |
| Weight: | 335g / 0.74lb |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| ESD Protection: | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Operating Temperature: | 32 - 104°F / 0 - 40°C |
| Storage Temperature: | I-4 - 140°F / -20 - 60°C |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
