Description

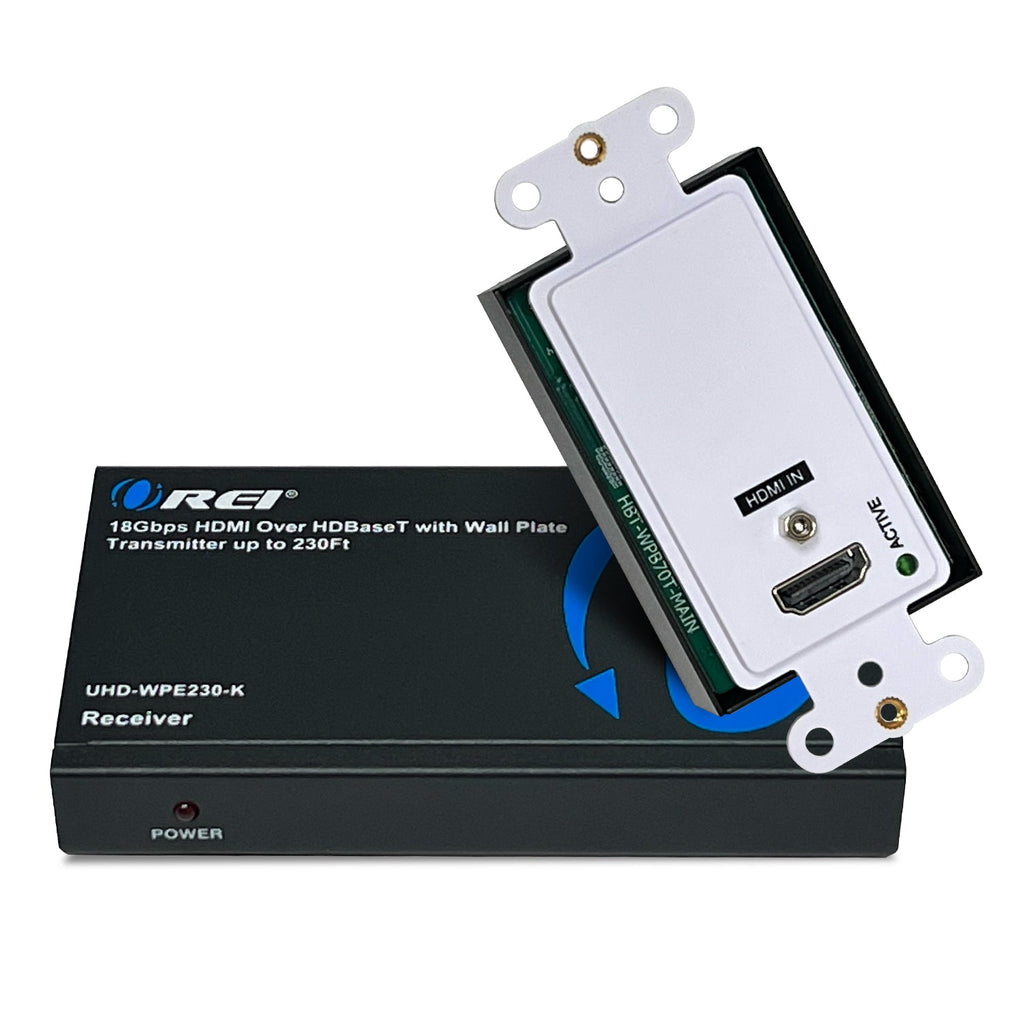

UHD-WPE230-K: 4K Wall Plate HDMI Extender over CAT 6/7 up to 230 feet with HDBaseT
Key Features:
-
HDMI 2.0 & HDCP 2.2 Compliant – Ensures compatibility with modern 4K content and copy-protected sources.
-
Supports Resolutions up to 4K@60Hz – Delivers crystal-clear UHD video for premium AV setups.
-
18Gbps Video Bandwidth – Maintains full-quality video signals with zero compression or latency.
-
Long-Distance Extension – Transmits 4K@60Hz up to 130 feet and 1080p@60Hz up to 230 feet.
-
HDBaseT Technology – Provides reliable, lossless transmission over a single cable.
-

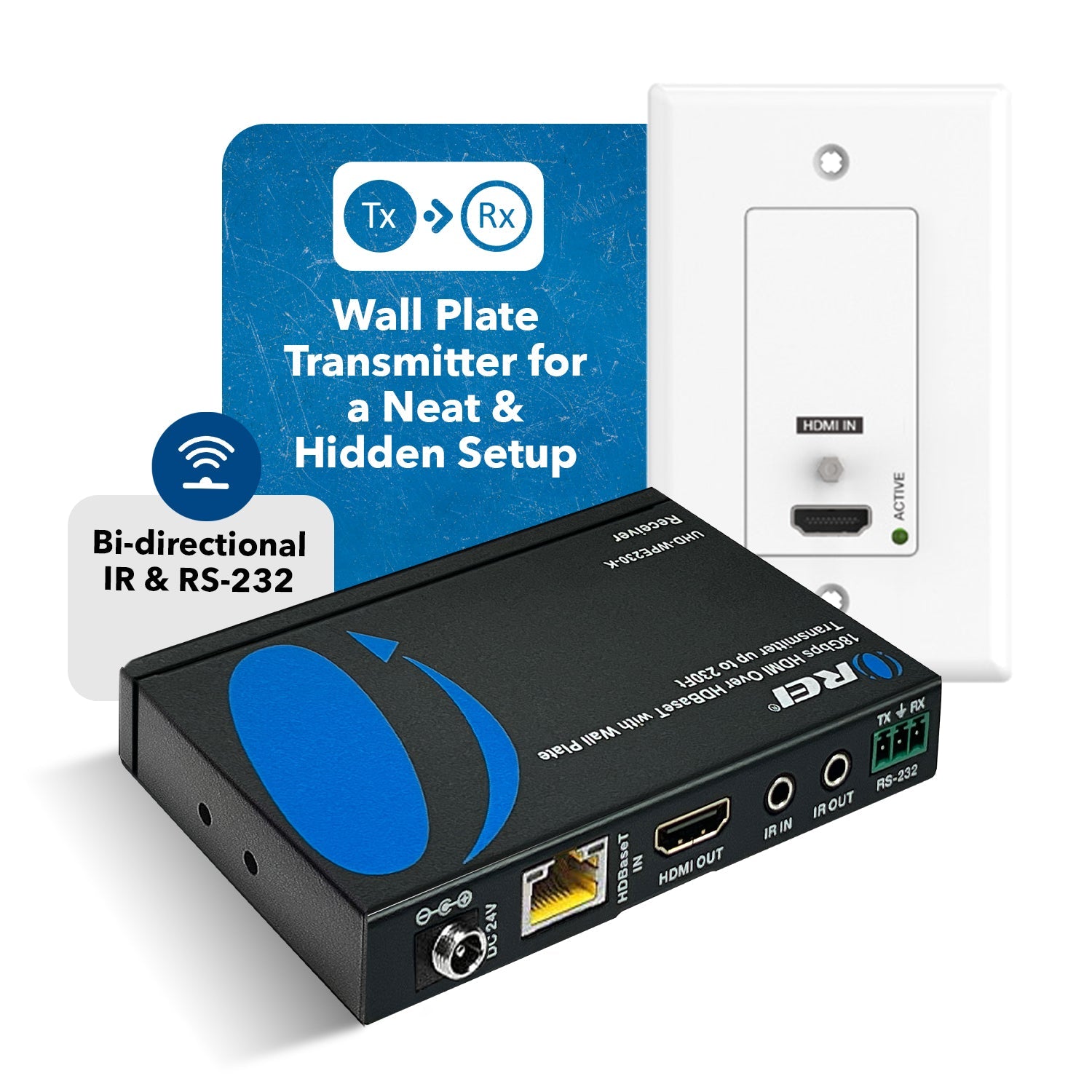

US Decora Wall Plate Design – Clean, flush-mount installation into any standard wall junction box.
-

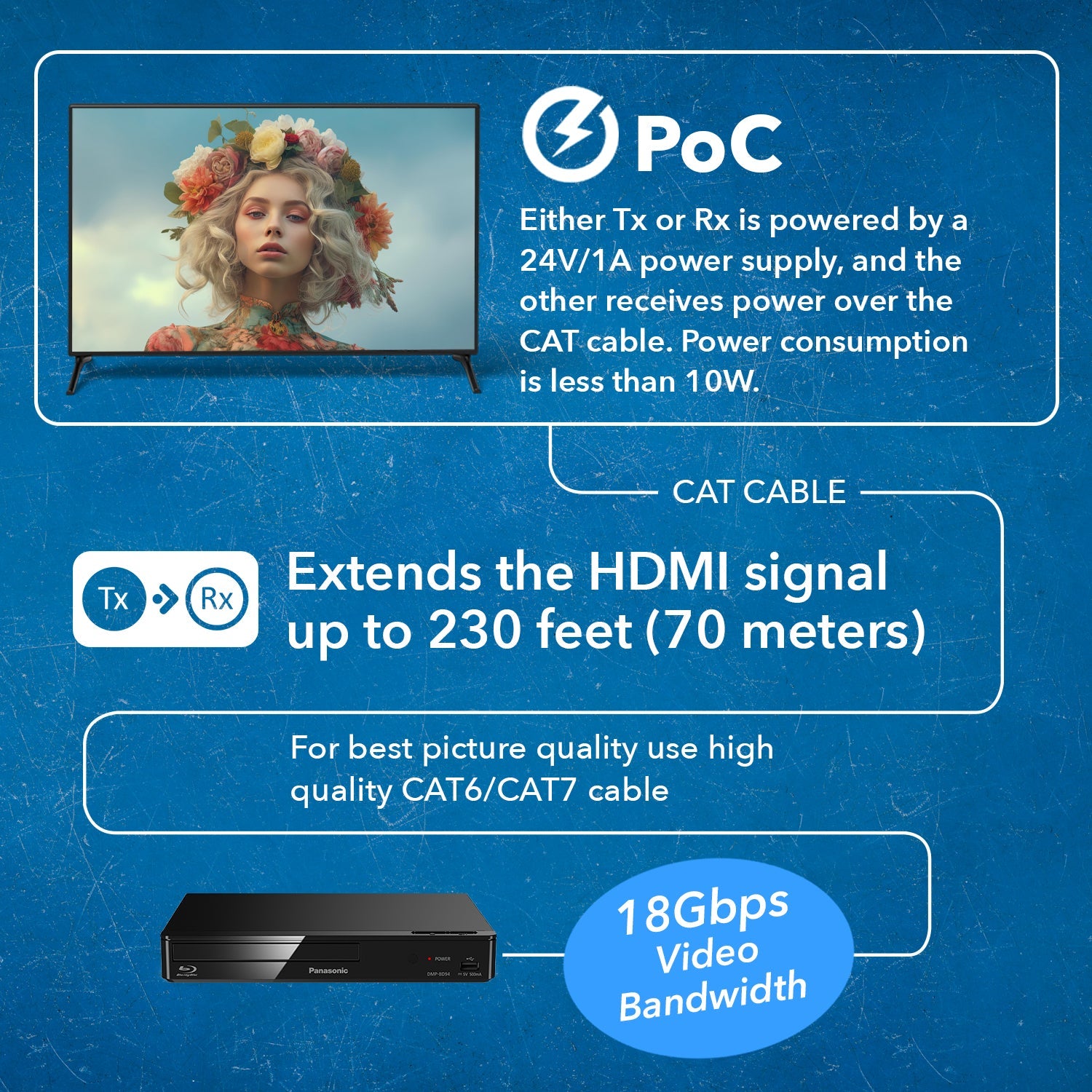

Power over Cable (PoC) – Requires only one power adapter at either the transmitter or receiver.
-
Bi-Directional IR & RS-232 Control – Enables control of connected source or display from either end.
-
Ideal for Residential & Commercial Installations – Perfect for meeting rooms, classrooms, and smart homes.

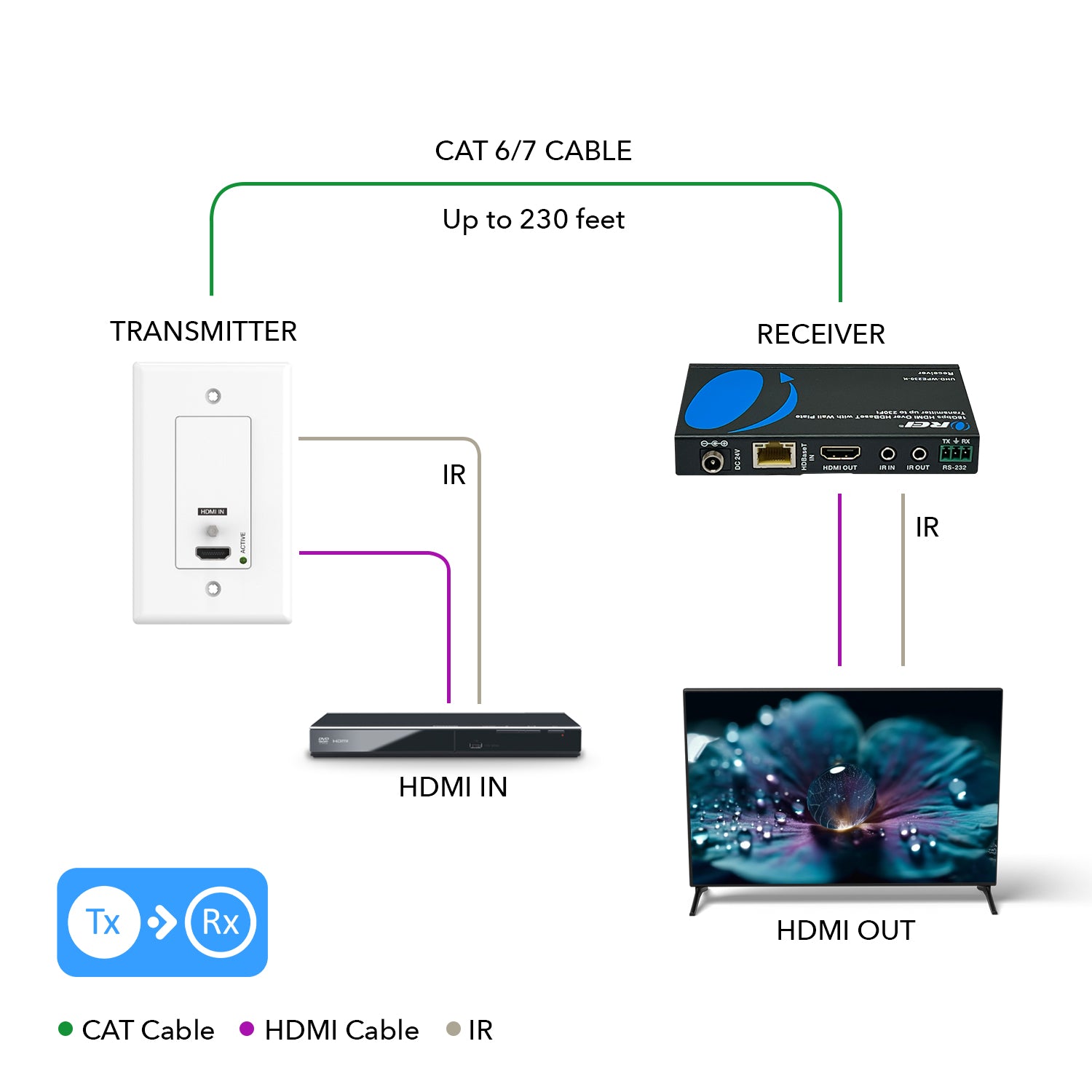

The UHD-WPE230-K HDBaseT Wall Plate Extender is a professional-grade solution for extending HDMI signals over long distances using a single CAT 6/6a/7 cable. Designed with a US Decora wall plate form factor, the transmitter fits directly into the wall for a clean, integrated installation. It supports HDMI 2.0 and HDCP 2.2 standards, delivering resolutions up to 4K@60Hz (4:4:4) and 18Gbps video bandwidth for pristine picture quality. Media can be extended up to 130 feet at 4K@60Hz or up to 230 feet at 1080p@60Hz, making it suitable for conference rooms, classrooms, and residential AV setups. With Power over Cable (PoC) support, only one power adapter is needed at either the transmitter or receiver end. This model also includes bidirectional IR and RS-232 pass-through for full system control.
[tab]

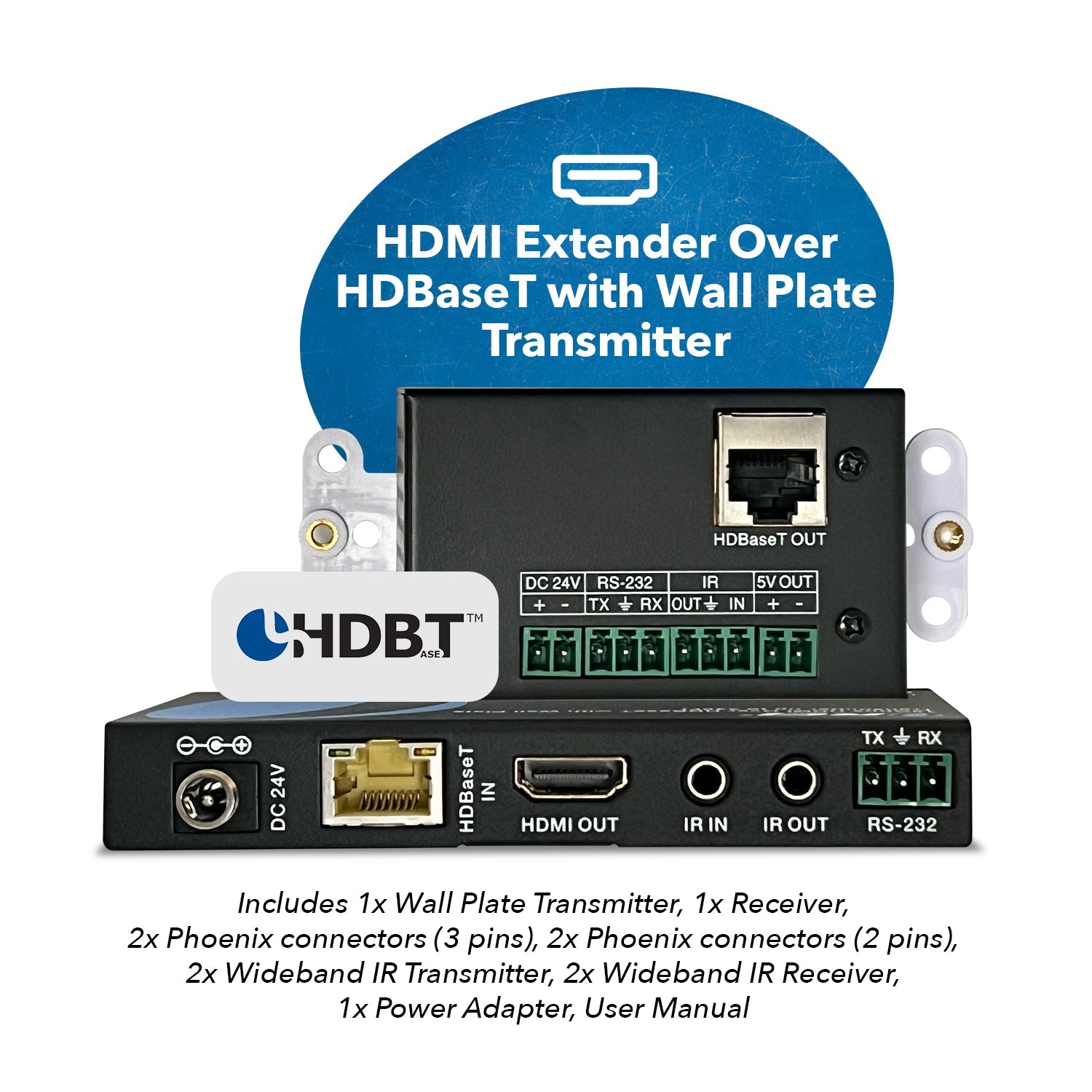

CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDBT [RJ45, 8-pin female] | |
| 1 × IR IN / OUT [3-pin Phoenix connector] | ||
| CONTROL: | 1 × RS-232 [3-pin Phoenix connector] | |
| Receiver: | INPUT: | 1 × HDBT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin phoenix connector] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 2x IR Blaster cable |
| 2x IR Receiver cable |
| 2x RS-232 2-pin Phoenix connector |
| 2x RS-232 3-pin Phoenix connector |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 130 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| ARC/eARC: | ❌/❌ |
| CEC : | ❌ |
| Transmission Technology : | HDBaseT |
| IR Control: | ✅, Bi-directional |
| PoC (Power over Cable): | ✅ |
| RS-232: | ✅ |
| USB Standard: | ❌ |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ❌/❌/❌ |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 9W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/1A |

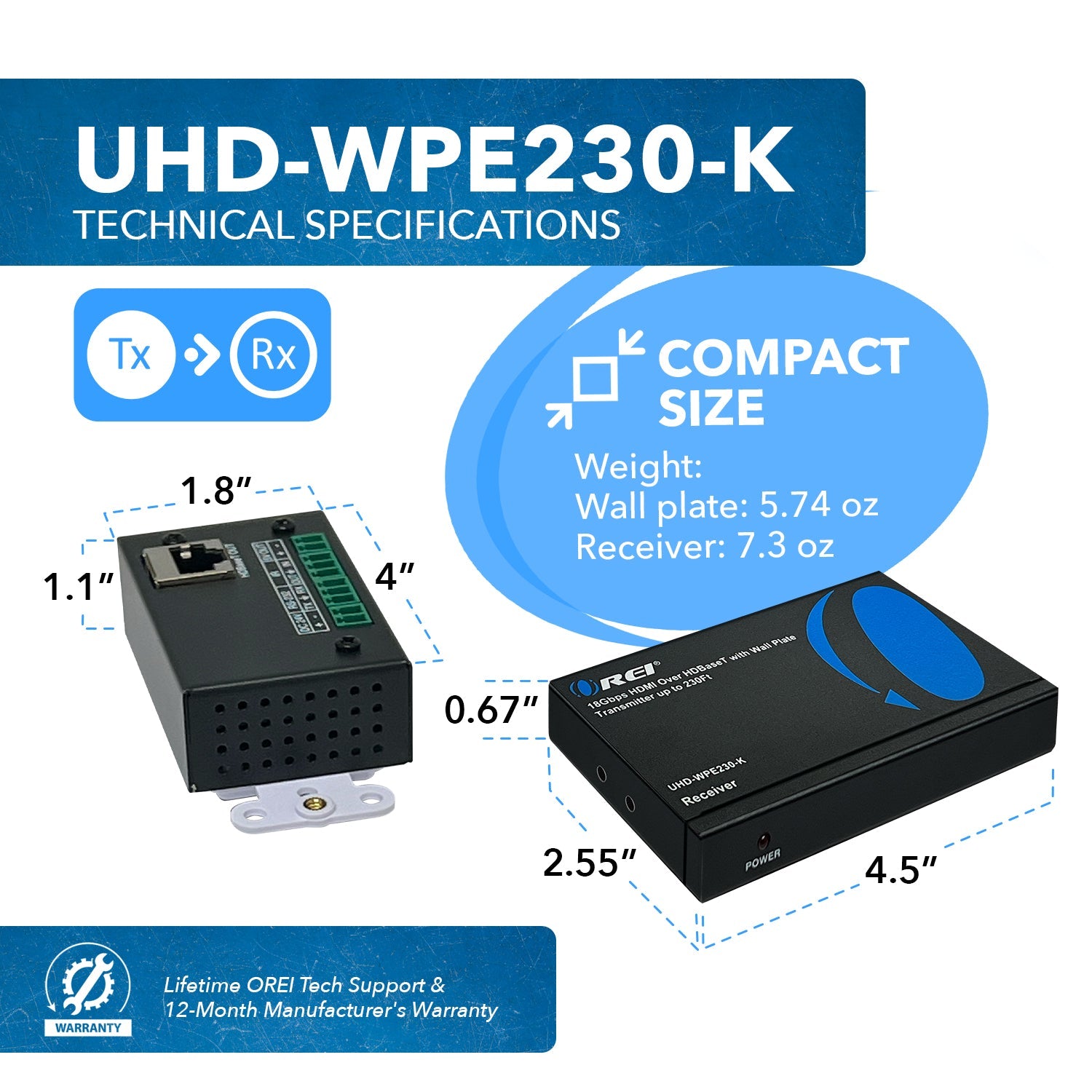

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 103.5mm / 4.07in |
| Width: | 46mm / 1.81in | |
| Height: | 30mm / 1.18in | |
| Weight: | 163g / 5.74oz | |
| Receiver: | Length: | 115mm / 4.52in |
| Width: | 65mm / 2.55in | |
| Height: | 17mm / 0.6in | |
| Weight: | 207g / 7.3oz |
PROPERTIES
| Color: | Black (Receiver), White (Transmitter) |
| Housing: | Metal Enclosure |
| Operation Temperature: | 32~104°F / 0~40°C |
| Storage Temperature: | -4~140°F / -20~60°C |
| Operating Humidity: | 20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-WPE230-K
[/tab1]
[shortdes]
- Bi-directional IR control
- 4K@60Hz up to 130 feet
- Wall Plate Transmitter
[/shortdes]
