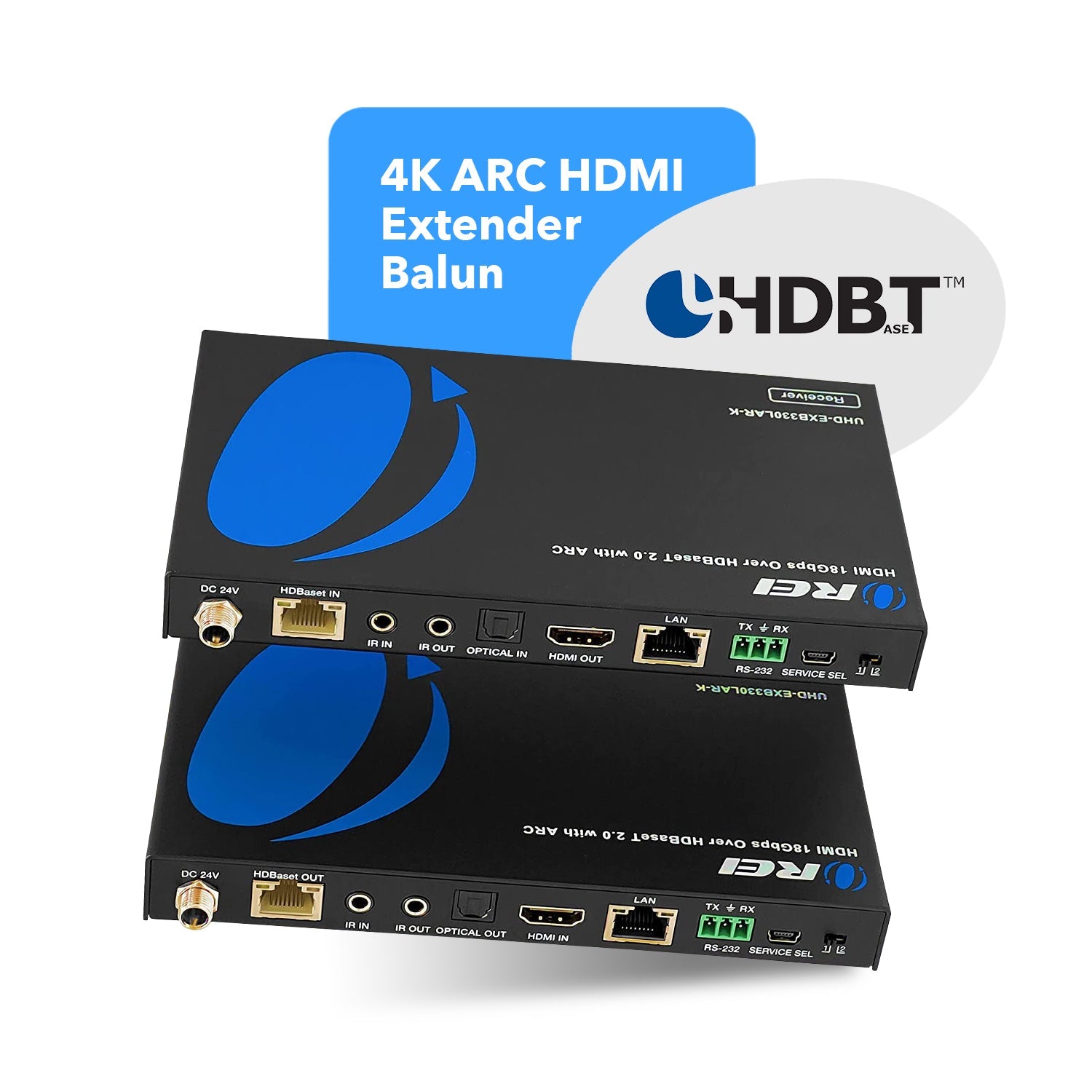

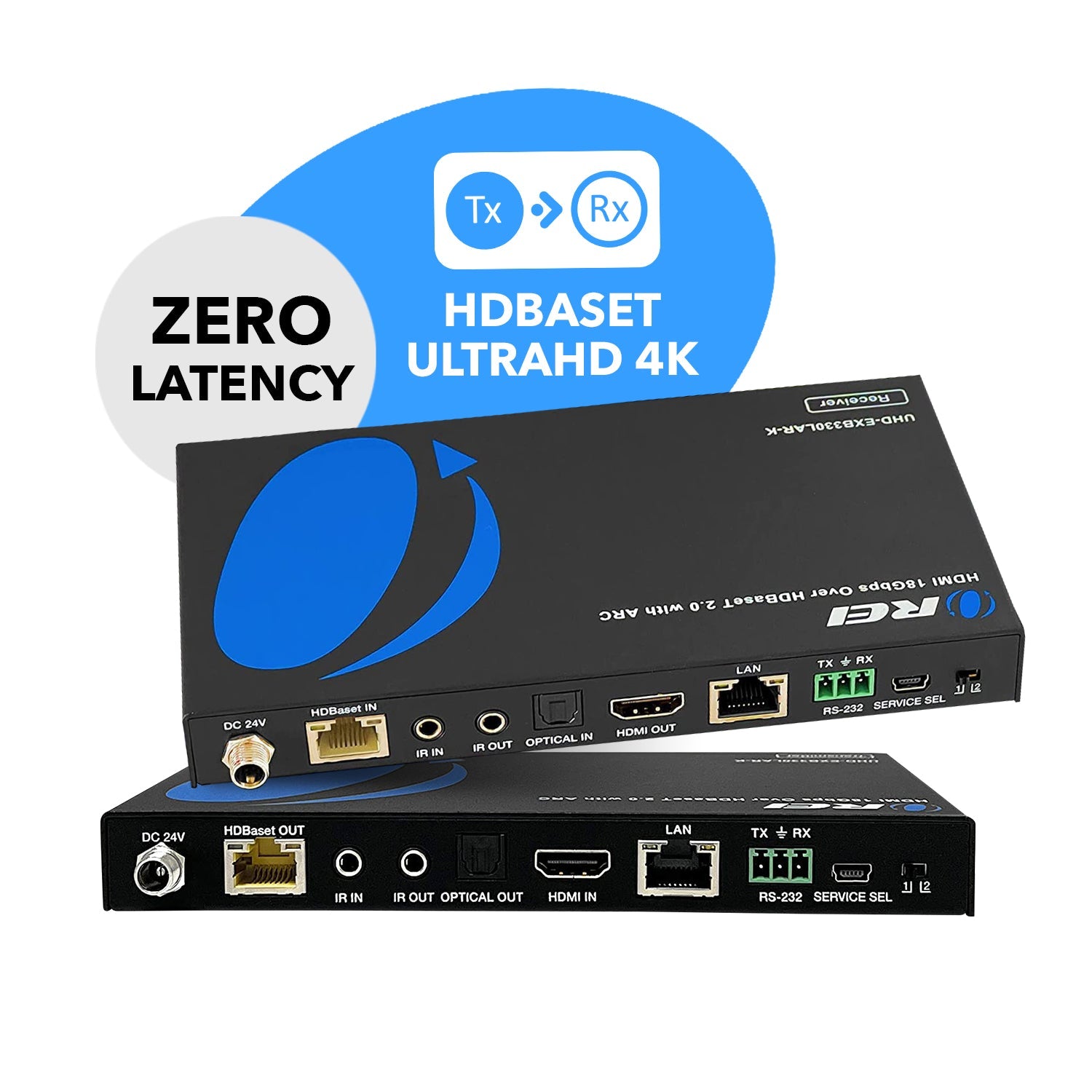

OREI UHD-EXB330LAR-K HDMI Extender up to 330 Feet
Key Features:
- HDMI 2.0b, HDCP 2.2 & HDCP 1.4 compliant
- Supports video resolutions up to 4K@60Hz (4:4:4:), 4K@30Hz & 1080p@120Hz
- Audio up to 7.1 Channels of High-Definition audio pass through (LPCM, Dolby TrueHD & DTS-HD Master Audio)
- Supports HDBaseT 2.0 over a single CAT6/7 cable up to 330ft
- Supports ARC & CEC
- 5-Play convergence: HD video & audio, IR/RS-232/Ethernet/PoC
- Two-Way PoC (Power Over Cable), either TX or RX powered by 24V/1A, the other one doesn't need power supply
- This unit requires only one power adapter to work

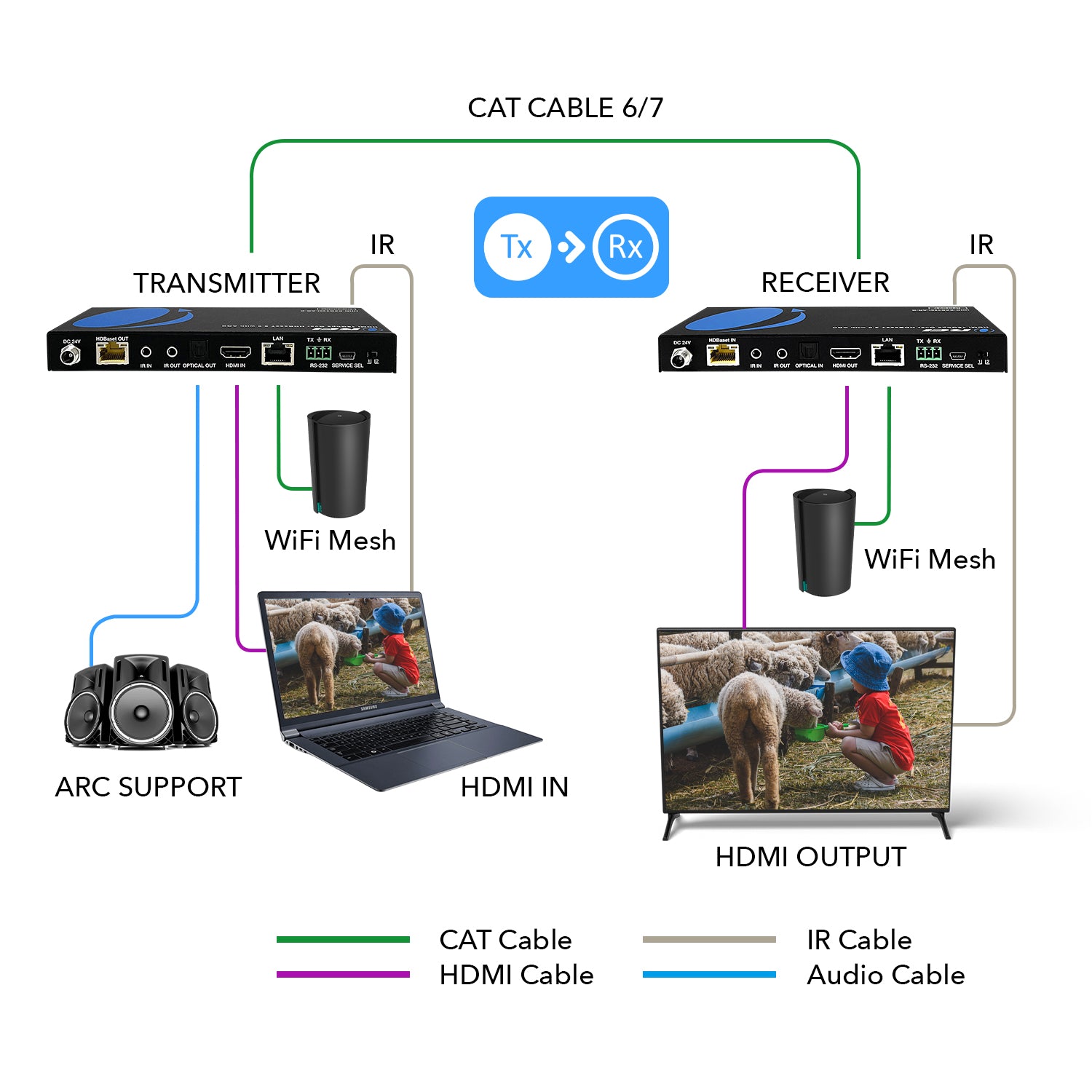

The HDBaseT HDMI extender enables transmission of video resolutions up to 4K@60Hz (YUV 4:4:4) along with HD audio, dedicated optical audio pathways, HDBaseT Ethernet, Two-Way IR, RS-232, 24V PoC & ARC signals up to 330ft.
ARC function enables audio from a compatible display to be routed back from the receiver unit to the transmitter. The latest HDBaseT 2.0 technology can make your home or office set up more efficient and easier to use.
[shortdes]
- Supports audio up to 7.1Ch
- Supports Bi-directional IR, PoC, ARC, RS-232
- Extends signals up to 330 feet
[/shortdes] [tab]
AUDIO AND VIDEO

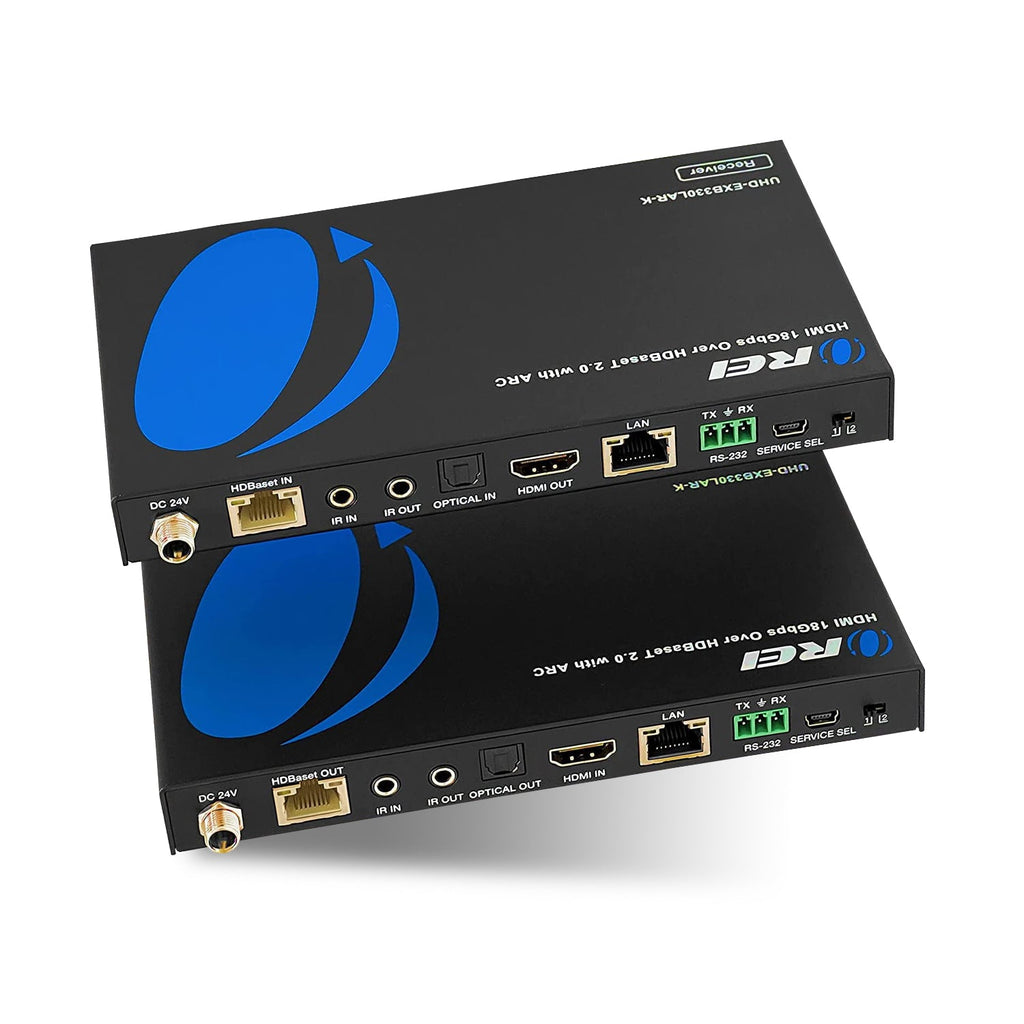

| Transmitter: |
INPUT PORTS: |
1x HDMI Type A [19-pin female] |
|
|
1x IR In [3.5mm Stereo Mini-Jack] |
|
|
1x LAN [RJ45] |
|
OUTPUT PORTS: |
1x HDBaset Out [RJ45] |
|
|
1x IR Out [3.5mm Stereo Mini-Jack] |
|
|
1x Optical Out [S/PDIF] |
| Receiver: |
INPUT PORTS: |
1x HDBaseT In [RJ45] |
|
|
1x IR IN [3.5mm Stereo Mini-Jack] |
|
|
1x Optical In [S/PDIF] |
|
OUTPUT PORTS: |
1x HDMI Type A [19-pin female] |
|
|
1x IR Out [3.5mm Stereo Mini-Jack] |
|
|
1x LAN [RJ45] |
COMPLIANCES
| HDMI Compliance: |
HDMI 2.0b |
| HDCP Compliance: |
HDCP 2.2 and HDCP 1.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
ADDITIONAL FEATURES
| ARC/eARC: |
Yes/No |
| CEC : |
Yes |
| Transmission Technology : |
HDbaseT, Ethernet |
| IR Control: |
Yes, Bi-directional |
| PoC (Power over Cable): |
Yes |
| RS-232: |
Yes |
| USB Standard: |
No |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
No |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 4K@60Hz (4:4:4), 4K@30Hz, 1080p@120Hz, 1080p 3D@60Hz |
| Color Space: |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth: |
8-bit, 10-bit, 12-bit |
AUDIO OUTPUT
| HDMI Audio Formats: |
LPCM 2/5.1/7.1Ch, Dolby Digital, DTS, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
SIGNALS
| TMDS Signals: |
3.3V |
| DDC Signals: |
5V |

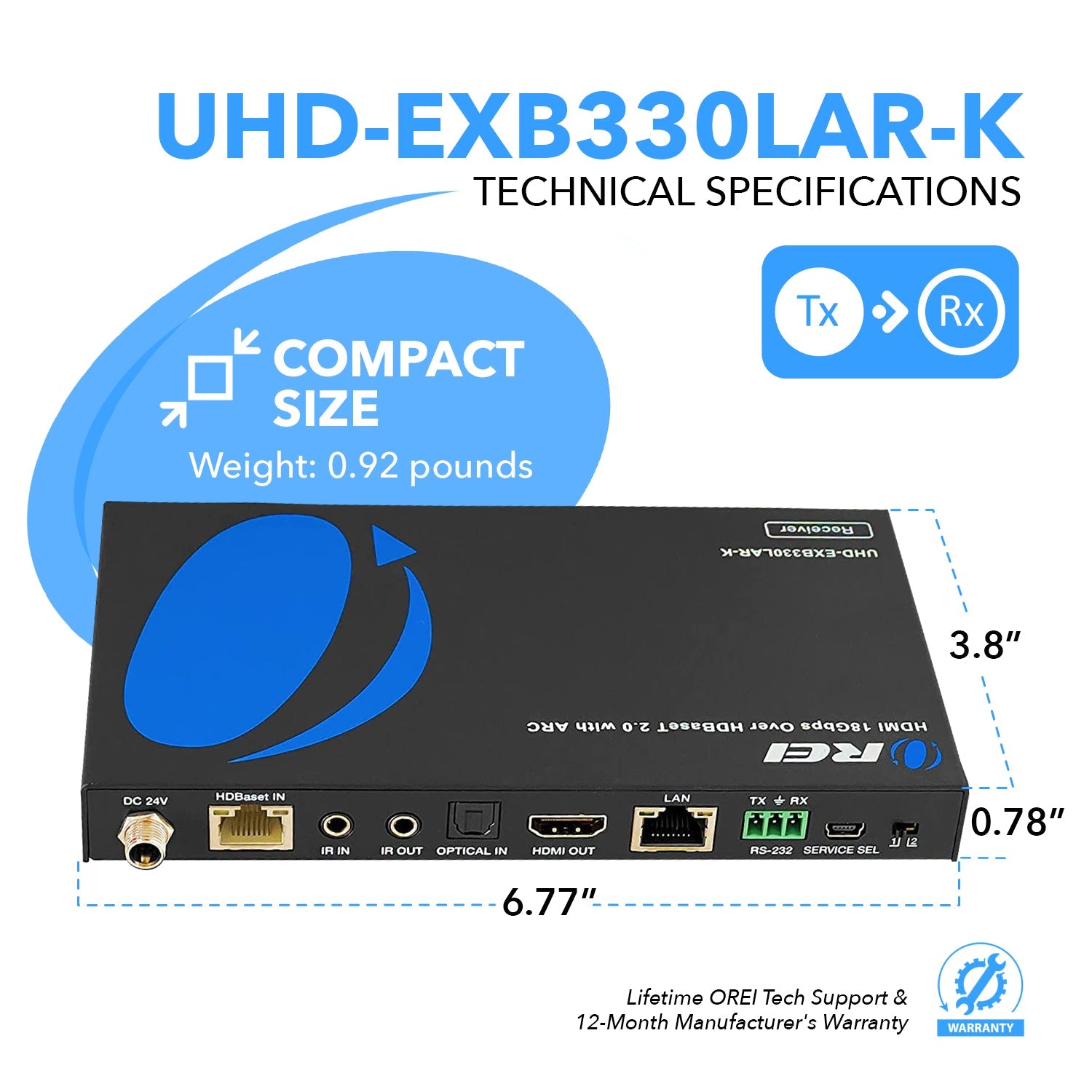

DIMENSIONS & WEIGHT
| Height: |
20mm |
| Width: |
172mm |
| Depth: |
97.5mm |
| Weight: |
Transmitter: |
420g |
|
|
Receiver: |
425g |
PROTECTION
| ESD Protection: |
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Electrostatic Protection of the whole Machine: |
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
RJ-45 CONNECTOR Type
POWER
| Power Consumption (Max): |
11W |
|
|
|
|
| Power Supply: |
Input: |
AC100 - 240V 50/60Hz |
|
Output: |
DC 24V/1A (US/EU standards, CE/FCC/UL Certified) |
PHYSICAL PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: |
20~90% RH (non-condensing) |
PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 2x Wideband IR TX |
| 2x Wideband IR RX |
| 1x 24V/1A DS Power Supply |
| 4x Mounting ears |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
