Description

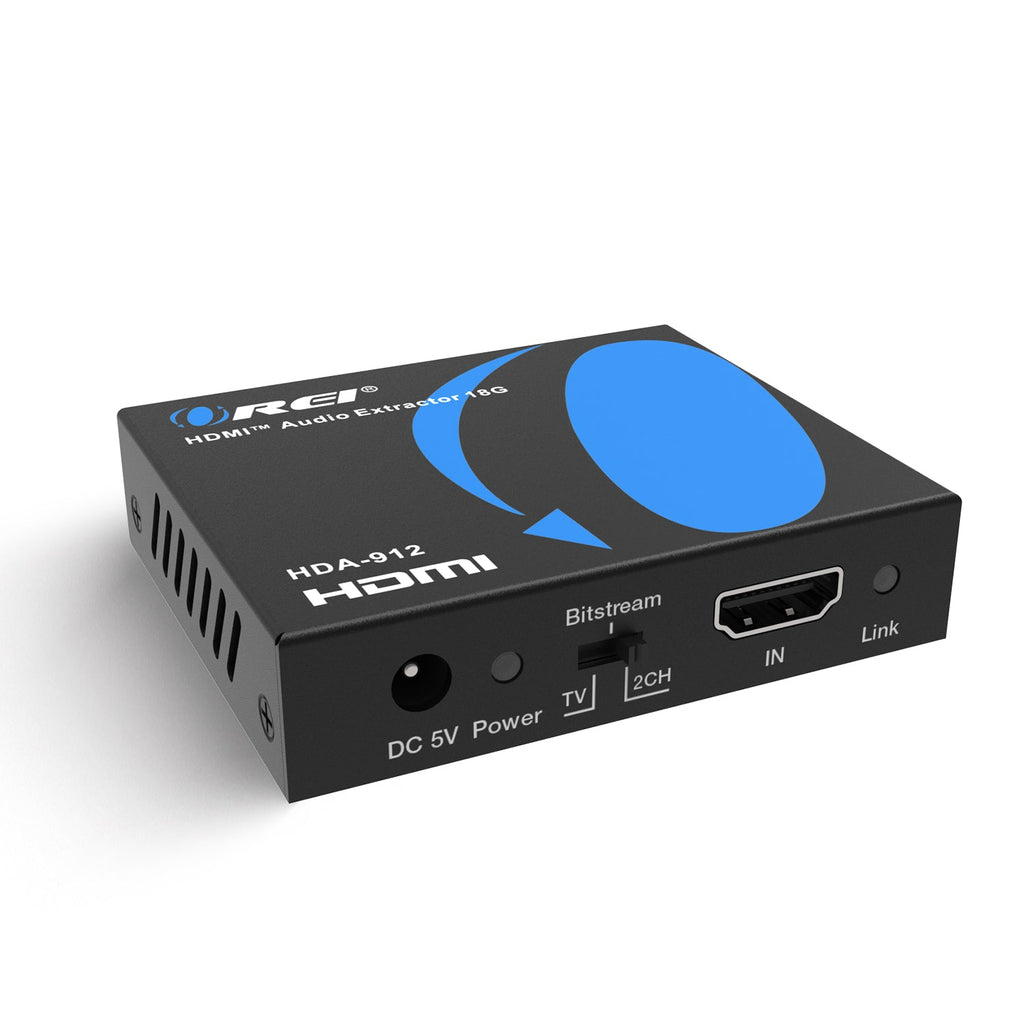

OREI HDA-912: HDMI Audio Extractor Converter
-
HDMI 2.0b & HDCP 2.2 Compliant.
-
18Gbps video Bandwidth.
-
Video resolution up to 4K@60hz 4:4:4 12bit and 2k@60Hz.
-
10bit HDR pass-through for enhanced color quality
-
Digital and Analog audio output through Optical and Analog ports.
-
High bit rate HDMI audio pass-through
-
Audio sampling rates up to 192kHz
-
Compact and robust design

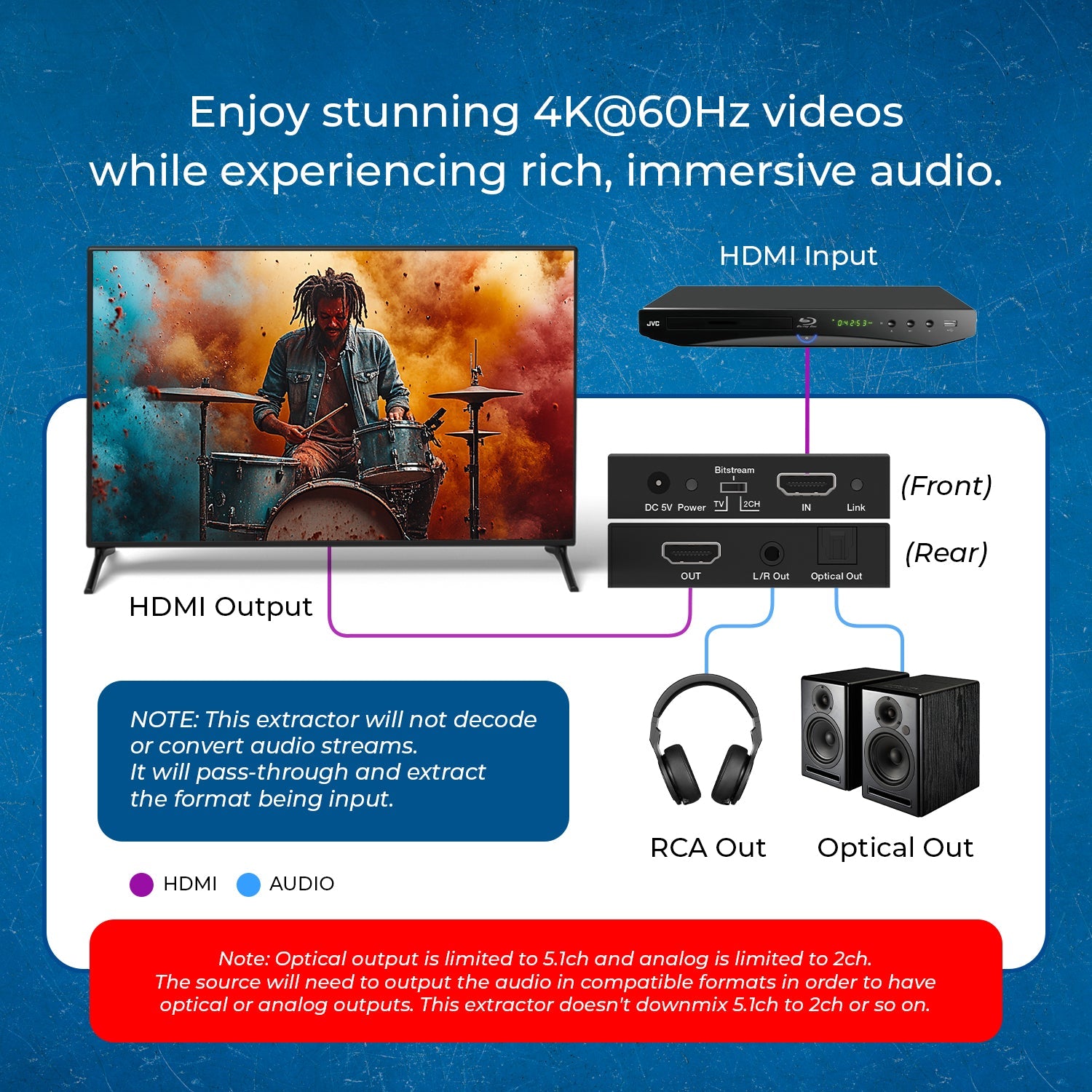

The HDA-912 is an HDMI audio extractor that extracts audio from any HDMI-compliant source, such as a media box or set-top box and provides digital and analog output via optical and L/R ports. This audio extractor supports pass-through for video resolutions up to 4K@60Hz and 2k@60Hz. The optical port supports LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH audio formats, while the L/R port supports analog stereo 2CH audio format. It features 10-bit HDR pass-through and audio sampling rates up to 192kHz. Compact design, perfect for both commercial and personal setups.
Surge protection device recommended
This product contains sensitive electricals components that may be damaged by
electrical spikes, surges, electric shocks, lightning strikes, etc. Use of surge protection
systems is highly recommended to protect and extend the life of your equipment.
[shortdes]
-
4K HDMI Audio Extractor With Optical and L/R Output
-
Resolutions up to 4K@60Hz and 2k@60Hz
-
10 Bit HDR pass-through
[/shortdes]
[tab]

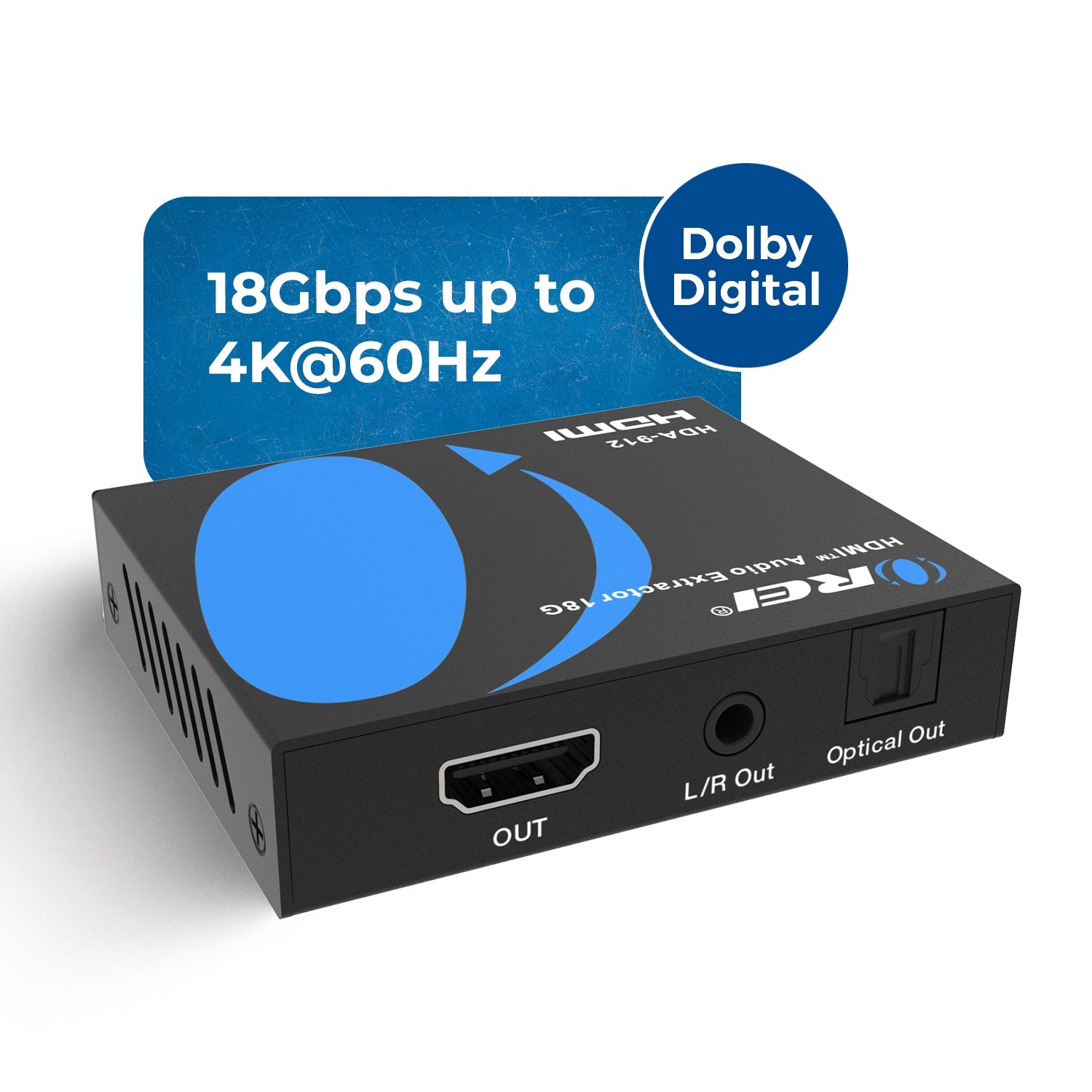

CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × Optical [S/PDIF] |

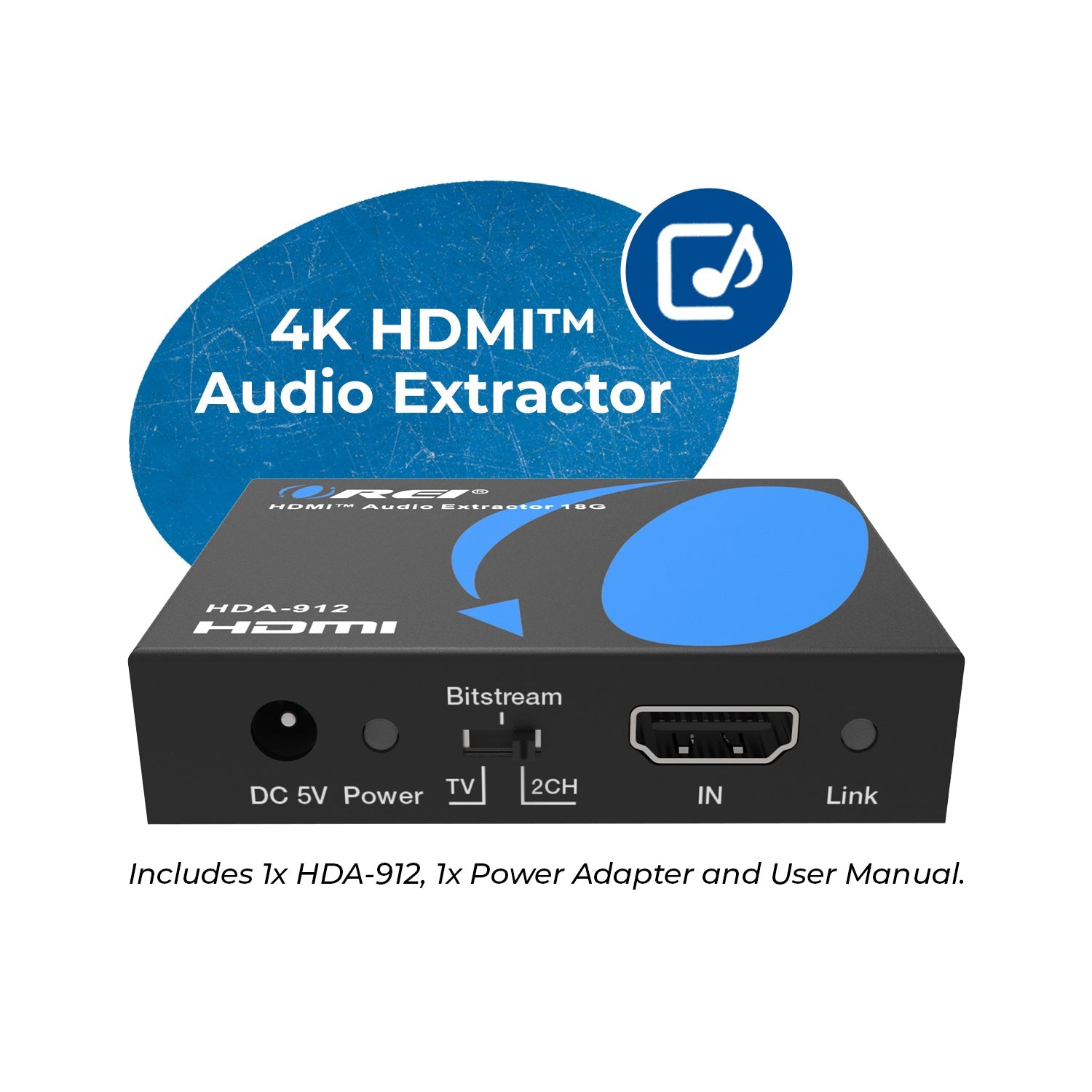

PACKAGE CONTENTS
| 1x HDA-912 Audio Extractor |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 25 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2k@60Hz |
ADDITIONAL FEATURES
| CEC: | No |

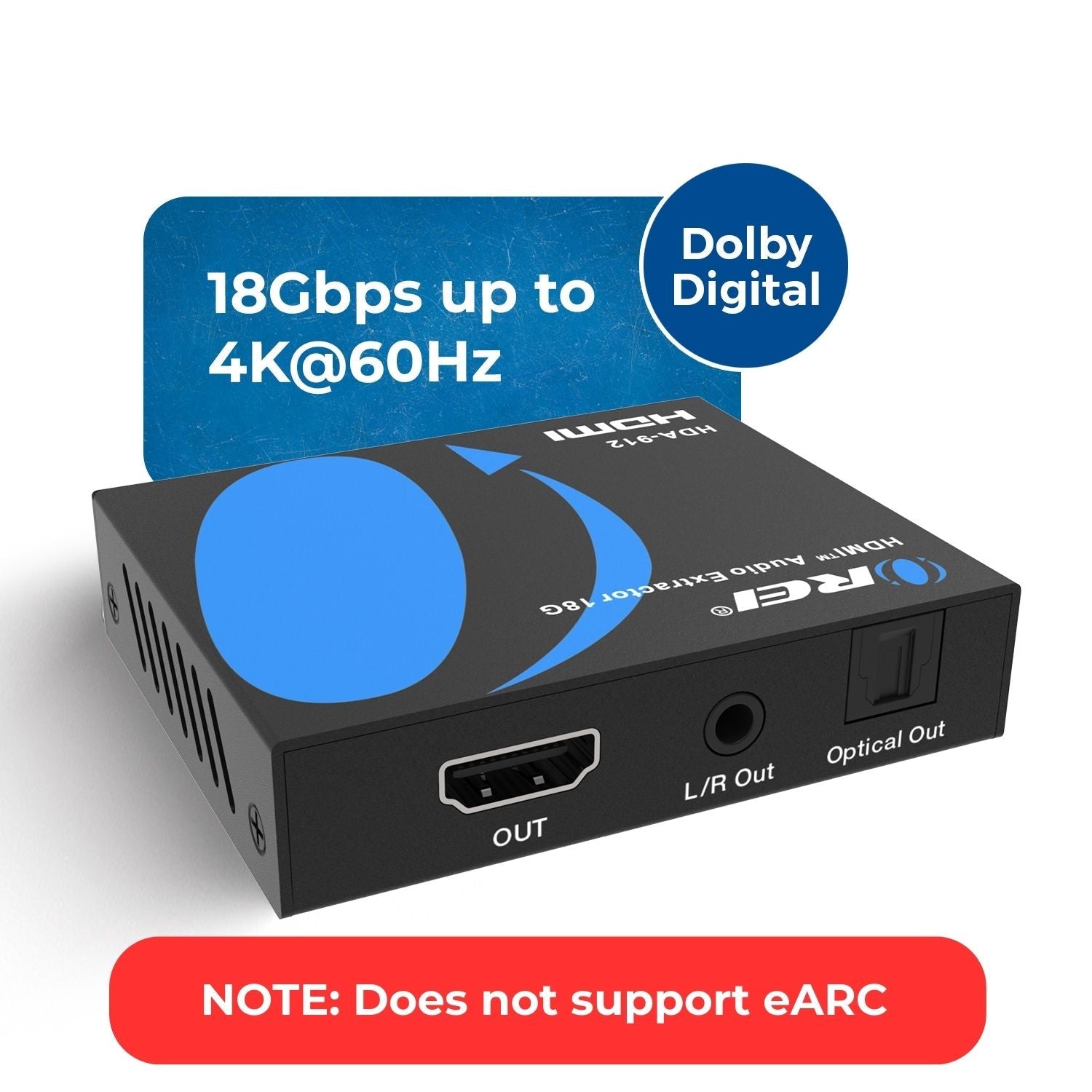

| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |

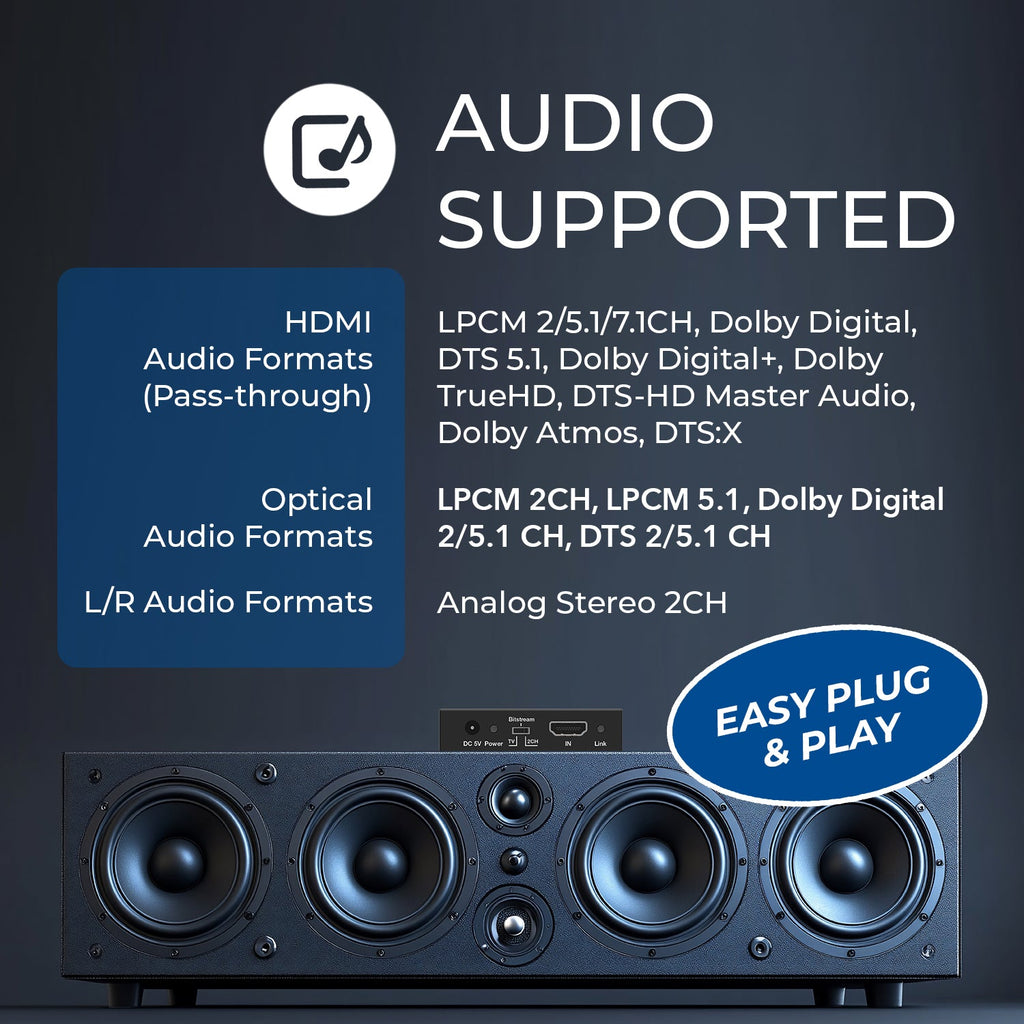

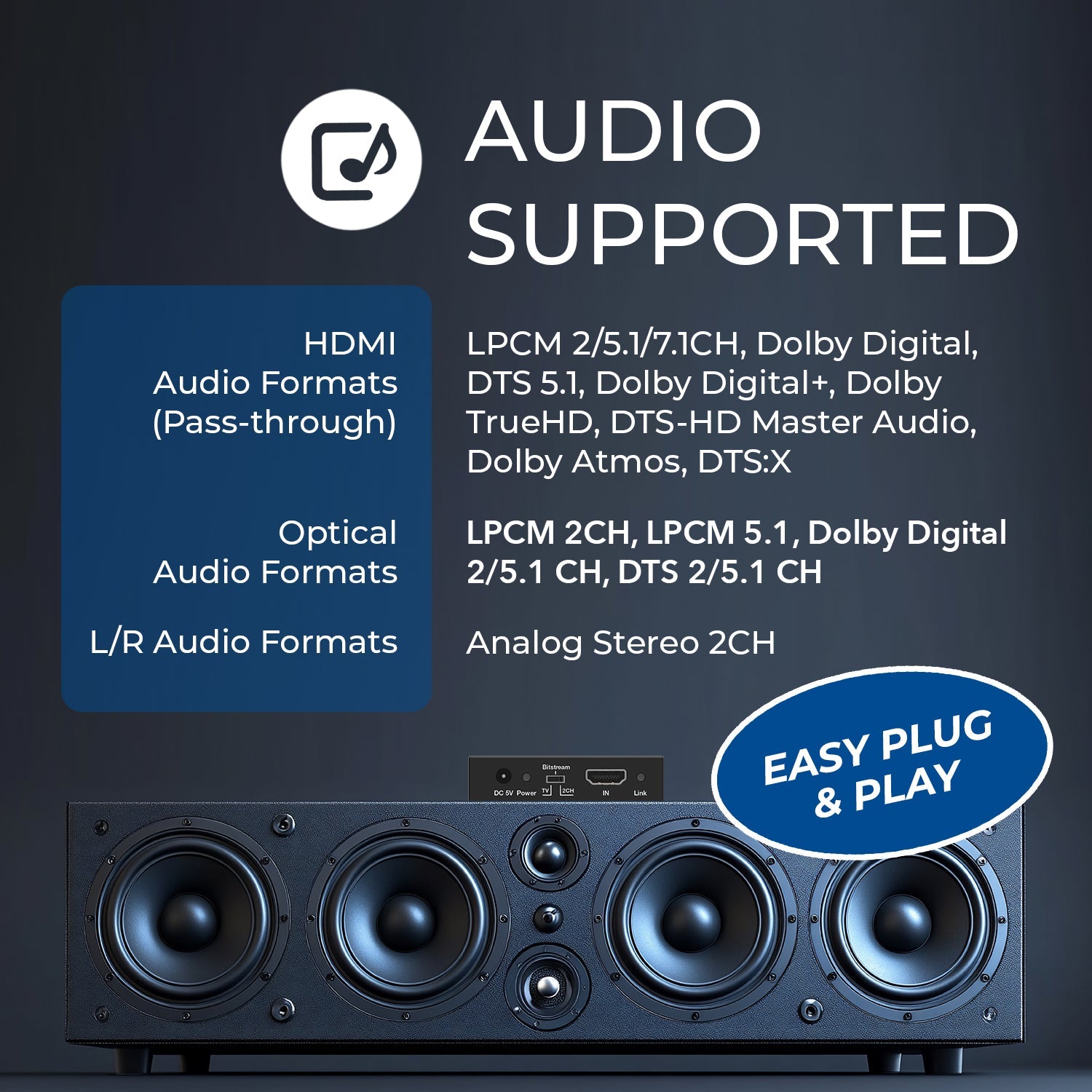

AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats: | LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| L/R Audio Formats: | LPCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 1W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |

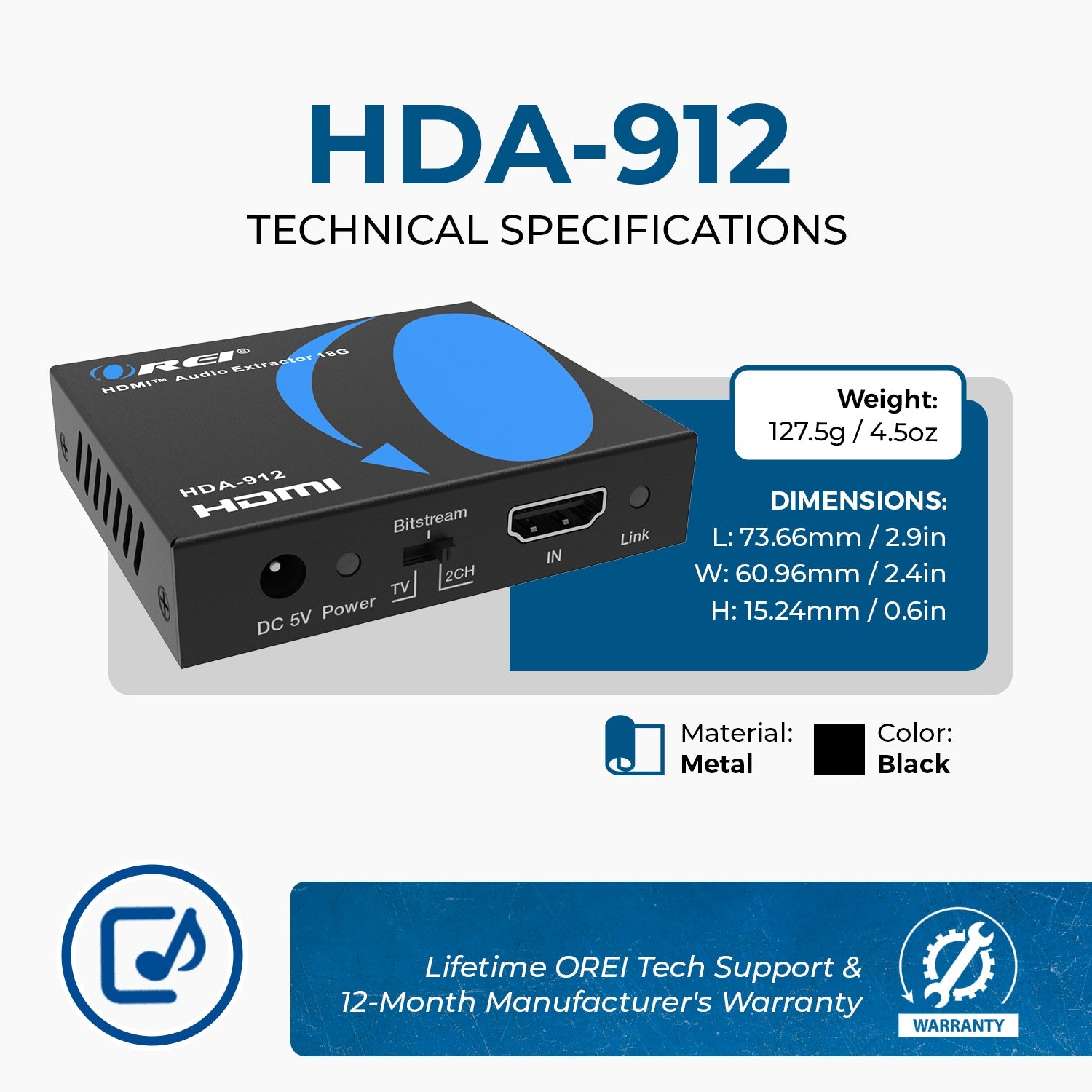

DIMENSIONS & WEIGHT
| Length: | 73.5mm / 2.89in | |
| Width: | 60.7mm / 2.34in | |
| Height: | 17mm / 0.67in | |
| Weight: | 130g / 4.59oz |
PROPERTIES
| Color: | Black |

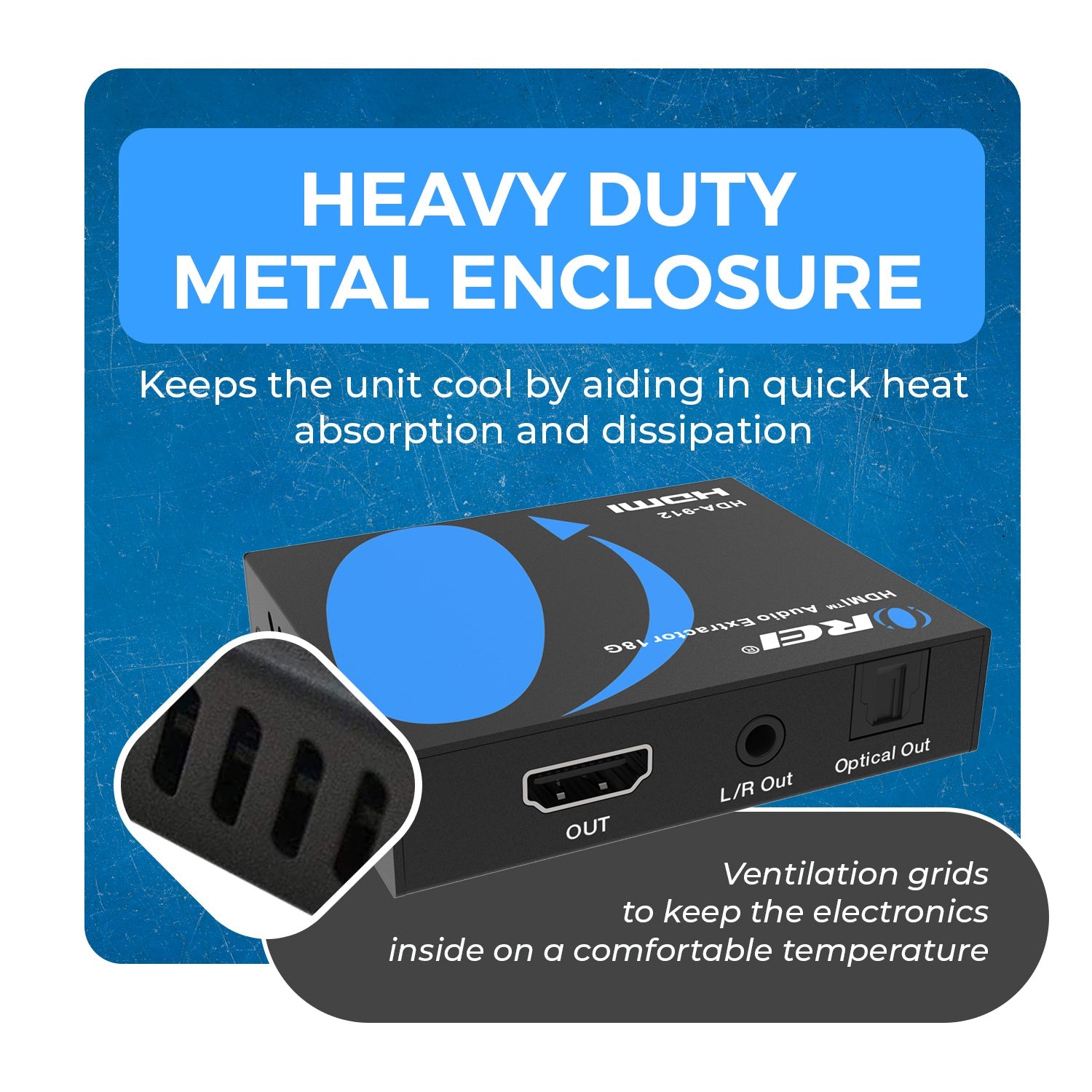

| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
