Description

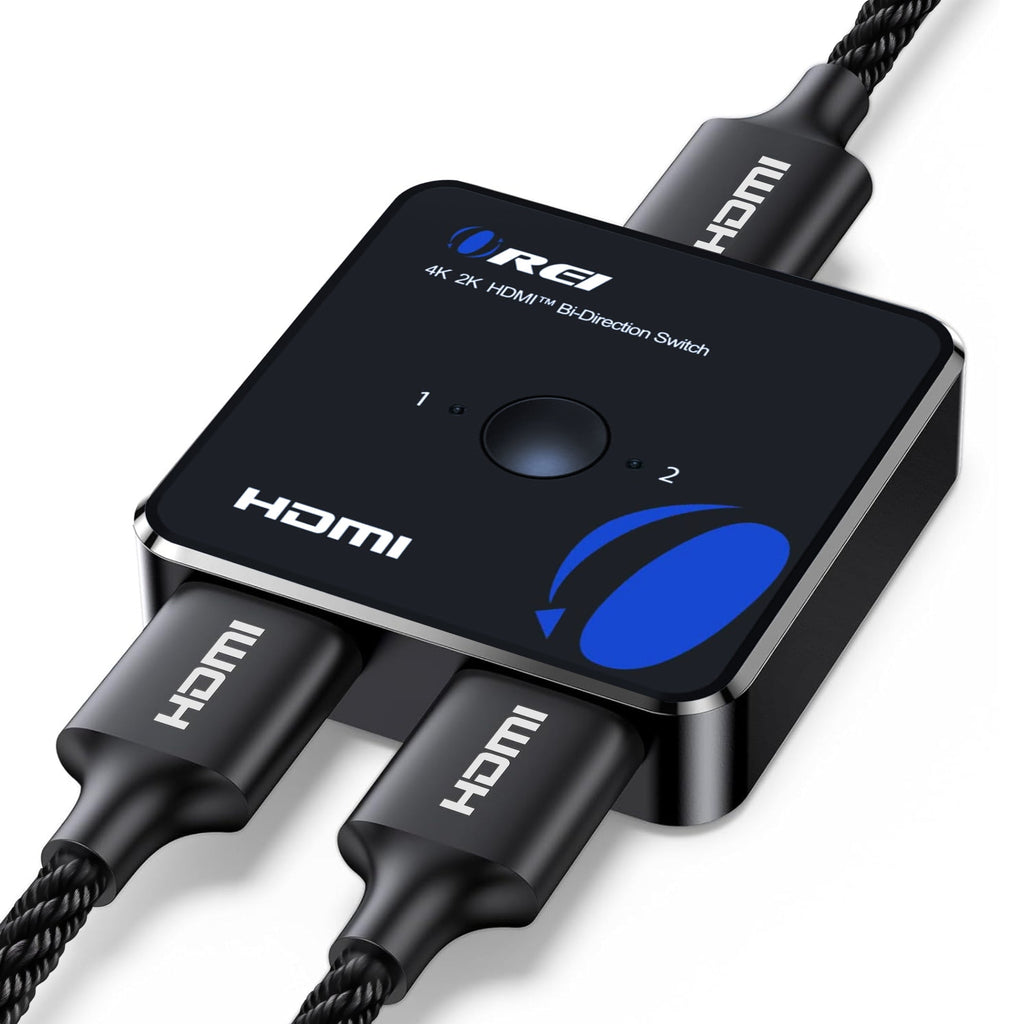

OREI 8K HDMI Bi-direction 1x2 Splitter, 2x1 Switch
Key Features:
The UHDS-212 is a high-performance bi-directional HDMI switch and splitter designed to provide flexible connectivity for modern Ultra HD entertainment and gaming systems. It can function as a 2x1 HDMI switch, allowing users to connect two HDMI sources to a single display, or as a 1x2 HDMI splitter, routing one HDMI source to two displays, with only one display outputting video at a time.
Supporting resolutions up to 8K@60Hz (YUV 4:2:0), as well as high-frame-rate 1080p@120Hz/240Hz, the UHDS-212 delivers sharp, detailed visuals with excellent color and motion performance. With 40Gbps bandwidth and 1000MHz per-channel bandwidth, it provides reliable transmission of high-quality video signals. The switch supports HDR, Dolby Vision, Dolby Atmos, VRR, and ALLM, delivering enhanced picture quality and a smooth, responsive gaming experience on compatible devices. It also supports HDCP 2.3 with backward compatibility to HDCP 2.2 and HDCP 1.4, along with CEC pass-through for convenient device control.
Its advanced integrated IC improves compatibility and reduces power consumption, while the device can draw power directly from connected HDMI sources, eliminating the need for an external power adapter in compatible setups. With plug-and-play installation and no drivers or software required, the UHDS-212 is an ideal solution for home theaters, gaming setups, and professional AV environments.
[shortdes]
- 2 Inputs - 1 Output HDMI switch, 1 Input - 2 Outputs HDMI splitter
- Video resolution up to 8Kx2K@60Hz
- Supports HDMI signal retiming
- Compliance: HDMI 2.1 and HDCP 2.3
[/shortdes]
[tab1]
FAQs
You can use standard HDMI cables up to 10 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
[/tab1] [tab]
AUDIO AND VIDEO
| Input Ports: | HDMI x 1 (1 in 2 out) / HDMI x 2 (2 in 1 out)(Female type) |
| Output Ports: | HDMI x 2 (1 in 2 out)/ HDMI x 1 (2 in 1 out)(Female type) |
| Video Bandwidth: | 6.0 Gbps/600MHz per channel (18Gbps all channels) |
| Video Resolution: | Interlaced(50 & 60Hz): 480i, 576i, 1080i; Progressive(50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz |
| Color Space: | YUV 4:4:4 |
| Vertical Frequency Range: | 50/60Hz |
| Digital Audio Formats: | DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
ADDITIONAL FEATURES
| Auto Switching: | ❌ |
| CEC: | ✅ |
| Audio Extraction: | ❌ |
| EDID Management: | ❌ |
| 8K@60Hz: | ✅ |
| HDR: | Yes (HDR10+ and Dolby Vision) |
| IR Control: | ❌ |
| Plug & Play: | ✅ |
POWER
| Power Consumption: | 5W |
CONTROL
| CEC: | Pass through |
PROPERTIES
| Operating Temperature: | 0°C to 70°C |
| Storage Humidity: | 5% to 90% RH non-condensation |
DIMENSIONS & WEIGHT
| Height: | 14 mm |
| Width: | 51.6 mm |
| Depth: | 52 mm |
| Weight: | 30g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × UHDS-212 Bi-directional switch |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
