Description
OREI 4K HDMI Extender Balun up to 10 KM
- HDCP 2.2 Compliant – Ensures compatibility with modern content protection standards.
- Video Resolutions up to 4K@60Hz 4:4:4 – Delivers uncompressed, ultra-high-definition video with vibrant color depth and clarity.
- 18Gbps Video Bandwidth – Provides high-speed data transfer for flawless AV signal transmission.
- Ultra-Long-Distance Transmission – Extends HDMI™ signals up to 10km over single-mode fiber cable. Multi-mode fiber supported with SFP modules for distances up to 300m (OM4).
- 3D Video Support – Compatible with 3D content for immersive viewing experience.
- HDR10+, Dolby Vision & HLG Pass-through – Maintains compatibility with advanced high dynamic range formats for lifelike visuals.
- Wide Audio Support – Supports LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD for high-fidelity sound.
- Loop Output on Transmitter – Allows connection of a local display for convenient on-site monitoring.
- Audio De-embedding on Receiver – Provides separate audio output for flexible audio system integration.
- USB 1.1 Keyboard/Mouse Transmission – Enables remote control of source device such as a Computer from the Receiver side.
- Automatic EDID Management – Ensures proper display configuration and stable signal handshakes.
- Compact, Lightweight Design – Ideal for discreet mounting and flexible installation in professional AV environments
UHD-FO10-KVM is a high-performance signal transmission solution designed for ultra-long-distance AV applications. Utilizing single-mode fiber optic technology, it transmits uncompressed HDMI™ signals up to 10km with exceptional stability and clarity.
Supporting video resolutions up to 4K@60Hz 4:4:4, it delivers vivid, high-definition visuals without signal loss. The extender features loop output on the transmitter side for local monitoring and audio de-embedding on the receiver side for flexible audio system integration. It also supports USB 1.1 keyboard and mouse transmission, enabling convenient device control from the Receiver end.
With its robust, compact design, and automatic EDID management, this
extender offers a reliable, feature-rich solution ideal for commercial installations, control centers, and high-end AV environments.
Package Includes UHD-FO10-KVM(Transmitter and Receiver), 1x USB Cable(Type A to Type B, 1.5m), 2x Power Adapter, 4x Mounting Ear, 8x Machine Screw and User Manual.
[shortdes]
- Extend 4K@60Hz Signals up to 10Km(~33000 ft.)
- HDMI 2.0b and HDCP 2.2 compliant
- EDID Management
OREI 4K@60Hz Wall Plate Transmitter up to 230ft
-
HDMI 2.0 & HDCP 2.2 Compliant – Compatible with modern HDMI sources and HDCP-protected content.
-
18Gbps / 600MHz Video Bandwidth – Delivers uncompressed 4K Ultra HD signals with exceptional performance.
-
Zero-Latency Transmission – Maintains real-time image and audio sync, ideal for mission-critical use.
-
Wall Plate Transmitter Design – Space-saving, professional look for concealed and clean AV installations.
-
Long-Distance Signal Extension – Extends HDMI up to 230 ft (70 m) at 4K@60Hz using Cat6/6A/7 cable.
-
HDR10 Support – Preserves dynamic range and color accuracy for vivid video quality.
-
EDID Passthrough & Auto Downscaling – Optimizes compatibility and resolution management.
-
IR Control Passthrough (20–60kHz) – Operate source devices directly from the display location.
-
Power-over-Cable (PoC) – Requires only one power adapter; receiver powered via same Cat cable.
-
3.5mm Stereo Audio Output – Provides analog audio extraction for flexible connectivity.
-
Built-In Lightning, Surge & ESD Protection – Designed for reliability in both commercial and residential installs.

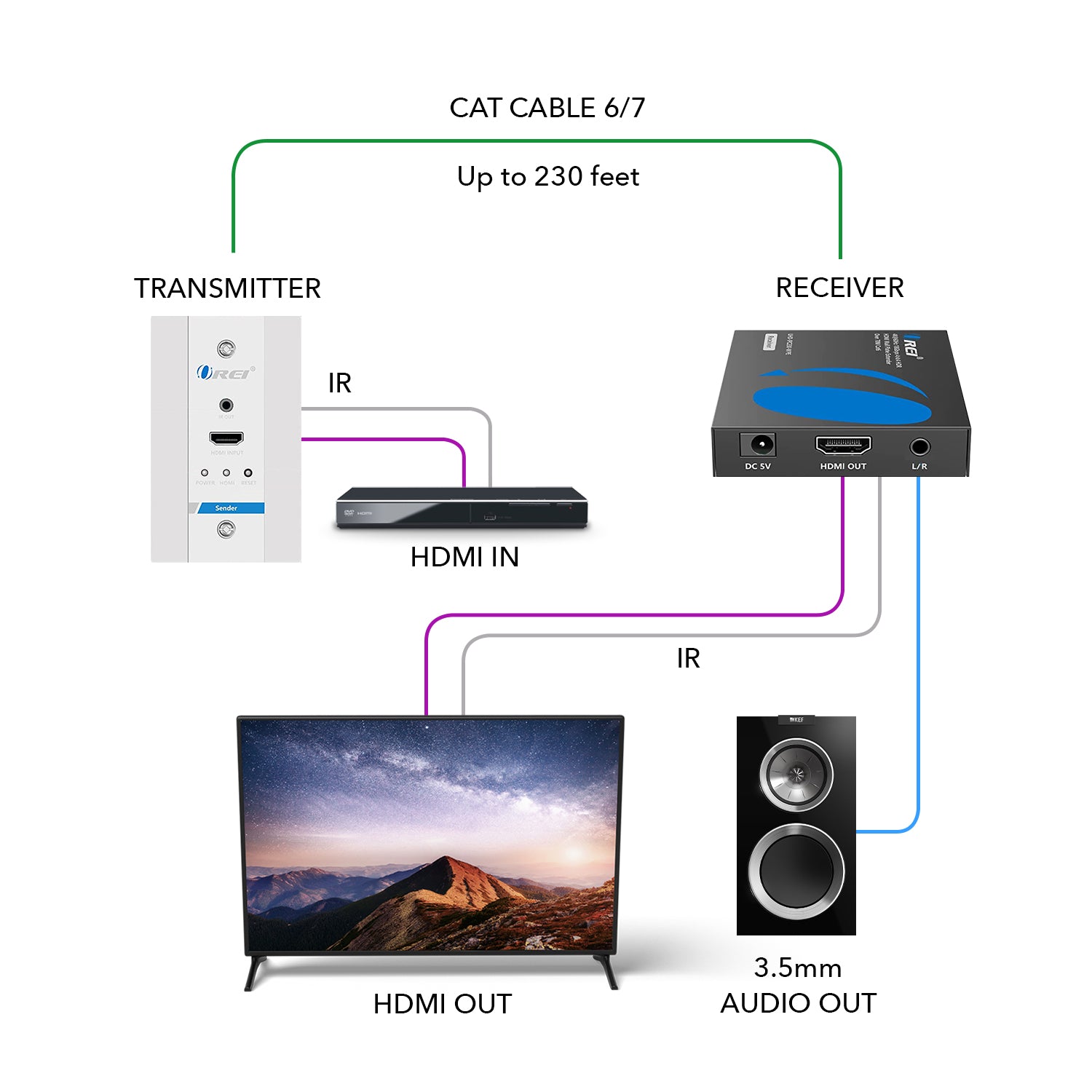

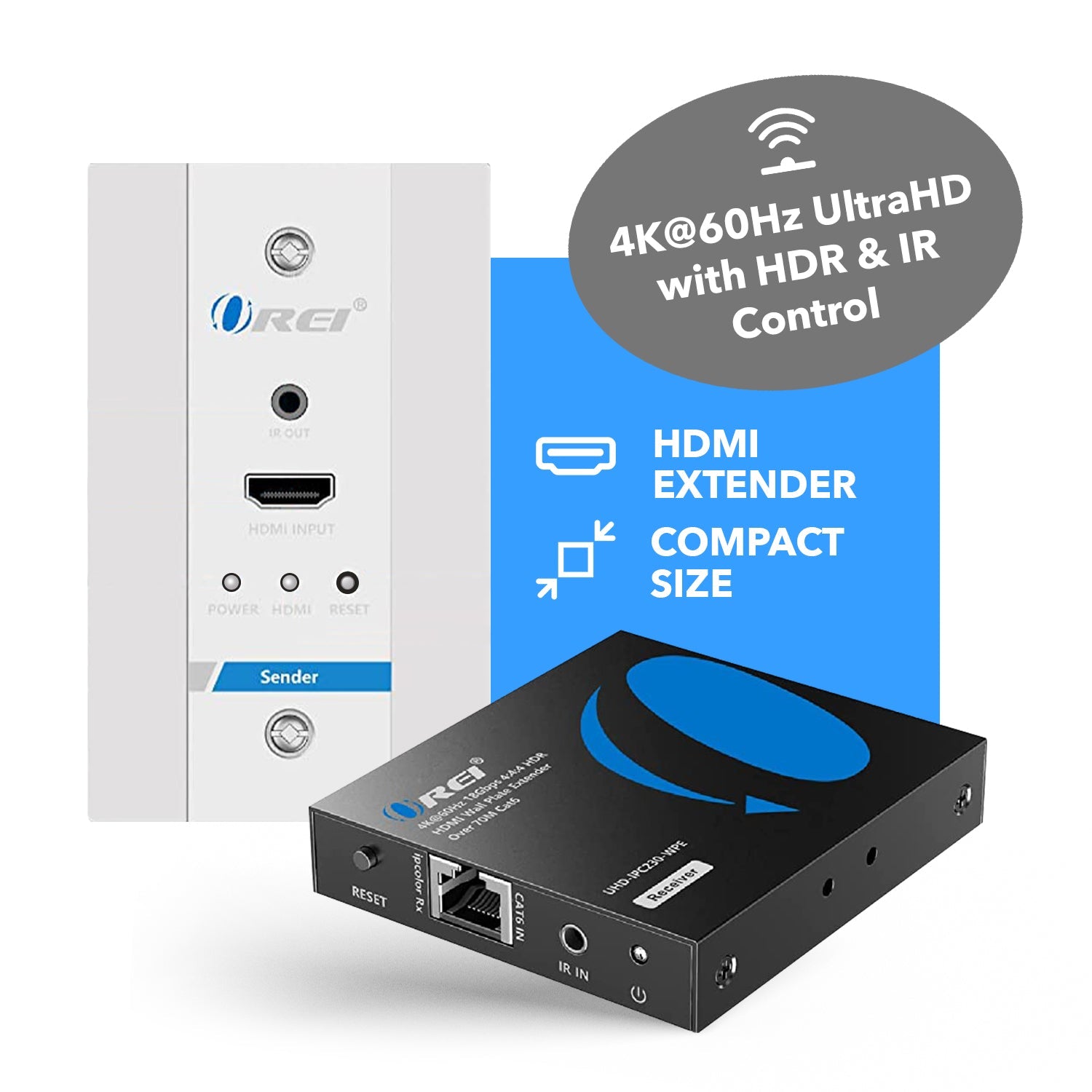

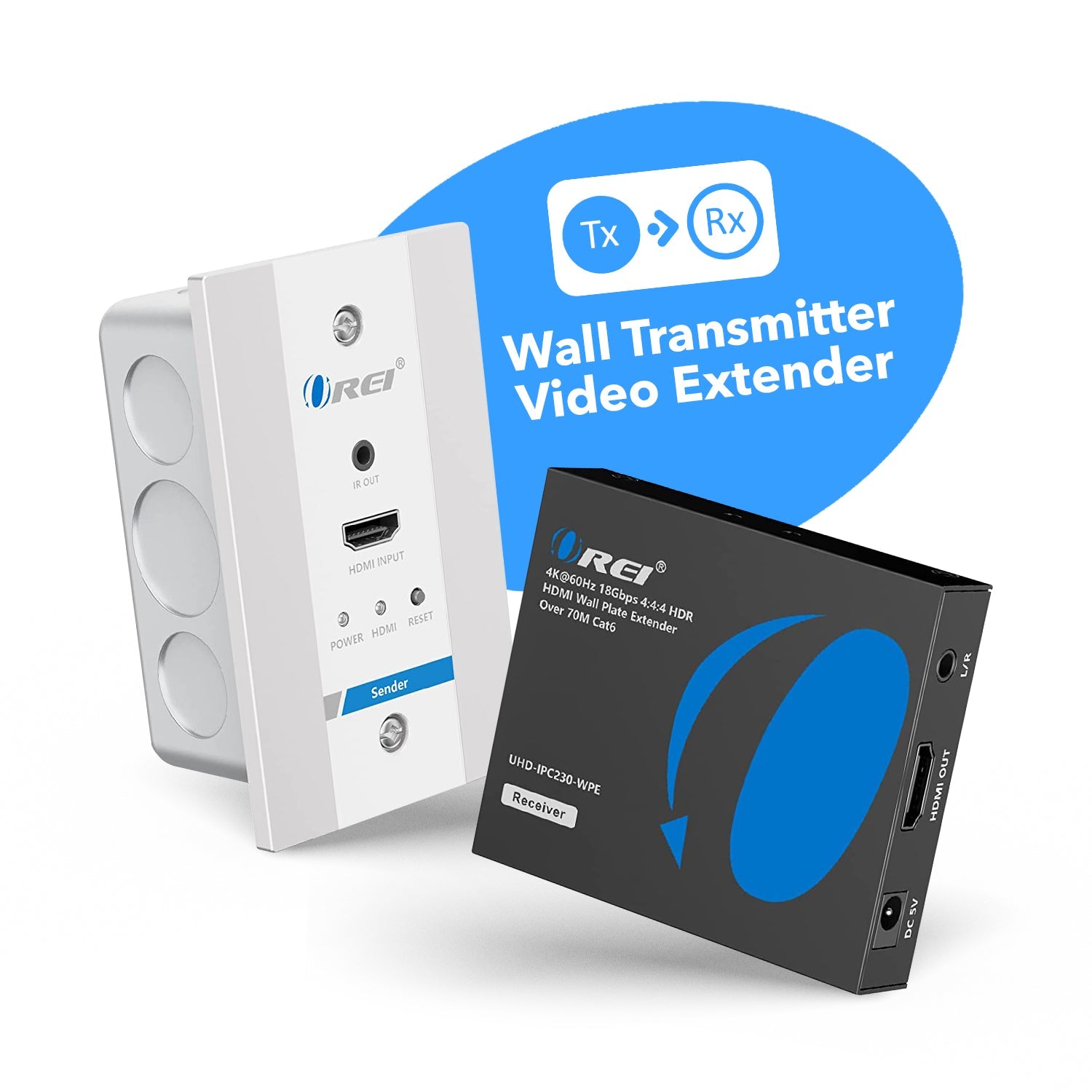

The UHD-IPC230-WPE is a high-performance 4K HDMI Wall Plate Extender Kit designed to transmit full 4K@60Hz 4:4:4 video signals with zero latency and HDR10 support over a single Cat6/6A/7 cable up to 70 meters (230 feet). Fully HDMI 2.0 and HDCP 2.2 compliant, it is ideal for use in home theaters, corporate AV systems, control centers, and broadcasting environments.
Its wall-mountable transmitter provides a clean and professional appearance, while features like EDID passthrough, auto downscaling, and IR control ensure seamless interoperability with various sources and displays. The PoC function allows power to be delivered over the Cat cable, minimizing power adapter requirements and installation complexity.
The receiver also includes a 3.5mm analog audio output for audio breakout applications. Built-in lightning, surge, and ESD protection adds an extra layer of reliability and safety, making the UHD-IPC230-WPE a dependable choice for long-distance AV signal extension in demanding environments.
[shortdes]
- Support HDMI input
- Support 3D, HDR10 and Dolby Vision
- Support EDID passthrough
[/shortdes]
[/shortdes] [tab]
CONNECTIVITY
| Transmitter: | INPUT : | 1× HDMI Type A Female |
| OUTPUT : | 1× HDMI RJ45 Female | |
| Receiver: | INPUT : | 1× RJ45 Female |
| OUTPUT : | 1× HDMI Type A Female | |
PACKAGE CONTENTS
| 1 × Transmitter |
| 1 × Receiver |
| 1 × User Manual |
| 1 × IR receiver cable |
| 1 × IR blaster cable |
| 2 × Mounting ear |
| 6 × Screw |
| 1 × US Standard 4*2 (inch) concealed box |
| 2 × Screw TM3#*14 |
ADDITIONAL FEATURES
| CEC: | ❌ |
| ARC: | ❌ |
| USB KVM: | ❌ |
| PoC: | ✅ |
| IR Control: | ✅ |
| Downmix: | ❌ |
| Downscale: | ❌ |
| Over IP: | ❌ |
| HDBaseT: | ❌ |
| RS-232: | ❌ |
| EDID: | ❌ |
EXTENDING DISTANCE
| 4K@60Hz: | 230 Feet |
AUDIO AND VIDEO
| Video Bandwidth: | 600MHz |
| Video Resolutions: | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600, 1920×1200 |
| HDMI Audio Formats: | LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 (Deep Color, 4K, HDR, YUV 4:4:4) |
| HDCP Compliance | HDCP 2.2, HDCP 1.4 |
POWER
| Power Consumption (Max): | Transmitter: | Tx + Rx < 7W | |||
| Receiver: | Tx + Rx < 7W | ||||
| Power Supply: | Input: | AC110 ~ 240V | |||
| Output: | PoC (Powered By TX) |
SIGNALS
| TMDS Signals: | - |
| DDC Signals: | - |
PROTECTION
| Operation Temperature: | 0°C ~ 60°C |
| Storage temperature: | -30°C ~ 70°C |
| Relative Humidity: | 0 ~ 90% RH (No condensation) |
| ESD Protection: | 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 |
RJ-45 CONNECTOR Type

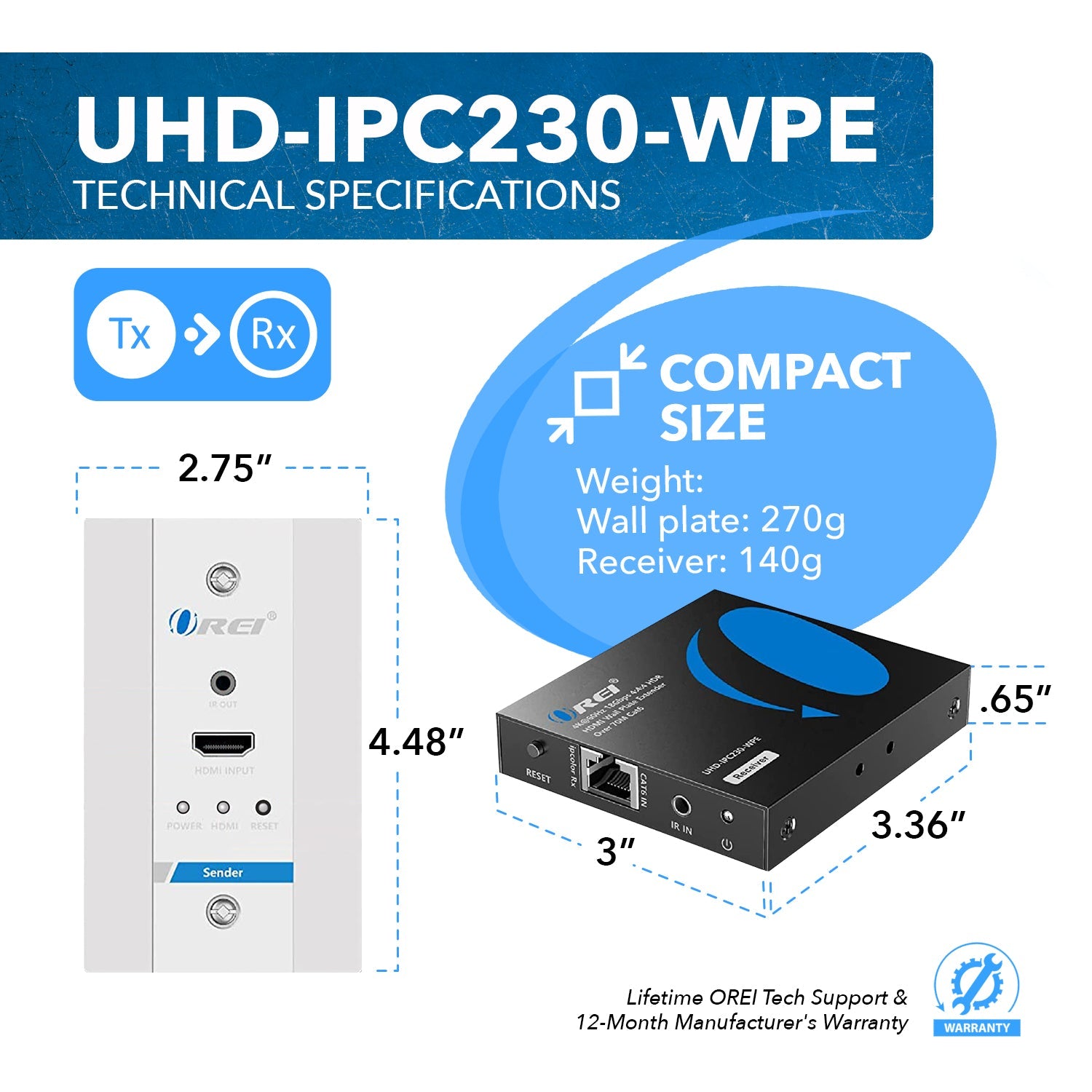

DIMENSIONS & WEIGHT
| Transmitter: | Height: | 51mm |
| Width: | 114mm | |
| Depth: | 70mm | |
| Weight: | 270g | |
| Receiver: | Height: | 16.5mm |
| Width: | 75.5mm | |
| Depth: | 85.5mm | |
| Weight: | 140g | |
PROPERTIES
| Color: | Black |
| Housing: | Aluminium alloy + Iron |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[/tab]
