4K HDMI Signal Manager Supports HDMI 2.0, HDCP 2.3 - Downscale from 4K to 1080p (XD-3000)

Save 20%
OREI.COMSKU: XD-3000
Price:
$39.99 $49.99

Shipping calculated at checkout

Stock:
Sold out

Description

OREI XD-3000: 4K HDMI Signal Manager - Downscale from 4K to 1080p

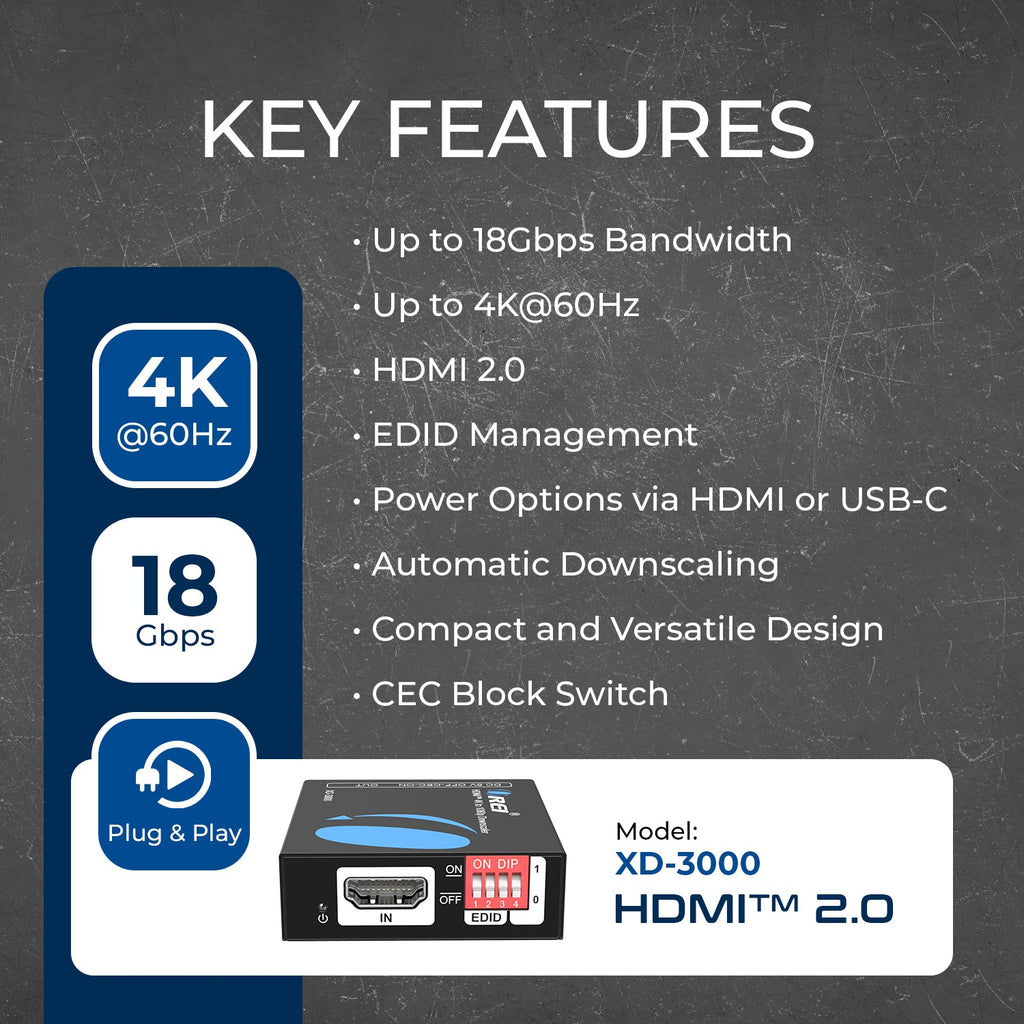

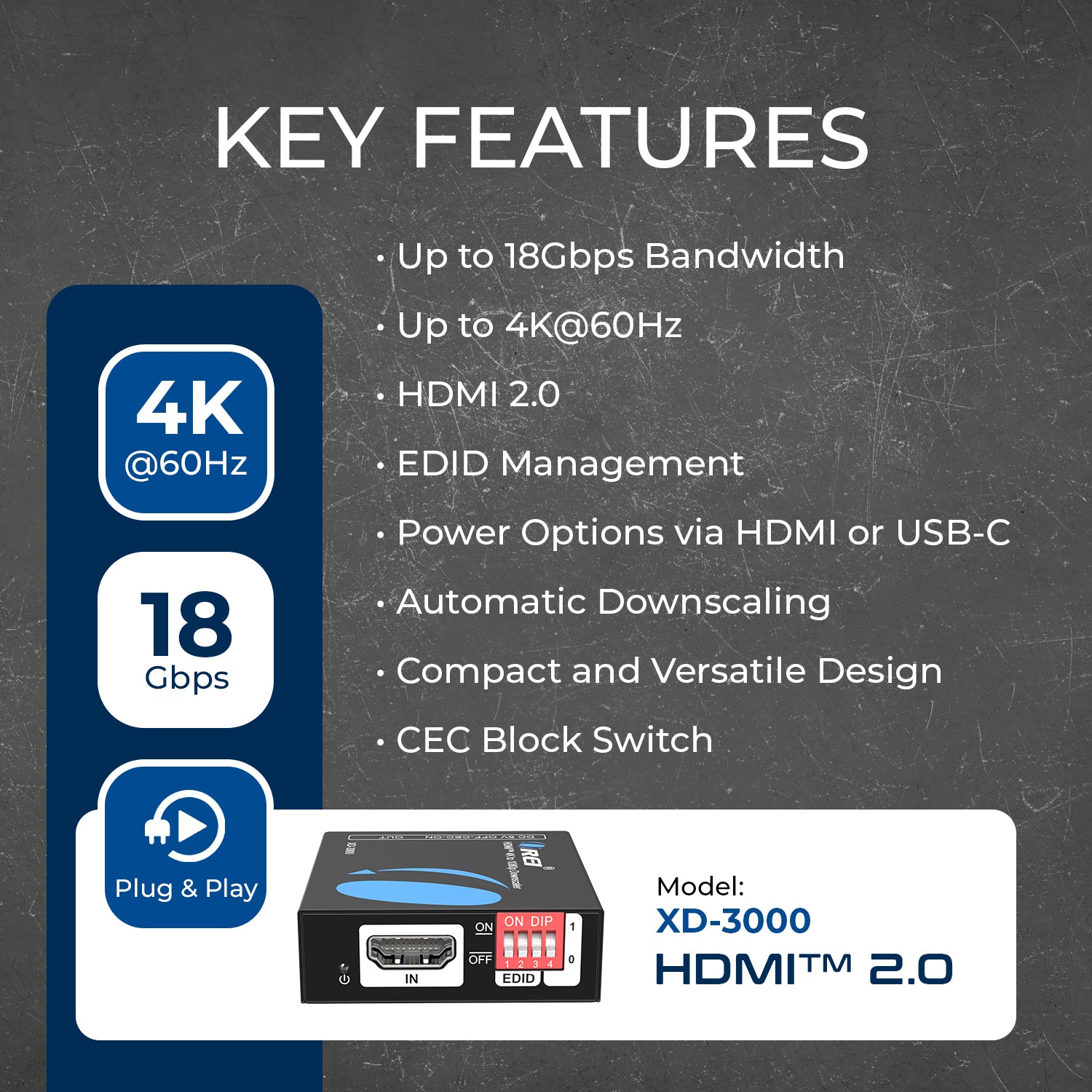

Key Features:
  • Supports HDMI V2.0
  • Supports HDCP 2.3

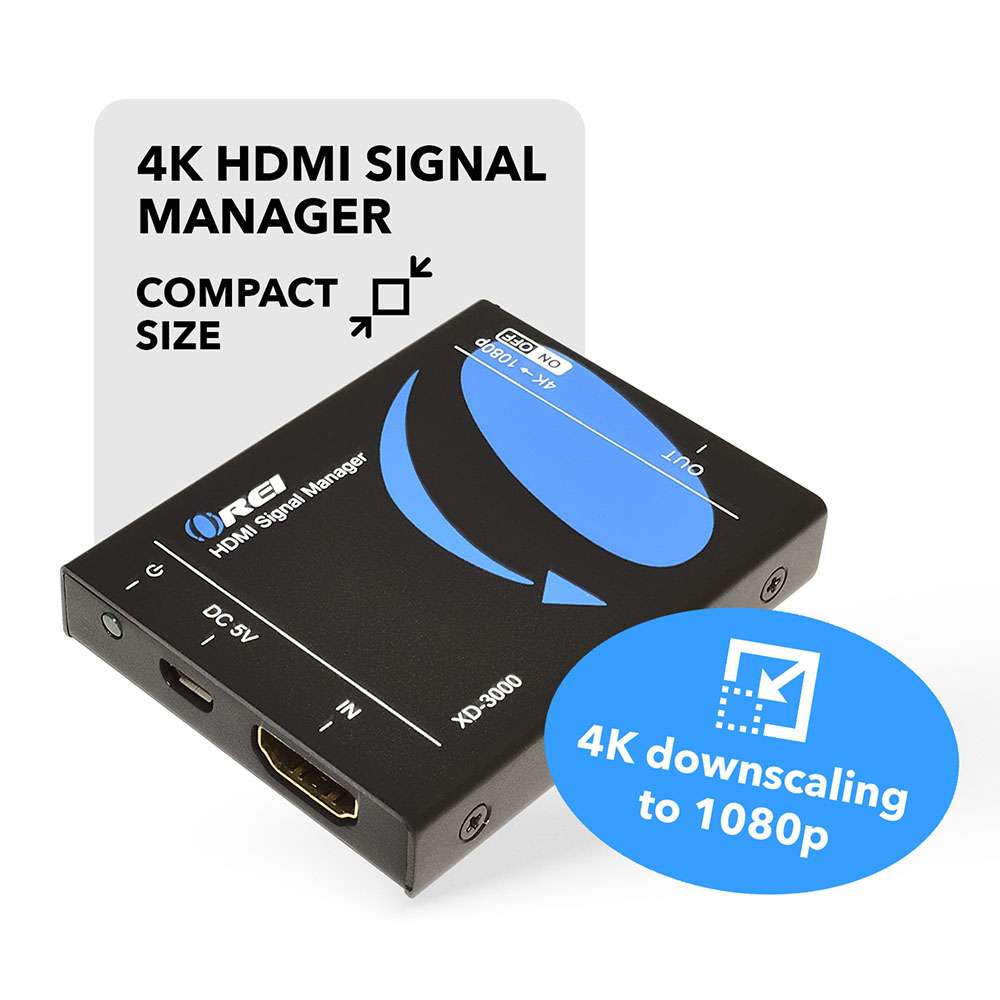

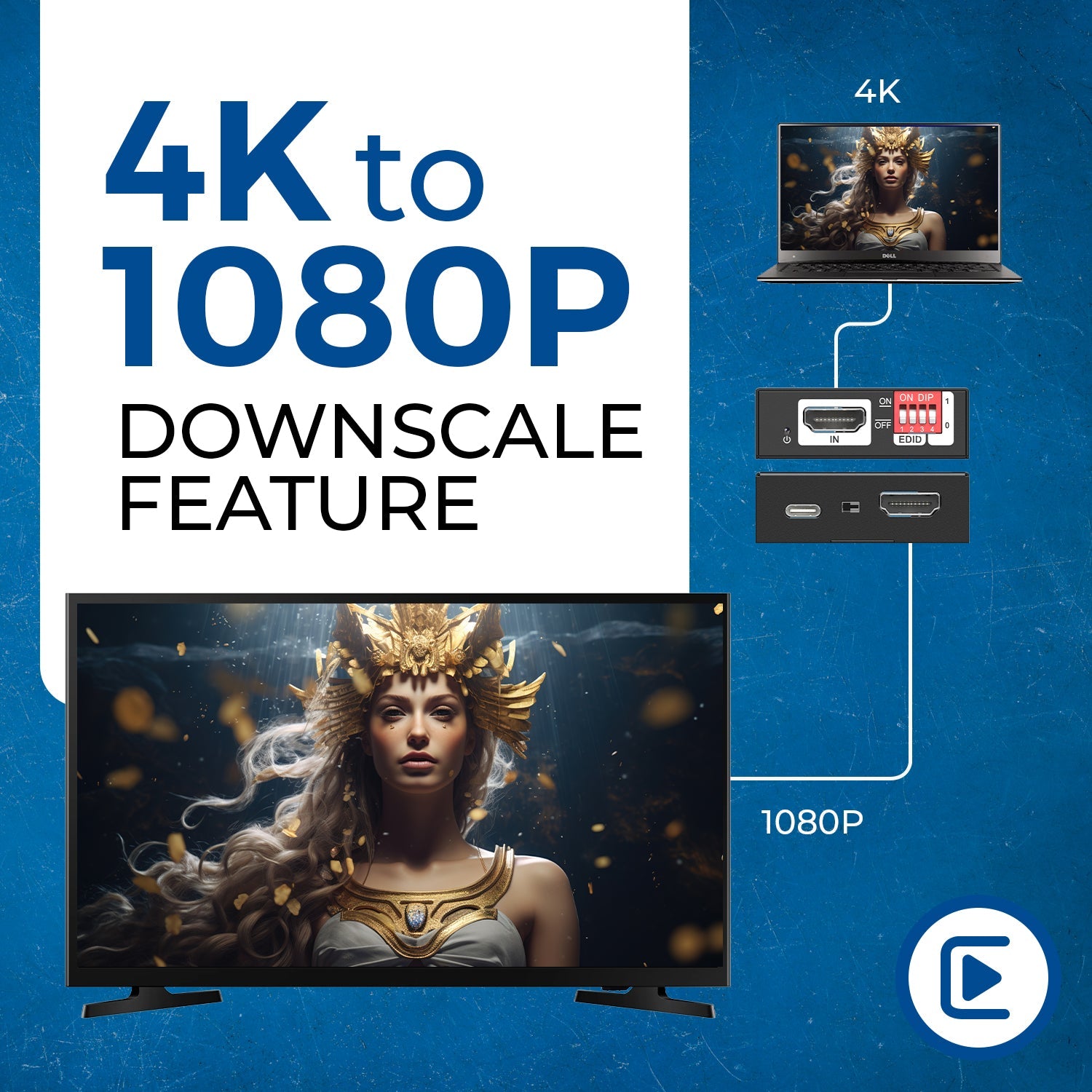

  • Supports 4K to 1080p downscaling function
  • HDCP processing follows displays to ensure compatibility

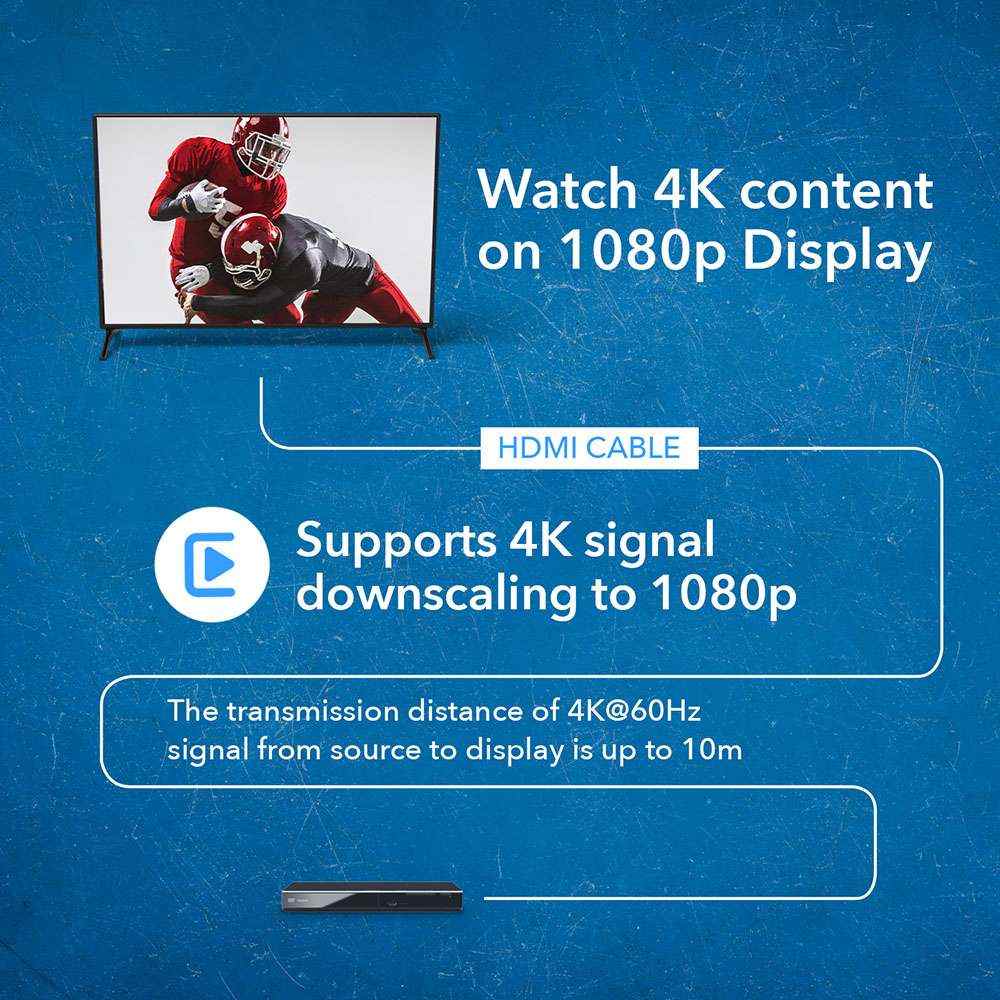

  • The transmission distance of 4K@60Hz 4:4:4 signal from source to display is up to 10m

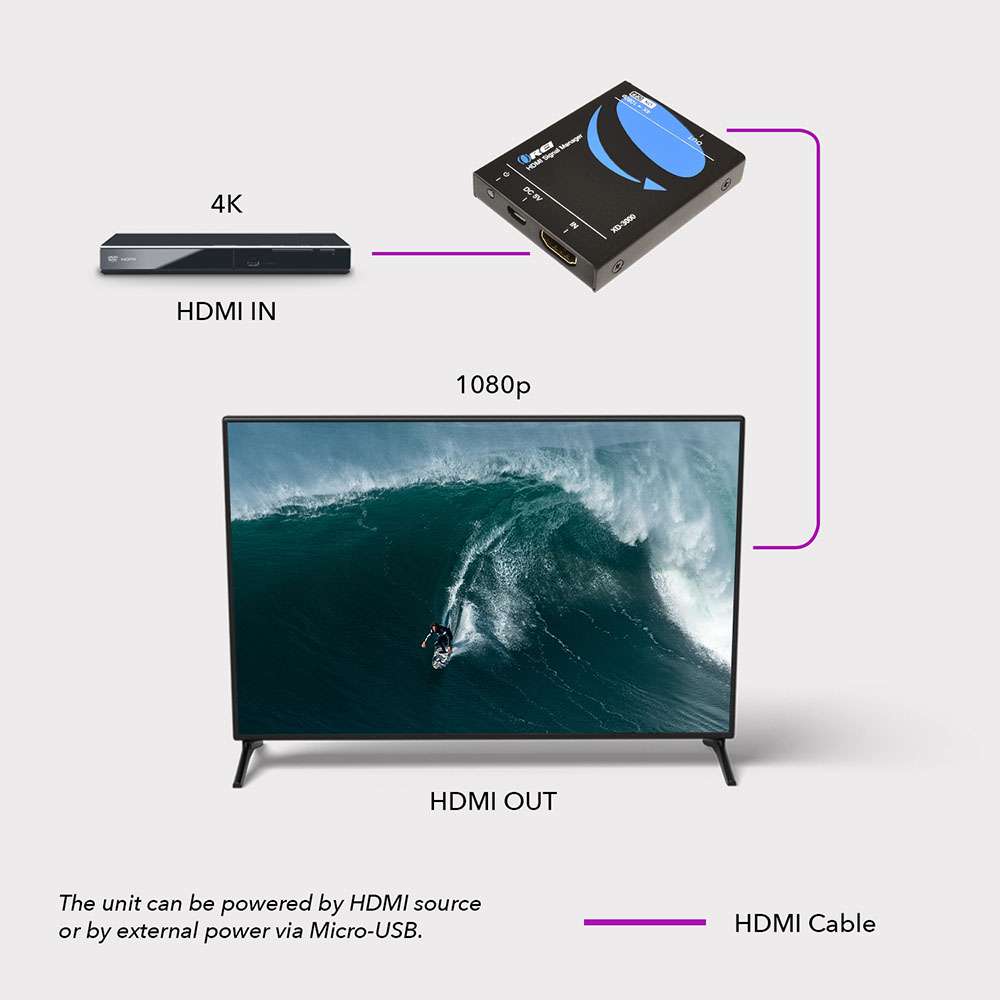

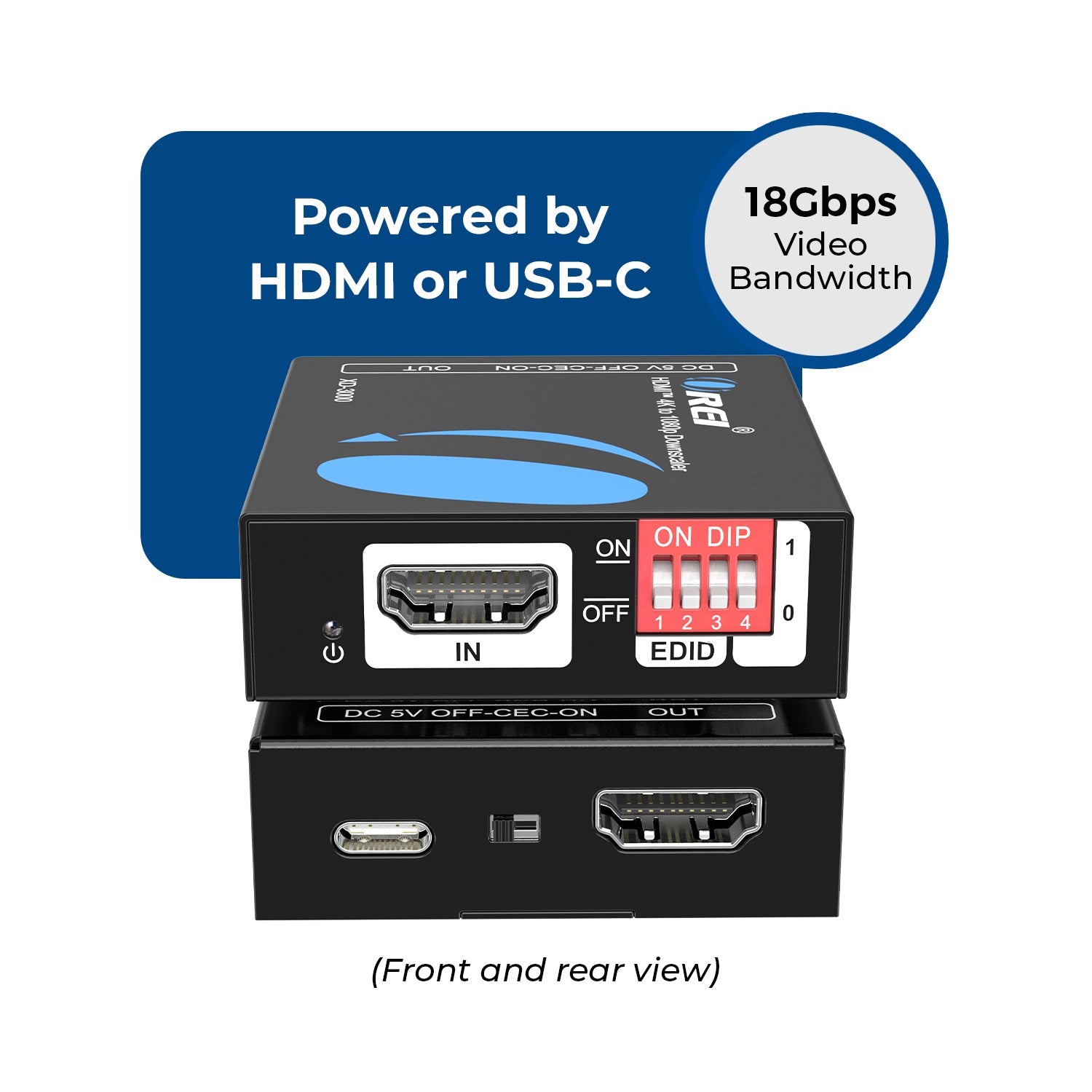

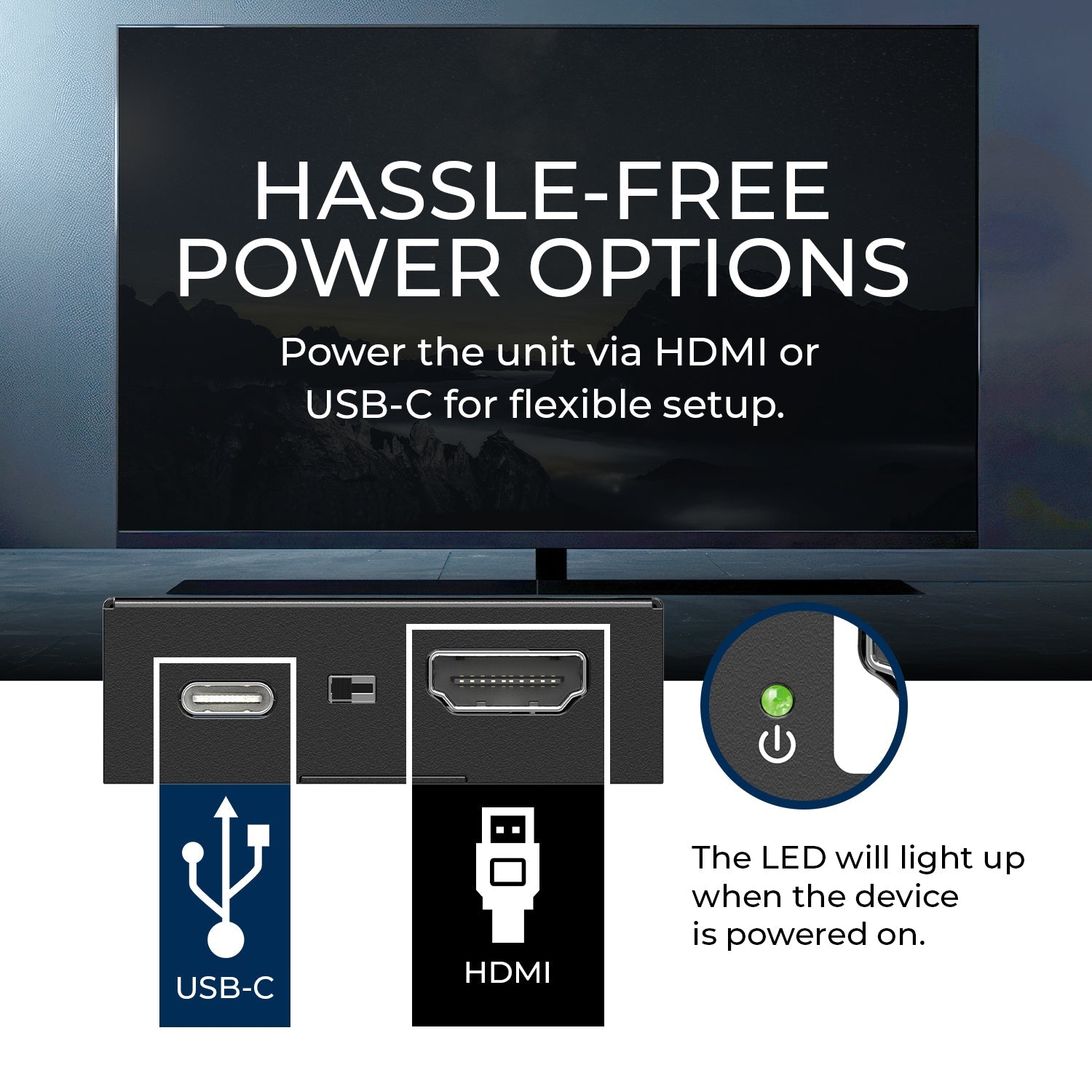

  • The unit can be powered by an HDMI source or by external power via Micro-USB
  • Easy to install and simple to operate


Description:

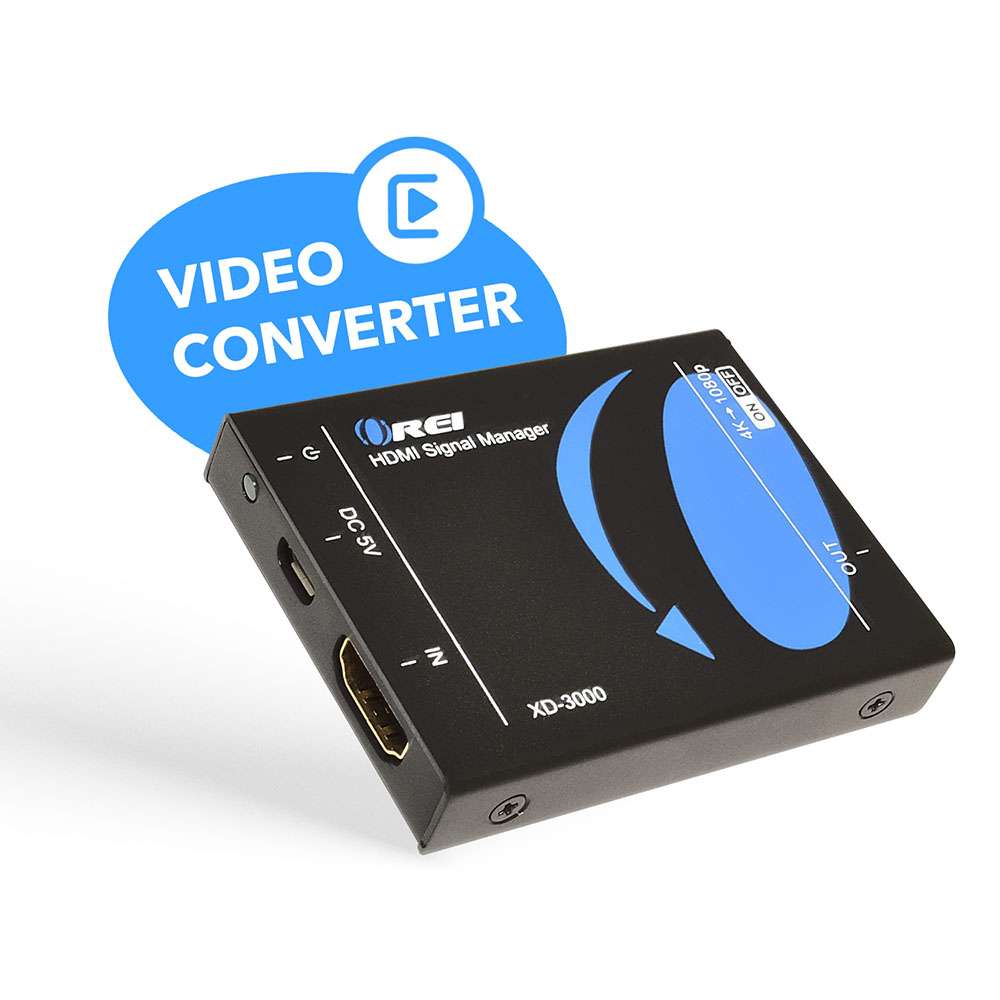

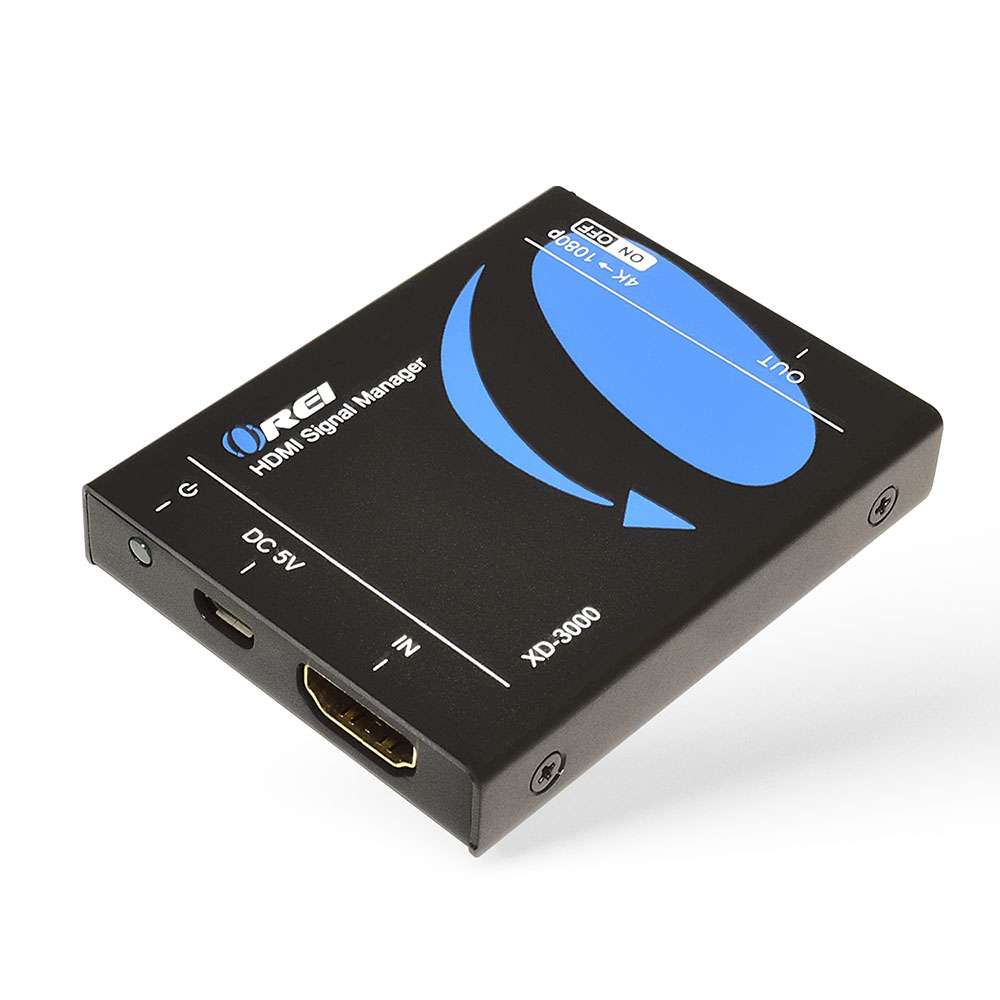

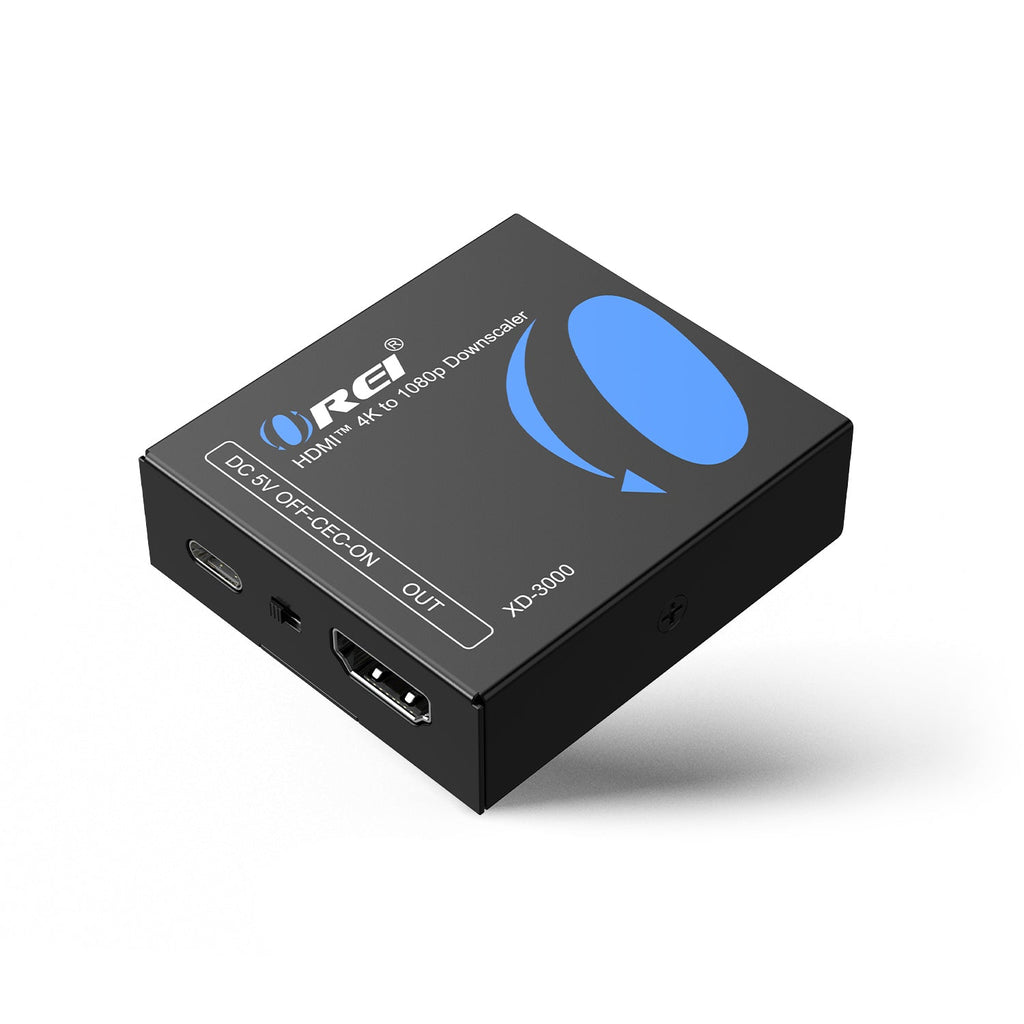

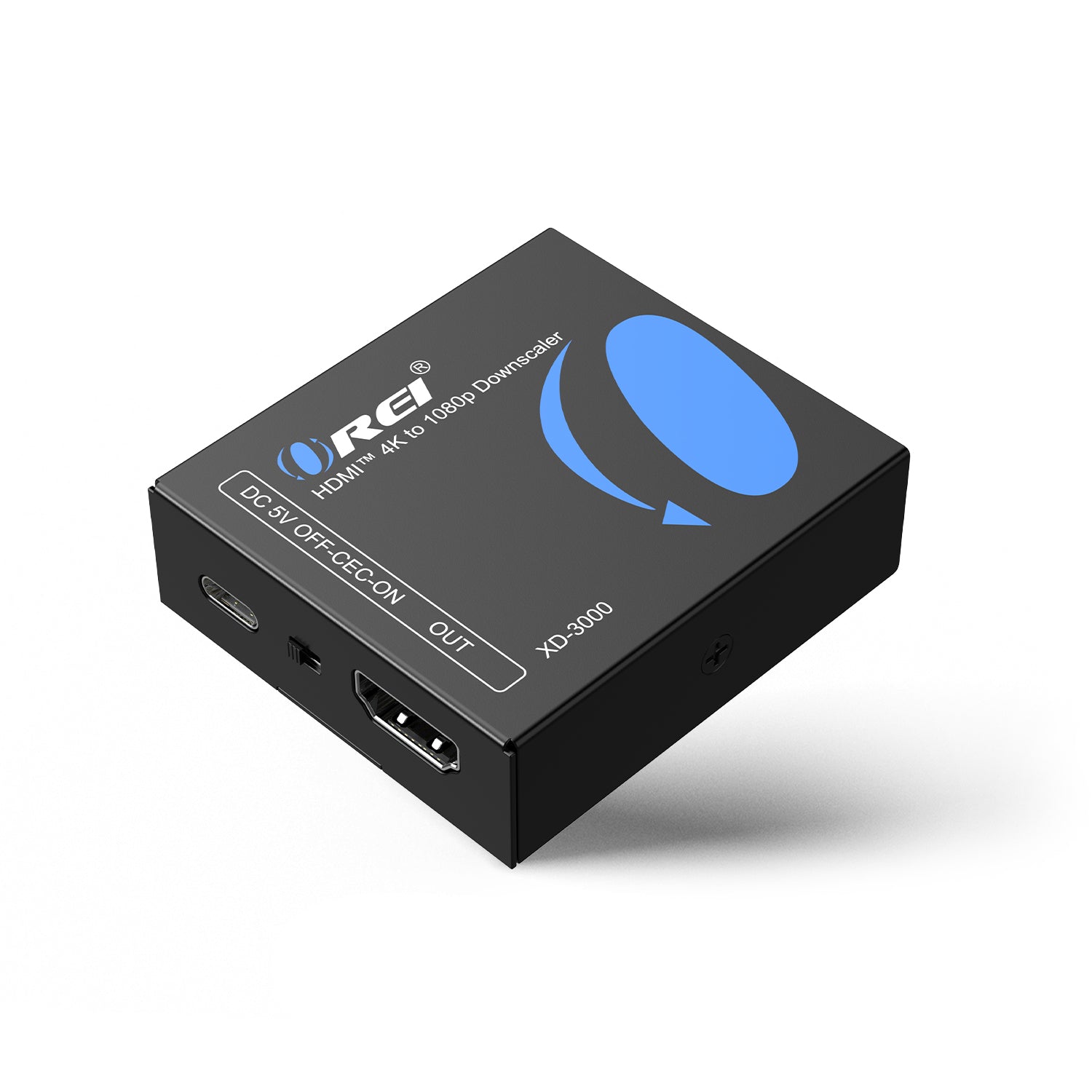

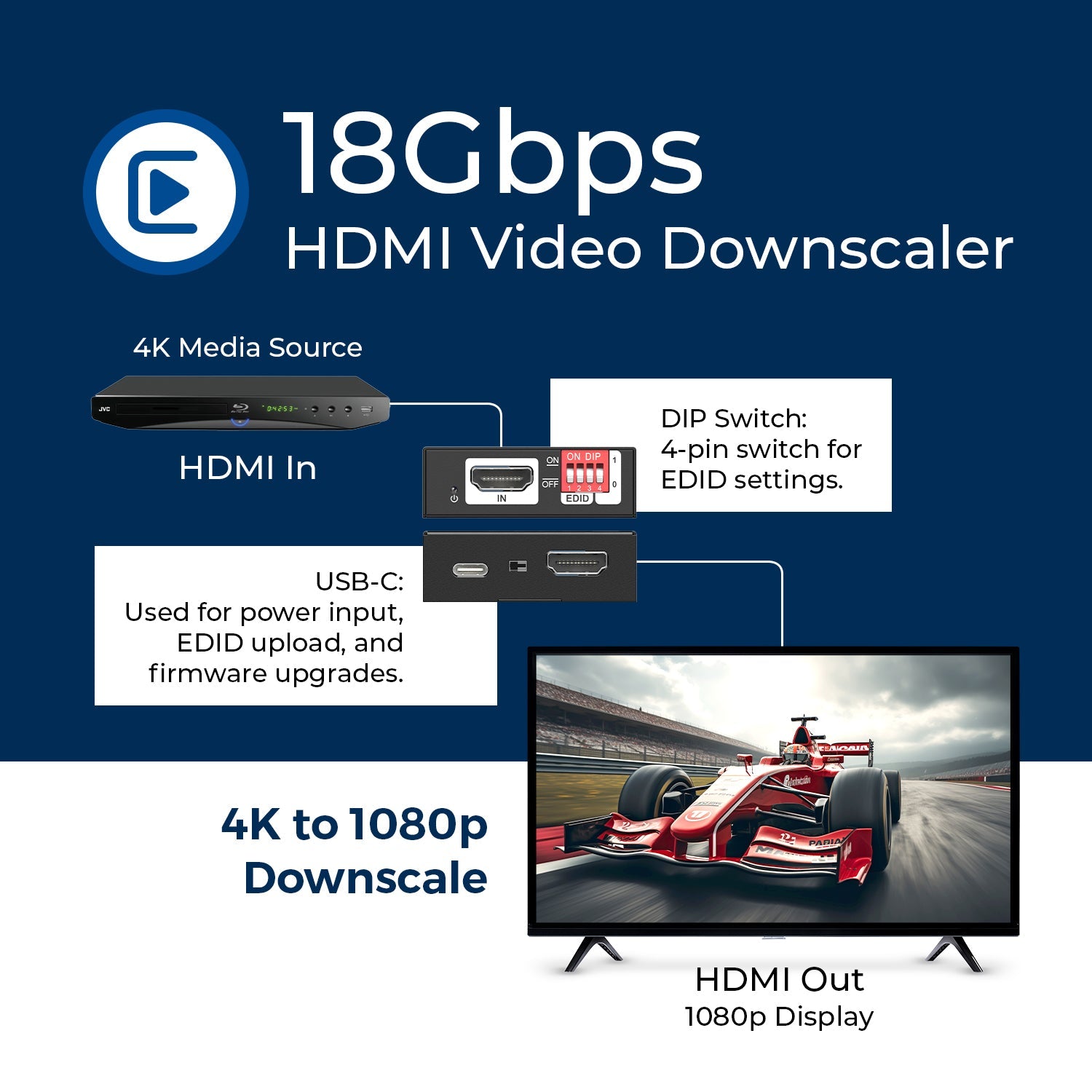

The XD-3000 is an ultra-thin HDMI signal manager that supports HDMI V2.0. It is designed to enhance the compatibility between HDMI source and display to match more display devices. The transmission of the 4kx2k@60Hz (max) signal from the source to display is up to 10m. In addition, it supports 4K downscaling to 1080p output, and HDCP follows the display device to ensure device compatibility.

Note: It is recommended to use Micro-USB to power the device if insufficient power is supplied by the HDMI source device.

[shortdes]

  • Supports HDMI V2.0 & HDCP 2.3
  • Supports 4K to 1080p downscaling
  • Easy to install and simple to operate

[/shortdes] [tab]

AUDIO AND VIDEO

INPUT PORTS: 1x HDMI Type A [19-pin female]
OUTPUT PORTS: 1x HDMI Type A [19-pin female]

COMPLIANCES

HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.3

VIDEO OUTPUT

Video Bandwidth: 18Gbps
Video Resolutions: 4K@60Hz 4:4:4
Color Space: 4:4:4
Color Depth: 8bit

SWITCHES

Resolution: 4K@60Hz 4:4:4
EDID: EDID pass-through

SUPPORTED RESOLUTIONS

Input Resolution: 4K@60Hz 4:4:4
Output Resolutions: 4K@60Hz 4:4:4

AUDIO OUTPUT

HDMI Audio Formats: Dolby Digitial, Dolby DIgitial Plus, Dolby True-HD, Dolby Atmos, DTS, DTS-HD, DTS-Master, PCM

SUPPORTS SCREEN FLIP, DOWNSCALER FUNCTION

Screen Flip Function: No
Downscaler Function: 4K to 1080p downscaling

DIMENSIONS & WEIGHT

Height: 12.5mm
Width: 55mm
Depth: 70mm
Weight: 200g

PROTECTION

Operation Temperature: -10~55℃
Storage temperature: -25℃ ~ +70℃
Relative Humidity: 10%-90%
ESD Protection: Level B

POWER

Power Consumption (Max): 2W
Power Supply: DC 5V 1A

PHYSICAL PROPERTIES

Color: Black
Housing: Metal

PACKAGE CONTENTS

1x XD-3000
1x Velcro Tape
1x Micro-USB cable
1x User Manual

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Please contact us with your requirements & we will help you to choose the right product for your requirements

Unfortunately, it cannot bypass HDCP

Below is the link where you can sign up for the wholesaler account: https://www.orei.com/pages/wholesale-order

You can visit the below link to register for extended warranty: https://www.orei.com/pages/warranty-registration

Please contact us if you face any issues while registering for the extended warranty

The following are the ways by which you can contact us:

Via call: 847-983-4761 between Mon - Fri 9:30am - 5:00pm CST.Via email: Please email us at info@orei.com & we will respond you within 24 hours.Via contact us form: Please visit the contact us form by visiting the link to contact us.
