OREI BK-104 :8K 1x4 HDMI Splitter With Downscaling & EDID management, HDR, HLG & Dolby Vision Support
-
HDMI 2.1 and HDCP 2.3 Compliant – Ensures compatibility with the latest video and content protection standards.
-
Resolutions up to 8K@60Hz and 4K@120Hz – Delivers ultra-high-definition video across all outputs.
-
48Gbps Bandwidth – Maintains high-speed data transmission for uncompressed video and audio.
-
Supports VRR, ALLM, QMS, QFT, and SBTM – Ideal for smooth, dynamic video performance and gaming features.
-
HDR10+, Dolby Vision, and HLG Pass-through – Enables high dynamic range formats for superior picture quality.
-
HDR to SDR Conversion – Ensures optimal picture quality on SDR displays.
-
Automatic Downscaling – Converts 8K to 4K or 8K/4K to 1080p on all outputs for display compatibility.
-
Advanced Audio Support – Passes LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X formats.
-
Advanced EDID Management – Allows for precise control over device communication and signal handling.
-
Compact Design for Easy and Flexible Installation – Streamlined setup ideal for any space or system.

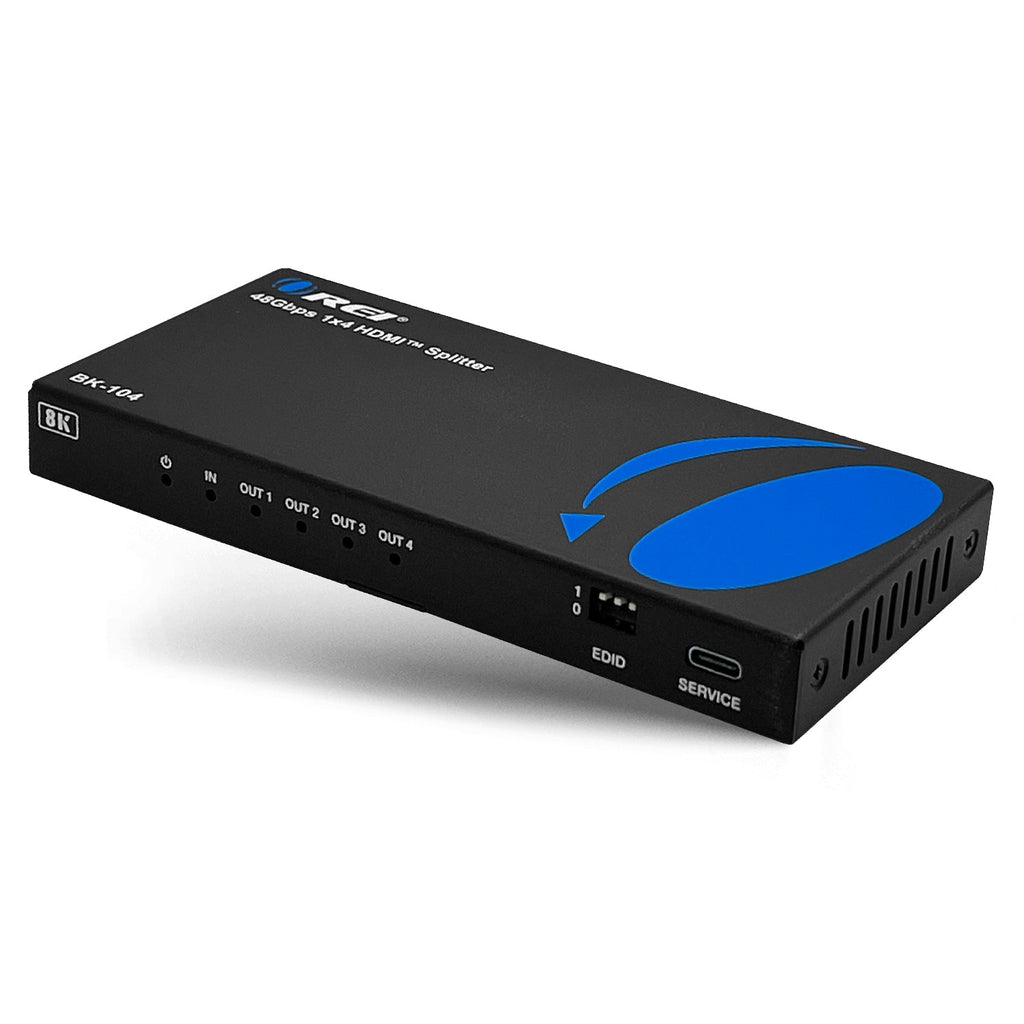

The BK-104 is a high-performance 1x4 HDMI splitter designed to distribute one HDMI input signal to four displays simultaneously with full signal integrity. Fully compliant with HDMI 2.1 and HDCP 2.3 standards, it supports video resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz, backed by a 48Gbps bandwidth.
Engineered for next-generation AV setups, the BK-104 supports advanced video features including VRR, ALLM, QMS, QFT, and SBTM, along with HDR formats such as HDR10, HDR10+, Dolby Vision, and HLG. It also provides automatic 8K to 4K or 8K/4K to 1080p downscaling and HDR to SDR conversion on all outputs.
The device is compatible with LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio formats. With advanced EDID management and a compact, plug-and-play design, the BK-104 is ideal for both professional AV environments and home entertainment systems.
[shortdes]
- 1 in 4 out 8K HDMI splitter With Downscaling
- Resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4
- 8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× SERVICE [USB-C, Update port] |
PACKAGE CONTENTS
| 1x BK-104 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1: | We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 6.6 Feet |
| 4K@60Hz: | 26 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps |
| Video Resolutions: | Up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4, 4K@60Hz, 2k@120Hz, 2K@60Hz |
ADDITIONAL FEATURES
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 5.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |
DIMENSIONS & WEIGHT
| Length: | 145mm / 5.71in | |
| Width: | 68mm / 2.68in | |
| Height: | 17mm / 0.67in | |
| Weight: | 263g / 9.28oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
