Description
BK-202A: 8K HDMI 2x2 Matrix Switcher
Key Features:
-
HDMI 2.1 and HDCP 2.3 Compliant – Handles the latest video standards with full 8K and 4K HDR support.
-
40Gbps Video Bandwidth – Ensures high-performance signal transmission for ultra-high-definition content.
-
Supports up to 8K@60Hz & 4K@120Hz – Enjoy resolutions like 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4 at 10-bit depth.
-
HDR10, HDR10+, Dolby Vision & HLG Pass-Through – Delivers dynamic, lifelike visuals with high contrast and color.
-
VRR, FVA & ALLM Support – Optimized for gaming with reduced latency and smoother motion.
-
HDMI Audio Format Support – Compatible with LPCM, Dolby TrueHD, DTS-HD Master Audio, and more.
-
Audio De-Embedding – Extract audio via Optical and Analog outputs for flexible routing.
-
Built-in Equalizer, Retiming & Driver – Maintains signal quality across various cable lengths.
-

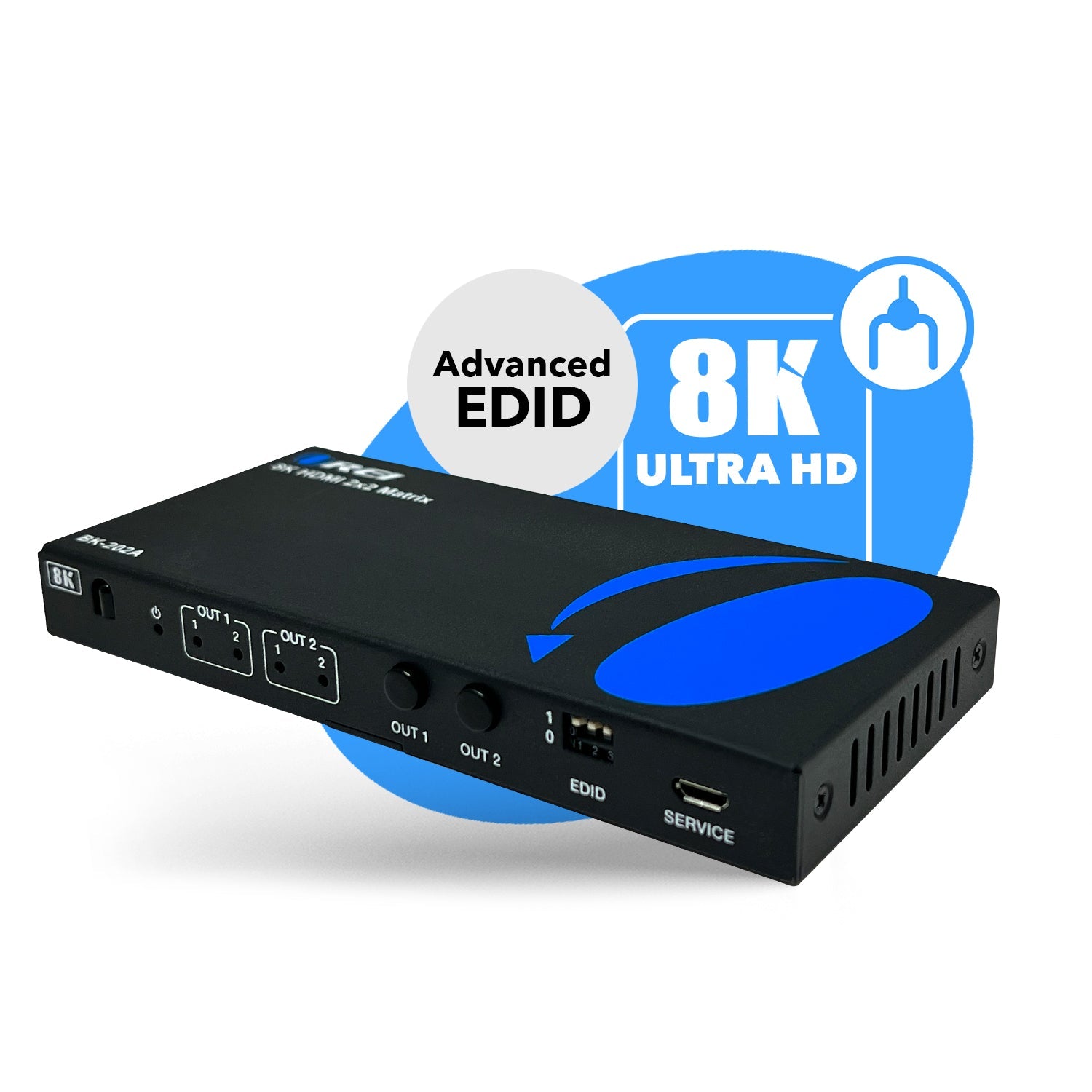

Advanced EDID Management – Maximizes compatibility with a wide range of displays and source devices.
-
Dual Control Options – Switch inputs using the front panel or the included IR remote.
-
Compact & Versatile Design – Functions as both a switcher and splitter—ideal for demos, teaching, or conference setups.

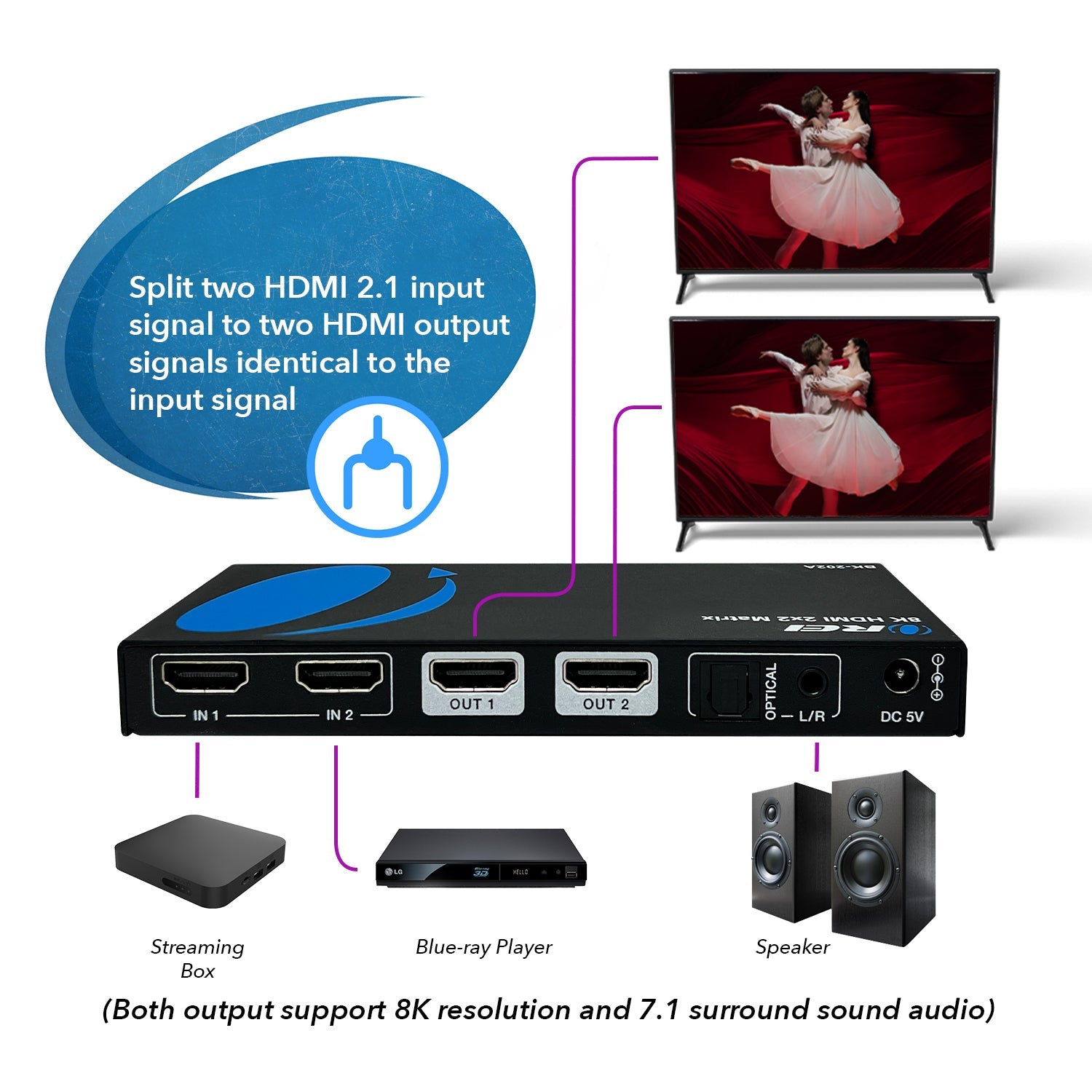

The BK-202A 8K HDMI 2x2 Matrix Switcher is a versatile solution that allows you to switch between two HDMI sources and distribute the signal to two displays simultaneously. It supports ultra-high-definition video resolutions up to 8K@60Hz (4:2:0 10-bit) and 4K@120Hz (4:4:4 10-bit), delivering exceptional clarity and color depth.
Built for modern AV setups, it features HDR10, HDR10+, Dolby Vision, and HLG pass-through, along with VRR, FVA, and ALLM for smooth, responsive performance—perfect for both home entertainment and gaming.
The BK-202A includes advanced EDID management for seamless compatibility and features audio de-embedding through optical and analog outputs for flexible audio distribution. With a built-in equalizer, retiming, and driver, signal integrity is maintained even over longer HDMI cables.
Control the switch via the front panel or included IR remote, and enjoy its compact, installer-friendly design, making it ideal for boardrooms, classrooms, digital signage, or any environment where multiple HDMI sources need to be shared between displays.
[shortdes]
- HDR10+ & Dolby Vision pass through
- Video resolutions up to 8K@60Hz
- LPCM, Dolby Digital/Plus, Dolby True HD, DTS, DTS-EX, DTS-HD Master Audio, DSD support
[/shortdes]
[tab]

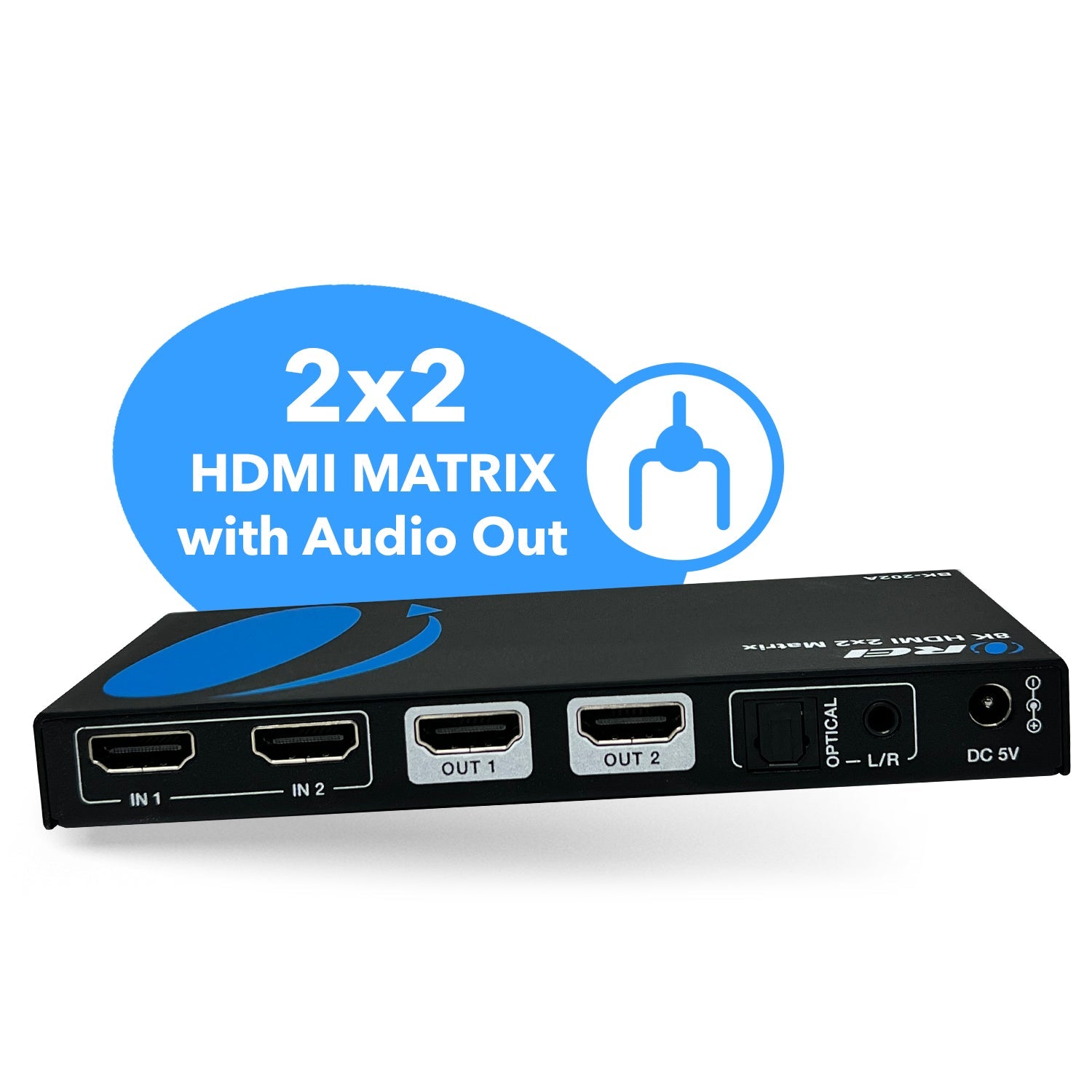

CONNECTIVITY
| INPUT: | 2 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 x OPTICAL [S/PDIF, female] | ||
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS
| 1x BK-202A |
| 1x Remote |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz 4:2:0: | 10 Feet |
| 4K@60Hz 4:4:4: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 40 Gbps |
| Video Resolutions: | Up to 8K@60Hz, 4K@60Hz, 2K@120Hz, 2K@60Hz |
ADDITIONAL FEATURES
| Audio Extraction: | ❌ |
| ARC / eARC Passthrough: | ❌ |
| EDID Management: | ✅ |
| VRR / ALLM / FVA: | ✅ |
| Dolby Atmos / DTS X Passthrough: | ❌ |
| 4K to 1080p Downscale: | ❌ |
| USB KVM: | ❌ |
LOOP-OUT / LOCAL PORTS
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats: | LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1 |
| 3.5mm Analog Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 6.2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

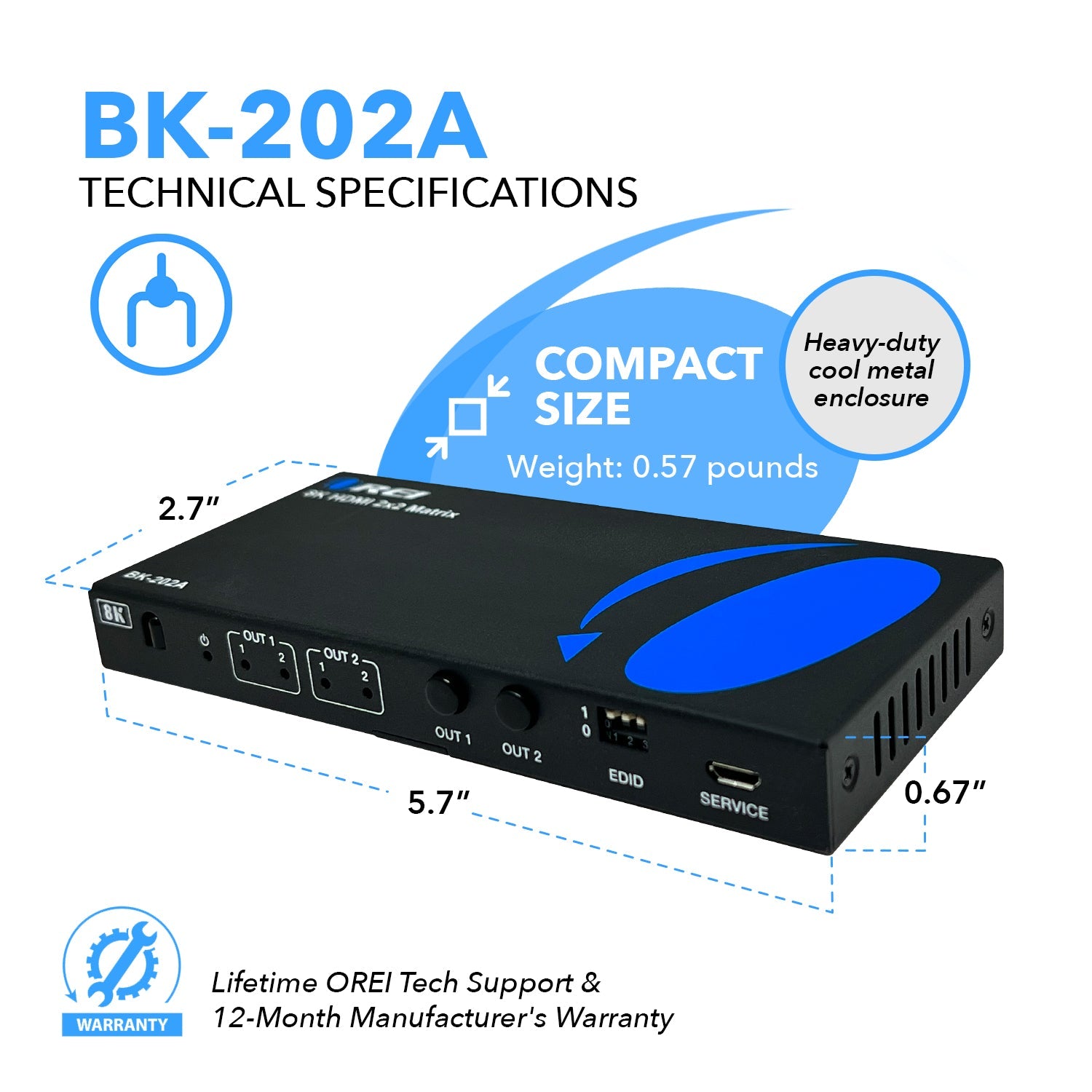

DIMENSIONS & WEIGHT
| Length: | 145mm / 5.71in | |
| Width: | 68mm / 2.68in | |
| Height: | 17mm / 0.67in | |
| Weight: | 268g / 9.45oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
