Description
BK-EXB330EAU-K: 4K@120Hz USB-C to HDMI Extender Over CAT 6/7 Up To 100 Feet
-
HDMI 2.1 & HDCP 2.3 Compliant – Supports the latest HDMI and content protection standards for seamless connectivity with next-gen AV equipment.
-
40Gbps FRL & 18Gbps TMDS Bandwidth – Handles ultra-high-speed video streams, ensuring smooth, high-performance transmission.
-
Supports Resolutions up to 8K@30Hz and 4K@120Hz – Delivers lifelike visuals for premium gaming, broadcasting, and home theatre applications.
-
Powered by HDBaseT 3.0 Technology – Enables reliable long-distance transmission over a single CAT 6A/7 cable.
-
ARC/eARC Audio Extraction – Easily connect eARC-enabled TVs and AV receivers over long distances.
-
VRR, ALLM, and FVA Support – Ideal for gaming and video performance with low latency and smooth frame rates.
-
HDR10+, Dolby Vision & HLG Pass-through – Preserves stunning dynamic range and color accuracy in every frame.
-

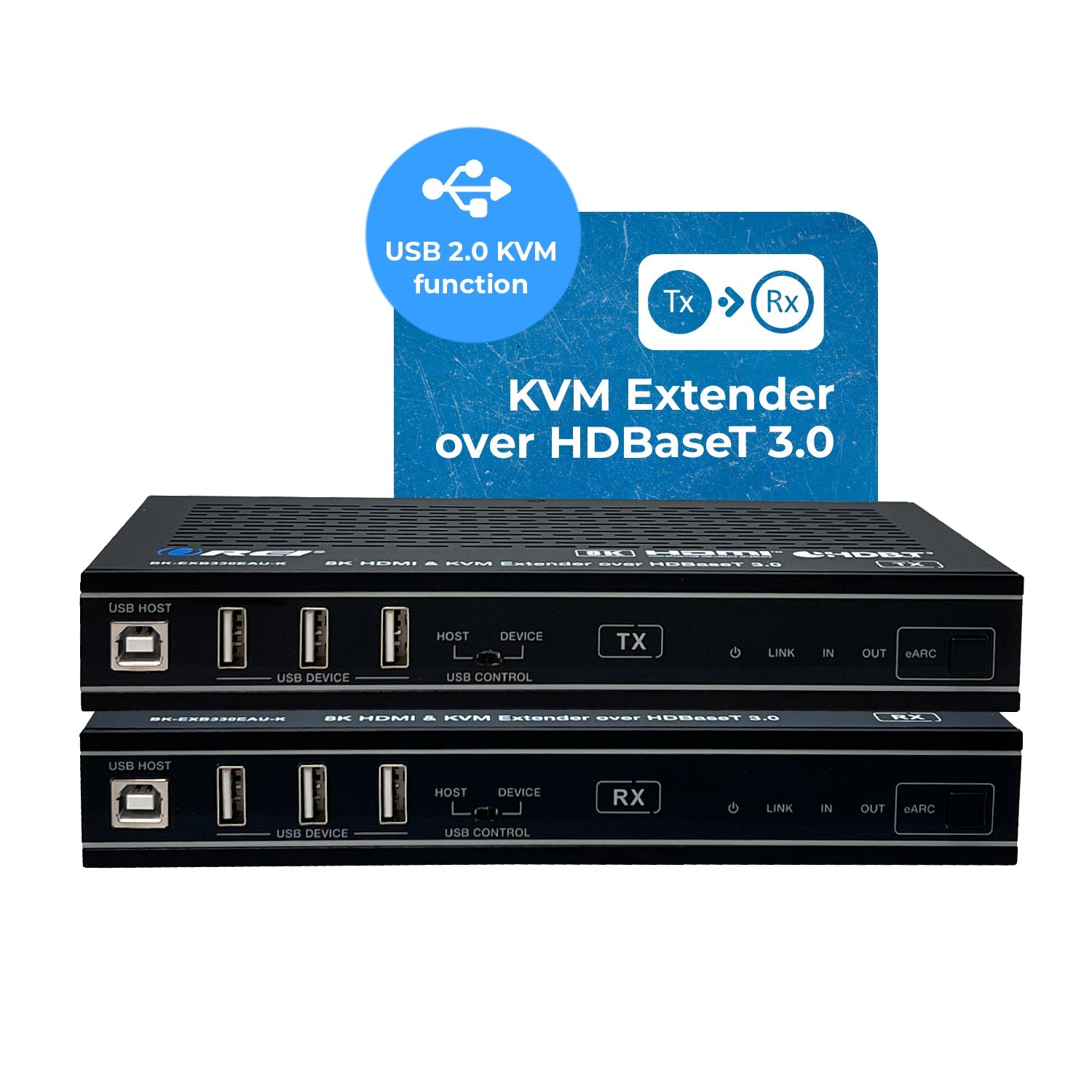

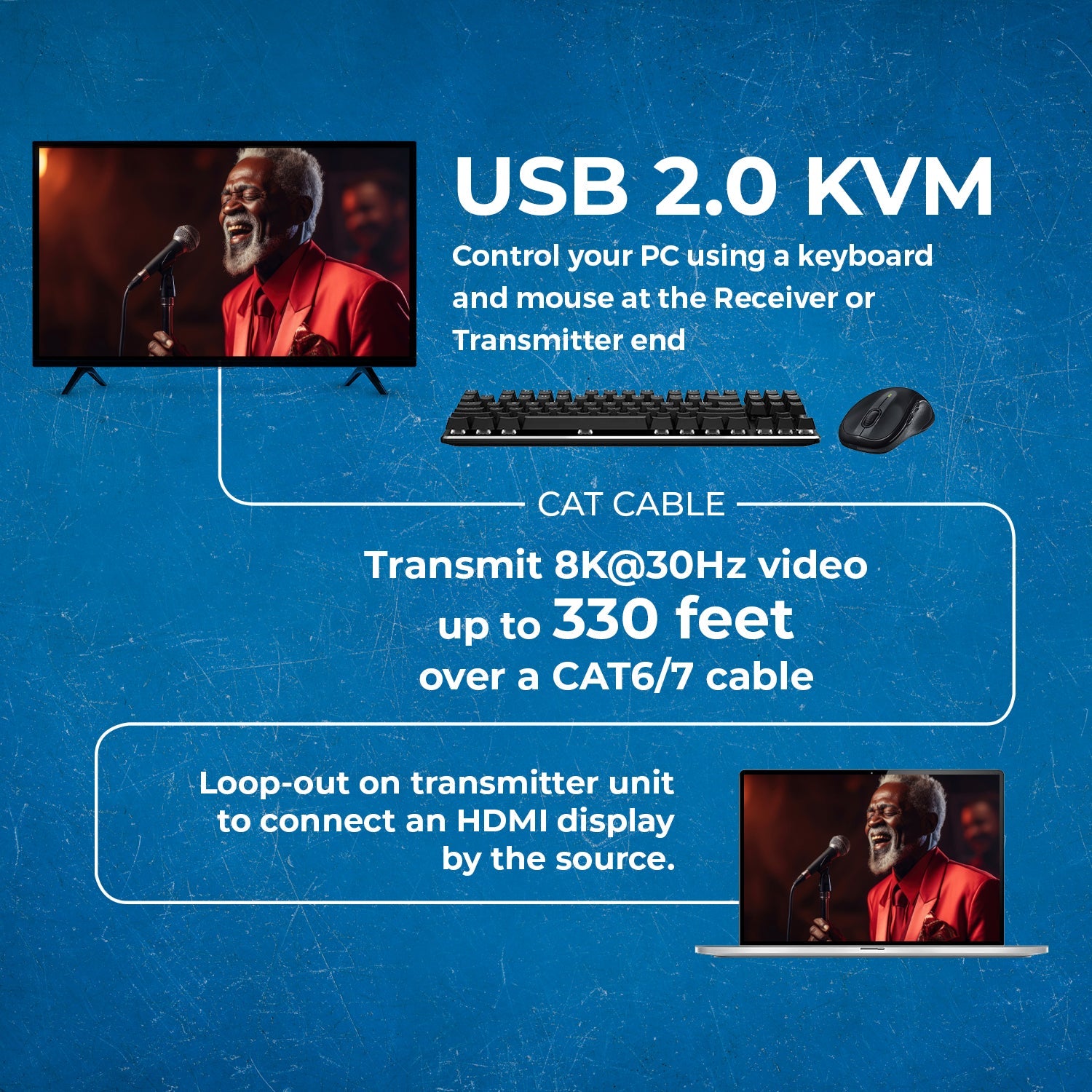

USB 2.0 KVM Function (Up to 350Mbps) – Allows remote control of connected devices such as PCs or media servers via keyboard and mouse.
-
High-End Audio Format Support – Compatible with Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and more.
-
Advanced EDID Management – DIP switch-based EDID settings enable custom configuration based on source/display compatibility.
-
Bi-Directional 24V PoC (Power Over Cable) – Only one power adapter is needed to power both transmitter and receiver units.

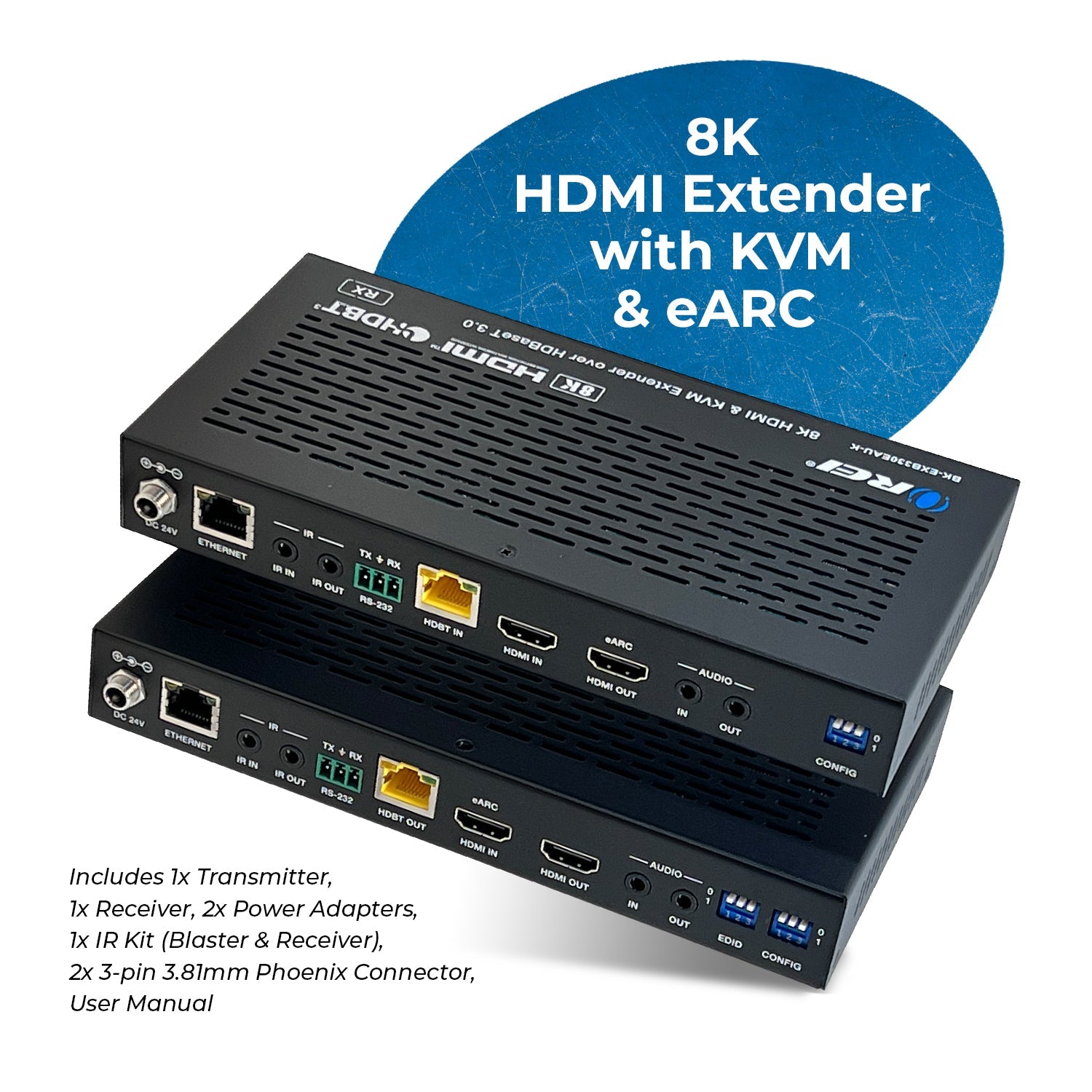

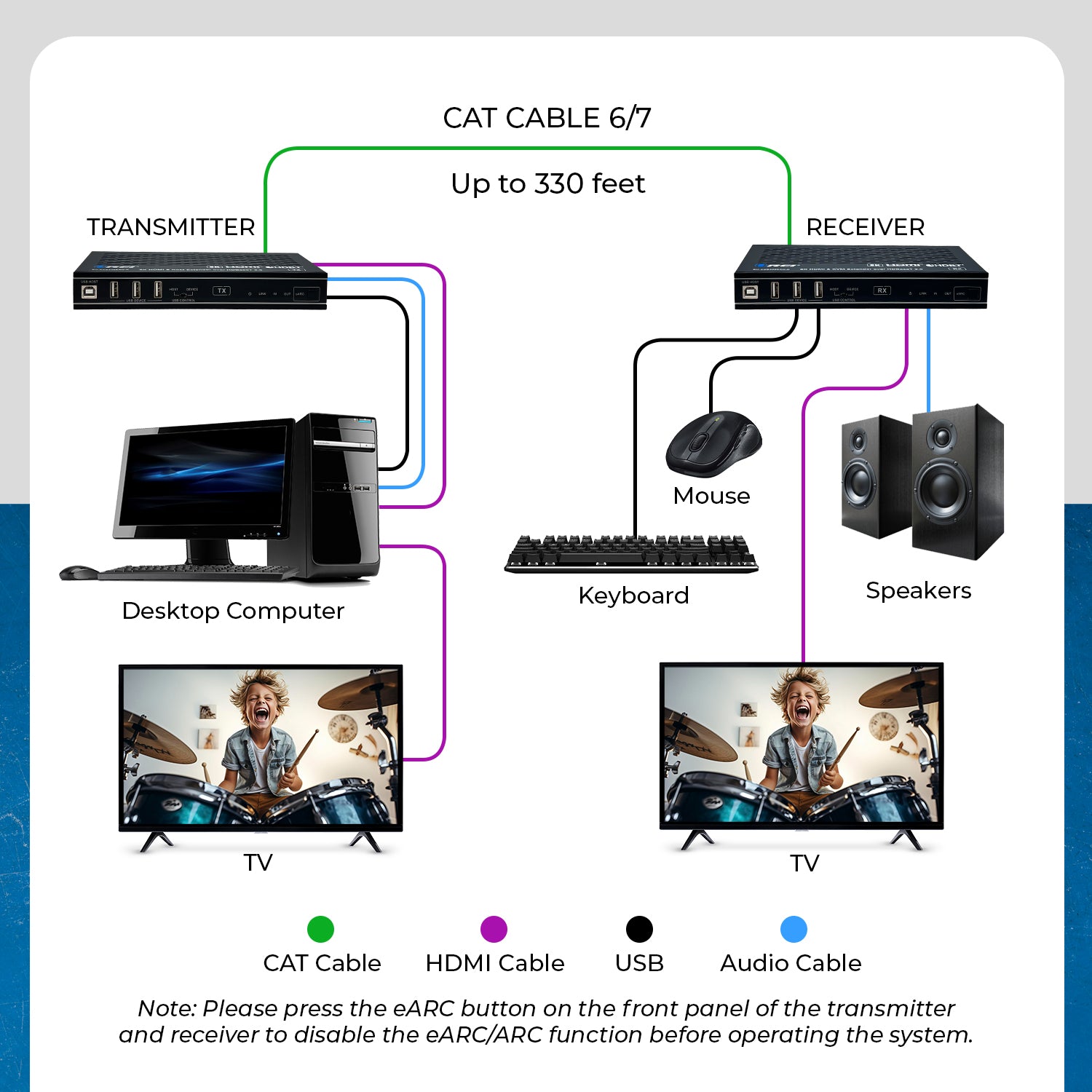

The BK-EXB330EAU-K HDMI Extender leverages cutting-edge HDBaseT 3.0 technology to transmit 8K and 4K Ultra HD video, immersive audio, Ethernet, USB 2.0, bi-directional IR, and RS-232 control signals over a single CAT6A/7 cable — up to 330 feet (100 meters). It delivers uncompressed high-bandwidth performance, supporting video resolutions up to 8K@30Hz and 4K@120Hz with HDR10+, Dolby Vision, and HLG pass-through for ultra-vivid visuals.
The extender includes eARC/ARC functionality, making it easy to route high-definition audio back from a display to an AV receiver. With VRR, ALLM, and FVA compatibility, it's also optimized for next-gen gaming setups. Additionally, USB 2.0 KVM extension provides full remote control capability, ideal for managing PCs or media systems from a distance.
Compact and installation-friendly, this all-in-one HDMI extender is a powerful solution for high-end home theaters, gaming rooms, and professional AV environments requiring maximum resolution, flexibility, and control.
[shortdes]
- HDMI 2.1 and HDCP 2.3 compliant
- Supports video resolutions up to 4K@120Hz
- 32Gbps video bandwidth
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1x USB C [Male] |
| OUTPUT: | 1x CAT [RJ45, 8-pin female] | |
| Receiver: | INPUT: | 1x CAT [RJ45, 8-pin female] |
| OUTPUT: | 1x HDMI [Type A, 19-pin female] |
PACKAGE CONTENTS
| 1x BK-EXB330EAU-K |
| 1x USB-A to USB-C Power Cable |
| 1x User Manual |
ADDITIONAL FEATURES
| ARC/eARC: | Yes |
| CEC : | No |
| Transmission Technology : | HDBaseT |
| IR Control: | Yes, Bi-directional |
| PoC (Power over Cable): | Yes |
| RS-232: | Yes |
| USB Standard: | USB 2.0 (KVM) |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@120Hz: | 100 feet |
VIDEO OUTPUT
| Video Bandwidth: | 32Gbps |
| Video Resolutions: | Up to 4K@120Hz |
AUDIO SUPPORT
| HDMI Audio: |
LPCM/DTS/Dolby Digital/DTS-HD Master Audio™ / Dolby TrueHD
|
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | TX: 4W & RX:3.5W | |
| Power Supply: | FCC, CE, RoHS |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 93.4mm / 3.67in |
| Width: | 34mm / 1.33in | |
| Height: | 15mm / 0.59in | |
| Receiver: | Length: | 72.5mm / 2.85in |
| Width: | 34mm / 1.33in | |
| Height: | 15mm / 0.59in | |
| Weight: | 156g/5.5oz |
PROPERTIES
| Color: | Black |
| Housing: | Aluminium Alloy + ABS |
| Operation Temperature: | 32 - 104°F / 0 - 40°C |
| Storage Temperature: | -4 - 140°F / -20 - 60°C |
| Operating Humidity: | 20 - 90% RH (no-condensing) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
