Description

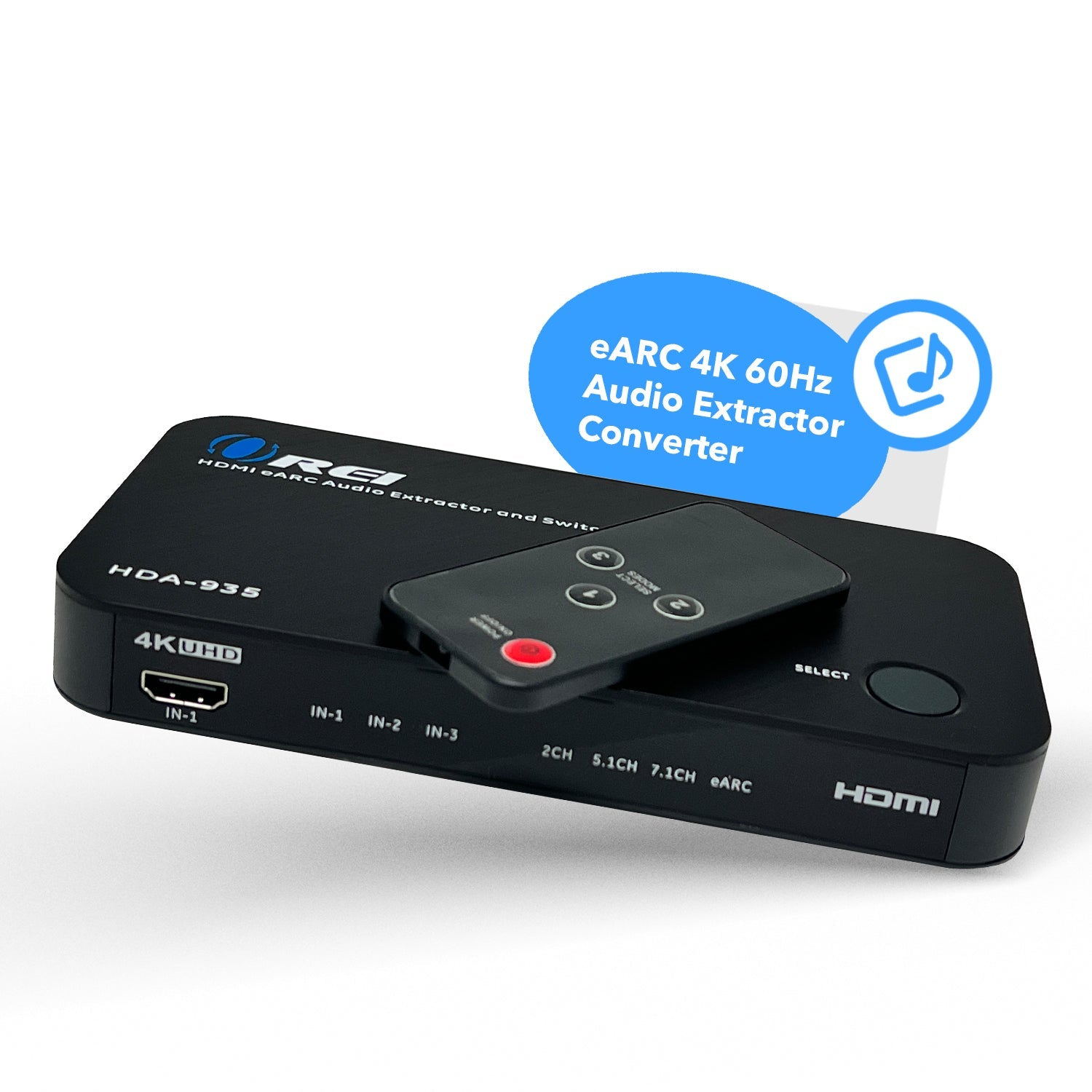

OREI HDA-935: Dual HDMI eARC HDMI Audio Extractor
Key Features:
Supports Video and audio separation

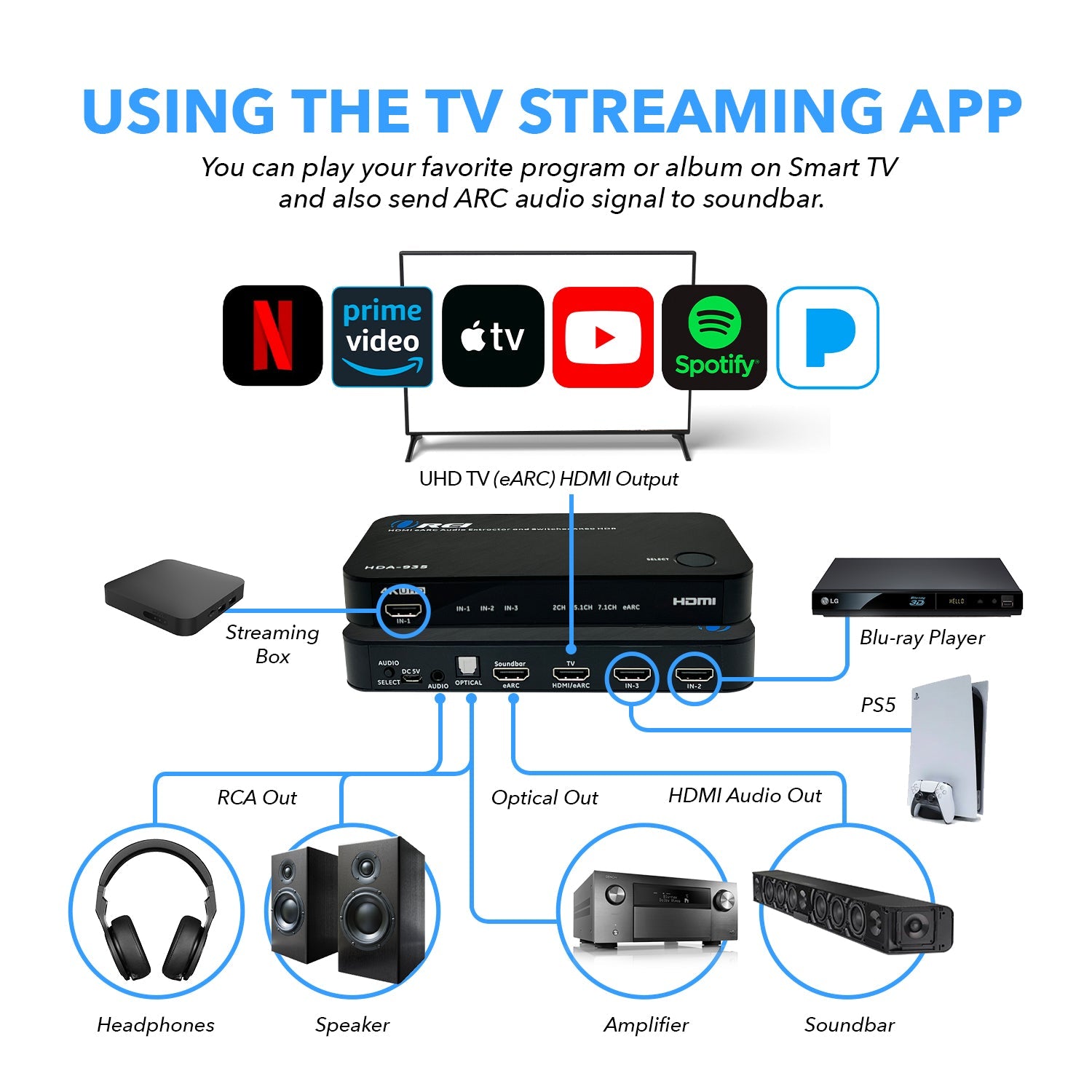

Auto eARC Detection when using the TV's app or external devices
Supports dual HDMI audio interface (HDMI eARC and HDMI Audio)
Supports 4K@60 & HDR
Compatible with Dolby Atmos (via HDMI)
Supports Pixel clock rate up to 600 MHz
Supports S/PDIF, Stereo 3.5mm audio output
Supports DTS HD, Dolby TrueHD (via HDMI)
Supports HDMI 2.0 / 2.1(eARC)
HDCP 2.3 compliant

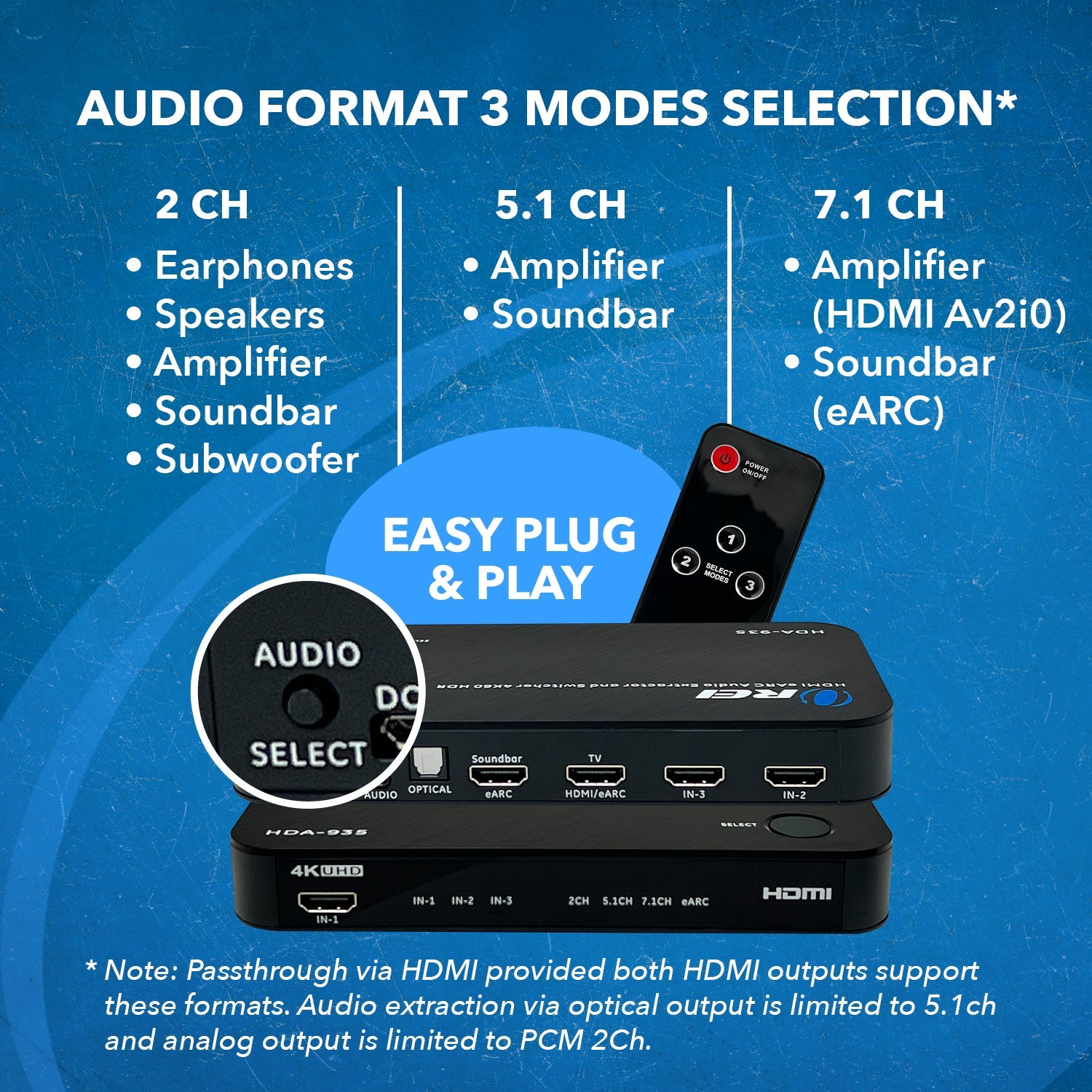

Three modes selection for audio format setting (2Ch/ 5.1Ch/ 7.1Ch)
Support CEC (Use the TV RC to adjust the Soundbar sound and CEC connecting the device to power ON/OFF)
This audio extractor has two HDMI outputs, one for TV 4K@60Hz/HDR video and audio signals, one for eARC Soundbar. It also has S/PDIF(Optical) and analog 3.5mm stereo interface outputs.

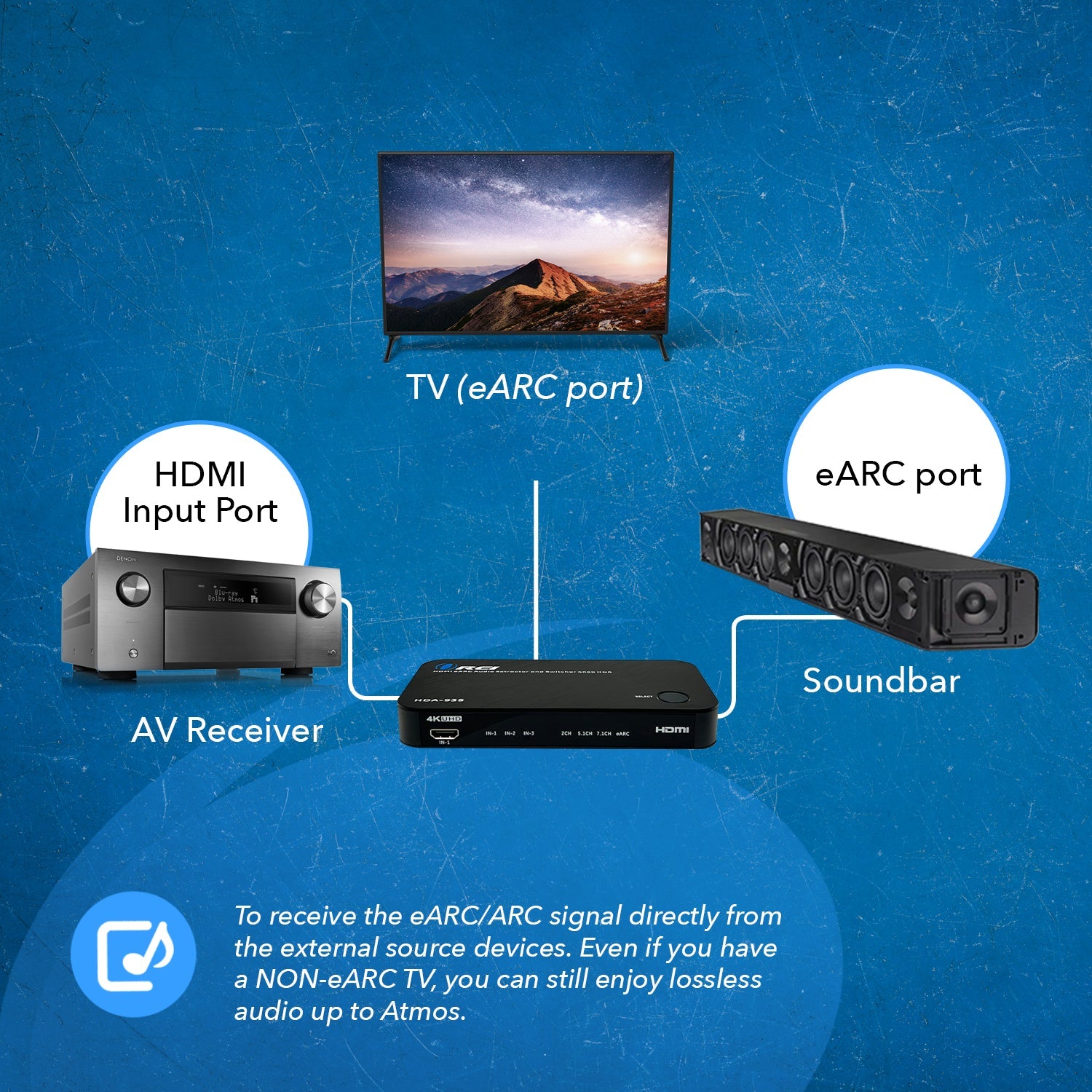

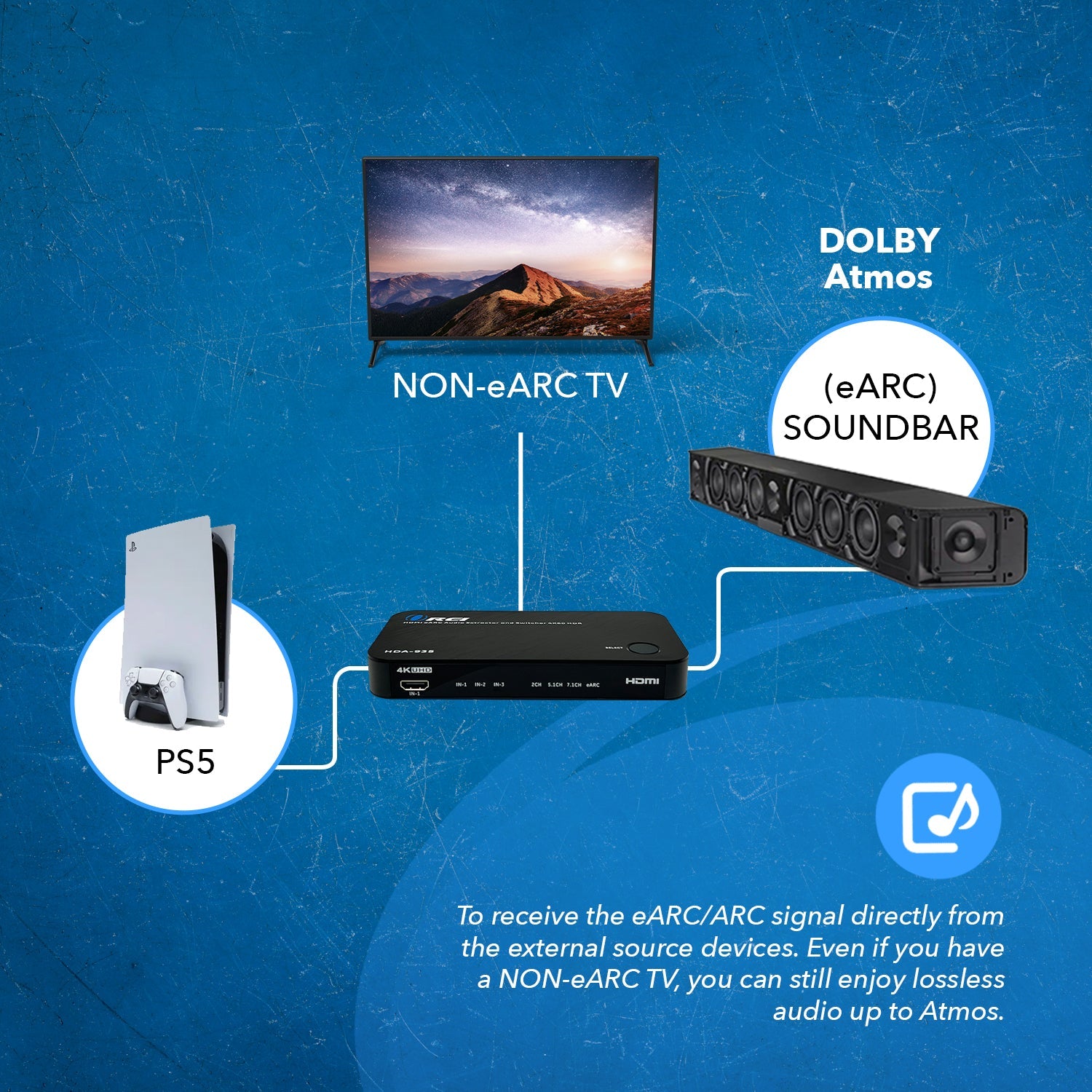

The TV signal can be transmitted back to Soundbar via eARC (enhanced Audio Return Channel) to play high-quality surround sound. Even Non-eARC TV can enjoy the high-quality of eARC audio return for lossless audio up to Atmos.
Build-in eARC automatically detect the source of the signal (TV or external signal).[shortdes]
2 HDMI Outputs (1 for Video, 1 for soundbar (having eARC/ARC port)
Supports S/PDIF, Stereo 3.5mm audio output
Supports CEC function between HDMI Ports
[/shortdes] [tab]
AUDIO AND VIDEO
INPUT PORTS:

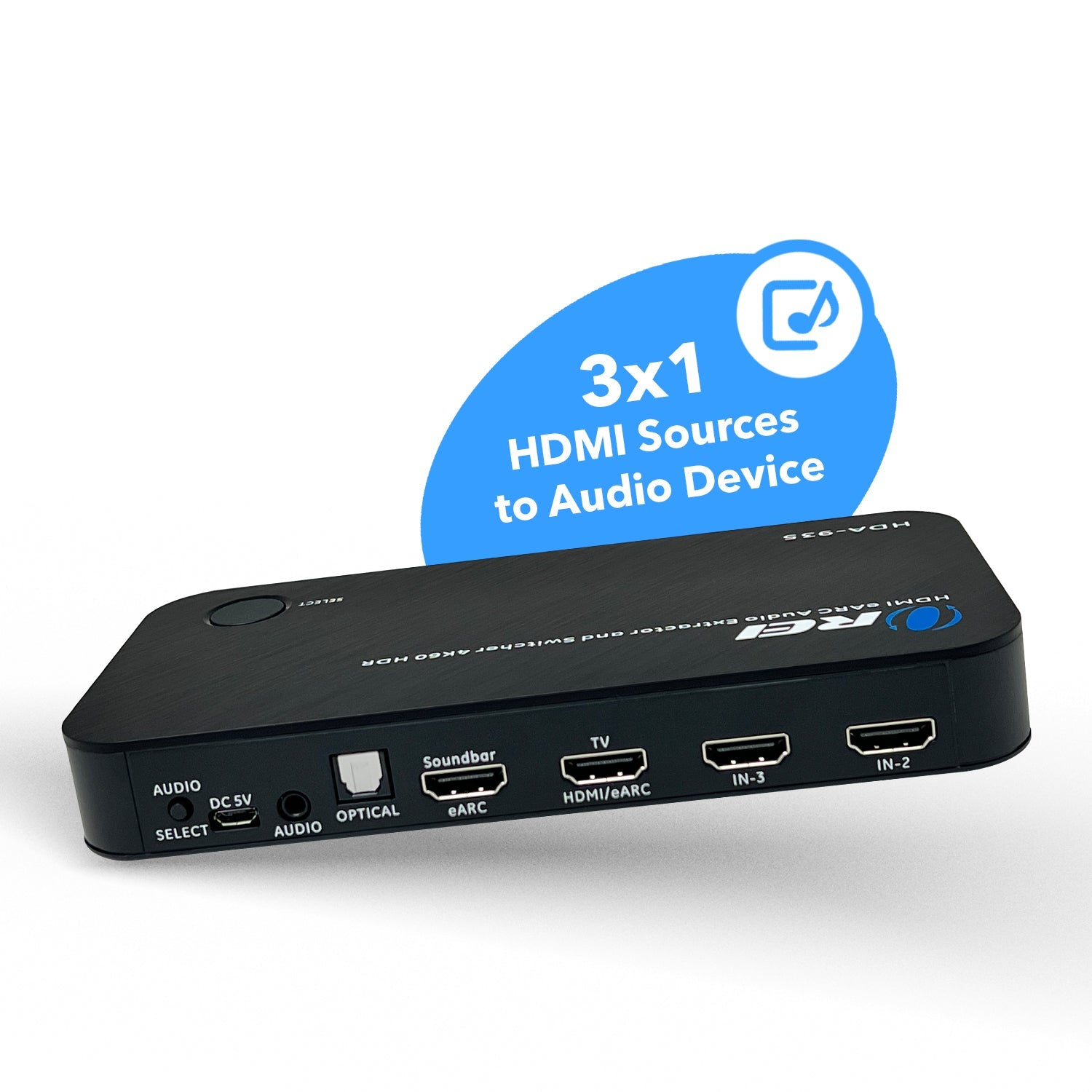

3x HDMI Type A [19-pin female]
OUTPUT PORTS:
2x HDMI Type A [19-pin female]
1x S/PDIF (Optical)
1x 3.5mm audio jack
COMPLIANCES
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4k@60Hz
Color Space:
RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0
Color Depth:
12 bit
CEC & EARC SUPPORT
CEC:
Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF
eARC/ARC:
Yes
SWITCHES
EDID:
Build-in eARC automatically detects the source of the signal (TV or external signal), no need to switch on or off
Audio Select:
Select the audio formats from 2Ch, 5.1Ch, 7.1Ch
AUDIO OUTPUT
HDMI Audio Formats:
PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X

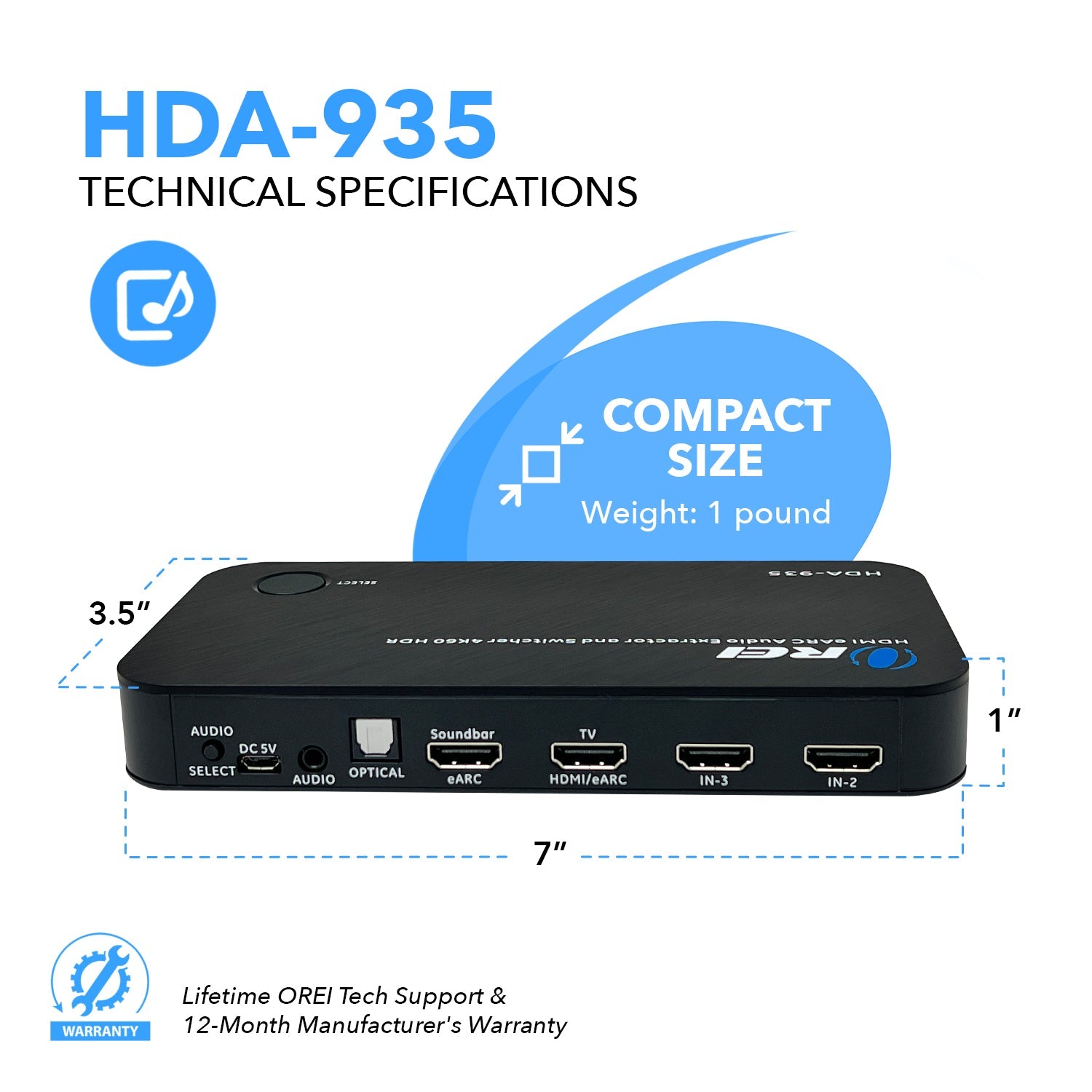

DIMENSIONS & WEIGHT
Height:
26.3mm
Width:
175mm
Depth:
86.6mm
Weight:
158g
PROTECTION
Operation Temperature:
0°C to 40°C (32°F to 104°F)
Storage temperature:
-20°C to 60°C (-4°F to 140°F)
Relative Humidity:
10~90 % RH
ESD Protection:
Contact discharge 4KV Air discharge 8KV
POWER
Power Consumption (Max):
5W(max)
Power Supply
5V/1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
MABS+ABS
PACKAGE CONTENTS
1x HDMI Audio Extractor
1x DC 5V/1A power adaptor
1x 3.5mm to RL cable
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
