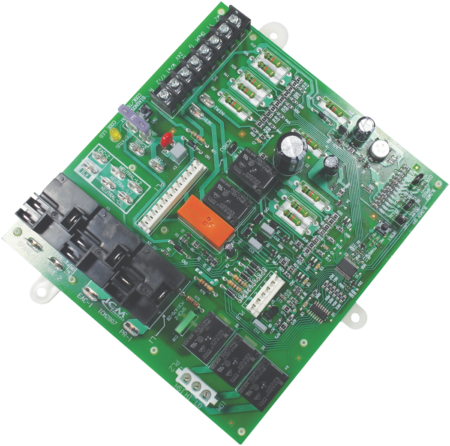

ICM Controls ICM2807 Furnace Control Board

ICM ControlsSKU: ICM2807
No reviews

Condition: New

Sale price$319.96

Shipping calculated at checkout

Only 1 unit left


365-Day Warranty!

Part Type: Furnace Control Board

Part Number: ICM2807

Location: 01A3

Notice: Carrier OEM Replacement Control
Low-Cost Form, Fit And Functional Replacement Board

The ICM2807 is a low cost replacement for the Carrier HK42FZ017 furnace control board which is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner

The ICM2807 is a low cost fit, form and functional replacement for the Carrier HK42FZ017 furnace control board.
Microprocessor-based precision
Designed for 100% gas shutoff in case of ignition failure
Twinning compatible with another ICM2807 control
Reverse polarity protection
Secondary brownout voltage protection
Compatible with 24 VAC standard thermostat
Continuous Blower Speed Jumper
Limit Switch Lockout Time
Limit Switch Lockout After Power Interruption
Provides diagnostic

Ambient Temperature
– Operating: -40°F to 176°F
– Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
Voltage Range: Line (98 to 132 VAC) @ 60 Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 10 HP, 120 VAC
Low Heat: 5A, 1/2 HP, 120 VAC
High Heat: 10A, 1 HP, 120 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
EAC: 1A @ 120 VAC
Humidifier: 0.5A & 24 VAC
Weight: 1
Height: 1.5
Width: 6.5
Length: 7

Carrier: HK42FZ017
