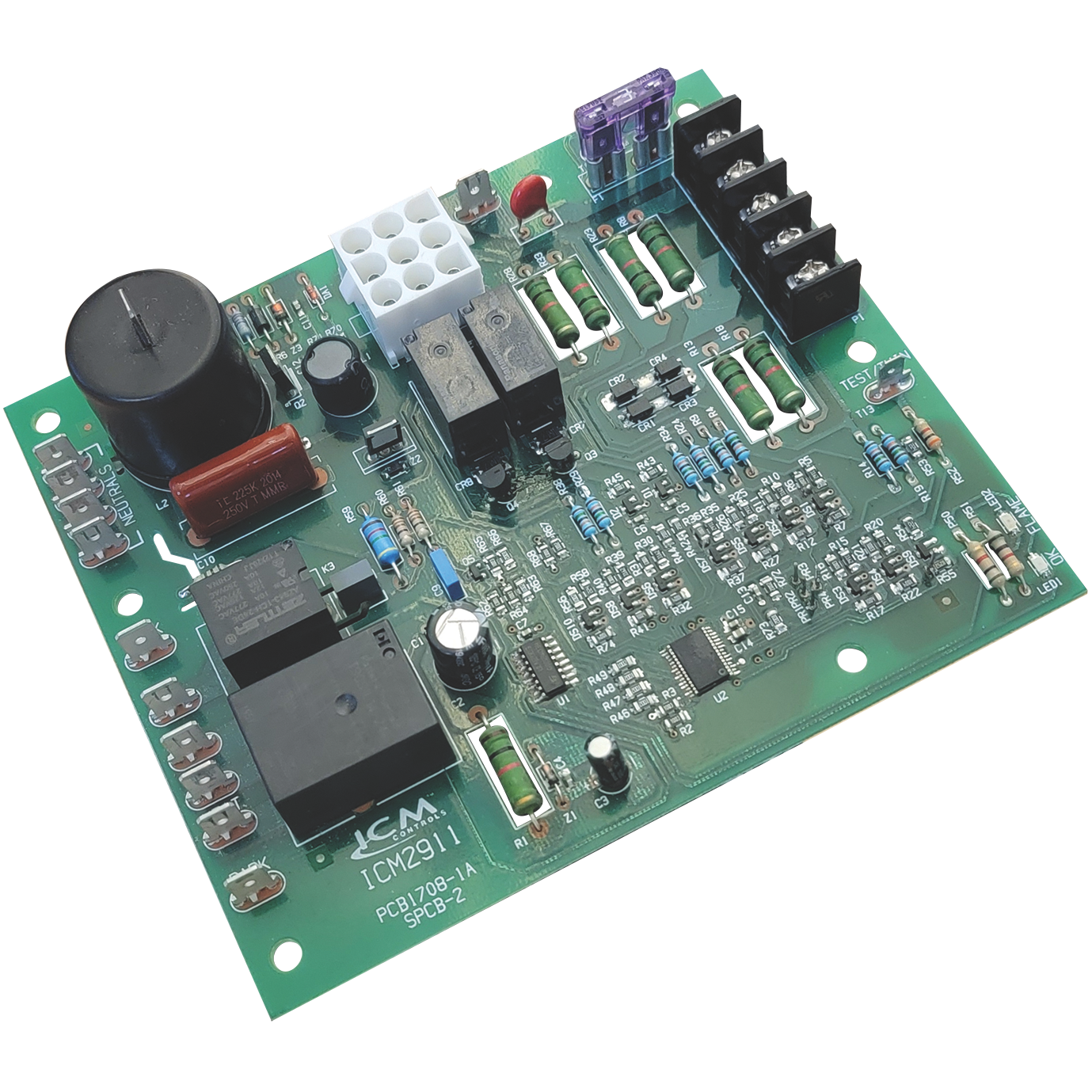

ICM Controls ICM2911 Spark Ignition Control Board

No reviews

Condition: New

Sale price$101.96

Shipping calculated at checkout

Sold out


365-Day Warranty!

Part Type: Furnace Control Board

Part Number: ICM2911

Location: 01B3

Modine Replacement Direct Spark Ignition
√ Microprocessor-based
√ Monitors system timing, trial for ignition, system switches, flame sensing and lockout
√ 100% lockout safety feature monitors for repeated over-temperature faults or flame losses and disables the heat operation for safety
√ Continuously monitors the gas valve output to verify the gas valve does not turn on or off incorrectly
√ Compatible with LP or natural gas
√ LED indication for status and fault codes to aid in troubleshooting
√ Twinning feature allows two furnace boards to be controlled with a single thermostat
√ Field test mode

■ Input

Line voltage: 120 VAC
Control voltage: 18 – 30 VAC
Frequency: 50/60 Hz
■ Output

Spark ignition: 12kV O.C.V., 60 Hz
Heat blower: 15 FLA/30 LRA @ 277 VAC
Inducer fan: 1/2 HP, 9.8FLA/58.8LRA @ 120 VAC
Gas valve: 2.3A Pilot Duty @ 240 VAC
■ Environmental

Operating temperature: -40°F to 149°F (-40°C to 65°C)
Height: 3″
Width: 5″
Length: 6″

Modine Spark Ignition Control: 5H79749
