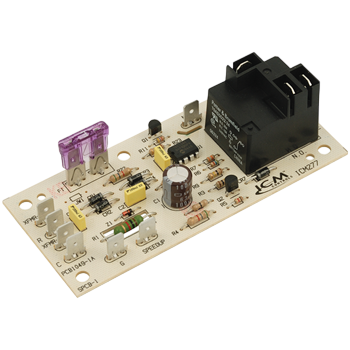

ICM Controls ICM277 Fan Blower Control, Direct OEM Replacement - Dual On/Off Delay Timer

ICM ControlsSKU: ICM277
No reviews

Condition: New

Price:
Sale price$65.96

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

365-Day Warranty!

Part Type: Fan Blower Control

Part Number: ICM277

Location: 01A3

Notice: Goodman OEM Replacement Control

Upon application of power to the G terminal, the ICM277 recognizes a call for the blower and a 7 second delay on make period begins. After the 7 second ON delay, the control energizes the blower motor. Upon removal of power from the G terminal, the board will keep the blower on for an additional 65 seconds. At the end of the 65 second OFF delay, the blower will shut off.

DETAILS:
Microprocessor-based precision
For circulating fan in heat pump, A/C and forced air systems

SPECIFICATIONS:
Input:
– Voltage: 18-30 VAC
Contact Ratings:
– N.O.: 20 amps
– N.C.: 10 amps
Time Delays:
– Blower ON: 7 seconds fixed
– Blower OFF: 65 seconds fixed

WEIGHT/DIMENSIONS:
Weight: 0.3
Height: 1.75
Width: 6
Length: 4.5

REPLACES:
Goodman: B1370735S, PCBFM131S
