Description

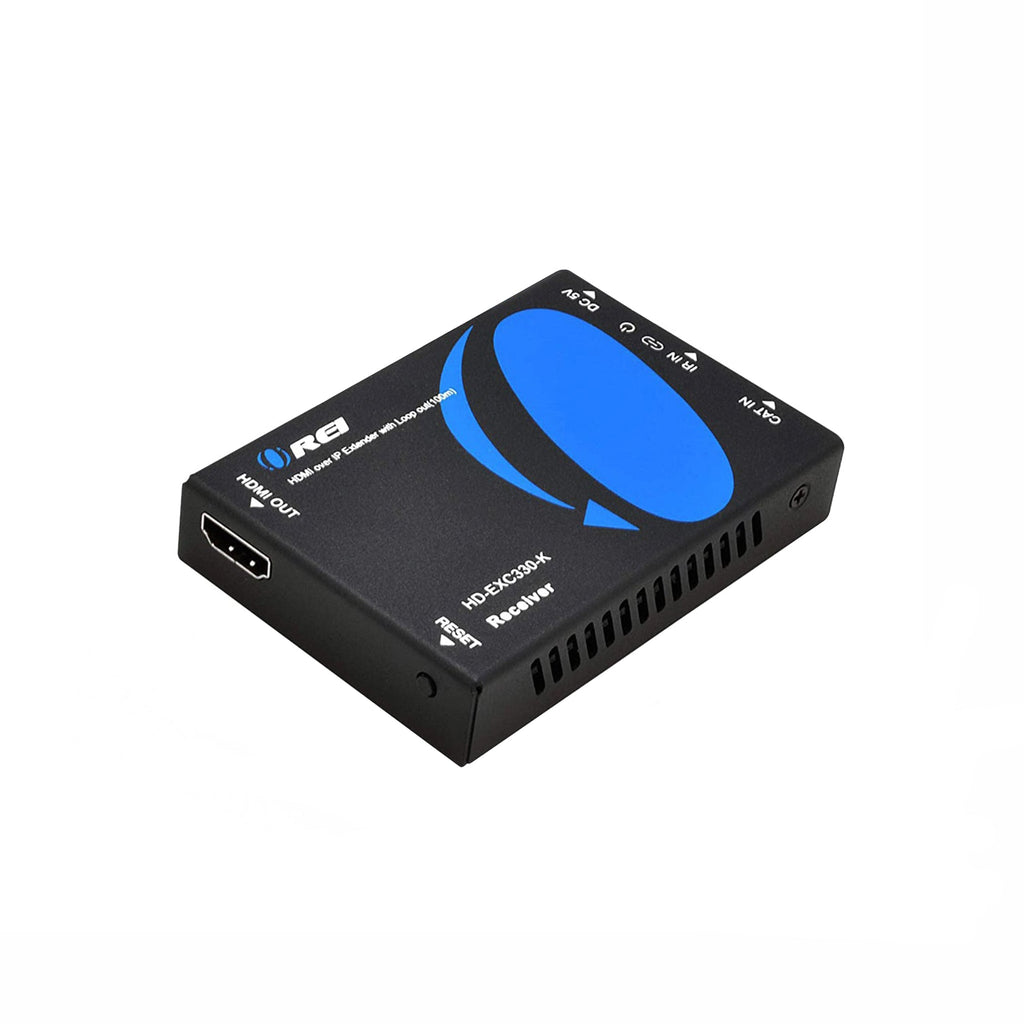

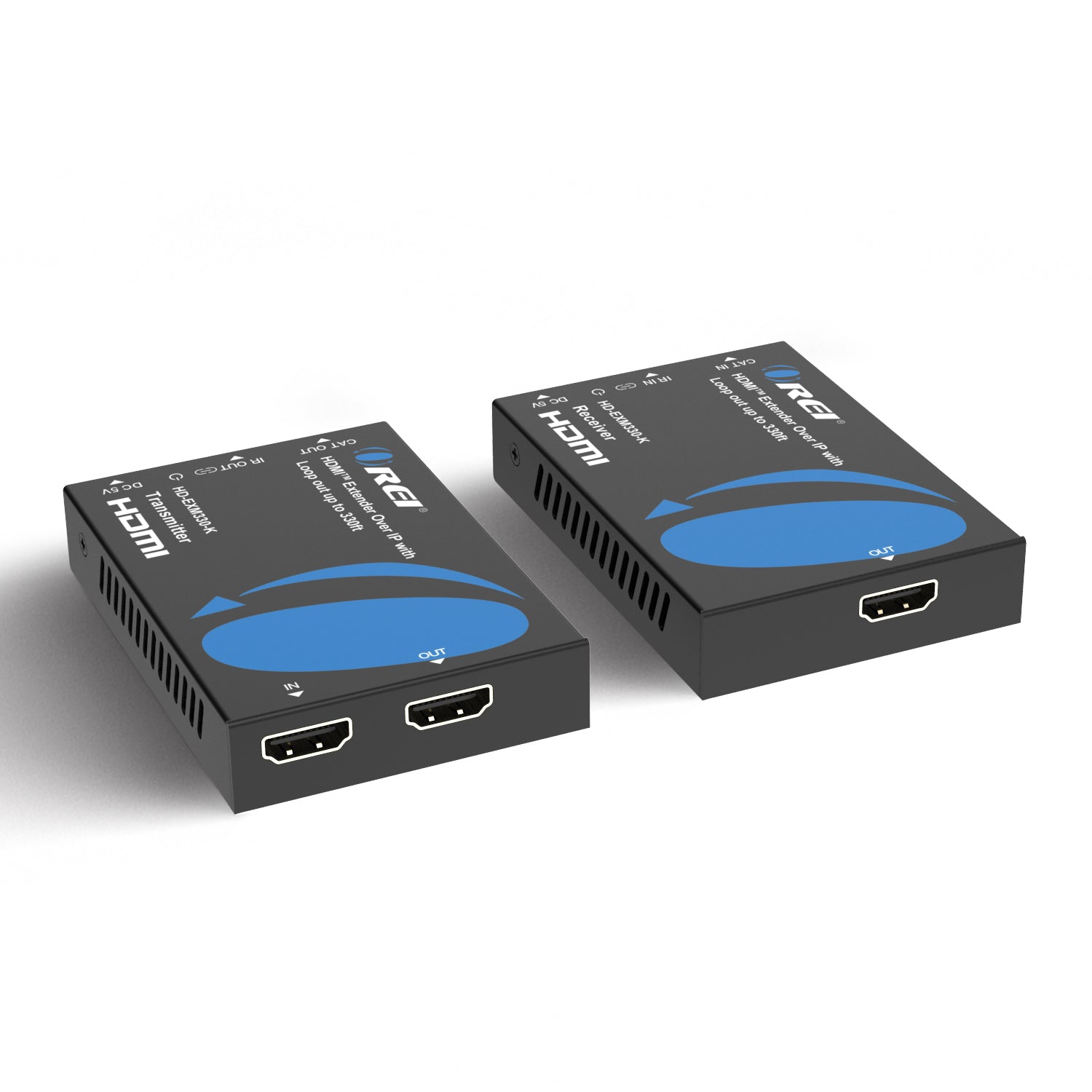

OREI HD-EXM330-RX (Receiver Only): HDMI over IP extender upto 330ft
Key Features:

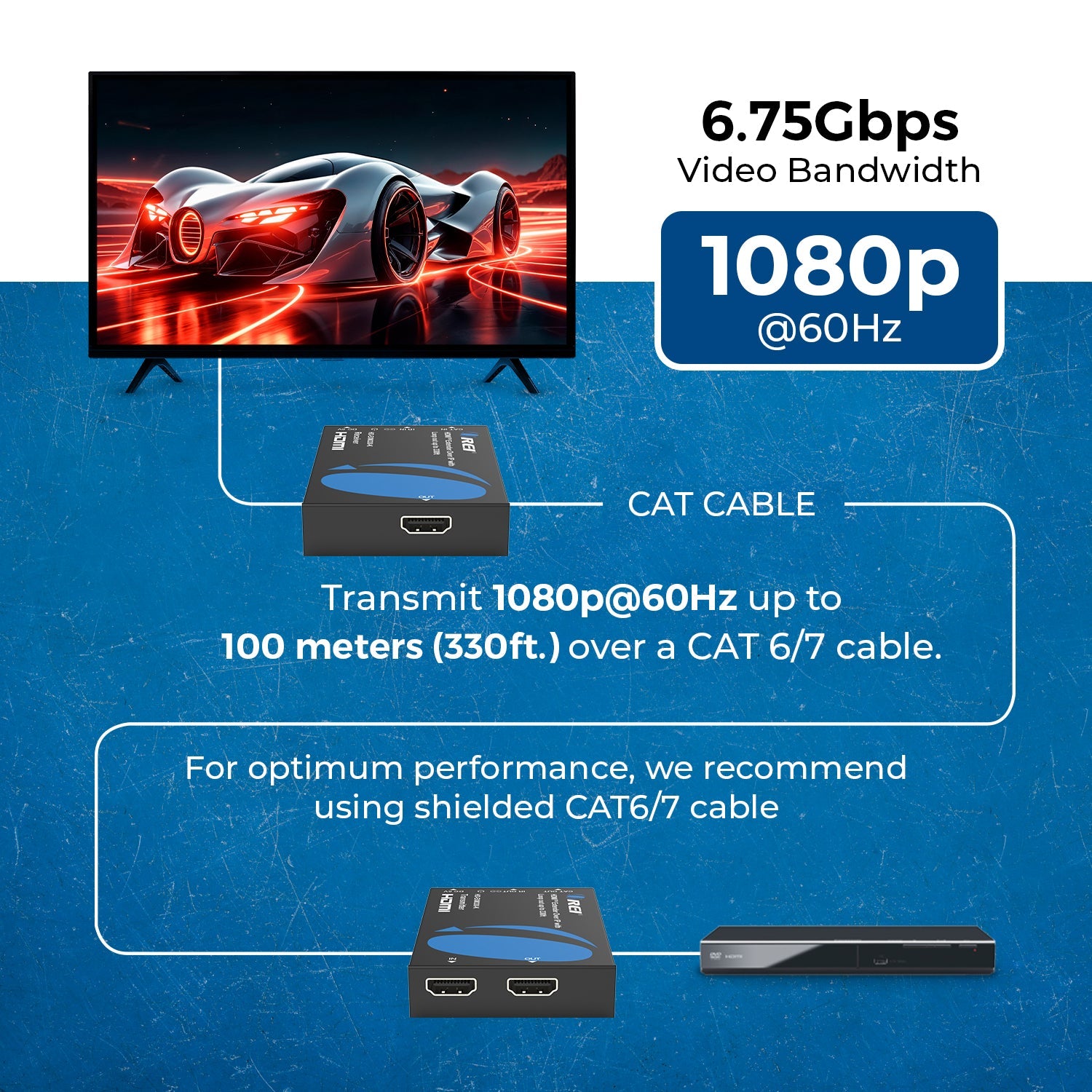

- Extend video up to 330 feet – Transmits 1080p HDMI signals up to 100 meters via Cat5e/6 cable.

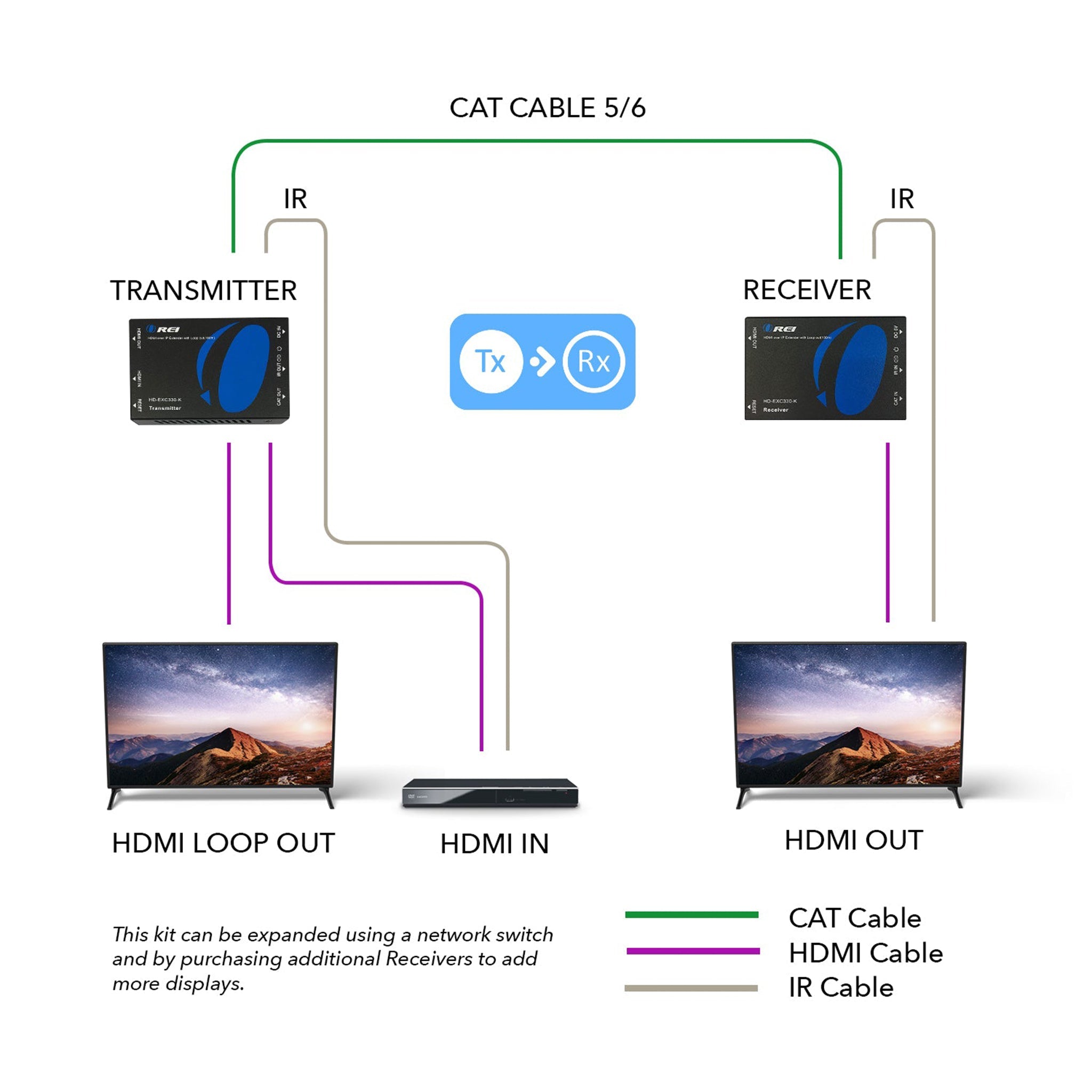

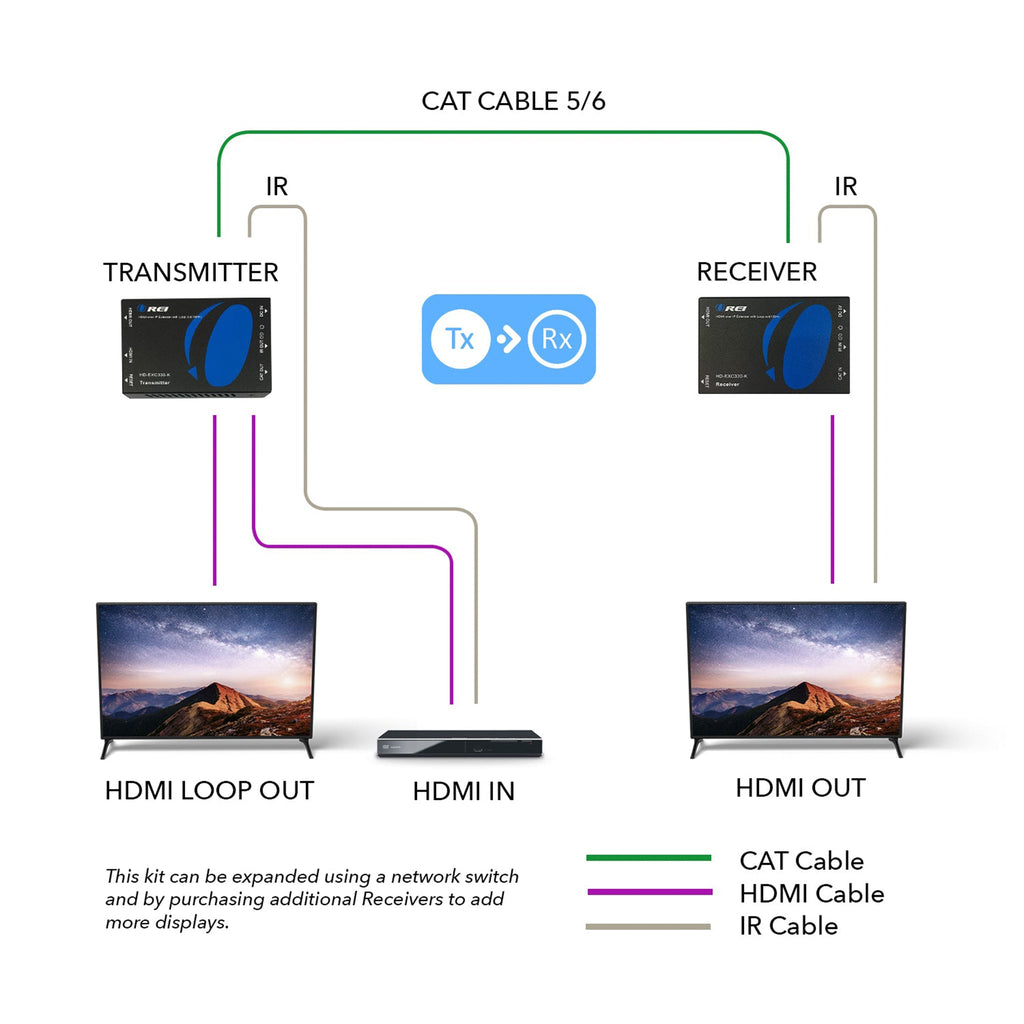

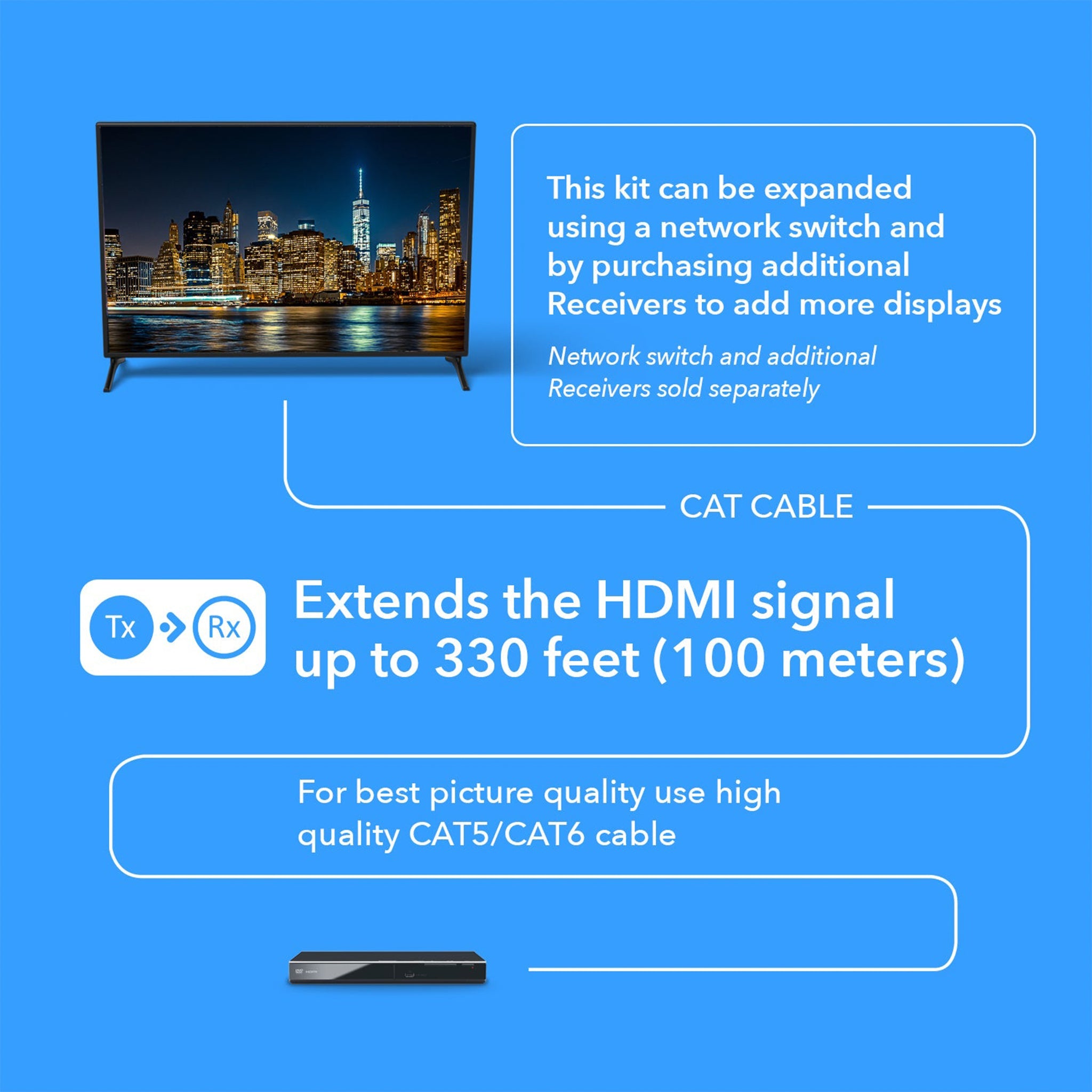

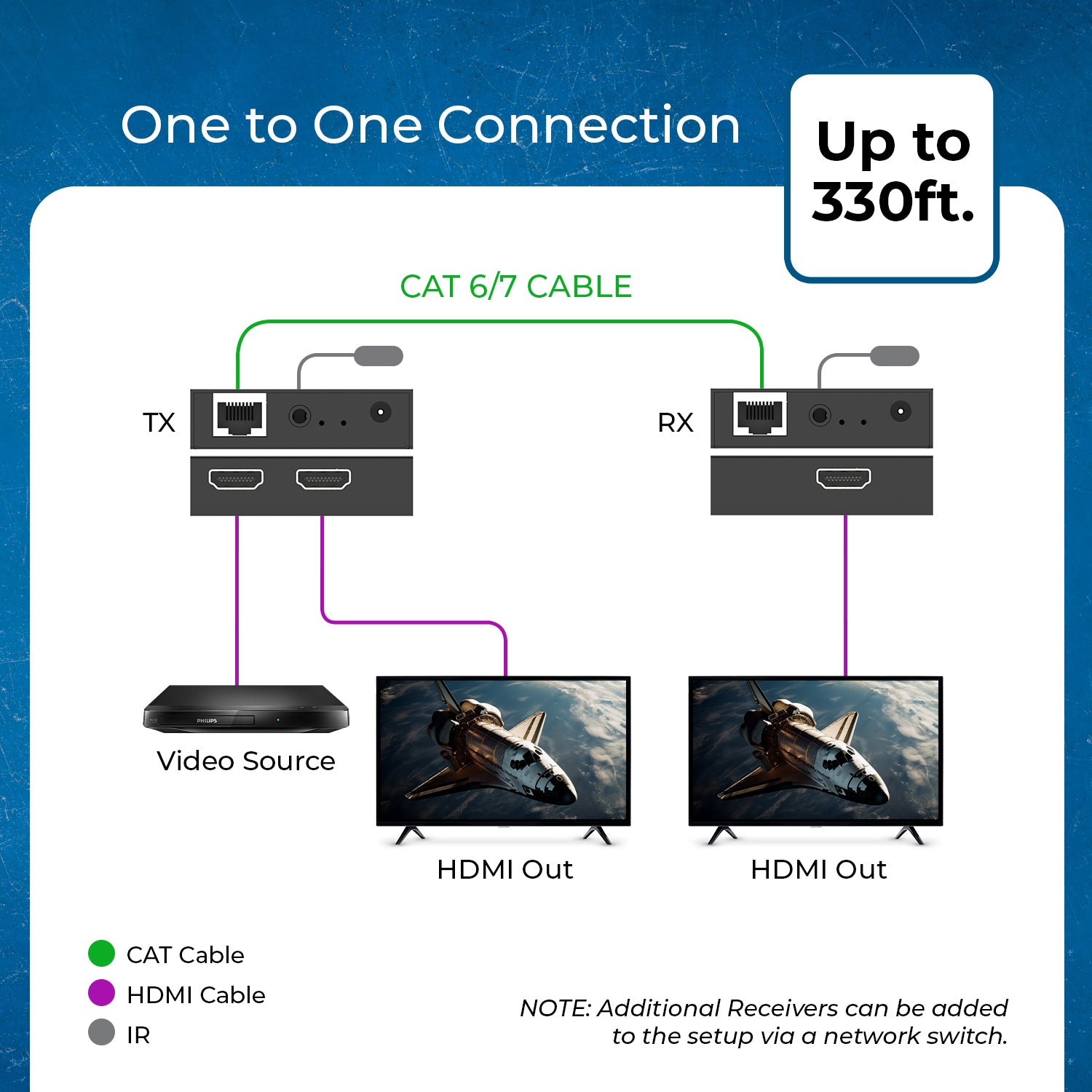

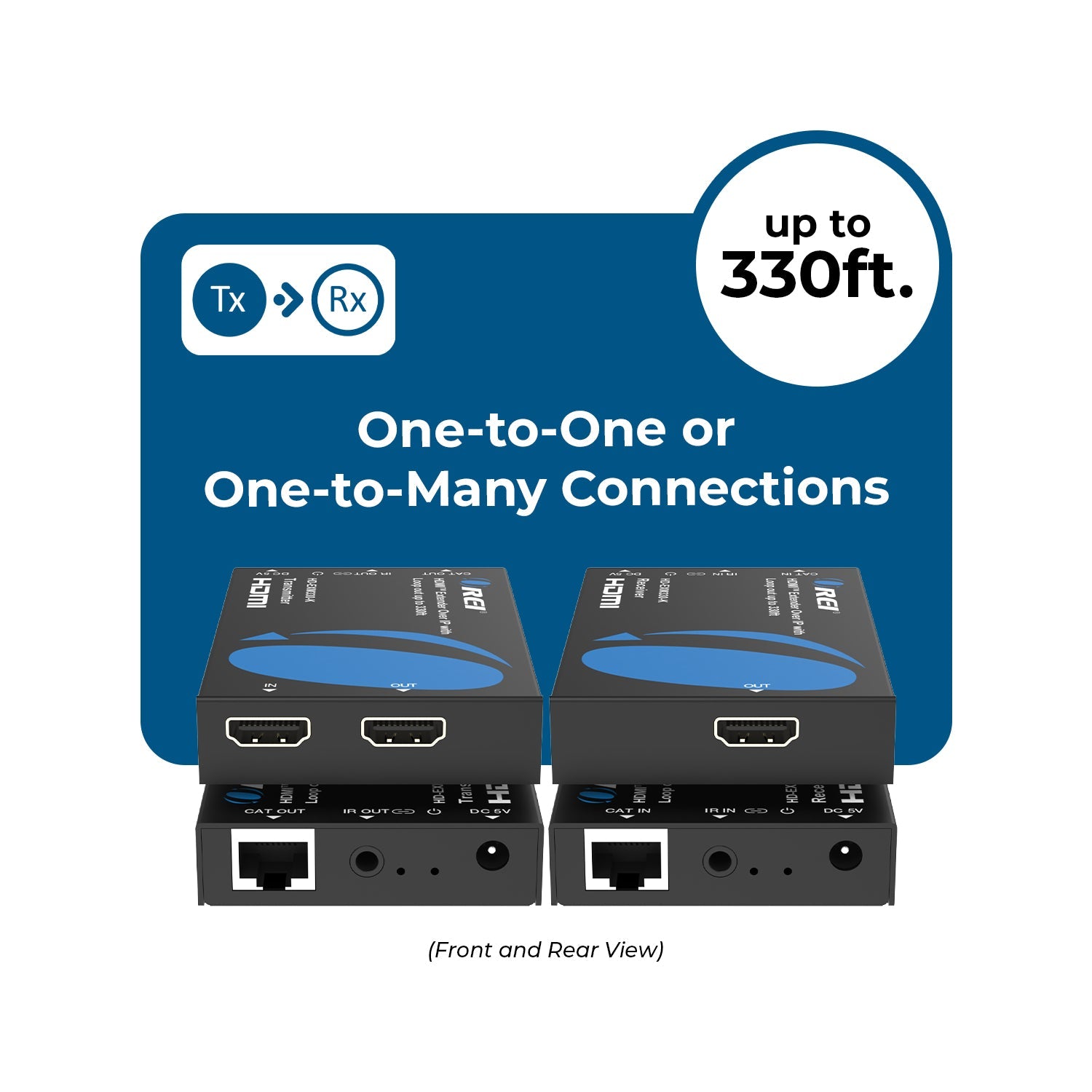

- Supports point-to-point and one-to-many connections – Allows distribution to multiple receivers (sold separately).

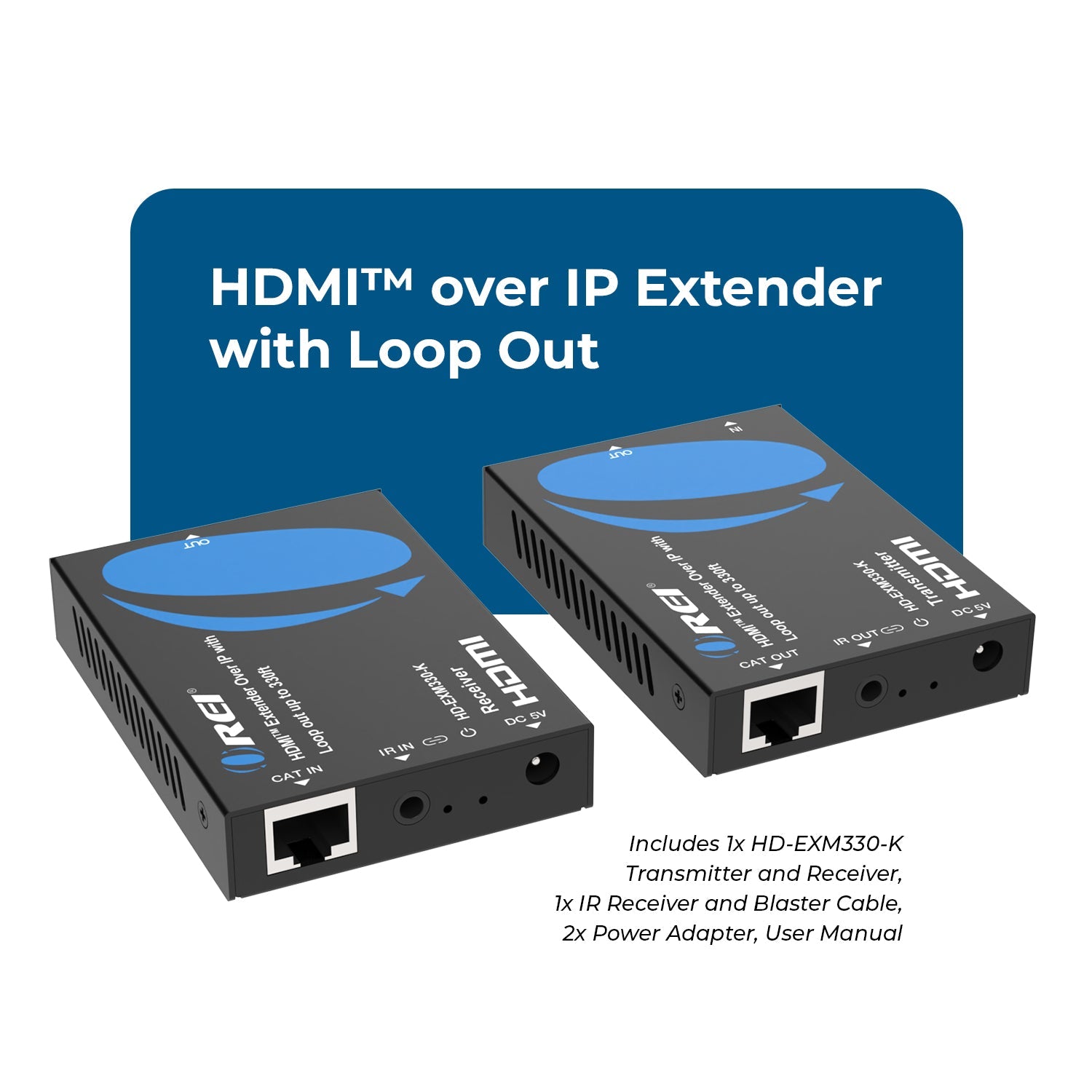

- HDMI loop-out for local display – Connect a monitor near the source to view content in real time.

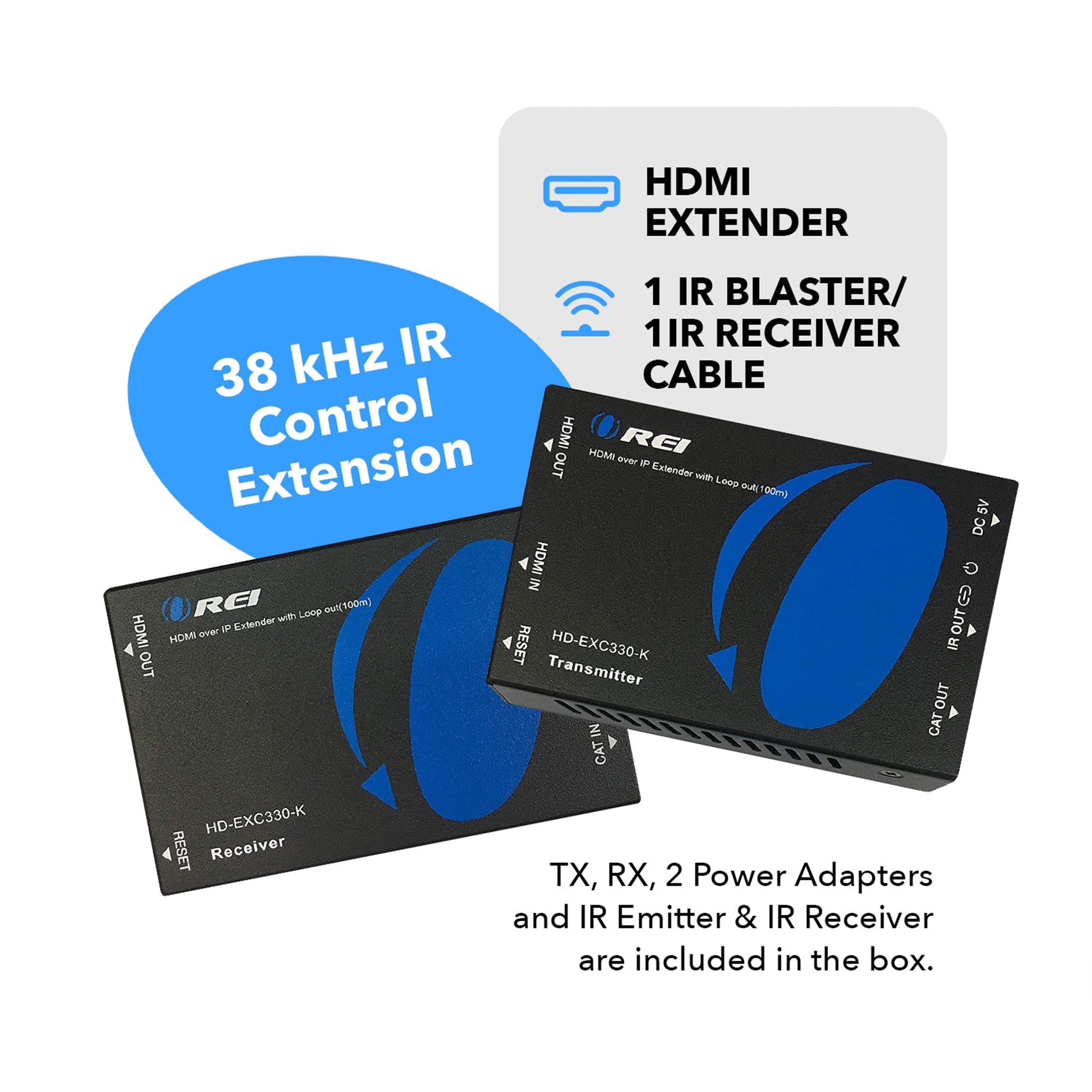

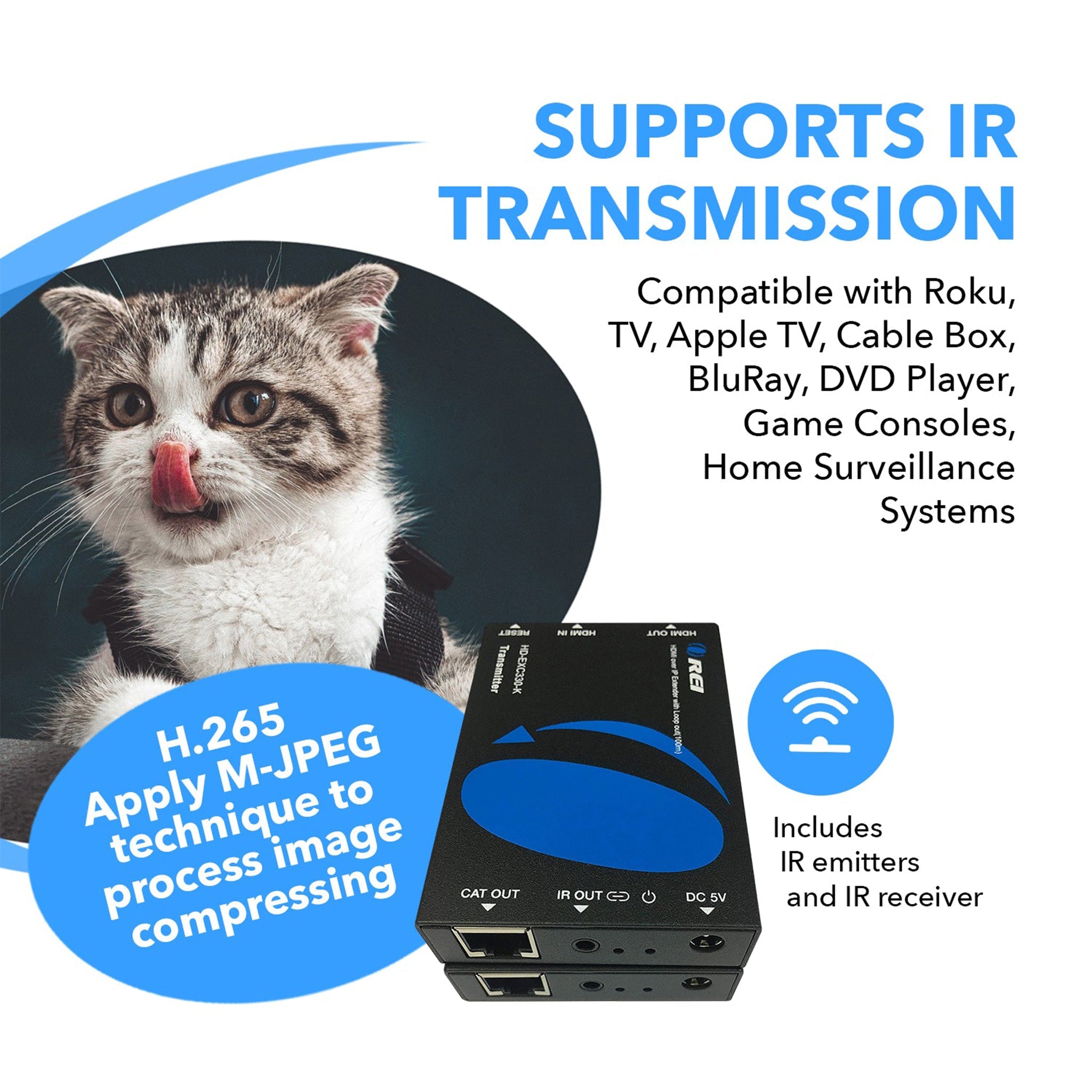

- IR control extension – 38 kHz IR passback lets you control the source device remotely.
- High-quality compression – M-JPEG technique minimizes image quality loss during transmission.
- Zero configuration required – Plug-and-play setup—no driver installation needed.
The HD-EXM330-RX HDMI Extender offers a reliable long-distance solution for extending Full HD video and IR signals up to 330 feet over a single Cat5e/6 cable. Designed for ease of installation and dependable performance, this extender enables point-to-point and one-to-many transmission (splitters sold separately). Whether for residential AV setups, conference rooms, or remote monitoring systems, it provides high-quality signal distribution with zero latency.
With an HDMI loop-out for local display monitoring and IR extension at 38kHz, users can manage media devices from a distance with ease. It uses M-JPEG compression technology to maintain minimal loss in image quality while transmitting over extended distances.
[tab]
AUDIO AND VIDEO
| Receiver: | INPUT PORTS: | 1×IR IN [3.5mm Stereo Mini-jack] |
| OUTPUT PORTS: | 1×CAT IN [RJ45 connector] | |
| 1×HDMI Type A [19-pin female] |
COMPLIANCES & PROTOCOLS
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080p@60Hz: | 330 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 10.2Gbps |
| Video Resolutions: | Up to 1920x1200@60Hz |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth: | 8-bit |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: | No |
| ARC Function: | No |
| USB KVM Function: | No |
| PoC/PoE Function: | No |
| IR Controller: | Yes |
| Downscaler Function: | No |
| Over Network/IP Function: | Yes |
| HDBaseT Function: | No |
| RS-232 Function: | No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
Buttons
| Reset Button: | It will reset the product including IP address, encoding information and EDID. The EDID will recover default status for 1920x1080p@60Hz |
AUDIO OUTPUT
| HDMI Audio Formats: | LPCM 2.0CH,48KHz |
SIGNALS
| TMDS Signals: | 3.3V |
| DDC Signals: | 5V |

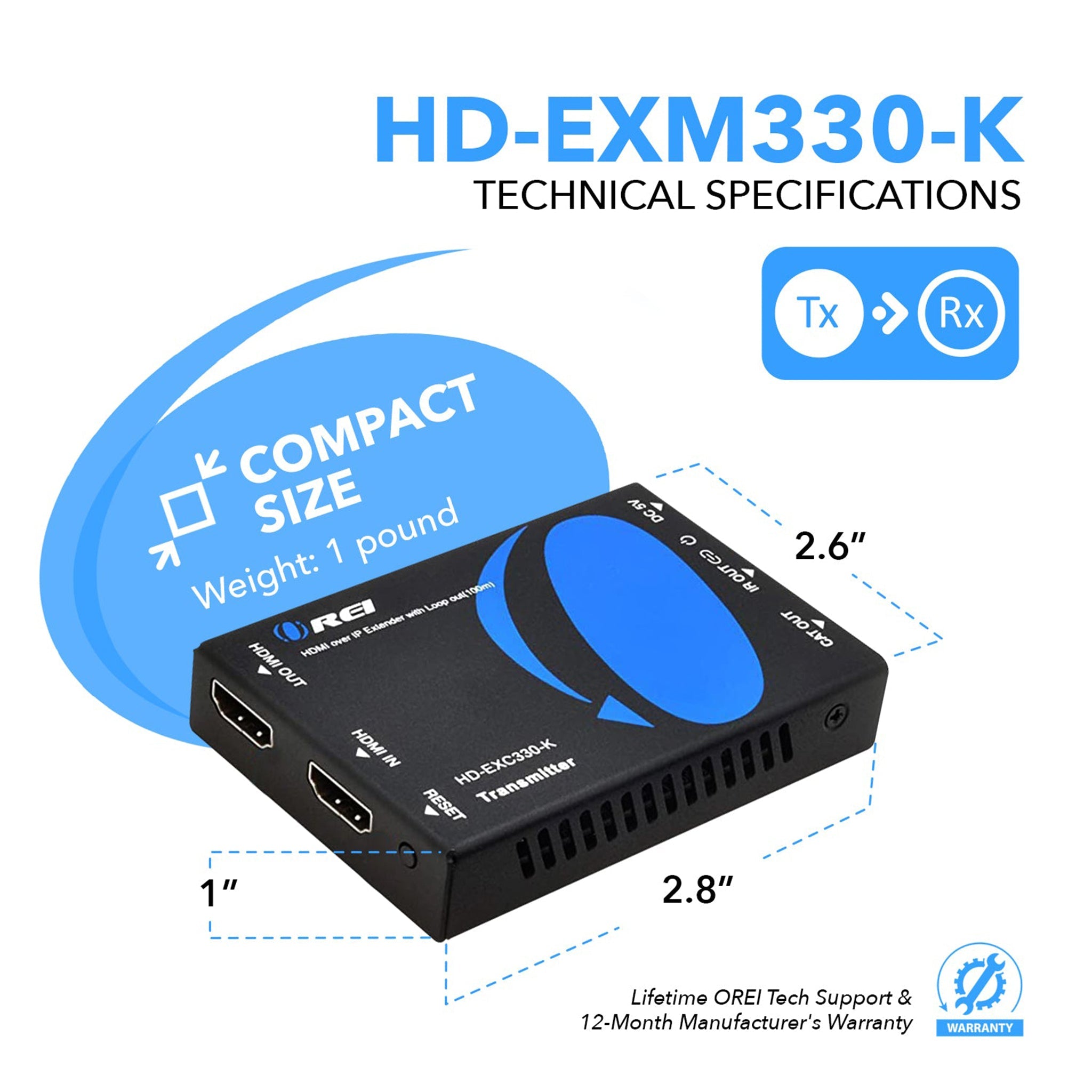

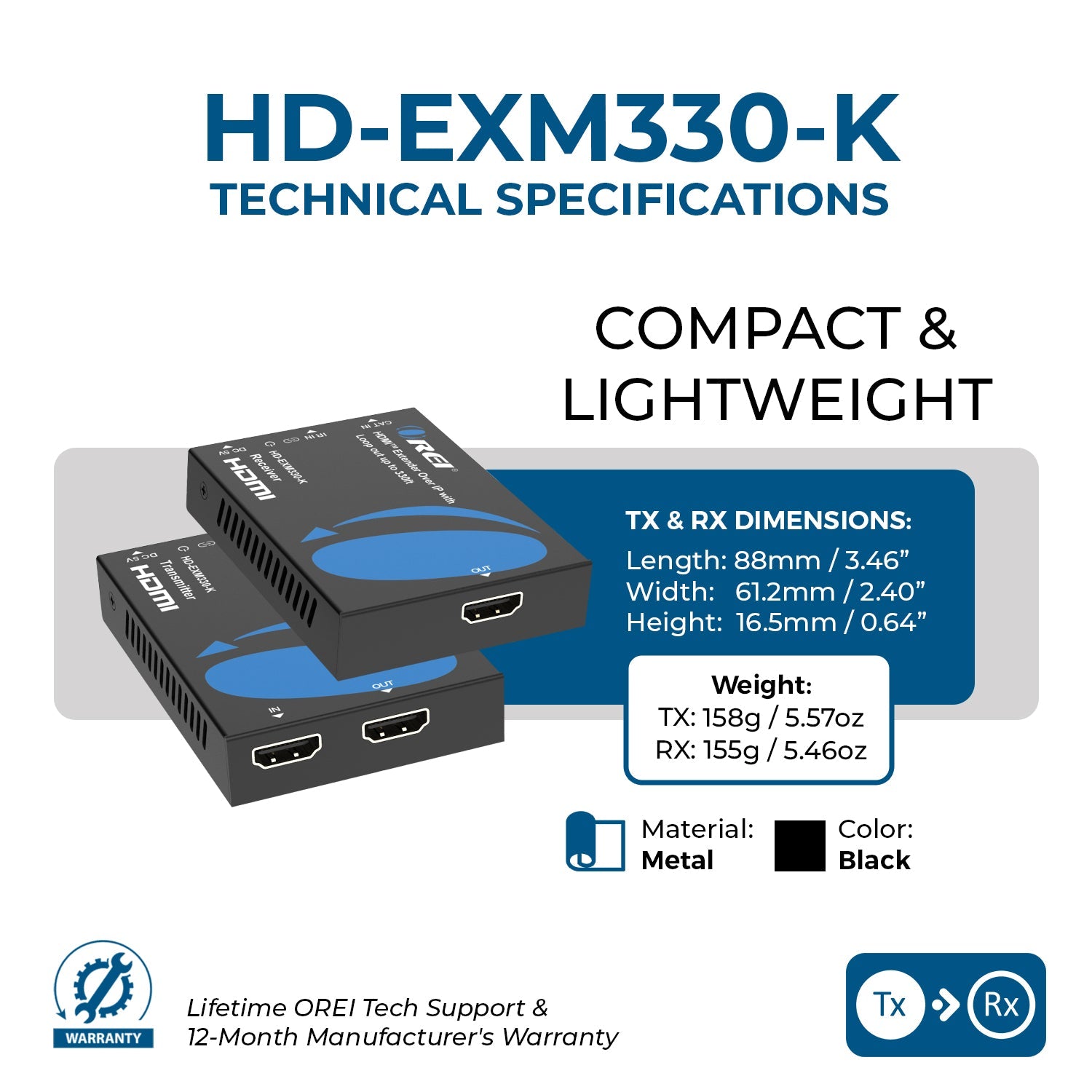

DIMENSIONS & WEIGHT
| Height: | 16.5 mm | |
| Width: | 88 mm | |
| Depth: | 61.2 mm | |
| Weight: | Receiver: | 150g |
PROTECTION
| Operation Temperature: | -10°C ~ 50°C / 14°F ~ 122°F |
| Storage temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
| ESD Protection: | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Electrostatic Protection of the whole Machine: | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
RJ-45 CONNECTOR Type
| WE/SS 8P8C |
POWER
| Power Consumption (Max): | Receiver: | 1.25W |
| Power Supply: | Input: | AC100 - 240V 50/60Hz |
| Output: | DC 5V/1A (US/EU standards, CE/FCC/UL certified) | |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
PACKAGE CONTENTS
| 1 x HDMI Receiver |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control

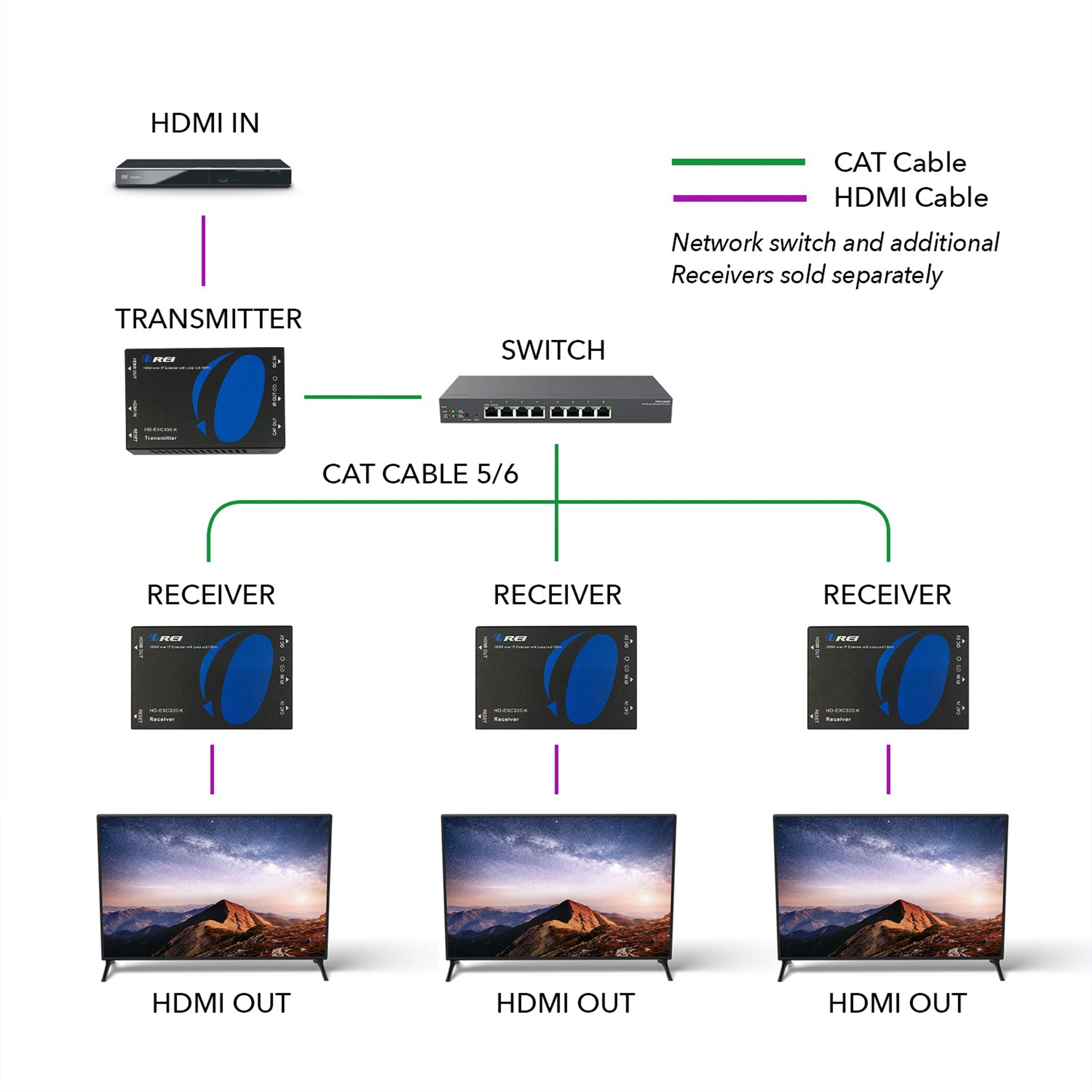

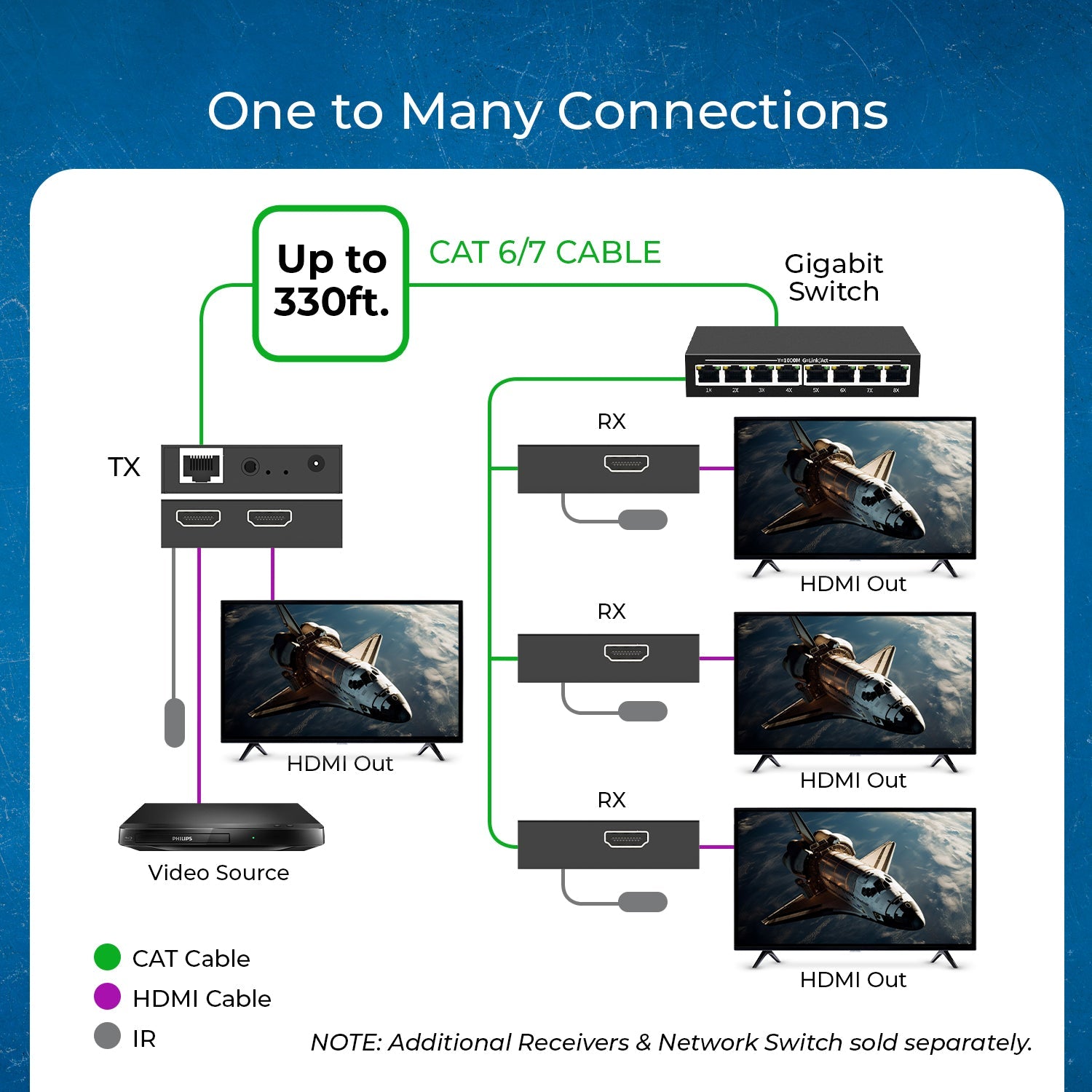

You can connect up to 253 additional receivers with this device using a network switch as a mediator.
Yes, this product supports Over IP function & you will be able to connect additional receivers via a network switch.
[/tab1] [shortdes]
- Supports 1080p@60Hz up to 330 feet
- Supports Over IP function
- Supports IR Remote Control
[/shortdes]
