Description

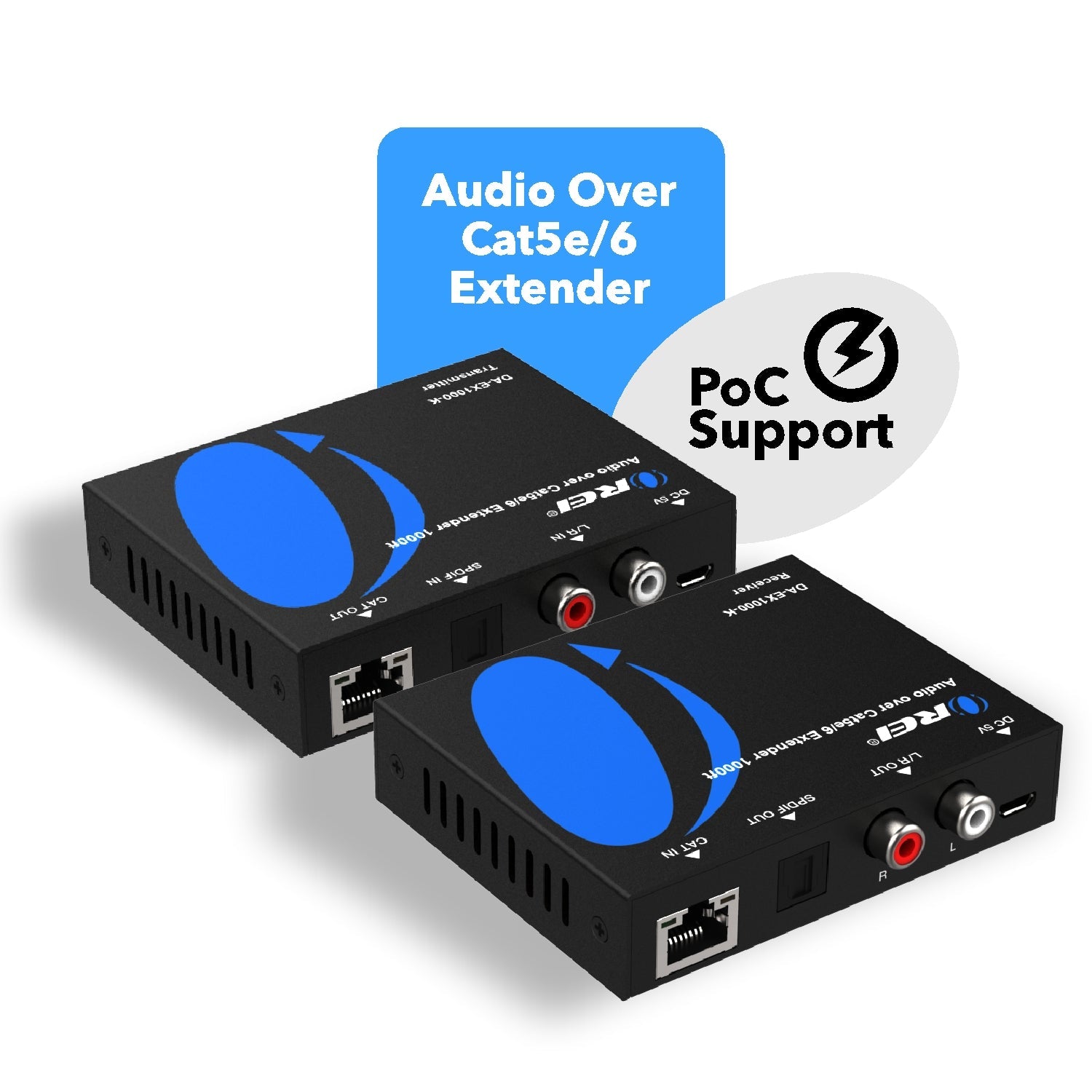

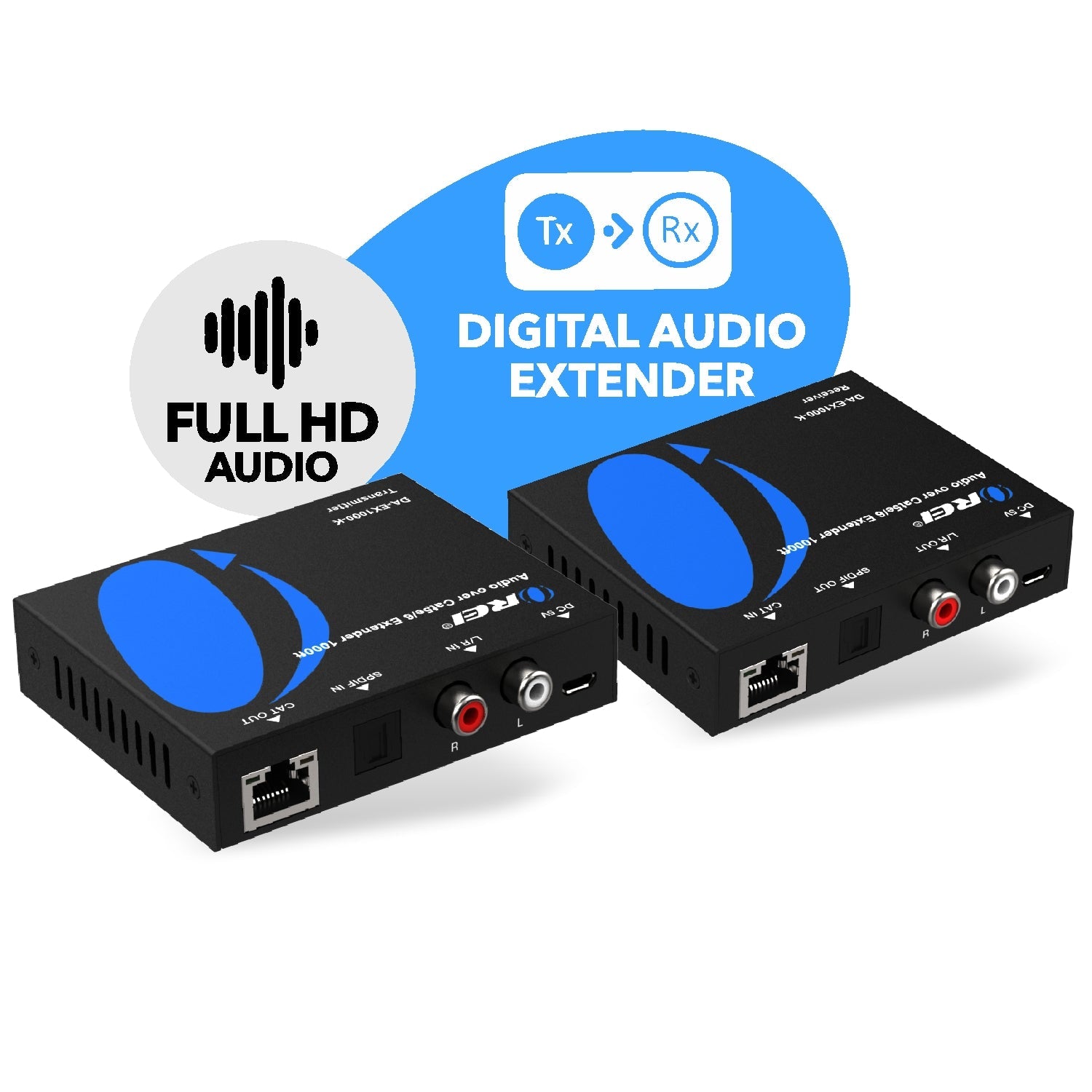

OREI DA-EX1000-K: Digital Audio Over CAT5e Extender
- Long-Distance Audio Extension over CAT Cable – Transmits optical and analog audio signals up to 300m (990ft) at 48kHz, 150m (495ft) at 96kHz, and 100m (330ft) at 192kHz using a single CAT5E/6 cable.
- Supports Multiple Audio Formats – Compatible with LPCM, DTS, Dolby Digital, and Dolby Digital Plus for flexible connectivity with various AV systems.
- High-Resolution Audio Support – Handles sample rates of 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz, and 192kHz with up to 24-bit resolution for premium audio quality.
- Built-in Digital-to-Analog Converter (DAC) – The analog output on the receiver can output either digital or analog audio, selectable via a convenient switch.
- Bidirectional Power over Cable (PoC) – Only one unit requires power, simplifying installation and reducing cable clutter.
- Ultra-Low Jitter, High-Fidelity Audio Design – Ensures clean, accurate signal transmission with minimal distortion or delay.
- Compact and Plug-and-Play – Small form factor with easy, driver-free setup for fast integration into existing systems.

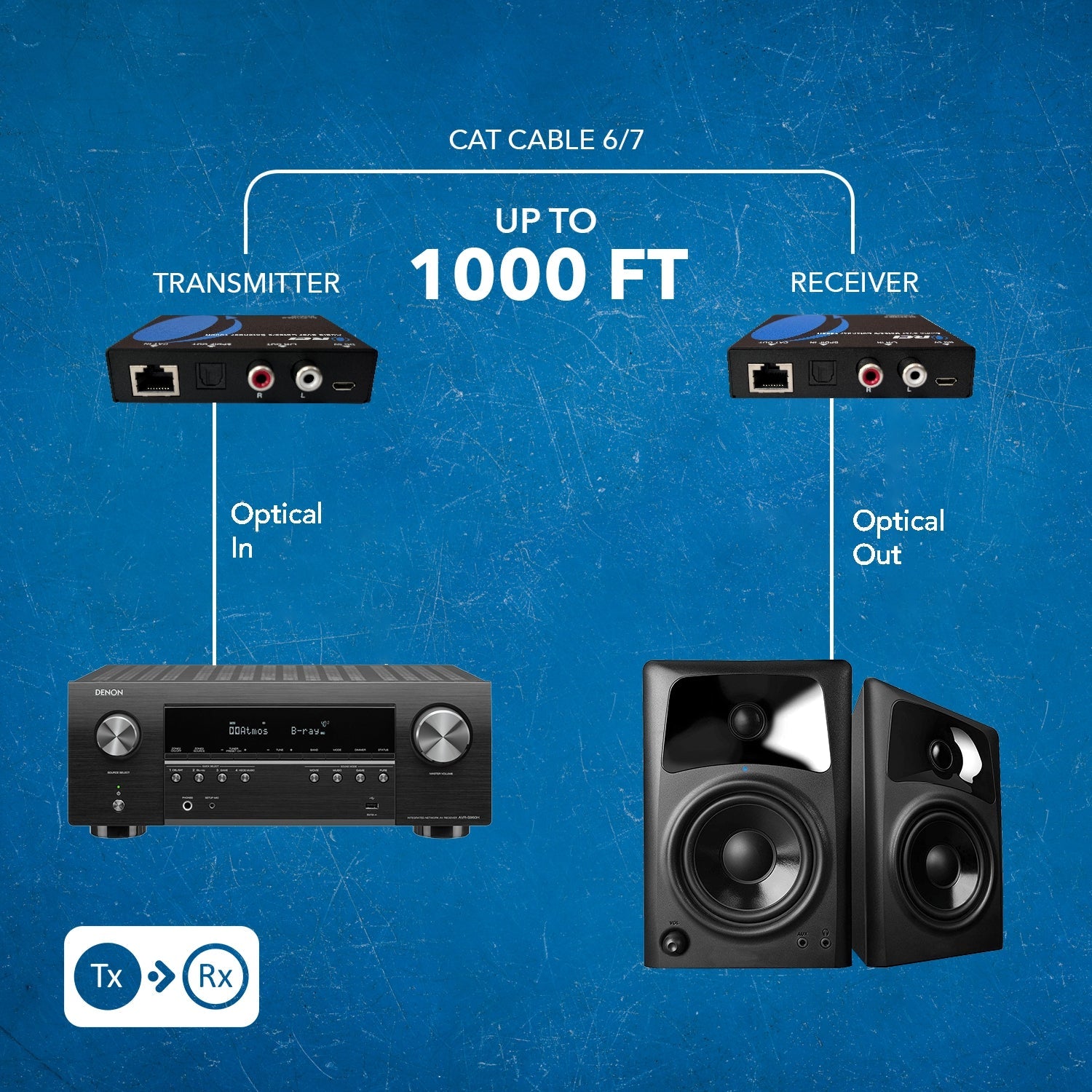

- Ideal for Home and Commercial AV Setups – Perfect for transmitting audio from TVs to amplifiers, AVRs, or multi-room audio systems that require analog stereo input.
The Optical & Analog Audio Extender is a reliable plug-and-play solution for transmitting both digital and analog audio over long distances using a single CAT5E/6 cable. It supports transmission up to 300 meters (990 feet) at 48kHz, offering crystal-clear sound with ultra-low jitter and high fidelity. Compatible with LPCM, DTS, Dolby Digital, and Dolby Digital Plus formats, the extender handles audio resolutions up to 192kHz at 24-bit depth. Featuring a built-in DAC, the receiver offers flexible output options via a manual switch for selecting between digital and analog audio sources. The unit also supports bidirectional PoC, requiring power at only one end of the setup. Ideal for residential and commercial AV applications, this extender is perfect for routing audio from a TV to sound systems or AVRs in remote zones while maintaining signal integrity and ease of installation.
[summary]
- Optical/Coxial Digital Audio Extender
- Supports SPDIF Optical Toslink Digital Audio and Coxial 5.1 Channel
- One-Way Power Over Cable (PoC)
[/summary]
[tab]
AUDIO AND VIDEO
| Transmitter: | INPUT PORTS: | 1x Optical (Toslink) |
| 1x Coaxial SPDIF RCA | ||
| OUTPUT PORTS: | 1x RJ45 | |
| Receiver: | INPUT PORTS: | 1x RJ45 |
| OUTPUT PORTS: | 1 × Optical (Toslink) | |
| 1x Coaxial SPDIF RCA | ||
| 1x Analog Stereo 3.5mm Audio Jack |
EXTENDING DISTANCE
| 1000 Feet |
ADDITIONAL FEATURES
| ARC/eARC: | ❌/ ❌ |
| CEC: | ❌ |
| Transmission Technology: | Ethernet |
| IR Control: | ❌ |
| PoC (Power over Cable): |
✅ |
| RS-232: | ❌ |
| USB Standard: | ❌ |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ❌/ ❌/ ❌ |
AUDIO FORMAT
| Supported Audio Formats: | LPCM, DTS, Dolby Digital and Dolby Digital Plus when used as a straight digital in/digital out extender |
| Sample Rates: | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution |
| Bitrate over Distance: | 192kHz - 100m, 96kHz - 150m, 48kHz - 300m |

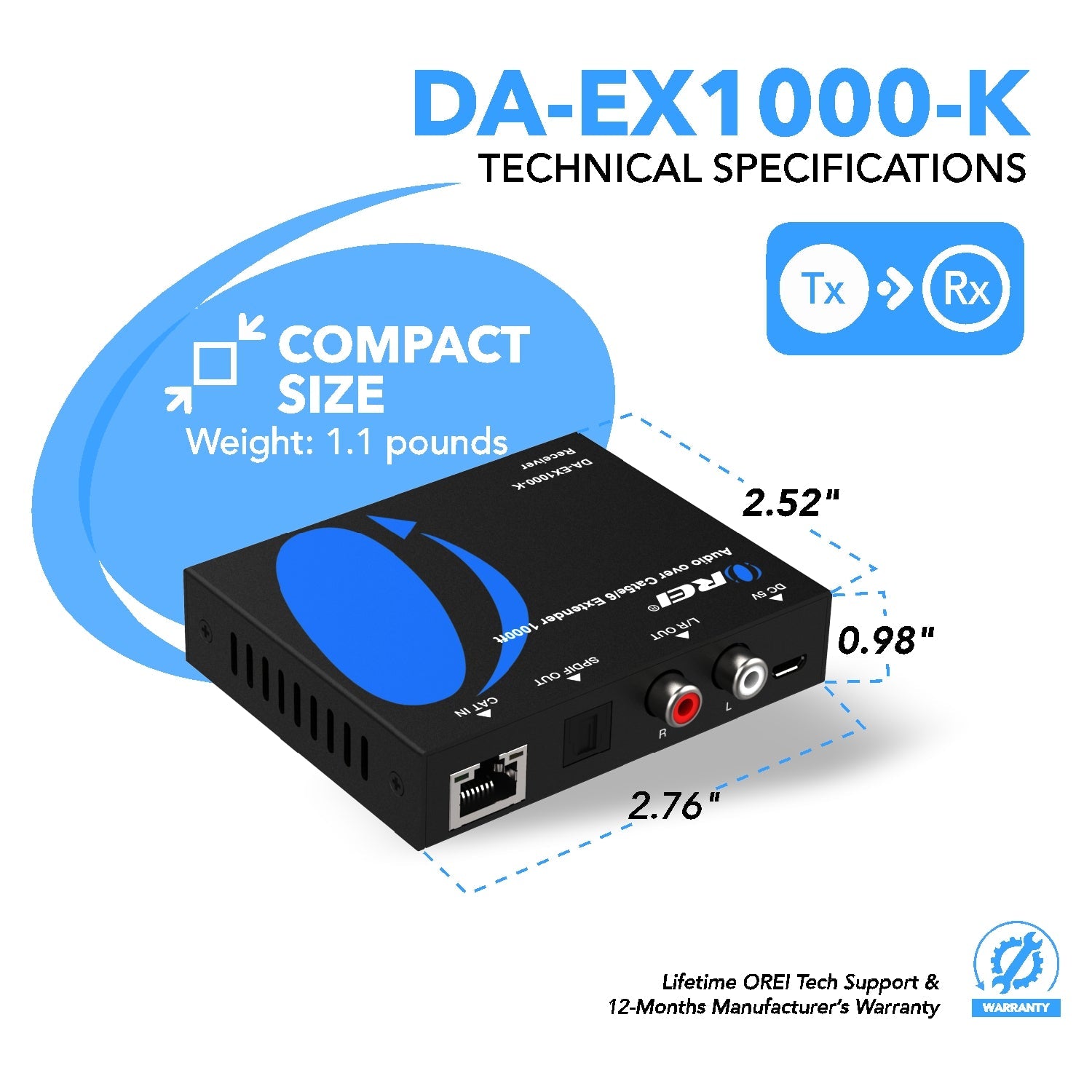

DIMENSIONS & WEIGHT
| Casing-Dimensions: | Height: | 64mm |
| Width: | 69mm | |
| Depth: | 24mm | |
| Dimensions-with connections: | Height: | 64mm |
| Width: | 76mm | |
| Depth: | 28mm | |
| Weight: | 400g | |
PROTECTION
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
| ESD Protection: | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Electrostatic Protection of the whole Machine: | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
POWER
| Power Supply: | 5V/1A DC |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
PACKAGE CONTENTS
| 1x Audio Transmitter |
| 1x Audio Receiver |
| 1x Power Cable |
| 1x User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
[/tab1]
[shortdes]
- Optical/Coxial Digital Audio Extender
- Supports one-way PoC function (from receiver to transmitter)
- Supports SPDIF Optical Toslink Digital Audio and Coxial 5.1 Channel
[/shortdes]
