Samsung BN94-16108A Main Board for UN75TU7000FXZA UN75TU700DFXZA (Version CA05)

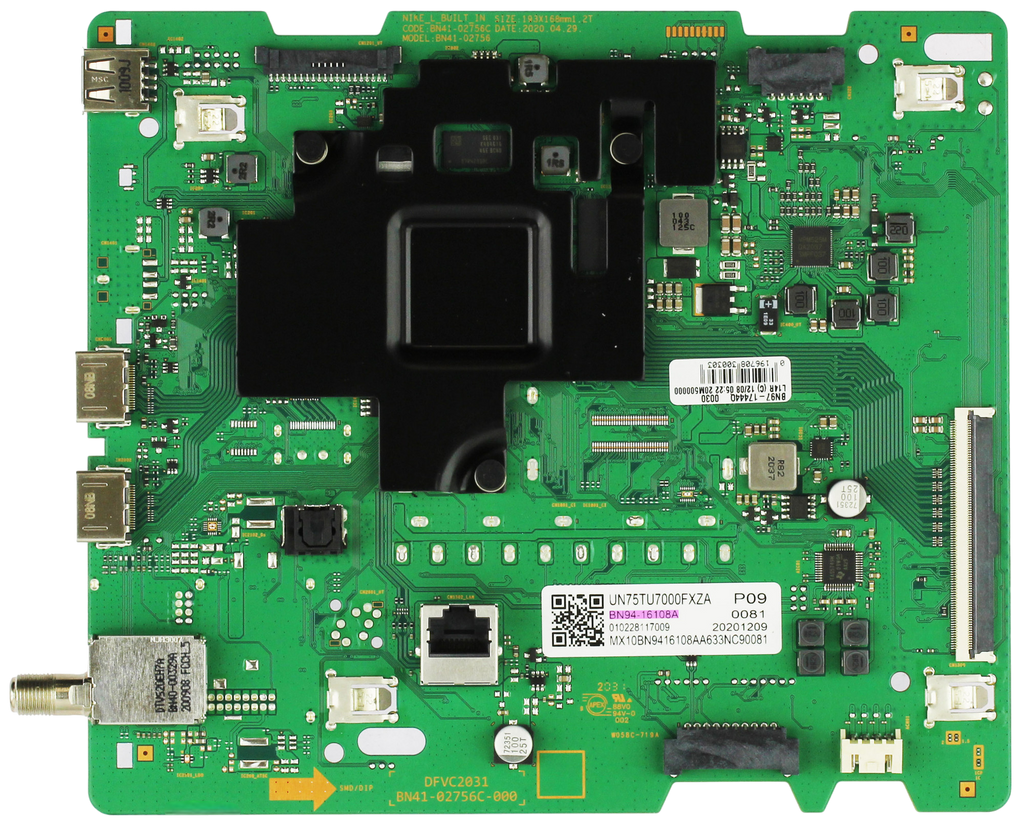

Samsung BN94-16108A Main Board

Location: 00i5

This replacement main board is designed for Samsung 75" LED TVs that use part number BN94-16108A (Version CA05). The main board controls video processing, input handling (HDMI/USB), audio output, and overall system logic. It’s a common replacement when the TV powers on but displays no picture, fails to recognize sources, or exhibits signal/audio issues.

---

Part & Board Numbers

• Part Number: BN94-16108A
• Board / Printed Numbers (may appear on the sticker or silkscreen):
  • BN94-16108A
  • Variant board IDs may also be present depending on your TV’s region/version.

Always match the part number printed on your original board before ordering — identical model numbers can use different board versions.

---

Compatible TV Models

• Samsung UN75TU7000FXZA (Version CA05)
• Samsung UN75TU700DFXZA (Version CA05)

Other Samsung sets in the TU7000/TU700D series with the same board specification may also be compatible — verify board number before ordering.

---

Typical Issues Addressed by This Board

• TV powers on but screen remains black or shows no picture
• No HDMI or input detection despite correct source and cables
• TV stuck on logo, fails to boot, freezes, or reboots repeatedly
• No audio or distorted sound even though input appears correct
• Loss of smart TV functionality — menus, apps, or on-screen display not functioning

Note: These symptoms might also stem from a failing power supply board, T-Con board, or panel — proper diagnostics are recommended.

---

Installation & Handling Instructions

• Unplug the TV and wait several minutes for internal capacitors to discharge before servicing.
• Use anti-static (ESD-safe) handling when working with circuit boards.
• Disconnect and reconnect all ribbon cables and connectors carefully; ensure they are fully seated and locked.
• Avoid bending the board or forcing connectors — proper alignment and gentle handling are essential.

---

Condition & Testing

• Professionally inspected and fully tested for correct function.
• Guaranteed working replacement main board for the part number listed.

---

Warranty & Returns

• Warranty: 180-Day Warranty.
• Returns accepted if the board is unmodified, undamaged, and installed correctly.
• Please retain your original board until the repair is confirmed successful.

---

Shipping

• Ships from Brighton, TN (or your standard shipping facility).
• Secure, protective packaging to ensure safe transit.
• Expedited shipping available at checkout if selected.

---

If you’re not sure this is the correct main board for your TV, feel free to contact us before ordering — we’re happy to help verify compatibility based on your TV’s sticker or serial version.
