Description

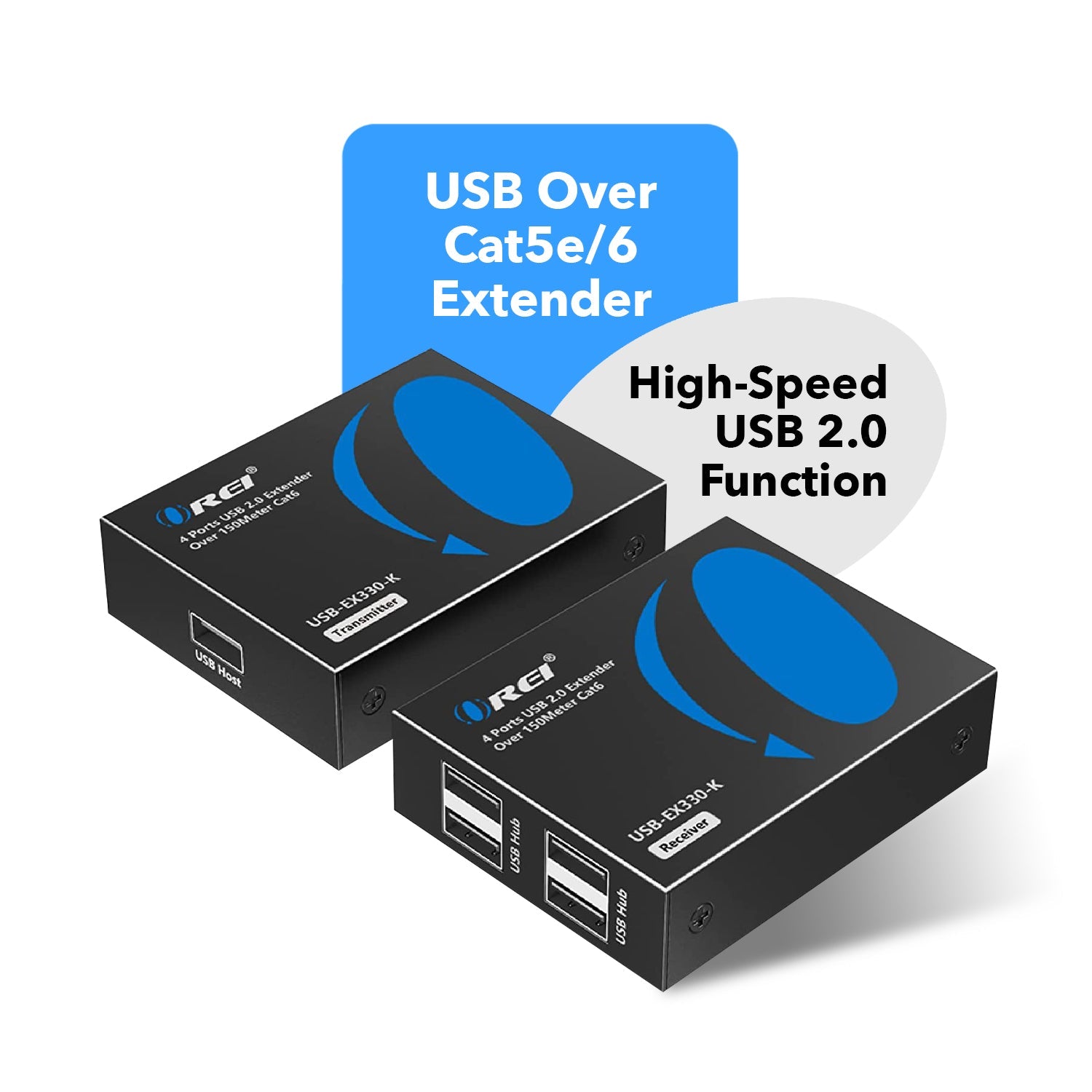

USB-EX330-K: 4 Port USB Extender over CAT 6/7/8 up to 150M
-
USB 2.0, 1.1, and 1.0 Compliant – Ensures compatibility with a wide range of USB devices.
-
High-Speed Data Transfer – Supports data transmission speeds up to 480Mbps.
-
Extend USB Signals up to 330 Feet – Uses a single CAT6/7 cable to transmit USB signals over long distances.
-
Connect up to Four USB Devices – Receiver features 4 USB 2.0 ports for printers, webcams, USB drives, and more.
-

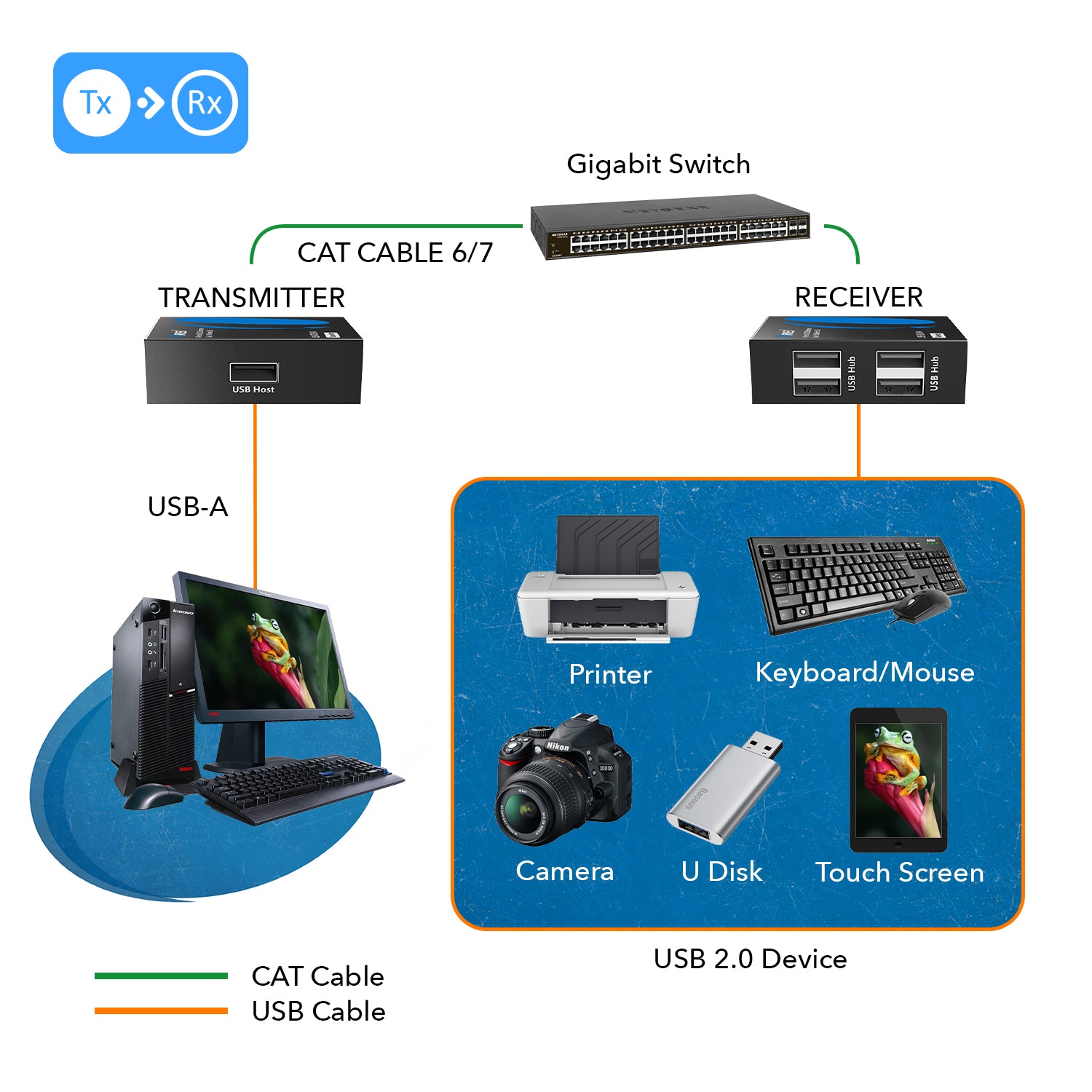

Supports Expansion with Network Switch – Extend distance even further using a 1Gb Ethernet switch.
-
Powered by the Source – Transmitter does not require a separate power adapter.
-
Durable and Compact Design – Built for long-term use in various environments.

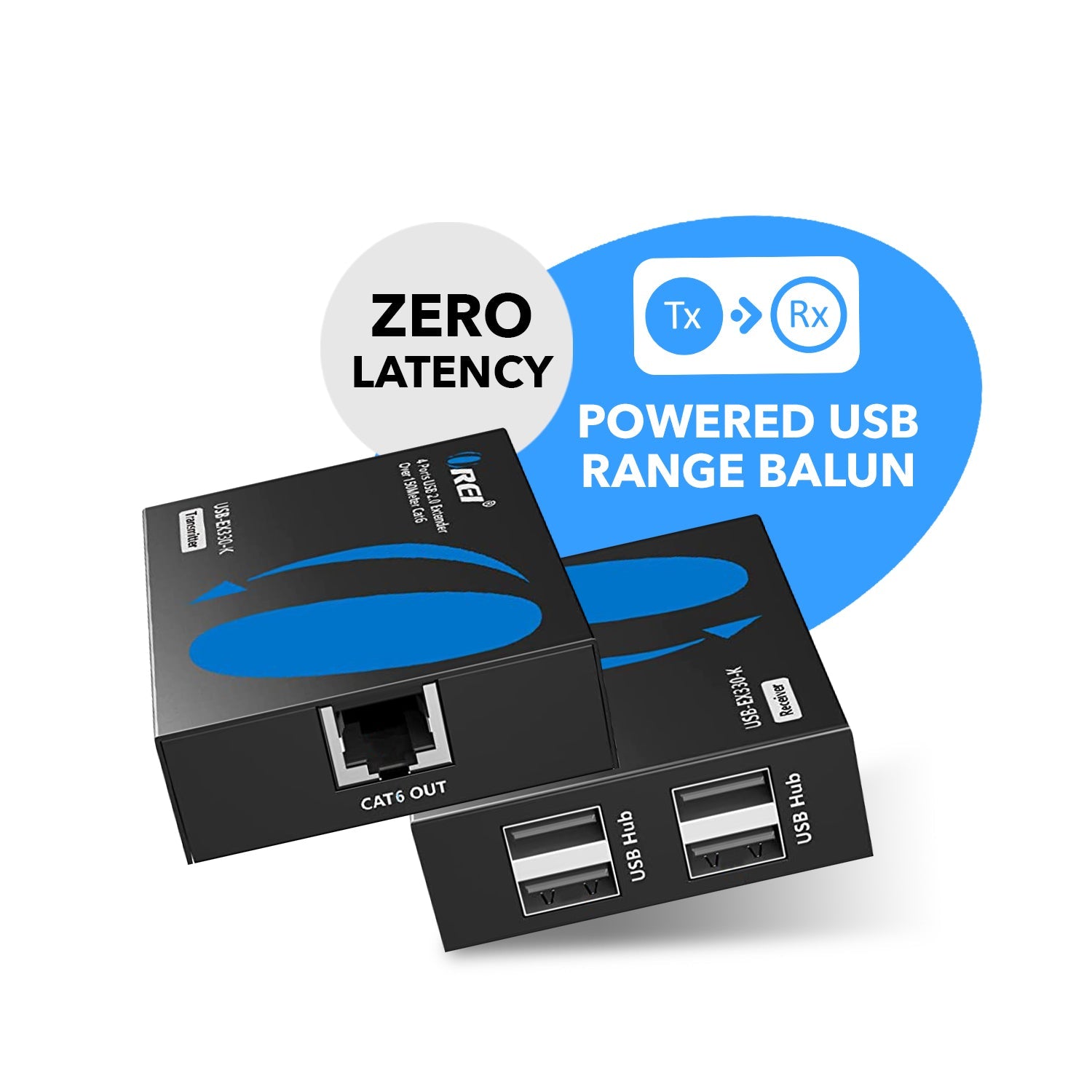

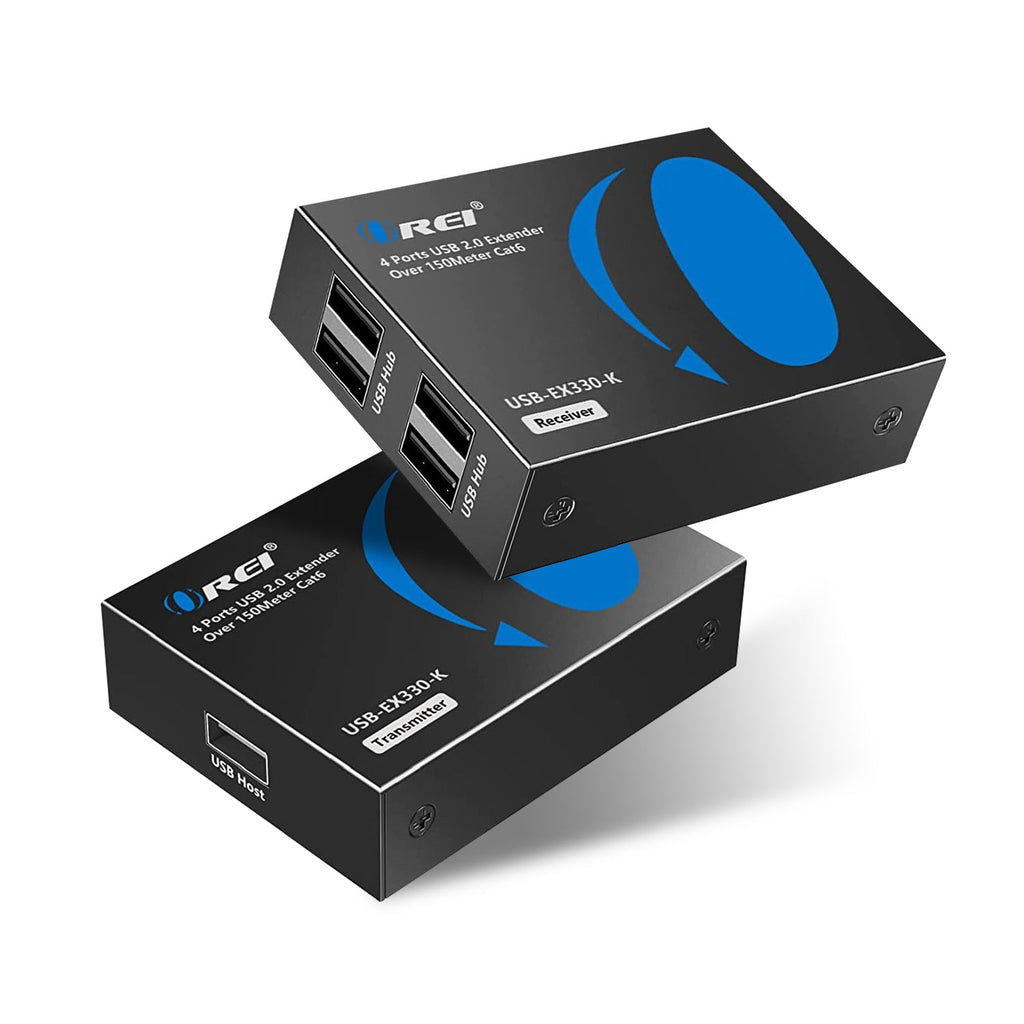

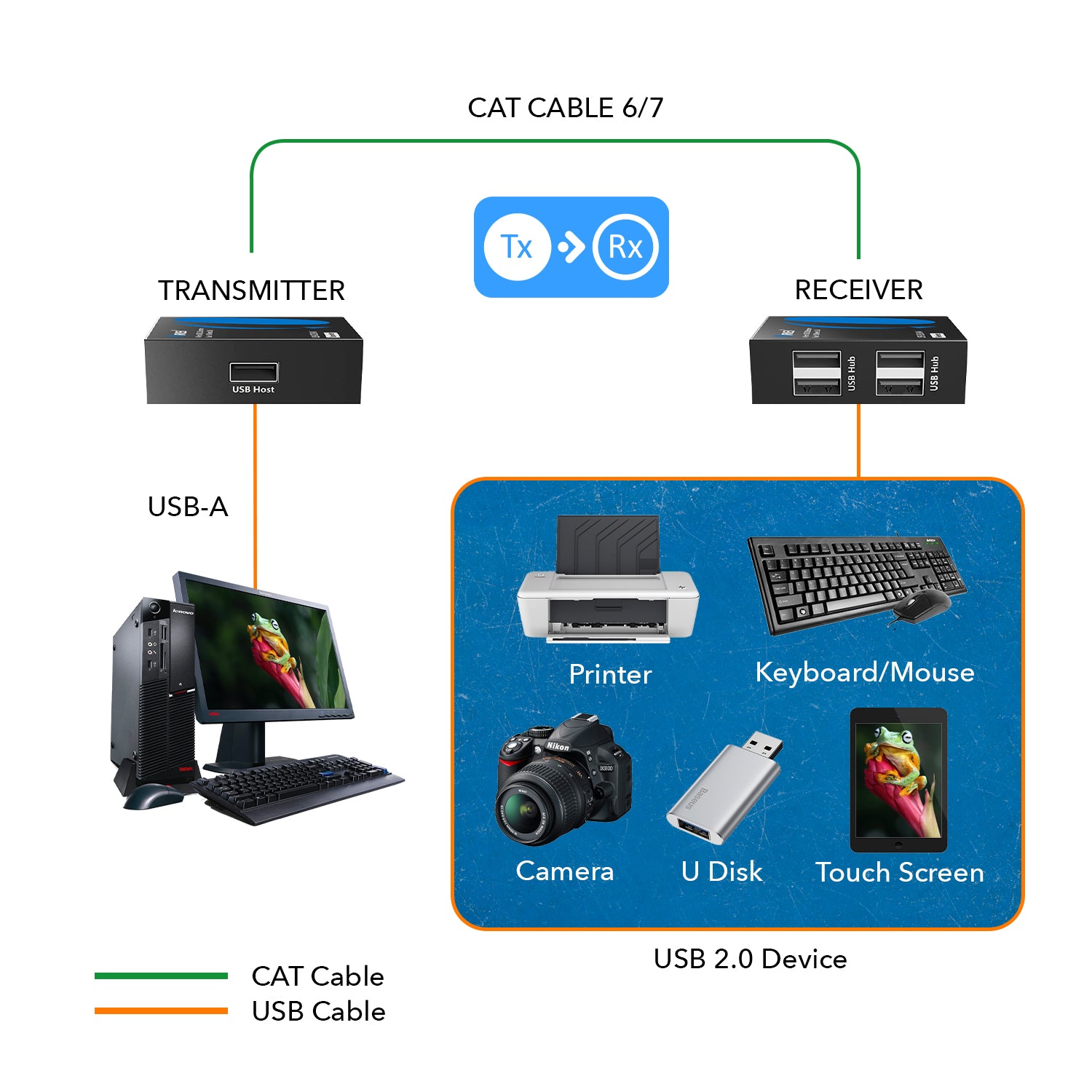

The USB-EX330-K is a USB extender kit that allows USB 2.0 signal transmission over a single CAT6/7 cable up to 330 feet. With backward compatibility for USB 1.1 and 1.0, it supports data transfer speeds up to 480Mbps and enables seamless connection of up to four USB devices such as printers, webcams, and flash drives.
The system is powered directly from the source, eliminating the need for an additional power adapter at the transmitter end. Its reliable performance and durable build make it ideal for both commercial and residential applications.
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × USB [USB-A, female] |
| OUTPUT: | 1 × CAT [RJ45, 8-Pin, female] | |
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-Pin, female] |
| OUTPUT: | 4 × USB [USB-A, female] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x USB cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e/6/7 cables: | We recommend you use CAT6/7 cables for optimum performance. |
EXTENDING DISTANCE
| USB 2.0: | 330 Feet |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | Yes |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
COMPLIANCES
| USB Compliance | USB 2.0 |
POWER
| Power Consumption: | TX: ≤2W & RX: ≤2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/3A |

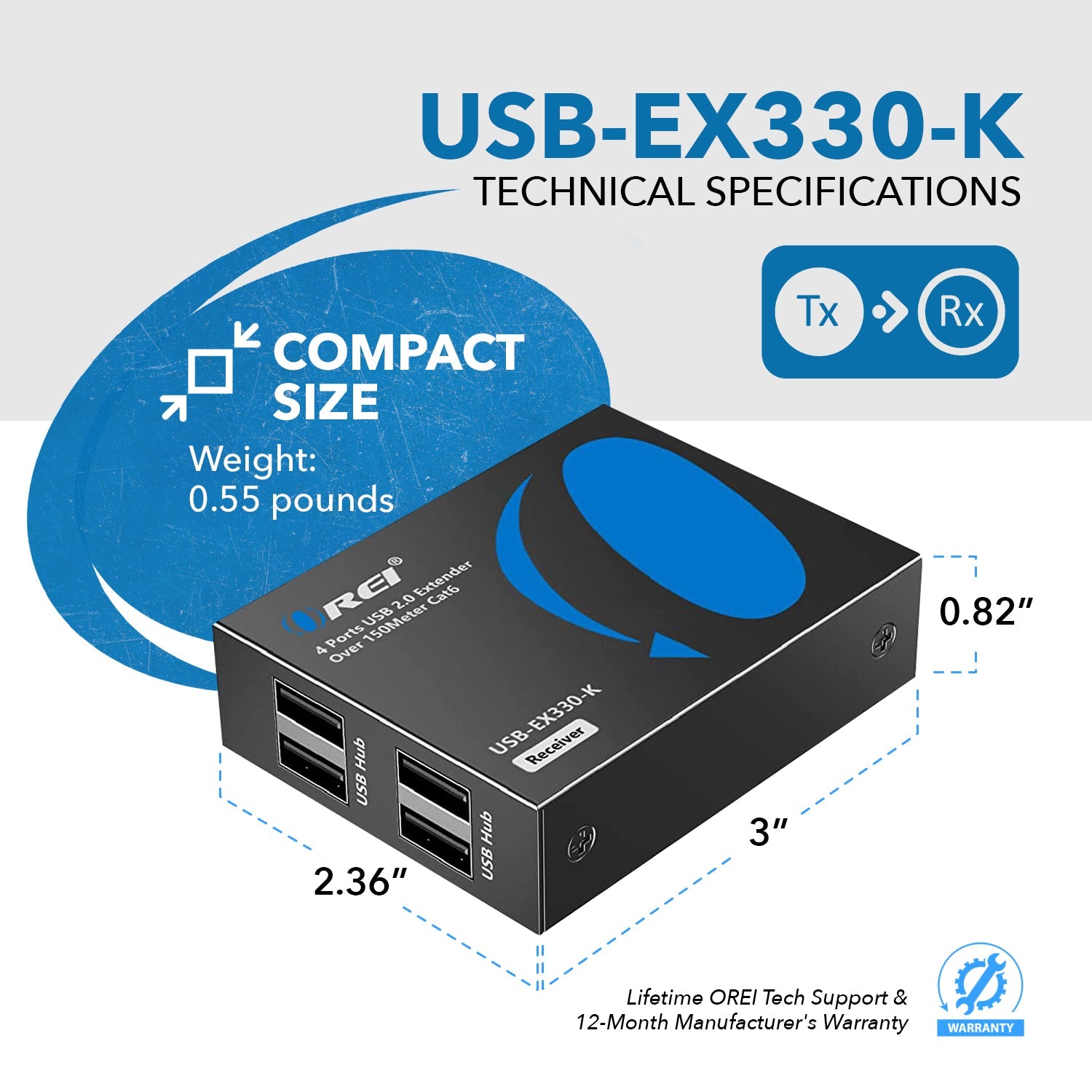

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 76mm / 2.99in |
| Width: | 60mm / 2.36in | |
| Height: | 21mm / 0.83in | |
| Weight: | 123g / 4.34oz | |
| Receiver: | Length: | 76mm / 2.99in |
| Width: | 60mm / 2.36in | |
| Height: | 21mm / 0.83in | |
| Weight: | 128g / 4.52oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- USB 2.0 support
- Acces or control up to 4 USB devices
- Works over a network switch
[/shortdes]
