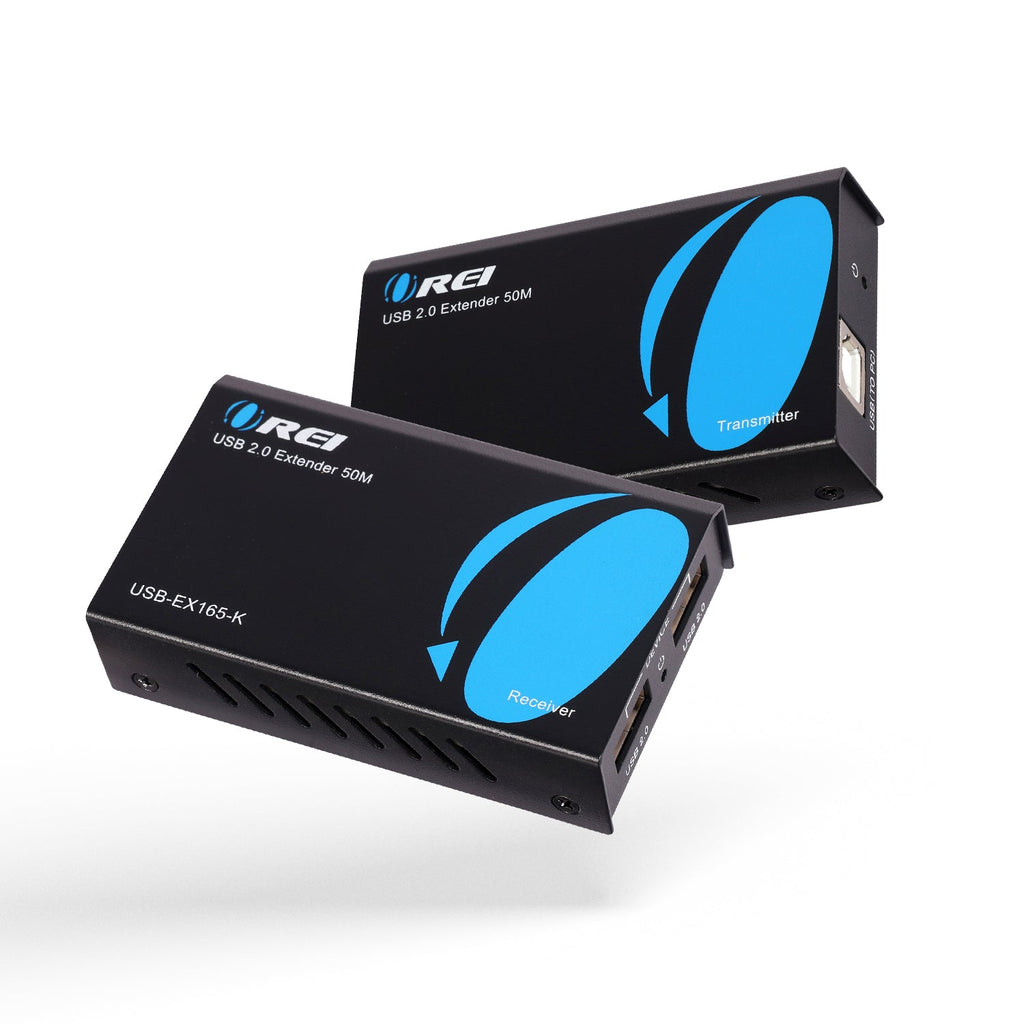

OREI USB-EX165-K: USB 2.0 EXTENDER (USB-B TO USB-A) - 165FT (CAT6)

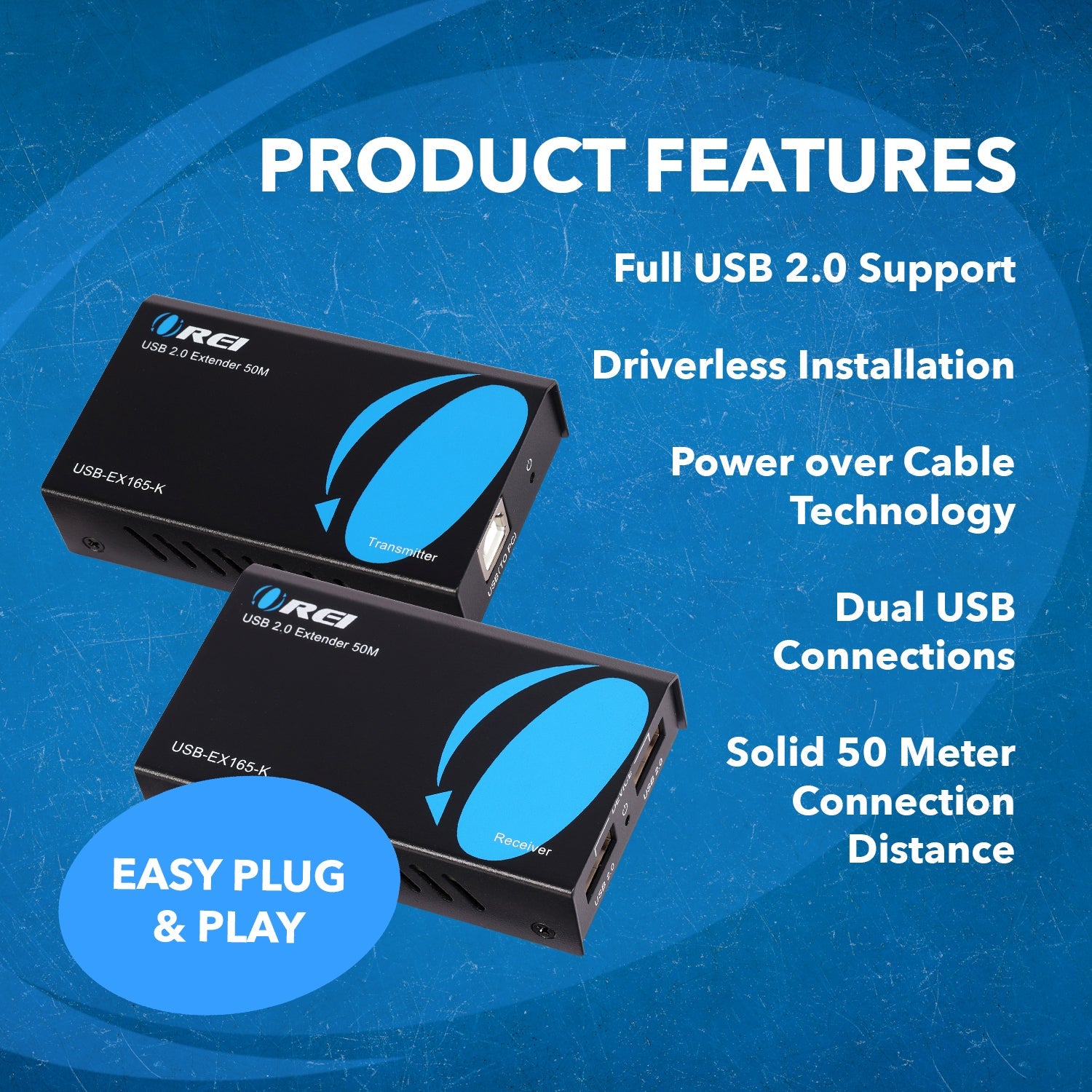

Key Features:
- USB 2.0 Protocol Support – Compliant with USB 2.0 standard; supports data transmission speeds up to 480Mbps.
- Long-Distance Extension – Extends USB signal up to 50 meters (164ft) via a single CAT5e/6 cable.
- Note: For some USB 2.0 hubs, the maximum supported range is 40 meters (131.2ft).
- 1 x USB-B Input (Transmitter Side) – Connects directly to the host PC or media source.
- 2 x USB 2.0 Outputs (Receiver Side) – Allows connection of devices like USB drives, printers, webcams, or keyboards/mice.
- Powered Receiver – The receiver is powered via an included 5V/1A power adapter for stable operation.
- Plug-and-Play – No drivers or software installation required. Easy setup and instant operation.
- Compact, Durable Design – Small form factor allows for flexible installation in tight spaces or behind displays.

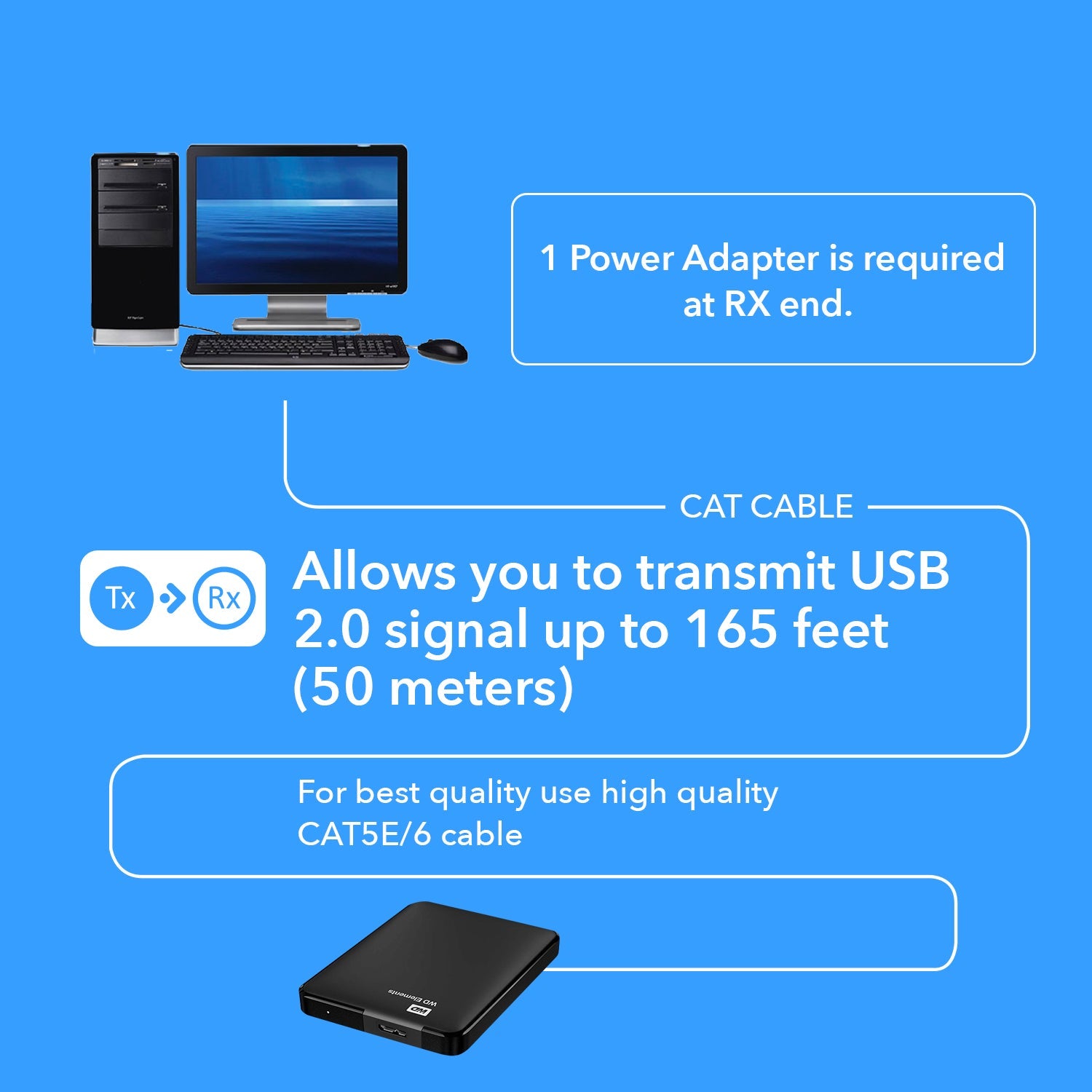

This USB 2.0 Extender is designed to transmit USB signals over long distances using a single CAT5e or CAT6 cable. Capable of extending the signal up to 50 meters (164 feet), it supports high-speed USB 2.0 data transmission at up to 480Mbps, making it ideal for connecting devices like USB flash drives, printers, and webcams located far from the source computer.

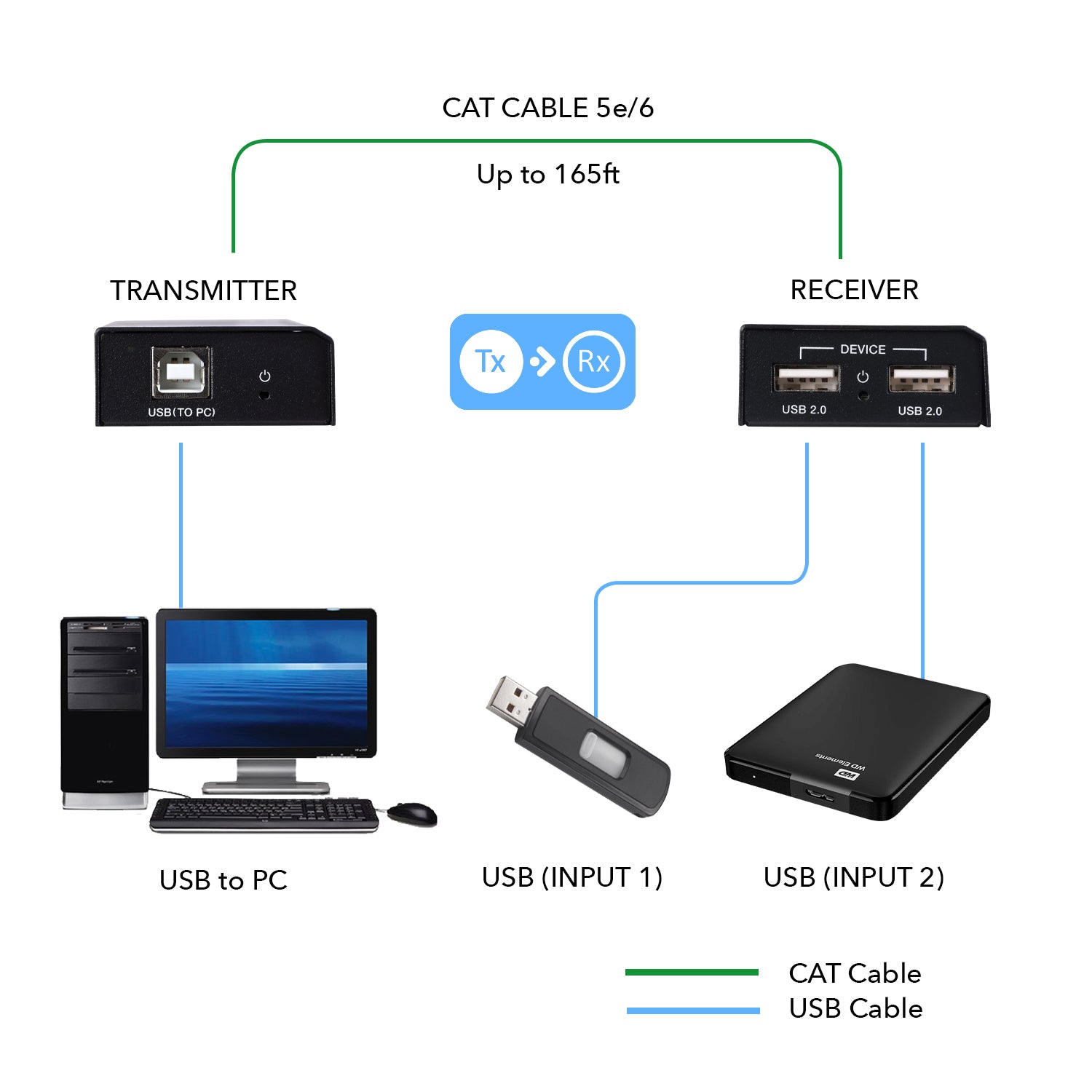

The transmitter connects to the host computer via a USB-B port, while the receiver offers two USB 2.0 outputs to connect your remote peripherals. The system is plug-and-play, requiring no driver installation, and the receiver unit is powered by a 5V/1A power adapter (included).
Whether you're extending USB devices in a commercial environment, home setup, or conference room, this extender provides a cost-effective, reliable, and easy-to-install solution.
[tab]
CONNECTIVITY
| Transmitter: |
INPUT: |
1 × USB [USB-B, female] |
|
OUTPUT: |
1 × CAT [RJ45, 8-Pin, female] |
| Receiver: |
INPUT: |
1 × CAT [RJ45, 8-Pin, female] |
|
OUTPUT: |
2 × USB [USB-A, female] |

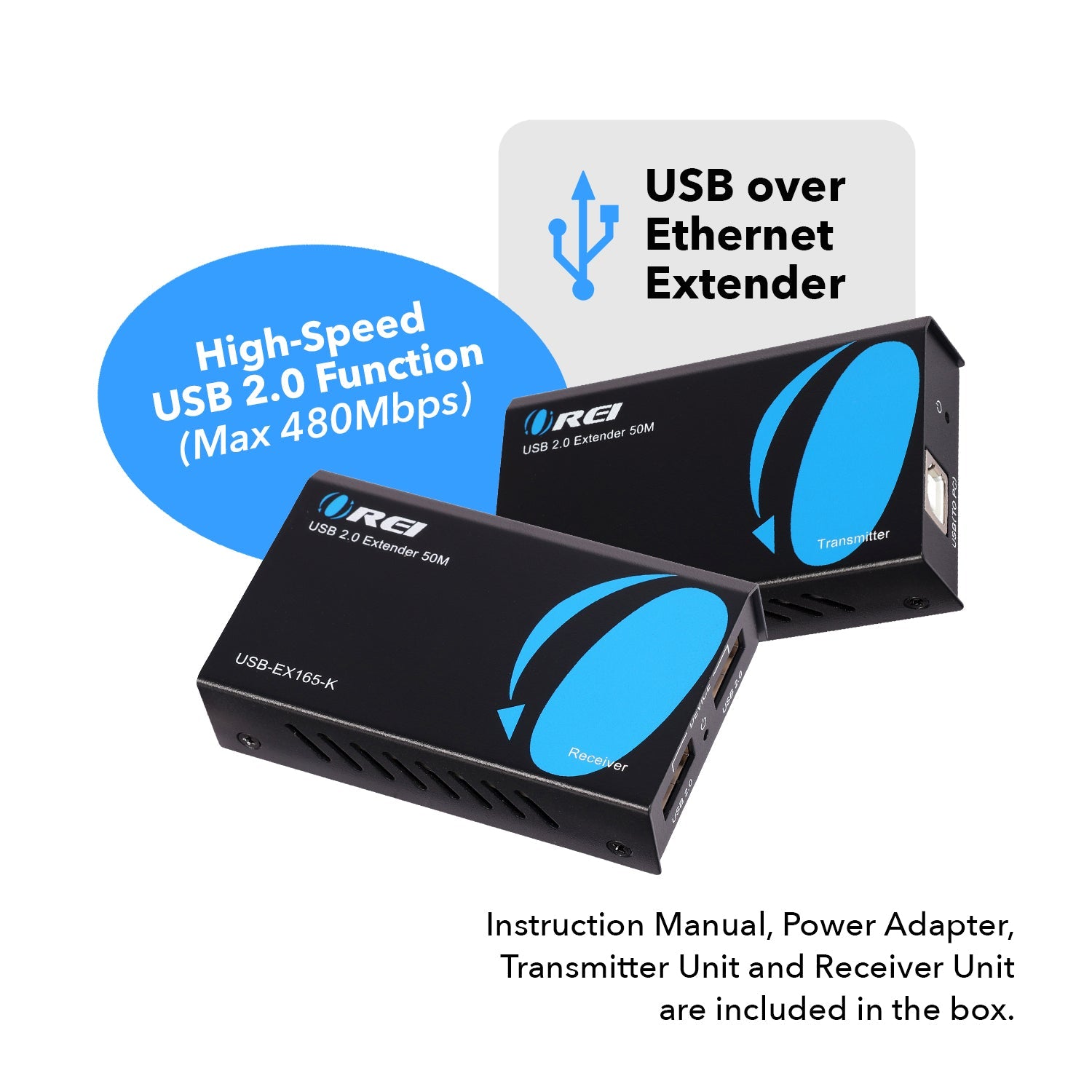

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x USB cable |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e/6/7 cables: |
We recommend you use CAT6/7 cables for optimum performance. |
EXTENDING DISTANCE
ADDITIONAL FEATURES
| ARC/eARC: |
No / No |
| CEC: |
No |
| Transmission Technology : |
Ethernet |
| IR Control: |
No |
| PoC (Power over Cable): |
No |
| RS-232: |
No |
| USB Standard: |
USB 2.0, 1.1 and 1.0 |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
No / No / No |
COMPLIANCES
POWER
| Power Consumption: |
TX: 0.7W & RX: 1W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/1A |
|

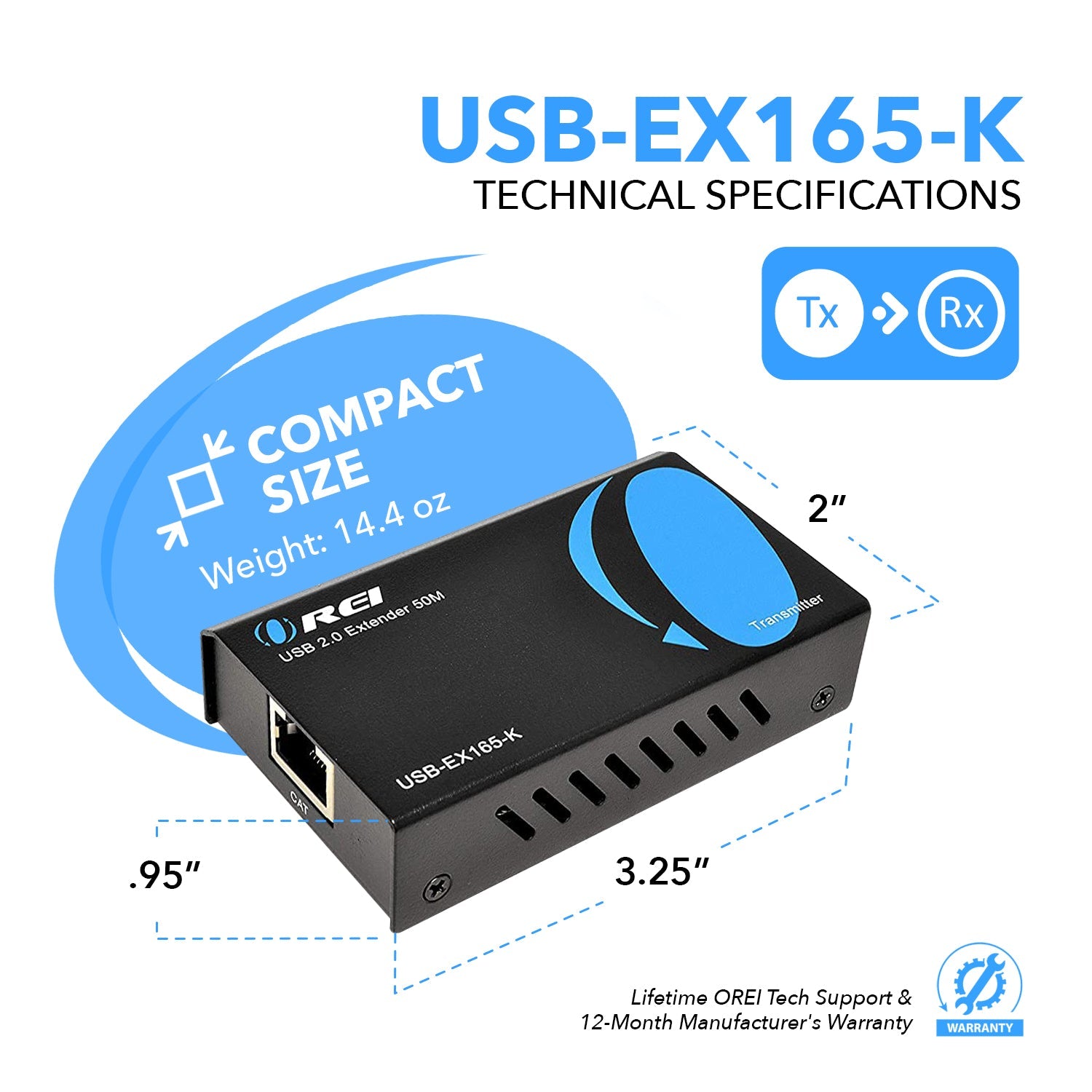

DIMENSIONS & WEIGHT
| Transmitter: |
Length: |
82mm / 3.23in |
|
Width: |
49mm / 1.93in |
|
Height: |
20mm / 0.79in |
|
Weight: |
100g / 3.5oz |
| Receiver: |
Length: |
82mm / 3.23in |
|
Width: |
49mm / 1.93in |
|
Height: |
20mm / 0.79in |
|
Weight: |
100g / 3.5oz |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- 480Mbps USB2.0 Over CAT6/7 Extender Up To 165 Feet
- Supports USB 2.0 protocol with a transmission rate of up to 480Mbps.
- Designed to be compact, facilitating easy and flexible installation.
[/shortdes]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
