Description

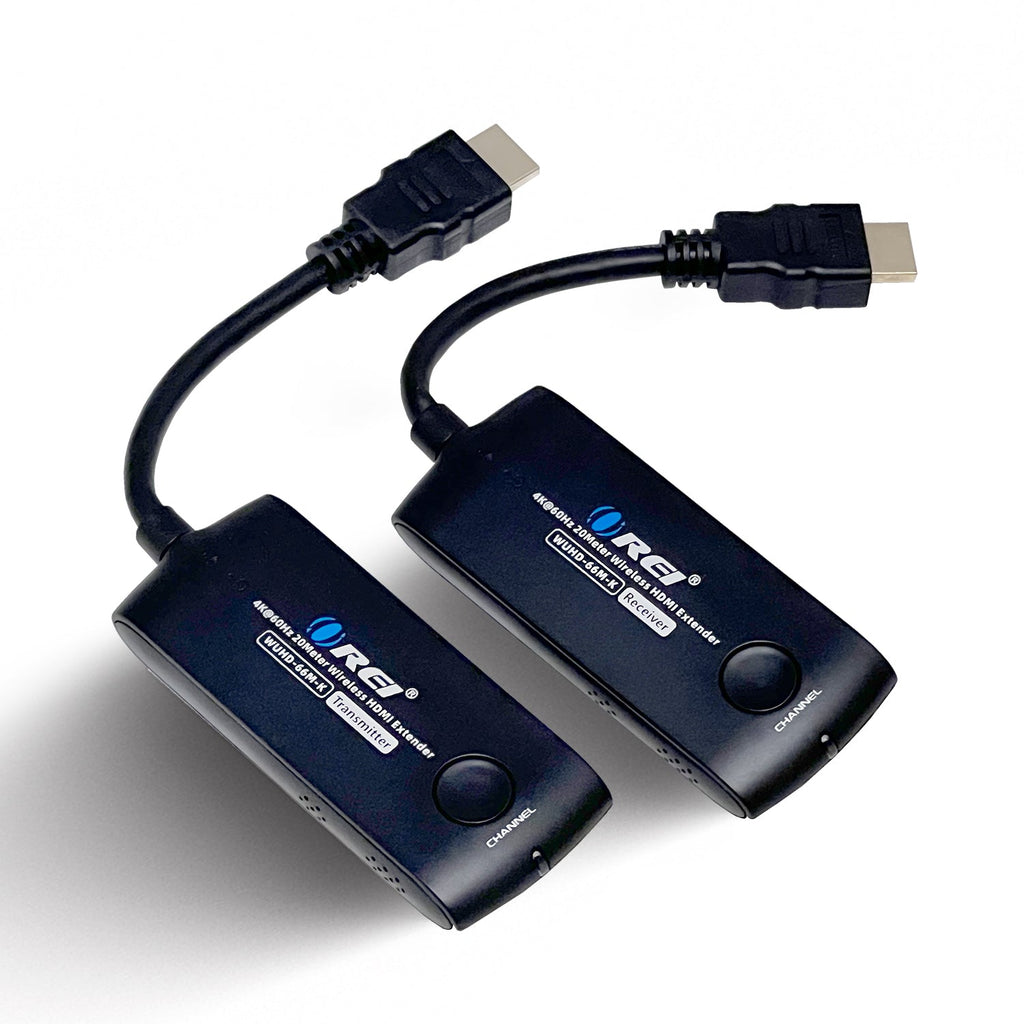

WUHD-66M-K: 4K@60Hz Wireless HDMI Extender up to 65 feet
- HDMI 2.0 & HDCP 2.2 Compliant
- Video resolutions up to 4K@60Hz

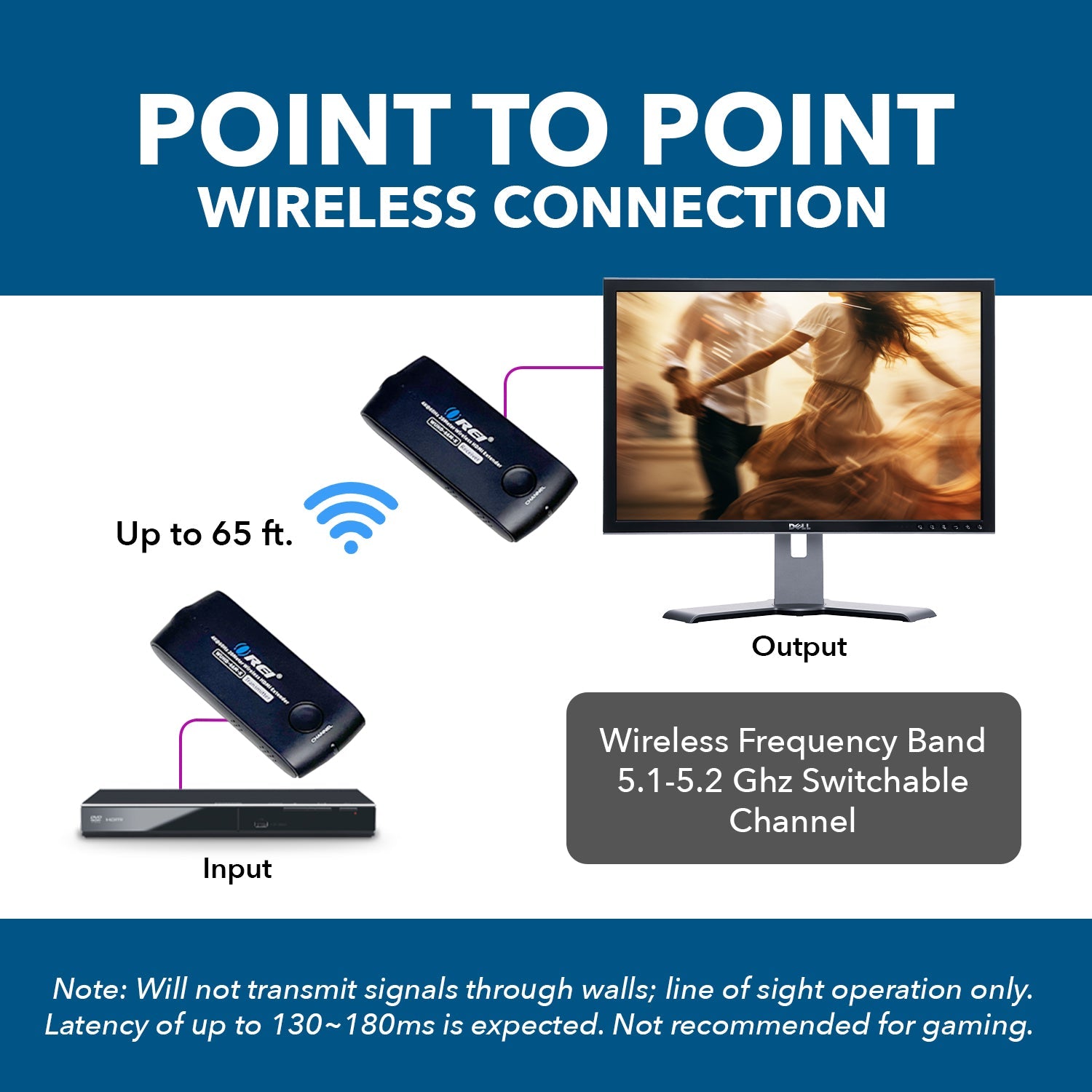

- Wireless transmission up to 20M/65Ft line of sight.

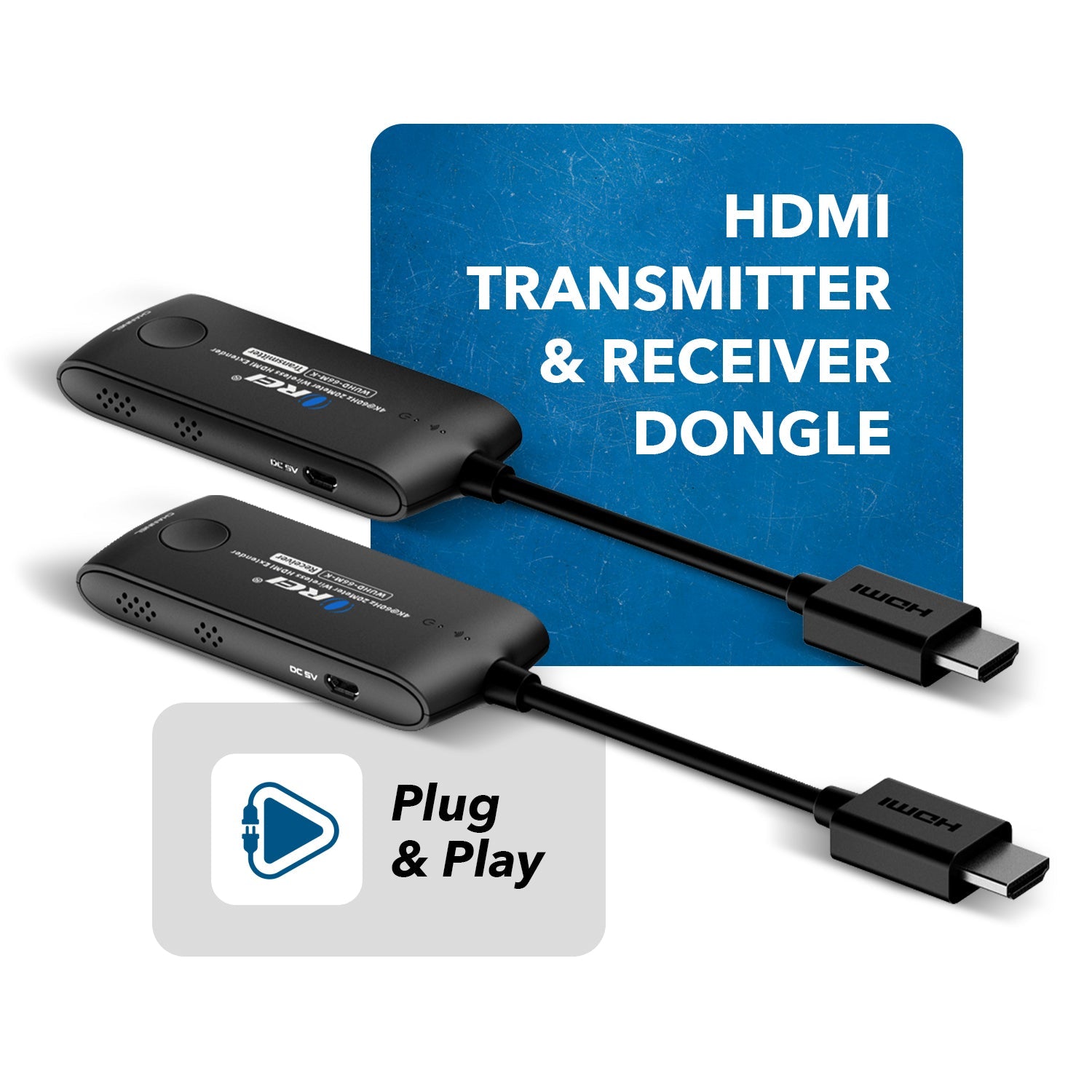

- HDMI male connectors on both ends, removing the need for HDMI cables.
- SSID Pairing and Channel Switching to avoid interference with other nearby devices.
- 5G wireless frequency bands for strong anti-interference.
- Plug & Play setup, no drivers or software required.
The WUHD-66M-K Wireless HDMI Extender can extend an HDMI signal up to 65 feet(20m) with 4K@60Hz resolution. The device uses ipcolor STREAM Technology to deliver high-definition, low-latency video transmission. 5G wireless frequency bands provide several advantages over traditional 2.4GHz and 5GHz bands, including stability, speed, security and anti-interference. The product features HDMI male connectors on both ends thus removing the need for HDMI cables. It supports 1-to-1 wireless transmission, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for office meetings, home entertainment, multimedia education, etc.
[shortdes]
- 5g Wireless HDMI extender
- Extends 4K@60Hz up to 65 feet line of sight
-
HDMI male connectors on the receiver and transmitter
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin male] |
| 1 x DC 5V [Micro-USB, Power Input] | ||
| Receiver: | INPUT: | 1 x DC 5V [Micro-USB, Power Input] |
| OUTPUT: | 1 x HDMI [Type A, 19-pin male] |

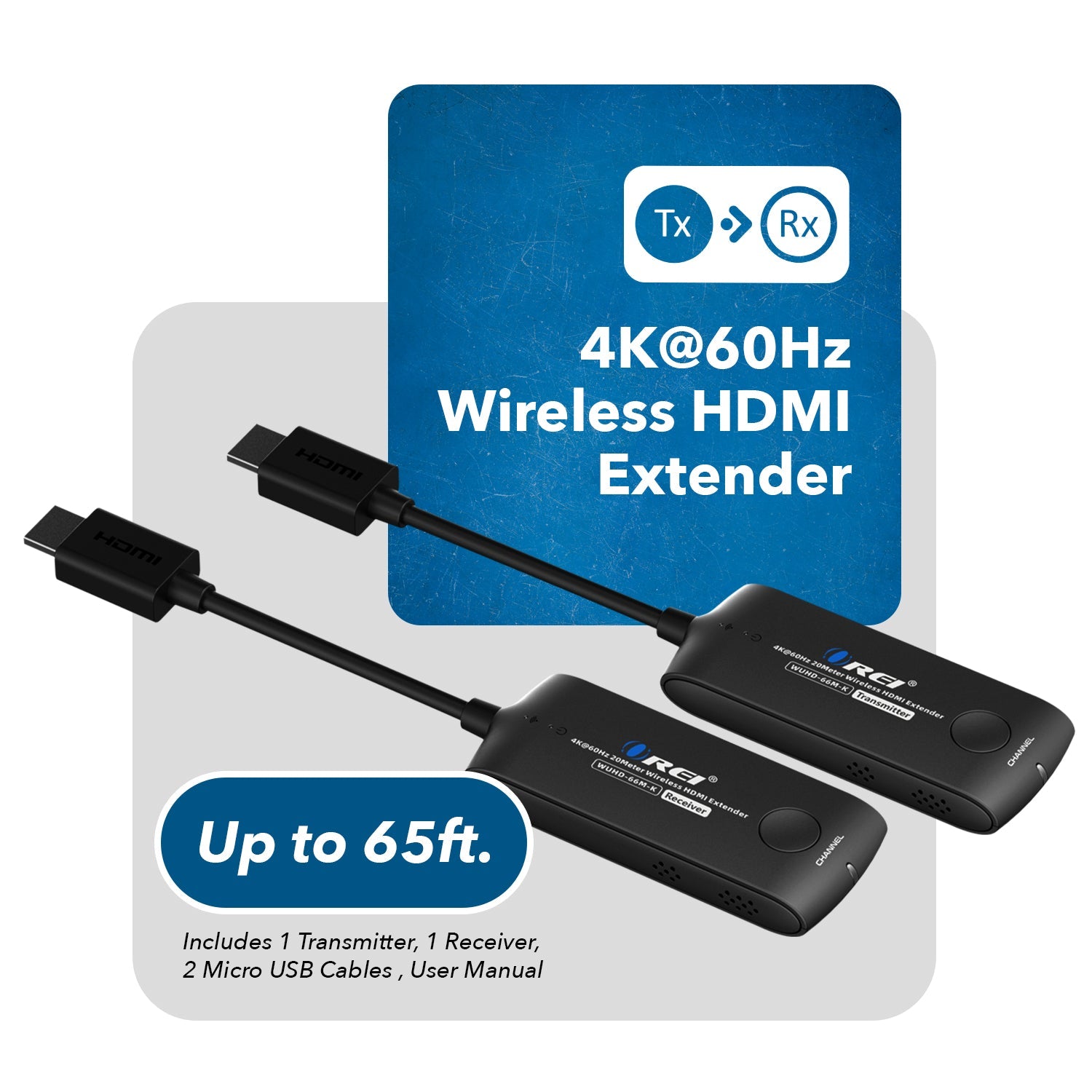

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
|
2x Micro-USB cable |
| User Manual |
EXTENDING DISTANCE
| 4K@60HZ: | 65 feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | Tx: ≤4.5W Rx: ≤3.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |

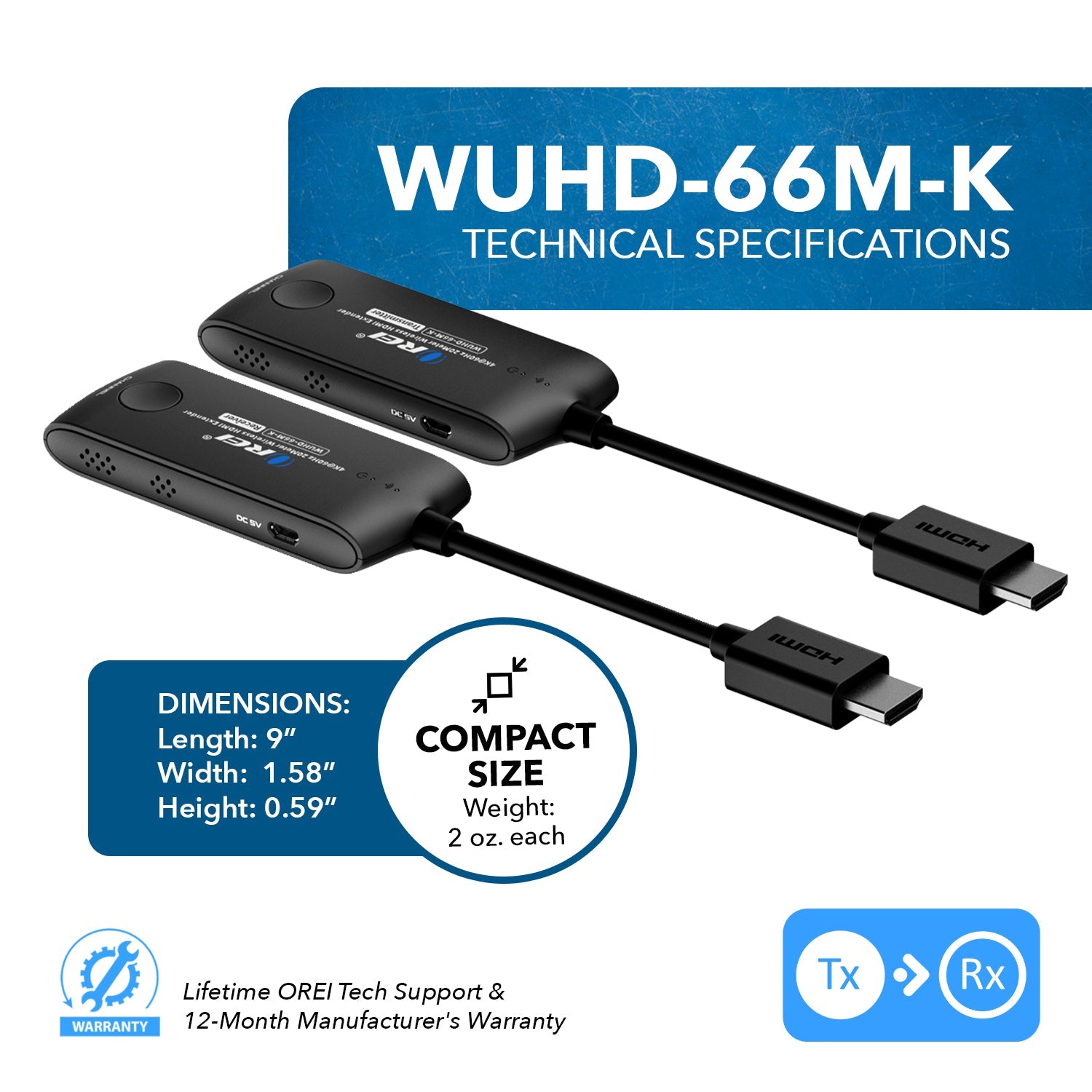

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 230mm / 9.05in |
| Width: | 40.2mm / 1.58in | |
| Height: | 15mm / 0.59in | |
| Weight: | 58g / 2oz | |
| Receiver: | Length: | 230mm / 9.05in |
| Width: | 40.2mm / 1.58in | |
| Height: | 15mm / 0.59in | |
| Weight: | 58g / 2oz |
PROPERTIES
| Color: | Black |
| Housing: | ABS Plastic |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
Please try replacing your current HDMI cables with High-Quality HDMI cables.Please make sure that you dont have any other wireless devices such as wifi router nearby this extender.If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you can implement the daisy chain method.
We recommend you to use High-Quality HDMI cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
